Brandt FE 211 User manual

Using your oven
Model: FE 211
9962-5611 MULTI LANGUES.qxd 30/10/02 10:17 Page 1

Contents
Throughout this manual, indicates safety recommendations,
indicates advice to help you make the best
use of your oven
Introduction P.3
Your oven P.4
How it works P.4
Accessories P.5
Safety recommendations P.6
How to install your oven
Electrical connections P.7-8
Dimensions for installation use P.9
How to use your oven
The timer P.10
How to cook straightaway P.10
How to programme the cooking P.11
Cooking methods P.12-13
Changing a bulb P.14
Looking after your oven P.15
Troubleshooting P.16
2
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 2

Introduction
3
Dear Customer,
Thank you for buying a BRANDT oven.
Our design staff have produced a new generation of kitchen equipment,
to make everyday cooking a pleasure.
You will find that the clean lines and modern look of your Brandt oven
blends in perfectly with your kitchen décor. It is easy to use and per-
forms to a high standard.
Brandt also makes a range of products that will enhance your kitchen
such as hobs, extractor hoods, built-in dishwashers and refrigerators.
There are models to complement your new Brandt oven.
Of course, we make every effort to ensure that our products meet all
your requirements, and our Customer Relations department is at your
disposal, to answer all your questions and to listen to all your sugges-
tions (see back cover of manual).
Brandt has always been a leader in the development of new products,
thus enhancing the quality of everyday life by providing increasingly
efficient products, that are easy to use, respect the environment, and are
attractive and reliable.
The BRANDT name.
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 3

4
55
75
100
125
150
180
210
240
270
5
3
1
123
4
5
6
Timer
Temperature control
Feature selector
1
2
3
Light
Rail positions
Hole for rotisserie
4
5
6

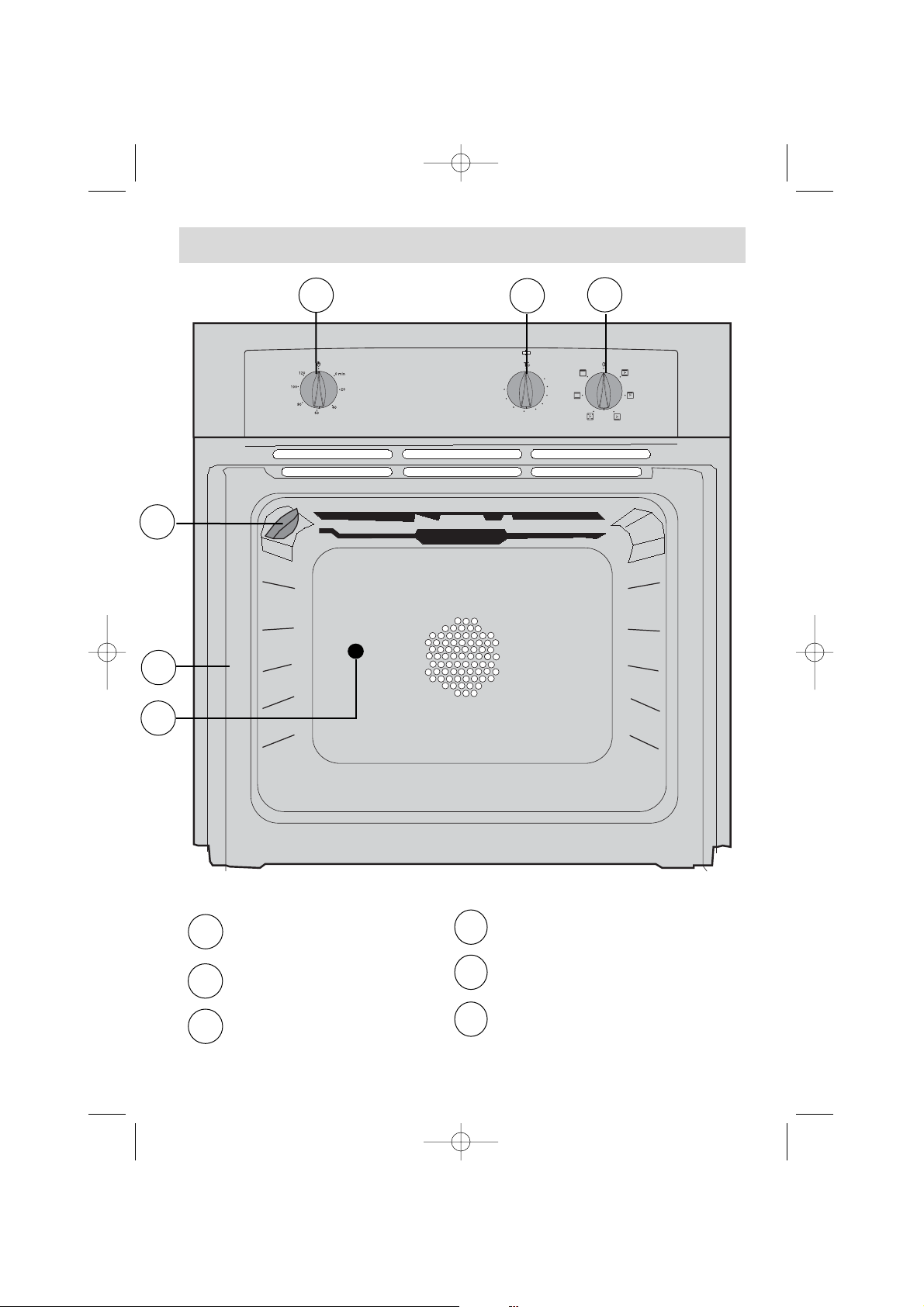

OVEN FEATURES
Your oven
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 4

5
Anti-tip safety shelf
Food can either be placed on the shelf in a
dish or cake tin for cooking or browning, or
may be placed directly on the shelf itself.
Multi-purpose baking tray
This tray has a raised edge and can be used
for baking pastries (choux buns, meringues,
small cakes, flaky pasties, etc).
Joints should not be cooked in this tray
uncovered because fat could spit all over the oven sides.
Grill Tray
With special grid for grilling
The tray can be used for collecting juices
when cooking with the grill element by itself
or with the oven set to pulsed grill (grill and
fan). It is particularly useful as a large roas-
ting tray for meat and vegetables.
Never cook with the grill tray sitting on the bottom of the oven.
Handle for grill tray
7
8
9
10
Accessories (Depending on model)
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 5

6
Safety recommendations
Please read these instructions before installing and using your oven.
The oven has been designed for domestic use only for cooking food. No asbestos
has been used in its construction.
USING FOR THE FIRST TIME:
Before you use your oven for the first time, leave it empty and, with the door
closed, turn it on to maximum temperature and let it heat up for 15 minutes. This
"runs the oven in". During this time there may be some smell from the mineral
wool that insulates the oven and there could be some smoke. This is perfectly
normal.
NORMAL USE:
- Always close the door properly. The oven is fitted with a seal designed to
work with a closed door.
- Never lean or let anyone sit on the oven door when it is open.
- The oven parts and accessories can become hot when the door is
left partially open and the grill on. Always keep children at a safe distance.
- When the oven is on it will get hot. Take care not to touch the heating
elements inside the oven.
- Always protect your hands with oven gloves or something similar when
removing food, accessories or containers from the oven.
- Do not line your oven with kitchen foil. The metal will increase the heat pro-
duced and could ruin the food and damage the enamel.
- Never use a spray or a high-pressure washer to clean the oven.
- During self-cleaning, surfaces can become hotter than in normal use.
Children must be kept at a distance.
During the action of pyrolysis, accessible surfaces become much hotter than
during normal cooking. Keep children at a distance.
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 6

7
How to install your oven
Electricity meter (mains)
(20A, single-phase
220-240 V alternating
current 50 Hz)
Socket
2 -pin with earth
220-240 V single phase
alternating current supply
Electrical connections
• Before connecting your oven, make sure you are using the correct size cable.
The cross-section should be the same as the cable connected to the oven. Use a
16-amp fuse.
Connecting cable
approx 1.50 m.
long
Fused 16A or differential
circuit breaker
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 7

8
We cannot accept any liability in the event of an accident
resulting from non-existent or faulty earthing.
• The supply cable (H05 RR-F, H05 RN-F or H05 W-F) must be long enough to allow
the oven to rest on the floor in front of its housing.
With the oven sitting on the floor and disconnected:
• Open the trapdoor at the bottom right hand side at the back of the oven by
removing the 2 screws and swinging the door away.
• Remove the sheath from each wire in the new cable up to 12 mm.
• Twist the ends carefully together.
• Unscrew the terminal screws and remove the wires that need changing.
• Pass the new cable through the wire clamp to the right of the terminals.
• Connect the wires up in accordance with the markings on the terminals.
• Make sure all wires are trapped under the screws.
• The brown wire (live) going to terminal marked L.
• The green and yellow wire (earth) going to the one marked .
• The blue wire (neutral) going to the terminal marked N.
• Tighten the screws and check, by tugging on each wire, that they are firmly connected.
• Tighten the clamp to hold the cable.
• Close the trapdoor using the two screws.
The electrical connections are made before the oven is installed in its housing.
• The oven must be connected using an approved 3-core cable (live, neutral and
earth ) with 1.5 mm square conductors. This should be connected via a 3- pin-
socket (live, neutral, and earth to the main supply which should be should be a
220-240V, alternating single-phase current. If the oven is not connected using a
plug and socket, it must be connected to a multi-pole switch with a minimum gap
of 3 mm between contacts. The earth wire (green and yellow) should be connected
to the terminal marked with the earth symbol on the appliance and to the earth
in the switch.
• Where the oven is connected using a separate plug and socket this must be
accessible after the oven has been installed.
• The neutral wire (blue) of the oven must be connected to the neutral in the main supply.
Fitting new wiring and/or changing cables.
How to insta
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 8

9
ll your oven
If you are unsure about fitting this oven yourself please use a
qualified electrician.

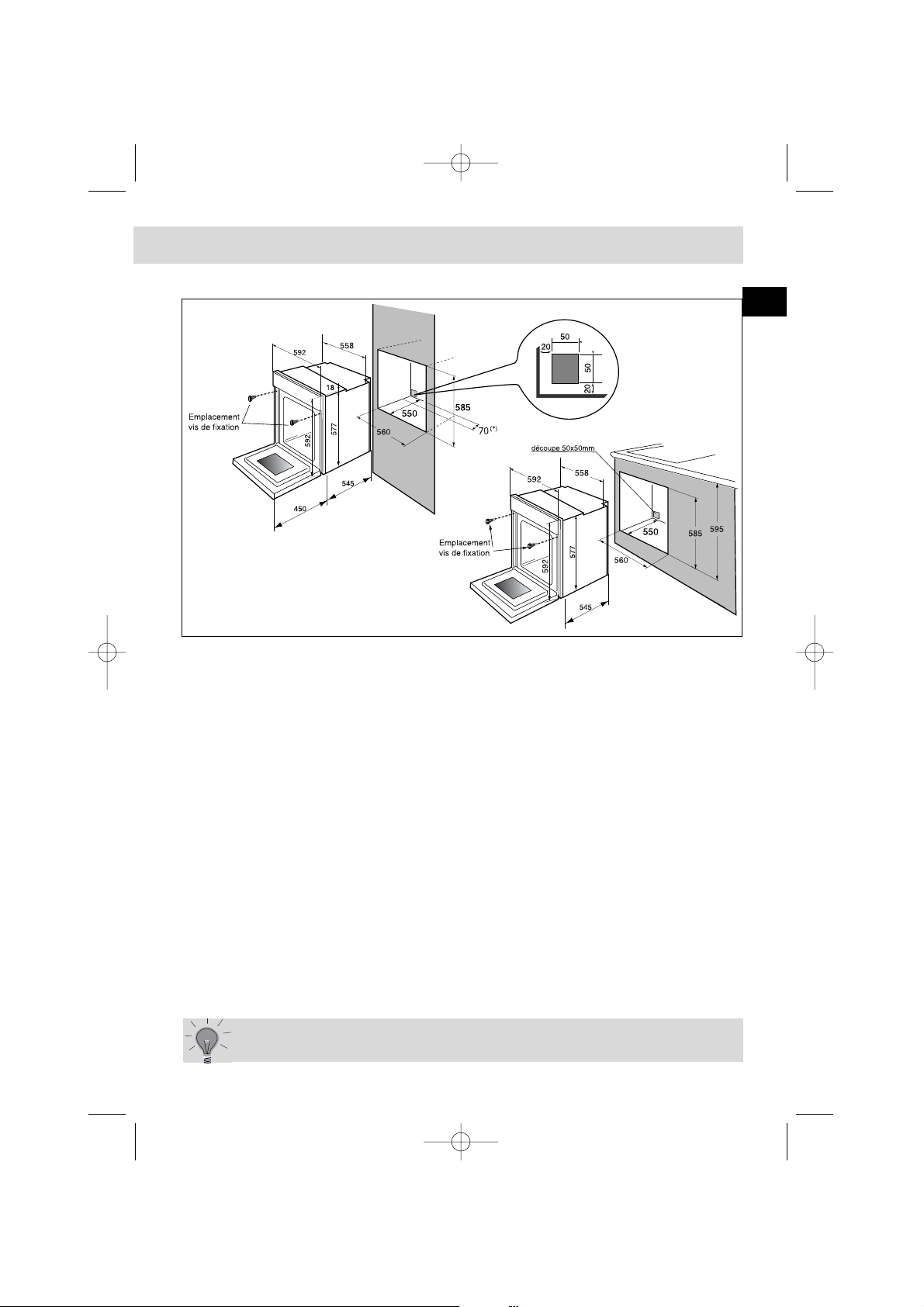

Dimensions for installation use
The oven may be housed either under a work surface or built into a
column that is open* or closed with a suitable opening.
Your oven works at its best and produces excellent results when cooking and clea-
ning itself, if its air circulation is not compromised:
• The oven must be centred in the unit so that there is a minimum distance of 5
mm between it and the surrounding unit.
• The housing unit or its outer surface must be capable of withstanding heat.
• To ensure the oven rests firmly in the housing, screw it to the housing unit using
the holes on the side uprights provided (see diagram).
To do this:
1) Remove the rubber stoppers masking the fixing holes.
2) To prevent the housing unit splintering, drill two holes 3 mm in diameter in the wall of the
housing unit opposite the fixing holes.
3) Attach the oven using the two screws.
4) Conceal the hole using the rubber stoppers. (These also help to cushion the
closing of the oven door).
(*) If the housing unit is open at the back, the gap must not be more
than 70 mm.
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 9

The timer must be at “”.
• Choose how you want to cook your food:
Turn the dial until it is indicating your choice.
The example chosen is " ".
• Choose the temperature you want to cook at:
Turn the dial (thermostat) to the temperature
recommended for the food you are cooking.
The example shows 210°.
• After this, the oven heats up and the temperature
light flickers on and off as the temperature adjusts.
2. How to cook straightaway
55
75
100
125
150
180
210
240
270

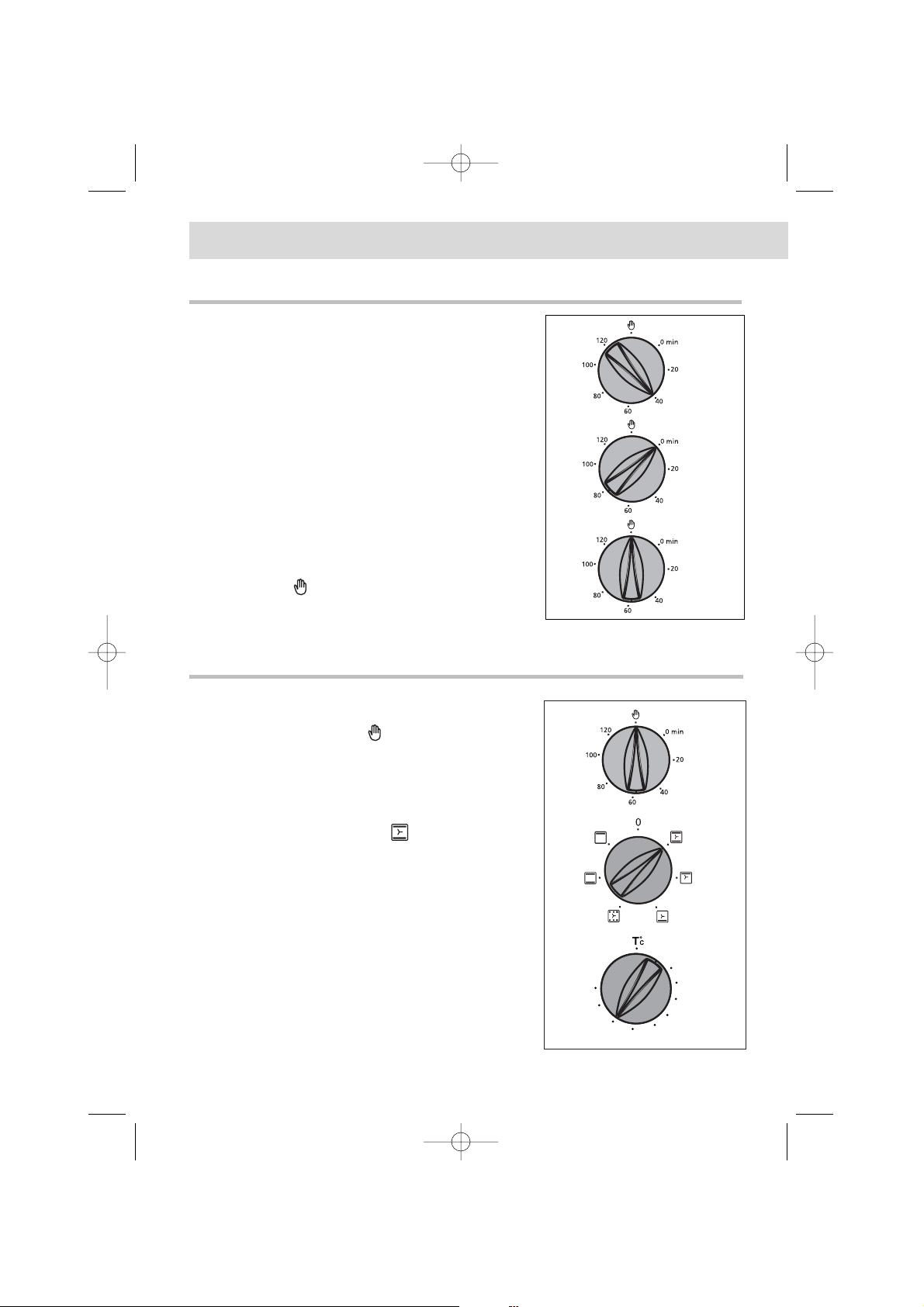

1. The timer
Using this device the oven switches off automati-
cally when it reaches the end of the displayed
cooking time.
• Simply turn the control to the time required (in
minutes)
E.g. 40 minutes.
• Once the time is up and the timer is back at "0",
the oven switches off.
• If you want to use the oven without this timer set
the control to “ ”.
10
How to use
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 10

• Choose the cooking time
Turn the timer to the position of the time
required.
Example: 40 minutes' cooking.
• Choose the cooking method
Turn the function selector to the position of your
choice.
Example: position " ".
• Choose the cooking temperature
Turn the thermostat (temperature selector) to the
temperature recommended by your recipe.
Example: 210° temperature mark
• After doing this, the oven heats up and the thermo-
stat light comes on. When the cooking is finished, the
"Timer" switch is in position 0 and the oven is turned
off.
NB: There is no audible signal at the end of cooking time.
When you have finished cooking, return:
-The timer to position “”
- The function selector and the thermostat to the "Stop" position.
11
3. How to programme the cooking
After cooking the fan continues to work for a while to ensure
the elements cool right down.
You can alter or switch the timer off at any time.
55
75
100
125
150
180
210
240
270
your oven
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 11

12
Cooking
Pulsed conventional oven
Food is cooked by a top and bottom
element and the fan.
Conventional oven
Food is cooked by a top and bottom
element. No fan.
Oven rapidly reac
dishes can start o
Pre-heating ne
rature.
Symbol Feature
Pulsed grill
Cooking is done alternately by the
top element and by the fan.
No need to pre
culent joints th
Possibility of ro
placed on the
baking tray on
juices.
Pulsed bottom oven
The bottom element heats up and
the fan move the hot air around to
cook the food.
Food is cooke
Place the wire
Warming oven
Heat from top element along with
pulsed air.
Stays warm
Grill
Only the top element heats up. The
fan is not used.
Warm up for
Slide the grill
*
*
*·Cooking methods referred to in the advertisement about energy labelling in acco
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 12

13
methods
aches the selected temperature. Some
off in the cold oven.
Recommended for MEAT, FISH and
VEGETABLES, preferably in earthenware
dishes.
needed to reach the required tempe- Recommended for food requiring slow,
careful cooking such as game and brai-
sing joints. Ideal for sealing red meat
joints and simmering lidded casseroles
whose contents have been partially
cooked on the hob first.
Description Recommendations
re-heat. Suitable for poultry and suc-
that have a spit-roasted appearance.
roasting a large piece of meat
e grill and using the multi-purpose
n the 1st level to collect the cooking
Recommended for all poultry and
roast joints. For sealing and
thoroughly cooking gigot lamb chops,
and sides of beef. Also good for cooking
fish in breadcrumbs.
ed from underneath.
re shelf on the lower rail
Recommended for dishes with a lot of
liquid (quiches and fruit pies) as the
pastry base is cooked through. Use also
for food that rises (bread and cakes)
and uncovered soufflés.
Recommended for leaving breads to rise
(keeping temperature below 40ºC), kee-
ping dishes warm and thawing food.
r 5 minutes.
l pan onto the rail beneath the grill.
Recommended for grilling chops,
sausages, and large prawns and for
making toast.
ordance with European Standard EN50304 and the European Directive 2002/40/EC
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 13

• The light bulb is housed in the ceiling of your oven.
a) Unscrew the protective shade (see
diagram).
b) Unscrew the bulb in the same direction.
The bulb used is a:
- 15 W
- 220-240 V
- 300°C
- E 14 screw-fitting bulb
c) Change the bulb, replace the shade and
switch your oven back on at the mains.
14
Changing a bulb
bulb fitting
unscrew
cover
It is easier to unscrew the shade and bulb if you wear a rubber glove.
Warning! Switch off the power at the main switch before attemp-
ting to change the bulb. Leave the oven to cool if
necessary.
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 14

Always allow the oven to cool down before attempting to remove the
panels. Check the cooking selector is at OFF.
Side panels (1)
Undo the rail clip (2) at the front by lifting it up
(
Diagram A ). Pull the rail unit toward you, lifting it
slightly to unclip the rear catch ( Diagram B ). Pull it out
of the 2 holes (3) of the catalytic panels and the oven
casing. Remove the catalytic panel (1). Reverse opera-
tions to replace panel and rail
unit.
Back panel (4)
Undo and remove the screw
(5) at the top of the back
panel. Tip the panel towards
you so you can remove it
from the oven case. Reverse this operation to replace
the panel.
Looking after your oven
Changing the catalytic panels
Cleaning the inside
Your oven is self-cleaning. The outer shell is lined with removable panels
covered in a special microporous enamel known as catalytic enamel. This coating
helps eliminate dirt and grease. Splashes are attracted to the tiny holes where
they are gradually burnt off. Unfortunately, the coating cannot do the same to
sugary substances which is why the bottom of the oven, where these are likely
to collect, does not have the same enamel finish.
You are strongly advised,
- Never use wire brushes or any other pointed or cutting implement.
- Never use any scouring material.
- When grilling, a lot of fat can be spat onto the walls of the oven. However, the
temperature will not be enough to burn them off completely while you are
grilling.
To overcome this problem leave the oven on for 20 to 30 minutes at the highest
temperature possible after you have finished cooking. If any trace remains it will
be burnt off when you use the oven the next few times.
B
A
1
3
4
2
5
15
Always check that the oven is off before you clean the inside.
GB
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 15

16
Troubleshooting
If you're not sure that your oven is working properly, it doesn't necessarily
mean that there's a problem. In all cases, check the following points:
If you realize that.. Possible causes what should you do?
The oven isn't heating.
• The oven isn't connected
to the power supply.
• The fuse has blown.
• The temperature selected
is too low.
• The thermostat is faulty.
- Connect to power supply.
- Change the fuse, checking
that it is 16A.
- Increase the temperature
selected.
- Contact the After-Sales
Service.
The temperature light
does not go out.
• Faulty thermostat. - Contact the After-Sales
Service.
The light inside the oven
isn't working.
• The lamp is unusable.
• The oven isn't connected
to the power supply or the
fuse has blown.
- Change the bulb.
- Connect to power supply
or change fuse.
The cooling fan keeps
working after the oven is
turned off.
• The fan is still working an
hour after cooking has
stopped,
• If it has not stopped after
1 hour
- Open the door to help the
oven cool down more
quickly.
- Contact the After-Sales
Service.
Copy here the details that are on your oven manufacturer's plate:
MADE IN FRANCE
220 - 240V ~ 50 Hz
BRANDT APPLIANCES SAS
7 rue Henri Becquerel
92500 RUEIL MALMAISON
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 16

Le guide d’utilisation
de votre four
de
Référence : FE 211
FR
17
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 17

Sommaire
Tout au long de la notice, vous signale les consignes de sécurité,
vous signale les conseils et les astuces
Edito P.19
Comment se présente votre four ? P.20
Descriptif de l’appareil P.20
Accessoires P.21
Conseils de sécurité P.22
Comment installer votre four ?
Raccordement électrique P.23-24
Dimensions utiles pour encastrer votre four P.25
Comment utiliser votre four ?
La minuterie P.26
Comment faire une cuisson immédiate ? P.26
Comment programmer un temps de cuisson ? P.27
Modes de cuisson P.28-29
Comment changer l’ampoule ? P.30
Comment entretenir votre four ? P.31
Que faire en cas d’anomalies de fonctionnement ? P.32
18
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 18

Edito
19
Chère Cliente, Cher Client,
Vous venez d'acquérir un four BRANDT et nous vous en remercions.
Nos équipes de recherche ont conçu pour vous une nouvelle génération
d'appareils pour cuisiner chaque jour avec plaisir.
Avec des lignes pures et une esthétique moderne, votre nouveau four
Brandt s'intègre harmonieusement dans votre cuisine et allie parfaite-
ment facilité d'utilisation et performances de cuisson.
Vous trouverez également dans la gamme des produits Brandt, un vaste
choix de tables de cuisson, de hottes aspirantes, de lave-vaisselle et de
réfrigérateurs intégrables, que vous pourrez coordonner à votre nouveau
four Brandt.
Bien entendu, dans un souci permanent de satisfaire au mieux vos exi-
gences vis à vis de nos produits, notre service consommateurs est à
votre disposition et à votre écoute pour répondre à toutes vos questions
ou suggestions (coordonnées à la fin de ce livret).
A la pointe de l'innovation, Brandt contribue ainsi à l'amélioration de la
qualité de la vie quotidienne en vous apportant des produits toujours plus
performants, simples d'utilisation, respectueux de l'environnement, esthé-
tiques et fiables.
La Marque BRANDT.
FR
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 19

20
55
75
100
125
150
180
210
240
270
5
3
1
123
4
5
6
Minuterie
Sélecteur de température
Sélecteur de fonctions
1
2
3
Lampe
Indicateur de gradin
Trou pour tournebroche
4
5
6
DESCRIPTIF APPAREIL
Comment se présente votre four ?
9962-5611 MULTI LANGUES.qxd 30/10/02 10:18 Page 20
