BRASH IMPORTS 3000 User manual

PORTABLE WRIST
BLOOD PRESSURE MONITOR
Model: 3000
INSTRUCTION MANUAL
MON. DATEHOURMIN.
.
S
Y
S
.
D
I
A
.
POWERSTART

TABLE OF CONTENTS
Introduction .................................................................................................2
Notes on safety ..........................................................................................2
A Few Words About Blood Pressure............................................................4
Precautions Before Use .............................................................................7
Main Unit ....................................................................................................8
Accessories Parts .......................................................................................9
Features of the Product ..............................................................................9
Battery Installation/Replacement ...............................................................9
Time and Date of System Setup ..............................................................11
How to Apply the Wrist Cuff ......................................................................11
A Few Suggestions Before Blood Pressure Measurement ......................13
Wrist Monitor Quick Reference Guide ......................................................13
How to Take a Measurement ....................................................................14
Recalling Record .......................................................................................16
How to Maintain and Store the Unit ...........................................................16
How to Prevent a Malfunction ...................................................................17
Specifications ............................................................................................18
Troubleshooting ........................................................................................ 19
INTRODUCTION
Thank you for purchasing the Portable Wrist Blood Pressure Monitor. This
remarkable instrument is ideal for people who frequently monitor their own
blood pressure because it's so compact and easy to use. There is no tricky
arm cuff, just a small, pre-formed wrist cuff that is easy to apply. with the
push of a button the portable wrist monitor measures your blood pressure
and pulse and displays the reading on a clear digital panel. Perfect for
quick, easy readings at home, at work, almost anywhere!
The Portable Wrist Monitor uses the oscillometric method of blood
pressure measurement. This means the monitor detects your blood's
movement through the artery in your wrist and converts the movements
into a digital reading. An oscillometric monitor does not need a stethoscope
so the monitor is simple to use and measurements are easy to obtain.
Clinical research has proven a direct relationship between blood pressure
in the wrist and blood pressure in the arm. Changes in wrist blood pressure
reflect changes in arm blood pressure because the arteries in the wrist and
the arm connect. Frequently measuring the blood pressure in your wrist will
provide you and your doctor with an accurate indication of changes in your
actual blood pressure.
The product complies with the electromagnetic compatibility requirement of
EN60601-1-2 and safety standards of 60601-1 as specified in EEC
directive 93/42/EEC.
Please read this instruction manual thoroughly before using the Portable
Wrist Blood Pressure Monitor. For specific information on your own blood
pressure, CONTACT YOUR PHYSICIAN.

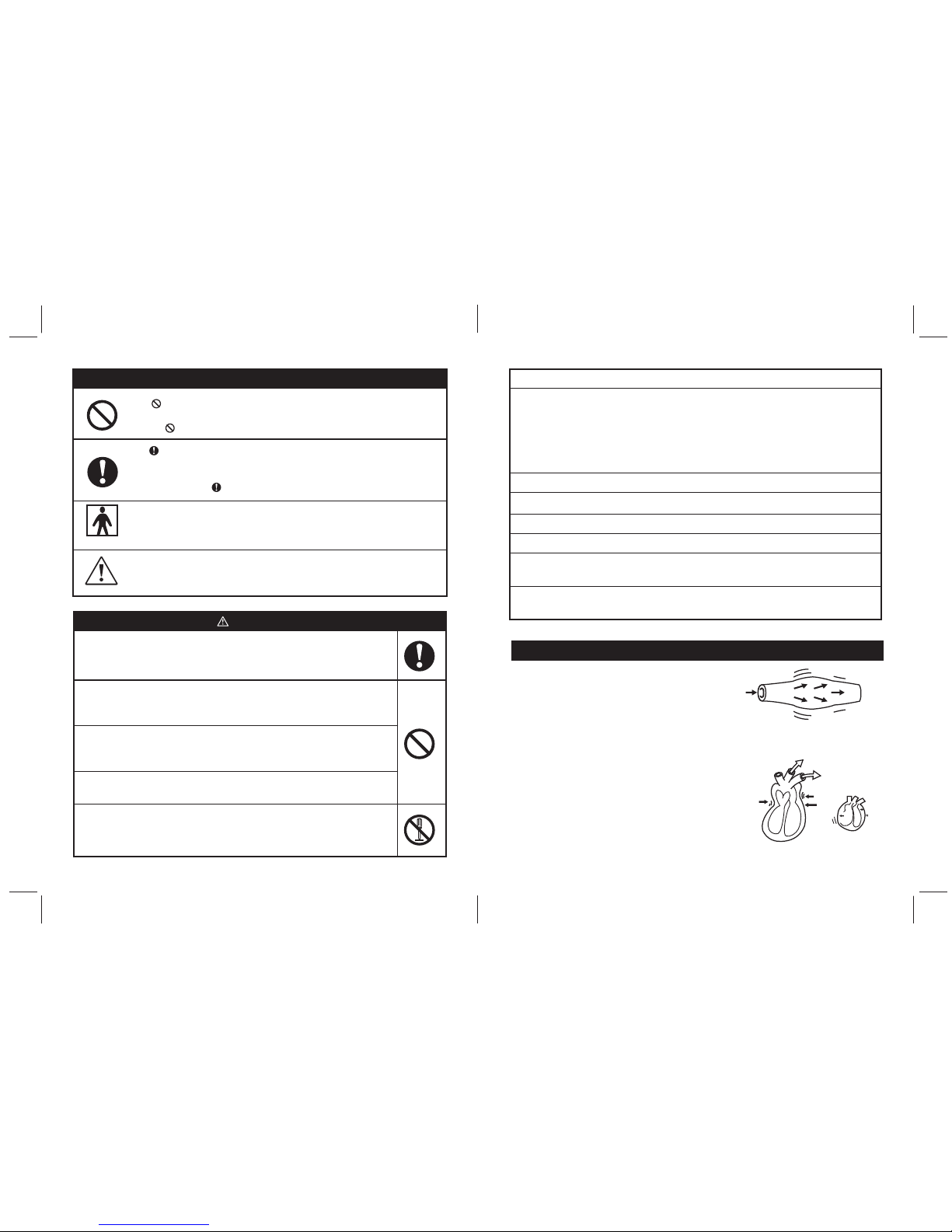

NOTES ON SAFETY
* The warning signs and sample icons shown here are listed for your safe
and correct use of the unit, so as to prevent injuries or damages to
properties.
* The icons and meanings are as follow.
-1- -2-

-3- -4-
The icon indicates prohibitions (what you should not do).
Matters involving actual prohibitions are indicated by text or pictures in
or near . The left icon refers to "general prohibition".
The icon indicates something that is compulsory (What must always be
observed).
Matters involving actual compulsory actions are indicated by text or
pictures in or near . The left icon refers to "general compulsion".
Type BF Applied part
Attention
Examples of signs
Caution
Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
Self-diagnosis may worsen the disease.
Do not use the unit for infants or person who cannot express one's
intention.
May cause accident or trouble.
Do not use the unit for purpose other than measuring blood
pressure.
May cause accident or trouble.
Do not use cellular phone near the unit.
The main unit may operate erroneously.
Do not disassemble, repair, or remodel the main unit or the cuff
of the blood pressure monitor.
Will cause the unit to function erroneously.
Requests from Manufacturer
Used batteries may leak and damage the main unit. Please observe the following
points.
*
If you are not going to use the unit for a long period of time (approximately three
months or more), remove the batteries.
*
Replace worn batteries with their polarities in the correct direction.
*
Do not insert the batteries with their polarities in the wrong direction.
Do not use force to bend the cuff or the air tube.
When removing the air tube, do not use force to pull it.
Do not apply strong shock to or drop the main unit.
Do not inflate the wrist cuff when it is not wrapped on the wrist.
Always use the specified accessories in the manual, the use of other parts not
approved by the manufacturer may cause hazard.
For service information like circuit diagram, parts list etc., please contact the
distributors.
A FEW WORDS ABOUT BLOOD PRESSURE
Blood pressure is the force exerted on the
walls of your blood vessels as blood flows
through them.
Your heart is like a pump. When it contracts,
or beats, it sends a surge of blood through
the blood vessels and pressure increases.
This is called your systolic pressure.
When your heart relaxes between beats,
your blood pressure decreases. This is
called your diastolic pressure.
Heart Contracts
(Pressure Increases)
Heart Relaxes
(Pressure Decreases)

-5- -6-
When a doctor takes your blood pressure, he
or she measures both your systolic and
diastolic pressures and records them as
numbers. For example, if your blood
pressure reading is 126/76 (126 over 76),
your systolic is 126 and your diastolic is 76.
The numbers are calculated in millimetres
of mercury and recorded as 126/76 mm Hg.
These two numbers provide important
information about your health. The more difficult it is for your blood to flow
through your blood vessels, the higher both numbers will be. When blood
pressure is consistently above normal it is called hypertension (High blood
pressure).
Our new Portable Wrist Blood Pressure Monitor automatically measures
your systolic and diastolic blood pressure for you, then displays the results
on easy-to-read digital panel!
People with a condition that causes circulatory problems (diabetes, kidney
disease, arteriosclerosis, or poor peripheral circulation) may get lower
readings with wrist type monitor than with a blood pressure monitor that is
used on the upper arm. Please consult your physician to determine if your
wrist blood pressure accurately reflects your actual blood pressure.
Your blood pressure changes constantly. Blood pressure fluctuates from day
to day and minute to minute according to your body's needs. For example,
when you are exercising or angry your blood pressure increases, but when
you are relaxing or sleeping your blood pressure decreases. These
fluctuations are completely normal. This portable wrist blood pressure
monitor is especially helpful when tacking changes in your blood pressure
because it travels anywhere and takes just seconds to use.

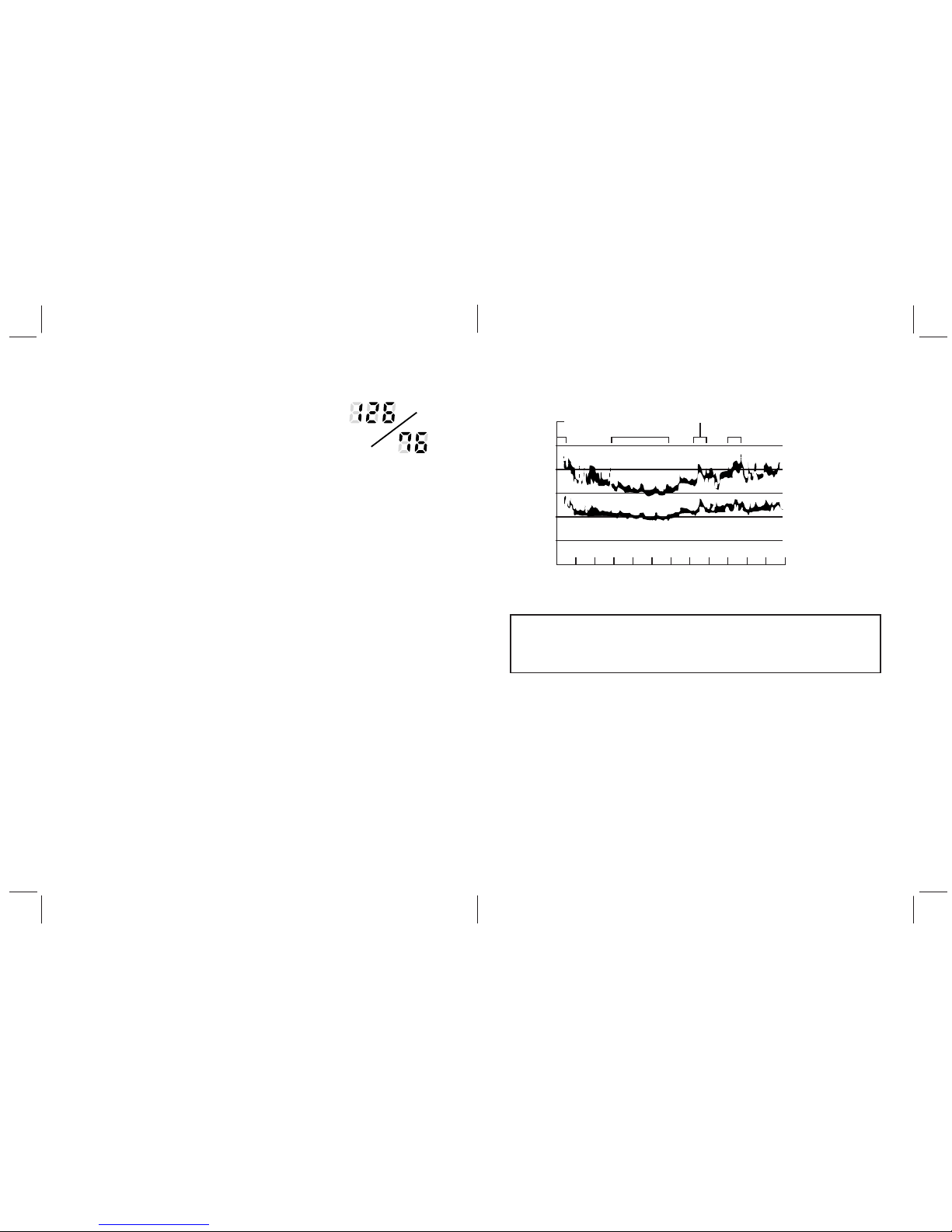

Systolic
(Upper Number)
Diastolic
(Lower Number)
Note: One or two readings will not provide a true indication of your normal
blood pressure. It is very important to take regular, daily
measurements and to keep accurate records. In partnership with
your doctor, an accurate record of your blood pressure over a period
of time can be a valuable aid in diagnosing and preventing potential
health problems.
The World Health Organisation (WHO) developed the following Blood
Pressure Classification. This classification, however, is only a general
guideline because blood pressure varies from person to person according
to age, weight, and health status. CONSULT YOUR PHYSICIAN TO
DETERMINE YOUR NORMAL BLOOD PRESSURE.
Fluctuation Within a Day
(Example: 35-year old male)
0
5 pm
Time
11 pm 5 am 11 am 5 pm
50
100
150
200
250
300
Dinner Sleeping Lunch
Systolic
Blood pressure
Diastolic
Blood pressure
Lower-Arm Blood Pressure Data
Blood Pressure (mm Hg)
Breakfast
FACTORS THAT MAY CAUSE THE BLOOD PRESSURE TO FLUCTUATE
* Breathing * Exercise * Mental stress * Worries * Environmental and/or
temperature
change * Eating * Urination and bowel movement * Talking * Taking
a bath * Drinking
alcohol
*
Smoking, etc.

-7- -8-
Note: There is not an universally accepted definition of hypotension (low blood
pressure), but a systolic pressure below 99 mmHg is usually regarded
as hypotension.
PRECAUTIONS BEFORE USE
1. Do not confuse self-monitoring with self-diagnoses. Blood pressure
measurements should only be interpreted by a health professional who is
familiar with your medical history.
2. If you are taking medication, consult with your physician to determine the
most appropriate time to measure your blood pressure. NEVER change
a prescribed medication without first consulting with your physician.
3. For persons with irregular or unstable peripheral circulation problems due
to diabetes, liver disease, hardening of the arteries, etc., there may be
fluctuation in blood pressure values measured at the upper arm versus at
the wrist.
4. This device is designed for adults to use if use this device on a child
patient, old people or toddlers, consult with your physician or measure
with relative aid.
95
mm Hg
Hypertension
Borderline
Normal
140 160 mm Hg
90
Diastolic
Systolic
Normal
Borderline
Hypertension
Systolic (mmHg)
less than 139
140 to 159
more than 160
Diastolic (mmHg)
less than 89
90 to 94
more than 95
5. Measurements may be impaired if this device is use near televisions,
microwave ovens, X-ray mobile phone equipment or other devices with
strong electrical fields. To prevent such interference, use the meter at a
sufficient distance from such devices or turn them off.
6. This device is not suitable for disease diagnoses, urgent treatment,
continuous monitoring during medical emergencies or operations.
7. Before using, should wash your hand.
8. If there is overmuch pressure or you feel uncomfortable, please press
"POWER" button immediately for quick deflation.

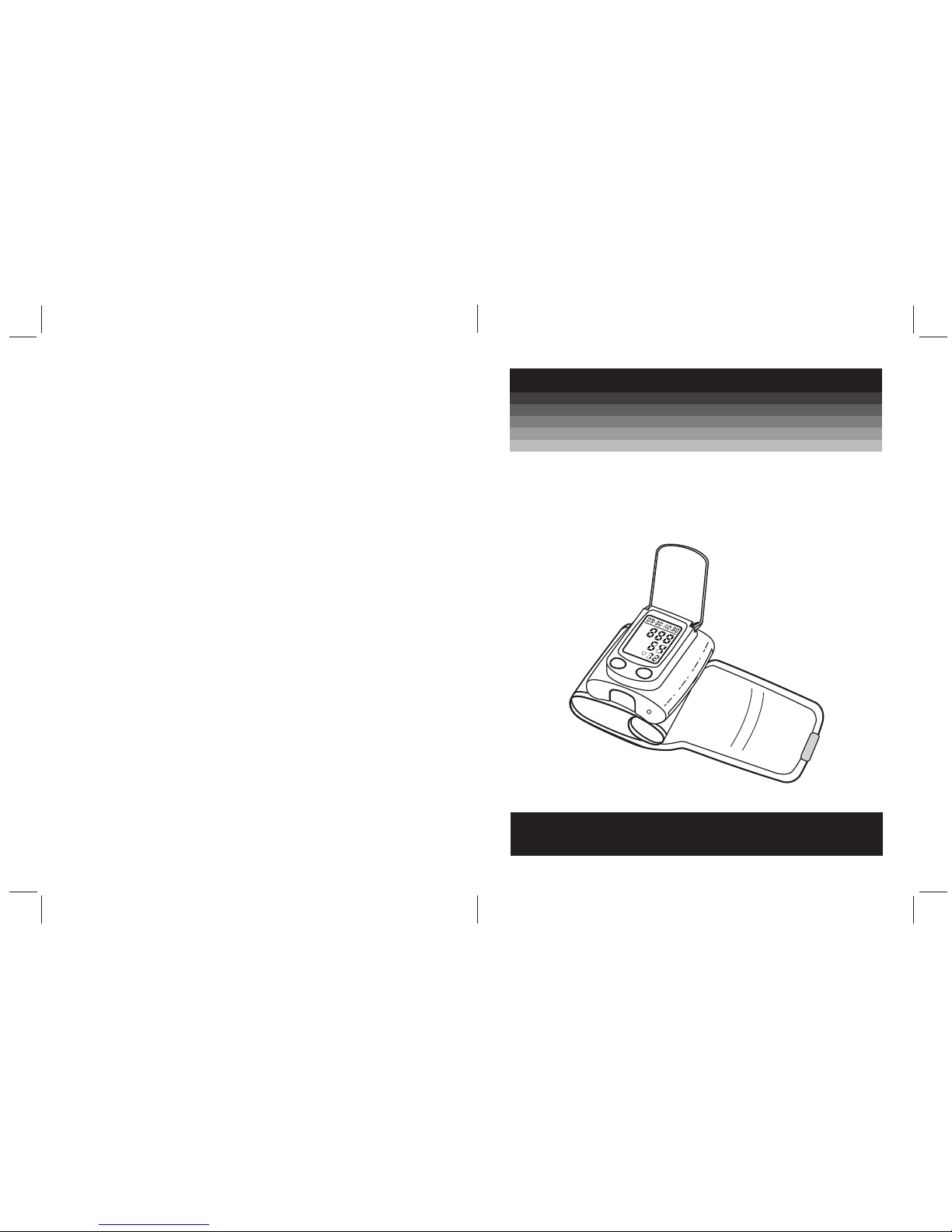

MAIN UNIT
1. LCD cover 8. START Button
2. Clear digital display 9. Button (up)
3. Date and time display 10. Button (down)
4. Systolic blood pressure 11. SET Button
5. Diastolic blood pressure 12. Wrist cuff
6. Pulse/min. 13. Battery cover
7. POWER Button
WHO Blood Pressure Classification
MON.DATEHOURMIN.
PULSE/min.
S
Y
S
.
D
I
A
.
POWERSTART
13
12
8
6
5
2
1
3
4
7
SET
9
10 11
11
Please use a pen to
press through the pin hole)

-9- -10-

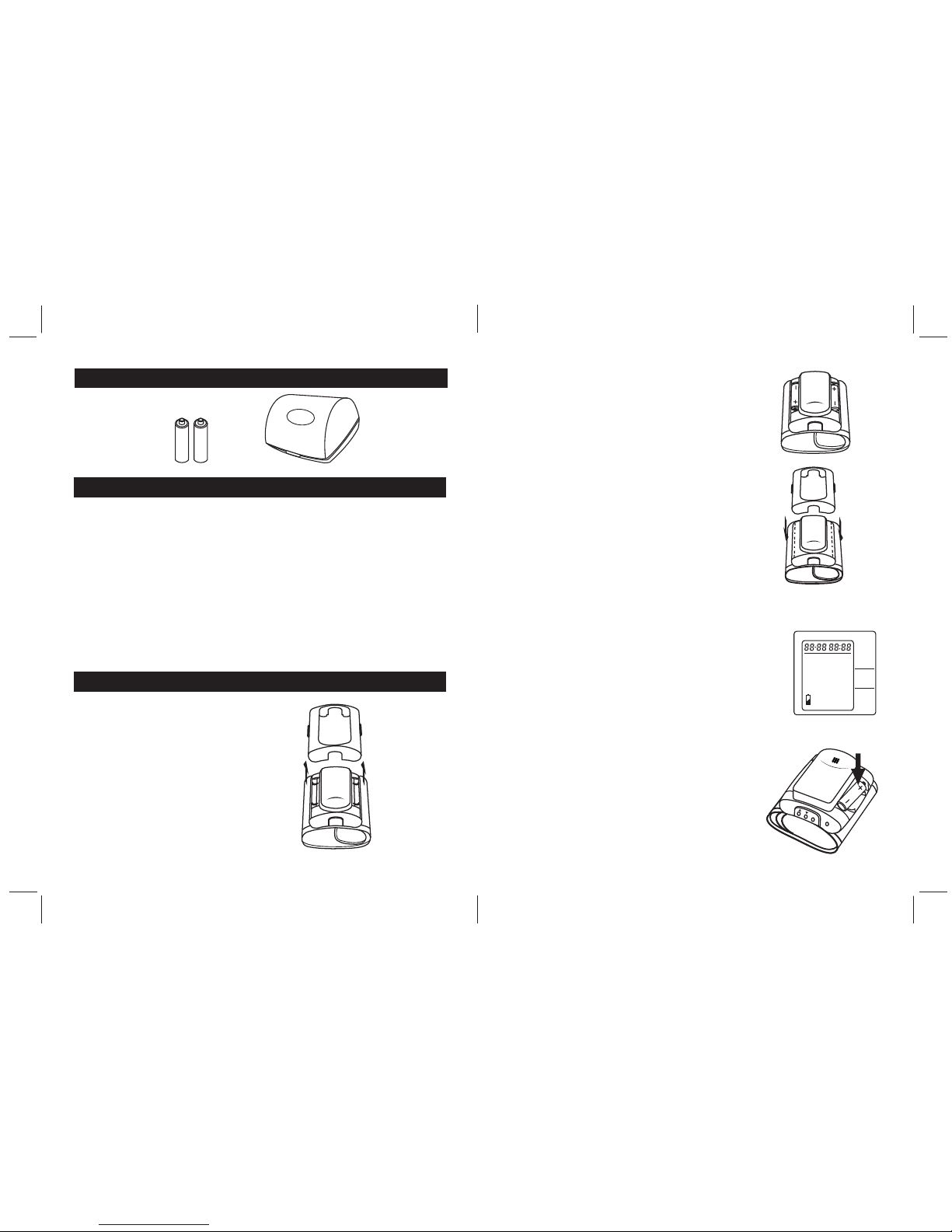

ACCESSORIES PARTS
FEATURES OF THE PRODUCT
1. Using the fuzzy-logic measurement.
2. Memory can store 128 measurements.
3. Easy to use buttons.
4. Large and clear display.
5. Fan-shaped wrist cuff that is easy to wrap.
6. Compact size for easy carry around.
7. Easy to use, press a button to automatically measure, record
measurement values and measurement time.
8. Automatically power off (within 2.5 minutes) to save power.
BATTERY INSTALLATION/REPLACEMENT
1. Using 2 fingers press the bulges
(as the shadow in figure) parts on
both sides of battery cover, and pull
the battery cover off in the direction
as the arrow indication.
Store Box
2 "AAA" Batteries
2. Install 2 "AAA" size alkaline batteries into
battery compartment make sure in
correct polarity direction (as indicated
in the bottom of battery compartment).
3. Replace the battery cover as figure.
Note:
*
If the Low Battery Indicator appears on the display, replace both batteries.
Long-life alkaline batteries are recommended.
*
Remove the batteries if the monitor will not be
used for an extended period of time.
*
With the use of two alkaline "AAA" batteries,
you can measure approximately 200 times at
room temperature of 22OC and inflating to
aroud 150~200mmHg once a day. But the
included batteries only for test purpose, it
may not last as specified long period.
* When the battery icon flashing, the device
will turn off automatically. Please replace
with new battery immediately
HOW TO REMOVE OLD BATTERY :
Depress at (+) positive side of battery so as the
battery to flip up at the other side then remove it.
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
SET

-11- -12-
TIME AND DATE OF SYSTEM SETUP
1. Press "POWER" key to enter the measurement mode.
2. Slide the battery cover off, press and hold "SET" key until the year number
appear and flash on LCD, then the unit enter date and time of system
setting mode.
3. Press " " or " " button to adjust the number of year.
4. Press "SET" key again to adjust month, date, hour and minute by repeating
step 3 and 4.
5. After completing setup, press "SET" key again to enter to measurement mode.
Note: Please check and re-set Date/Time after replacing of new batteries.
The "SET" button please use a pen to press through the pin hole on
the upper side of battery cover.

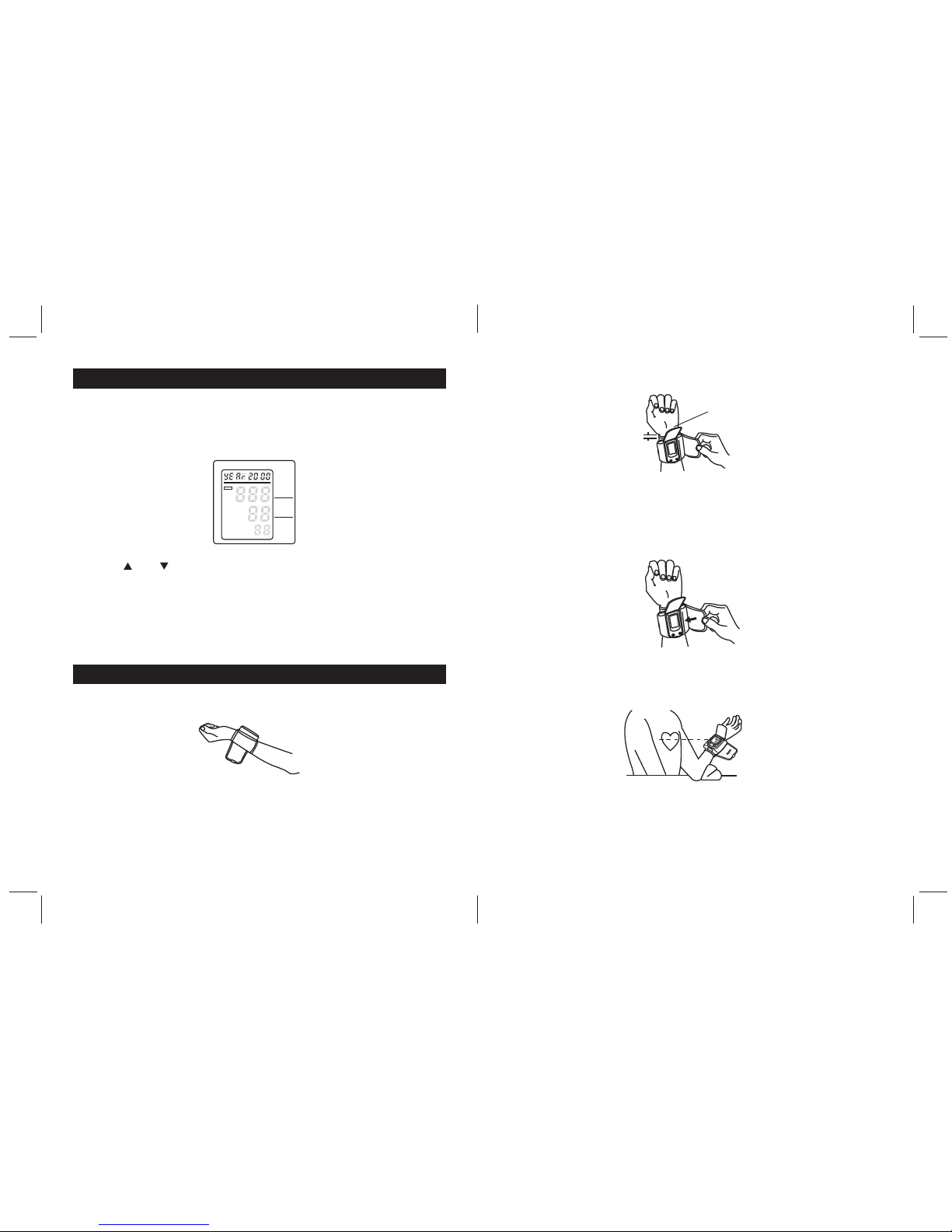

HOW TO APPLY THE WRIST CUFF
1. Put off your watch and any jewel from your left hand.
2. Hold your left wrist with your palm facing up, apply the cuff so that the
display of monitor is in easy to view.
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
mmHg
3. The cuff's edge should be approximately 1/2 to 3/4 inch (1~2cm) from your palm.
4. Wrap the cuff snugly around your wrist., the top and bottom edges of the
cuff should be tightened evenly around your wrist and lower arm.
5. When the cuff is positioned correctly, secure it in place by pressing the
pile material firmly against the sewn hook material.
6. Sit in a chair with your feet flat on the floor and place your left arm on a
table with your palm facing upward. The cuff should be at the same level
as your heart.
Note: Your heart is located slightly below your armpit.
7. If the cuff is not at the same level as your heart or if you cannot keep your
arm completely still throughout the reading, use the store box or other
soft object to support your arm.
1/2" - 3/4 "
(1~2cm)
Wrist Joint

P O W E R
-13- -14-
A FEW SUGGESTIONS BEFORE
BLOOD PRESSURE MEASUREMENT
1. Avoid eating, smoking, and exercising for at least 30 minutes before taking
a measurement. Also rest for at least 15 minutes before taking a reading.
2. Stress raises blood pressure. Avoid taking measurements during stressful
times.
3. The cuff should be applied on your left wrist.
4. Measurement should be taken in a quiet place and you should be relaxed ,
seated position. Rest your left arm on a table so that the cuff is at the
same level as your heart.
5. Remain still and do not talk during the measurement.
6. Keep a record of your blood pressure and pulse for your doctor. Remember,
a single measurement does not provide an accurate indication of your
true blood pressure. You need to take and record several measurements
over a period of time. Try to measure your blood pressure at the same
time each day for consistency. Blood pressure measurements fluctuate
considerably.
7. Wait 5-10 minutes between successive measurements. Waiting allows the
engorged blood vessels to return to normal. You may require more rest
time depending on your individual physical conditions.
WRIST MONITOR QUICK REFERENCE GUIDE
1. Avoid eating, smoking, and exercising for at least 30 minutes before
taking a measurement. Also rest at least 15 minutes before taking your
first measurement.
2. Apply the cuff so that the monitor is on the inside of your left wrist with
the digital display in easy view.
3. Wrap the cuff snugly around your wrist so that the top and bottom edges of
the cuff are tightened evenly around your wrist. Secure the cuff in place
by pressing the pile material firmly against the sewn hook material.
4. Sit in a chair with your feet flat on the floor and place your left arm on a
table and using the store box or other object as a support so that the cuff
is at the same level as your heart.
5. Press the "POWER" button to enter.
6. After all marks display two seconds on LCD, enter the measurement
mode, press the "START" button to start measurement.
7. Finally the LCD displays systolic value, diastolic value, and pulse/min value.
8. Wait for 5-10 minutes before taking another blood pressure measurement.
You may require more rest time depending on your individual physical
conditions.
HOW TO TAKE A MEASUREMENT
Please read "A few suggestions before blood pressure measurement" and
"How to apply the wrist cuff" before taking a measurement.
1.Taking measurements while sitting down
1) Place your elbow on a table.
2) Using the store box or other object as a support, position your wrist
at heart level.
3) Relax your hand and keep palm facing up.
4) Press the "POWER" button, icons appear in two seconds on LCD, then
switch to measurement mode, And display "0" or last measurement
record.
MON.DATEHOURMIN.
PULSE/min.
S
Y
S
.
D
I
A
.
POWERSTART
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
mmHg
Kpa
1
2
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
mmHg
1

-15- -16-
S T A R T
5) Push the "START" button to start measurement. the pressure cuff in the
strap will automatically inflate. When the value that LCD display
increase to around 150-200mmHg, it start to decrease and the air
pressure cuff is then automatically released, when it senses your pulse,
the mark ( ) displays on LCD.
6) After measurement the screen will display systolic value, diastolic value,
pulse/min value, it will automatically store the measured results.
7) Press "POWER" button to turn off the unit.
* Even if you forget to press the "POWER" button, power will
turn off automatically in approximately 2.5 minutes.
*This monitor can be stored with the air plug. Do not apply
force on the air tube.
Note:
*
The value measured will be too low if you hold your hand higher than
your heart lever or too high if you hold your hand lower than your
heart lever.
* Do not bend your wrist inward.
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
mmHg
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
MON. DATE HOUR MIN.
SYSTOLIC
mm Hg
DIASTOLIC
mm Hg
PULSE /
min.
mmHg
*The unit may store 128 measurement records
, if more than 128
records, it will only store latest 128 memories.
*During measurement avoid speaking and body/hand shaking which
may affect the accuracy of record.
*
During measurement process, If you want to stop, just press the
power button to stop.
RECALLING RECORD
1. Open LCD cover, press power button to enter the measurement mode.
2. Press " " button to review the first measurement in the memory.
Repeatly Press " " button to review memory data in descending order .
3. Press " " button to review the last measurement in memory. Repeatly
press " " button to review memory data in ascending order.
HOW TO MAINTAIN AND STORE THE UNIT
1. Use a dry , soft cloth to clean the unit. If desired, use a cloth lightly
dampened with tap water.
2. Do not use alcohol, benzene, thinner or other harsh chemicals to clean
the device or cuff.
P O W E R

-17- -18-
3. Before measuring please wash your hand.
Do not wash or wet the wrist cuff.
4. Store the unit in places far from
direct sunlight, high humidity
or dust.
5. Fold the pressure cuff and put
the unit into the store box.
Note: When the unit will not be used for a long time, be sure to remove the
batteries. Otherwise, the batteries may leak and damage the unit.
HOW TO PREVENT A MALFUNCTION
1. Do not drop the device and avoid sudden jars or shocks.
2. Do not insert any objects into any holes.
3. Do not attempt to disassemble the unit.
4. Do not crush the pressure cuff.
5. If the unit has been stored at below 0oC, put it in a warm place for about
15 minutes before using it. Otherwise, the cuff may not inflate properly.
SPECIFICATIONS
*
Specifications may be changed Without notice in the event of Improvement
being made.
Measuring Method:
Indication:
Measuring Range:
Accuracy:
Inflation
Deflation:
Memory:
Power Source:
Battery Life:
Working Temp. & Humidity:
Storage Temp. & Humidity:
Outside Dimensions:
Weight:
Accessories:
Oscillometric System
Digital LCD Display
Pressure:0~300mmHg; Pulse: 40~200 Beat/min.
Pressure: ±3mmHg; Pulse ±5%
Electric Pump Inflation
Pressure Release Valve
128 Memories
1.5V "AAA" x 2 Alkaline Battery
Approx. 200 Times (Once a Day, Room
Temperature 22
o
C)
40~104
o
F (5~40
o
C), 30~85% RH
4~140
o
F (-20~60
o
C), 10~95% RH
77mm(W) x 72mm(D) x 38mm(H)
Approx. 140g (Apparatus and Battery)
Wrist Cuff, Instruction Manual
Operation Voltage
Standby Current
Operation Current
3V
OFF: 20~40uA ON: 8~12mA
Inflation: 370~430mA Deflation: 60~70mA

-19- -20-
Note: 1) Relax for at least 10 minutes and then take another measurement.
2) If correct measurement is not possible even after checking the
above points.
*Please consult at the store where you have purchased the unit or
the nearest dealer.
*
In some very rare cases, there may be error due to the physical
condition of the person. In such cases, please consult your doctor.
611-30000-000
TROUBLE SHOOTING
If you have trouble while using the unit, please check the following points
first.
ERROR DISPLAY
Nothing is displayed
when you push the
POWER button or
battery icon flash
E1: Can't normally
increase pressure
E2, E7, E8, E9
Measurement failure
E3. Inflate pressure too high
E4: Have shaking while
measurement
E5: Automatically pressure
release too fast
E6: Automatically pressure
release too slow
" " Battery icon on
The systolic pressure
value or diastolic
pressure value too high
The systolic pressure
value or diastolic
pressure value too low
POSSIBLE CAUSE
No battery installation
Battery worn out
The polarities of batteries
placed wrongly
Check your cuff if any air
leakage
Wrist cuff not properly
adjust or placement,
hand or body shaking.
Hand or body shaking while
measurement
Cuff too tight
Cuff too loose
Battery low power
1. The hand with the cuff was
held lower than your heart
2. The cuff was not
attached properly
3. You moved your body or
spoke during measurement
1. The hand with the cuff was
held higher than your heart
2. You moved your body or
spoke during measurement.
HOW TO CORRECT
Insert batteries
Replace new batteries
Insert battery in the correct
polarities
Replace wrist cuff with new one
Renew adjust wrist cuff position
and tightness, and keep hand still
Re-measurement or send back
dealer for re-calibrate pressure
Keeping static and correct gesture
to measure again
Readjust cuff and measure again
Replace battery, and measure again
Keeping correct position and
gesture to measure again
