BRASS MONKEY GH1686 User manual

INSTRUCTION MANUAL
PORTABLE
FRIDGE/FREEZER
GH1686
43L

2
CONTENTS
Warnings & Safety Information........................................................................3
Before First Use ..................................................................................................4
Features................................................................................................................5
Box Contents ........................................................................................................5
Product Diagram .................................................................................................5
Reversible Lid Operation ................................................................................... 6
Function and Operation......................................................................................6
Troubleshooting ..................................................................................................7
Specifications ......................................................................................................8
Cleaning, Care, Storage & Maintenance.......................................................... 9
Smart Control - Fridge App Instructions......................................................10
Warranty Information.......................................................................................11

3
WARNINGS & SAFETY INFORMATION
Warnings
• Do not operate the appliance if it is visibly damaged.
• Do not block the gaps of the fridge with things like pins or wires, etc.
• Do not expose the appliance to rain or immerse it in water.
• Do not place the appliance near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
• Do not store any explosive substances like spray cans with a flammable propellant.
• Ensure the supply cord is dry and not trapped or damaged. Do not locate multiple
portable socket-outlets or portable power supplies at the rear of the appliance.
• Check the voltage specification on the type plate corresponds to that of the energy
supply. The appliance is only to be used with the power supply unit provided with
the appliance.
• Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
• Once unpacked and before turning on, the appliance must be placed on a level
surface for more than 6 hours.
• Make sure that the appliance stays horizontally when it is running. The tilt angle
must be less than 5° for long time running and be less than 45° for short time
running.
• Keep the ventilation openings in the unit casing or in the built-in structure free of
obstacles.
• Keep the appliance stable on the ground or in the car; Do not drain upside down.
Caution
• Repairs may only be carried out by qualified personnel. Incorrect repair may
cause danger. The lamp and supply cord must be replaced by the manufacturer or
qualified persons.
• The installation of DC power in a boat must be handled by qualified electricians.
• Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
• The appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they’ve been given supervision or instruction concerning use of the
device in a safe way and understand the hazards.
WARNING: The manufacturer is not responsible for any potential injury from misuse

4
Notice
• Disconnect the power supply before each cleaning and maintenance and after every
use.
• Do not use sharp tools to defrost; Do not damage the refrigerant circuit.
• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
take o the doors: leave the shelves in place so that children may not easily climb
inside.
• Check if the cooling capacity of the appliance is suitable for storing the food or
medicine. Food may only be stored in its original packaging or in suitable containers.
• If the appliance is left empty for long periods, switch o, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
• The appliance is intended to be used in household and similar applications such as:
• Sta kitchen areas in shops, oces and other working environments;
• Camping, Farm houses and by clients in hotels, motels and other residential
environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.
• Information, illustrations and specifications in this manual reflect the most current
available at the time of publication,are subject to change without prior notice.
• Due to the flammable refrigerant and blowing gas contained in the device, comply
with local regulations for disposal.
BEFORE FIRST USE
Prior to using your product, please read all the safety and operating instructions
thoroughly. Please ensure you follow the steps below before using the product. We
recommend you keep the original packaging for storing the product when not in use.
Please pay close attention to the section entitled Warnings & Safety Information. Find
a safe and convenient place to keep this instruction manual for future reference.
Unpack the product but retain all packaging materials until you are satisfied that your
new product is undamaged and in working order. Ensure you have all accessories
listed in this manual.

5
FEATURES
BOX CONTENTS
1 x 43L Portable Fridge/Freezer
1 x 240V Mains Power Adaptor
1 x 12/24V Cigarette Lighter/Merit Car Charger
PRODUCT DIAGRAM
Sealing Strip
Lid Latch
Control Panel
Recessed Handle
Machine Compartment
USB Charging Port
• Fast cooling & energy saving modes
• LED control panel
• Three-stage vehicle battery protection
• USB Charging port
• Internal LED light

6
REVERSIBLE LID OPERATION
FUNCTION AND OPERATION
The lid has two opening directions and can be taken o at an angle of 20°. When
installing it back, align the lid shaft with the compartment hole and then insert it.

7
TROUBLESHOOTING
ISSUE SUGGESTED REMEDY
Refrigerator does not work • Check if the switch is on.
• Check if the plug and socket are connected well.
• Check if the fuse has been burnt.
• Check if the power supply is malfunctioned.
• Switch on/o the fridge frequently may cause start delay of
the compressor
Refrigerator compartments
are too warm
• The lid is opened frequently.
• A large amount of warm or hot food was stored recently.
• The refrigerator has been disconnected for a long time.
Food is frozen The temperature was set too low
There is “water flow” noise
from inside the refrigerator
It’s a normal phenomenon, caused by the flow of refrigerant.
There are waterdrops
around the refrigerator
casing or door gap
It’s a normal phenomenon, the moisture will condense to water
when it touches a cold surface of the refrigerator.

8
SPECIFICATIONS
Capacity 43L
Temperature Range -20°C-20°C
Voltage Input 12-24VDC
Noise Level <45dB
Refrigerant R134a
USB Charging Port 5VDC, 1A
Current Draw 0.5-1.2A (AC)
5A (12V DC)
2.5A (24V DC)
Power Consumption 60W (Average)
Power Supply 12/24VDC (Car Charger)
240VAC to 12VDC (Mains Power Adaptor)
Net Weight 13kg
Gross Weight 14.7 kg
Dimensions 618(L) x 376(W) × 514(H)mm
ISSUE SUGGESTED REMEDY
The compressor is slightly
noisy when starting
It’s a normal phenomenon, the noise will be reduced
after the compressor works stably.
Code Fl displayed Possible cause: low voltage to fridge.
Adjust the battery protection from High to Medium or from
Medium to Low.
Code F2 displayed Possible cause: condenser fan is overloaded.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F3 displayed Possible cause: the compressor starts too frequently.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F4 displayed Possible cause: compressor not kicking in.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service
Code F5 displayed Possible cause: overheating of the compressor & electronics.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F6 displayed Possible cause: no parameter can be detected by the controller.
Disconnect power to fridge for 5 minutes & re-start.
If the code shows again, contact manufacturer for service.
Code F7 or F8 displayed Possible cause: temperature sensor is faulty.
Contact manufacturer for service.

9
CLEANING, CARE, STORAGE & MAINTENANCE
Cleaning
• Unplug the device first to avoid electric shock.
• Use wet cloth to clean the device and dry it.
• Remove the cover and drain from the hole at the bottom of the device.
• Do not soak the device in water and do not wash it directly.
• Do not use abrasive cleaning agents as these can damage the device.
Storage
• If the device will not be in use for a long time, please follow the steps:
• Turn o the power and remove the plug.
• Remove all the items stored in the device.
• Remove the cover and drain from the hole, wipe o excess water with a soft rag.
• Leave the lid slightly open to prevent odour formation.
• Put the device in a cool and dry place.
Defrosting
• Humidity can form frost in the interior of the cooling device or on the evaporator,
which will aect the cooling performance. Defrost the device regularly to avoid this.
• Switch o the device.
• Take out the contents of the device.
• Keep the lid open.
• Remove the cover and drain from the hole.
• Wipe o the defrosted water.
WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in
place.

10

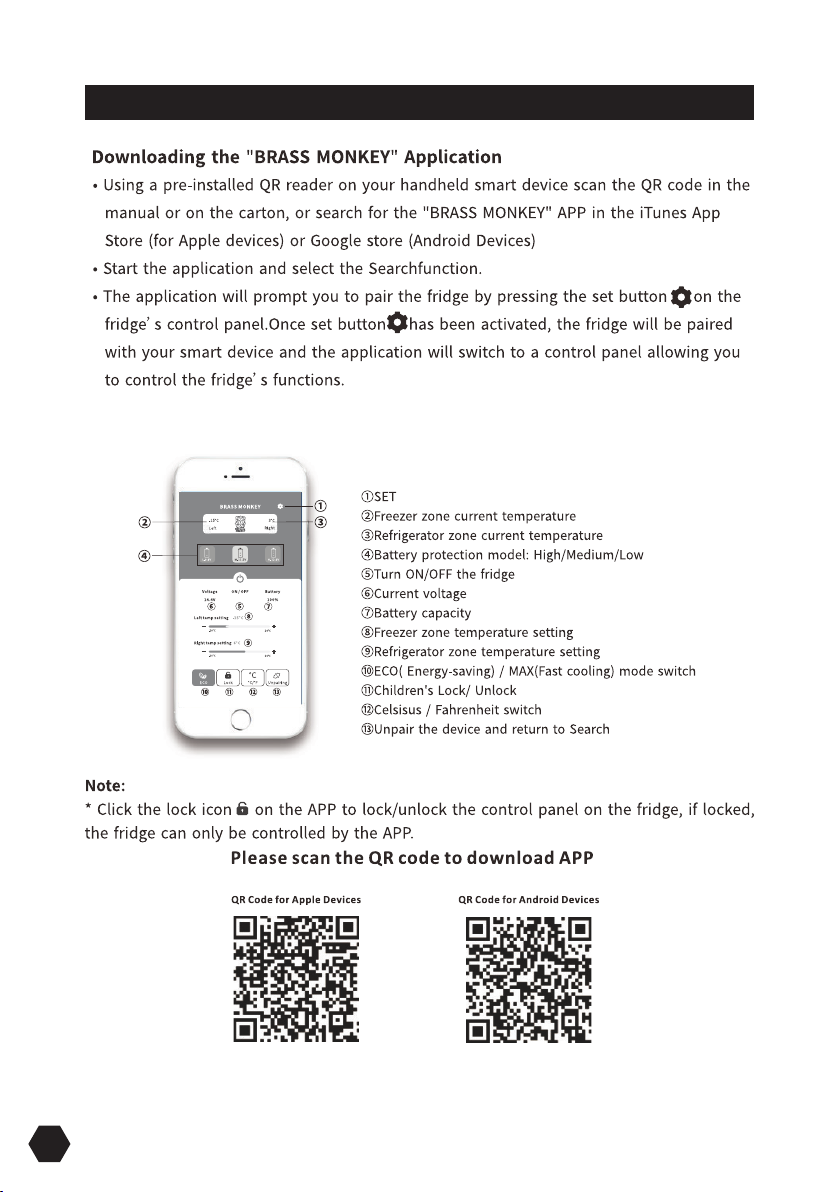

SMART CONTROL - FRIDGE APP INSTRUCTIONS
TM
TM
TM
(Battery is not supported on this model)

11
WARRANTY INFORMATION
Our product is guaranteed to be free from manufacturing defects for a period of 3 years.
If your product becomes defective during this period, Electus Distribution will repair,
replace, or refund where a product is faulty; or not fit for intended purpose.
This warranty will not cover modified product; misuse or abuse of the product contrary
to user instructions or packaging label; change of mind and normal wear and tear.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and failure does not amount to a major failure.
To claim warranty, please contact the place of purchase. You will need to show receipt or
other proof of purchase. Additional information may be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be
paid by you.
The benefits to the customer given by this warranty are in addition to other rights and
remedies of the Australian Consumer Law in relation to the goods or services to which
this warranty relates.
