BrassCraft BC260 SERIES User manual

42FM
Cable Dru Machine
Operation
Manual
BC260 SERIES
Cleans 1 1/4" to 3" lines up to 50'
" WARNING - Read All Instructions, When Using Electric Tools,
Basic Safety Precautions Should Always Be Followed To Reduce The Risk
Of Fire, Electric Shock And Personal Injury. Save These Instructions."
Used For:Sink, Shower & Floor Drains
651-950200

WORK AREA
• Keep your work area clean and well lit. Cluttered benches and dark
areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases, or dust. Power tools create
sparks which may ignite the dust or fumes.
• Keep bystanders, children, and visitors away while operating a
power tool. Distractions can cause you to lose control.
ELECTRIC SAFETY
• Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove
the grounding prong or modify the plug in any way. Do not use any
adapter plugs. Check with a qualified electrician if you are in doubt as
to whether the outlet is properly grounded. If the tools should
electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user.
• Double Insulated tools are equipped with a polarized plug (one blade is
wider than the other.) This plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician to install a polarized
outlet. Do not change the plug in any way. Double Insulation
eliminates the need for a three wire grounded power cord and
grounded power supply system. (Applicable only to Class II tools.)
• Avoid body contact with grounded surfaces such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock
if your body is grounded.
• Don’t expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord to carry the tools or pull
the plug from an outlet. Keep cord away from heat, oil, sharp edges
or moving parts. Replace damaged cords immediately. Damaged
cords increase the risk of electric shock.
• When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W.” These cords are rated for outdoor use and
reduce the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention
while operating power tools may result in serious personal injury.
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
• Avoid accidental starting. Be sure switch is off before plugging in.
Carrying tools with your finger on the switch or plugging in tools that
have the switch on invites accidents.
• Remove adjusting keys or wrenches before turning the tool on. A
wrench or a key that is left attached to a rotating part of the tool may
result in personal injury.
GENERAL
SAFETY
Important
Replacement parts:
When servicing, use only
identical
replacement parts.
Polarized plugs:
To reduce risk of electric
shock, this equipment
has a polarized plug
(one blade is ider than
the other). This plug ill
fit in a polarized outlet
one ay. If the plug
does not fit fully in the
outlet, reverse the plug.
If it still does not fit,
contact a qualified
electrician to install the
proper outlet.
Do not change the plug
in any ay.

• Do not overreach. Keep proper footing and balance at all times.
Proper footing and balance enables better control of the tool in
unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask,
non-skid safety shoes, hard hat, or hearing protection must be used
for appropriate conditions.
TOOL USE AND CARE
• Use clamps or other practical way to secure and support the work
piece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
• Do not force tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
• Do not use tool if switch does not turn it on or off. Any tool that can
not be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the tool
accidentally.
• Store idle tools out of reach of children and other untrained persons.
Tools are dangerous in the hands of untrained users.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and
are easier to control.
• Check for misalignment or binding of moving parts, breakage of parts,
and any other condition that may affect the tool’s operation. If
damaged, have the tool serviced before using. Many accidents are
caused by poorly maintained tools.
• Use only accessories that are recommended by the manufacturer for
your model. Accessories that may be suitable for one tool, may
become hazardous when used on another tool.
SERVICE
• Tool service must be performed only by qualified repair personnel.
Service or maintenance performed by unqualified personnel could
result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow
instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance Instructions may
create a risk of electric shock or injury.
PERSONAL SAFETY CONT.

OPERATING
INSTRUCTIONS
Figure 1
IMPORTANT: You must read the safety instructions
for this machine before use.

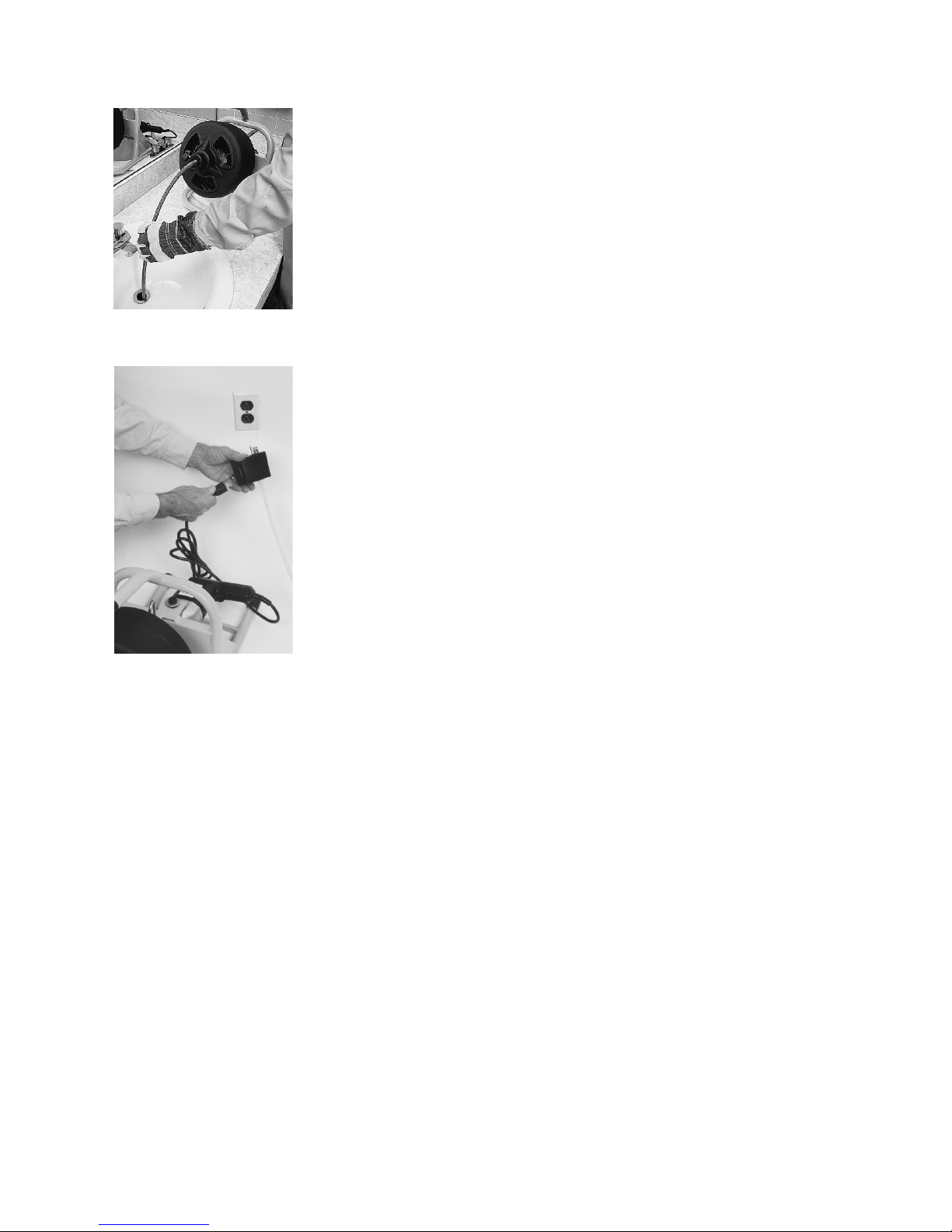

1 For best results it is recommended that the machine is
positioned within 2 feet of the drain. (see Fig. 1)
2 Loosen the thumbscrew, pull sufficient cable out of the drum and
place the end of the cable as far into the drain as possible.
3 Attach the drill motor cord to the air press box.
4 Attach the air foot switch to the press box.(see Fig. 2)
5 Plug the press box cord to the outlet. (see Fig. 2)
6 Pull approximately 5 feet of extra cable from the drum
creating a slight loop of cable between the machine and the
inlet. This should gently be fed into the inlet.
7 To operate, place the drill motor switch in the forward (FOR)
position and depress the foot pedal.
DO NOT operate this machine in reverse. Operating the
machine in reverse can result in cable damage and must only
be used to help back a cable out of an obstruction.
9 Continue to push the cable into the sewer outlet or drainpipe
using a gloved hand. Do not use a woolen glove. After feeding
the cable in by hand, lock the thumbscrew onto the cable
before squeezing the trigger again.
10 Once the obstruction has been cleared, the line should be
washed through with a hose or power washer.
Note: It is recommended that the cable is continuously flushed
through with clean water as it is being retrieved from the inlet and
again before putting it away.
11 To retrieve the cable, first stop the machine. Then, feed all the
cable into the drum, cleaning it in cold water as you go.
12 Finally, tighten the thumbscrew by hand.
Warning A: Do not allow the cable to get hung up on the ob truction.
If the cable end get hung up on an ob truction, top the motor and
rever e (REV) the drill until the cable become free. Once free from
the ob truction, turn motor to the forward (FOR) po ition and re ume
clearance operation.
Warning B: Do not allow cable to become “over- tre ed.” Over
tre ing cable due to a tubborn ob truction or nag will create
ten ion in the cable leading to cable damage or an unpredictable
cable reaction. If the cable become over- tre ed, follow the ame
procedure a advi ed in “Warning A.”
Warning C: Never fully retract the cable from the inlet while it
i rotating.
Figure 2

TO REMOVE DRUM
• The release hook is situated immediately behind the drum. Pull
hook upward and pull drum forward to remove it from the
spindle. (see Fig. 3)
• TO REPLACE the drum, reverse the steps above.
INSTALLING
REPLACEMENT CABLE
• Loosen thumbscrew and remove the existing cable from
the machine.
• Uncoil the new cable completely. Carefully insert the cable into
the drum and continue doing so until installation is complete.
• Finally, tighten the thumbscrew. (see Fig. 4)
Figure 3
Figure 4
SPECIAL
APPLICATIONS
Reverse Operation
Running this machine in reverse should only be done if the cable
becomes blocked and only for a few seconds, enough to free the
end of the cable. If the cable gets caught on an obstruction,
immediately release the trigger and take your foot off the foot pedal to
allow the machine to come to a complete stop. Fully tighten the
thumbscrew and turn the drill switch to the (REV) position and depress
the foot pedal. Grasp the cable with a gloved hand and pull it while
jogging the trigger. When the cable is dislodged, place the drill motor
switch in the forward (FOR) position, loosen the thumbscrew, and
follow normal operating procedure.
Lubrication
Grease all exposed and moving parts.
Storage
The machine must be kept in a dry, safe place, out of the reach
of children.
Cables
The metal cable should be thoroughly cleaned with water to prevent
unpleasant odors and the damaging effects of drain cleaning
compounds.
CUTTER SELECTION
Straight Boring Head
For use when exploring and breaking up blockages or returning
samples to the surface to determine the correct tool to use.
Spear-Head
For exploring and breaking up stoppages.
Side Cutter
For use in cleaning pipes of various material clinging to pipe walls.
Grease Cutter
For cleaning any stoppages, rags, sticks, grease, etc –
the all rounder.

651-950200 • Printed in USA

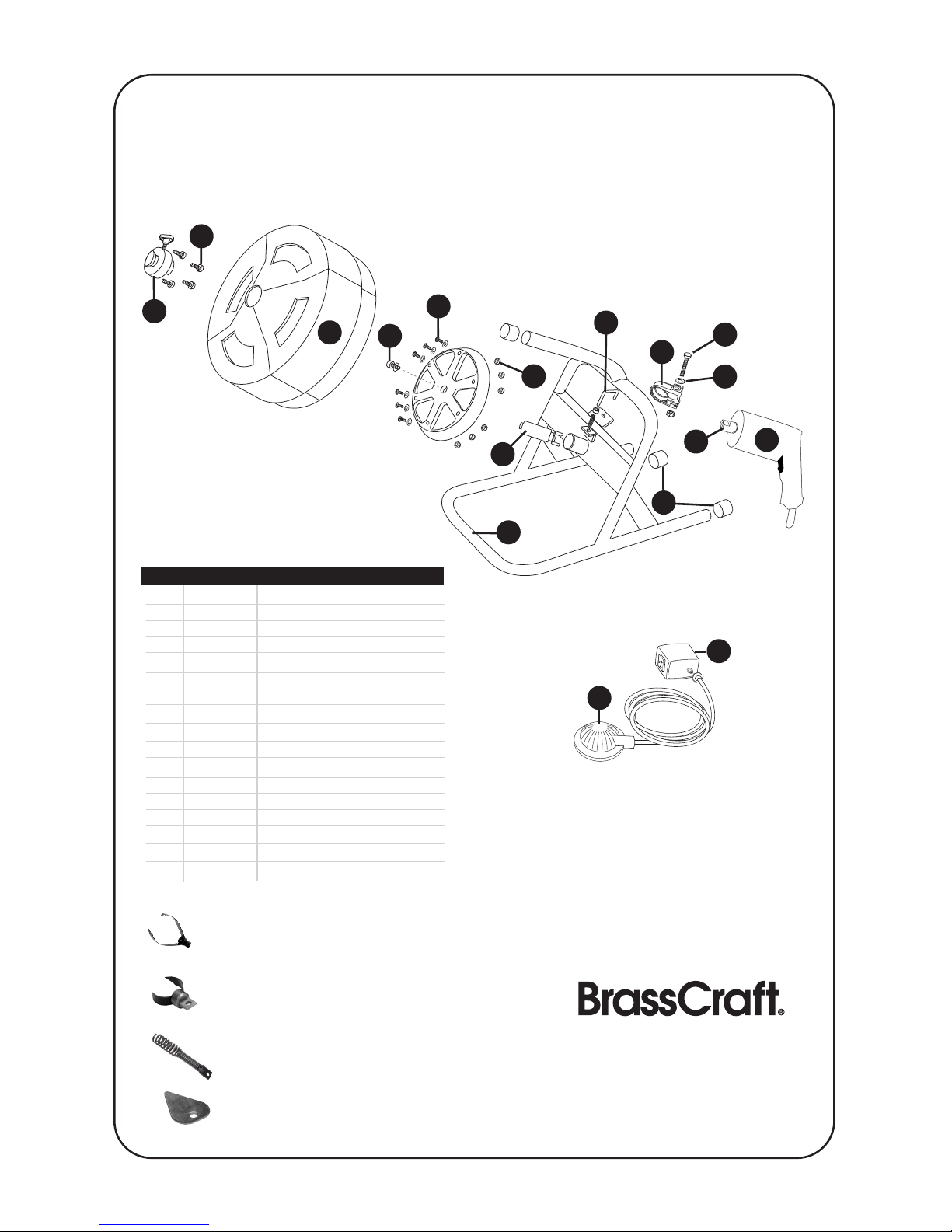

PARTS
1 Warner Court
Swedesboro, New Jersey 0 0 5 USA
Customer Service……856-241-7700
Fax Order Service……856-241-1699
REF# PART NO. DESCRIPTION
1 50-990210 Frame Assembly
2 750-002000 Drum Pin Assembly
3 401-990273 Drum Drive
4 401-725550 Drill Attach Collar
5 350-142024 Large Shoulder Screw
6 350-313125 Flat Washer
7 99323 Drill
401-990274 Motor Drive
9 350-25255 Large Flat Head Cap Screw (6)
10 350-142040 Lock Nut (6)
11 350-375161 Large Socket Head Cap Screw (1)
12 350-142004 Large Button Head Screw (4)
13 50-990000 3/4" Nose cone Assembly
14 9931 Drum Assembly
15 450-043 70 End Cap (3)
16 99300 Air Actuated Foot Switch
17 99301 Air Actuated Press Box
1
13
7
9
10
14
8
16
17
12
11
3
15
2
4
5
6
99206: 1/2" x 2" Side Cuter
For use in cleaning pipes of various material
clinging to pipe walls.
99205: 1/2" x 1" Grease Cutter
For lines which have become badly greased
with detergents and have to be re-opened.
99202: Straight Boring Head
For use when exploring and breaking up
blockages or returning samples to the surface
to determine the correct tool to use.
96204: Spear-Head
For exploring and breaking up stoppages.
