English
Our products are designed to meet the highest standards of quality,
functionality and design. We hope you enjoy your new Braun Shaver.
Read these instructions completely, they contain safety information.
Keep them for future reference.
Warning
Your shaving system is provided with a special cord set,
which has an integrated Safety Extra Low Voltage power
supply. Do not exchange or tamper with any part of it,
otherwise there is risk of an electric shock.
Only use the special cord set provided with your appliance.
Do not shave with a damaged foil or cord.
The shaver head is suitable for cleaning under running
tap water. Detach the shaver from the power supply
before cleaning the shaver head in water.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the safe use of the appliance and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children unless
they are older than 8 years and supervised.
To prevent the cleaning fluid from leaking, ensure that the
Clean&Renew station is placed on a flat surface. When a
cleaning cartridge is installed, do not tip, move suddenly or
transport the station in any way as cleaning fluid might spill
out of the cartridge. Do not place the station inside a mirror
cabinet, nor over a radiator, nor place it on a polished or
lacquered surface.
The cleaning cartridge contains a highly flammable liquid so
keep it away from sources of ignition. Do not smoke near the
station. Do not expose to direct sunlight for long periods of
time.
Do not refill the cartridge and use only original Braun refill
cartridges.
97187087_760cc-7_CEE_S4-138.indd 4 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 4 of 138

5
Description
Clean&Renew station
1Cleaning fluid display
2Lift button for cartridge exchange
3Station-to-shaver contacts
4Start button
DFast clean button
5Cleaning program indicators
6Station power socket
7Cleaning cartridge
Shaver
8Foil & Cutter cassette
9Cassette release button
0Shaver head lock switch
qPop-out long hair trimmer
wOn/off switch
e– setting button (sensitive)
r+ setting button (intensive)
tReset button
zShaver display
uShaver-to-station contacts
iShaver power socket
oTravel case
pSpecial cord set
Before shaving
Prior to first use you must connect the shaver to
an electrical outlet using the special cord set p
or alternatively proceed as below:
Installing the Clean&Renew station
• Using the special cord set p, connect the
station power socket 6to an electrical outlet.
• Press the lift button 2to open the housing.
• Hold the cleaning cartridge 7down on a flat,
stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge into the base of the station
as far as it will go.
• Slowly close the housing by pushing it down
until it locks.
The cleaning fluid display 1will show how much
fluid is in the cartridge:
up to 30 cleaning cycles available
up to 7 cleaning cycles remaining
new cartridge required
f
a
s
t
c
l
e
a
n
f
a
s t
c
l
e
a
n
f
a
s
t
c
l
e
a
n
2
1
97187087_760cc-7_CEE_S4-138.indd 5 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 5 of 138

6

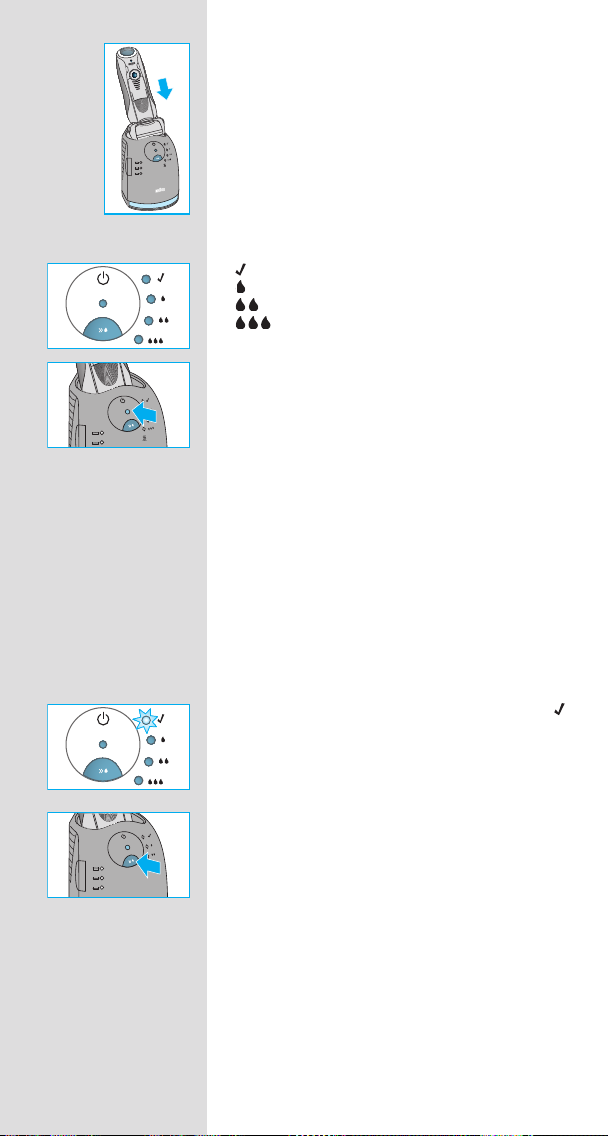

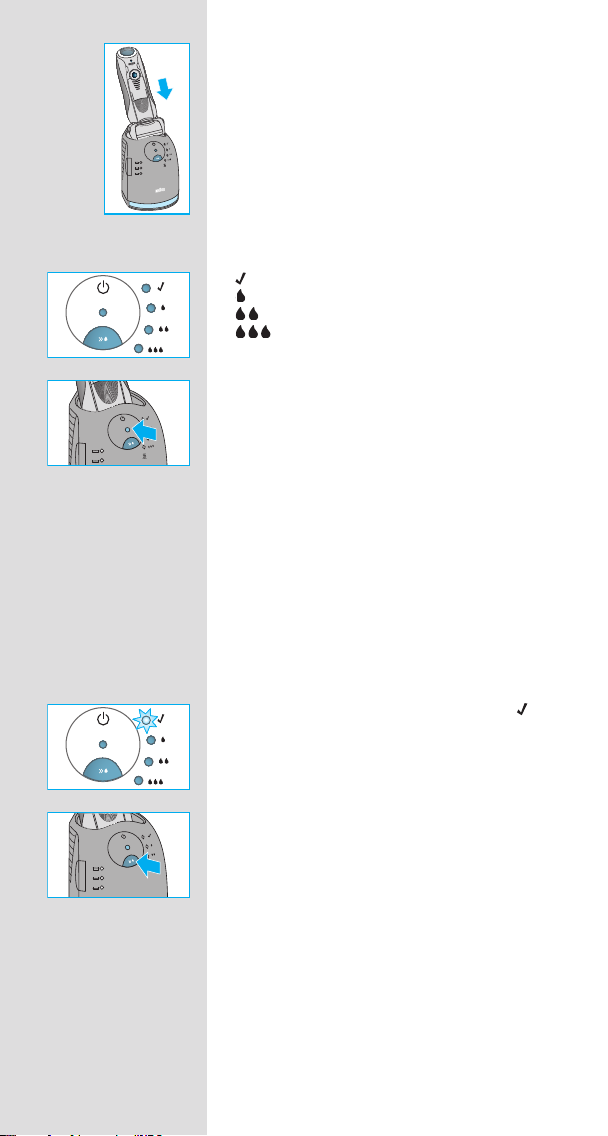

Charging and cleaning the shaver
Insert the shaver head down into the cleaning
station. The contacts uon the back of the
shaver will align with the contacts 3in the
cleaning station. Important: The shaver
needs to be dry and free from any foam or
soap residue!
If required, the Clean&Renew station will
automatically charge the shaver. The hygiene
status of the shaver will also be analyzed and
one of the following cleaning program indicators
5will light up:
shaver is clean
short economical cleaning required
normal level of cleaning required
high intensive cleaning required
If the station selects one of the required
cleaning programs, it will not start unless you
press the start button 4. For best shaving
results, we recommend cleaning after each
shave.
Whilst cleaning is in progress, the respective
cleaning program indicator will blink. Each
cleaning program consists of several cycles,
where cleaning fluid is flushed through the
shaver head and a heat drying process dries
the shaver. Depending on the program selected
the total cleaning time will range from 32 to
43 minutes.
The cleaning programs should not be inter-
rupted. Please note that whilst the shaver is
drying, the shaver head may be hot and wet.
When the program is finished, the blue
indicator will light up. Your shaver is now clean
and ready for use.
Fast cleaning
Push the fast clean button Dto activate the fast
clean program without drying. This program
takes about 25 seconds only and is recommended
when you do not have time to wait for one of the
automatic cleaning programs. If you remove the
shaver just after the program has finished, wipe
off the shaver head with a tissue to avoid
dripping.
Stand-by mode
10 minutes after completing the charging or
cleaning session, the Clean&Renew station
switches to the stand-by mode: The indicators
of the Clean&Renew station turn off.
trimmer
Series 7
97187087_760cc-7_CEE_S4-138.indd 6 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 6 of 138

7

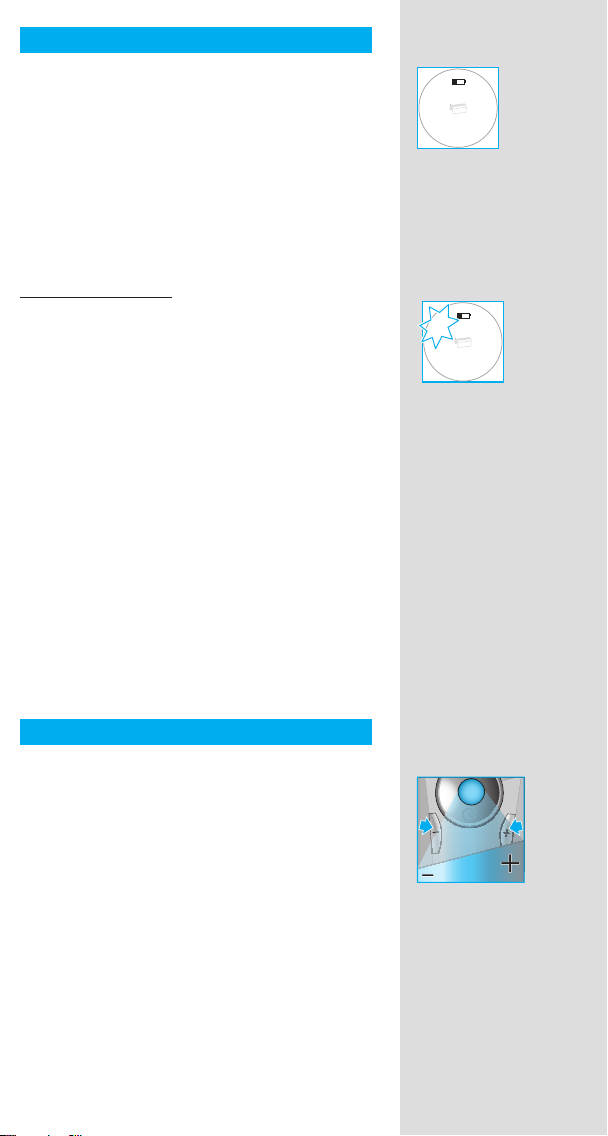

Shaver display
The shaver display zshows the charge status
of the battery. During charging or when using
the shaver, the respective green charge status
will blink. When the battery is fully charged the
green charge status will light up continuously,
provided the shaver is switched on or connected
to an electrical outlet.
Some minutes after completing the charging,
the shaver switches to the stand-by-mode:
The display turns off.
Low charge indicator
The red low charge indicator blinks to indicate
that the battery is running low, provided the
shaver is switched on. The remaining battery
capacity is sufficient for 2 to 3 shaves.
Charging information
• A full charge will take about 1 hour and
provides up to 50 minutes of cordless shaving
time. This may vary according to your beard
growth and environmental temperature.
5-minute quick charge is sufficient for a
shave.
• Recommended ambient temperature for
charging is 5 °C to 35 °C. The battery may not
charge properly or at all under extreme low or
high temperatures. Recommended ambient
temperature for shaving is 15 °C to 35 °C. Do
not expose the shaver to temperatures higher
than 50 °C for extended periods of time.
Using the shaver
Personalizing your shaver
By holding down the accelerator button –/+
(eor ryou can adjust the shaving power to
your individual needs in the different areas of
your face from sensitive to intensive. The pilot
light in the on/off switch wchanges within the
following range:
(–) sensitive shave
- light blue
- dark blue
- green
(+) intensive shave
For a thorough and fast shave we recommend
the green (intensive) setting.
When switching on next time, the last used
setting will be activated.
1
0
0
8
0
6
0
4
0
2
0
1
0
0
8
0
6
0
4
0
2
0
97187087_760cc-7_CEE_S4-138.indd 7 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 7 of 138

8
How to use
Press the on/off switch wto operate the shaver:
• The pivoting shaver head and floating foils
automatically adjust to every contour of your
face.
• To shave hard to reach areas (e.g. under the
nose) slide the shaver head lock switch 0to
the back position to lock the pivoting head at
an angle.
• To trim sideburns, moustache or beard, slide
the pop-out long hair trimmer qupwards.
Tips for the perfect dry shave
For best shaving results, Braun recommends
you follow 3 simple steps:
1. Always shave before washing your face.
2. At all times, hold the shaver at right angles
(90°) to your skin.
3. Stretch your skin and shave against the
direction of your beard growth.
Shaving with the cord
If the shaver has run out of power (discharged),
and you do not have the time to recharge it in
the Clean&Renew station, you may also shave
with the shaver connected to an electrical outlet
via the special cord set.
Cleaning
Automatic cleaning
After each shave, return the shaver to the
Clean&Renew station and proceed as described
above in the section «Before shaving».
All charging and cleaning needs are then
automatically taken care of. With daily use,
a cleaning cartridge should be sufficient for
about 30 cleaning cycles.
The hygienic cleaning cartridge contains
ethanol or isopropanol (specification see
cartridge), which once opened will naturally
evaporate slowly. Each cartridge, if not used
daily, should be replaced after approximately
8 weeks.
The cleaning cartridge also contains lubricants,
which may leave residual marks on the outer foil
frame after cleaning. However, these marks can
be removed easily by wiping gently with a cloth
or soft tissue paper.
lock
lock
t
r
lock
12
trimmer
+
lock
release
90°
trimmer
97187087_760cc-7_CEE_S4-138.indd 8 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 8 of 138

9
Manual cleaning
Rinsing the shaver head under running water is
an alternative way to keep the shaver clean,
especially when travelling:

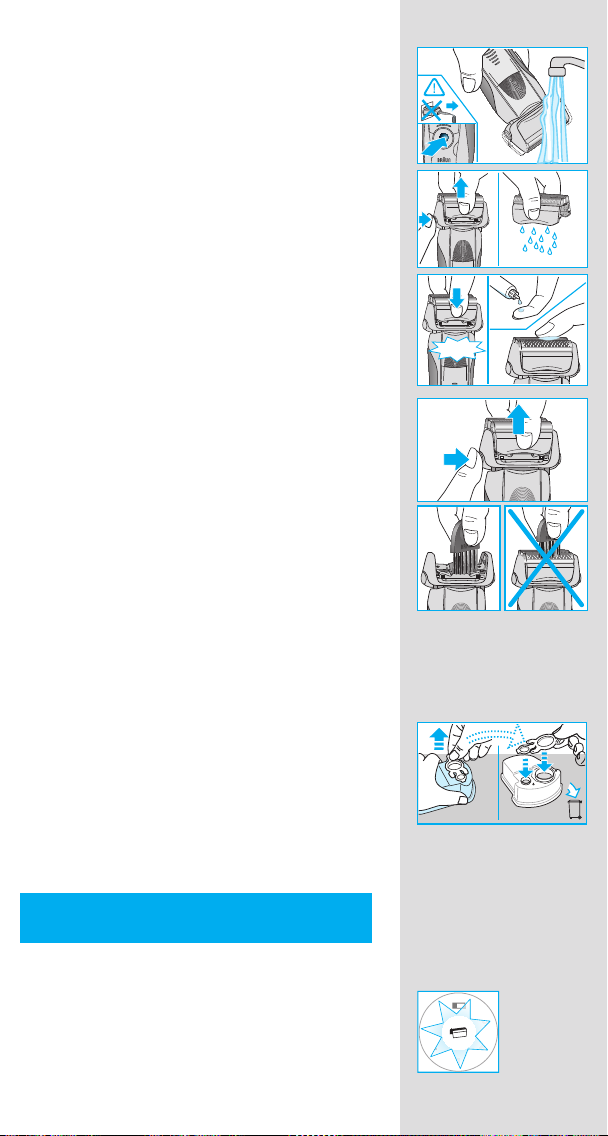

• Switch the shaver on (cordless) and rinse the
shaver head under hot running water until all
residues have been removed. You may use
liquid soap without abrasive substances.
Rinse off all foam and let the shaver run for a
few more seconds.
• Next, switch off the shaver, press the release
button 9to remove the Foil & Cutter cassette
8and let it dry.
• If you regularly clean the shaver under water,
then once a week apply a drop of light
machine oil on top of the Foil & Cutter
cassette.
Alternatively, you may clean the shaver with a
brush:
• Switch off the shaver. Remove the Foil &
Cutter cassette 8and tap it out on a flat
surface. Using a brush, clean the inner area of
the pivoting head. However, do not clean the
cassette with the brush as this may damage it.
Cleaning the housing
From time to time clean the housing of the
shaver and the Clean&Renew station with a
damp cloth, especially inside the cleaning
chamber where the shaver rests.
Replacing the cleaning cartridge
After having pressed the lift button 2to open
the housing, wait for a few seconds before
removing the used cartridge to avoid any
dripping. Before discarding the used cartridge,
make sure to close the openings using the lid of
the new cartridge, since the used cartridge will
contain contaminated cleaning solution.
Keeping your shaver in top shape
Replacing the Foil & Cutter cassette / reset
To maintain 100% shaving performance, replace
the Foil & Cutter cassette 8, when the
replacement symbol lights up on the shaver
display zafter about 18 months or when
cassette is worn.
The replacement symbol will remind you during
the next 7 shaves to replace the Foil & Cutter
cassette. Then the shaver will automatically
reset the display.
trimmer
er
re le
a
s
e
trimmer
re le
a
s
e
re
le
a
s
e
Series 7
Series 7
Series
Series
click!
re
le
a
s
e
re
le
a
s
e
re
le
a
s
e
Series 7
Series 7
new old
1
0
0
8
0
6
0
4
0
2
0
97187087_760cc-7_CEE_S4-138.indd 9 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 9 of 138

10

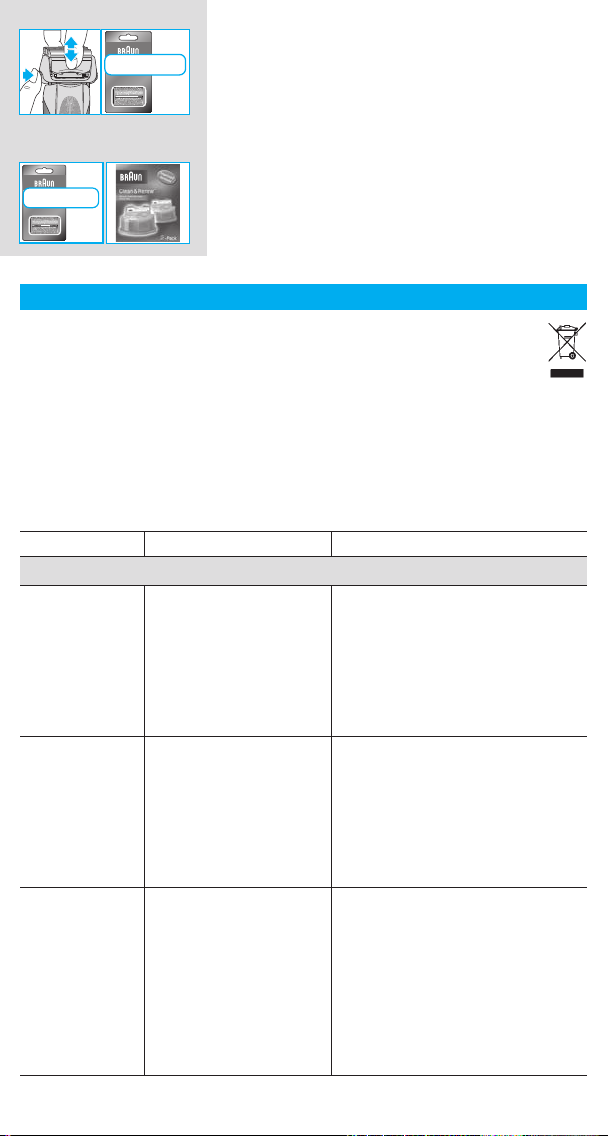

After you have replaced the Foil & Cutter
cassette, use a ball-pen to push the reset button
tfor at least 3 seconds to reset the counter.
While doing so, the replacement light blinks and
goes off when the reset is complete. The manual
reset can be done at any time.
Accessories
Available at your dealer or Braun Service
Centres:
• Foil & Cutter cassette 70S/70B
• Cleaning cartridge Clean&Renew CCR
re
le
a
s
e
Series 7 70S/70B
70S/70B
Environmental notice
Product contains batteries and/or recyclable electric waste.
For environment protection do not dispose of in household waste,
but for recycling take to electric waste collection points provided
in your country.
The cleaning cartridge can be disposed of with regular household waste.
Subject to change without notice.
For electric specifications, see printing on the special cord set.
Trouble-Shooting
Problem: Possible reason: Remedy:
SHAVER
Unpleasant
smell from the
shaver head.
1. Shaver head is
cleaned with water.
2. Cleaning cartridge is
in use for more than
8 weeks.
1. When cleaning the shaver head
with water only use hot water
and from time to time some
liquid soap (without abrasive
substances). Remove Foil &
Cutter cassette to let it dry.
2. Change cleaning cartridge at
least every 8 weeks.
Battery
performance
dropped
significantly.
1. Foil and cutter are
worn which requires
more power for each
shave.
2. Shaver head is
regularly cleaned
with water but not
lubricated.
1. Renew Foil & Cutter cassette.
2. If the shaver is regularly
cleaned with water, apply a
drop of light machine oil on top
of the foil once a week for
lubrication.
Shaving
performance
dropped
significantly.
1. Foil and cutter are
worn.
2. Personal setting of
shaving performance
has been changed.
3. Shaving system is
clogged.
1. Renew Foil & Cutter cassette.
2. For a thorough and fast shave
we recommend the green
(intensive) setting.
3. Soak the Foil & Cutter cassette
into hot water with a drop of
dish liquid. Afterwards rinse it
properly and tap it out. Once
dry apply a drop of light
machine oil on the foil.
97187087_760cc-7_CEE_S4-138.indd 10 09.12.14 08:30
CSS APPROVED Effective Date 15Dec2014 GMT - Printed 24Nov2015 Page 10 of 138
