Braun S18 525 2 Quick guide

Use Instructions / Warranty Included
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 1

Japanese 3
English 14
25
Internet:
www.oralb.com
www.braun.com
www.braun.co.jp
Braun GmbH
Frankfurter Straße 145
61476 Kronberg/Germany
Type 4729
4-717-287/00/III-07
Japan/GB/China
Printed in Germany
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 2

3
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 3

4
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 4

3–4
6
7
8
9
10
11
11
12
13
5
38
39
14
25
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 5

6
complete
sonic
1
3
4
5
6
7
2
8
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 6

2/4 3
1
7
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 7

8
16
complete
sonic
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 8

9
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 9

10
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 10

11
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 11

12
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 12

13
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 13

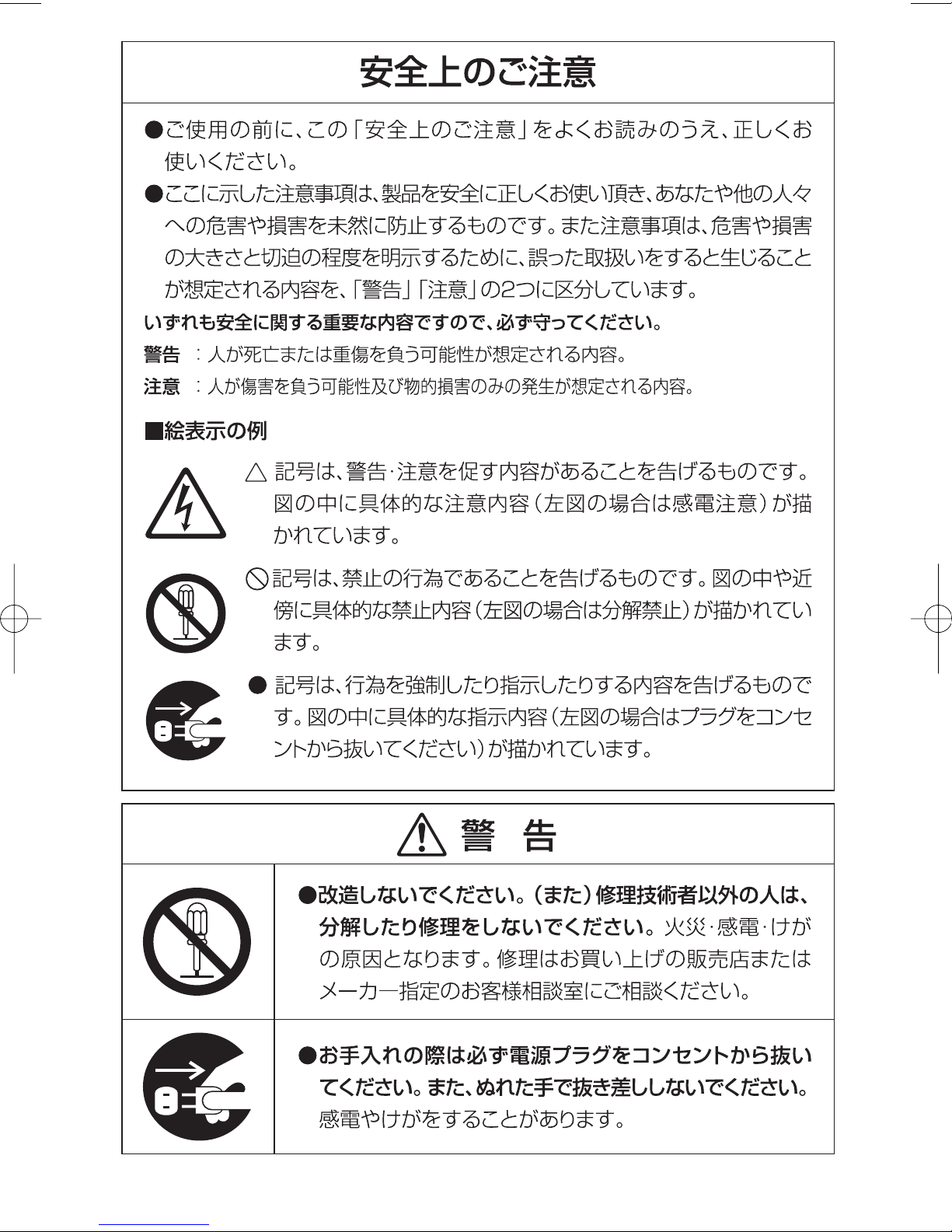

Safety Precautions
●Please read the «Safety Precautions» thoroughly beforehand to ensure proper
use of the product.
●The below precautions are to ensure that you use the product safely and
correctly, so as to prevent injury or harm to yourself or others. This section
has been divided into two categories «Warnings» and «Precautions» to clearly
indicate the severity of the harm or damage that may potentially arise from
misuse of this product.
Each precaution contains important information relating to your safety, so please
make sure you follow them.
Warning: Pertains to information relating to potential death or severe injury
Precaution: Pertains to information relating to potential injury or physical harm
Examples of Graphic Indicators
Symbol highlights Warning or Precautions. Specific precautions
are pictured inside the symbol. For example, the symbol on the
left represents precaution to be taken to avoid electrocution.
Symbol indicates a forbidden action. Forbidden actions are
pictured inside or near the symbol. For example, the symbol on
the left alerts that disassembly is forbidden.
Symbol indicates certain recommended actions. Specific
information is pictured inside the symbol. For example, the
symbol on the left indicates that the product should be
unplugged from the power socket in a certain manner.
Warnings
●Individuals other than certified repair technicians should not
disassemble or attempt to repair the product. Please do not
attempt to modify the product yourself. This could lead to
fire, electrocution, or injury. For repairs, please speak with
a representative from the purchase location or with the
Customer Service Center.
●Please assure that the product is unplugged during product
maintenance. In addition, please do not insert or remove the
plug from the power socket with wet hands, since this could
lead to electrocution or injury.
14
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 14

15
Precautions
●When removing the plug from the power socket, please pull
the plug and avoid pulling directly on the power cord. This
will protect against electrocution or a short circuit, which
can lead to the outbreak of fire.
●Please check that the toothbrush is not shaky or damaged
before use, since this could harm your gums or lips.
●Please do not use the product if the power cord or plug is
damaged or if the plug does not securely fit into the power
socket. This will protect against electrocution or a short
circuit, which can lead to the outbreak of fire.
●Please do not damage, break, convert, forcibly bend,
stretch, twist or bundle together the power cord. In
addition, placing a heavy object on the cord, lodging the
cord between objects, or converting the power cord could
cause damage to the cord. A damaged cord could lead to
fire or electrocution.
●Please do not use with a current outside the range
AC 100-120V. Such action could lead to fire or
electrocution.
●Please do not press firmly on the brush head. This could
damage your gums or lips.
●Please do not immerse or pour water on the charging
station. Such action could lead to a short circuit or
electrocution.
After reviewing the above, please assure that this document is easily
accessible to those using the product.
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 15

16
Index
Index
Safety Precautions .................................................................. 14
Braun Oral-B Sonic Complete™ Specifications .................. 17
The Features of the Braun Oral-B Sonic Complete ............ 18
Charging the Braun Oral-B Sonic Complete........................ 19
The Recommended Brushing Technique................................ 20
Customize your Clean............................................................. 21
Caring for the Braun Oral-B Sonic Complete ...................... 22
Changing the Brush Head....................................................... 22
Caring for the Environment ..................................................... 23
Braun Oral-B Sonic Complete Q&A..................................... 24
Guarantee................................................................................ 24
................................................................................................ 25
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 16

Braun Oral-B Sonic
Braun Oral-B Sonic
Complete Specifications
Complete Specifications
17

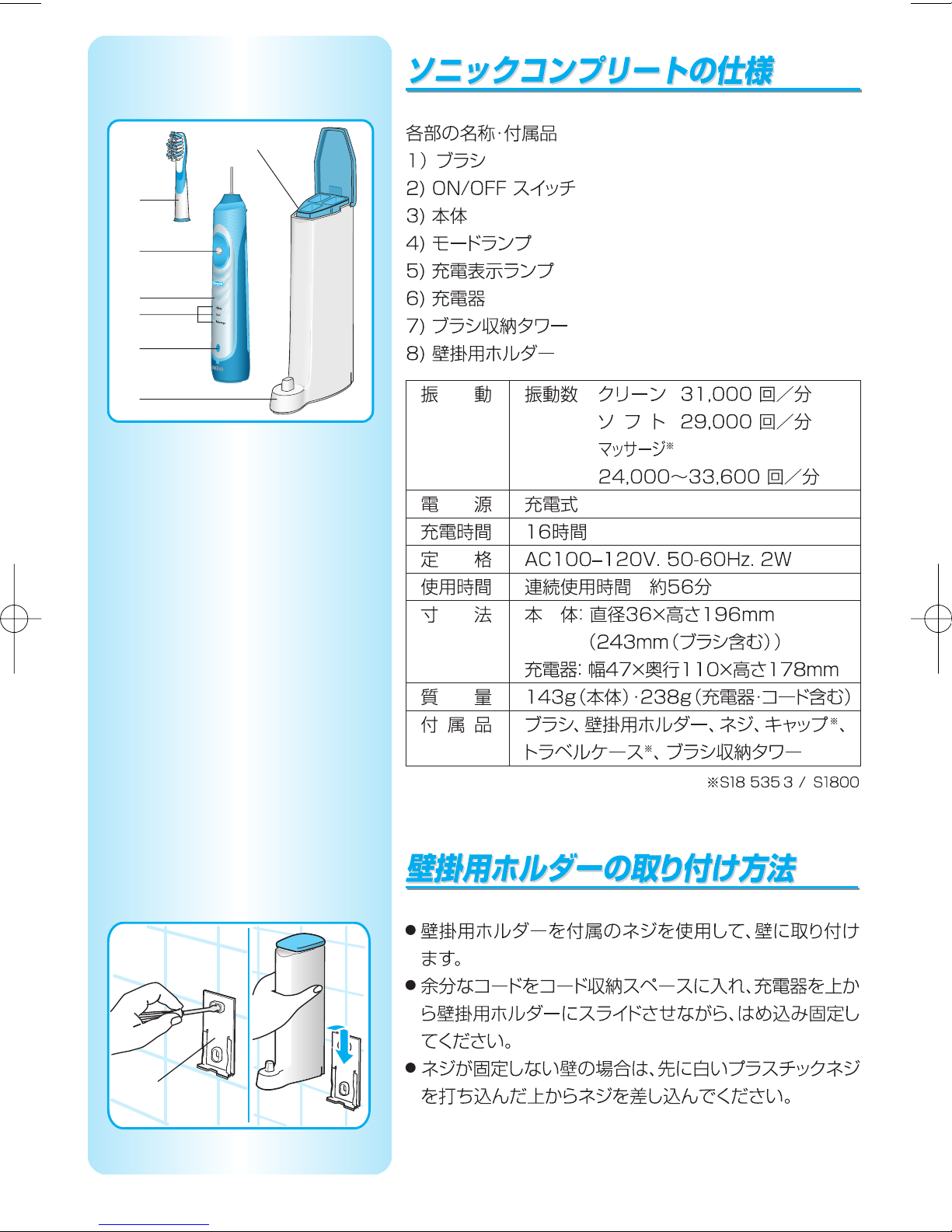

Every Braun Oral-B Sonic Complete features the
following:
1) Brush head
2) ON/OFF switch
3) Sonic handle
4) Brushing modes
5) Charge indicator
6) Charger base
7) Storage tower for additional brush heads
8) Wall holder
complete
sonic
1
3
4
5
6
7
2
8
How to attach the
How to attach the
wall holder
wall holder
• Use the enclosed screws to attach fixture to wall.
• Place extra length of power cord in the power cord
storage space in the back of the charger station.
Slide charger base into place from above and
secure.
• If screws cannot be secured into the wall, use plastic
screws before inserting screws.
Motion Frequency
Clean 31,000 times/minute
Soft 29,000 times/minute
Massage 24,000-33,600
times/minute
Power supply Rechargeable
Recharge time 16 hours
Rating AC 100-120V, 50-60Hz, 2W
Usage time 2 weeks (approximately 56 minutes)
Measurements Main unit:
diameter 36mm x height 196mm
(including brush head, 243mm)
Charger base:
width 47mm x depth 110mm x
height 178mm
Mass 143g (main unit) 238g (charger base
including power cord)
Accessories Brush head, wall holder, screws,
travel case*, travel cap*
*S18 535 3 and S1800 only
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 17

18
2/4 3
1

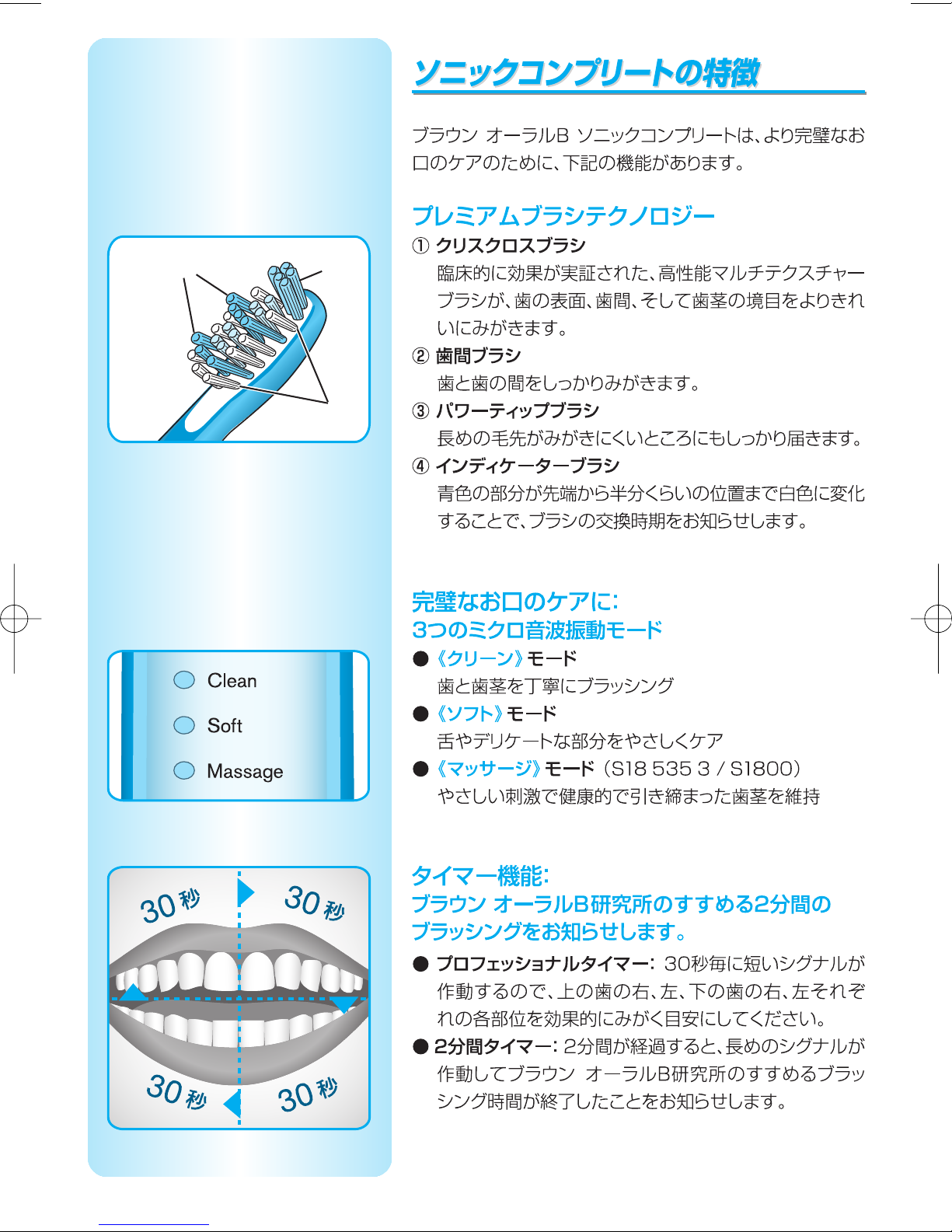

Braun Oral-B Sonic Complete has the following
features designed to offer you complete mouth care:
Premium bristling technology
1) CrissCross™ bristles
Advanced multi-textured bristles proven to better
clean tooth surfaces, between teeth and along the
gumline.
2) Interdental bristles
Raised for better interdental cleaning.
3) Power Tip®bristles
Extra-long bristles at the tip to help clean hard-to-
reach areas.
4) Indicator®bristles
Blue color fades halfway with use, signaling the
need to replace the brush head.

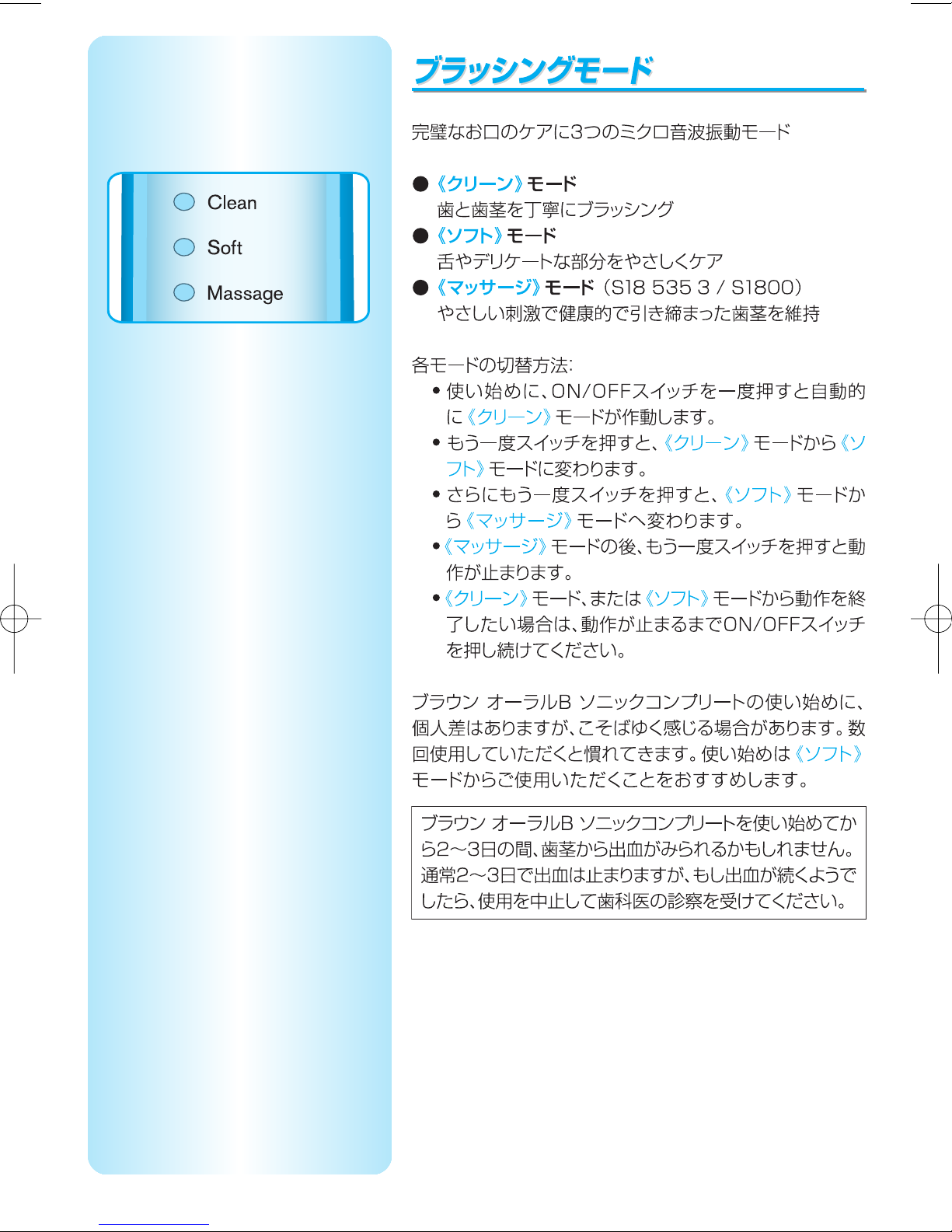

Microsonic brushing modes for complete mouth
care
• «Clean»
for a complete cleaning of teeth and gums.
• «Soft»
for the gentle care of the tongue and other sensitive
areas.
• «Massage» (S18 535 3 and S1800 only)
for a gentle stimulation designed to help keep gums
firm and healthy.
Timers to encourage thorough brushing
• Professional Timer: A short stuttering sound at
30-second intervals reminds you to brush the four
quadrants of your mouth equally for a better overall
clean.
• 2-Minute Timer: A longer stuttering sound indicates
when the recommended 2-minute brushing time has
been reached.
The Featur
The Features of the Braun es of the Braun
Oral-B Sonic Complete
Oral-B Sonic Complete
3
0
s
e
c
3
0
s
e
c
3
0
s
e
c
3
0
s
e
c
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 18

Char
Charging the Braun ging the Braun
Oral-B Sonic Complete
Oral-B Sonic Complete
19
• When you place your handle on the charger base and
plug the base into an electrical outlet, the blue charge
indicator will light up. While charging, the light blinks.
Once the handle is fully charged, the light will stop
blinking and shine continuously. If you then use your
brush and place it back on the charger, the charging
light will again blink to let you know it is charging.
• A full charge lasts for approximately two weeks
of regular brushing, so you can easily take your
Braun Oral-B Sonic Complete with you on vacation.
• Your Braun Oral-B Sonic Complete is designed to
provide you with an effective clean consistently. If the
battery has run too low to provide this clean, your
brush will stop.
• We recommend keepingyour brush on the charger
base when not in use to maintain a full battery
charge. If your rechargeable battery does run down
completely, it will take about 16 hours for your
Braun Oral-B Sonic Complete to fully charge.
16 h
complete
sonic
When removing the plug from the power
socket, please make sure that you pull the plug
and not just the power cord. Pulling just the
cord could result in electrocution or a short
circuit, which could lead to the outbreak of fire.
• It is recommended that you (1) Charge and (2)
Discharge once every 6 months.
(1) Fully charge for 16 hours, then use until
completely discharged.
(2) When the unit is completely discharged, return unit
to charger base and fully charge for 16 hours.
Please do not use below or above AC 100-
120V. This could lead to fire or electrocution.
• Because the charger base uses electromagnetic
induction, please do not place on top of stainless
steel or other metallic surfaces when in use.
Recharge capacity may be affected and recharging
may become difficult.
• Please check that the power cord of the charger
base is not damaged. If there are signs of damage,
please refrain from use and contact the purchase
location or the local Braun Repair Center.
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 19

20
• Rechargeable batteries may grow weaker over time. A
notable reduction in running time, even after charging,
may mean that the battery has begun to deteriorate.
If repairs are required (charges apply), please see your
nearest sales outlet or Braun Repair Center.
The Recommended
The Recommended
Br
Brushing T ushing Technique echnique
1. Attach brush head firmly to the main unit.
• A 2mm gap exists between the brush head and
the main unit. This space is necessary for the
movement of the brush head. This is not a product
defect.
2. Please turn switch ON after placing the toothbrush
in your mouth.
• When toothpaste is used, please be particularly
careful when switching product ON to prevent the
toothpaste from spraying.
• Angle the brush along the gumline.
• Hold the handle lightly in your hands and turn
switch ON.
3. Learn how to brush effectively.
• Gently move the brush head in a slightly circular
motion. Allow the longer interdental bristles to
reach between your teeth, while the CrissCross
bristles focus on cleaning the tooth surface and
gumline regions (see diagram).
Please do not damage, break, convert,
forcibly bend, stretch, twist or bundle together
the power cord.
Individuals other than certified repair
technicians should not disassemble or attempt
to repair the product. Please do not attempt to
modify the product yourself. This could lead to
fire, electrocution, or injury.
Please check that the toothbrush is not shaky
or damaged before use, since this could harm
your gums or lips.
The brush head may break or become
damaged if a strong force is exerted on it. Please
refrain from using brush head in this situation.
4717287_S18_Japan 29.03.2007 12:07 Uhr Seite 20
