Braun Under-Vehicle Lift NUVL855C User manual

Operator's Manual
Operator's Manual
35932 Rev. A
March 2010
Private Use Wheelchair Lifts
DOT — Private Use Lift
DOT — Private Use Lift
"Providing Access to the World"
International Corporate Hdqrs: P.O. Box 310 Winamac, IN 46996 USA
1-800-THE LIFT®[phone] FAX: [phone]
®
®
www.braunlift.com
31937
Braun UVL SeriesTM
Braun UVL SeriesTM
W
ARNING
Read manual
before operating
lift. Failure to do
so may result in
serious bodily
injury and/or
property damage.
Keep manual in
lift storage pouch.
Oper
ual
Man
ator's
“DOT — Private Use Lift” verifies that this platform lift meets only
the “private use lift” requirements of FMVSS No. 403. This lift may
be installed on all vehicles appropriate for the size and weight of
the lift, except for buses, school buses, and multi-purpose
passenger vehicles other than motor homes with a gross vehicle
weight rating (GVWR) that exceeds 4,536 kg (10,000 lb).
Under-Vehicle Lift®
Service Manual for:

Congratulations
We at The Braun Corporation wish to express our fullest appreciation
on your new purchase. With you in mind, our skilled craftsmen have designed
and assembled the finest lift available.
This manual includes safety precautions, lift operating instructions, man-
ual operating instructions, and instructions for maintenance and lubrication
procedures.
Your lift is built for dependability, and will bring you years of pleasure
and independence, as long as maintenance is performed regularly and the lift
is operated by an instructed person.
Sincerely,
THE BRAUN CORPORATION
Ralph W. Braun
Chief Executive Officer

Page 1
Contents
Warranty/Registration Instructions .................. 2, 3
Lift Terminology
Lift Terminology Illustration ........................................ 4
Introduction ................................................................ 5
Lift Components .................................................... 6, 7
Vehicle and Lift Interlocks ......................................... 7
Lift Actions and Functions .......................................... 8
Lift Operation Safety
Safety Symbols ......................................................... 9
Lift Operation Safety Precautions ...................... 10-13
Operation Notes and Details
Introduction ............................................................. 14
General Safety ........................................................ 14
Control Switches ............................................... 15, 16
Lift Features
Inboard Locator ........................................... 17, 18
Outer Barrier ............................................... 18, 19
Lift Passengers
Passenger Orientation (Boarding Direction) ..... 20
Vehicle (Floor Level) Loading and
Unloading .......................................................... 21
Wheelchair-Equipped Occupant Seat Belts ..... 21, 22
Operation Procedure Review ................................. 22
Preventive Maintenance ......................................... 23
Lift Operating Instructions ............................. 24-26
NHTSA Operations Checklist .............................. 27
Manual Operating Instructions ....................... 28-32
Decals and Antiskid ........................................ 33-36
Maintenance and Lubrication ......................... 37-45
Limited Warranty .............................................. 46-52

Page 2
Warranty and Registration Instructions
Immediately upon receiving your
lift, examine the unit for any dam-
age. Notify the carrier at once
with any claims.
Two warranty/registration cards
are protected in a clear envelope
and attached to the lift protective
shipping wrap (shown on op-
posite page). The sales repre-
sentative must process one of
the cards. The consumer must
ll out the other card and mail it
to The Braun Corporation. The
limited warranty is provided in
this manual. The warranty cards
must be processed to activate the
warranty.
Two Braun Serial No./Series No.
identication tags are posted on
the lift (shown on opposite page).
One I.D. tag is posted on the left
platform side plate (outboard end).
A second I.D. tag is located inside
the pump module. Both I.D. tags
provide the product identication
information appearing on the war-
ranty/registration card. Record
the identication information in the
space provided. This information
must be provided when ling a
warranty claim or ordering parts.

Page 3
OWNER'S WARRANTY REGISTRATION
PURCHASED FROM
XXXXXXXXXX XX-XXXXX
DATE INSTALLED
NAME
ADDRESS
CITY
TELEPHONE
TO VALIDATE WARRANTY
REGISTRATION CARDS MUST BE RETURNED TO THE BRAUN CORPORATION.
OWNER
STATE ZIP
Sample Warranty/Registration Card
Serial No.
Model No.
Warranty and Registration Instructions
Model No.
Serial No.
Date of Manufacture
The Braun Corporation
XXXXXXXXXX
XX-XXXXX
XX/XX/XXXX
1-800-THE-LIFT
BRAUNLIFT.COM
TM
MFG DATE
SERIAL NUMBER
TM
DOT Public Use Lift MODEL#
Max. Lifting Capacity - 600Lbs.
Sample Serial
No./Series No.
Identication Tag
Record identication information below.

Page 4
DOORSTOW
DOWNUP
NUVL855C-02-011.ai
W
ARNING
81823
PushT-handlein fully and
manuallymoveplatform in
andouttoengage platform
lockbeforedriving vehicle.
Failuretolock platform may
resultinunintended platform
deployment.Unintended
platformdeploymentmay
resultinserious bodilyinjury
and/orpropertydamage.
Donotremove!

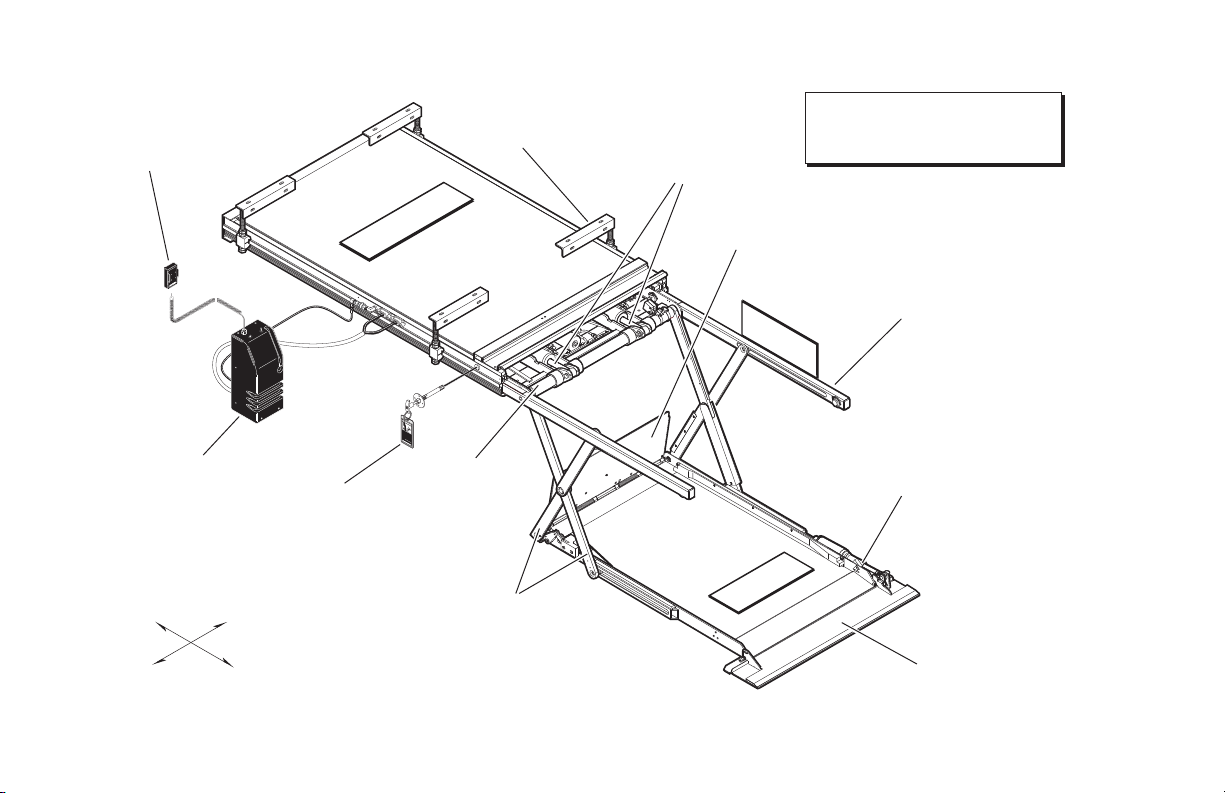

Lift Terminology
Illustration
Rear
Front
Outboard
(passenger's side)
Inboard
(driver's side)
“Arrows/30°-30°”6-13-90
(of vehicle)
(of vehicle)
Outboard
Right
Left
Inboard
Lift Mounting
Brackets (6) Hydraulic
Cylinders
Lifting
Arms
Rolling
Horizontal Arms
Outer Barrier
Actuator
Outer
Barrier
Platform Cable-activated
Manual Release System
Hand-Held
Pendant Control
Pump
Module
Inboard
Locator
Torque
Tube
Lift Housing
Platform
Carriage

Page 5
Lift Terminology
Braun NUVL Series lifts are
ADA compliant and comply fully
with National Highway Trafc
Safety Administration (NHTSA)
specications. The NUVL855C
is equipped with a hand-held
pendant control and intended for
operation by an attendant.
“Private Use” NUVL lift mod-
els are sometimes installed in
vehicles equipped with fully-
automatic door operators. Lift
model NUVL855C provides
fully automatic operation of all
lift functions as well as optional
power door operators (if so
equipped).
Refer to the Lift Terminology
Illustration for identication of
lift components.
Basic lift operation procedures
are identical for all NUVL Se-
ries lift models. The operating
instructions provided in this
manual and on lift operating
instruction decals address the
lift control switches and the
corresponding lift functions.
Instructions are provided for
manual operation of the lift.
Terminology: Become familiar
with the terminology that will be
used throughout this manual.
Become familiar with the iden-
tication of lift components and
their functions. Contact your lift
sales representative or call The
Braun Corporation at 1-800-THE
LIFT®if any of this information is
not fully understood.
Direction: The terms "left,"
"right," "inboard," and "outboard"
will be used throughout this
manual to indicate direction (as
viewed from outside the vehicle
looking directly at the lift). Refer
to the Lift Terminology Illustration
for clarication of direction terms.
Introduction:

Page 6
Lift Terminology
regarding control switches and
their functions are provided in the
Lift Operation section.
Lift Housing: The lift housing
is the metal structure (casing)
mounted under the vehicle which
contains and protects the platform
carriage assembly. The hous-
ing contains all lift components
except the power (pump) module
when the lift is in the stowed posi-
tion.
Platform Carriage Assembly:
The platform carriage assembly
includes the platform assembly,
the lifting arms, the rolling hori-
zontal arms that carry the plat-
form assembly in and out of the
housing and the electrical/hydrau-
lic drive components that power
the lift.
Platform Assembly: The lift plat-
form assembly consists of the at
aluminum plate upon which the
wheelchair is positioned, the outer
barrier, and the inboard locator.
Outer Barrier: The spring-
loaded, electric actuator-driven
outer barrier provides a ramp for
wheelchair loading and unload-
ing at ground level. Photos and
further details are provided in the
Operation Notes and Details sec-
tion (pages 18-19).
Inboard Locator: The NU-
VL855C is equipped with an au-
tomatic inboard locator that also
serves as the bridge plate.
Lift Components
Refer to the Lift Terminology Il-
lustration on page 4.
Pump Module: The remote
mounted pump module consists
of the main hydraulic pump, the
manual hand pump, the electronic
control board and other electrical
components that power the lift
electric/hydraulic systems.

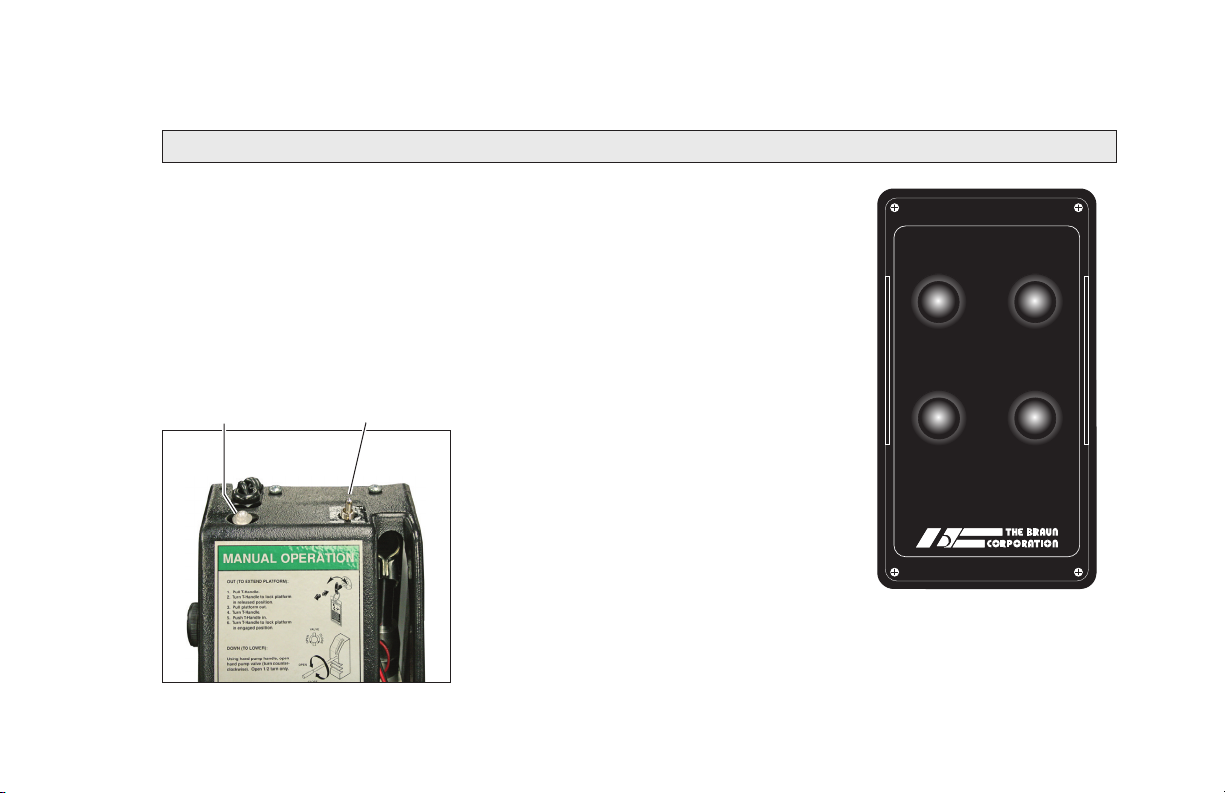

Hand-held Pendant Con-
trol: The hand-held pendant is
equipped with four push button
switches, (DOOR, STOW, DOWN
and UP). The momentary switch-
es activate the automatic lift
functions. Simply press the switch
labeled for the intended function.
The lift function labels illuminate
to identify the function(s). Details

Page 7
Lift Terminology
The inboard locator and outer
barrier sense weight to prohibit lift
operation. The lift will not func-
tion if the inboard locator or outer
barrier are occupied. The lift
platform cannot be stowed if oc-
cupied.
The lift platform cannot be raised
or lowered unless the inboard
locator and outer barrier are de-
ployed (up).
Vehicle and Lift Interlocks
Braun Corporation NUVL Series
lifts comply fully with all NHTSA
vehicle and lift interlock speci-
cations. Vehicle movement is
prohibited unless the lift is fully
stowed and the lift will not func-
tion unless the vehicle is parked
and secured.
The NUVL855C features an
audible threshold warning system
that will activate if the threshold
area is occupied when the plat-
form is one inch or more below
oor level.
The inboard locator bridges the
gap between the lift platform and
the vehicle oor. The inboard
locator automatically rotates from
the horizontal position to the verti-
cal position as the lift lowers and
raises. Further details regard-
ing the automatic mechanical
inboard locator are provided on
pages 17 and 18.
Platform Cable-activated Man-
ual Release System: A cable-
activated manual release system
releases the platform carriage
assembly drive chain to allow the
platform carriage assembly to be
manually moved out (extended)
or moved in (retracted), should it
be necessary. Further details are
provided on page 29.

Page 8
Lift Terminology
Lift Actions and Functions:
Deploy (Extend): Lift deploy-
ment is the action of the lift plat-
form carriage assembly extend-
ing (moving outward) from the
housing and lowering to ground
level when the DOWN switch is
activated or raising to oor level
when the UP switch is activated.
Stow (Retract): Stow is the ac-
tion of the lift platform and car-
riage assembly retracting (moving
inward) into the lift housing. Dur-
ing the stow function, the platform
will automatically raise or lower to
stow level before retracting into
the housing.
DOWN - Platform Lower: Down
is the action of the platform lower-
ing from stow or oor level posi-
tion to fully-lowered (ground level)
position when the DOWN switch
is pressed.
DOWN - Outer Barrier Un-
fold (Down) - When the plat-
form reaches the fully-lowered
(ground) position and the DOWN
switch is continued to be pressed,
the outer barrier rotates down-
ward from vertical position to
ramp position.
UP - Outer Barrier Fold (Raise):
From ground level, the UP func-
tion automatically raises (rotates)
the actuator activated outer bar-
rier to the upright (vertical) posi-
tion before the platform raises.
UP - Platform Raise: Up is the
action of the platform raising from
stow level or ground level to oor
level (fully-raised) position when
the UP switch is pressed. When
the lift is fully lowered, press-
ing the UP switch rst raises the
outer barrier.
Note: The lift platform will not
raise if the outer barrier is not
in the upright (vertical) position.
This is a built in safety feature.
Stow Level: Stow level is the
height that the platform and car-
riage assembly moves in and
moves out of the lift housing.
Floor Level: Floor level is the
height that the platform and car-
riage assembly raises to in order
for the wheelchair passenger to
enter and exit the vehicle (fully
raised position).

Page 9
All information contained
in this manual and
Safety Symbols
Lift Operation Safety
SAFETY FIRST! Know That....
C
CAUTION
CAUTION
CAUTION
CAUTION
This symbol indicates
important information
regarding how to
avoid a hazardous
situation that could
result in minor per-
sonal injury or prop-
erty damage.
A
supplements (if included), is pro-
vided for your safety. Familiarity
with proper operation instructions
as well as proper maintenance
procedures are necessary to en-
sure safe, trouble free operation.
Safety precautions are provided
to identify potentially hazardous
situations and provide instruction
on how to avoid them.
B
DNote: Additional information provided to help clarify or detail a specic subject.
These symbols will appear throughout this manual as well as on the labels posted on your lift. Recognize
the seriousness of this information.
W
ARNING
This symbol indicates
important safety
information regarding
a potentially hazard-
ous situation that
could result in serious
bodily injury and/or
property damage.

Page 10
Lift Operation Safety Precautions
Read manual and supplement(s) before operating lift. Read
and become familiar with all safety precautions, operation
notes and details, operating instructions and manual operat-
ing instructions before operating the lift. Note: Wheelchair
passengers and all transit agency personnel (drivers and
wheelchair lift attendants) must read and become familiar
with the contents of this manual and supplement(s) before
operation.
Load and unload on level surface only.
Engage vehicle parking brake before operating lift.
Provide adequate clearance outside the vehicle to accom-
modate the lift before opening lift door(s) or operating lift.
Inspect lift before operation. Do not operate lift if you sus-
pect lift damage, wear or any abnormal condition.
W
ARNING
Lift Operation Safety
W
ARNING
W
ARNING
W
ARNING
Keep operator and bystanders clear of area in which the lift operates.
W
ARNING
W
ARNING
W
ARNING
If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.

Page 11
Lift Operation Safety
Whenever a wheelchair passenger (or standee) is on the platform, the:
• Passenger must face outward.
• Wheelchair brakes must be locked
• Inboard locator and outer barrier must be up (vertical)
Load and unload clear of vehicular trafc.
Do not overload or abuse. The load rating applies to both the raising and lowering func-
tions (continuous lifting capacity is 750 lbs. and a minimum unobstructed platform operat-
ing volume of 45,000 cubic inches).
Discontinue lift use immediately if any lift or vehicle interlock does not operate properly.
Do not operate or board the lift if you or your lift operator are intoxicated.
Do not raise front wheelchair wheels (pull wheelie) when loading (boarding) the platform.
Open lift door(s) fully and secure before operating lift.
Position and secure (buckle, engage, fasten, etc.) the wheelchair-equipped occupant
seat belt (torso restraint) before loading onto the wheelchair lift platform.
Lift attendants must ensure that lift occupants keep hands, arms and all other body parts
within the lift occupant area and clear of moving parts.
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING

Page 12
Lift Operation Safety
Platform must be positioned at oor level (bridging position)
when loading or unloading in and out of vehicle.
Do not use platform inboard locator or outer barrier as a
brake. Stop and brake wheelchair when loading onto the
platform (manually stop and brake manual wheelchairs
— stop powered wheelchairs with the wheelchair controls).
Turn powered (electric) wheelchairs off when on lift platform.
Press the DOWN switch until the entire platform rests on
ground level (lowered fully) and the outer barrier is fully
unfolded (ramp position) before loading or unloading a pas-
senger at ground level.
The outer barrier must be fully unfolded (ramp position) until
front and rear wheelchair wheels cross the barrier when load-
ing or unloading at ground level.
W
ARNING
Lift Operation Safety Precautions (continued)
W
ARNING
If the lift operating
instructions, manual
operating instructions
and/or lift operation
safety precautions are
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
Accidental activation of control switch(es) may cause unintended operation(s).

Page 13
Lift Operation Safety
W
ARNING
After manually releasing platform, stow platform and push manual release T-handle in fully
and move platform in and out to engage platform lock before driving vehicle. Failure to
lock platform may result in unintended platform deployment.
Insert manual release T-handle fully before manually lowering or raising platform and
manually move platform in and out to engage platform lock.
Maintenance and lubrication procedures must be performed as specied in this manual by
authorized (certied) service personnel.
Replace missing, worn or illegible decals.
Keep owner’s (operator's) manual in lift vehicle at all times.
Never modify (alter) a Braun Corporation lift.
Do not use accessory devices not authorized by The Braun Corporation.
Do not remove any guards or covers.
Keep clear of any hydraulic leak.
Failure to follow these safety precautions may result in serious bodily injury and/or prop-
erty damage.
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING
W
ARNING

Page 14
Operation Notes and Details
W
ARNING
Read and become
familiar with all lift
operation safety
precautions, opera-
tion notes and details,
operating instructions
and manual operat-
ing instructions prior
to operating the lift.
If this information is
not fully understood,
contact The Braun
Corporation immedi-
ately. Failure to do so
may result in serious
bodily injury and/or
property damage.
“Private Use” NUVL lift models
are sometimes installed in vehi-
cles equipped with fully-automatic
door operators. The NUVL855C
provides fully automatic opera-
tion of all lift functions as well as
optional power door operators (if
so equipped).
Note: An attendant must manu-
ally open and close lift door(s) in
applications where power door
operator(s) are not provided.
It is the responsibility of the
lift operator (attendant and/or
wheelchair passenger) to properly
activate all power functions (lift
and door).
Read and become familiar with all
lift operation safety precautions,
operation notes and details, op-
erating instructions, and manual
operating instructions before at-
tempting lift operation procedures.
General Safety: Before operating
the lift, always engage the ve-
hicle transmission in Park “P” and
engage the vehicle parking brake.
Note: Lift and vehicle interlocks
prevent lift operation until the ve-
hicle is immobilized.
Lift operators (attendants), wheel-
chair passengers and bystand-
ers must keep clear of the area
in which the power doors (if
equipped), and the lift operates
(clear of all moving parts). The lift
occupant (passenger) must keep
hands, arms and all other body
parts within the lift occupant area
and clear of moving parts. Follow
all lift operation and wheelchair
passenger information detailed in
this manual.

Page 15
Operation Notes and Details
Hand-held Pendant
STOW
DOWN UP
DOOR
603C Pendant.ai
Control Switches
Lift Power ON/OFF Switch: This
switch must be in the ON position
in order to activate the lift. The
Power Indicator Light illuminates
to signal power to the lift.
Hand-held Pendant Control:
The hand-held attendant's pen-
dant control is equipped with four
push button switches (DOOR,
STOW, DOWN and UP). The mo-
mentary switches activate all lift
and door functions. Simply press
the switch labeled for the intended
function. When there is power to
the lift, the lift function labels illu-
minate to identify the functions.
Power Door Activation:
If your vehicle is equipped with
optional automatic door opera-
tors, the doors will open when the
UP or DOWN switch is pressed.
The automatic door operators will
close when the DOOR switch is
pressed (only if the lift platform is
in the fully stowed position).
Lift Power
Switch
Power
LED

Page 16
Operation Notes and Details
Power Door Operator(s):
Optional power door operators
can be activated using the hand-
held pendant, optional remote
control, or auxiliary 3rd Station
control. In the event the vehicle
is not equipped with power door
operator(s), manually open, se-
cure, and close the door(s).
Auxiliary Control Switches:
A remote control system and a
third station control are avail-
able as options. All auxiliary
controls activate lift functions
and automatic door operators.
Do not press pendant switches
and auxiliary control station
switches at the same time. Do
not attempt to interface after-
market control systems.
Braun Corporation After-
market Control Systems
Policy:
The Braun Corporation
manufactures dedicated con-
trol systems for its products.
These control systems have
been designed and tested for
use in conjunction with spe-
cic Braun products. Braun
control systems are the only
control systems authorized
for use with Braun products.
Do not attempt to interface
aftermarket control systems
with Braun products. To do
so may result in serious
bodily injury and/or property
damage.
W
ARNING
Discontinue lift use
immediately if any lift
component does not
operate properly.
Failure to do so may
result in serious
bodily injury and/or
property damage.

Page 17
The inboard locator must rest
solidly on the vehicle oor
(minimum 1½" overlap).
Lift Features
Operation Notes and Details
Inboard locator: The
NUVL855C is equipped with
an automatic inboard locator
that also serves as a bridge
plate. The spring loaded inboard
locator automatically deploys
(rotates) to the vertical position
when the platform extends from
the stow position.
When the UP switch is pressed
and the platform raises to oor
level, this mechanical inboard
locator is automatically rotated
to the bridging (horizontal)
position to provide a bridge plate
between the platform and the
vehicle oor. The inboard locator
must rest solidly on the vehicle
oor (minimum 1½" overlap). The
inboard locator automatically de-
ploys (rotates) to the vertical (up)
position as the platform lowers
(DOWN switch is pressed).
Fully Deployed
(vertical)
Inboard
Locator
Fully Unfolded
(horizontal)
Inboard Locator
(bridging position)
Inboard locator
Note: NUVL603C Shown Note: NUVL603C Shown

Page 18
Operation Notes and Details
The inboard locator automatically
folds down to the platform sur-
face (horizontal) during the stow
function (as platform retracts).
Interlock Feature: The inboard
locator senses weight (pressure)
to prohibit lift operation. The lift
will not function if the inboard
locator is occupied.
Discontinue lift operation imme-
diately if the inboard locator does
not operate properly.
Outer Barrier: The outer barrier
provides a ramp for wheelchair
loading and unloading at ground
level (see photos on following
page). When the platform lowers
fully to ground level, the electric
actuator unfolds (rotates) the
barrier to the ramp position (fully
unfolded).
The outer barrier is spring loaded
but driven by the electric actuator
to rotate from the ramp (hori-
zontal) position to the deployed
(vertical) position.
W
ARNING
Discontinue lift use
immediately if any
lift component does
not operate prop-
erly. Failure to do so
may result in serious
bodily injury and/or
property damage.
Although the outer barrier is
lift-powered, activation of the
barrier is controlled by the lift
operator. Pressing the DOWN
switch unfolds the barrier. The
actuator-powered outer barrier
folds (rotates) to the vertical
position when the UP switch is
pressed.
Interlock Feature: The outer
barrier senses weight to prohibit
lift operation. The lift will not
function if the outer barrier is
occupied.
