CTM HS-7200 User manual

HS-7200 Series User's Manual
C.T.M. Rehab Chair
C.T.M. Rehab Chair
C.T.M. Rehab Chair
HS-7200B
ELEVATING+BED TYPE
HS-7200
HS-7200T TILTING

User's ManualHS-7200 Series
Introduction.........................................................................1
Electromagnetic Interference and Warnings..........................3
Safety Instructions...............................................................5

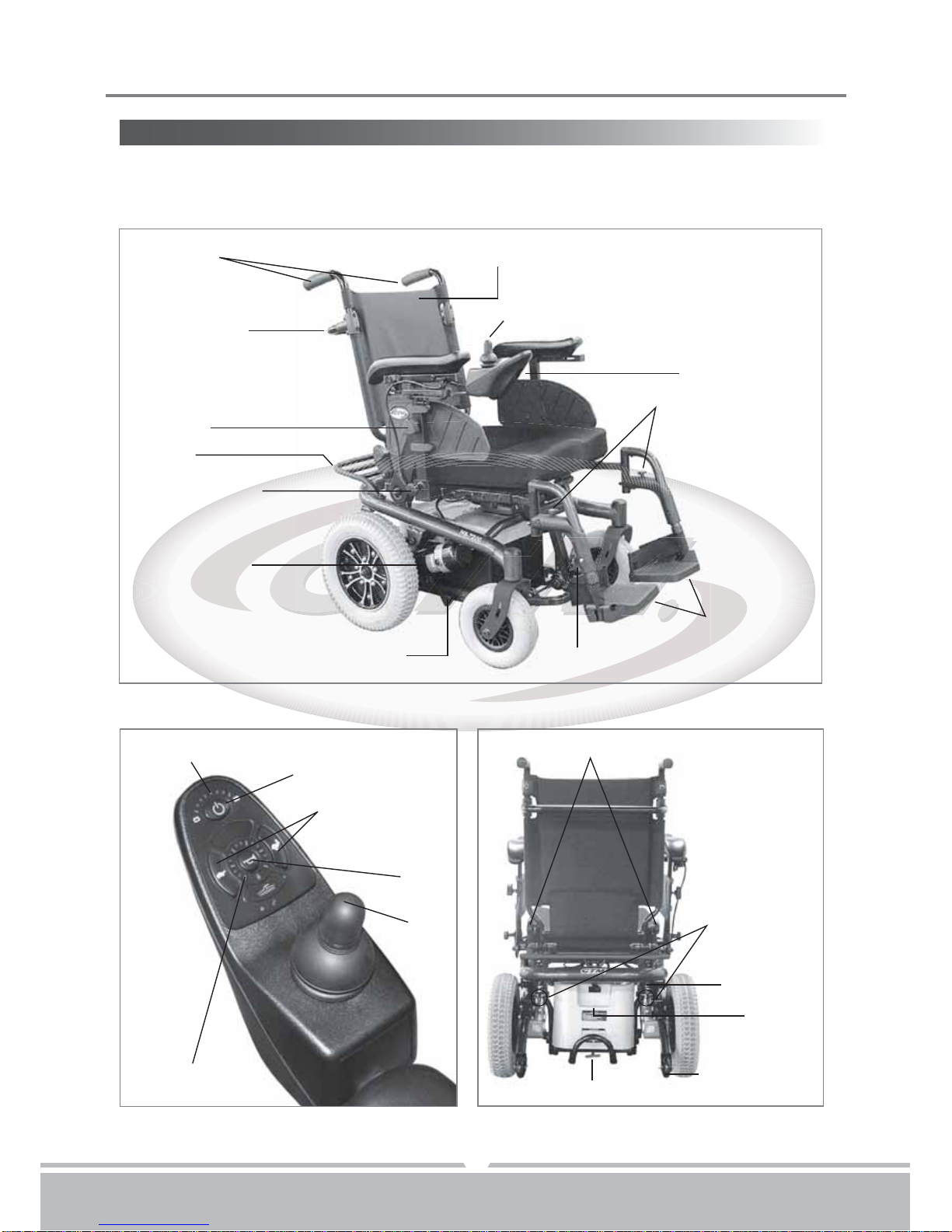

Initial Overview....................................................................6
Safe Driving Techniques.......................................................9

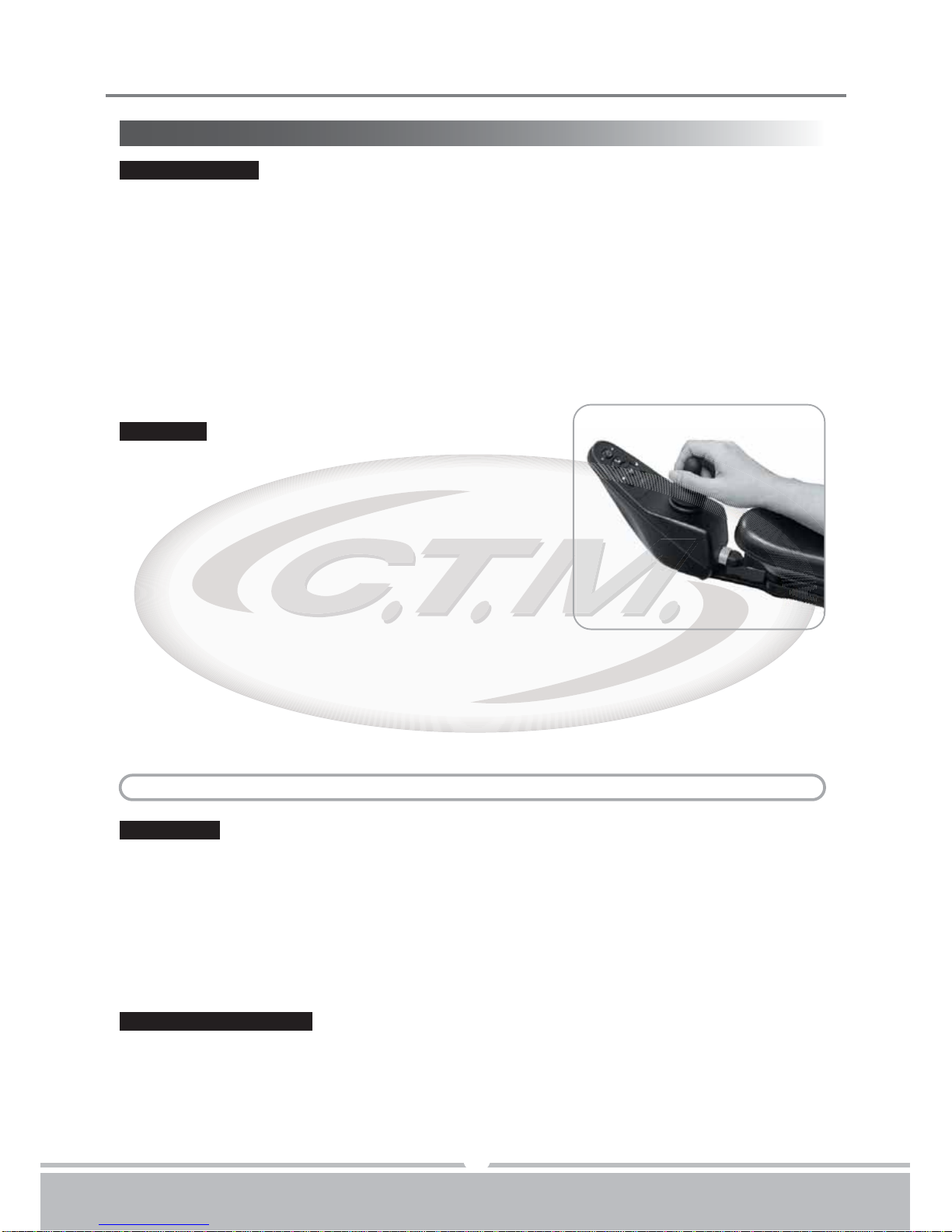

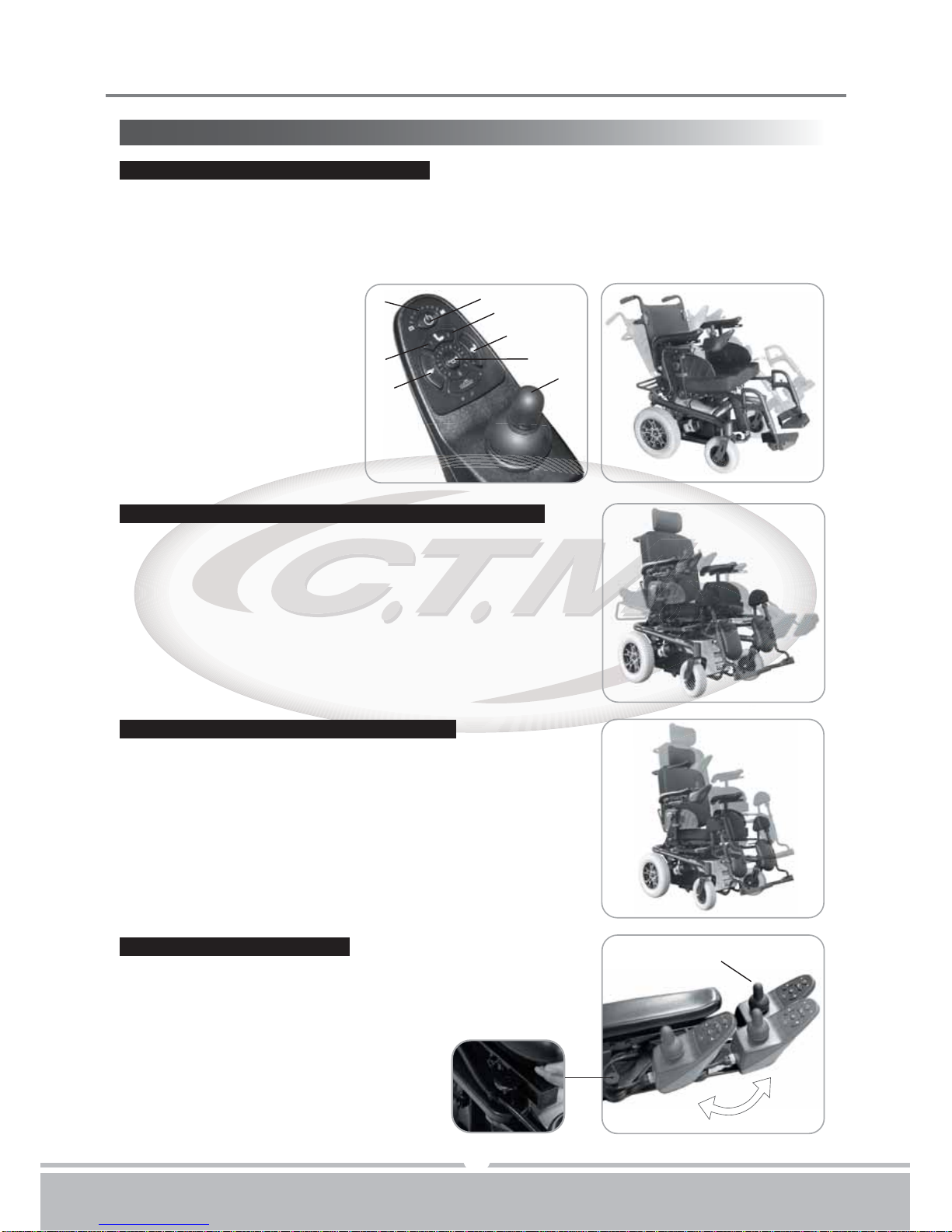

Operating your Rehab Chair..................................................11

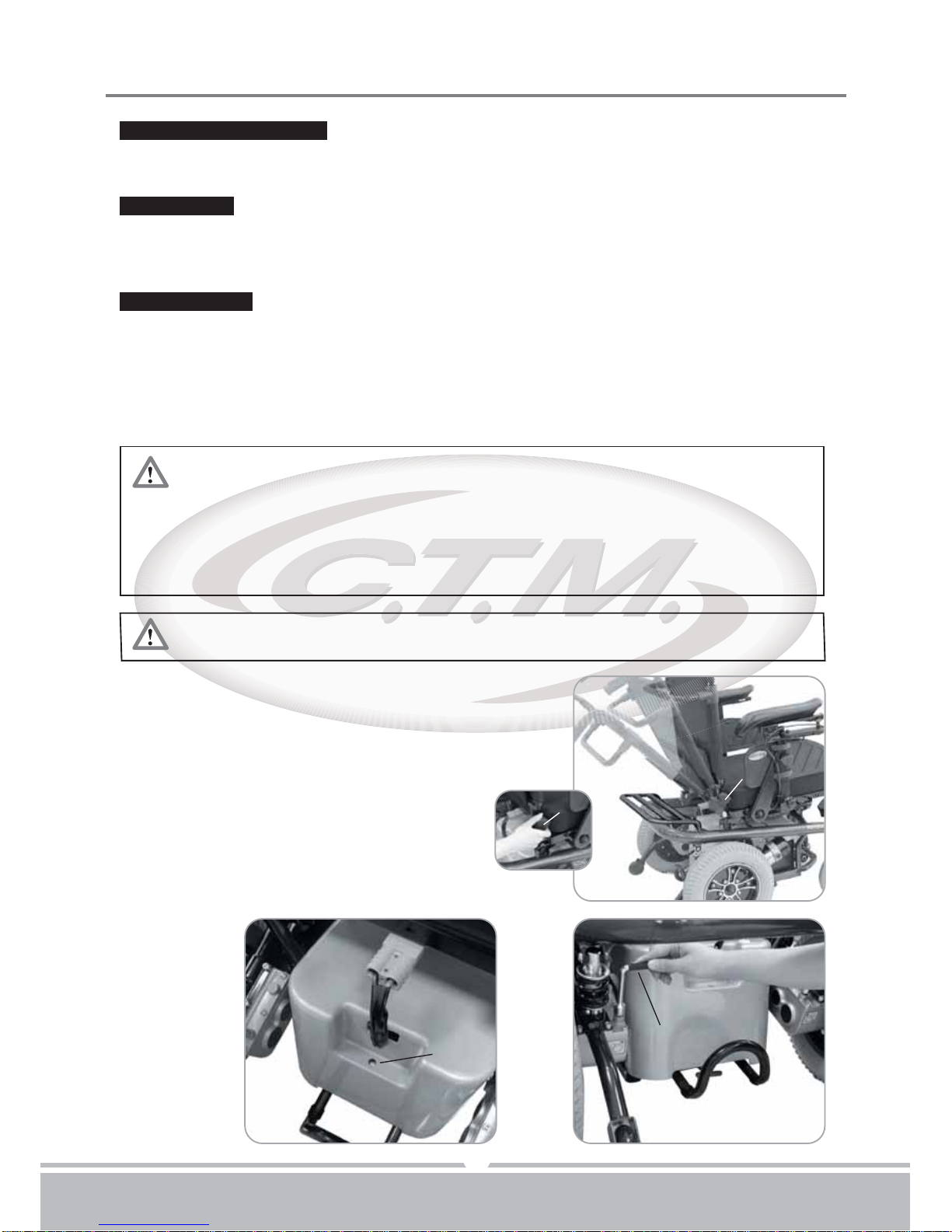

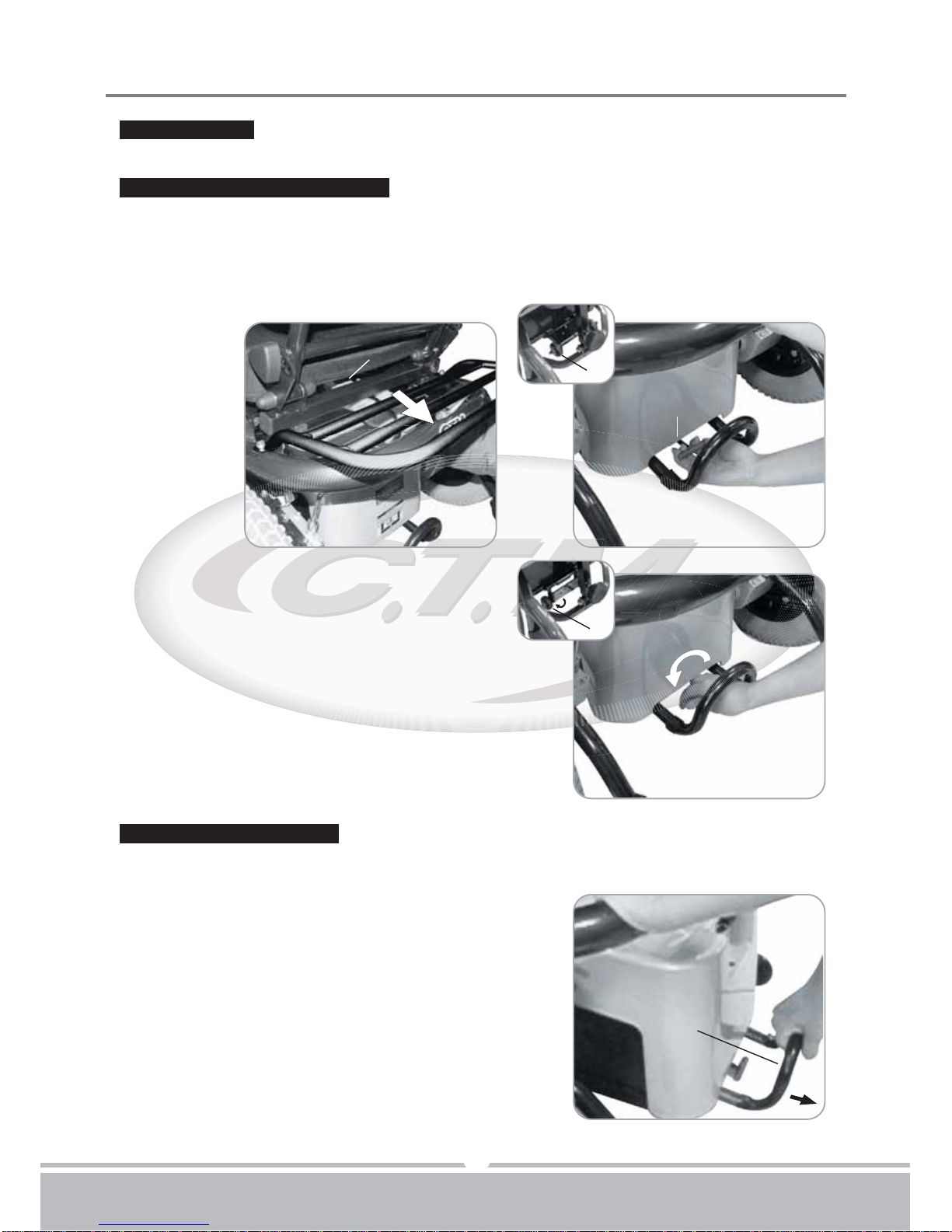

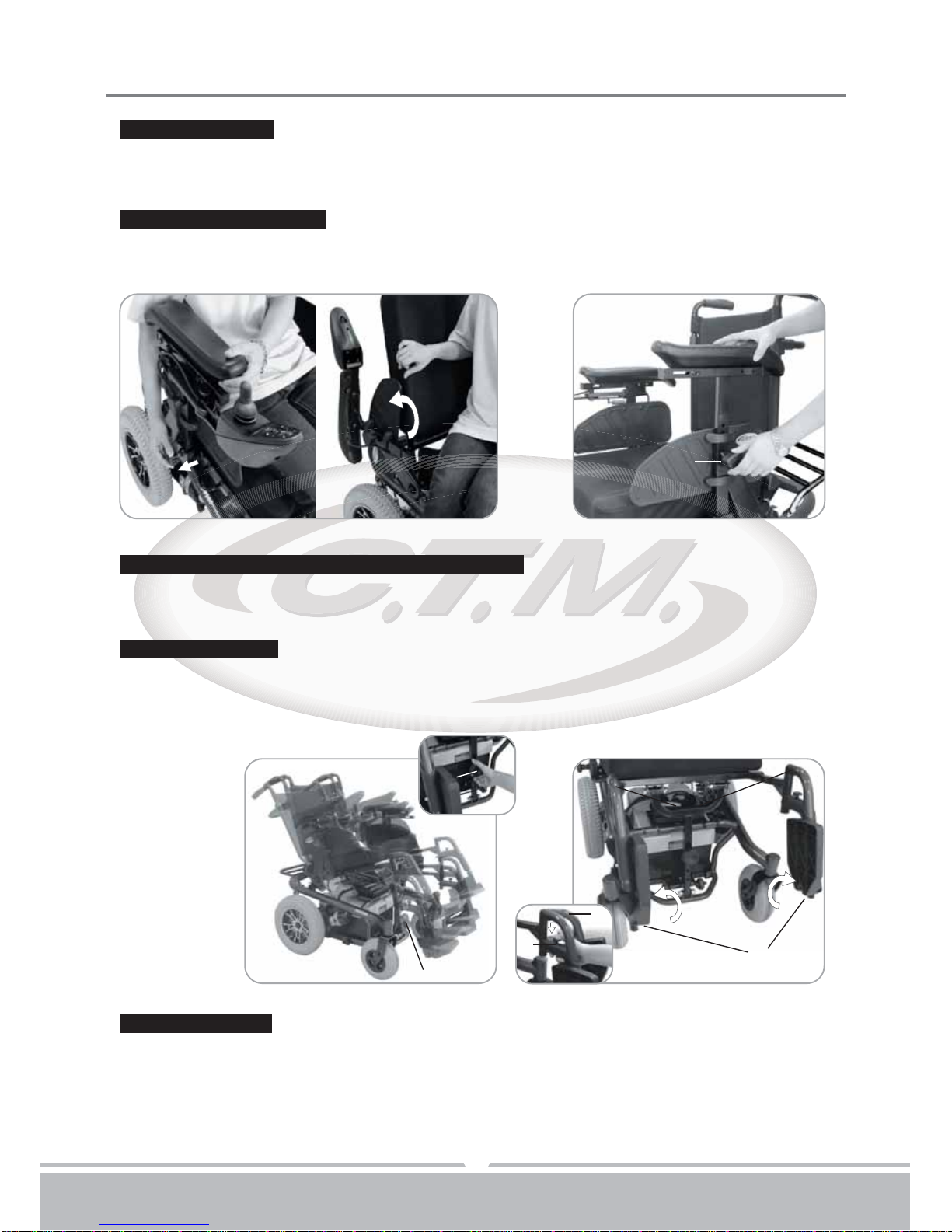

Disassembling Your Rehab Chair.........................................15

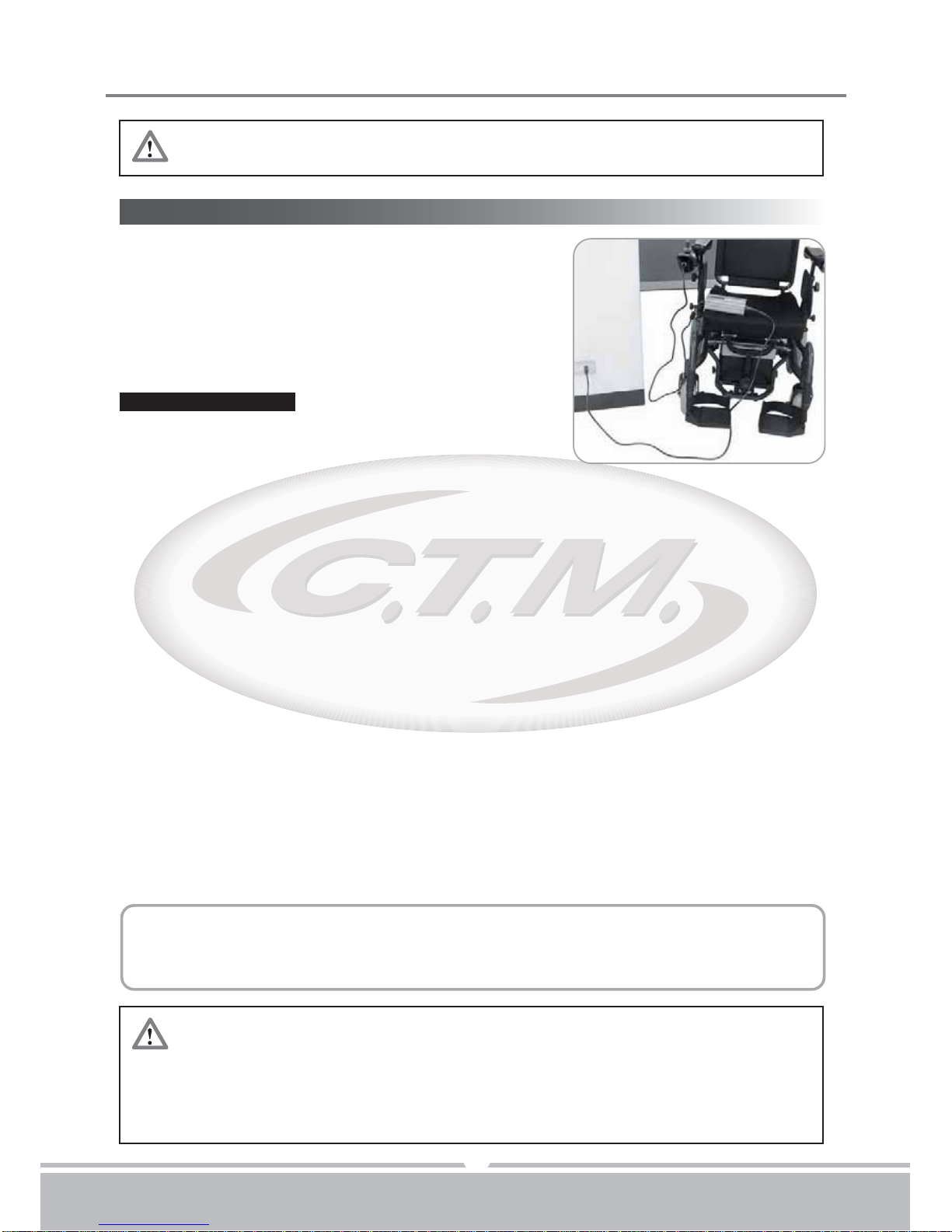

Batteries and Charging.......................................................17
Maintenance,and Cleaning..................................................18
Troubleshooting..................................................................19
Accessories........................................................................21
Specification........................................................................22
Table of Contents

User's ManualHS-7200 Series
INTRODUCTION
1
C.T.M. is a professional and experienced manufacturer, that specializes in production of
Mobility Scooters and Power Chairs that are developed by a team of specialists with
outstanding design skills and competence.
The HS-7200 is an excellent chair that includes ergonomic features. It combines safety
and comfort and gives users extraordinary experience and convenience in operation.
With its thoughtful and people-friendly controller system, the user can easily achieve
360 degree turns with their finger tips.
This product is powered by the sealed, no water added, high performance and, most of
all, connectorless lead-acid battery, which ensures environmental safety and brings
convenience in disassembly and re-assembly.
This User's Manual contains important information and know-how on operating and
maintaining the C.T.M. product. Please read it carefully before practicing with your new
chair, so that you comprehend the technical advantages of HS-7200
All assembly and maintenance should be performed after you fully understand the content
of this manual to avoid any hazard or damage to the Power Chair or human body.
Overhaul and adjustments must be undertaken by skillful maintenance staff following the
instructions provided in this booklet.
Any improper usage might lead to danger to the user or the chair. C.T.M. is/will not be
responsible for any after-effect resulting from failure to comply with this manual.
1. When transporting HS-7200, please ensure the product is not scratched or damaged.
2. If a long trip is planned, please fully charge the batteries before use to prevent low
voltage during the trip.
All the contents in this manual including pictures, photo illustrations and text are all patented
and registered according to the constitution of R.O.C.. With no approval from C.T.M.
self-interpretation and duplication are strictly prohibited. (If any details in the manual are
going to be changed or added, C.T.M. will not notify previous owners of the modification.)
After unpacking, please inspect carefully for any defect or missing part.
Preface：
Limitation In Transporting And Travelling：

User's ManualHS-7200 Series
We wish you an enjoyable riding experience.
If you have any questions, you can contact:
CHIEN TI ENTERPRISE CO., LTD.
No.13, Lane 227, Fu Ying Rd., Hsin Chuang,Taipei, Taiwan,
Tel : [phone] Fax : [phone]
E-Mail : [email protected] http : //www.chienti.com.tw
2
or your local dealer:

User's ManualHS-7200 Series
ELECTROMAGNETIC INTERFERENCE
AND WARNINGS
3
CAUTION: It is very important that you read this information regarding the possible
effects of Electromagnetic Interference on your power chair.
Powered wheelchairs and motorized scooters may be susceptible to electromagnetic
interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources
such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios,
and cellular phones. The interference (from radio wave sources) can cause the power
chair to release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the power chair control system. The intensity of the interfering
EM energy can be measured in volts per meter (V/m). Each power chair can resist EMI
up to a certain intensity. This is called its "immunity level." The higher the immunity level,
the greater the protection will be. At this time, current technology is capable of achieving
at least a 20 V/m immunity level, which would provide useful protection from the more
common sources of radiated EMI. The immunity level of this product is 20 (V/m).
There are a number of sources of relatively intense electromagnetic fields in the everyday
environment. Some of these sources are obvious and easy to avoid. Others are not
apparent and exposure is unavoidable. However, we believe that by following the warnings
listed below, your risk to EMI will be minimized.
Some cellular telephones and similar devices transmit signals while
they are ON, even when not being used.
Electromagnetic Interference and Warnings：
The sources of radiated EMI can be broadly classified into three types:
1.Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
"walkie talkie," security, fire, and police transceivers, cellular telephones, and other
personal communication devices.
2.Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of
the vehicle.
