VISION 46. THE YACHT.
New VISION 46
3
The New Vision Line´s Development is based on:
1. Excessive Customer Clinics in a market research program: End-Customers actually told Bavaria how they see
„their modern Cruising Yacht“ as a today´s owners yacht.
2. Based on this Bavaria has specified the genes of the new line parallel to the existing Cruiser Range aiming for
new market segments & shares in the “Owner Market Segment”:
1. Classic Modern
2. Special care for Comfort:
1. Unique Cockpit Living Area & features
2. Unique Cabin Living Comfort & features
3. Easy to handle (featuring UNIQUE benchmarks)
4. New production ways for the product
1. New Interior & Exterior DESIGN partnership with DESIGN UNLIMITED
2. Well-known and established boat performance & structure ENGINEERED by FARR YACHT DESIGN
Resulting in:

VISION 46. … such external views and…
New VISION 46
4

VISION 46. … luxurious internal views!
New VISION 46
5

FACTS. New Vision v/s Competition.
New VISION 46
6

DATA. Main Data.
New VISION 46
7
Standard
Option
Length Over All
13,99m
Hull Length
13,99m
Length Waterline
13,70m
Beam Max.
4,19m
Draft
2,14m
1,70m
Empty Weight
12.300kg
12.550kg
Keel Weight
3.450kg
3.700kg
Engine
Volvo D2-55
Volvo D2-75
Engine Performance
41kW / 55PS
55kW / 75PS
Diesel Capacity
210L
Water Capacity
580L
Cabins
2
3
Berths (fix)
4
6
Standing Height in Salon
2,0m
Mainsail
60m²
Jib
43m²
Gennaker
144m²
Height Mast above water
20,10m
CE Category
A10 / B16
I
17,20m
J
4,79m
P
16,71m
(Furling Mast) 16,56m
E
6,05m

DATA. Sail Plan.
New VISION 46
8
I
17,20m
J
4,79m
P
16,71m
(Furling Mast)
16,56m
E
6,05m

LAUNCH TOUR. 2/1 –Layout Boat #1.
New VISION 46
9

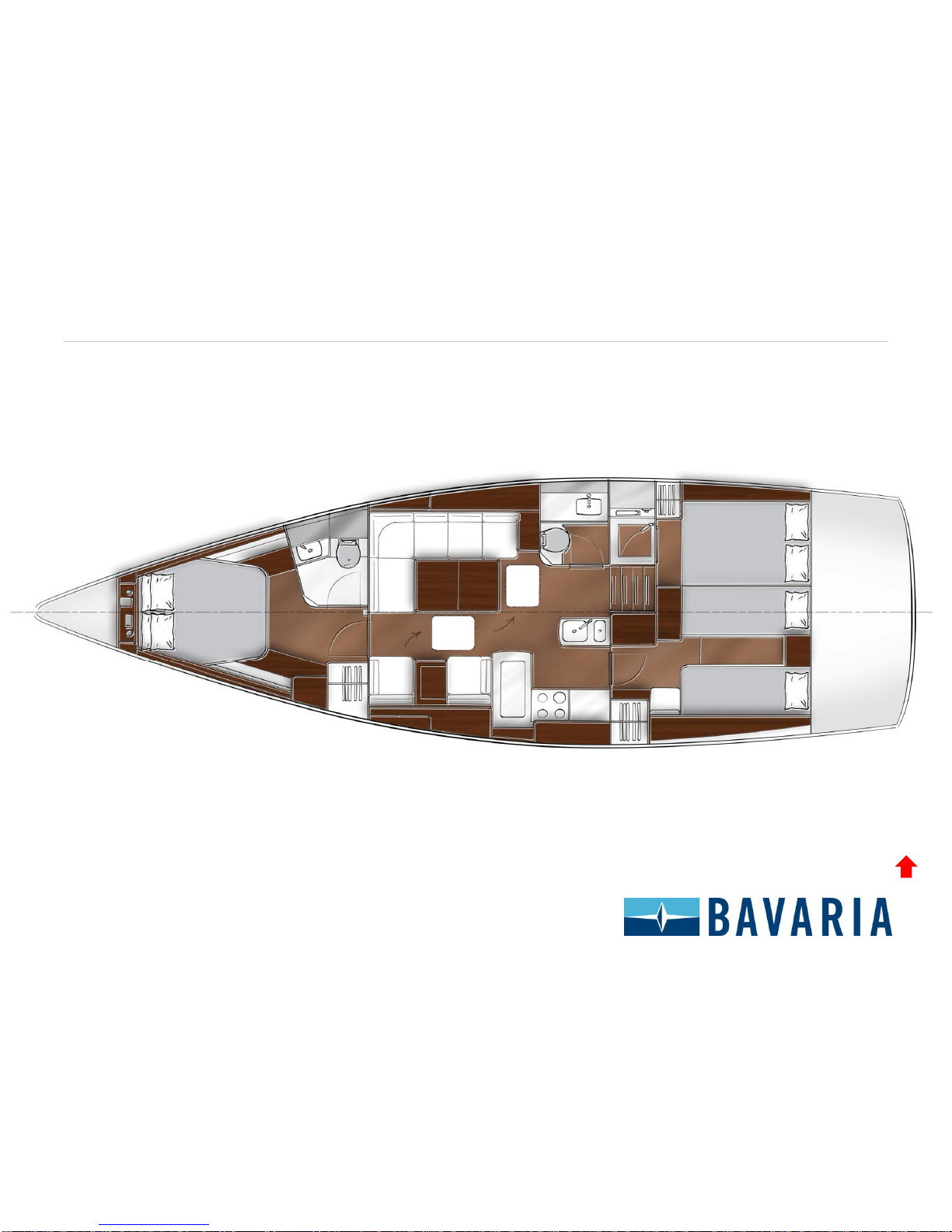

LAYOUT. 2/1 - Standard.
New VISION 46
10

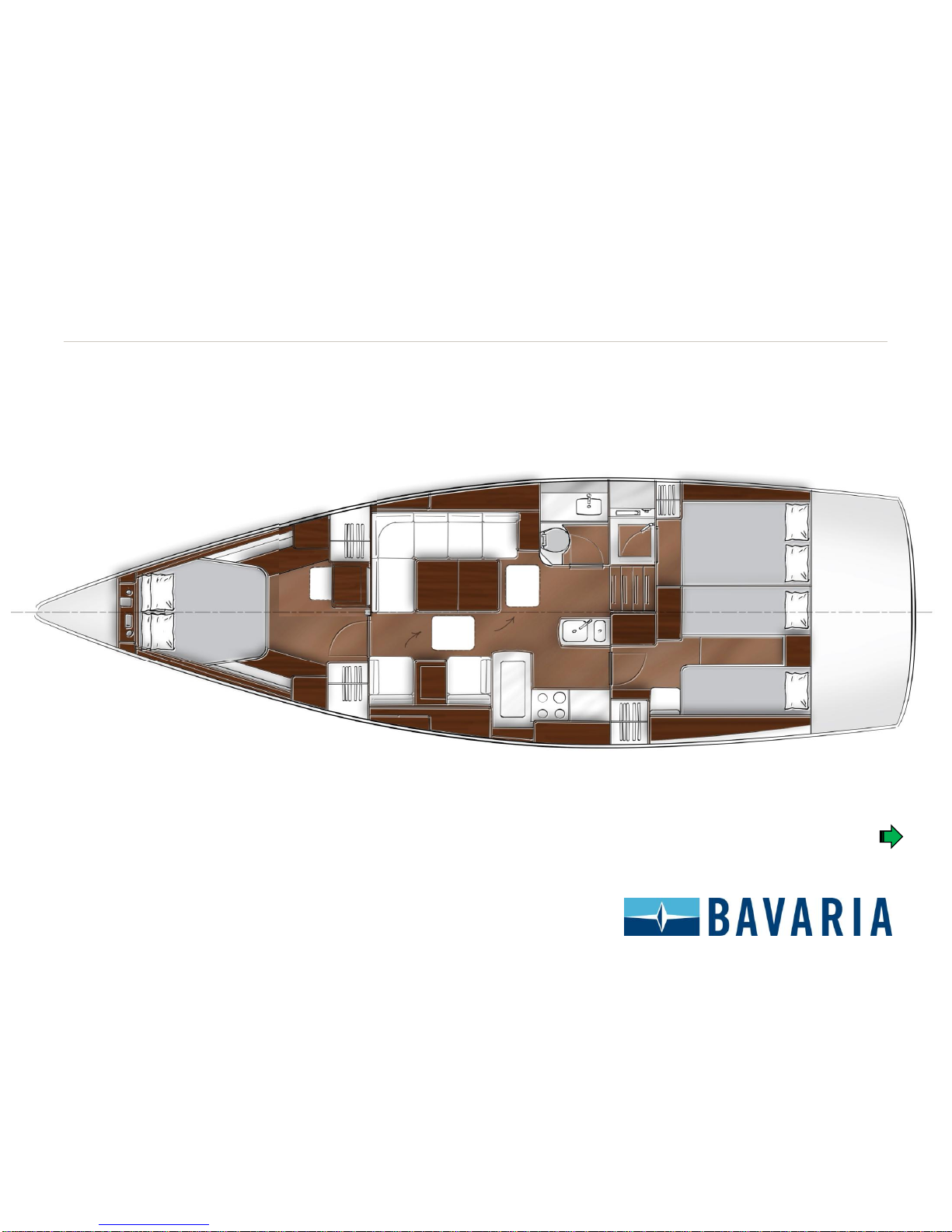

LAYOUT. 2/2 - Optional.
New VISION 46
11

LAYOUT. 3/1 –Optional.
New VISION 46
12

LAYOUT. 3/2 –Optional.
New VISION 46
13

LAUNCH TOUR. Cockpit #1.
New VISION 46
14
Shore Cable in cockpit
locker –recess for cable
when plugged in
Gas Box accepting 2
bottles
Cockpit locker
Ergonomic
helmsman seat,
hinged, rope storage
underneath
Pedestal heads
designed to accept
extra instrumentation –
one compass each
head.
Designated Surface
for CONTROL TRIM
Panel
Line storage
box under floor
level for
halyards
Engine
control panel
& deckfiller
DIESEL
Manual
Swimplatform
Opening Portlight for
cabin ventilation
Comfortably high back
rests of coaming
Deckhatch
Headroom
Deckhatch
Pantry (stove) Central Halyard
Winch –
handling max. 6
lines
Optional: Cockpit table 2 Folding
Leaf, electric rise & fall.
Switched at port pedestal.
Sailing position shown.
(See separate slides for concept!)
Twin Wheel single
rudder open wire
steering
Basic Concept:
Luxury cockpit layout for single
handed boat handling & (optional)
daybed and launching table
concept. See separate slides!

LAUNCH TOUR. Cockpit #2.
New VISION 46
15
Swim Ladder side-
mounted –slide-
out
(optional) Shower
post integrated to
stern seat (shower
unit mounted in
cockpit)
Optional
Lounge Seats
Storage in aft
ship (life raft)
Fold-Out Step to
platform / cockpit
Lid to rudder
stock for
emergency
tiller
Cockpit table folded out –
Dining Table.
Optional electric Rise & Fall
Table for lounging & daybed in
cockpit (see separate slides!)

LAUNCH TOUR. Single Hand Sailing Cockpit.
New VISION 46
16
SINGLE HANDED SAILING ?
The most consequent and unique Cockpit
Concept of the VISION 46 is offering
exactly that!
1. Most ergonomic seating
2. Sitting behind, beside and around the
wheel possible
3. All winches and major lines in easy
reach when sitting
4. In last consequence all trimming while
sailing by push-button –Option
5. Comfortable `social area´around the
helmsman stand for two
6. Most comfortable coaming height in
perfect angle when sailing
7. Most comfortable cockpit benches for
stretching legs even when sailing
8. …
Another UNIQUE benchmark!

LAUNCH TOUR. Cockpit. Social Area.
New VISION 46
17
Unique for the world´s market is the designated Social Area role of the
cockpit concept:
Coffee table flair for a relaxed time with friends and guests sitting in the
unique L-Shape bench.
Dining Table sitting 6 persons comfortably
Lounge Seats at the stern (part of the optional cockpit cushions)
featuring solid backrests for maximum comfort.
Lounge & Daybed when the table is lowered –maximum comfort for
sun bathing, relaxing after a hard sailing day –or just after a swim and
shower on the platform. The veranda and private beach with side
mounted ladder to keep the stern free for a dinghy.
NO OTHER BOAT is offering such a luxurious comfort level!

LAUNCH TOUR. Cockpit Table –Sailing / Dining.
New VISION 46
18
Turn from sailing position… … into movable leaf …..
… to fold the leaf to create … … a huge dining table!

LAUNCH TOUR. Cockpit Table –Lounging.
New VISION 46
19
Lower the dining table …
… and add cushions for lounging!

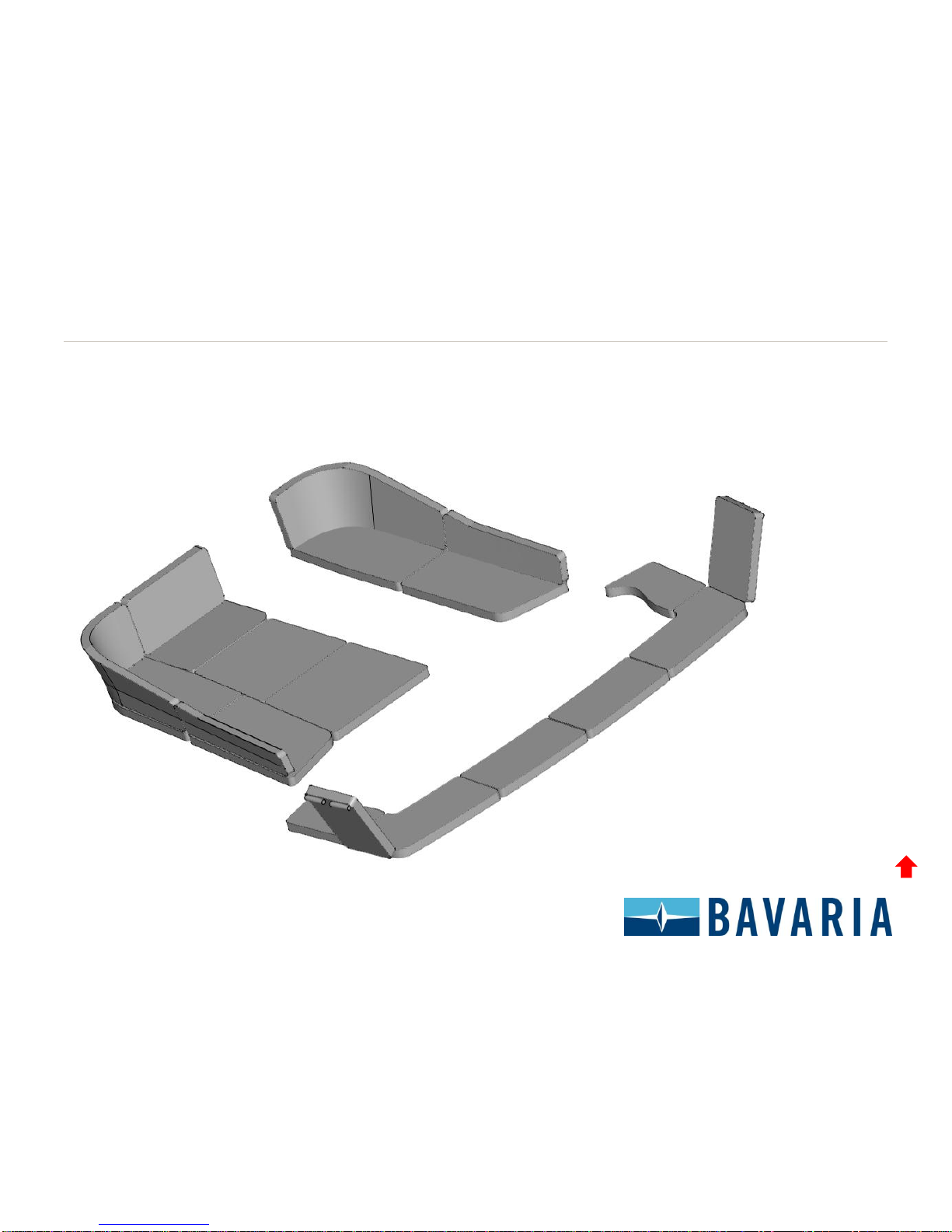

OPTION. Cockpit Cushions.
New VISION 46
