Thank You for purchasing the

SOS-102

10.2” FLIP-DO N IN-CAR SYSTEM

USER MANUAL

V 1.5

Bravo View Technology

20153 Paseo Del Prado

alnut, CA 91789

United States of America

909-869-0699

www.bravoview.com

THANK YOU FOR YOUR PURCHASE

PLEASE TAKE A MOMENT TO GET FAMILIAR ITH THE PACKAGE CONTENTS

10.2” Overhead LCD Screen

Not Shown- Instruction Manual, 10 Machine Screws, 15 Standard Screws (Pointed), Remote Control, and 2

Remo able Hinge Caps. *Note- not all screws maybe required

PRODUCT SPECIFICATIONS

RESOLUTION 800 RGB(H) X 480(V) PIXELS

LCD SCREEN SIZE 10.2 INCH

BRIGHTNESS 350 cd/m

or 350 NIT

VIEW ANGLE Top=65° / Bottom=65° Left=70° & Right=70°

AUDIO/VIDEO INPUT Composite (RCA Female) ×1 sets

AUDIO/VIDEO OUTPUT Composite (RCA Female) ×1 sets

IR AUDIO OUTPUT 2.3Mhz/2.8Mhz FOR WIRELESS HEADPHONES

FM TRANSMITTER WIRELESS FM TRANSMITTER

POWER INPUT DC 12V

POWER CONSUMPTION 16 Watt (MAX)

WEIGHT 3.81Lb

DIN CABLE

METAL

SUPPORT BRACE

3 WIRE DOME

LIGHT CABLE

IPOD CABLE

IMPORTANT INFORMATION

Before operating/installing your LCD Monitor, please read these instructions carefully.

1. Do not remo e the Serial Number Label on this unit.

2. Do not use any chemical sol ent, cleaning agent or corrosi e detergent to

clean away dirt or fingerprints on the surface of the screen. Doing so

may cause irre ersible damage to the surface of the LCD Screen. To

clean off dirt or fingerprints, it is recommended that a soft, damp lens

cleaning cloth be used while the unit is off.

3. A oid installing the monitor screen in a position that is exposed to direct

sunlight and any air ents.

4. Install the unit in a dry location and a oid any area were build up of

condensation is possible. (Ex. Sunroof).

5. A oid touching or pressing on the LCD screen.

6. Ensure that no foreign objects are in the unit when closing the LCD

screen.

7. If the unit o erheats, or malfunctions, turn off the power. After the unit

has adequate time to cool down, turn it on again. If problem persist,

contact your dealer or Bra o View Technology.

Keep this manual for future references.

1. POWER: Power On/Off of DVD player and Display unit

2. EJECT: Eject the disc

3. Digits from 1 to 10 AND 10+: Select DVD section.

4. DVD/AUX: Select the Videos input ( DVD, AV input)

5. (↑

↑↑

↑) Bring up the current menu selections

6. (←

←←

←) Move Menu Choice to the left

7. ENTER: Start disc play and OSD function enter

8. (→

→→

→) Move Menu Choice to the right

9.(↓

↓↓

↓) Move Menu Choice Down or Select TV channels

10. SET UP: To access the DVD setup menu

11 Menu: Go to DVD main menu.

12.PLAY/PAUSE: Start disc play and pause

13.BACKWARD: X2/X4/X8/X20 SEARCH BACKWARD

14.FORWARD:X2/X4/X8/X20 SEARCH FORWARD

15.■

■■

■ :

: :

: STOPS Disc play

16.Previous(|<<): Press for preview chapter, track, and station

17.Next (>>|): Press for next chapter, track, and station

Installation Instructions

Note: Read the entire instruction manual before beginning installation!

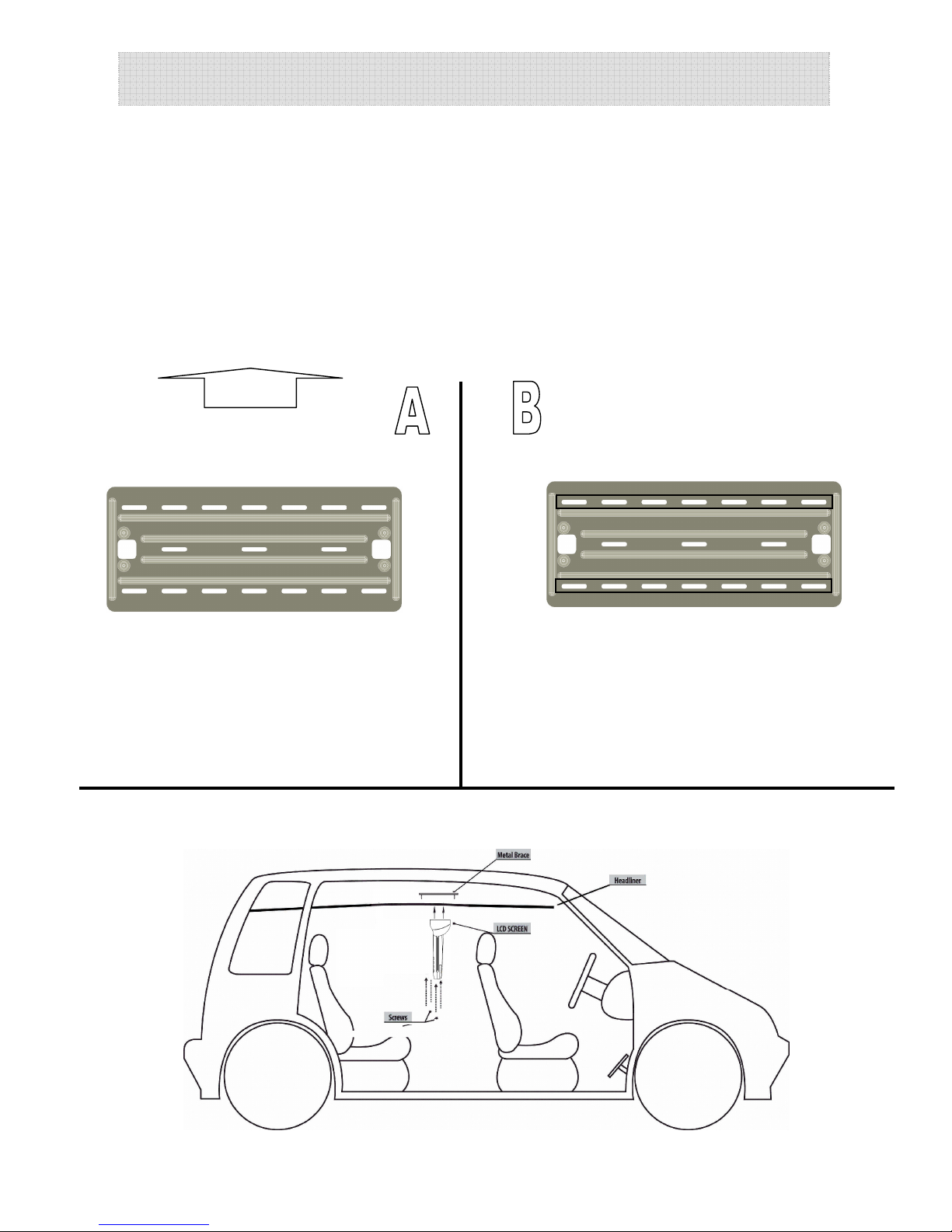

Step A: The enclosed metal bracket (See Figure “A”) needs to be placed between the

headliner of the ehicle and roof. Prior to placement, ensure that there are not any

obstructing items (Sunroof, dome light, any screws etc.) Once you ha e identified a clear

area for the metal bracket and monitor, drill holes that will accommodate the screws between

the monitor and metal plate through the headliner (See Figure “B”). Prior to any drilling,

ensure screws will fit into the metal bracket securely.

*Metal Brace may vary in style

PROFESSIONAL INSTALLATION RECOMMENDED!

Front of Vehicle

Match the metal brace to the o erhead LCD screen

to identify the key areas for drilling into the

headliner.

See Below For Illustration of Profile of Vehicle

Step B (Wiring and Final installation)

REMOVE THE PLASTIC COVER OF HINGE BEFORE YOU INSTALL LCD MONITOR. With

the ehicle powered off, mount the monitor into place using the pre-drilled holes (Prior to

installation, always check the clearance of the screw lengths to ensure that you do not puncture

the roof).

With the Metal Bracket securely placed, drill small holes to accommodate the wiring cable so

that the Din cable, male end is at the area where the monitor will be installed. Ideally, the hole

for the cable should be drilled in the side areas of the mounting bracket. NOTE: The wires

are fed through both sides of the monitor. The other end of the cables should be run to the

area in which you will ha e your source unit installed (ex. DVD player).

BEFORE DRILLING ANY HOLES, ALIGN THE PLATE AND MONITOR TO ENSURE

PROPER PLACEMENT.

There are two sets of RCA cables (Yellow-Video Signal, White-Audio Left, Red-Audio Right).

This is for A/V Input and output. POWER- Connect the red wire to a fused source that shows +12 olts

when the key is in the accessory position. Attach the black wire to any metal part of the ehicle that is

ground (-12 olts).

Step C:

DOME LIGHT/MAP LIGHT INSTALLATION

Please note that your product includes the following 3-wire:

The color codes are:

Negative trigger: (MOST VEHICLES EXCEPT FORD)

Red Wire= Requires a “Constant” + 12 Volt connection*

Black Wire= Requires a -12 Volt (Ground)

White= -12 Volt Dome Light Trigger

* “Constant” means +12 olt power regardless of the key position, or direct power from the battery.

Positive Trigger: USUALLY MOST FORDS

Please note that a 12 olt relay will be needed. Please contact you professional installation center for

further details or contact our technical support.

This should complete the installation of the LCD Screen.

Pull the YELLOW latch on the left side of LCD monitor (see picture below) and

then swi el the screen down to your iewing angle. Note that the monitor only

locks in the 0° Angle (LCD facing roof).

Tuning the built in ireless FM Module*

1. Turn on the O erhead LCD Screen and Source Unit.

2. Tune your FM radio to 87.7

(Or another station around this range.)

3. Play the source so that you can see the picture on the screen.

4. To pick another station, press the MENU button on the screen until you

na igate to the FM Transmitter option.

5. Using the UP AND DOWN buttons, scroll to the desired station you wish

to use for the transmition of the audio. The default setting is 87.7 MHz.

(Pick a radio station that normally does not recei e a signal in your

geographical area)

6. Tune your car stereo to the newly set station to test.

*This unit is designed to work in North America

! CAUTION !

Pulling down on the monitor

while locked, may result in

irreversible damage to the

SOS-102 and the interior roof.

CONTROL BUTTONS ON SCREEN

MAIN MENU OPTION/SELECT OPTION

MENU NAVIGATION UP BUTTON / VOLUME UP

MENU NAVIGATION DO N BUTTON / VOLUME DO N

SOURCE-S ITCH DVD MODE AND VIDEO INPUT (IPOD)

DVD EJECT

DVD STOP

DVD PLAY/PAUSE

PO ER ON/OFF

DOME LIGHT CONTROL (ON/OFF/DOOR)

Limited Warranty

Bravo View Technology warrants this product (including any accessory and/or cable) against

defects in material or workmanship as follows

1. Labor. For a period of 1 Year from original date of purchase, if the product is determined to

be defective, Bravo View will repair or replace the product at no charge.

2. Parts. For a period of 1 Year from original date of purchase, Bravo View will at no charge,

replace with new or rebuilt parts in exchange for defective parts. The warranty will either

continue from date of original purchase or 90 days from repair (whichever is longer).

This warranty does not cover customer misuse, improper installation, poor signal (including any

“noise”), cosmetic damage, damage due by accident, abuse, negligence, commercial use,

and improper operation.

Proof of Purchase in the form of a copy of bill of sale or copy of receipt/invoice, which shows

clearly the sale of the unit, is required.

Repair or Replacement as provided under this warranty is the exclusive remedy of the consumer.

Bravo View Technology shall not be liable for any incidental or consequential damage for

breach of any express or implied warranty on this product. In no event shall Bravo View

Technology be liable for any incidental or consequential damage whatsoever arising out of the

use or inability to use the product. Under no circumstance shall Bravo View Technology’s

liability exceed the purchase price paid for the product. Except to the extent prohibited by

applicable law, any implied warranty or merchantability or fitness for a particular purpose on

this product is limited in duration to the duration of this warranty.

PROCESS

1. Contact Bravo View and describe the problem with the unit. Please have your model

number, date of purchase and where it was purchased ready. If requesting on-line,

please include your name, address and telephone number.

2. If determined that the item is warrantable, Bravo View will issue a RA# and provide an

address to mail the unit back to.

3. Bravo View is not responsible for articles lost or stolen during shipping. IT IS ADVISABLE

TO SHIP THE UNIT IN A METHOD IN WHICH YOU CAN TRACK THE PACKAGE, AND POSSIBLY

INSURE THE PACKAGE. Bravo View does not cover the expense of mailing the unit back

to us.

4. Once Bravo View receives and validates the unit to ensure it is within warranty, Bravo

View will replace the unit, fix the unit, or offer a substitute of the unit if a replacement is

not available. Bravo View may send a refurbished unit back.

5. Bravo View will mail the unit back to you.

To obtain warranty service, you must contact Bravo View Technology for a Return Authorization

Number (RA#). 866-40-BRAVO or visit www.bravoview.com.
