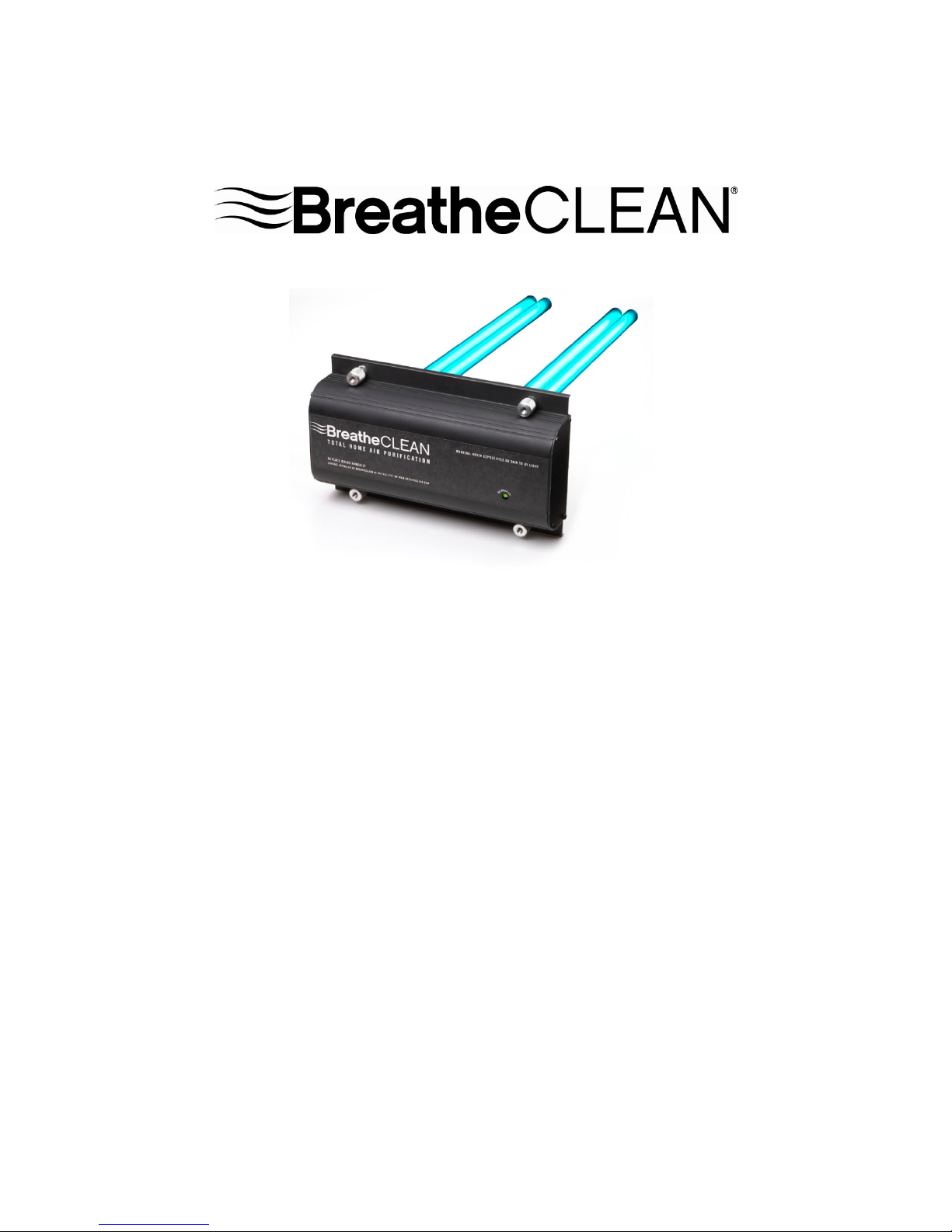

BreatheClean 7200-AGHP User manual

Total Home Air Purifier
Model Number:
7200-AGHP
Product Information and Installation Manual
This whole-home air cleaning system uses high intensity ultraviolet
light to destroy airborne micro-organisms such as cold germs,
viruses, bacteria, mold spores, dust mites and more. It attaches to
your central heating or cooling ductwork to clean all the air in your
home as it circulates.
Read these instructions before proceeding with installation.
WARNING: These ultraviolet lights can cause severe harm to
your eyes and skin. DO NOT expose your eyes to these lights.
DO NOT expose your skin to these lights. DO NOT plug this unit
in until it is firmly mounted to your ductwork.
For Customer Service or
InstallationAssistance
Call [phone]
America’s Greener Home Products, Inc
Minneapolis, Minnesota

ITEMS INCLUDED
A. Installation template
B. Mounting plate
C. Self-Drilling screws
D. BreatheCLEAN Total Home Air Purification Unit
E. Two 36 watt ultraviolet bulbs
F. Cloth glove to handle bulbs
G. Two warning labels
H. One bulb replacement reminder sticker
I. Warranty Card
Tools Needed
2¼Hole Saw (may be included)
Power Drill
Screwdriver
Tape Measure

SAFETY WARNINGS
WARNING: Ultraviolet light (UVC) can cause serious harm to eyes and skin.
NEVER look directly or indirectly at these lights. NEVER expose your skin to
these ultravioletlights.
NEVER operate the BreatheCLEAN air purification system outside of the
ductwork.
WARNING: Ultraviolet light can breakdown the materials that are not rated for
exposure to UV.These materials include flexibleplastic or vinyl ductwork, duct
board, non-paper air filters, drainage trays, and plastic insulation on wire. To
avoid damaging these materials, mount your BreatheCLEAN Air Purifier at least
three feet away from the materials that could break down. If you need to mount
the BreatheCLEAN unit in direct line of sight of these materials, you should use
aluminumfoil, aluminum tape or sheet metal to shield the materials from the
ultraviolet light.
WARNING: Do NOTtouch the ultraviolet bulbs with your hands. The oils on your
skin will create hot spots and can reduce the life of the bulbs.
WARNING: INDOOR USE ONLY! Do not install this product outdoors.
WARNING: In the case of abroken ultravioletbulb, DO NOTtouch the internal
components of the bulb. If your skin is exposed, wash all affected areas with a
mild detergent. Remove any clothes that have been affected by the bulb’sinternal
contents. If skin is cut, seek medical attention immediately.Follow the Broken
Bulb Clean-up below.
Broken Bulb Clean-up Instructions:
The BreatheCLEAN ultravioletbulbs are quite durable. However,in the event they
get broken, please follow the following procedures.
WARNING: Ultraviolet bulbs contain mercury.NEVER touch any of the mercury
with your skin.
1. Wearing disposable non-absorbent protectivegloves, pick up the large pieces
of the broken bulb.
2. Using aregular household vacuum cleaner,vacuum the entire area.
3. Dispose of the gloves, vacuum cleaner bag, and broken pieces of the bulbs
into a sealed plastic bag.
4. Check with your community’swaste management to see if there are special
disposal or recycling requirements to follow.
5. Be sure to wash hands and clothes thoroughly.

Installation Instructions
Step One:
MEASURE FIRST and affix the template.
Refer to the diagram on the next page to
determine the best installation location, and
measure the ductwork. You need 16” of depth
inside your cold air return or hot air plenum to
accommodate the UV bulbs. The
BreatheCLEAN unit can be installed horizontally
or vertically.Once you have picked your
location, remove the backing from the self-
adhesive template and affix to the desired
location. If you have central air conditioning,
make sure you do not drill into the “A-Coil” as
shown on the diagram.
Step Two:
With the 2¼” hole saw attached to your power
drill, drill the two large holes. The best speed for
drilling with ahole saw is slow to medium. Use
the centering marks on the template to locate
the proper centering of holes. You should wear
protective goggles to protect your eyes.
Step Three:
With the six self-drilling screws, use the
screwdriver to attach the mounting plate to the
ductwork. The mounting plate must be secured
tightly to the ductwork-i.e., no gap or space
between the plate and the ductwork at the center
hole location.

Step Four:
Remove the unit from the box and carefully
install the bulbs. Use the enclosed glove to
handle the bulbs. Avoid touching the glass with
your hands. The oils on your hands can reduce
the life of the bulbs. Snap the bulbs into
brackets, and firmly slide bulbs down into
sockets. Be sure to push bulbs all the way
down!
Installation Instructions (continued)
Step Five:
Affix the two enclosed WARNING labels and the BREATHECLEAN
BULB REPLACEMENTREMINDER label to the ductwork under or near
the unit. MAKE SURE THESE WARNING LABELS ARE HIGHLY
VISIBLE TO ANYONE WORKING ON OR NEAR THE FURNACE
SYSTEM! Then, only after firmly securing the BreatheCLEAN unit to
the ductwork, plug the unit into astandard AC 110 volt outlet. If there is
no outlet in reach of the 10’cord, we recommend having alicensed
electrician install an outlet near your furnace. Wedo not recommend
using extension cords. Do not drape electrical cord over or
around furnace exhaust tubing.
Wheninstallation is complete, check that the LED indicator is
illuminated. If not, refer to “Trouble Shooting” on the Maintenance and
Operating Information page.
Place the date on the bulb maintenance sticker.Mail your warranty card
so we can let you know when the bulbs need replacing.
Use aluminum foil tape to stop any light from leaking through holes in
your ductwork.

Installation Diagram
F
I
L
T
E
R
Cold Air Return
Furnace
Hot Air Supply
Cold-Air Return/
Inflow
You may install it
here in the return
duct. It should be at
least 40” abovethe
top of the filter,and
evenhigher if the
“BOOT” at the
bottomof the duct is
curved or angled.
This will minimizethe
intensityof the light
that is reflectingon
to the filter.
BreatheCLEAN can
be installed
horizontallyor
vertically.
WARNING:
DO NOT INSTALL
BREATHECLEAN
NEAR THE FILTER
OR IN DIRECT
LINE OF SIGHT OF
THE FILTER.
“A-coil”
would
be here
Installation
template
for easy
and
accurate
drilling.
BOOT
Supply/Outflow
You may install it here, on the “supply”
side–also known as the outflowor
plenum.
SAFETY ALERT:If you have central air conditioning, then you have
an “A-coil” which would be just above the furnace in the lower part of
the plenum. You must be sure to place the BreatheCLEAN unit
above the A-coil. A-coils can rise 14” to 26” inches above the
furnace, so be sure to check carefully so as to not accidentally break
the bulbs against the coil or hit and puncture the A-coil. If punctured
the coil will leak coolant, which can cause harmful or deadly gases if
it comes in contact with flame.
For homes with built in humidifiers, do not install immediately down
stream of the humidifier.It is best to install at least 12” upstream of
the humidifier.

Maintenance and Operating Information
WARNING: Always unplug your BreatheCLEAN Air Purifier prior to
cleaning or maintenance.
BreatheCLEAN is virtually maintenance free!Simply replace the ultraviolet
bulbs once per year.
Tomaximize effectiveness, you can wipe dust from the bulbs every few
months. Unplug the unit and gently remove from the ductwork. Simply
wipe the dust from the two bulbs using either asoft cloth or paper towel.
Remount the unit into the ductwork and plug into electrical outlet.
General Information
Total wattage: 72 Amperage: 0.68
Cord length: 10’
Running Your System’sFan
If you do not keep your fan on all day,you should turn it to “on” for a few
hours per day to make sure all the air in your home circulates past the
powerful BreatheCLEAN UV Bulbs. The BreatheCLEAN system can stay
on 24 hours per day regardless of whether your fan is on or set to “auto”. It
does not increase the life of the bulbs or the unit to turn the unit on and off.
Power Cord
Be sure that any extra electrical cord is NOTwrapped around an exhaust
tube or any part of your furnace. You should not use extension cords to
operate your BreatheCLEAN system. You should have an electrical outlet
installed if there is not one nearby.
Trouble Shooting
If the green LED indicator is not illuminated,do the following:
At time of installation-
1. Be sure there is electrical power to the outlet.
2. Be sure the mounting plate is secured tightly to the ductwork-see
Installation Instructions Step Four.
3. Be sure the unit is secured tightly to the mounting plate-see
Installation Instructions Step Five.
4. Be sure the bulbs are fully inserted into their sockets-see Installation
Instructions Step Five.
After the purifier has been operational-
1. Remove the power cord plug from the outlet. Waittwo or three
minutes. Return power cord plug to the outlet.
2. Continued non-function call [phone]

Five Year Warranty
Toactivate your warranty, you must remit your fully completed
Registration Card or register online at:
www.breatheclean.com/registration
From the date of purchase, the BreatheCLEAN Air Purification
System is covered for five years.
This warranty does not cover the UV Bulbs. This warranty is void if
electrical cord is cut, or damaged due to mishandling.
Mishandling includes, but is not limited to, a) the use of extension
cords, and b) wrapping the cord around exhaust venting, or other
mishandling.
This warranty is void if this product was not purchased through an
authorized dealer.This warranty is void if the product is not
properly and regularly maintained, including annual bulb
replacement specifically with BreatheCLEAN Replacement Bulbs.
(part #7900-215)
Date of purchase, selling company,records of maintenance will be
needed to file a claim under this warranty.
The ultraviolet bulbs are covered for 6months.
Tofile a claim, the entire BreatheCLEAN Purifier and/or the bulbs
need to be shipped, at the customer’s expense, to America’s
Greener Home Products, Inc., 3543 West 44
th Street, Minneapolis,
MN 55410. You must first contact customer service to obtain a
RGACode. Items returned with no RGAnumber will not be
covered, and may be discarded after thirty days.
Manufacturedin China
