Breckwell SPG9000 User manual

Owner’s Operation and Instruction Manual
C
S
S
U
C
O
M
P
A
N
Y
U
N
I
T
E
D
S
T
A
T
E
S
S
T
O
V
E
SAFETY NOTICE:
If this heater is not properly installed, a house re
may result. For your safety, follow the installation
instructions. Never use make-shift compromises
during the installation of this heater. Contact local
building or re ofcials about permits, restric-
tions and installation requirements in your area.
CAUTION!
Please read this entire manual before you
install or use your new room heater. Failure
to follow instructions may result in property
damage, bodily injury, or even death.
Improper Installation Could Void
Your Warranty!
United States Stove Company
227 Industrial Park Road
P.O. Box 151
South Pittsburg, TN 37380
SAVE THESE INSTRUCTIONS
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO
ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
852016
MODELS: SPG9000
Exceptional Heat, Outstanding Value
®
BRECKWELL
PATENT PENDING

2 Ussc
CONGRATULATIONS!
You’ve purchased a heater from North America’s oldest manufacturer of wood burning products.
By heating with wood pellets, you’re helping to CONSERVE ENERGY!
Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one
tree each year. Future generations will thank you.
The instructions pertaining to the installation of your pellet heater comply with UL 1482 standards.
CAUTIONS:
• HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
• DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.
• DO NOT BURN GARBAGE, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR
MOTOR OIL.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
• ALWAYS CLOSE THE DOOR AFTER THE IGNITION. NEVER OPERATE HEATER WITH
DOOR LEFT OPEN (AJAR).
OPTIONAL ACCESSORIES
DESCRIPTION PART #
150 CFM Blower Assembly SPGB
Louver Set - Stainless Steel SPGLS
Combustible : Hardwood Pellets
Colors : Black
Flue Pipe Diameter : 6” (152.5mm)
Flue Pipe Type: (Standard Single Wall or Double Wall): Black or Blued Steel 2100°F (650°C)
Minimum Chimney Hieght : 12’ (3.7m)
Dimensions
Overall : Depth x Width x Height : 25” x 23 1/2” x 43” (635mm x 596.9mm x 1092.2mm)
Door Opening : Width x Height: 22” x 19 1/2” (558.8mm x 495.3mm)
Pyroceramic Glass Door : (Viewing) Width x Height: 12 7/8” x 10 1/4” (327mm x 5410.2mm)
FUEL CONSIDERATIONS
Your pellet stove is designed to burn premium hardwood pellets that comply with Association of Pellet Fuel Industries
standards. (Minimum of 40 lbs density per cubic ft, 1/4” to 5/16” diameter, length no greater than 1.5”, not less than
8,200 BTU/lb, moisture under 8% by weight, ash under 1% by weight, and salt under 300 parts per million). Pellets
that are soft, contain excessive amounts of loose sawdust, have been, or are wet, will result in reduced performance.
Store your pellets in a dry place. DO NOT store the fuel within the installation clearances of the unit or within the space
required for refueling and ash removal. Doing so could result in a house re.

Ussc 3
" CUT HERE " CUT HERE
WARRANTY INFORMATION CARD
Name__________________________________________ Telephone #: (_____)_____________
City____________________________________________ State_______ Zip_________________
Email Address __________________________________________________________________
Model # of Unit________________________________ Serial #___________________________
Fuel Type: qWood qCoal qPellet qGas qOther _________________________
Place of Purchase (Retailer)______________________________________________________
City____________________________________________ State_______ Zip_________________
If internet purchase, please list website address___________________________________
Date of Purchase _______________________________________________________________
Reason for Purchase: qAlternative Heat qMain Heat Source
qDecoration qCost qOther _________________________
What was the determining factor for purchasing your new appliance?_______
I have read the owner’s manual that accompanies this unit and fully understand the:
Installation q Operation q and Maintenance q of my new appliance.
Print Name Signature Date
Please attach a copy of your purchase receipt.
Warranty not valid without a Proof of Purchase.
Warranty information must be received within 30 days of original purchase.
Detach this page from this manual, fold in half with this page to the inside and tape together.
Apply a stamp and mail to the address provided. You may use an envelope if you choose.
You may register online by going to www.usstove.com
All information submitted will be kept strictly condential. Information provided will not be sold for advertising purposes.
Contact information will be used solely for the purpose of product notications.

4 Ussc
" CUT HERE " CUT HERE
Ê É
Fold Here Fold Here
United States Stove Company
P.O. Box 151
South Pittsburg, TN 37380
Fold Here
PLACE
STAMP
HERE

Ussc 5
 IMPORTANT: Read this entire manual before
installing and operating this product. Failure to do
so may result in property damage, bodily injury,
or even death. Proper installation of this stove is
crucial for safe and efcient operation.
 Do not throw this manual away. This manual has
important operating and maintenance instructions
that you will need at a later time. Always follow
the instructions in this manual.
 This appliance is designed for the use of pelletized
fuel that meet or exceed the standard set by the
Pellet Fuel Institute(PFI), The use of other fuels
will void warranty.
 Contact your local building ofcials to obtain
a permit and information on any additional
installation restrictions or inspection requirements
in your area.
 HOT WHILE IN OPERATION. Do not touch the
hot surfaces of the stove. Educate all children on
the dangers of a high-temperature stove. Young
children should be supervised when they are in
the same room as the stove.
 Never use gasoline, gasoline-type lantern fuel,
kerosene, charcoal lighter uid, or similar liquids
to start or ’freshen up’ a re in this stove. Keep
all such liquids well away from the stove while it
is in use.
 Do not place clothing or other ammable items
on or near this stove.
 The fuel loading lid and stove top will be
hot during operation; therefore, you should
always use some type of hand protection when
refueling your stove.
 WARNING! DO NOT INSTALL IN SLEEPING
ROOM.
 A working smoke detector must be installed in the
same room as this product.
 Install vent at clearances specied by the vent
manufacturer.
 Do not connect the vent to a vent serving any
other appliance or stove.
 Do not install a ue damper in the exhaust venting
system of this unit.
 Your stove requires periodic maintenance and
cleaning (see ”MAINTENANCE ”). Failure to
maintain your stove may lead to improper and/or
unsafe operation.
 Allow the stove to cool before performing any
maintenance or cleaning. Ashes must be
disposed in a metal container with a tight tting lid.
The closed container of ashes should be placed
on a non-combustible surface or on the ground,
well away from all combustible materials, pending
nal disposal.
 Never try to repair or replace any part of the
stove unless instructions for doing so are given
in this manual. All other work should be done by
a trained technician.
 The exhaust system should be checked monthly
during the burning season for any build-up of soot
or creosote.
 Use of outside air is not required for this unit, but
may be used for tightly constructed homes.
 Do not operate your stove with the viewing door
open. A safety concern may arise from sparks
or fumes entering the room.
 Never block free airow through the open vents
of the unit.
 Keep foreign objects out of the fuel chamber.
 This appliance is not intended for commercial use.
* This appliance is a freestanding heater. It is not intended to be attached to any type of ducting. It is not a furnace.
Safety Precautions

6 Ussc
HEATER
TOP
WELD
TAB
5/16-18 x 1-1/2
BOLT
Tools and Materials Needed For Installation
You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A non-combustible oor protector as
specied in this manual. All chimney and chimney connector components required for your particular chimney installation.
Assembly
Flue Collar Assembly: (Factory Installed)
1. Mount the ue collar to the top of the unit as shown using the (3) 5/16-18 x 1-1/2 bolts, (3) washers, and (3) weld
tabs provided in the parts box.
Side view of ue collar
mount to heater top
INSTALLATION
SAFETY NOTICE
•IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE
THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.
• CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT
PERMITS, RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA.
• USE SMOKE DETECTORS IN THE ROOM WHERE YOUR STOVE IS INSTALLED.
• KEEP FURNITURE AND DRAPES WELL AWAY FROM THE STOVE.
• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS
HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN
USE.
• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE AIR CONTROL FULL CLOSED TO DEPRIVE
THE FIRE OF OXYGEN. CALL THE FIRE DEPARTMENT.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.
• A SOURCE OF FRESH AIR INTO THE ROOM OR SPACE HEATED SHALL BE PROVIDED
WHEN REQUIRED.

Ussc 7
POSITIONING THE STOVE
It is very important to position the pellet stove as close as possible to the chimney, and in an area that will favor the most
efcient heat distribution possible throughout the house. The stove must therefore be installed in the room where the
most time is spent, and in the most spacious room possible. Recall that wood pellet stoves produce radiating heat, the
heat we feel when we are close to a wood pellet stove. A wood pellet stove also functions by convection, that is through
the displacement of hot air accelerated upwards and its replacement with cooler air. If necessary, the hot air distribution
from the stove may be facilitated by the installation of an optional blower.
The appliance must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur.
This appliance must never be installed in a hallway or near a staircase, since it may block the way in case of re or fail
to respect required clearances.
D
E
S
C
R
I
P
T
I
O
N
S
C
A
L
E
S
I
Z
E
R
E
V
REAR
Model Front Sides Rear
SPG9000 25”
(635mm)
8”
(203mm)
6”
(152mm)
FRONT
SIDESIDE
FLOOR PROTECTOR
Your wood pellet stove should be placed on a 1 inch, non-combustible surface with a k factor of 0.84. For multiple layers,
add R-values of each layer to determine the overall R-value. The R value for the required board is 1.2. If there is a
horizontal section of chimney connector, the oor protector should go under it and 2 inches beyond each side
Convert specication to R-value:
k-factor is given with a required thickness (T) in inches: R=1/k x T
C-factor is given: R=1/C
Example:
If the oor protector is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a “k” factor of 0.29 the total
R-value of the system is:
4” brick C=1.25, R=1/1.25=0.8
1/8” mineral board K=0.29, R=1/0.29 x 0.125=0.431
Total R = Rbrick + Rmineral = 0.8 + 0.431 = 1.231
Total R is greater than 1.2, the system is acceptable.
The oor protector should exceed the stove as follows:

8 Ussc
CLEARANCES TO COMBUSTIBLES
It is of utmost importance that the clearances to combustible materials be strictly adhered to during
installation of the stove. Refer to the tables below :
• Floor to ceiling height must be at least 7’ (2.13m) in all cases.
• Do not place any combustible material within 4’ (1.2m) of the front of the unit.
• The clearance between the ue pipe and a wall are valid only for vertical walls and for vertical ue
pipe.
• The chimney connector must not pass through an attic or roof space, closet or similar concealed
space, a oor, or a ceiling.
• For Canadian installations, where passage through a wall, or partition of combustible construction
is desired, the installation must conform to CAN/CSA-B365.
• A ue pipe crossing a combustible wall must have a minimum clearance of 18” (457.2mm).
• To reduce ue clearances from combustible materials, contact your local safety department.
Single Wall Pipe (Double Wall Pipe)
Model A B C D E F
SPG9000 20(14)
(508mm(356mm))
22(20)
(559mm(508mm))
22.5(16.5)
(572mm(419mm))
32(30)
(813mm(762mm))
12(11)
(305mm(279mm))
22(21)
(559mm(533mm))

Ussc 9
CHIMNEY CONNECTOR (STOVE PIPE)
Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this
is not the case, we recommend you contact your dealer in order to insure there will be no problem
with the draft.
The stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021” or
0.53 mm. It is strictly forbidden to use galvanized steel.

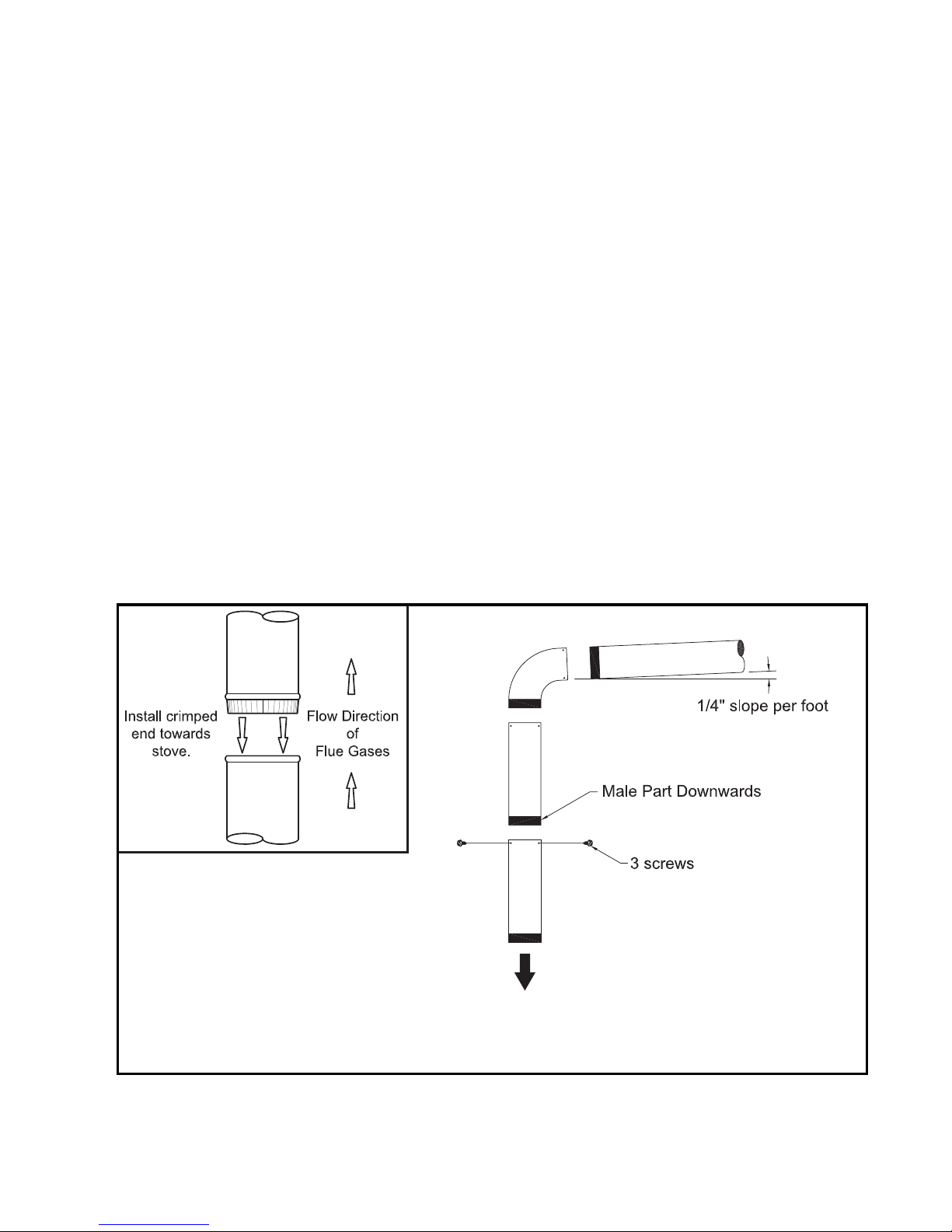

Your smoke pipe should be assembled in such a way that the male section (crimped end) of the pipe
faces down. Attach each of the sections to one another with three equidistant metal screws.
The pipe must be short and straight. All sections installed horizontally must slope at least 1/4 inch
per foot, with the upper end of the section toward the chimney. Any installation with a horizontal
run of chimney pipe must conform to NFPA 211. You may contact NFPA (National Fire Protection
Association) and request the latest edition of the NFPA Standard 211.
To insure a good draft, the total length of the coupling pipe should never exceed 8’ to 10’ (2.4m to 3.04
m). (Except for cases of vertical installation, cathedral-roof style where the smoke exhaust system
can be much longer and connected without problem to the chimney at the ceiling of the room).
There should never be more than two 90 degrees elbows in the smoke exhaust system.
Installation of a “barometric draft stabilizer” (replace register) on a smoke exhaust system is
prohibited.
Furthermore, installation of a draft damper is not recommended. Indeed, with a controlled combustion
wood stove, the draft is regulated upon intake of the combustion air in the stove and not at the exhaust.
To
Appliance

10 Ussc
CHIMNEY
Your appliance may be hooked up with a 6” factory built or masonry chimney. If you are using a fac-
tory built chimney, it must comply with UL 103 or CSA-B365 standard; therefore it must be a Type HT
(2100°F). It is extremely important that it be installed according to the manufacturer’s specications.
If you are using a masonry chimney, it is important that it be built in compliance with the specica-
tions of the National Building Code. It must be lined with re clay bricks, metal or clay tiles sealed
together with re cement. (Round ues are the most efcient).
The interior diameter of the chimney ue must be identical to the stove smoke exhaust. A ue which
is too small may cause draft problems, while a large ue favours rapid cooling of the gas, and hence
the build-up of creosote and the risk of chimney res. Note that it is the chimney and not the stove
which creates the draft effect; your stove’s performance is directly dependent on an adequate draft
from your chimney.
The following recommendations may be useful for the installation of your chimney:
1. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
2. It must rise above the roof at least 3’ (0.9m) from the uppermost point of contact.
3. The chimney must exceed any part of the building or other obstruction within a 10’ (3.04m) dis-
tance by a height of 2’ (0.6m).
4. Installation of an interior chimney is always preferable to an exterior chimney. Indeed, the interior
chimney will, by denition, be hotter than an exterior chimney, being heated up by the ambient air
in the house. Therefore the gas which circulates will cool more slowly, thus reducing the build-up
of creosote and the risk of chimney res.
5. The draft caused by the tendency for hot air to rise will be increased with an interior chimney.
6. Using a re screen at the extremity of the chimney requires regular inspection in order to insure
that it is not obstructed thus blocking the draft, and it should be cleaned when used regularly.

Ussc 11
FACTORY BUILT CHIMNEY :
When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be
followed. You must also purchase (from the same manufacturer) and install the ceiling support
package or wall pass-through and “T” section package, restops (where needed), insulation shield,
roof ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the
manufacturer. The chimney must be the required height above the roof or other obstructions for
safety and proper draft operation.

12 Ussc
MASONRY CHIMNEY :
Ensure that a masonry chimney meets the minimum standards of the National Fire Protection As-
sociation (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose
mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is
installed and operated. When connecting the stove through a combustible wall to a masonry chim-
ney, special methods are needed.

Ussc 13

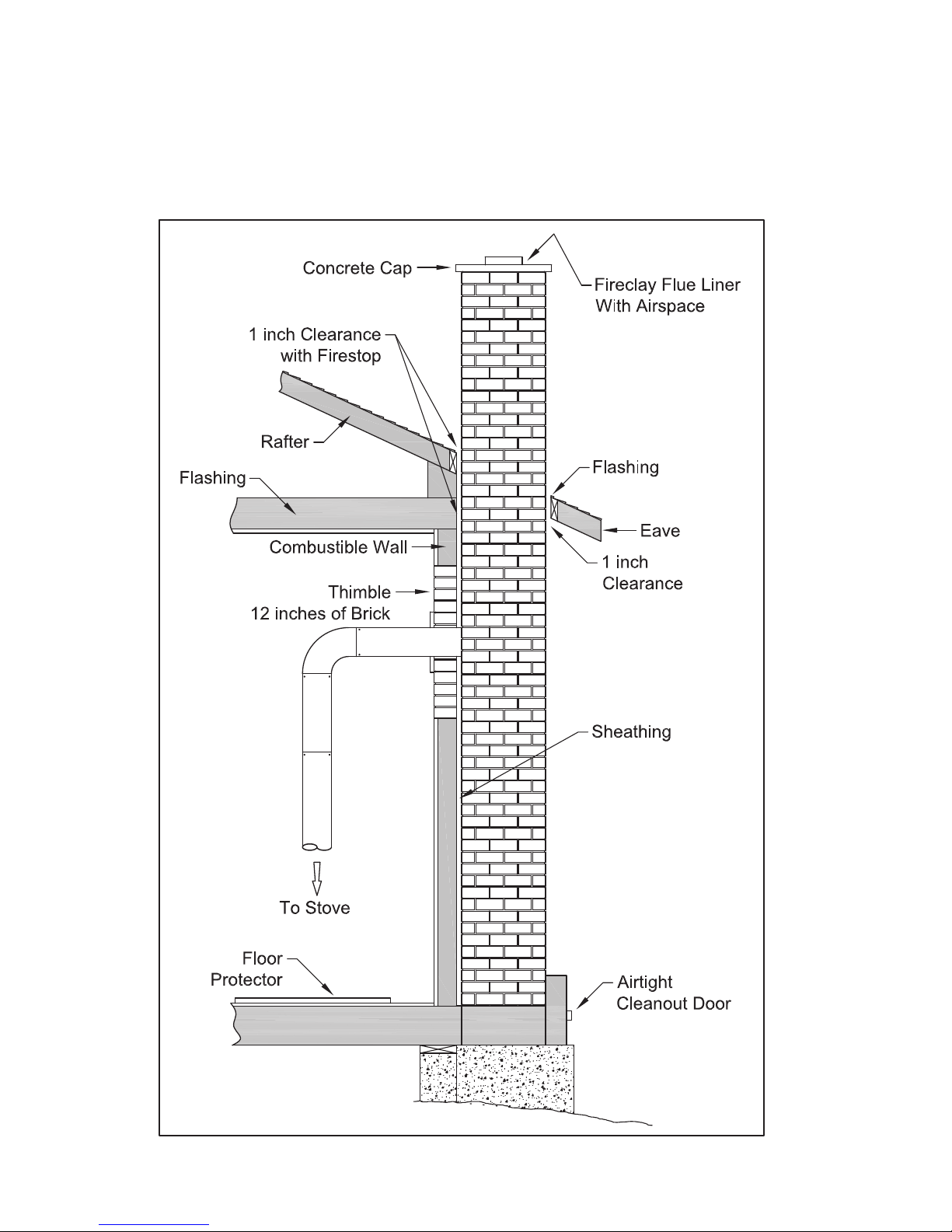

Combustible Wall Chimney Connector Pass-Throughs
Method A. 12” (304.8 mm) Clearance to Combustible Wall Member:
Using a minimum thickness 3.5” (89 mm) brick and a 5/8” (15.9 mm)
minimum wall thickness clay liner, construct a wall pass-through.
The clay liner must conform to ASTM C315 (Standard Specica-
tion for Clay Fire Linings) or its equivalent. Keep a minimum of
12” (304.8 mm) of brick masonry between the clay liner and wall
combustibles. The clay liner shall run from the brick masonry outer
surface to the inner surface of the chimney ue liner but not past
the inner surface. Firmly grout or cement the clay liner in place to
the chimney ue liner.
Method B. 9” (228.6 mm) Clearance to Combustible Wall Member:
Using a 6” (152.4 mm) inside diameter, listed, factory-built Solid-
Pak chimney section with insulation of 1” (25.4 mm) or more, build
a wall pass-through with a minimum 9” (228.6 mm) air space be-
tween the outer wall of the chimney length and wall combustibles.
Use sheet metal supports fastened securely to wall surfaces on all
sides, to maintain the 9” (228.6 mm) air space. When fastening
supports to chimney length, do not penetrate the chimney liner (the
inside wall of the Solid-Pak chimney). The inner end of the Solid-
Pak chimney section shall be ush with the inside of the masonry
chimney ue, and sealed with a non-water soluble refractory ce-
ment. Use this cement to also seal to the brick masonry penetra-
tion.
Method C. 6” (152.4 mm) Clearance to Combustible Wall Member:
Starting with a minimum 24 gage (.024” [.61 mm]) 6” (152.4 mm)
metal chimney connector, and a minimum 24 gage ventilated wall
thimble which has two air channels of 1” (25.4 mm) each, construct
a wall pass-through. There shall be a minimum 6” (152.4) mm sep-
aration area containing berglass insulation, from the outer surface
of the wall thimble to wall combustibles. Support the wall thimble,
and cover its opening with a 24-gage minimum sheet metal sup-
port. Maintain the 6” (152.4 mm) space. There should also be a
support sized to t and hold the metal chimney connector. See that
the supports are fastened securely to wall surfaces on all sides.
Make sure fasteners used to secure the metal chimney connector
do not penetrate chimney ue liner.
Method D. 2” (50.8 mm) Clearance to Combustible Wall Member:
Start with a solid-pak listed factory built chimney section at least
12” (304 mm) long, with insulation of 1” (25.4 mm) or more, and an
inside diameter of 8” (2 inches [51 mm] larger than the 6” [152.4
mm] chimney connector). Use this as a pass-through for a mini-
mum 24-gauge single wall steel chimney connector. Keep solid-pak
section concentric with and spaced 1” (25.4 mm) off the chimney
connector by way of sheet metal support plates at both ends of
chimney section. Cover opening with and support chimney sec-
tion on both sides with 24 gage minimum sheet metal supports.
See that the supports are fastened securely to wall surfaces on all
sides. Make sure fasteners used to secure chimney ue line.
NOTES:
1. Connectors to a masonry chimney, excepting method B, shall extend in one continuous section
through the wall pass-through system and the chimney wall, to but not past the inner ue liner
face.
2. A chimney connector shall not pass through an attic or roof space, closet or similar concealed
space, or a oor, or ceiling.

14 Ussc
OUTSIDE COMBUSTION AIR
Your appliance is approved to be installed with an outside air
intake which is necessary for a mobile home. This type of in-
stallation is also required in air tight houses and houses with
negative pressure problems. You can purchase this option
through your heater dealer or at your local hardware supply
store. Installation instructions should be supplied with the air
intake kit.
Outside combustion air may be required if :
1. Your appliance does not draw steadily, smoke rollout occurs,
fuel burns poorly, or back-drafts occur whether or not there
is combustion present.
2. Existing fuel-red equipment in the house, such as replaces
or other heating appliances, smell, do not operate properly,
suffer smoke roll-out when opened, or back-drafts occur
whether or not there is combustion present.
3. Opening a window slightly on a calm (windless) day allevi-
ates any of the above symptoms.
4. The house is equipped with a well-sealed vapor barrier and
tight tting windows and/or has any powered devices that
exhaust house air.
5. There is excessive condensation on windows in the winter.
6. A ventilation system is installed in the house.
D
E
S
C
R
I
P
T
I
O
N
S
C
A
L
E
S
I
Z
E
R
E
V
Outside Air
Connection
“Dryer Venting Kit” Installation
If using outside combustion air, you can purchase a standard 4”
Dryer Vent kit from your local hardware supply store and install it
on the rear of the appliance.
If using a Dryer venting kit, the outlet cover must be of a design
that DOES NOT close by means of a ap or trap door. You must
purchase a style that allows a continuous in-ow of air and that has
a rodent screen.
Follow the manufacturer’s installation instructions for attaching
the dryer vent kit to the home.
OPERATION
HEATING
Controlled combustion is the most efcient technique for wood pellet heating because it enables you to select
the type of combustion you want for each given situation. The wood will burn slowly if the heater air intake
control is adjusted to reduce the oxygen supply in the combustion chamber to a minimum. On the other hand,
wood pellets will burn quickly if the air control is adjusted to admit a larger quantity of oxygen in the combustion
chamber. The air intake control on your heater is very simple. If you pull it out completely, it is fully open. If
you push it in until it stops, the combustion air is reduced to a minimum. Real operating conditions may give
very different results than those obtained during testing according to the overall quality of pellets used, the
length of the chimney, altitude and outside air temperature.

Ussc 15
D
E
S
C
R
I
P
T
I
O
N
S
C
A
L
E
S
I
Z
E
R
E
V
OPERATION
A

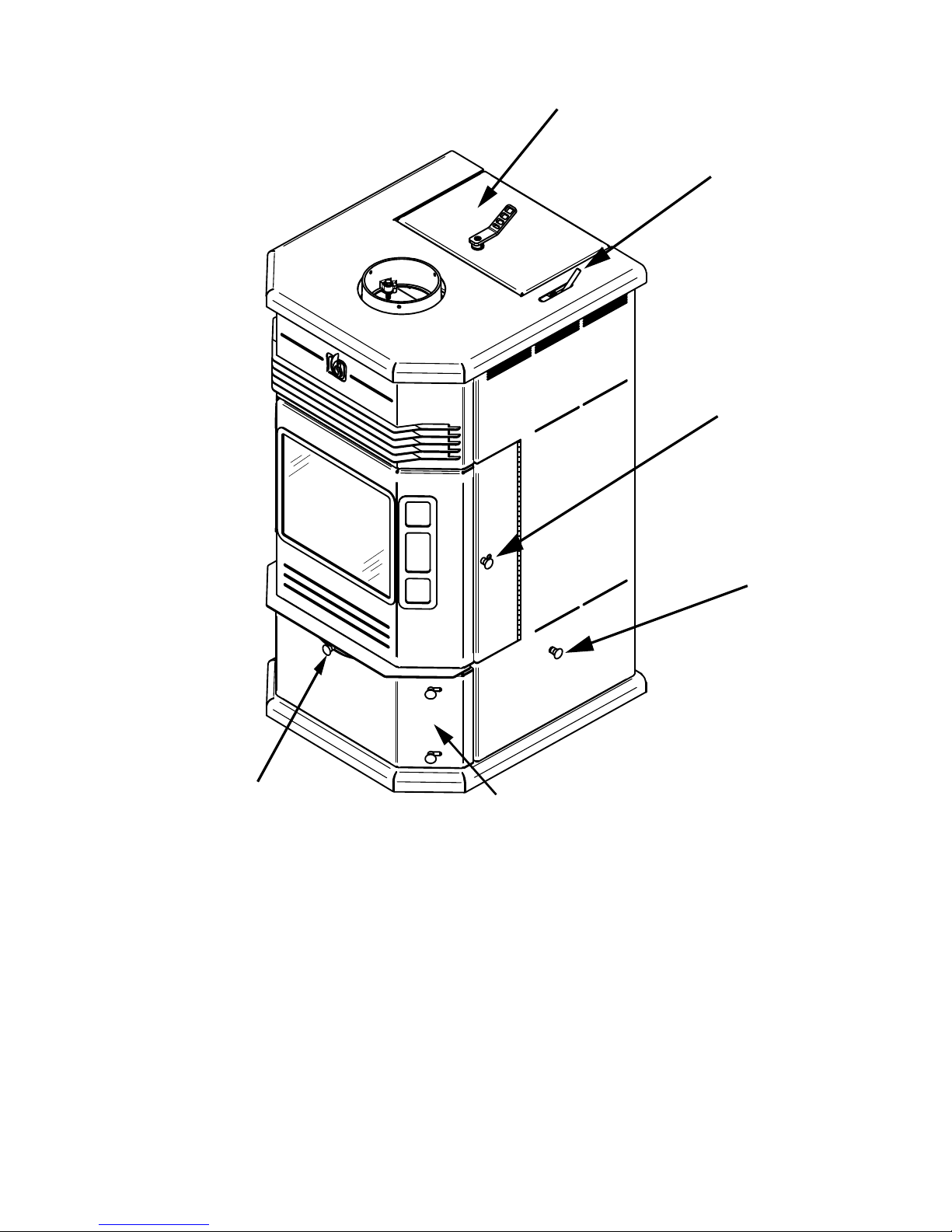

(A): Fuel Loading Lid. Turn handle clockwise to open and expose the fuel charging system. Fill with pellets
and close lid.
(B): Fuel Dump Lever. The fuel dump lever is used to dump pellets into the main fuel chamber. Dump the pel-
lets into fuel chamber by actuating the lever forward. Never actuate lever unless fuel loading lid is closed.
Actuating lever with fuel loading lid open could, potentially, cause a smoke hazard.
(C): Access Panel. Open Access Panel to expose the main door latches. Release latches to perform periodic
maintenance like cleaning the glass, burnpot, or cleaning the rebox of yash. NEVER open door during
operation. DO NOT attempt to clean glass or empty burnpot while unit is hot.
(D): Primary Air Control. You will pull/push on the knob to adjust the combustion air entering the appliance.
(E): Ash Pan Access. Remove both knobs to access and empty ash pan.
(F): Agitator. Push/Pull knob to agitate fuel to remove ashes or build-up from the burnpot.
B
C
D
E
F

16 Ussc
THE FIRST FIRES

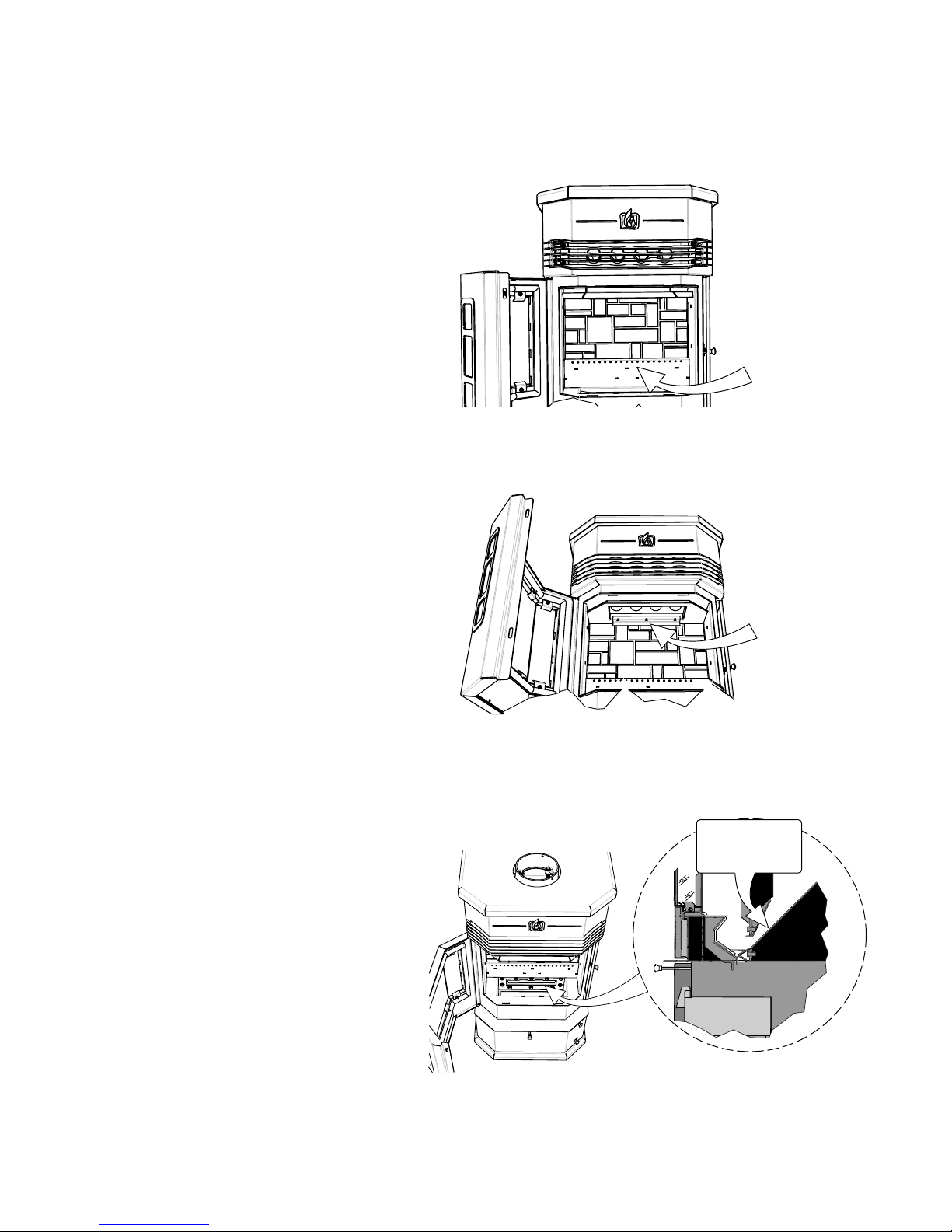

The rst few res in your new appliance needs to be small so as to cure the fresh paint and preserve it’s quality. To do
so, ll the pre-chamber with 1/2 charge (approximately 5-7 obs.) of premium wood pellets. Close the fuel lid and dump
fuel into main fuel chamber. Open the Viewing Door and light pellets. Close Viewing Door once the pellets have properly
ignited. Pull the primary control knob out to achieve a meduim burn rate. Never open the air control more than necessary.
Make sure that there’s enough air circulation while curing the stove. The odors could be present during the rst 3 or 4 res.
Never start your stove outside. You will not be able to see if you are over heating.
IGNITION
CAUTION: NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL
LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS
HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN USE.
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CON-
TACT MAY CAUSE SKIN BURNS.
● Open fuel loading lid. Fill pre-chamber with pellets. Close lid and use fuel charging system to dump fuel into the main
fuel chamber.
NOTE: DO NOT add more than 15 lbs. of pellets into the pre-chamber or more than 30 lbs. of pellets into the main
chamber at one time.
● Open the viewing door and see that pellets have fallen into the burnpot.
● Squirt only a small amount of re starter gel on top of the wood pellets.
● Light the re starter and allow the pellets to ignite. (Close the viewing door and latch securely).
● Do not agitate the re during the ignition process.
There will be a transition period between startup and operational levels. As with a conventional wood stove, please allow
20 -30 minutes for stove to reach operation temperatures. During the 25 minute start up period, DO NOT agitiate the re.
OPERATION
● DO NOT open viewing door during operation.
● DO NOT open ash pan during operation – make sure the ash pan is properly sealed.
● DO NOT actuate fuel charging system during operation unless fuel loading lid is completely closed.
When operating the agitator, be careful not to agitate too often or too much at one time. Pushing or pulling the agitator knob
approximately six (6) times should be sufcient. However, under different burn conditions or fuel quality, this number may
differ slightly. Experience burning your appliance will help you understand more of the amount to agitate during operation.
NOTE: This appliance does not have a “quick” shutdown method. Once the appliance has been charged with fuel, ignited
and burning, it will burn until all fuel has been consumed by combustion. Please note that once the re does cease, the
appliance may still be quite warm or HOT and could remain Hot for an undetermined amount of time depending on ring
conditions. Experience burning your appliance, will tell you how many pellets to put in the burn chamber in order to burn
for a desired period of time. This unit may run anywhere from 5-12 hours on a single 30lb charge depending on the air
adjustment setting and quality of fuel used.
You may use the below primary air settings as a good starting point when burning your new appliance. Please note that
these settings may vary depending on certain factors that may affect combustion.
Primary Air Settings
(Slide Damper is located on the right side of stove)
(Damper Adjustment: Pulling out on damper increases air)
Burn Rate Adjust Damper from fully closed
Low 1/4” (6.3mm)
Medium - Low 3/8” (9.5mm)
Medium - High 1/2” (12.7mm)
High approx. 3” (76mm)
CAUTION: Never alter the damper slide or the adjustment range to increase ring for any reason. Doing so could
result in heater damage and will void your warranty.

Ussc 17
WARNINGS
• NEVER OVERFIRE YOUR STOVE. IF ANY PART OF THE STOVE STARTS TO GLOW RED,
OVER FIRING IS HAPPENING. READJUST THE AIR INTAKE CONTROL AT A LOWER
SETTING.
RELOADING
If you wish to continue burning your heater after the majority of the fuel has been consumed, simply add more fuel to the
main fuel chamber. Begin by opening the air control to full open for about 5 minutes prior to opening the fuel loading lid.
When opening the fuel loading lid, leave the lid cracked open for 10 to 15 seconds prior to opening fully, because there
may be smoke present inside the pre-chamber. Allowing the majority of the fuel in the main chamber to be consumed
prior to refueling, will decrease the amount of smoke present. FIll the pre-chamber with pellets for the desired burn time,
close lid, dump fuel. Check to ensure that pellets have ignited properly and adjust air setting.
It is important to note that wood combustion consumes ambient oxygen in the room .In the case of negative pressure, it
is a good idea to allow fresh air in the room, either by opening a window slightly or by installing a fresh air intake system
on an outside wall.
Creosote - Formation and Need for Removal - When wood is burned slowly, it produces tar and other organic vapors,
which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney ue
of a slow-burning re. As a result, creosote residue accumulates on the ue lining. When ignited this creosote makes an
extremely hot re. The chimney connector and chimney should be inspected at least once every two months during the
heating season to determine if a creosote build-up has occurred. If creosote has accumulated (3mm or more), it should
be removed to reduce the risk of a chimney re.
TO PREVENT CREOSOTE BUILD UP
• Always burn premium pellets. This allows clean burns and higher chimney temperatures, therefore less creosote
deposit.
• Leave the air control full open for about 5 min. every time you reload the stove to bring it back to proper operating
temperatures. The secondary combustion can only take place if the rebox is hot enough.
• Always check for creosote deposit in your chimney once every two months and have your chimney cleaned at least
once a year.
If a chimney or creosote re occurs, close all dampers immediately. Wait for the re to go out and the heater to cool, then
inspect the chimney for damage. If no damage results, perform a chimney cleaning to ensure there is no more creosote
deposits remaining in the chimney.

18 Ussc
MAINTENANCE
Your wood pellet stove is a high efciency stove however, still requires that maintenance be performed on a regular
basis. Maintenance is a vital key in maintaining your stove’s efciency, operation, and longevity. It is important to per-
form a visual inspection of the stove every time it is emptied, in order to insure that no parts have been damaged, in
which case repairs must be performed immediately. Inspect and clean the chimney and connector pipe periodically for
creosote buildup or obstructions.
Secondary Air
Ports
Heat Exchange
Tubes
Surface to
be cleaned
Secondary Air Ports
Cleaning the Secondary Air Ports regularly will help
keep your heater burning clean and efciently. Re-
move any ash or creosote build-up from the ports as
frequently as needed. A simple brush with a small
chimney sweep broom once a day will help reduce or
prevent any large deposits from bonding to this surface
which could cause premature deterioration of the re-
box. Most Creosote formations here can be removed
Heat Exchanger Tubes/Fiber Board
Cleaning the Heat Exchanger Tubes on a regular basis
will help your heater continue to produce substantial
heat output for the life of your appliance. Keeping any
build-up to a minimum will allow for more heat con-
ductivity thru the tubes. Using a chimney sweep, brush
the tubes as frequently as needed being careful not to
damage the Fiber Board resting above the tubes. Al-
ways keep a check on the condition of the ber boards
to ensure there is no damage or extreme deterioration.
These will diminish over time and should be replaced
along with the gasketing of the appliance. We recom-
mend replacing once a year to ensure proper sealing
and efcient operation of the appliance.
Fuel Flowing Surface
This area of the fuel system may become coated with
creosote under certain conditions of operation and
should be removed on a regular basis. The creosote
formation leaves a sticky surface and sometimes pre-
vents the fuel from owing properly into the burnpot
area causing the re to cease. Scrapping with a 1-1/2"
putting knife or an aggressive chimney brush are the
cleaning procedures recommended and should be
done as needed or once every couple days depending
on ring conditions. Removing the burnpot will aid in a
easier cleaning method.

Ussc 19
ASH DISPOSAL/ ASH PAN AREA
Ashes should be removed from the stove every few days or when ashes get to 2 to 3 inches deep. Always empty the
stove when it is cold, such as in the morning. Remove any accumulated ash or fallen pellets from the ash pan area. An
Ash Vac greatly aids in this process and can be purchased from your local dealer. Ashes should be placed in a steel
container with a tight tting lid. The closed container of ashes should be placed on a non combustible oor or on the
ground, well away from all combustible materials, pending nal disposal. If the ashes are disposed of by burial in soil
or otherwise locally dispersed, they should be retained in the close container until all cinders have thoroughly cooled.
Other waste shall not be placed in this container.

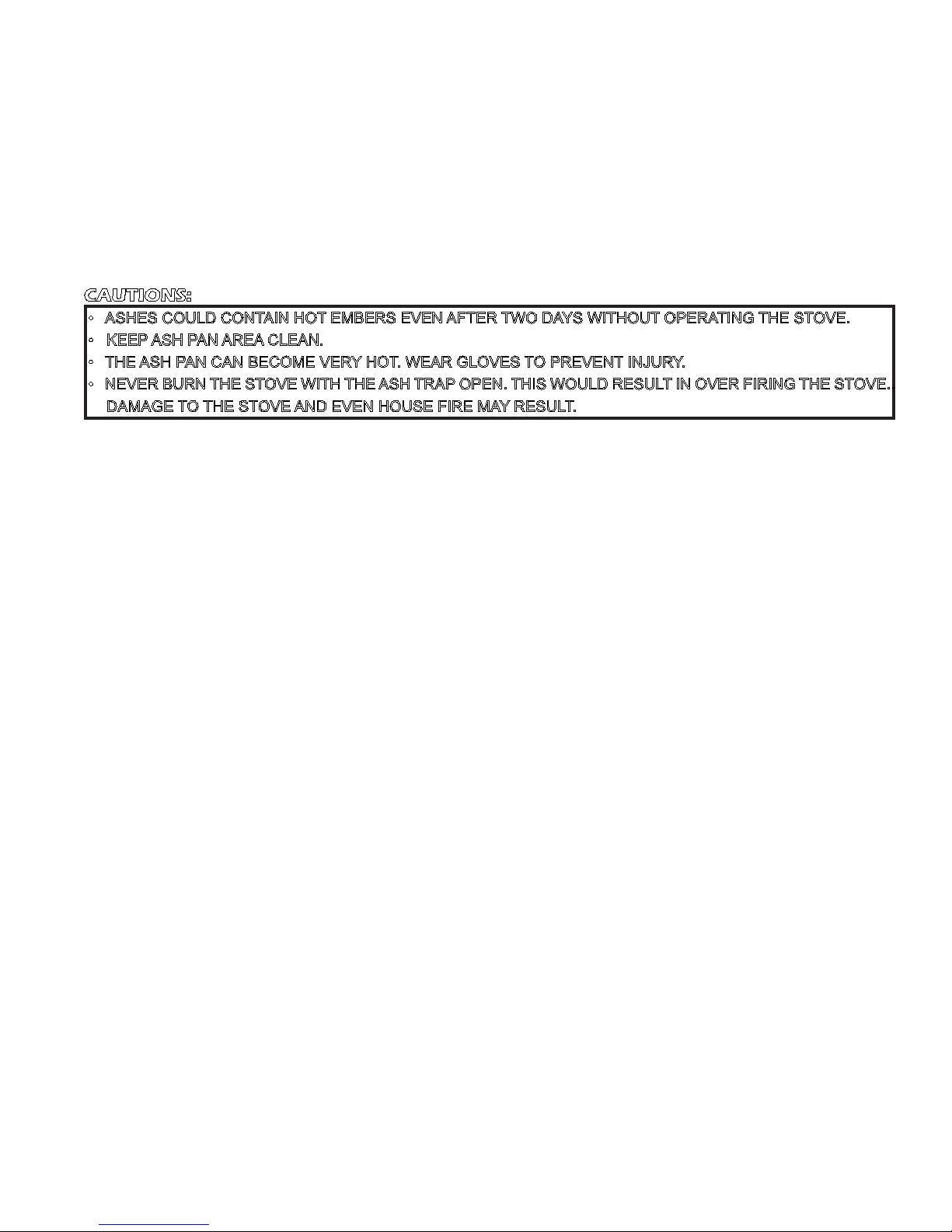

CAUTIONS:
• ASHES COULD CONTAIN HOT EMBERS EVEN AFTER TWO DAYS WITHOUT OPERATING THE STOVE.
• KEEP ASH PAN AREA CLEAN.
• THE ASH PAN CAN BECOME VERY HOT. WEAR GLOVES TO PREVENT INJURY.
• NEVER BURN THE STOVE WITH THE ASH TRAP OPEN. THIS WOULD RESULT IN OVER FIRING THE STOVE..
DAMAGE TO THE STOVE AND EVEN HOUSE FIRE MAY RESULT.
GLASS
• Inspect and clean the glass regularly in order to detect any cracks. If you spot one, schedule to replace immediately.
Do not abuse the glass door by striking or slamming shut. Do not use the stove if the glass is broken.
• If the glass on your stove breaks, replace only with the glass supplied from your heater dealer. Never substitute other materials
for the glass.
• To replace the glass, remove the nuts retaining the glass clips inside the door. Remove the clips and replace the dam-
aged piece with a new one. Perform the procedure backwards after replacing. When replacing the glass, you should
change the glass gasket to make sure you keep it sealed.
• Never wash the glass with a product that may scratch. Use a specialized product, available in the stores where wood
stoves are sold. The glass should be washed only when cold.
GASKETING
It is recommended that you change the gaskets (which makes your stove air tight) once a year, in order to insure good
control over the combustion, maximum efciency and security. To change the gaskets, simply remove the damaged one.
Carefully clean the available gasket groove, apply a high temperature silicone sold for this purpose, and install the new
gasket. You may light up your stove again approximately 24 hours after having completed this operation.
WARNING:
• NEVER OPERATE THE APPLIANCE WITHOUT A GASKET OR WITH A BROKEN ONE. DAM-
AGE TO THE APPLIANCE OR EVEN HOUSE FIRE MAY RESULT.
PAINT
Only clean your stove with a dry soft cloth that will not harm the paint nish. If the paint becomes scratched or damaged,
it is possible to give your wood pellet stove a brand new look, by repainting it with a 1200° F heat resistant paint that can
be purchased from your dealer. For this purpose, simply scrub the surface to be repainted with ne sand paper, clean it
properly, and apply thin coats (2) of paint successively.
MAINTENANCE

20 Ussc
REPAIR PARTS
Part No. Description Qty.
25491 Feed Door, Painted (40484) 1
25692 Handle, Painted (40515) 1
83506 3/8 x 1-1/4 Roll Pin 1
891135 Spring Handle - LG 1
88066 Rope Gasket - 5/8” 4.6 Ft
88087 Glass Gasket - 1/8 thk x 1” wide 3.7 Ft
891131 Ceramic Glass 1
25464 Top Glass Retainer 1
25465 Bottom Glass Retainer 1
83202 10-24 x 3/8 Pan Head Phillips Screw 4
83278 Washer - 7/32 ID x 1/2 OD 4
