EdilKamin VYDA AIR TIGHT Quick start guide

VYDA AIR TIGHT
EN Installation, use and maintenance page 2
PELLET STOVE

2
ENGLISH
The undersigned company, EDILKAMIN S.p.A., with
registered office in Via Vincenzo Monti 47 - 20123 Milan
(Italy) - Italian Tax ID VAT NO. 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stoves mentioned below comply with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVES, bearing the
EDILKAMIN brand, called
VYDA AIR TIGHT
SERIAL NO.: Rating plate reference
VYDA AIR TIGHT : Performance declaration: (DoP - EK no.
161)
Moreover, the company hereby declares that:
the VYDA AIR TIGHT wood pellet stoves satisfy the
requirements of the following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
Introduction and readers of this manual 3
Safety information 4
Dimensions 5
Technical data 6
Unpacking 7
Installation 10
Instructions for use 18
Maintenance 27
Troubleshooting 31
CONTENTS
USER/INSTALLER
The original language of this edition is Italian

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we would ask you to read this
manual carefully, so that you can make the most of all its
functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of the manual
This manual is addressed to:
• those who use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing him with a copy of the
warranty booklet and sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Product identification and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
First ignition is required, in Italy, by an authorised
technician in accordance with UNI 10683, and is
recommended in all countries to ensure best results from
the product.
This consists of:
• checking the installation documents (declaration of
conformity) and the quality of the installation itself
• calibrating the product to suit its actual application
• providing explanations to the end user and issuing
the complementary documentation (first ignition -
commissioning certificate)
Having the appliance commissioned properly ensures that it
will operate to best effect and in complete safety.
First ignition is required for activation of the Edilkamin
manufacturer warranty. The warranty is only valid in the
country where the product was bought.
If the appliance is not commissioned by an authorised
technician, Edilkamin will not provide warranty service. See
the warranty booklet for details. The above terms do not
affect the dealer’s legal responsibility for the legal warranty.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by
people, including children, with limited
physical, sensory and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN
ISO 17225-2 category A1 wood pellets, in
the amounts and manner described in
this manual.
• The appliance is designed for indoor
use and in areas with normal humidity
conditions.
• Keep the product in a dry place out of the
weather.
• For the legal and company warranties,
refer to the warranty certificate inside the
product: specifically, neither Edilkamin nor
the retailer are liable for damage resulting
from incorrect installation or maintenance.
Safety risks may be caused by:
• Installation in non-suitable settings, in
particular those that are subject to fire
risks. DO NOT INSTALL THE PRODUCT
IN AREAS SUBJECT TO THE RISK OF
FIRE.
• Contact with fire and hot parts (e.g. glass
panel and pipes). DO NOT TOUCH HOT
PARTS and, when the stove is switched
off and still hot, always wear the glove
supplied.
• Contact with live electrical equipment
(internal). DO NOT ACCESS THE
INTERNAL ELECTRICAL EQUIPMENT
WHILE THE APPLIANCE IS POWERED
ON. Electrocution hazard.
• Use of improper ignition aids (e.g.
alcohol). DO NOT IGNITE OR BOOST
THE FLAME WITH FLUID SPRAYS OR
A FLAME TORCH. Serious risk of burns,
damage and injury.
• Use of fuel other than wood pellets. DO
NOT BURN WASTE MATTER, PLASTIC
OR MATERIALS OTHER THAN WOOD
PELLETS IN THE COMBUSTION
CHAMBER. The product may become
soiled, the flue may catch fire, and
environmental damage may ensue.
• Cleaning the combustion chamber when
hot. DO NOT CLEAN WITH A VACUUM
CLEANER WHEN HOT. You could damage
the vacuum-cleaner and risk the emission
of smoke in the room.
• Cleaning the smoke duct with cleaning
products. DO NOT CLEAN THE PRODUCT
WITH FLAMMABLE PRODUCTS. Risk of
fire or blowback.
• Cleaning the glass pane while hot or
with unsuitable cleaning products. DO
NOT CLEAN HOT GLASS WITH WATER.
ONLY USE RECOMMENDED GLASS
CLEANING PRODUCTS. Risk of cracking
and permanent, irreparable damage to
the glass.
• The storage of flammable materials at
a distance which is less than the safe
distances listed in this manual. DO NOT
PLACE LAUNDRY ON THE APPLIANCE.
DO NOT PLACE DRYING RACKS WITHIN
THE SAFETY CLEARANCE. Keep
flammable fluids away from the appliance.
Fire hazard.
• Blocking the aeration vents and air
intakes in the room. DO NOT BLOCK
THE AERATION VENTS OR FLUE. Risk
of smoke returning into the room with
consequent damage and injury.
• Use of the product as a support or ladder.
DO NOT CLIMB ONTO THE PRODUCT
OR USE IT AS A SUPPORT. Risk of
damage and injury.
• Use of the stove with the combustion
chamber open. DO NOT USE THE
PRODUCT WITH ITS DOOR OPEN.
• Incandescent material may come out
from the open door. DO NOT throw
incandescent material outside the
appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
Switch on the product only after complete
installation including coverings. Risk of
electric shock from live device parts.
If you have doubts, please do not take any
action, but contact the retailer or the installer.
For reasonsofsafety,read theuser instructions
included in this manual.
USER/INSTALLER

5
ENGLISH
USER/INSTALLER
DIMENSIONS
VYDA AIR TIGHT- DIMENSIONS (cm)
Ø 8 cm
standard
smoke
discharge
Ø 8 /13 cm smoke
discharge with optional
Ø 6 cm combustion air

6
ENGLISH
The above data is for guidance only and was measured during certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
ELECTRICAL SPECIFICATIONS
Power supply 230 Vac +/- 10% 50 Hz
Mean absorbed power 30-155 W
Power absorption during ignition 365 W
Remote control frequency (provided) 2,4 GHz
Protection rating Fuse 4 AT 250 V AC 5x20
TECHNICAL DATA
USER/INSTALLER
TECHNICAL DATA.-EN 14785
VYDA AIR TIGHT
Nominal power Reduced power
Available power 10 3 kW
Efficiency 90,4 91,8 %
CO emissions at 13% O20,015 0,056 %
Fumes temperature 153 94 °C
Fuel consumption* 2,3 0,7 kg/h
Tank capacity 17 kg
Draw 10 10 Pa
Autonomy 7 24 hours
Heatable volume ** 260 m3
Fume duct diameter (male) 80 mm
Air intake duct diameter (male) 60 mm
Weight including packaging 180 kg
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions
Nominal power Reduced power
Fumes temperature at smoke outlet 184 113 °C
Minimum draw 0,01 Pa
Fumes flow rate 7,9 3,6 rps
Typ DIBt FC62x
* The heatable volume is calculated with a heating demand of 33 Kcal/m³ hour.
* The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
*A calorific value of 4.8 kW/Kg has been used to calculate consumption

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The end user is responsible for storing, disposing of
and recycling them in a regulatory fashion.
Always move the stove in an upright
position with suitable equipment and in
observance of safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
PACKAGING (details in the cladding paragraph)
The delivery consists of two packages:
• one (1) containing the frame of the stove
• one (2) with the ceramic or stone cladding
The package with the stove contains:
• warranty certificate
• glove
• this manual
• power cable
• remote control
• small parts for the assembly of the cladding
• protective lever (removable handle) for opening
the combustion chamber door.
INSTALLER
1
2

8
ENGLISH
UNPACKING
INSTALLER
DO NOT TRY TO REMOVE THE PRODUCT FROM THE PALLET WITHOUT HAVING REMOVED THE SIDE
PANELS AND REMOVED THE SCREWS WHICH SECURE IT TO THE PALLET
THE DRAWINGS ARE FOR GUIDANCE ONLY, USEFUL FOR THE INSTALLATION, BUT THEY MAY
NOT REFER TO THE SPECIFIC MODEL.
1
2

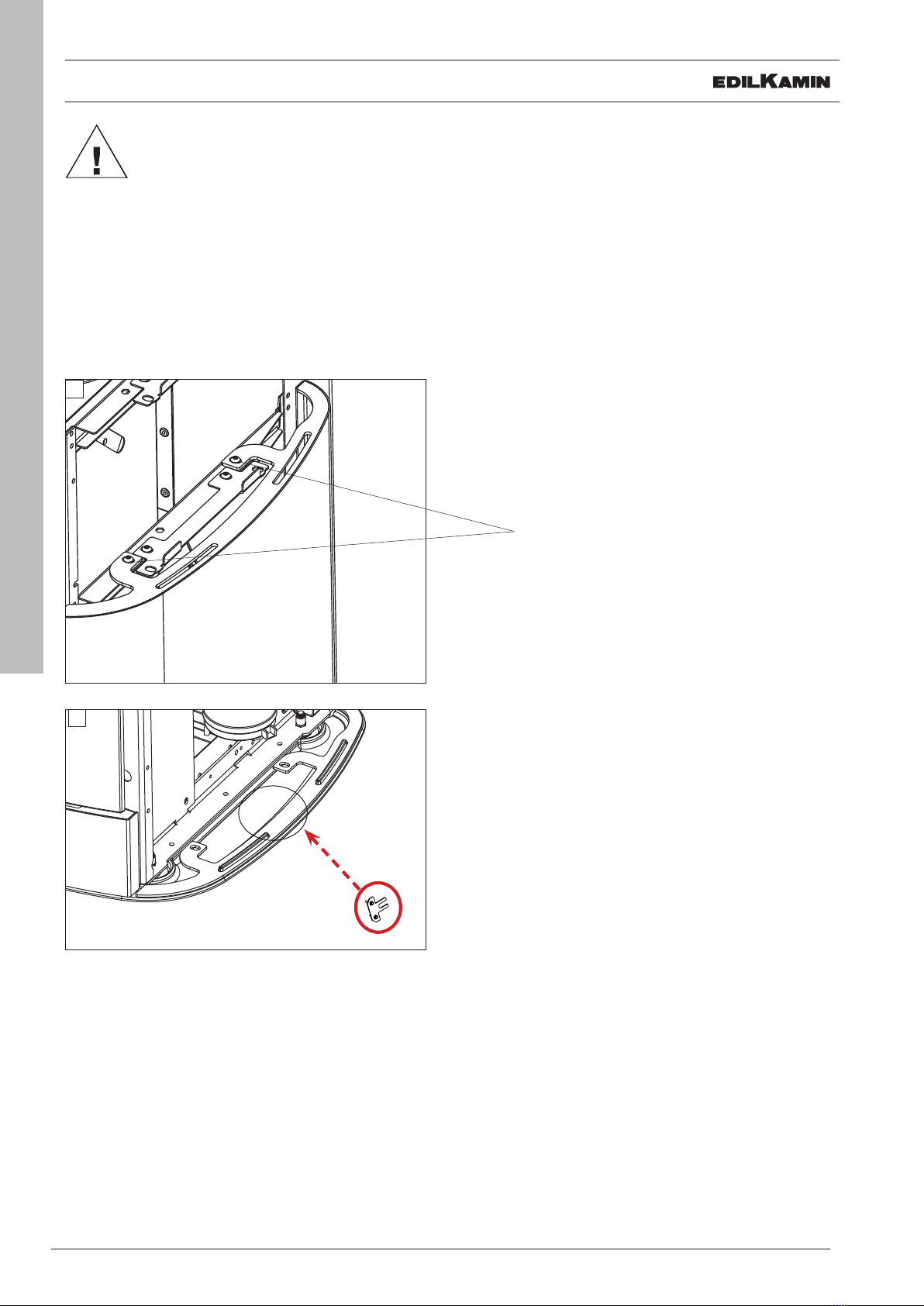

TO REMOVE THE STOVE FROM THE PALLET
To remove the stove from the pallet
1. remove the side panels by undoing the screws on top
2. unscrew and remove the two brackets on the bottom (one per side)
screws to remove the side panels

9
ENGLISH
REMARKS ON INSTALLATION
Note that:
• installation must be carried out by authorised
technical personnel;
the appliance must be installed and operated in
compliance with local and national law and European
regulations. The Italian reference standard is UNI
10683; in France one must follow the instructions in the
DTA (Document Technique d’Application), www.cstb.fr
• if installed in a condominium, the appliance must
be approved by the administrator;
• if installed in public premises, check and follow
local regulations for this type of installation.
Here are a few general instructions, although these do
not obviate the need to comply with local regulations
and do not affect the installer's liability for the
installation.
Remember that Vyda Air Tight is sealed, in other
words, if it is installed correctly with the air inlet pipe
connected to the outside, it takes the majority of the
air from the outside. For different countries, check if
there are particular installation conditions allowed for
sealed stoves.
Checking the suitability of the installation
space
• The room must have a volume of at least 30 m3
• The floor must be able to bear the weight of the
product and its accessories* (see the note in the
paragraph on the heat protection)
• Level the appliance
• Pursuant to Standard 10683 rev. 2012 point 6.3, in
Italy you can also install the appliance in bedrooms
or in rooms which already include a product that
takes air from it for combustion, provided that the
air inlet is connected to the outside
• Do not install the product in spaces where there is
a risk of fire or explosion
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides 15 cm and back of
10 cm from flammable materials
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be appropriately insulated.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load*, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for this type of optional.
Positioning the product
The product is designed to operate in all climate
conditions. In special circumstances, such as strong
wind, the safety devices may intervene to switch the
appliance off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLER

10
ENGLISH
FLUE SYSTEM
(Fumes duct, flue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
expelled in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
FUMES DUCT, FLUE
The fumes duct(which connects the combustion
chamber smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material with rated fire reaction class
A1 as per UNI EN 13501 or analogous national
regulations
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid-
point of its length.
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited or there is risk of fire, or that cannot be
inspected
• must enable the recovery of soot and be open for
inspection
• must have a maximum of 3 bends with a maximum
angle of 90°
• if there is a horizontal section, it can have a
maximum length of no more than 3 metres,
depending on the draw. Note, in any case, that
long sections encourage the accumulation of dirt
and are harder to keep clean.
THE FLUE:
Further to the general prescriptions for the smoke duct
and flue, the flue:
• must only be used for discharging fumes
• must be correctly sized to satisfy the requirements
for fume discharging (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• preferably provide a collection chamber for
unburnt residues and condensates
• if pre-existing, must be clean, to prevent fire
hazards
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INSTALLATION
INSTALLER
INSTRUCTIONSFORTHESMOKEDISCHARGE
WITH OR WITHOUT CONCENTRIC PIPE

11
ENGLISH
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection;
• must observe local regulations.
THE CHIMNEY POT (In every country and specially
in France, check on the specific waiver conditions)
• must be anti-downdraught
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney.
INSTALLATION

12
ENGLISH

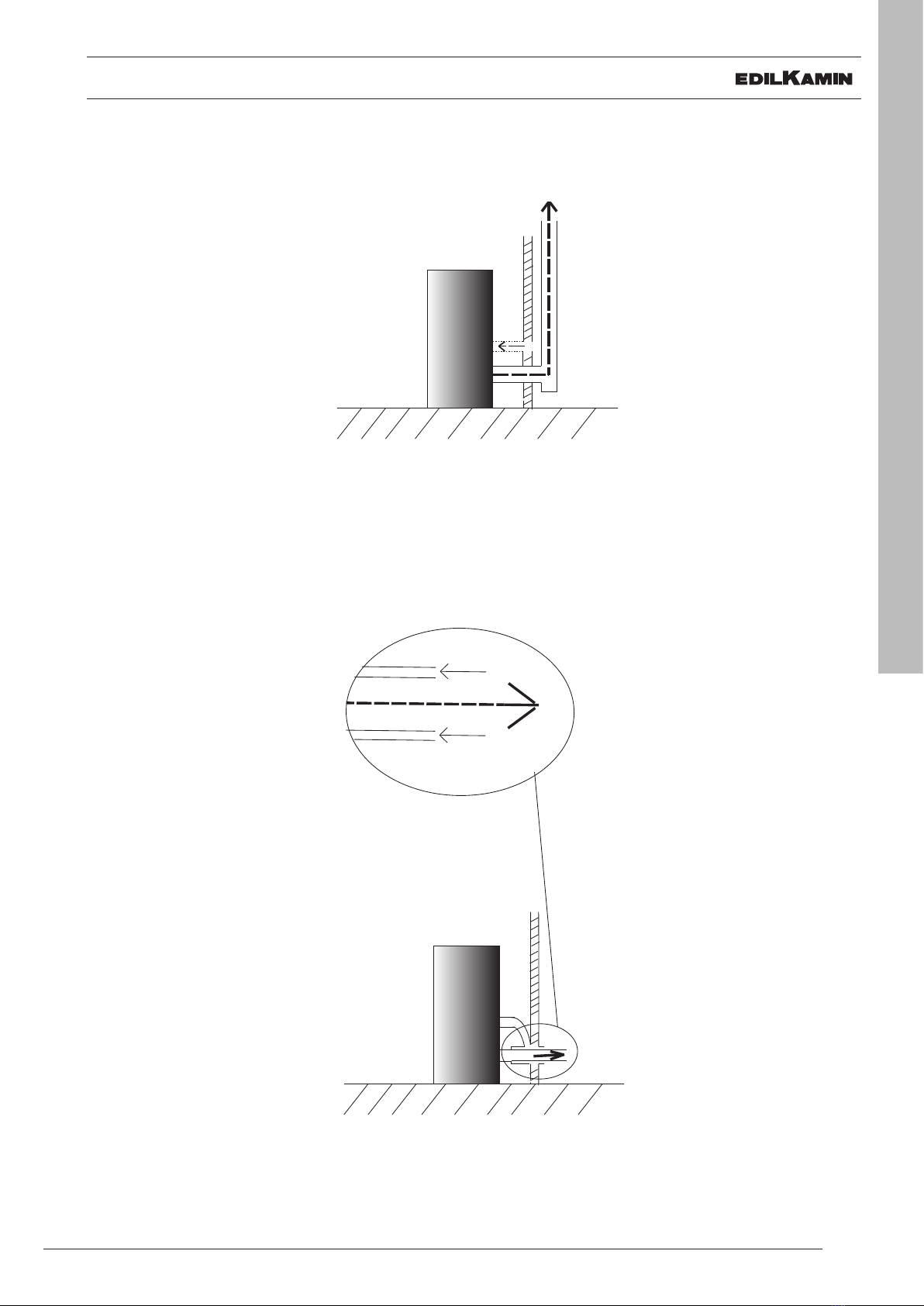

COMBUSTION AIR INTAKE
The inflow of necessary air for combustion, of air for
glass cleaning and heating air renewal must come
from the outside
Sealed stoves can also be installed in
passive houses. In this case, the air inlet
must be a direct air inlet
The stove takes the air from the outside via the air inlet
hole.
Install an air intake with an effective surface area (net
of the mesh or other protective equipment) at least
equal to the cross section of the air inlet hole.
Connect the air intake to the appliance's air intake with
a pipe that may also be flexible. Increase the diameter
of the pipe if the pipe is not smooth or if it is necessary
due to load losses: assess the load losses.
We recommend that it does not exceed 1 metre in
length or include any bends.
If you are not interested in the sealing
feature of the appliance, you can create
an indirect air intake, even if this is not
recommended
Install an air outlet at floor level with an effective sur-
face area (net of the screen or other protections) of at
least 80 cm2(diameter 10 cm).
To prevent draughts, we recommend installing the
intake behind the product or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
The air may be drawn from an adjacent room only if:
• the flow is taken from permanent, unobstructed
openings communicating with the outdoors
• the air pressure in the adjacent room is never
reduced to a level below outdoor pressure
• the adjacent room is not a garage, subject to fire
hazard, a bathroom or a bedroom
• the adjacent room is not a shared room in the
condominium
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
INSTALLATION
INSTALLER
USE OF CONCENTRIC PIPES
Without prejudice to the general instructions, you can
use concentric pipes (which provide for the passage of
smoke inside and the passage of the combustion air
into the external circular ring).
This type of installation only needs one hole in the wall,
instead of having one hole for the air intake and one for
the smoke discharge.

13
ENGLISH
INSTALLATION
INSTALLER
stufa
stufa
stufa
stufa
scarico fumi dietro
presa aria dietro (diretta o indiretta)
senza uso coassiale
scarico fumi sopra
presa aria dietro (diretta o indiretta)
senza uso coassiale
scarico fumi dietro
presa aria dietro
co uso coassiale
scarico fumi sopra
presa aria sopra
con uso coassiale
Examples of possible installations. For the smoke discharge conditions (on roof, etc.) check local regulations for
sealed pellet stoves.
rear smoke discharge pipe
rear air intake (direct or indirect)
without using a coaxial pipe
rear smoke discharge pipe
rear air intake
using coaxial pipe

14
ENGLISH
CHECKINGTHEELECTRICAL CONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.
Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
INSTALLATION
switch
fuse compartment
power supply
INSTALLER

15
ENGLISH
VYDA - CLADDING
Description Reference in the
Figure below
Quantity
Front panel above the door (ceramic or stone) (1) 1
Top front panel (ceramic or stone) with metal bracket fitted (2) 1
Left or right interchangeable side panels (ceramic or stone) with
metal bracket fitted
(3) 2
Top (ceramic or stone) (4) 1
INSTALLER
1
33
4
2
* Small parts:
• M4 screws with washers for securing ceramic parts
• M6 screws for fixing the stone parts
• cable glands for the terminal board at the rear
THE DRAWINGS ARE FOR GUIDANCE ONLY, USEFUL FOR THE INSTALLATION, BUT THEY MAY
NOT REFER TO THE SPECIFIC MODEL.

16
ENGLISH
VYDA - CLADDING
INSTALLER

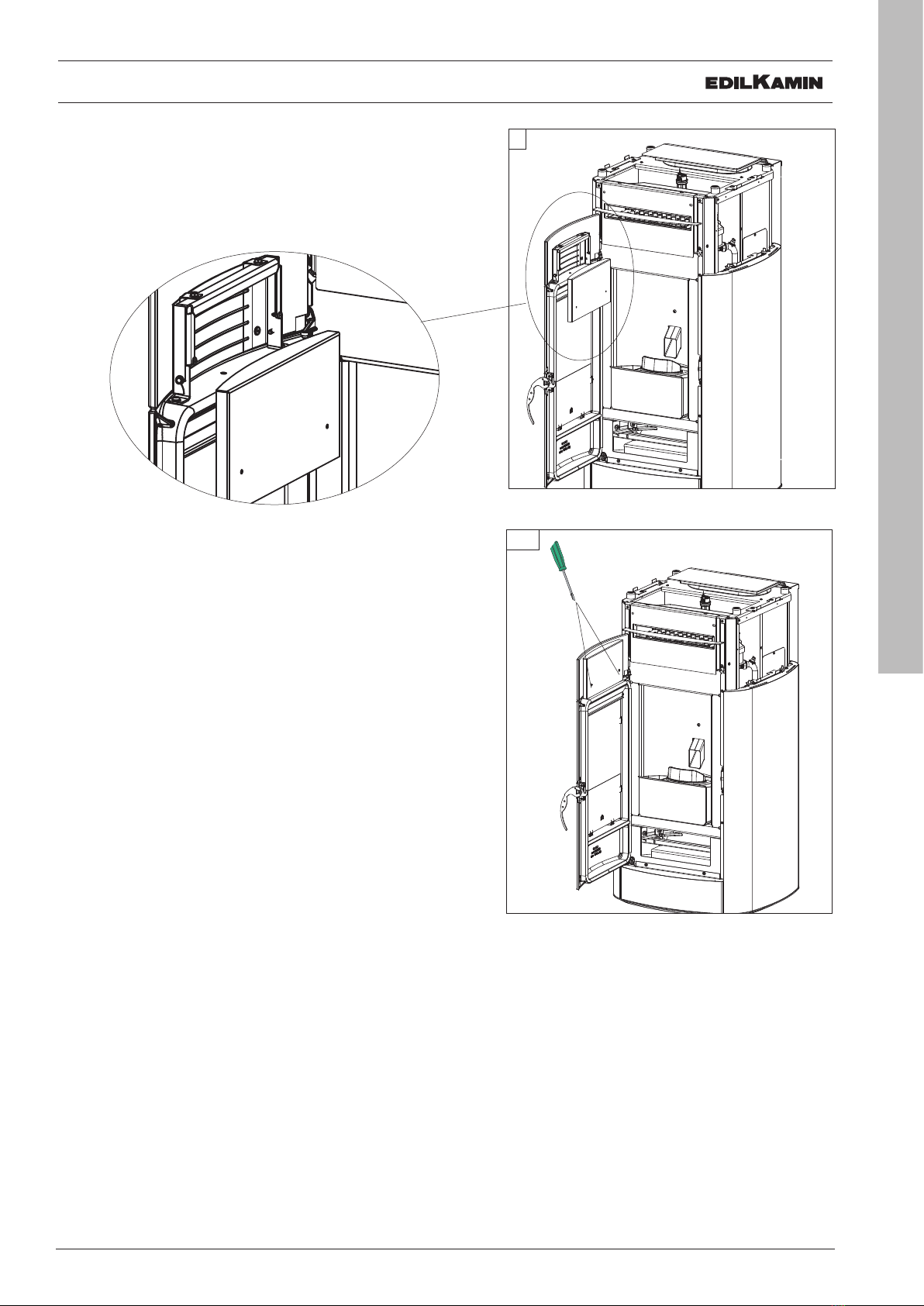

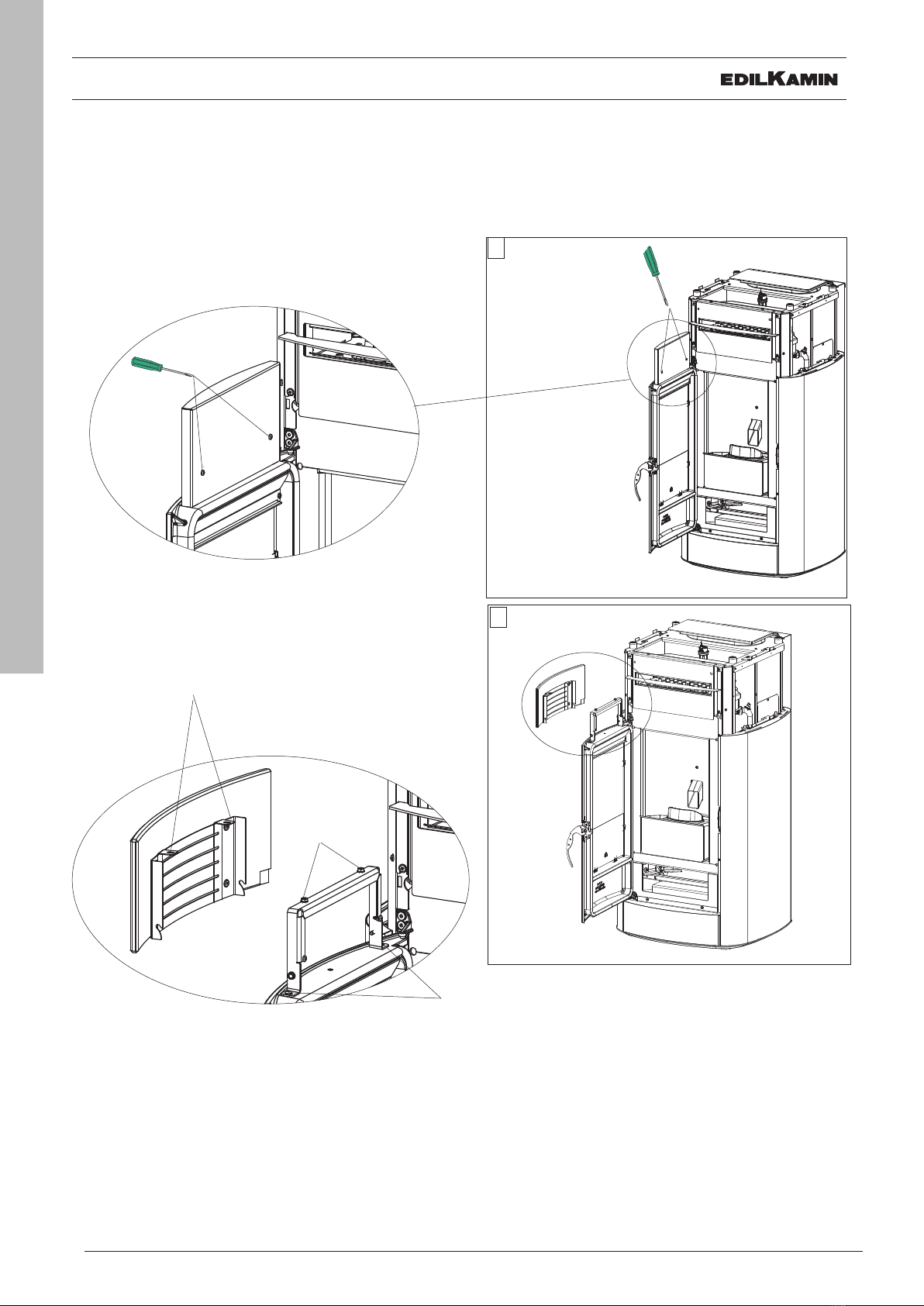

1. Open the combustion chamber door with the
protective lever (removable handle P) and undo two
screws to remove “aesthetic cover”.
2. Undo the screws (B). Insert the ceramic or stone
front panel (1) in the metal support above the door
It is snapped into position on the side parts and
screwed on the top part.
Fitting of the stone or ceramic front panel above
the door (1)
To make alignment adjustments between ceramic/
stone and the door, you can use the screws A and B
Screw A can be used to adjust “backwards/forwards”
Screw B can be used to adjust the inclination.
A
B
1
aesthetic
cover
2
1
P
THE DRAWINGS ARE FOR GUIDANCE ONLY,
USEFUL FOR THE INSTALLATION, BUT THEY
MAY NOT REFER TO THE SPECIFIC MODEL.
If necessary, you can bend the “brackets” using a flat
screwdriver.

17
ENGLISH

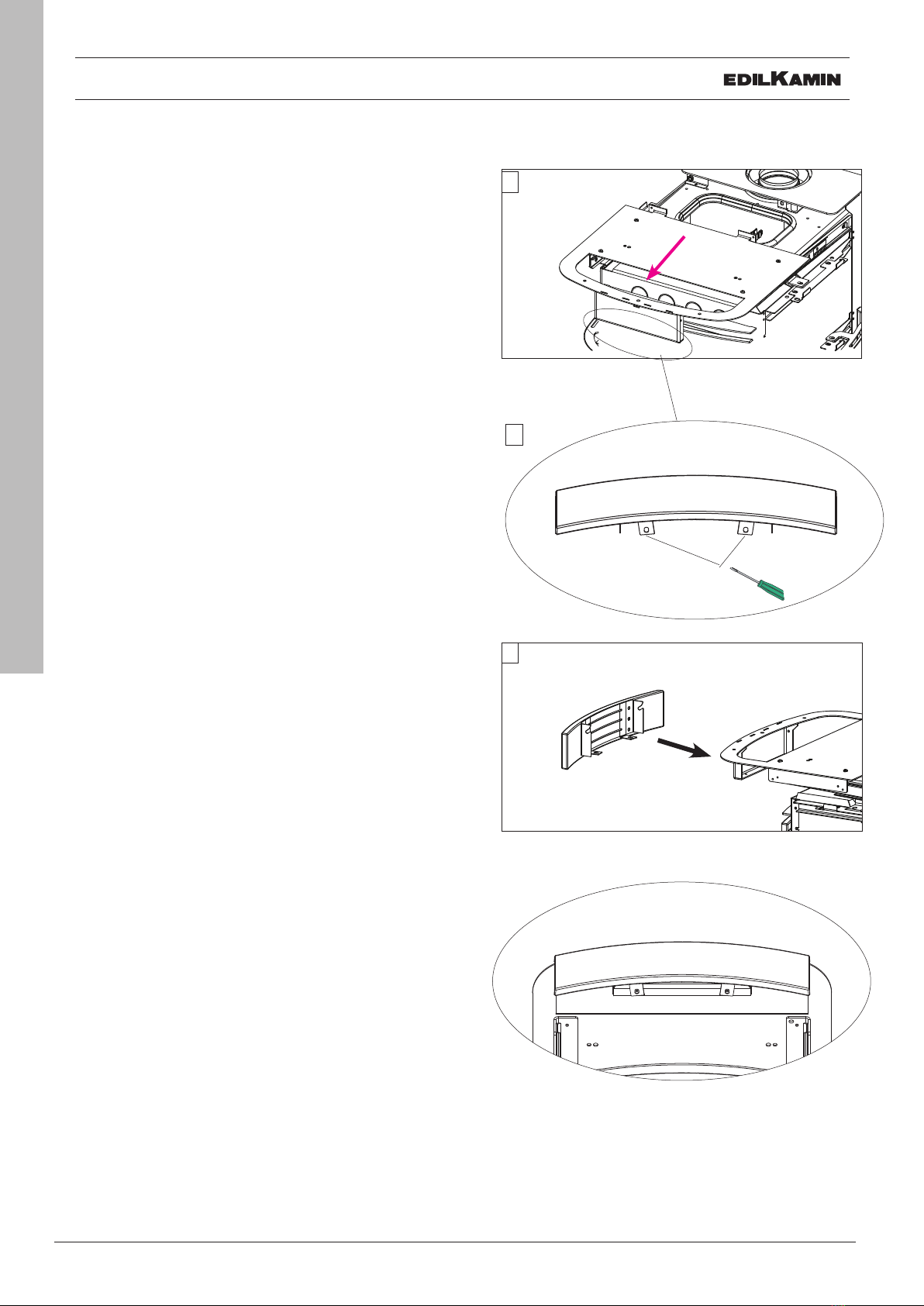

3. Refit the “aesthetic cover”
VYDA - CLADDING
3
4. Screw it back with the two screws removed in point 1
aesthetic cover
4
INSTALLER

18
ENGLISH
VYDA - CLADDING
INSTALLER
Fitting of the stone or ceramic top front panel (2)
1. Slide the top metal plate towards the front(*)
3. Place the top ceramic or stone front panel (2) on the
metal support (S).
Fit the front panel (2) using the screws removed
previously.
back view
Close the combustion chamber door and check the
alignments.
1
2
2. Undo the two front screws which will be used to
secure the front panel
S
S
2
3
*
view from below
view from below

19
ENGLISH
VYDA - CLADDING
INSTALLER
The sides (4) are only hooked on.
1. Place the rubber buffers and hook the sides to the
structure
Fitting of the stone or ceramic sides (3)
To make alignment adjustments between ceramic/
stone and the door, you can move the top or bottom
screws of the bracket fixed to the structure.
The top screws in the slots allow the alignment with the
top.
The bottom screws in their slots allow the alignment
with the front panel and with the bottom side one.
If the ceramic or stone side is not aligned, remove it,
adjust the screws and put it back.
3
rubber
elements

20
ENGLISH
VYDA - CLADDING
INSTALLER

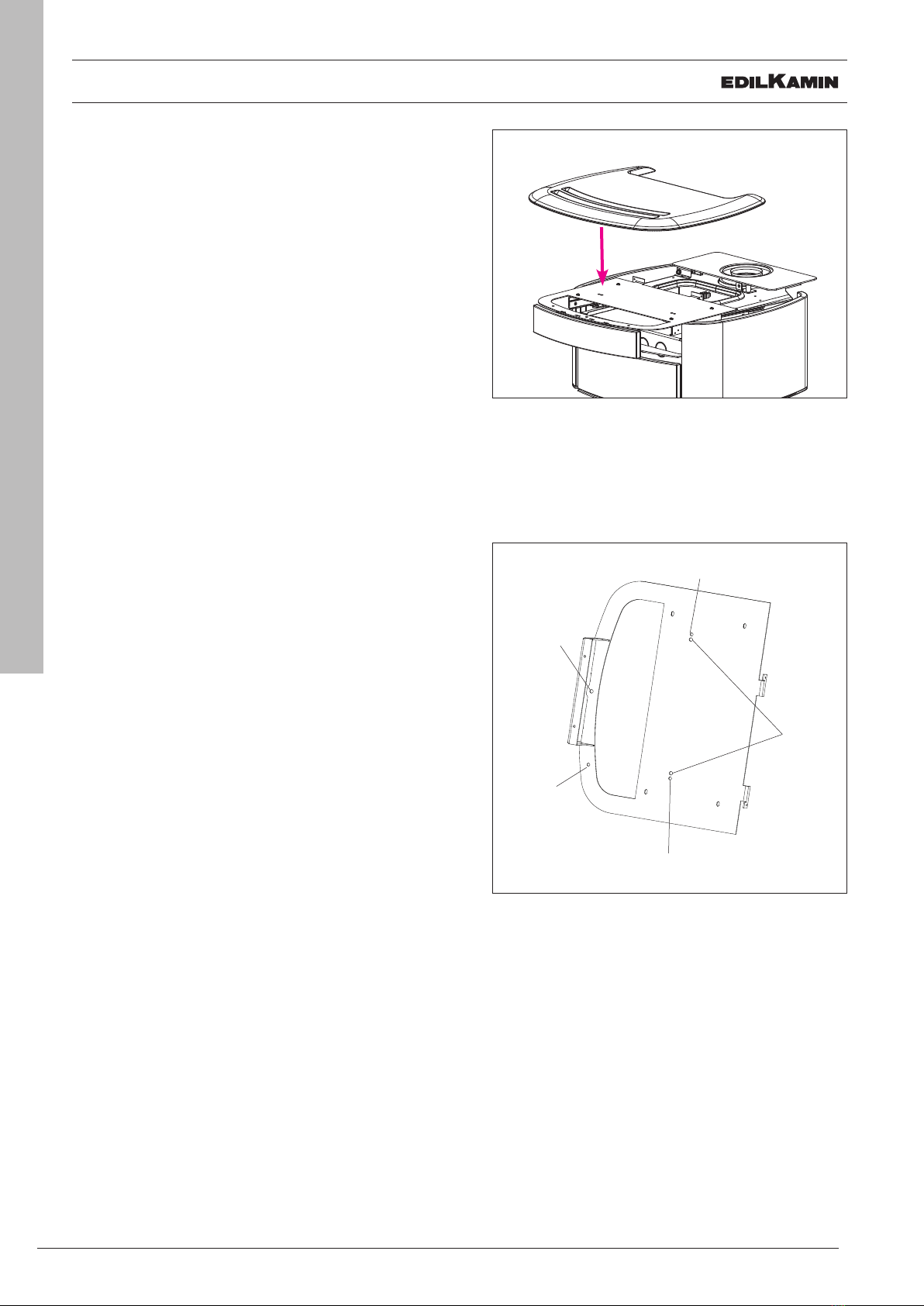

Fitting of the stone or ceramic top (4)
1. While keeping the top metal plate in a forward position,
place the top and fit it with the screws underneath.
For stone
top
For stone
top
For ceramic top
For ceramic top
For
ceramic
top
4
