Quadra-Fire MTVERNON-AE-CSB User manual

1 7034-277E May 5, 2015
MT. VERNON PELLET STOVE
ADVANCED ENERGY (AE)
Model(s):
MTVERNON-AE-CSB
MTVERNON-AE-MBK
MTVERNON-AE-PBK
MTVERNON-AE-PDB
MTVERNON-AE-PFT
MTVERNON-AE-PMH
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not overfire - If heater or chimney con-
nector glows, you are overfiring. Overfiring
will void your warranty.
• Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause house fire.
CAUTION
Tested and approved for wood pellets, shelled field
corn, wheat and black oil sunflower seeds. Burning of
any other type of fuel voids your warranty.
WARNING
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrafire.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrafire.com
CAUTION
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and na-
tional codes and regulations.
• Consult local building, fire officials or authorities having juris-
diction about restrictions, installation inspection, and permits.
061-S-68-6

2 7034-277E May 5, 2015
MT. VERNON AE
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
1 Important Safety Information.............3
A. Appliance Certification......................................................3
B. BTU & Efficiency Specifications........................................3
C. Glass Specifications.........................................................3
D. Electrical Rating................................................................3
E. Mobile Home Approved .................................................... 3
2 Getting Started....................................4
A . Design, Installation & Location Considerations ..........................4
B. Thermostat Wall Control Location......................................5
C. ToolsAnd Supplies Needed..............................................5
D. Inspect Appliance and Components .................................5
E. Install Checklist..................................................................6
3 Dimensions and Clearances..............7
A. Appliance Dimensions ......................................................7
B. Clearances to Combustibles (UL and ULC).......................8
C. Hearth Pad Requirements (UL and ULC)..........................8
4 Vent Information..................................9
A. Venting Termination Minimum Requirements...................9
B. Avoiding Smoke and Odors...............................................10
C. Negative Pressure.............................................................11
D. Draft ..................................................................................11
E. Chimney and Exhaust Connection ...................................11
F. Equivalent Feet of Pipe .....................................................12
G. Pipe Selection Chart .........................................................12
5 Venting Systems...............................13
A. Alcove ..............................................................................13
B. Through The Wall .............................................................14
C. Vertical into Existing Class A Chimney.............................15
D. Through The Wall & Vertical - Exterior ..............................15
E. Vertical - Interior - Typical Installation................................15
F. Masonry.............................................................................16
G. Alternate Masonry ............................................................16
6 Appliance Set-Up..............................17
A. Leg Leveling System .......................................................17
B. Outside Air Kit Instructions ................................................17
C. Top Vent Adapter Installation ............................................18
D. Rear Vent & Rear Vent to Top Vent Adapter Installation....18
E. Optional Log Set Placement Instructions ..........................19
F. Wall Control Thermostat Installation .................................20
7 Mobile Home Installation..................21
8 Accessory List ..................................22
300 Watt Igniters come installed in brand new Mt. Vernon AE
units and are for pellet fuel only. The 380 Watt Igniter is required
for burning multi-grain fuels and is included in the component
pack. Multi-fuels include, corn, sunflower seeds, and wheat.

May 5, 2015 7034-277E 3
MT. VERNON AE
Model Mt. Vernon Pellet Stove
Laboratory OMNI Test Laboratories, Inc.
Report No. 061-S-68-6
Type Solid Fuel Room Heater/Pellet Fuel
Burning Type
Standard ASTM E1509-04, ULC S627-00 and
ULC/ORD-C1482-M1990 Room Heater
Pellet Fuel Burning type and (UM)
84-HUD, Mobile Home Approved.
FCC Complies with Part 15 of FCC Rules.
Operation is subject to the following
two conditions: (1) this device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
TheQuadra-FireMt. VernonAE Pellet Heater meets the U.S.
Environmental ProtectionAgency’s emission limits for pellet
heaters sold after May 15, 2015.
This pellet heater needs periodic inspection and repair for
proper operation. It is against federal regulations to operate
this pellet heater in a manner inconsistent with operating
instructions in this manual.
EPA Certification #: 970-14
EPA Certified Emissions: 1.7 grams per hour
*LHV Tested Efficiency: 76.9 %
**HHV Tested Efficiency: 71.2 %
***EPA BTU Output: 12,500 to 40,200 / hr.
****BTU Input: 16,800 to 53,300 / hr.
Vent Size: 3 or 4 inches, “L” or “PL”
Hopper Capacity: 75 lbs.
Fuel Wood Pellets
* Weighted average LHV efficiency using data collected during
EPA emissions test.
**Weighted average HHV efficiency using data collected during
EPA emissions test.
***A range of BTU outputs based on EPA Default Efficiency and
the burn rates from the low and high EPA tests.
****Based on the maximum feed rate per hour multiplied by
approximately 8600 BTU’s which is the average BTU’s from a
pound of pellets.
1 Important Safety Information
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specifications and/or price without notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualified
installer, service agency or your dealer.
Quadra-Fire is a registered trademark of Hearth & Home
Technologies.
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved by
Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Operatingappliance withoutlegs attached(if suppliedwithunit).
• Do NOT Overfire - If appliance or chimney connector glows,
you are overfiring.
Any such action that may cause a fire hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided by,
the following actions:
C. Glass Specifications
This stove is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
D. Electrical Rating
115 VAC, 60 Hz, Start 5 Amps, Run 1.25 Amps
E. Mobile Home Approved
• This appliance is approved for mobile home installa-
tions when not installed in a sleeping room and when
an outside combustion air inlet is provided.
• The structural integrity of the mobile home floor, ceil-
ing, and walls must be maintained.
• The appliance must be properly grounded to the
frame of the mobile home and use only Listed pellet
vent Class “L” or “PL” connector pipe.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
NOTICE: This installation must conform with local codes. In
the absence of local codes you must comply with the ASTM
E1509-04, ULC S627-00, (UM) 84-HUD and ULC/ORD-
C-1482.
A. Appliance Certification
B. BTU & Efficiency Specifications

4 7034-277E May 5, 2015
MT. VERNON AE Install Guide
2 Getting Started
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended:
Outside Air Intake
on windward side
NOT recommended:
Outside Air Intake
on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
Figure 4.1
A . Design, Installation & Location Considerations
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, fire
officials or authorities having jurisdiction over restrictions,
installation inspection and permits.
Itis a good ideato planyour installationon paper,usingexact
measurements for clearances and floor protection, before
actually beginning the installation. Location of the appliance
and chimney will affect performance.
Consideration must be given to:
• Safety, convenience, traffic flow
• Placement of the chimney and chimney connector and to
minimize the use of chimney offsets.
• Place the appliance where there will be a clear passage
for a Listed chimney through the ceiling and roof (vertical)
or through exterior wall (horizontal).
• Installing the required outside air kit will affect the location
of the vent termination.
When locating vent and venting termination, the ideal loca-
tion is to vent above roof line when possible. This minimizes
the affects of wind loading.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, soffits, porch roofs, adjacent walls
• Landscaping, vegetation
• Horizontal or vertical vent termination
2. Floor Support
The supporting floor under the appliance must be able to
handle the weight of the appliance, fuel load and the weight
of the chimney.
Ensure that your floor will support these weights prior to
installation. Add sufficient additional support to meet this
weight requirement prior to installation. The weight of the
appliance is 429 lbs.
WARNING
Risk of Fire
Damaged parts could impair safe operation. Do
NOT install damaged, incomplete or substitute
components.
CAUTION
If burning shelled field corn, you must use approved vent-
ing specifically designed for corn to prevent corrosion
or degradation. Follow the instructions from the venting
manufacturer.

May 5, 2015 7034-277E 5
MT. VERNON AE
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
• Installation & use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with unit).
• Do NOT Overfire
Or any such action that may cause a fire hazard.
WARNING
Reciprocating Saw Channel Locks
Hammer Phillips Screwdriver
Tape Measure Plumb Line
1/4” Self-Tapping Screws Framing Material
Hi-temp Caulking Material Gloves
Safety Glasses Framing Square
Electric Drill & Bits (1/4”) Level
May also need:
Vent Support Straps Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fireplace:
C. Tools And Supplies Needed
B. Thermostat Wall Control Location
The thermostat wall control’s location will have some affect
on the appliance’s operation.
• Maximum wire length from appliance is 100 feet (30.48m)
continuousunsplicedwire. Recommended20gaugewire,
solid copper .
• When located close to the appliance, it may require a
slightly higher temperature setting to keep the rest of the
house comfortable.
• When located in an adjacent room or on a different floor
level, you will notice higher temperatures near the appli-
ance.
CAUTION
The wall control is an integral part of the appliance. No other
wall control or thermostat can be substituted.
D. Inspect Appliance and Components
• Open the appliance and remove all the parts and articles
packed inside the Component Pack. Inspect all the parts
and glass for shipping damage.
• Report to your dealer any parts damaged in shipment.
• All labels have been removed from the glass door.
• Plated surfaces have been wiped clean with a soft cloth,
if applicable.
• Read all theinstructions beforestarting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
• Follow pipe manufacturer instructions for installation
and air clearance requirements.
WARNING
Risk of Fire
Damaged parts could impair safe operation.
Do NOT install damaged, incomplete or
substitute components.

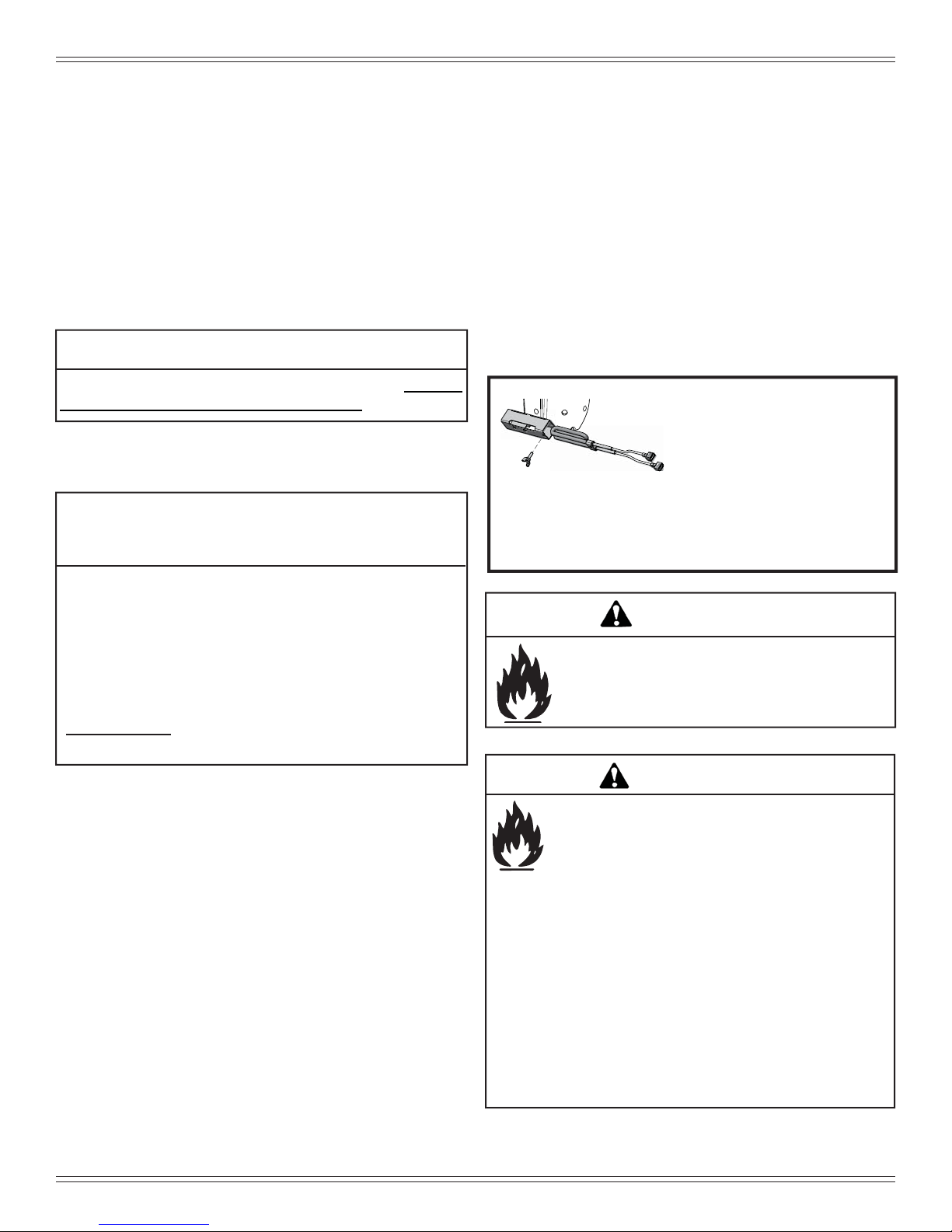

300 Watt Igniters come
installed in brand new
Mt. Vernon AE units and
are for pellet fuel only.
The 380 Watt Igniter is
required for burning multi-grain fuels and is
included in the component pack. Multi-fuels
include, corn, sunflower seeds, and wheat.

6 7034-277E May 5, 2015
MT. VERNON AE
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer:
Date Installed:
Lot/Address:
Location of Fireplace:
Installer:
Dealer/ Distributor Phone #:
Serial #:
Model (circle one): MTVERNON-AE-CSB MTVERNON-AE-MBK MTVERNON-AE-PBK MTVERNON-AE-PDB
MTVERNON-AE-PFT MTVERNON-AE-PMH
WARNING! Risk of Fire or Explosion! Failure to install fireplace according to these instructions can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles. (Pg. 8)
Fireplace is leveled and liner is secured to appliance. (Pg. 18)
Hearth extension size/height decided. (Pg. 22)
Outside air kit installed. (Pg. 15)
Floor protection requirements have been met.
The masonry chimney is inspected by a professional and is clean or the
factory built metal chimney is installed according to the manufacturer’s
instructions and clearances.
Chimney Section 4 (Pg. 10)
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets the minimum height requirements.
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances Section 3 (Pg. 7)
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup Section 5 (Pg. 15)
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the fireplace.
Manual bag and all of its contents are removed from inside/under the fireplace
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the fireplace until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible by on
(Builder/Gen. Contractor) (Installer) (Date)
Part # 4017-254 • Rev B • 01/29/13
YES IF NO, WHY?
E. Install Checklist

May 5, 2015 7034-277E 7
MT. VERNON AE

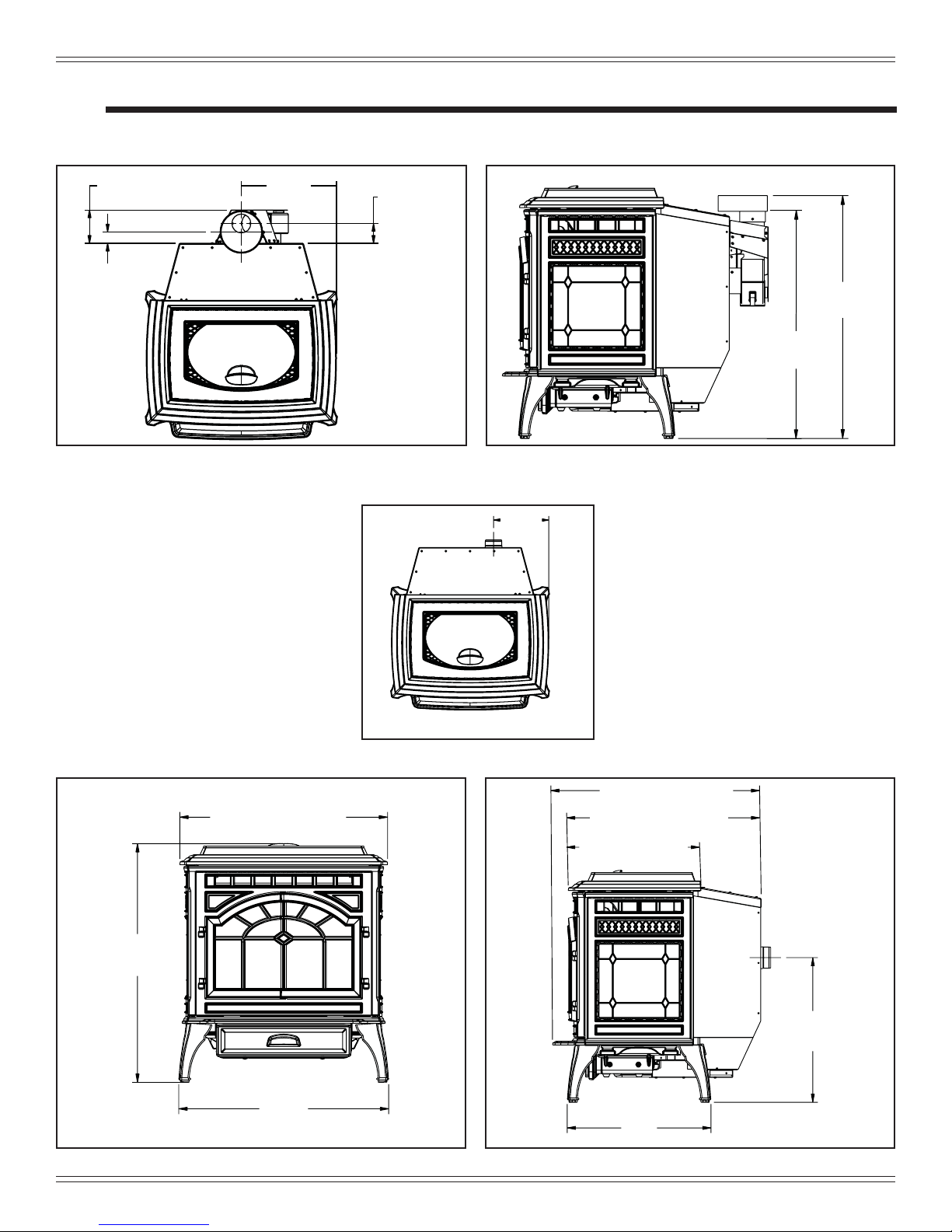

Figure 7.4 - Front View
Figure 7.1 - Top View with Top Vent Adapter and 3 to 6
in (76-152mm) Adapter
Figure 7.5 - Side View
Figure 7.2 - Side View with Top Vent Adapter and 3 to
6 in (76-152mm) Offset Adapter.
29-3/6 in.
(741mm)
31-1/6 in.
(788mm)
C
L
5-13/16 in.
(147mm) 3-13/16 in.
(97mm)
14-1/16 in.
(357mm)
2-9/16 in.
(65mm)
28-7/16 in.
(722mm)
32-5/16 in.
(821mm)
28-1/8 in. (714mm)
20 in.
(508mm)
19-9/16 in.
(497mm)
29-1/16 in. (738mm)
26-7/8 in. (683mm)
18-1/2 in. (470mm)
C
L
10-3/8 in.
(264mm)
C
L
Figure 7.3 - Top View
3 Dimensions and Clearances
A. Appliance Dimensions

8 7034-277E May 5, 2015
MT. VERNON AE

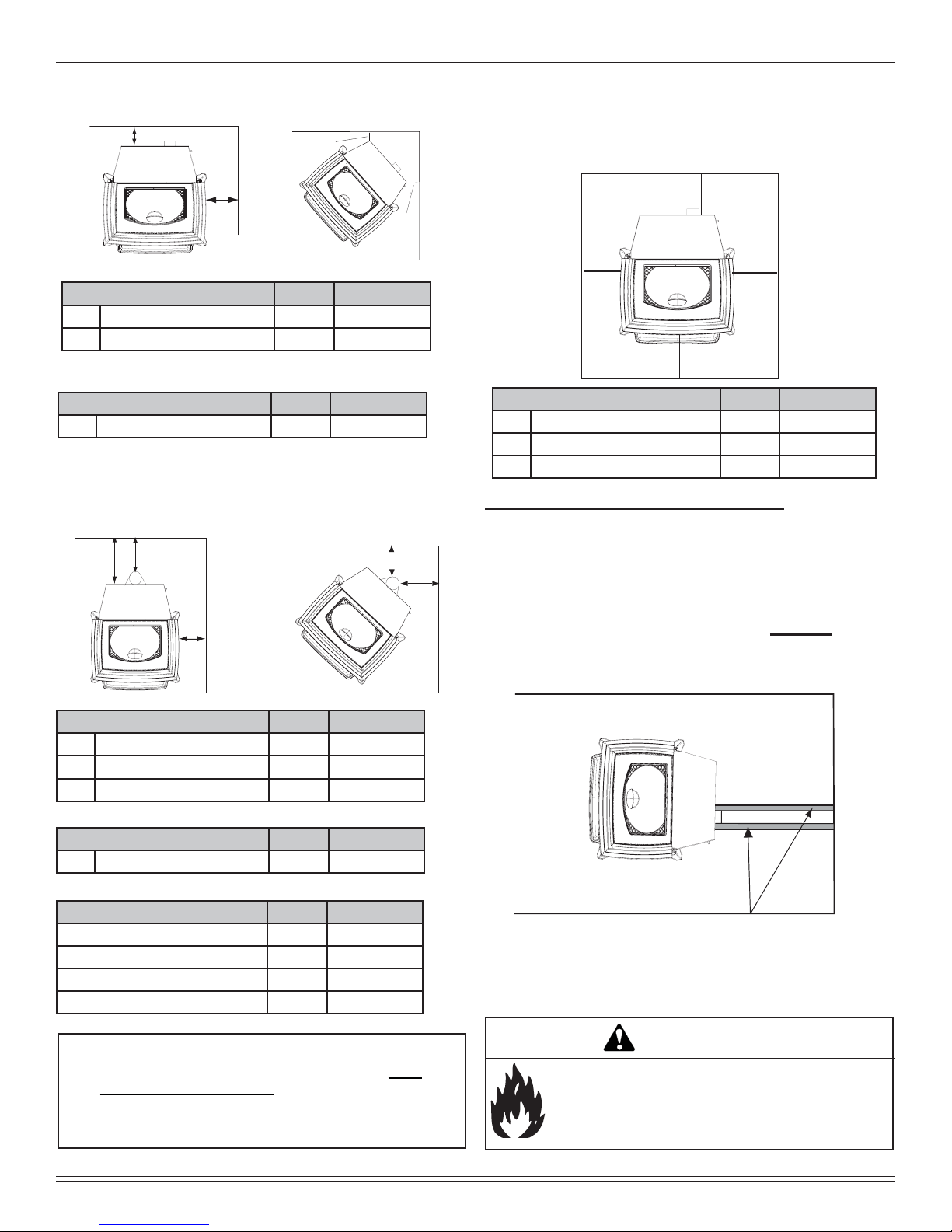

Straight Back Against Wall Inches Millimeters
ABack Wall to Appliance 2 51
BSide Wall to Appliance 6 152
Corner Installation Inches Millimeters
CWalls to Appliance 2 51
Vertical Installation Inches Millimeters
DBack Wall to Flue Pipe 3 76
ESide Wall to Appliance 6 152
FBack Wall to Appliance 8 203
Installations with:
3 to 3 inch Top Vent Adapter and
3 to 6 inch Offset Adapter Kit
Corner Installation Inches Millimeters
GSide Wall to Flue Pipe 3 76
Alcove Installation Inches Millimeters
Minimum Alcove Height 43 1092
Minimum Alcove Side Wall 6 152
Minimum Alcove Width 40 1016
Maximum Alcove Depth 36 914
D
E
F
A
B
*L Exception for Horizontal Installations:
USA INSTALLATIONS: A non-combustible floor protec-
tion is recommended extending beneath the flue pipe when
installed with horizontal venting or under the Top Vent
Adapter with vertical installation.
CANADA INSTALLATIONS: A non-combustible floor pro-
tection extending beneath the flue pipe is required with hor-
izontal venting or under the Top Vent Adapter with vertical
installation.
Must extend 2 inches (51mm) beyond each
side of pipe (shaded area)
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
C
C
G
G
L*
K
K
M
Use a non-combustible floor protector, extending beneath
appliance and to the front, sides and rear as indicated. Mea-
sure front distance “M” from the surface of the glass door.
Hearth Pad Requirements Inches Millimeters
KSides 2 51
L* Back 2 51
MFront 6 152
B. Clearances to Combustibles (UL and ULC) C. Hearth Pad Requirements (UL and ULC)
Fire Risk.
Comply with all minimum clearances to combustibles
as specified.
Failure to comply may cause house fire.
WARNING

May 5, 2015 7034-277E 9
MT. VERNON AE
4 Vent Information
A. Venting Termination Minimum Requirements
J or K
X
V
M
I
H
AVG
B
V
V
A
B
V
FV
C
B
B
E
L
V
D
V
Electrical
Service
V
N
VN
V
N
N
V
Inside Corner
FIXED
CLOSED
OPEN
OPEN
FIXED
CLOSED
VX
G
G
Termination Cap Air Supply Inlet Gas Meter Restricted Area
O
P
Figure 9.1
A12 in. Above Finish Grade (the grade surface
must be a non-combustible material
B12 in.
48 in. no OAK Open door or window: below or to the side
B12 in. Open door or window: above
C6 in. Permanently closed window: above, below
or to the side
D18 in.
36 in. no OAK Vertical clearance to a ventilated soffit located above the terminal within a hori-
zontal distance of 2 ft from the center-line
of the terminal
E12 in. Clearance to unventilated soffit
F12 in. Clearance to outside corner
G12 in. Clearance to inside corner
H36 in. Above gas meter/regulator measured from
horizontal center-line of regulator
I36 in. USA
72 in. Canada Clearance to service regulator vent outlet
J12 in.
48 in. no OAK Clearance to non-mechanical air supply inlet to the building or the combustions air
inlet to any other appliance
K10 ft horizontal
3 ft vertical Clearance to mechanical air supply
L7 ft. Above paved sidewalk, paved driveway
located on public property
M12 in. Under an open veranda, porch, deck or
balcony
NSee Note
below* Electric service: above, below or to the side (location must not obstruct or interfere
with access)
O24 in. Adjacent building, fences and protruding
parts of the structure
P12 in. Clearance above roof line for vertical
terminations
All minimum clearances are listed with an Outside Air Kit (OAK) installed, unless otherwise noted in table below.
24 in. Above grass, top of plants, wood or any other com-
bustible
12 in.
36 in. no OAK Clearance from any forced air intake of other appli- ance
12 in. Clearance horizontally from combustible wall
15 in. Vented directly through a wall, minimum length of
horizontal pipe
6 in. horizontal
12 in. vertical Minimum horizontal or vertical terminations must protrude from wall
*NOTE: Consult local building, fire officials or authorities having jurisdic-
tion. Local codes or regulations may require different clearances.
NOTICE:
Do NOT Terminate Vent:
• In any location that will allow flue gases or soot from en-
tering or staining the building
• In any location which could create a nuisance or hazard
• In any enclosed or semi-enclosed area such as a carport,
garage, attic, crawl space, under a sun deck or porch,
narrow walkway
• Closely fenced area, or any location that can build up
a concentration of fumes such as a stairwell, covered
breezeway, etc.
NOTICE:
Termination must exhaust above air inlet elevation.
• It is recommended that at least 60 inches (1.52m) of vertical
pipe be installed when appliance is vented directly through a
wall. This will create a natural draft, which will help prevent
the possibility of smoke or odor venting into the home during
a power outage.
• It will also keep exhaust from causing a nuisance or hazard
by exposing people or shrubs to high temperatures.
• Thesafestand preferred ventingmethodisto extend thevent
vertically through the roof or above the roof.

10 7034-277E May 5, 2015
MT. VERNON AE
B. Avoiding Smoke and Odors
Negative Pressure, Shut-Down and Electrical Power
Failure
To reduce the probability of back-drafting or burn-back in
the pellet appliance during power failure or shut down con-
ditions, it must be able to draft naturally without exhaust
blower operation.
Negative pressure in the house will resist this natural draft if
not accounted for in the pellet appliance installation.
Heat rises in the house and leaks out at upper levels. This
air must be replaced with cold air from outdoors which flows
into lower levels of the house.
Vents and chimneys into basements and lower levels of the
house can become the conduit for air supply and reverse
under these conditions.
Outside Air
An outside air kit is recommended in all installations. The
Outside Air Kit must be ordered separately.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands
may lead to backdrafting of those and other appliances.
When the appliance is roof vented (strongly recommended):
The air intake is best located on the exterior wall oriented
towards the prevailing wind direction during the heating
season.
When the appliance is side-wall vented:
The air intake is best located on the same exterior wall as
the exhaust vent outlet and located lower on the wall than
the exhaust vent outlet.
The outside air supply kit can supply most of the demands of
the pellet appliance, but consideration must be given to the
total house demand.
House demand may consume the air needed for the appli-
ance. It may be necessary to add additional ventilation to
the space in which the pellet appliance is located.
Consult with your local HVAC professional to determine the
ventilation demands for your house.
Vent Configurations
To reduce probability of reverse drafting during shut-down
conditions Hearth & Home Technologies strongly recom-
mends:
• Installing the pellet vent with a minimum vertical run of
5 feet (1.52m). Preferably terminating above the roof
line.
• Installing the outside air kit at least 4 feet (1.22m) below
the vent termination.
To prevent soot damage to exterior walls of the house and to
prevent re-entry of soot or ash into the house:
• Maintain specified clearances to windows, doors and
air inlets, including air conditioners.
• Vents should not be placed below ventilated soffits.
Run the vent above the roof.
• Avoid venting into alcove locations.
• Vents should not terminate under overhangs, decks or
onto covered porches.
• Maintain minimum clearance of 12 inches (305mm)
from the vent termination to the exterior wall. If you
see deposits developing on the wall, you may need to
extend this distance to accommodate your installation
conditions.
CAUTION
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SER-
VICING ANOTHER APPLIANCE.
• DO NOT CONNECT TOANY AIR DISTRIBUTION DUCT OR
SYSTEM.
Optional Battery Back-Up
Hearth & Home Technologies supplies an optional battery
back-up system that operates the appliance during power
failure conditions to prevent smoking. In shutdown mode,
the battery back-up will not prevent smoking.
Hearth & Home Technologies assumes no responsibility for,
nor does the warranty extend to, smoke damage caused
by reverse drafting of pellet appliances under shut down or
power failure conditions.

May 5, 2015 7034-277E 11
MT. VERNON AE
C. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be strongest
in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensureadequateoutdoorairforallcombustionappliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
D. Draft
Draft is the pressure difference needed to vent an appli-
ance successfully. When an appliance is drafting suc-
cessfully, all combustion byproducts are exiting the home
through the chimney.
Install through the warm airspace enclosed by the build-
ing envelope. This helps to produce more draft, especially
during lighting and die-down of the fire.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
NOTICE
HEARTH & HomeTechnologies assumes no responsibility
fortheimproperperformanceofthechimneysystemcaused
by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
WARNING
Risk of Asphyxiation!
Negative pressure can cause spillage of combustion fumes
and soot.
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type “L” or “PL” venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If using
the 3 inch (76mm) vertical Top Vent Adapter Kit or the 3
to 6 inch (76-152mm) Top Vent OffsetAdapter, use Listed
double wall flue connector. AQuadra-Fire Outside Air Kit
must be used with manufactured home installations.
3. Residential: The3inch (76mm) verticalTopVentAdapter
Kitandthe3to6 inch (76-152mm)TopVentOffsetAdapter
are tested to use 24 gauge single wall flue connector or
Listed double wall flue connector to Class A Listed metal
chimneys, or masonry chimneys meeting International
Residential Code standards for solid fuel appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS UNIT.
7. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
NOTE: All pipe must be welded seam pipe whenever pos-
sible. Seal pipe joints with high temperature silicone (500°F
[260°C] minimum rated only).
NOTE: If burning shelled field corn, you must use approved
ventingspecifically designed for corn. Follow theinstructions
from the venting manufacturer.
NOTE: The appliance exhaust outlet is designed to ac-
commodate 3 inch venting. Use of 4 inch venting requires
the use of a 3-to-4 inch exhaust vent increaser in addition
to any other venting components needed, sold separately.
E. Chimney and Exhaust Connection

12 7034-277E May 5, 2015
MT. VERNON AE
F. Equivalent Feet of Pipe
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 12.1
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculation
Pellet Venting
Component # of Elbows Feet of Pipe Multiplied By Equivalent Feet Components
Equivalent Feet
90oElbow or Tee 3X515
45oElbow X3
Horizontal Pipe 7X 17
Vertical Pipe 2X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any specific fuel type.
Vent surfaces get HOT, can cause burns if
touched. Non-combustible shielding or guards
may be required.
WARNING
Figure 12.2
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
Example 1
Example 2
Example 1: Iftheequivalentlengthofpipeis23feet(7m)with
altitude of 8,000 feet (2438m) you must use 4 inch (102mm)
diameter type “L” or “PL” vent.
Example 2: If the equivalent length of pipe is 12 feet (3.7m)
with altitude of 6,000 feet (1829m) you may use 3 or 4 inch
(76 to 102mm) diameter type “L” or “PL” vent.
G. Pipe Selection Chart
The chart will help you in determining proper venting size
according to the equivalent feet of pipe calculated previously
and the altitude above sea level of this installation.
Figure 12.2
a. Locatethecalculated equivalent feet of pipe on the vertical
left side of the chart.
b. Move to the right horizontally on the chart until you reach
your altitude above sea level.
c. Ifyoufallbelowthediagonalline,3or4inch(76to102mm)
pipe may be used.
d. Ifit is anywhere abovethe diagonalline, a4inch(102mm)
diameter pipe is required.
NOTICE:
• A90° elbow is 5 times as restrictive to the flow of exhaust
gases under positive pressure as 1 foot (305mm) of hori-
zontal pipe.
• A foot of horizontal pipe is twice as restrictive as a foot of
vertical pipe.
Figure 12.1
WARNING
RISK OF INJURY OR PROPERTY DAMAGE!
• Improper installation, adjustment, alteration, service or main-
tenance can cause injury or property damage.
• Refer to the owner’s information manual provided with this
appliance.
• For assistance or additional information consult a qualified
installer, service agency or your dealer.
Fire Risk.
• Only LISTED venting components may be used.
• NO OTHER vent components may be used.
• Substitute or damaged vent components may impair safe
operation.
WARNING

May 5, 2015 7034-277E 13
MT. VERNON AE
CA
B
5 Venting Systems
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.

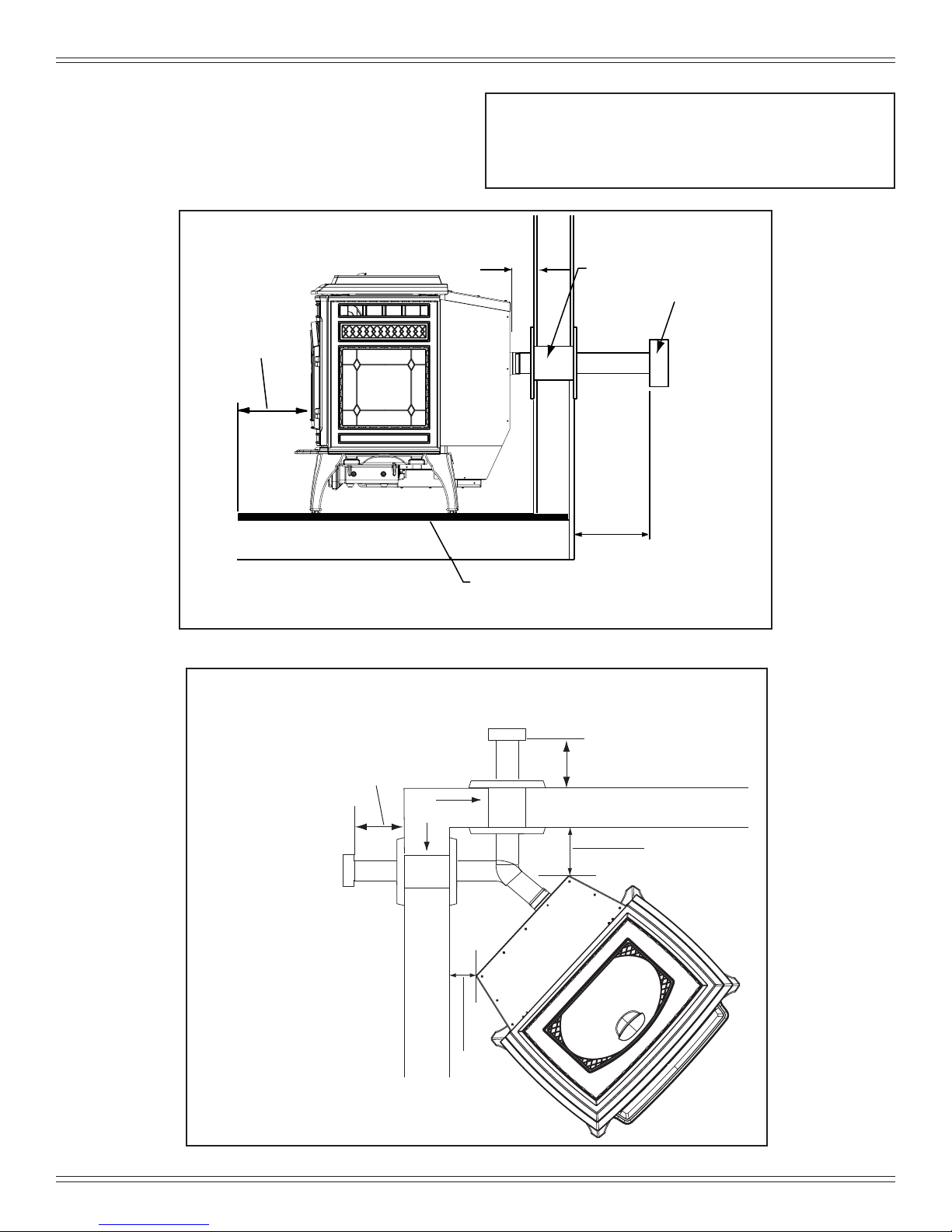

A. Alcove
Figure 13.1
*All minimums listed are to a combustible surface.
Minimum* Maximum
Inches Millimeters Inches Millimeters
AHeight 43 1092 n/a n/a
BWidth 40 1016 n/a n/a
CDepth n/a n/a 36 914
DTo Side Wall 6 152 n/a n/a

14 7034-277E May 5, 2015
MT. VERNON AE
6 in.
(152mm)
Minimum
N
o
n-
co
m
bus
ti
b
l
e
H
ea
rth P
ad
Wall
Thimble
Horizontal
T
ermination
Cap
2 in.
(51mm)
Minimum
6 in.
(152mm)
Minimum
From Glass
Straight Out
Figure 14.1
Figure 14.2
Wall
Thimble
Illustration shows venting going in both directions.
Choose which one is best for your installation.
2 in. (51mm)
Minimum
2 in.
(51mm)
Minimum
6 in. (152mm)
Minimum
6 in. (152mm)
Minimum
45 Degree
B. Through The Wall
Horizontal termination cap must be a minimum of 6 inches.
(152mm) from the wall. Approved for mobile home installa-
tions. Must use 3 or 4 inch (76-102mm) “L” or “PL” Listed
pellet venting or Listed double wall pipe and a Quadra-Fire
Outside Air Kit in mobile homes.
NOTE:
In Canada, where passage through a wall or partition of com-
bustible construction is desired, the installation shall conform
to CAN/CSA-B365

May 5, 2015 7034-277E 15
MT. VERNON AE
D. Through The Wall & Vertical - Exterior
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Min.
Non-combustible Hearth Pad
3 in. (76mm) Min.
Clean-out Cover
12 in. (305mm) Minimum
Ceiling Support
3 to 6 in. (76-152mm)
Offset Adapter
6 in. (152mm) Class A
Chimney Connector
Adapter
3 to 3 in.
(76-76mm)
Top Vent Kit
Non-combustible Hearth Pad
Clean-out
Cover
Tee
Wall Thimble
Support
Bracket
every 60 in.
(1524mm)
12 in.
(305mm)
minimum
Rain
Cap
Flashing
2 in. (51mm) minimum
6 in. (152mm)
minimum
Figure 15.1
Figure 15.2
E. Vertical - Interior - Typical Installation
Firestop
Flashing
Rain Cap
6 in.
(152mm)
Min.
Non-combustible Hearth Pad
3 in. (76mm) Min.
Clean-out Cover
12 in.
(305mm)
Minimum
3 in. to 3 in.
(76-76mm)
Top Vent Kit
Figure 15.3
We recommend a minimum of 60 inches
(1524mm) vertical, however above the eave
is preferred.
All three installations are approved for mobile
home installations. Must use 3 or 4 inch (76
to 102mm) “L” or “PL” Listed pellet venting or
Listeddoublewallpipe andQuadra-FireOutside
Air Kit in mobile homes. Single wall pipe is
approved for residential installations only.
*NOTE: Clearance to combustibles are for
standardpellet pipe. Ifpellet pipemanufacturer
allowsreducedclearancesto their pipe,reduced
clearances are allowed.
C. Vertical into Existing Class A Chimney
NOTE:
A chimney connector shall not pass through
an attic or roof space, closet or similar
concealed space, or a floor or ceiling.

16 7034-277E May 5, 2015
MT. VERNON AE
F. Masonry
G. Alternate Masonry
N
o
n-
co
m
bus
ti
b
l
e
H
ea
rth P
ad
Airtight clean-out door
Sheathing
Flashing
1 in. (25mm) clearance
1 in. (25mm) clearance
with firestop
6 in. (152mm)
minimum
Fireclay Flue Liner
with airspace
Concrete Cap
2 in. (51mm) minimum to
combustible material
Figure 16.1
Figure 16.2
Non-combustible Hearth Pad
Airtight
Clean-out Door
Clean-out cover
Sheathing
1 in. (25mm) clearance
Flashing
Fireclay flue
liner with airspace
Concrete Cap
1 in. (25mm) clearance
with firestop
6 in. (152mm)
minimum
3 in. (76mm) minimum to
combustible material
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be a minimum 6 inch (152mm) UL103 HT.
WARNING

May 5, 2015 7034-277E 17
MT. VERNON AE
6 Appliance Set-Up
Figure 17.3 - Bolt fully extended
Figure 17.2
Figure 17.1
A. Leg Leveling System
1. Thread Allen bolts through nuts until flush. Figure 17.1.
The Allen bolts and nuts are included in the component pack
inside the appliance firebox.
2. Slide assembled nuts and bolts into slots on legs with the
nuts on the bottom. Figure 17.2. Use a 5/32 in. (3.96mm)
Allen wrench to adjust legs up and down to desired level.
Figure 17.3
B. Outside Air Kit Instructions
Included in Kit: 2 wire ties, 1 collar assembly,
1 termination cap assembly, 1 trim ring, fasteners.
NOTE: 3 INCH ALUMINUM FLEX PIPE NOT INCLUDED.
Tools Needed: Phillips head screw driver; wire cutters hole
saw or jig saw.
1. Measure distance from floor to air vent opening in appli-
ance and mark location on wall.
Use saw to cut opening in wall. Cut a 3-1/2 to 4 inch
(89-102mm) opening on inside wall and a 4 to 4-1/2 inch
(102-114mm) opening on outside of house.
2. Use wire tie to secure flex pipe to collar assembly.
3. Slide trim ring over flex pipe and run pipe through wall.
4. Attach flex pipe (not supplied) to outside termination cap
with second wire tie.
5. Secure termination cap to outside surface.
6. Secure trim ring to interior wall.
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 17.4
Termination Cap
Wire
Tie
Trim Ring
Wire Tie
Collar
3 inch Aluminum
Flex Pipe
(not included)

18 7034-277E May 5, 2015
MT. VERNON AE
Align slot holes on the adapter
to holes on the back of the unit
3 in. to 6 in.
Offset Adapter
Silicone Rear
Exhaust Outlet
3 in. to 3 in. Top
Vent Adapter
Clean-Out
Cover
Drill Hole, 1
on each side

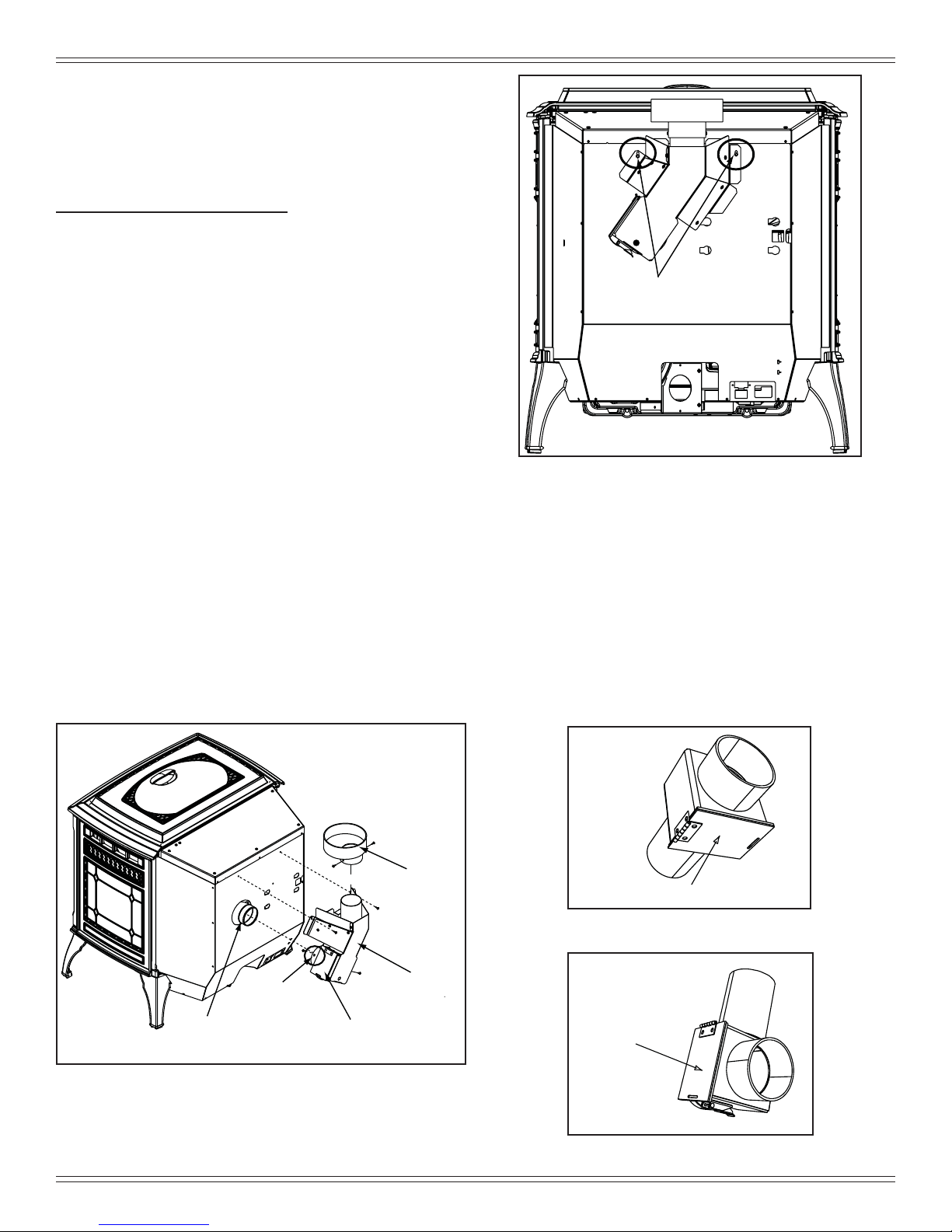

C. Top Vent Adapter Installation
3 to 3 inch (76-76mm) Top Vent Adapter
3 to 6 inch (76-152mm) Top Vent Offset Adapter
Installing the Top Vent Adapter
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe. Figure 18.1
2. Slide the top vent adapter onto the rear exhaust outlet
and adjust the assembly to a vertical position until the
top of the flue outlet is centered and is in a level position.
Figure 18.1
3. Align slot on left of adapter with hole in the back of the
unit and secure with screw. You may drill out the hole
using #26 drill bit provided but only if needed. Figure
18.2
4. Install the 5 mounting screws, 3 on the left and 2 on the
right.
5. Drill 2 holes with #26 drill bit through the rear exhaust
outlet using the 2 holes already in the short horizontal
pipeinthetopventadapteras a guide. Install the screws.
Figure 18.2
6. Install the vent pipe into the top vent adapter (be sure to
siliconealljoints). Touse an existing 6 inch(152mm)vent
system, install the 3 to 6 in (76-152mm) offset adapter
before installing vent pipe.
7. To clean top vent adapter, open clean-out cover and
remove any debris build-up. Figure 18.3 & 18.4
Figure 18.2
Figure 18.1
D. Rear Vent & Rear Vent to Top Vent Adapter
Installation
Clean-Out Cover
Clean-Out Cover
Figure 18.3 - Rear Vent Adapter
Figure 18.4 - Rear to Top Vent Adapter - 90o
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet. Do not put silicone inside of
pipe. Figure 18.1
2. Slidethe adapter onto therear exhaustoutlet and adjust
the assembly to the appropriate position.
3. Install the vent pipe into the adapter (be sure to silicone
all joints)

May 5, 2015 7034-277E 19
MT. VERNON AE
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
NOTICE:
Due to the abrasive nature of a pellet appliance fire, the logs
are not covered under warranty. Any placement variation
other than shown here can cause excessive heat and shall
void the appliance warranty.
Figure 19.1
Log fits over screws
Left Log
Log has indentations on the
bottom to fit over the screw
heads.
Log rests in front of screws
Right Log
Figure 19.3
Figure 19.4

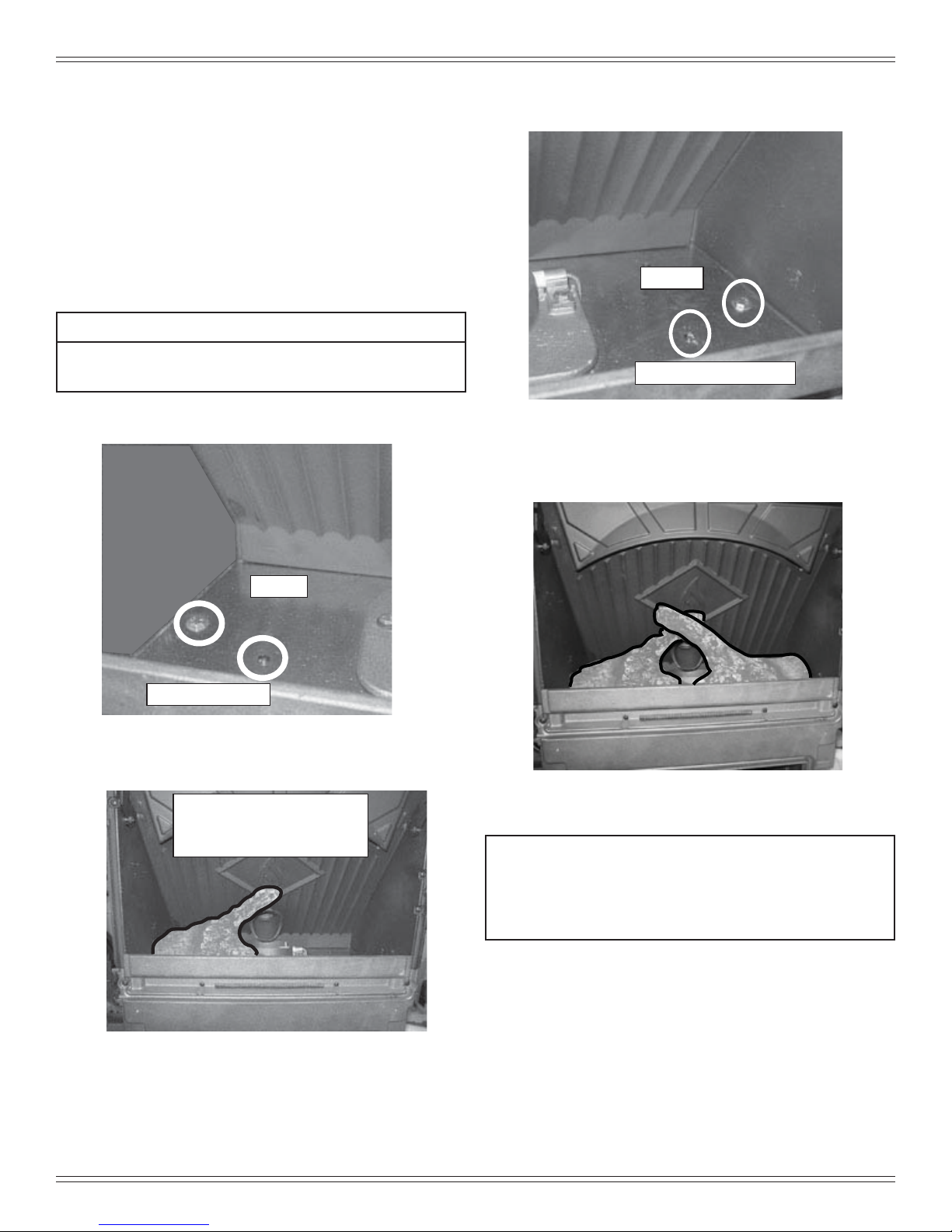

E. Optional Log Set Placement Instructions
2 PIECE LOG SET INSTALLATION
1. Place the left log as shown. There are 2 indentations in
the bottom of the log to fit over the screw heads in the
firebox. Figures 19.1 and 19.2
2. Place the right log in front of the 2 screw heads in the
firebox. Figures 19.3 & 19.4
Figure 19.2

20 7034-277E May 5, 2015
MT. VERNON AE

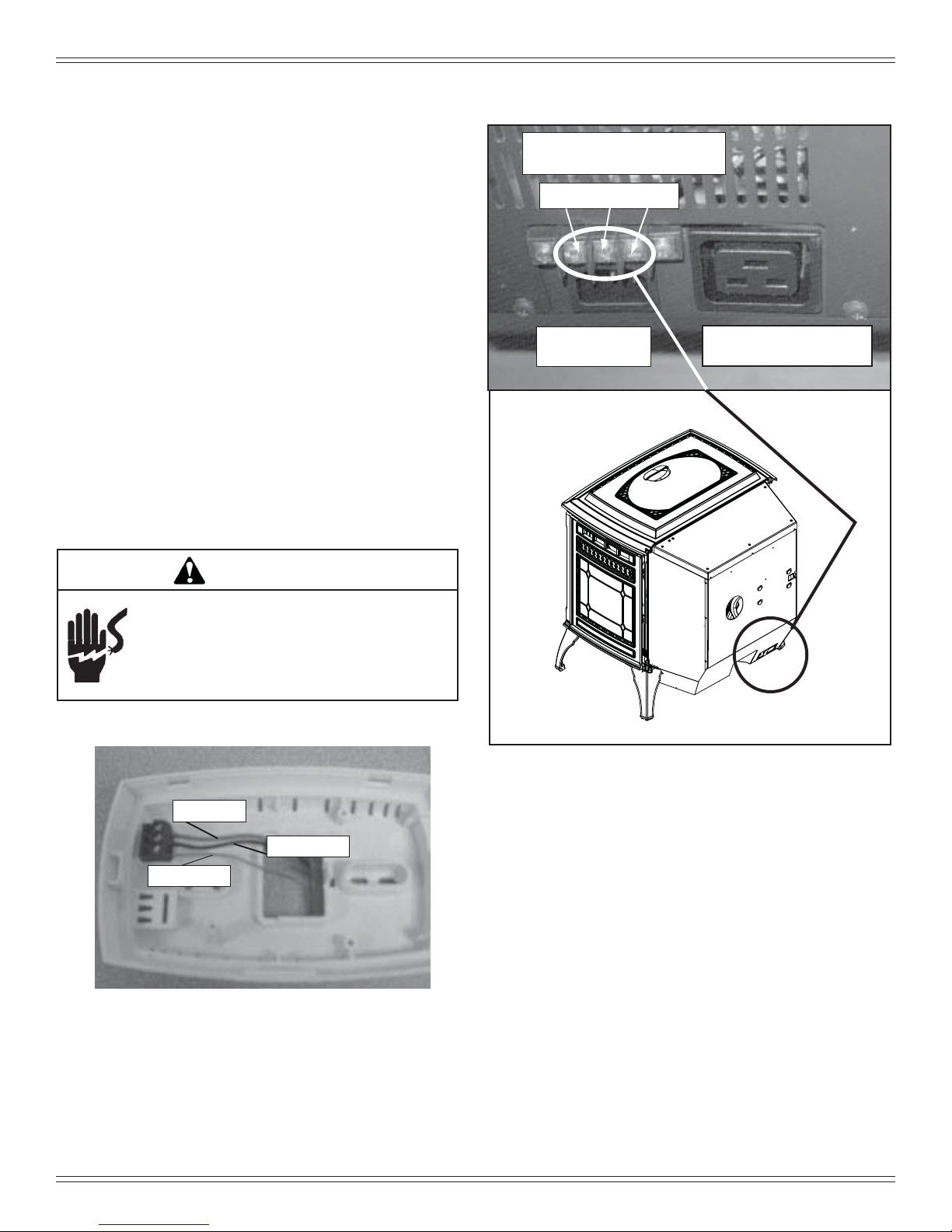

F. Wall Control Thermostat Installation
1. When mounting the wall control thermostat on the wall,
besuretofollowyour thermostat wallcontrol’sinstallation
instructions carefully.
NOTE: Thewallcontrolthermostat should be mount-
ed on an inside wall and not in direct line with the
appliance convection air.
NOTE: If the wall control thermostat is located too
close to the appliance, you may need to set the
temperature setting slightly higher to maintain the
desired temperature in your home.
2. There is a 5 screw terminal block located on the back
lowerleftcornerof the appliance directlyabovethepower
cord inlet.
The center 3 screws are for the wall control thermostat
wires and the 2 outer screws are mounting screw and
should not have wires attached to them.
The thermostat wires are color coded. The green wire
is on the left, the white in the middle and the red on the
right.
Figure 20.2
Shock hazard.
• Do NOT remove grounding prong from plug.
• Plug directly into properly grounded 3 prong
receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front of appliance.
CAUTION
12 volt Power Inlet (for
optional battery back-up)
Houshold Power
Cord Inlet
Wall Control Thermostat Wires
Attach to Center 3 Screws
Green White Red
Red Wire
Top
Bottom
White Wire
Green Wire
Figure 20.1 - Back Side of Wall Control with
Cover Off
