Breezism Alameda bf9453l56sl User manual

USE AND CARE GUIDE

Item #0000 000 000

Model #BF9453L56SL

Model #BF9453L56BKDK

ALAMEDA 56 INCH CEILING FAN

BREEZISM

Installation .....................................................................

Table of Contents ..........................................................2

Safety Information .........................................................2

Warranty .........................................................................3

Pre-installation .............................................................. 3

Assembly ....................................................................... 7

Table of Contents

12Operation

Care and Cleaning

Troubleshooting 16

FCC Statement 17

......................................................................

...........................................................

............................................................

Safety Information

To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before you

begin.

All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70” and local electrical codes.

Electrical installation should be performed by a qualiﬁed

licensed electrician.

The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg). Use only UL Listed outlet boxes marked

“Acceptable for Fan Support of 35 lbs. (15.9 kg) or less.”

Do not place objects in the path of the blades.

Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

All setscrews must be checked and retightened where

necessary before installation.

READ AND SAVE THESE INSTRUCTIONS.

WARNING

To reduce the risk of personal injury, do not

To avoid possible electrical shock,

turn the electricity off at the main fuse box before

wiring.

CAUTION:

To reduce the risk of personal injury,

use only the screws provided with the outlet box.

To avoid personal injury or damage to the fan

and other items, use caution when working around or

cleaning the fan.

bend the blade brackets when installing the brackets

balancing the blades, or cleaning the fan. Do not insert

foreign objects in between rotating fan blades.

To reduce the risk of ﬁre, electric shock

or personal injury, mount to outlet box marked

“ acceptable for fan support of 35 lbs. (15.9Kg)

or less” and use screws provided with the outlet box.

The fan must be mounted with a minimum

of 7 ft (2.1 m) clearance from the trailing edge of the

blades to the ﬂoor.

Changes or modiﬁcations not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

WARNING:

To reduce the risk of electrical shock or ﬁre,

not use this fan with any solid-state fan speed control

device. It will permanently damage the electronic

circuitry.

WARNING:

To reduce the risk of electrical shock, this

must be installed with an lsolating wall control/switch.

WARNING

CAUTION:

Warranty

Pre-InstallationPre-Installation

SPECIFICATIONS

TOOLS REQUIRED

Phillips

screwdriver

Electrical

tape

Wire

stripper

Flat blade

screwdriver

Step

ladder

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

52 in.

LOW

MED

HIGH

120

Fan size Watts RPM CFMSpeed Volts Amps N.W. G.W. C.F.

3.23cu ft.

0.056 3.2 70 2632

0.2 13 130 4645

0.38 28 170 5590

5.4kgs

(11.9lbs)

6.9 kgs

(15.2 lbs)

We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period

of lifetime after the date of purchase by the original purchaser. We also warrant the light kit, to be free from defects in workmanship and

material present at time of shipment from the factory for a period of ﬁve years after the date of purchase by the original purchaser,

excluding any glass or acrylic components and wooden blades, to be free from defects in workmanship and material at the time of ship-

ment from the factory for a period of two year after the date of purchase by the original purchaser. We agree to correct such defects

without charge or at our option replace with a comparable or superior model if the product is returned. To obtain warranty service, you

must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage

to any part such as by accident, misuse, improper installation or by afﬁxing any accessories, is not covered by this warranty. Because of

varying climatic conditions this warranty does not cover any changes in brass ﬁnish, including rusting, pitting, corroding, tarnishing or

peeling. Brass ﬁnishes of this type give their longest useful life when protected from varying weather conditions, A certain amount of

“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid.

There is no other express warranty. We hereby disclaim any and all warranties, including but not limited to those of merchantability and

ﬁtness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited

to the time period as speciﬁed in the express warranty. Some states do not allow limitation on how long an imolied warranty lasts, so the

above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in

connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of

incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives speciﬁc legal rights,

and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping cost s for any

return of product as part of a claim on the warranty must be paid by the customer.

NOTE:

Hardware shown to actual size

Pre-Installation (continued)

HARDWARE INCLUDED

Quantity

6+1

spare

6+1

spare

(preassembled)

Blade screw (preassembled)

(preassembled)

DD HH

Light kit screw (preassembled)

PACKAGE CONTENTS

Pre-Installation (continued)

Fan motor assembly

Plastic shade

Light kit plate

Part QuantityDescription

12V Battery

Remote control

Remote control holder

Extension lead wire

Receiver

Blade

Mounting bracket (preassembled)

Part

QuantityDescription

Canopy (preassembled)

Hanger ball (preassembled)

Canopy cover (preassembled)

Downrod (preassembled)

Light kit assembly

Installation

WARNING: To reduce the risk of ﬁre, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support. An outlet box commonly used for

the support of lighting ﬁxtures may not be acceptable for fan

support and may need to be replaced. If in doubt, consult a

qualiﬁed electrician.

MOUNTING OPTIONS

If your ceiling fan does not have an existing UL-listed

mounting box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning

off the circuit breakers.

□□Secure the outlet box (1) (not included) directly to the

building structure. Use appropriate fasteners and

materials (not included). The outlet box and its bracing

must be able to fully support the weight of the moving

fan (at least 35 lbs.). Do not use a plastic outlet box.

The illustrations to the right show three different ways to

mount the outlet box (not included).

□To hang your fan where there is an existing ﬁxture but no

ceiling joist, you may need an installation hanger bar (3)

(not included), as shown.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18°. If the canopy touches

the downrod, remove the decorative canopy bottom cover

and turn the canopy 180° before attaching the canopy to the

mounting plate (2).

Assembly — Attaching the mounting bracket/

Attaching the Fan Blades

Fastening the blades to the fan

motor assembly

Remove the six ﬂywheel screws (BB) from the

fan motor assembly

□Remove the six blade screws (AA) from the fan

motor assembly (H).

1Attaching the mounting bracket to

the electrical box

□Secure the mounting bracket (B) to the ceiling outlet box

with the screws and washers provided with your outlet

box.

WARNING:

To reduce the risk of ﬁre, electric shock, or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

Loosen three preassembled light kit plate screws (DD)

on the fan motor assembly (H).

□

Attach the light kit plate (I) to the fan motor

assembly (H). Tighten light kit plate screws (DD) securely.

□Fastening the light kit plate

to the fan motor assembly

Assembly — Attaching the Fan Blades/Installing the Light Kit

Attach the fan blades (A) to the fan motor assembly (H).

Fasten the blade screws (AA) one by one.

Fasten the ﬂywheel screws (BB) one by one.

Fastening the blades to the fan

motor assembly

Assembly — Installing the Light Kit (continued)

Fastening the Light kit assembly and Plastic shade to the

fan motor assembly

Loosen one of preassembled light kit screws (HH),Connect the light lead wire, align the light kit (G) with the

light kit plate (I) until the screws (HH) engage to the slots on the light kit (G).

□

Place the plastic shade (J) into the light kit plate (I), aligning the three ﬂat areas on the top ﬂange of the the

plastic shade (J) with the raised dimples in the light kit plate(I).

□Turn the plastic shade (J) clockwise until it stops.

Assembly — Hanging the Fan

□

Hanging the fan motor assembly to the mounting bracket

Lift the fan motor assembly(H) into position, and place the hanger ball (E) into the mounting bracket (B). Rotate

the fan motor assembly (H) until the check groove drops into the registration slot and seats ﬁrmly. The downrod(F)

should not rotate if this is done correctly.

Assembly — Hanging the Fan(continued)

7Making the electrical connections

WARNING:

□□□□If your outlet box (1) has a ground wire (green/yellow or

bare copper),connect it to the fan ground wires;

otherwise, connect the hanger ball (E) ground wire to the

mounting bracket (B).

Plug one lead wireof ligh (with 2P connector) and one

lead wire of fan (with 3P connector) into the receiver (K).

Connect the black (hot) wire from the ceiling to the black

wire from the receiver (K).

Connect the white (neutral) wire from the ceiling to the

white wire from the receiver (K).

□Secure the wireconnection with a plastic wire nut (EE)

provided with the electrical hardware.

□After connecting the wires, spread them apart so that the

green/yellow and white wires are on one side of the outlet

box (1) and the black wires are on the other side.

Carefully tuck the wire connections up into the outlet box (1).

To avoid possible electrical shock, ensure the

electricity is turned off at the circuit breaker or main fuse box

before wiring.

Check to see that all connections are tight,

including the ground, and that no bare wire is visible at the

wire nuts, except for the ground wire.

□Insert the receiver (K) into the mouting bracket (B) with the

ﬂat side of the receiver (K) facing the ceiling.

Follow the steps below to connect the fan to your house

supply wires. Secure the wire nuts (EE) supplied with your

fan by wrapping the connections with electrical tape.

NOTE:

Extension lead wire (O) is available when your

fan installed with a longer downrod.

EE(x3)

Blue

White

Yellow

Gray

Red

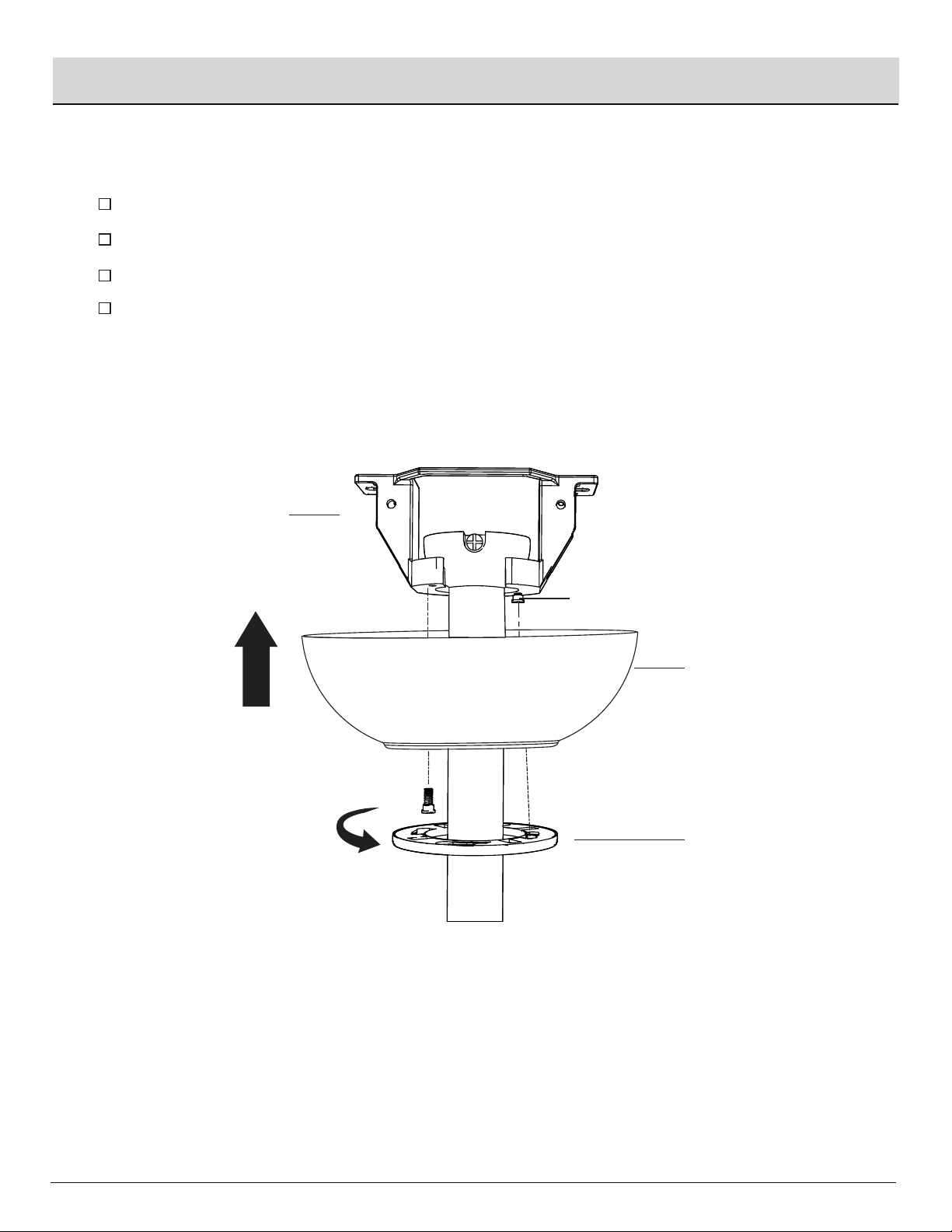

8Securing the fan motor assembly to the mounting bracket

□Remove two mounting bracket screws (EE) from the mounting bracket (B).

□Attach the canopy (D) to the mounting bracket (B) by using the two mounting bracket screws (EE) previously removed.

□

Tighten the mounting bracket screws (EE) .

Assembly — Hanging the Fan (continued)

□Align the oval shape on the canopy (C) with canopy cover (D). Push up the canopy cover (D) until the screw (EE) heads engage

to the slots on the canopy cover (D), and rotate the canopy cover (D) until it is attached to the bottom of the canopy (C) properly.

REMOTE CONTROL OPERATING INSTRUCTIONS

LEARNING PROCESS

Operation

WARNING : Do not short-circuit, disassemble, heat up,

connect improperly, or dispose of used batteries in ﬁre. Do

not recharge or mix batteries with used or other battery

types. Immediately remove used batteries.

WARNING: a)The cells shall be disposed of properly,

including keeping them away from children; and

b) Even used cells may cause injury.

NOTE:After the AC power is on, do not press any other button

on the remote control before pressing the (FAN ON/OFF)

button. Doing so will cause the procedure to fail.

Install a 12V battery (N) into the remote control (L). Fasten the battery

cover screw (GG) after installation. To prevent damage to the remote

control, remove the battery if not used for long periods of time.

WARNING:WARNING: Chemical Burn Hazard. Keep batteries away

from children. This product contains a lithium button/coin

cell battery. If a new or used lithium button/coin cell battery

is swallowed or enters the body, it can cause severe

internal burns and can lead to death in as little as 2 hours.

Always completely secure the battery compartment. If the

battery compartment does not close securely, stop using the

product, remove the batteries, and keep it away from

children. If you think batteries might have been swallowed

or placed inside any part of the body, seek immediate

medical attention.

NOTE: After turning the AC power back on, do not press any

other button on the remote control before pressing the

button. Doing so will cause the learning procedure to fail

and the power to the fan will have to be turned off again to

start over.

Turn main power to fan back on and within 30 seconds

press and hold the button on the remote for 5 seconds

to sync the transmitter to the fan.

Once the fan has detected the remote, the light on the fan

will blink twice to indicate your fan is now ready to use.

Fans without light-kits have no indicator but will be ready to

use after holding the button for the 5 seconds. GG

NOTE: On start up your ceiling fan will oscillate back and forth. This is NORMAL

OPERATION for DC ceiling fan as it goes through its calibration cycle. The fan is

NOT DEFECTIVE.

Operation (continued)

1. Fan button.-Press and release the button to turn the fan on or off.

Fan off. The fan memory function will store the current setting for the

next time the fan is in use.

2. 1,2,3,4,5,6 buttons:

3. Light functions

Press and release button one time will turn the light on or off.

Press to increase the desired light level.

Press to decrease the desired light level.

4. Fan reverse button (Must be Pushed when the fan isin operation)

(Counterclockwise Direction) A downward air ﬂow creates a

cooling effect. This allows you to set your air conditioner on a

higher setting without affecting your comfort.

(Clockwise Direction) An upward air ﬂow moves warm air off the

ceiling. This allows you to set your heating unit on a lower setting

without affecting your comfort.

These six buttons are used to set the fan sped as follows:

1=low speed 2=medium low speed

3=medium speed 4=medium high speed

5=high speed 6=Extra high speed

INSTALLING THE REMOTE CONTROL HOLDER

FF M

Operation (continued)

Care and Cleaning

□Check the support connections, brackets, and blade

attachments twice a year. Ensure they are secure.

Because of the fan’s natural movement, some

connections may become loose over time. It is not

necessary to remove the fan from the ceiling.

□Clean your fan periodically. Use only a soft brush or

lint-free cloth to avoid scratching the ﬁnish. The plating

is sealed with a lacquer to minimize discoloration or

tarnishing.

□(Optional) Apply a light coat of furniture polish to the wood

blades.

□(Optional) Cover small scratches with a light application

of shoe polish.

Do □Do not use water when cleaning. Water could damage the

motor, or the wood, or possibly cause an electrical shock.

□Do not apply oil to your fan or motor. The motor has

permanently-lubricated sealed ball bearings.

Do not

□Attach the remote control holder (M) with the two remote control

holder mounting screws (FF).

1516

Troubleshooting

WARNING: Ensure the power is off at the electrical

panel box before you attempt any repairs. Refer to the section

“Making the Electrical Connections” on page 9.

□Do not connect the fan with wall mounted variable speed control(s).

□Check the battery in the remote control.

□Check that all blade and blade arm screws are secure.

□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a

point on the ceiling above the tip of one of the blades. Measure from a point on the center of each blade

to the point on the ceiling. Rotate the fan until the next blade is positioned for measurement. Repeat for

each blade. Measurements deviation should be within 1/8 in. Run the fan for 10 minutes.

The fan wobbles.

The remote control is

not working.

Problem Solution

□Ensure you are in the normal range of 10-20 feet.

□Make sure the receiver has been matched.

□Check main and branch circuit fuses or breakers.

□Check line wire connections to the fan and switch wire connections in the switch housing.

□Make sure all motor housing screws are snug.

□Make sure the screws that attach the fan blade arm to the motor hub are tight.

□Make sure wire nut connections are not rattling against each other or the interior wall of the switch

housing.

□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this

time.

□If using the ceiling light kit, make sure the screws securing the glassware are tight. Check that the light

bulb is also secure.

□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.

□Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket

and outlet box.

The fan will not start.

The fan sounds noisy. □This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result

of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves

electricity and allows the fan to operate much quieter than standard AC motor fans.

Fan moves backwards

and forwards when

turned on. □Reset the transmitter by going through the transmitter “LEARNING PROCESS”.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.CAUTION:
