the Bambino®Plus
EN INSTRUCTION BOOK FR-CA MANUEL D'INSTRUCTIONS ES-MX MANUAL DE INSTRUCCIONES

2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE
FOR FUTURE REFERENCE
• Carefully read all instructions
instructions before operating
and save for future reference.
• Do not touch hot surfaces. Use
handles or knobs as advised in
this instruction book.
• To protect against fire, electric
shock and injury to persons do
not immerse the power cord,
plug, or appliance itself in
water or other liquids.
• Close supervision is necessary
when any appliance is used by
or near children.
• Unplug from outlet when not
in use and before cleaning.
Allow to cool before putting on
or taking off parts and before
cleaning the appliance.
• It is recommended to regularly
inspect the appliance and
power cord. Do not use the
appliance if there is damage to
the power cord or plug, or after
the appliance malfunctions or
2Breville Recommends
Safety First
6 Components
8 Features
8 Assembly
9 Functions
16 Care & Cleaning
19 Troubleshooting
Contents

3
has been damaged in any
way. Immediately stop use
and call Breville Consumer
Support.
• The use of accessory
attachments not
recommended by Breville
may result in fire, electric
shock or injury to persons.
• Do not let the power
cord hang over the edge
of a table or counter-top,
or touch hot surfaces.
• Do not place the appliance
near the edge of a table
or counter-top. Ensure the
surface is level, clean and
free of water and other
substances.
• Do not place the appliance
on or near a hot gas
or electric burner.
Do not place it in, or allow
it to come in contact with
a heated oven.
• This appliance is
recommended for household
use only. Do not use this
appliance for anything other
than its intended use. Do not
use outdoors. Do not use in
moving vehicles or boats.
NOTICE TO CUSTOMERS
REGARDING MEMORY
STORAGE
Please note that in order to
better serve our customers,
internal memory storage
has been imbedded into
your appliance. This
memory storage consists
of a small chip to collect
certain information about
your appliance including
the frequency of use of the
appliance and the manner
in which your appliance
is being used. In the event
your appliance is returned
for service, the information
collected from the chip
enables us to quickly and
efficiently service your
appliance. The information
collected also serves
as a valuable resource
in developing future
appliances to better serve
the needs of our consumers.
The chip does not collect
any information regarding
the individuals who use the
product or the household
where the product is used.

4
If you have any questions
regarding the memory
storage chip please contact
us at [e-mail]
SPECIFIC INSTRUCTIONS
FOR BES500
• This appliance is
recommended for household
use only. Do not use this
appliance for other than its
intended use. Do not use in
moving vehicles or boats.
Do not use outdoors. Misuse
may cause injury.
• If the appliance is to be:
−left unattended
−cleaned
−moved
−assembled; or
−stored,
always switch Off the
espresso machine by
simultaneously pressing the
1 CUP and STEAM buttons.
Unplug from the
power outlet.
• Ensure the product is properly
assembled before first use.
• Do not use any other liquid
apart form cold mains/tap
water. We do not recommend
the use of highly filtered,
de-mineralized or distilled
water as this may affect the
taste of the coffee and how
the espresso machine is
designed to function.
• Ensure the portafilter is firmly
inserted and secured into the
group head before starting
the extraction.
Never remove the portafilter
during the brewing process.
• Do not leave the product
unattended when in use.
• Do not touch hot surfaces.
Allow the product to cool
down before moving or
cleaning any parts.
• Use caution when operating
the machine, as metal
surfaces are liable to get hot
during use.
• Use caution when descaling
as hot steam may be released.
Before descaling, ensure drip
tray is inserted. Refer to ‘Care
& Cleaning’ for further
instructions.
WARNING
Do not immerse power cord,
power plug or appliance in
water or any other liquid.

5
WARNING
Misuse may cause injury.
WARNING
To avoid the risk of injury,
do not open the brew
chamber during the
brew process.
SHORT CORD
INSTRUCTIONS
Your Breville appliance
is fitted with a short power cord
to reduce personal injury or
property damage resulting
from pulling, tripping or
becoming entangled with a
longer cord. Longer detachable
power cords or extension cords
are available and may be used
if care is exercised. If
an extension cord is used,
(1) the marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance,
(2) the cord should be arranged
so that it will not drape over the
counter-top or table where it
can be pulled on by children or
tripped over unintentionally and
(3) the extension cord must
include a 3-prong
grounding plug.
BREVILLE ASSIST™ PLUG
Your Breville appliance comes
with a unique Assist™ Plug,
conveniently designed with
a finger hole to ease removal
from the power outlet.
CSA DUTY CYCLE
MARKING
The Canadian Standards
Authority requires any
appliances capable of drawing
over 1500W to be marked with
a ‘duty cycle’ in minutes. For the
BES500, this ‘duty cycle’
represents the maximum time
for which the appliance will
draw over 1500W during any 2
hour period of use. It does not
indicate the appliance is unsafe
for continuous use
or is required to be switched off
at certain intervals during
normal use.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS

6
Components
A. 64 fl.oz (1.9L) removable water tank
B. Control panel
1 CUP, 2 CUP and STEAM buttons
With preset shot durations or
programmable durations and volumes
C. MILK TEMP settings
Select from Warm, Ideal and Hot
D. MILK FOAM settings
Select from Low, Medium and High
E. Group head
F. 54mm stainless steel portafilter
G. Steam wand grip
H. Extra-tall cup clearance for tall mugs
I. Steam wand
With automatic milk texturing
J. Milk jug temperature sensor
K. Removable drip tray grid
L. Removable drip tray
With full indicator
A
B
E
L
F
H
C
G
I
J
K
D
120 V~60 Hz 1560 W
Rating Information

7
ACCESSORIES
A. Stainless steel milk jug
With MIN and MAX markings
B. 54mm tamper
C. Steam wand tip cleaning tool
(Located under water tank)
D. The Razor™ precision trimming tool
E. Single Wall filter baskets (1 cup & 2 cup)
F. Dual wall filter baskets (1 cup & 2 cup)
G. Cleaning disc
H. Espresso cleaning tablets
I. Descaling powder
C
D
E
F
G
B
A
H
I

8
COMPACT FOOTPRINT
Cafe quality coffee in a compact machine.
AUTOMATIC HANDS FREE
MILK TEXTURING
Automatically textures milk to the selected
temperature and style from silky smooth latté to
creamy cappuccino. Automatic purge removes
residual milk from the steam wand when
returned to the downward position.
THERMOJET
®TECHNOLOGY
Innovative heating system achieves ideal
extraction temperature in 3 seconds.
PID TEMPERATURE CONTROL
Electronic PID temperature control for
increased temperature stability.
LOW PRESSURE PRE-INFUSION
Applies low water pressure at the start
of the extraction to gently expand grinds
for an even extraction.
VOLUMETRIC CONTROL
Preset 1 & 2 cup volumes, manual over-ride
or programmable shot volumes.
THE RAZOR™ DOSE TRIMMING TOOL
Patented twist blade trims down the puck
to the right level for precision dosing and
a consistent extraction.
Bambino®Plus
Features Assembly
BEFORE FIRST USE
Machine Preparation
Remove and discard all labels and packaging
materials attached to your machine. Ensure you
have removed all parts and accessories before
discarding the packaging.
Clean the drip tray, drip tray grid, portafilter,
filter baskets and milk jugs using warm water
and a gentle dish washing liquid. Rinse well and
dry thoroughly before use.

9
Functions
FIRST USE
1. Remove the water tank and fill with potable
water to the indicated MAX line. Replace
the water tank onto the machine.
2. Ensure that the drip tray is correctly
positioned on the machine.
3. Plug the power cord in the power outlet,
and the 1 Cup button illuminates.
4. Press the 1 CUP button and the machine
will commence its first use cycle.
2s
+
+OFF
5. Once complete, the machine will go
into ready mode and all lights will be
illuminated.
NOTE
The first use cycle is to rinse the machine and
prime the heating system.
TURNING OFF MACHINE
To turn the machine off, press the 1 CUP and
STEAM button simultaneously.
2s
+
+
OFF
FILLING THE WATER TANK
Lift the water tank from the machine. Remove the
water tank lid and add potable water to the water
tank, filling to the MAX marking indicated.
MAX
Replace the water tank onto the machine,
ensuring it is properly attached and sitting
flush against the back of the machine.
If the 1 CUP, 2 CUP and STEAM buttons
illuminate, the water tank has been correctly
attached.
The machine will detect when the water level is
low. The 1 CUP, 2 CUP and STEAM buttons will
not be illuminated.
2s
+
+OFF
When this occurs, add water to the water tank.
Once there is sufficient water, all buttons will be
illuminated and the machine can be used.

10

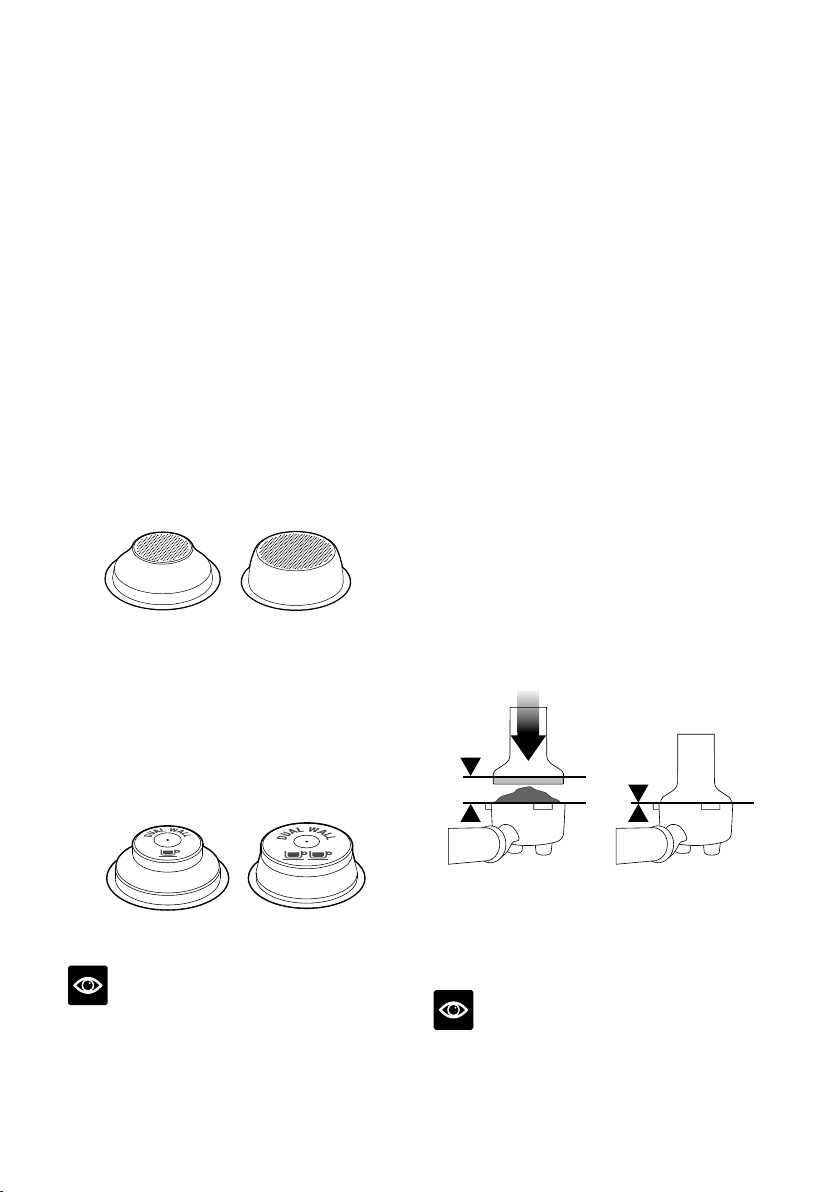

FILTER BASKETS
This machine includes both single and dual
wall 1 Cup and 2 Cup filter baskets. Use the 1
cup filter basket when brewing a single cup
and the 2 cup filter baskets when brewing 2
cups or a stronger single cup or mug.
Adjust the grind amount and size if switching
from a single basket to a double basket,
or vice versa.
The provided filter baskets are designed for:
1 Cup filter basket = 8-11g
2 Cup filter basket = 16-19g
Single Wall Filter Baskets
Single Wall filter baskets should be used when
grinding fresh whole coffee beans roasted less
than 30 days. These single wall filter baskets
allows you to experiment with grind, dose and
tamp to create a more balanced espresso.
Dual Wall Filter Baskets
Dual Wall filter baskets should be used when
using pre-ground coffee and older beans that
are past the 30 day roast date. These dual wall
filter baskets regulate the pressure and helps to
optimise the extraction regardless of the grind,
dose and tamp pressure or freshness.
1 CUP 2 CUP
NOTE
Use Razor™ dose trimming tool to precisely
control the dose of ground coffee AFTER
you tamp.
THE GRIND
When grinding coffee beans, the grind size
should be fine but not too fine. The grind size
will affect the rate at which the water flows
through the ground coffee in the filter basket
and the taste of the espresso.
If the grind is too fine (looks like powder
and feels like flour when rubbed between the
fingers), the water will not flow through the
coffee even when under pressure. The resulting
espresso will be OVER EXTRACTED, dark in
color and bitter in flavor.
If the grind is too course, the water will flow
through the ground coffee in the filter basket
too quickly. The resulting espresso will be
UNDER EXTRACTED and lacking in color
and flavor.
COFFEE DOSE AND TAMPING
• Insert the filter basket into the portafilter.
• Grind enough coffee to fill the filter basket.
• Tap the portafilter several times to collapse and
distribute the coffee evenly in the filter basket.
• Using the tamper, tamp down firmly (approx.
30-40 lbs (15-20kgs) of pressure). The
amount of pressure is not as important as the
consistent pressure every time.
• As a guide, the top edge of the cap on the
tamper should be level with the top of the
filter basket AFTER the coffee has been
tamped.
NOTE
We recommend quality 100% Arabica beans
with a ‘Roasted On’ date stamped on the bag,
not a ‘Best Before’ or ‘Use By’ date. Coffee
beans are best consumed between 5–20 days
1 CUP 2 CUP
