Breville BES820 Quick guide

BES820 Programmable Espresso Machine
Instructions & Recipe Inspirations

BES820 IB V6.indd 2BES820 IB V6.indd 2 19/9/07 2:23:25 PM19/9/07 2:23:25 PM

3
5Breville Recommends Safety First
7Features Of Your Breville Professional 800 Collection™
Programmable Espresso Machine
9Know Your Breville Professional 800 Collection™
Programmable Espresso Machine
11 Before First Use
12 Assembling Your Breville Professional 800 Collection™
Programmable Espresso Machine
14 Operating Your Breville Professional 800 Collection™
Programmable Espresso Machine
18 Programming Your Breville Professional 800 Collection™
Programmable Espresso Machine
19 How To Texture Milk For A Cappuccino Or Latté
21 Using The Hot Water Function
22 Coffee Making Tips
24 Care And Cleaning
27 Trouble Shooting Guide
30 Coffees To Try
34 Recipe Inspirations
CONTENTS
BES820 IB V6.indd 3BES820 IB V6.indd 3 19/9/07 2:23:29 PM19/9/07 2:23:29 PM

4
At Breville, we know that coffee lovers
will go to great lengths to refine the art
of making coffee. They will experiment
with flavours and adjust the tamp and
grind of the beans in search for the
perfect espresso. The Professional 800
Collection™ Programmable Espresso
Machine caters for all levels of coffee
making, from manual control to
programmable coffee and from the novice
through to the experienced barista.
After extensive research and rigorous
testing, this machine boasts key features
such as custom set programming, a
premium brew process and a quality
espresso pressure gauge. Energy saving
features, like the auto power down, help to
save on electricity consumption, and the
selection of premium materials make the
BES820 the best of Breville.
Enjoy!
BES820 IB V6.indd 4BES820 IB V6.indd 4 19/9/07 2:23:29 PM19/9/07 2:23:29 PM

5
We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in
mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ PROGRAMMABLE ESPRESSO MACHINE
•Always ensure the Breville Professional
800 Collection™ Programmable Espresso
Machine is properly assembled before
connecting to power outlet and operating.
•The appliance is not intended to be
operated by means of an external timer or
separate remote control system.
•Use only cold tap water in the water tank.
Do no use any other liquid.
•Never use the Breville Professional 800
Collection™ Programmable Espresso
Machine without water in the water tank.
•Ensure the filter holder is firmly inserted and
secured into the brewing head before using
the machine.
•Never remove the filter holder during the
brewing operation as the machine is under
pressure.
•Do not leave the Breville Professional
800 Collection™ Programmable Espresso
Machine unattended when in use.
•Do not touch hot surfaces. Allow the
Breville Professional 800 Collection™
Programmable Espresso Machine to cool
down before moving or cleaning any parts.
•Do not place anything, other than cups for
warming, on top of the Breville Professional
800 Collection™ Programmable Espresso
Machine.
•Always switch off the Breville Professional
800 Collection™ Programmable Espresso
Machine by pressing the Power button
to ‘Off’, switch off at the power outlet and
unplug if appliance is to be left
unattended, if not in use, before cleaning,
before attempting to move the appliance,
disassembling, assembling and when
storing the appliance.
•Keep the appliance and accessories clean.
Follow the cleaning instructions provided in
this book.
•Carefully read all instructions before
operating and save for future reference.
•Remove any packaging material and
promotional labels or stickers before using
the Breville Professional 800 Collection™
Programmable Espresso Machine for the
first time.
•Do not place the Breville Professional
800 Collection™ Programmable Espresso
Machine near the edge of a bench or
table during operation. Ensure the surface
is level, clean and free of water and other
substances.
•Do not place the Breville Professional
800 Collection™ Programmable Espresso
Machine on or near a hot gas or electric
burner, or where it could touch a heated
oven.
•Do not use the Breville Professional 800
Collection™ Programmable Espresso
Machine on metal surfaces, for example, a
sink drain board.
BREVILLE RECOMMENDS SAFETY FIRST
BES820 IB V6.indd 5BES820 IB V6.indd 5 19/9/07 2:23:43 PM19/9/07 2:23:43 PM

6
•Unwind the cord before use.
•To protect against electric shock, do not
immerse cord, plug or appliance in water or
any other liquid.
•Do not let the cord hang over the edge
of a bench or table, touch hot surfaces, or
become knotted.
•This appliance is not intended for use
by young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure they can
use the appliance safely.
•Young children should be supervised to
ensure they do not play with the appliance.
•This appliance is for household use only.
Do not use this appliance for anything other
than its intended use. Do not use in moving
vehicles or boats. Do not use outdoors.
•It is recommended to inspect the appliance
regularly. Do not use the appliance if power
supply cord, plug or appliance becomes
damaged in anyway. Return the entire
appliance to the nearest authorised Breville
service centre for examination and/or
repair.
•Any maintenance other than cleaning
should be performed at an authorised
Breville Service Centre.
•The installation of a residual current device
(safety switch) is recommended to provide
additional safety protection when using
electrical appliances. It is advisable that a
safety switch with a rated residual
operating current not exceeding 30mA
be installed in the electrical circuit supplying
the appliance. See your electrician for
professional advice.
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
BREVILLE RECOMMENDS SAFETY FIRST (continued)
BES820 IB V6.indd 6BES820 IB V6.indd 6 19/9/07 2:23:43 PM19/9/07 2:23:43 PM

7
Programmable Function
This espresso machine offers a convenient
choice between the Manual Operation or the
intelligent Programmable Function that can be
personalised with the user’s favourite espresso
setting.
Espresso Pressure Gauge
The espresso pressure gauge assists in
obtaining the most favourable extraction
pressure, guiding the user to create their ideal
espresso. This is achieved by measuring the
pressure at which the water is being forced
through the ground coffee in the filter holder.
White Zone - Ideal Espresso
The gauge needle when positioned within the
recommended White Zone during pouring
indicates that the espresso will be produced at
the ideal pressure. The brewed espresso should
have a generous layer of fine textured and
evenly coloured golden crèma.
Green Zone - Under Extracted
The gauge needle when positioned within the
Green Zone during pouring indicates that the
espresso will be produced with insufficient
pressure resulting in an ‘under extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
fast. As a result the optimal flavour will not be
extracted and the coffee will be watery and lack
thick créma on the top. Possible other causes
for under extraction are: coffee grind is too
coarse and/or insufficient coffee in filter and/or
under tamping.
Red Zone - Over Extracted
The gauge needle when positioned within
the Red Zone during pouring will indicate
that the espresso will be produced with too
much pressure resulting in an ‘over extracted’
espresso. This occurs when the water flow
through the ground coffee in the filter is too
slow. As a result the coffee will be very dark
and bitter, with a mottled and uneven créma on
top. Possible other causes for over extraction
are: ground coffee is too fine and/or too much
ground coffee in filter and/or over tamping.
Hot Water Wand
The dedicated hot water wand is ideal for
making your favourite hot drinks. For convenient
use the wand has a commercial style 360° ball
joint.
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ PROGRAMMABLE ESPRESSO MACHINE
BES820 IB V6.indd 7BES820 IB V6.indd 7 19/9/07 2:23:43 PM19/9/07 2:23:43 PM

8
FEATURES OF YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ PROGRAMMABLE ESPRESSO MACHINE (continued)
Commercial Style Steam Wand
The swivel-action steam wand, with
stainless steel frothing attachment, easily
adjusts to the perfect position for texturing
milk. The wand has a commercial style
360° ball joint.
Advanced Dual Wall Créma System
Filters
Advanced Dual Wall Créma System Filters
(one and two cup) are supplied with the
Breville Professional 800 Collection™
Programmable Espresso Machine.
The Advanced Dual Wall Créma System
Filters are designed to intentionally
slow the water flow rate during brewing,
allowing you to easily pour your espresso
at the ideal pressure, for the perfect
créma.
The filters are suited to both pre-ground
vacuum packed coffee and freshly ground
coffee.
Electronic Temperature Control
The electronic temperature control system
accurately maintains the optimal brewing
temperature of the water. This helps
ensure the user gets the best possible
extraction each time an espresso is made.
Energy Saving Features
The Breville Professional 800 Collection™
Programmable Espresso Machine will
enter the ‘Power Save Mode’ if not used
for one hour, and will automatically switch
off if not used for a further three hours.
The ‘Power Save Mode’ uses 45% less
power than when the machine is in
‘Stand by’ Mode.
During ‘Power Save Mode’ only the
POWER button surround will be
illuminated. All other button and light
surrounds will not be illuminated.
To re-activate the machine during ‘Power
Save Mode’, simply press the program or
one-cup or two-cup buttons. The POWER
button surround will then illuminate and
flash while the machine quickly reheats to
operational temperature. When the correct
temperature has been reached, all the
button surrounds on the control panel
will illuminate.
To switch off the espresso machine whilst
it is in ‘Power Save Mode’, simply press
the POWER button once.
BES820 IB V6.indd 8BES820 IB V6.indd 8 19/9/07 2:23:45 PM19/9/07 2:23:45 PM

9
KNOW YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ PROGRAMMABLE ESPRESSO MACHINE
Extra-large cup warming plate
Power button
surround illuminates when the
button is pressed to ‘On’
Steam light
illuminates to indicate that the steam
function is selected
Extra-large cup height for coffee
mugs
Removable 1 litre drip tray
and stainless steel grid
NOT SHOWN
Custom designed accessories:
Stainless steel frothing jug
Measuring/tamping spoon
Cleaning Tool
Quick Guide
1 & 2 cup dual wall stainless steel filters
15 bar pump
Italian-designed and made
Hot water wand
provides instant hot water
‘Power Save Mode’
Hot water light
illuminates to indicate hot water function
is selected
Pre-brew function
for optimal coffee extraction pressure
Auto purge function
for optimal coffee extraction temperature
Electronic temperature control
Drip tray full indicator
BES820 IB V6.indd 9BES820 IB V6.indd 9 19/9/07 2:23:45 PM19/9/07 2:23:45 PM

10

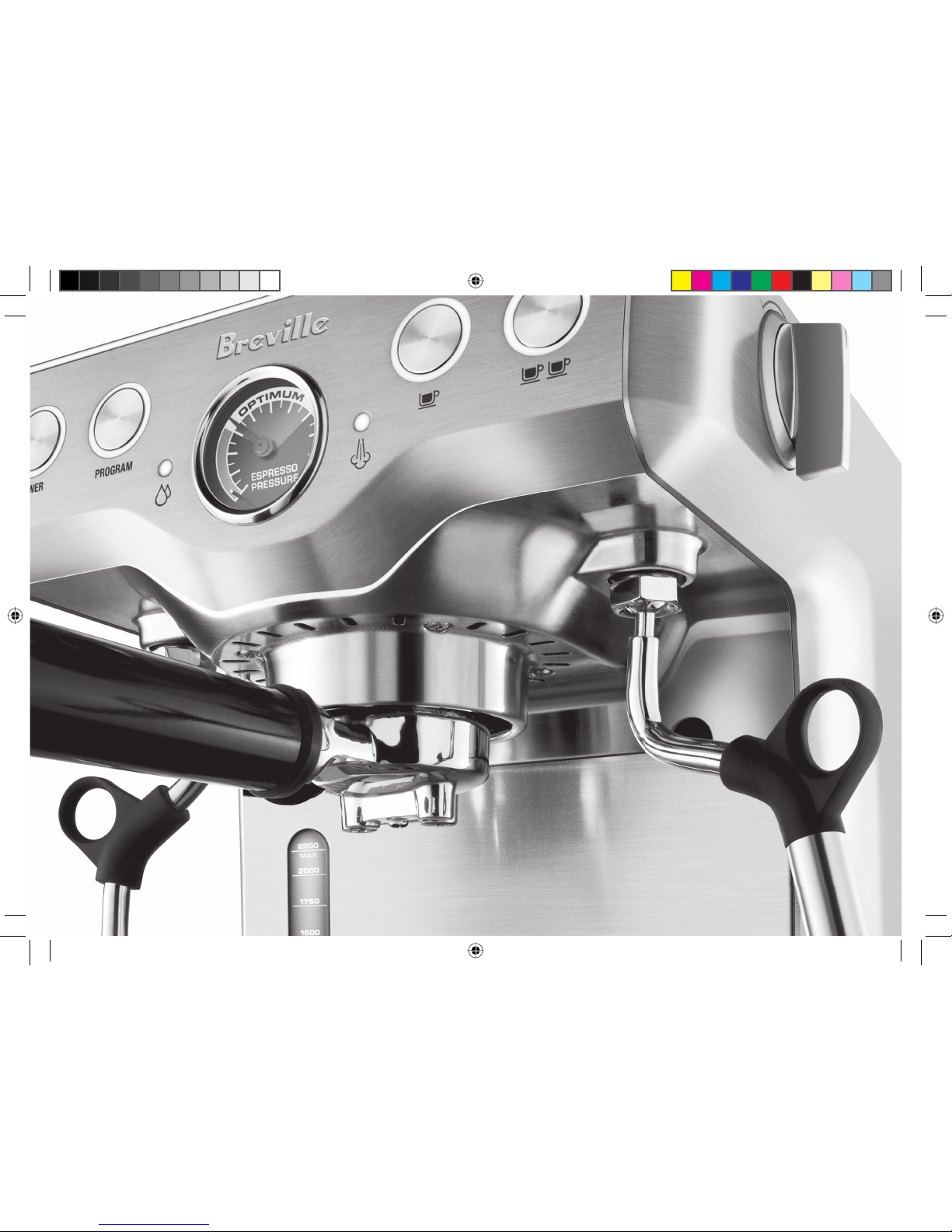

KNOW YOUR BREVILLE PROFESSIONAL 800 COLLECTION™ PROGRAMMABLE ESPRESSO MACHINE (continued)
External viewing back-lit
water window Swivel steam wand and stainless
steel frothing attachment
easily adjusts to perfect positioning for
frothing milk
Espresso pressure gauge
assists in obtaining the most favourable
extraction pressure
Group head
for easy fitment of the filter holder
Advanced dual wall créma system
for the ideal créma
Programmable features:
1 cup button and 2 cup button
Solid chrome brass filter holder
Thermoblock heating system
ensures coffee is extracted at the
correct temperature
NOT SHOWN
Cord storage
Storage tray
located behind the drip tray for storage
of accessories
Selector control for steam or hot water
Removable 2.2 litre water tank
filled from the front of the machine
Program button
Intelligent programmable function
that can be personalised with your
favourite espresso setting
BES820 IB V6.indd 10BES820 IB V6.indd 10 19/9/07 2:23:45 PM19/9/07 2:23:45 PM
