Bridgeworks Tamar FCSAS102800 User manual

Tamar
FCSAS102800
FC to SAS Bridge
User Manual
Eli-v4.05.204
Bridgeworks
Unit 1, Aero Centre, Ampress Lane,
Ampress Park, Lymington,
Hampshire SO41 8LW
Tel: [phone]
Email: [email protected]

Warning
The Bridgeworks Tamar FCSAS102800 Fibre Channel to SAS Bridge contains no user serviceable
components. Only an Authorised Service Centre should carry out any servicing or repairs. Unauthorised
repairs or modifications will immediately void your warranty.
Before you start
There are a number of additional pieces of equipment you will require for the successful installation
of your Bridge:
Ethernet Cable
You will require at least one good quality cable of suitable length to go between your network
access point and the Bridge. This should be marked as certified to Cat 5e and have an RJ45 style
connector at the Bridge end.
SAS Cable
The Bridge uses a “Mini SAS” style connector, also known as an “iPASS” or “8088” connector, with
4 SAS connections per port. You will require a SAS cable that supports this connector at the Bridge
end and the type of connector your peripheral device supports at the other end.
Fibre Channel Cable
You will require at least one Multi-mode Optical Fibre 50/125 OM3/OM4 Patch Cable (LC) of suitable
length to go between your Bridge and device, host, or Fibre Channel switch.
If you are in any doubt, please contact your reseller for assistance.
2

Table of Contents
1 Introduction 6
1.1 ManualLayout ....................................... 7
1.1.1 SCSITargetDevice ................................ 7
1.1.2 Logical Unit Number (LUN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 SafetyNotices ....................................... 8
2 Installing the FCSAS102800 Bridge 10
2.1 Connecting the Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 ConnectingtheSAScables ................................ 11
2.3 Connecting the Fibre Channel Interface . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.4 Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Using the Web Interface 15
3.1 Browsers .......................................... 15
3.2 Connecting to the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3 Management Console (Home screen) . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Bridge Configuration 18
4.1 NetworkConnections ................................... 18
4.1.1 Global Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1.1.1 Hostname ................................ 19
4.1.1.2 EnableIPv6 ............................... 19
4.1.2 NetworkInterfaces................................. 19
4.1.2.1 SettingtheMTU............................. 20
4.1.2.2 Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1.2.3 Committing the Changes . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Passwords&Security ................................... 21
4.2.1 SystemPassword ................................. 22
4.2.2 SecureConnection................................. 22
3

4.3 ServiceControl....................................... 22
4.3.1 Simple Network Time Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3.2 Event Notification Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.3.3 Simple Mail Transfer Protocol (SMTP) . . . . . . . . . . . . . . . . . . . . . . 24
5 Fibre Channel Target Connections 26
5.1 PortConfiguration ..................................... 27
5.2 ConnectedHosts...................................... 28
5.3 PortMap .......................................... 28
6 SCSI Device Management 31
6.1 ViewingAttachedDevices................................. 31
6.2 ViewingDeviceMappings................................. 32
7 Bridge Maintenance 33
7.1 SystemInformation..................................... 33
7.2 SystemLog......................................... 34
7.3 Load/SaveConfiguration ................................. 35
7.3.1 Saving the Configuration to Disk . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.3.2 Restore to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.4 FirmwareUpdates ..................................... 36
7.5 Diagnostics ......................................... 38
7.6 TaskScheduler....................................... 38
7.6.1 AddingTasks.................................... 39
7.6.2 Removing/Editing Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.6.3 TaskWizard .................................... 41
7.6.3.1 Action - Email Performance Statistics . . . . . . . . . . . . . . . . . 41
7.6.3.2 Trigger .................................. 42
7.6.3.3 StartDate ................................ 43
7.6.3.4 EndDate................................. 44
7.6.3.5 Summary................................. 44
4

8 Troubleshooting 46
8.1 NetworkProblems ..................................... 46
8.2 DeviceRelatedProblems ................................. 46
8.3 LostIPAddress....................................... 47
8.3.1 DownloadingLANScan.............................. 47
8.3.2 UsingLANScan .................................. 47
Appendix A Accessing the Bridge from Windows using a static IP Address 49
A.1 WindowsServer2003 ................................... 49
A.2 Windows Vista, Server 2008 or 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Appendix B Useful Links 55
Appendix C Technical Specifications 56
5

Introduction
Thank you for purchasing the Bridgeworks Tamar FCSAS102800 Fibre Channel to SAS Bridge.
6

Manual Layout
Throughout the manual, symbols will be used to quickly identify different pieces of information.
This icon represents a note of interest about a step or section of information.
This icon represents an important piece of information.
This icon represents a warning. Care must be taken and the warning should
be read thoroughly.
SCSI Target Device
A SCSI device is a device that is connected to the SCSI bus that can be accessed by the Server.
Each device on the SCSI bus has a Unique ID number in the range 0-15.
Note: By convention, ID 7 on the SCSI Bus is reserved by the Server’s Host
Bus Adaptor.
Logical Unit Number (LUN)
Each SCSI device on the SCSI bus can support sub-devices. These are called LUNs.
7

Safety Notices
This device should only be installed by suitably trained personnel.
Protection provided by the equipment may be impaired if used in a manner
not specified by the manufacturer.
Do not block the enclosure’s vents. Air enters from the front and is exhausted
out the back of the device.
This device is connected to the AC power line. Before using the device,
please read the instructions carefully, in order to use the device correctly
and safely. For the installation instructions, refer to Chapter 2: Installing the
FCSAS102800 Bridge.
Class I Equipment. This equipment must be earthed. The power plug must
be connected to a properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on accessible metal parts.
Do not attempt to service the equipment yourself. Doing so will void the
warranty and may damage the system. This unit contains hazardous voltages
and should only be opened by a trained and qualified technician. To prevent
electric shock, do not remove the cover. There are no user-serviceable parts
inside.
The power cord is used as a disconnection device. To de-energise the
equipment, disconnect the power cord.
Do not use the equipment where it can get wet. Protect equipment from liquid
intrusion. If your equipment gets wet, disconnect power to the equipment
and to any attached devices. If the Bridge is connected to an electrical outlet,
turn off the AC power at the circuit breaker before attempting to remove the
power cables from the electrical outlet. Disconnect any attached devices.
Use only the power supply cord set provided with the system for this unit.
Should this not be correct for your geographical area, please contact your
supplier.
The mains plug to the rear of the unit is used as the power disconnect device;
please ensure that this is kept clear from any obstruction and is visible at all
times.
Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
8

Class 1 Laser Product: Certain models will use a Small Form factor Pluggable
(SFP) Transceiver module for connection to an optical network. These devices
may use a Class 1 Laser device—it is important that you do not stare into the
Laser beam.
9

Installing the FCSAS102800 Bridge
The following are the basic steps to installing the FCSAS102800:
• Connecting the Ethernet cables
• Connecting the SAS cables
• Connecting the Fibre Channel Interface
• Connecting the Power Supply
Connecting the Ethernet Interface
The FCSAS102800 Management Interface can be used on the following network configurations:
• 10BASE-T
• 100BASE-T
• 1000BASE-T (Gigabit)
It is not necessary to specify which network type you are connected to, as the FCSAS102800 will
automatically select the correct network speed.
The connection to the management Ethernet network can be found at the back of the FCSAS102800,
labelled “MGMT A” and “MGMT B”.
To connect the FCSAS102800 to the management Ethernet network, insert a Cat 5E cable (or
better) into one of the “MGMT” ports at the back of the unit as shown in the following image. When
the plug is in the correct position a “click” should be heard. The other end of the cable should be
connected to a network.
10

Rear Panel of the FCSAS102800 Showing Ethernet Cable Connections
Connecting the SAS cables
The SAS bus on the Bridge is capable of running at speeds of up to 6Gbits/s. However, devices
that operate at slower speeds (1.5 Gbits/s and 3Gbits/s) can still be connected to this SAS bus.
The Bridge will automatically negotiate with these devices to obtain their optimal operating speed
upon power up. Each SAS wide port can support up to 4 PHYs.
Connect the SAS cable(s) to the Bridge as shown below, ensuring that connector is the correct way
up.
11

Note: Each SAS wide port supports 4 independent SAS channels or PHYs.
You can use either wide port as the initial port.
Connecting the Fibre Channel Interface
With a 8Gb Fibre Channel card installed, the FCSAS102800 may utilise the following link speeds:
• 2GB
• 4GB
• 8GB
It is not necessary to specify which link speed you are using as the FCSAS102800 will automatically
negotiate the best speed when first powered up.

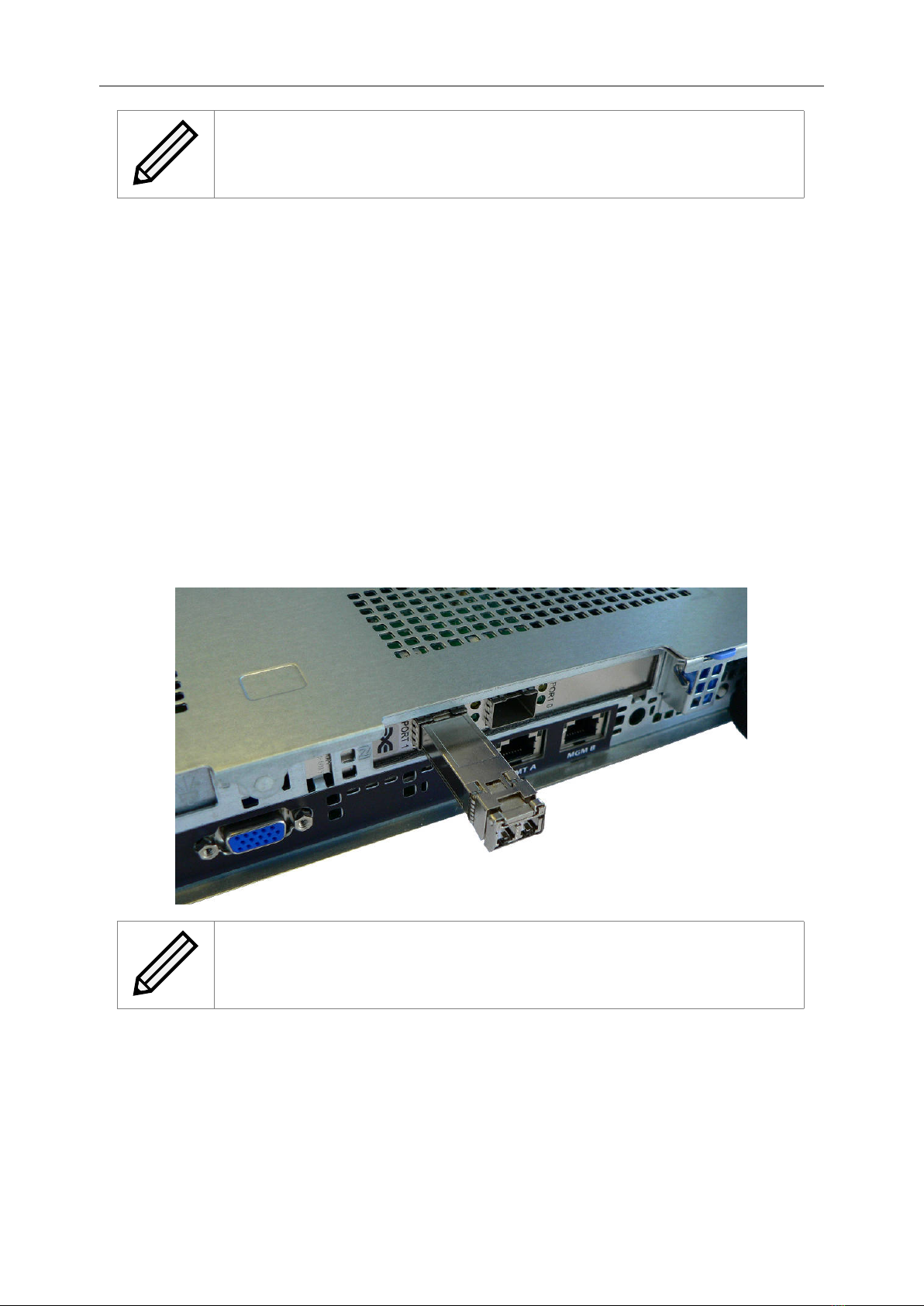

To connect to the Fibre Channel network, a Small Form-factor Pluggable (SFP) interface module
must be inserted into the SFP receptacle at the back of the FCSAS102800 as shown in the following
image.
Note: Only use SFP transceivers that meet or exceed the following standards:
EU: IEC/EN 60825-1, North America: FCC, CDRH
The following Optical Fibre cables may be used:
• Multi-mode Optical Fibre 50/125 OM3 Patch Cable (LC), up to 300 meters.
• Multi-mode Optical Fibre 50/125 OM4 Patch Cable (LC), up to 550 meters.
When the multi-mode cables are inserted in to the SFP, a “click” should be heard.
12

Connecting the Power Supply
Important: Before connecting the power cord, ensure that the wall or rack
plug is removed or is switched off.

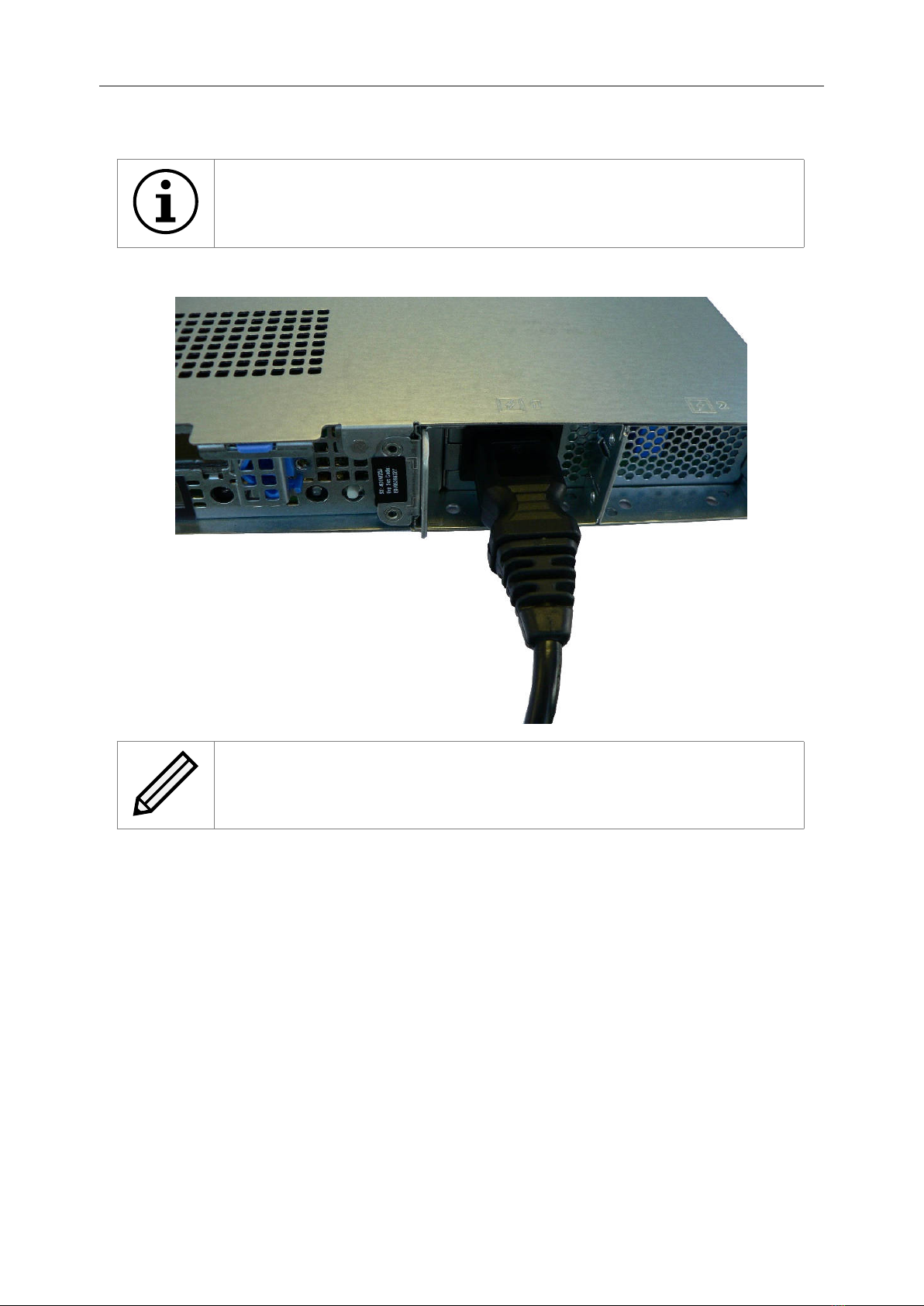

Connect the power cord to the rear of the FCSAS102800 as shown in the following image.
Note: Before powering up the FCSAS102800, ensure that all peripherals
are properly connected and are powered up, and that you have connected a
Management port to your network.
To turn on the FCSAS102800 push the switch on the opposite side to the power connector. The
following image shows the switch. Whenever the FCSAS102800 is powered on, the switch will be
illuminated in the colour green and system fans will be easily heard.
13

14

Using the Web Interface
The primary method for configuring any option is through the web interface. The following section
highlights the requirements needed to access the web interface of the Bridge.
Browsers
This Bridge supports the following browsers:
• Microsoft Internet Explorer 10
• Microsoft Internet Explorer 11
• Microsoft Edge1
• Mozilla Firefox 61.0.1 1
• Google Chrome 66 1
Note: JavaScript must be enabled within the web browser to use the web
interface.
Important: If you choose to use a browser that is not in the list of supported
browsers, Bridgeworks cannot guarantee the behaviour of the Bridge’s
functionality.
Connecting to the Web Interface
Note:
• DHCP is enabled by default on the management interface.
• The default hostname is bridgeworks.
• The default static IP address of the management interfaces are:
Management A (left-hand interface) 10.10.10.10
Management B (right-hand interface) 10.10.10.12
If the Bridge is successfully connected to your DHCP server, and DNS resolution is enabled on
your network by default, you can access the Bridge’s web interface from the default hostname by
navigating to: http://bridgeworks/
1Latest version as of release
15

If the Bridge fails to receive a DHCP address, the web interface can be accessed from the default
static IP address by navigating to: http://10.10.10.10/ or http://10.10.10.12/
Important: Your host will likely need to be directly-connected to the Bridge
if DHCP is not enabled, and its subnet set appropriately. See Appendix A:
Accessing the Bridge from Windows using a static IP Address for help with
accessing the Bridge web interface without DHCP.
From within your web browser, connect to the Bridge’s web interface using default hostname or IP
address of a connected management interface.
Once you have connected to the web interface on the Bridge you will see the entry page shown
below:
Enter and confirm the new web interface password to be presented with the login screen. The
password must be between 5 and 65 characters and can contain symbols and numbers.
To access the web interface a username and password must be used. The default username is:
• Username: admin
16

Management Console (Home screen)
The web interface will now display the Console Home screen as shown below:
The web interface is split into two sections. The left hand Bridge Menu panel typically remains
constant wherever you are within the web interface. It allows you to reboot or logout of the web
interface. The Home link may be used from any page to return to the Home screen.
Note: Whenever a Reboot command is issued, it may take several minutes
for the Bridge to become accessible again.
The Support link will open up a new tab in your browser at the Bridgeworks website support page.
The Help is contextually aware of which page you are currently viewing on the web interface and
will provide you with help relevant to the display and configuration data.
17

Bridge Configuration
This section details the configuration of the Bridge’s basic network and service settings.
Network Connections
This configuration page allows the administrator to configure network interface settings and view
network statistics.
From the Home screen, select the Network Connections icon under the Bridge Configuration
section.
The web interface will display the following:
18

Global Network Configuration
Hostname
In the Hostname field, enter the name you wish to use to address this Bridge. It is a good idea to
make the name relevant to the Bridge’s location and/or purpose.
You can then access the web interface from this hostname in future, from any DHCP-enabled
management interface.
Enable IPv6
Selecting the Enable IPv6 checkbox will enable the Bridge to use IPv6 addresses. As with IPv4,
you can either choose to use DHCP or assign a static IPv6 address.
Network Interfaces
This section displays each network port present on the Bridge, along with its current status/link
speed, and hardware identifier (MAC address).
To change the settings of a specific network port, click on its icon. The web interface will display the
page for the port.
19

Setting the MTU
Enabling larger frames on a jumbo frame-capable network can improve your network throughput.
Jumbo frames are Ethernet frames that contain more than 1500 bytes of payload (MTU).
Before enabling jumbo frames, ensure that all the devices/hosts located on the network support
the jumbo frame size that you intend to use to communicate with the Bridge. If you experience
network-related problems while using jumbo frames, use a smaller jumbo frame size. Consult your
networking equipment documentation for additional instructions.
Important: Some networking switches require you to specify the size of the
jumbo frame (MTU) when enabling, as opposed to a simple enable command.
On these switches it might be required to add the necessary bytes needed for
the frame header to the MTU size you specify in the Bridge’s port configuration.
Typical header size is 28 bytes, so a 9000 byte MTU could translate to a
9028-byte total size. Refer to your switch documentation to understand what
the maximum frame size settings are for your switch.
20
