Bridgeworks WANrockIT 200 User manual

WANrockIT 200
Fibre Channel Node
User Manual
Eli-v4.05.204
Bridgeworks
Unit 1, Aero Centre, Ampress Lane,
Ampress Park, Lymington,
Hampshire SO41 8LW
Tel: [phone]
Email: [email protected]

Warning
The Bridgeworks WANrockIT 200 Node contains no user serviceable components. Only an
Authorised Service Centre should carry out any servicing or repairs. Unauthorised repairs or
modifications will immediately void your warranty.
Before you start
There are a number of additional pieces of equipment you will require for the successful installation
of your Node:
Ethernet Cable
You will require at least one good quality cable of suitable length to go between your network access
point and the Node. This should be marked as certified to Cat 5e and have an RJ45 style connector
at the Node end.
Fibre Channel Cable
You will require at least one Multi-mode Optical Fibre 50/125 OM3/OM4 Patch Cable (LC) of suitable
length to go between your Node and device, host, or Fibre Channel switch.
If you are in any doubt, please contact your reseller for assistance.
2

Table of Contents
1 Introduction 7
1.1 Overview .......................................... 7
1.2 ManualLayout ....................................... 8
1.3 Definitions.......................................... 8
1.3.1 Logical Unit Number (LUN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.3.2 Node ........................................ 8
1.3.3 TargetDevice.................................... 8
1.3.4 InitiatingDevice .................................. 8
1.4 SafetyNotices ....................................... 9
2 Quick Start Guide 11
3 Installing the WANrockIT 200 Node 12
3.1 Connecting the Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Connecting the Fibre Channel Interface . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Using the Web Interface 15
4.1 Browsers .......................................... 15
4.2 Connecting to the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Management Console (Home screen) . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Node Configuration 19
5.1 NetworkConnections ................................... 19
5.1.1 Global Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1.1.1 Hostname ................................ 19
5.1.1.2 EnableIPv6 ............................... 20
5.1.2 NetworkInterfaces................................. 20
5.1.2.1 SettingtheMTU............................. 21
5.1.2.2 Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . 21
3

5.1.2.3 Committing the Changes . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2 Passwords&Security ................................... 22
5.2.1 SystemPassword ................................. 22
5.2.2 SecureConnection................................. 23
5.2.3 IPsec ........................................ 23
5.3 ServiceControl....................................... 23
5.3.1 Simple Network Time Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3.2 Event Notification Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.3.3 Simple Mail Transfer Protocol (SMTP) . . . . . . . . . . . . . . . . . . . . . . 25
6 WANrockIT Configuration 26
6.1 NodeManagement..................................... 26
6.1.1 Remote Node Access Whitelist . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1.2 AddingNodes ................................... 28
6.1.3 RemoteControl .................................. 30
6.1.4 Configuring a Node’s Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.1.4.1 Setting Primary and Failover Paths . . . . . . . . . . . . . . . . . . 32
6.1.5 Configuring a Node’s Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.1.6 Learning ...................................... 34
6.1.7 RestoringofaNode ................................ 35
6.2 Remote SCSI Target Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.2.1 Refreshing SCSI Devices from a Remote Node . . . . . . . . . . . . . . . . . 36
6.2.2 RestoringofDevices................................ 38
6.3 TransferStatistics ..................................... 38
6.3.1 Data Transmission Performance . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.3.2 Download 24 Hour Transfer History . . . . . . . . . . . . . . . . . . . . . . . 41
7 Fibre Channel Target Connections 43
7.1 PortConfiguration ..................................... 44
7.2 ConnectedHosts...................................... 45
7.3 PortMap .......................................... 45
4

8 Fibre Channel Initiator Connections 48
9 SCSI Device Management 51
9.1 ViewingAttachedDevices................................. 51
9.2 ViewingDeviceMappings................................. 52
10 Node Maintenance 54
10.1SystemInformation..................................... 54
10.2SystemLog......................................... 55
10.3Load/SaveConfiguration ................................. 56
10.3.1 Saving the Configuration to Disk . . . . . . . . . . . . . . . . . . . . . . . . . 56
10.3.2 Restore to Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
10.4FirmwareUpdates ..................................... 57
10.5Diagnostics......................................... 58
10.6TaskScheduler....................................... 59
10.6.1AddingTasks.................................... 60
10.6.2 Removing/Editing Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
10.6.3TaskWizard .................................... 62
10.6.3.1 Action - Email Performance Statistics . . . . . . . . . . . . . . . . . 62
10.6.3.2 Action - WANrockIT Bandwidth Limit . . . . . . . . . . . . . . . . . . 63
10.6.3.3Trigger .................................. 64
10.6.3.4StartDate ................................ 65
10.6.3.5EndDate................................. 65
10.6.3.6Summary................................. 66
11 Troubleshooting 67
11.1NetworkProblems ..................................... 67
11.2DeviceRelatedProblems ................................. 67
11.3LostIPAddress....................................... 67
11.3.1DownloadingLANScan.............................. 68
11.3.2UsingLANScan .................................. 68
5

Appendix A Accessing the Node from Windows using a static IP Address 69
A.1 WindowsServer2003 ................................... 69
A.2 Windows Vista, Server 2008 or 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Appendix B Transfer Statistics Graphing Instructions for Excel 2010 75
Appendix C Useful Links 82
Appendix D Technical Specifications 83
6

Introduction
Thank you for purchasing the Bridgeworks WANrockIT 200 Node.
The Node has been designed to ensure that in the majority of installations it will require minimal
setup before use. However, we suggest you read the following section which will guide you through
setting up your WANrockIT 200.
Overview
The WANrockIT product range has been designed to connect storage devices over long distance,
high latency, TCP/IP networks with very little loss in performance. It supports all the major storage
protocols such as Fibre Channel, iSCSI and SAS. More interfaces will be added, as they become
part of the mainstream storage protocols.
Each Node’s storage interface can be configured to act either as a target interface - working in a
similar mode to a storage device - or as an initiator - working in a similar mode to a server. Or, if the
WANrockIT Node has multiple storage interfaces, one can be configured to be an initiator and one
as a target device.
A unique part of WANrockIT functionality is that all the Nodes within a WANrockIT installation do
not have to have the same storage interface. A typical configuration is shown in the image below,
where traffic from a server on site A is accelerated over a WAN link to site B.
Host WANrockIT Node WANrockIT Node Storage
WAN Link
Site A Site B
7

Manual Layout
Throughout the manual, symbols will be used to quickly identify different pieces of information.
This icon represents a note of interest about a step or section of information.
This icon represents an important piece of information.
This icon represents a warning. Care must be taken and the warning should
be read thoroughly.
Definitions
Throughout this manual, selected terms will be used to describe pieces of equipment and concepts.
This section provides an explanation of those terms.
Logical Unit Number (LUN)
Each SCSI device on the SCSI bus can support sub-devices. These are called LUNs.
Node
A Node refers to the physical WANrockIT unit you have purchased.
Target Device
A disk or tape drive connected to a Node.
Initiating Device
A computer or other piece of equipment, which can perform backups connected to a Node.
8

Safety Notices
This device should only be installed by suitably trained personnel.
Protection provided by the equipment may be impaired if used in a manner
not specified by the manufacturer.
Do not block the enclosure’s vents. Air enters from the front and is exhausted
out the back of the device.
This device is connected to the AC power line. Before using the device,
please read the instructions carefully, in order to use the device correctly
and safely. For the installation instructions, refer to Chapter 3: Installing the
WANrockIT 200 Node.
Class I Equipment. This equipment must be earthed. The power plug must
be connected to a properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on accessible metal parts.
Do not attempt to service the equipment yourself. Doing so will void the
warranty and may damage the system. This unit contains hazardous voltages
and should only be opened by a trained and qualified technician. To prevent
electric shock, do not remove the cover. There are no user-serviceable parts
inside.
The power cord is used as a disconnection device. To de-energise the
equipment, disconnect the power cord.
Do not use the equipment where it can get wet. Protect equipment from liquid
intrusion. If your equipment gets wet, disconnect power to the equipment
and to any attached devices. If the Node is connected to an electrical outlet,
turn off the AC power at the circuit breaker before attempting to remove the
power cables from the electrical outlet. Disconnect any attached devices.
Use only the power supply cord set provided with the system for this unit.
Should this not be correct for your geographical area, please contact your
supplier.
The mains plug to the rear of the unit is used as the power disconnect device;
please ensure that this is kept clear from any obstruction and is visible at all
times.
Before installing or removing signal cables, ensure that the power cables for
the system unit and all attached devices are unplugged.
To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.
9

Class 1 Laser Product: Certain models will use a Small Form factor Pluggable
(SFP) Transceiver module for connection to an optical network. These devices
may use a Class 1 Laser device—it is important that you do not stare into the
Laser beam.
10

Quick Start Guide
The following are basic steps required to setting up your WANrockIT 200. These instructions are
meant for those that have previously read this manual, and are setting up an additional Node. If
this is your first time setting up a Node, please read all the sections in this manual to ensure that all
the parameters of the WANrockIT 200 are set up properly.
1. Connect the “MGMT” and “WAN” ports found behind the WANrockIT 200 to your network.
See Section 3.1: Connecting the Ethernet Interface.

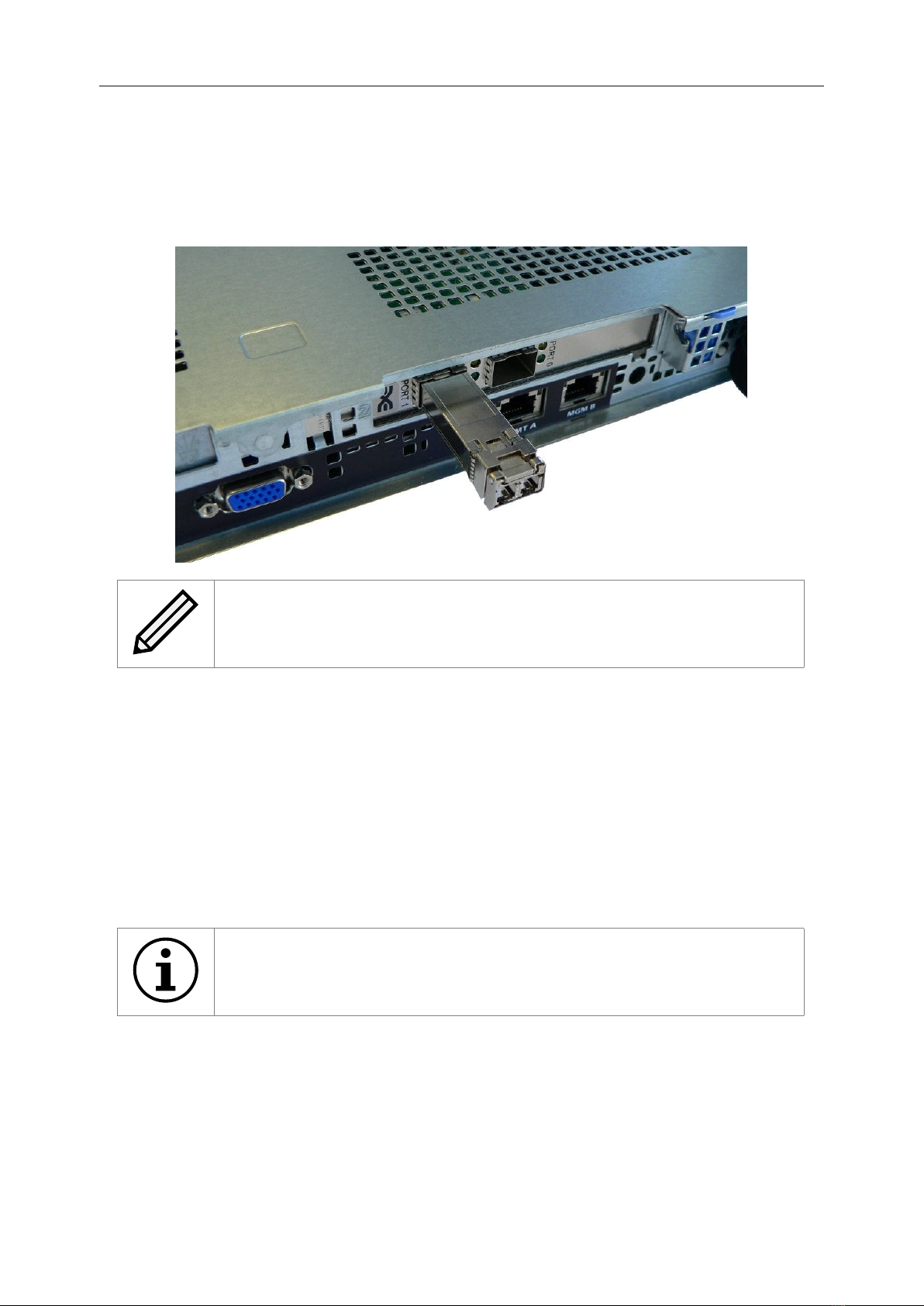

2. Connect the Fibre Channel ports found behind the WANrockIT 200 to your Fibre Channel
device and host. By default, Port A (left port) is the Target port, and Port B (right port) is the
Initiator port. See Section 3.2: Connecting the Fibre Channel Interface.
3. Power on the WANrockIT 200. See Section 3.3: Connecting the Power Supply.
4. If your WANrockIT 200 is in a remote location, use a local Node to Remotely Control it. Add
the remote Node in Node Management and Start Remote Control. See Section 6.1.2: Adding
Nodes.

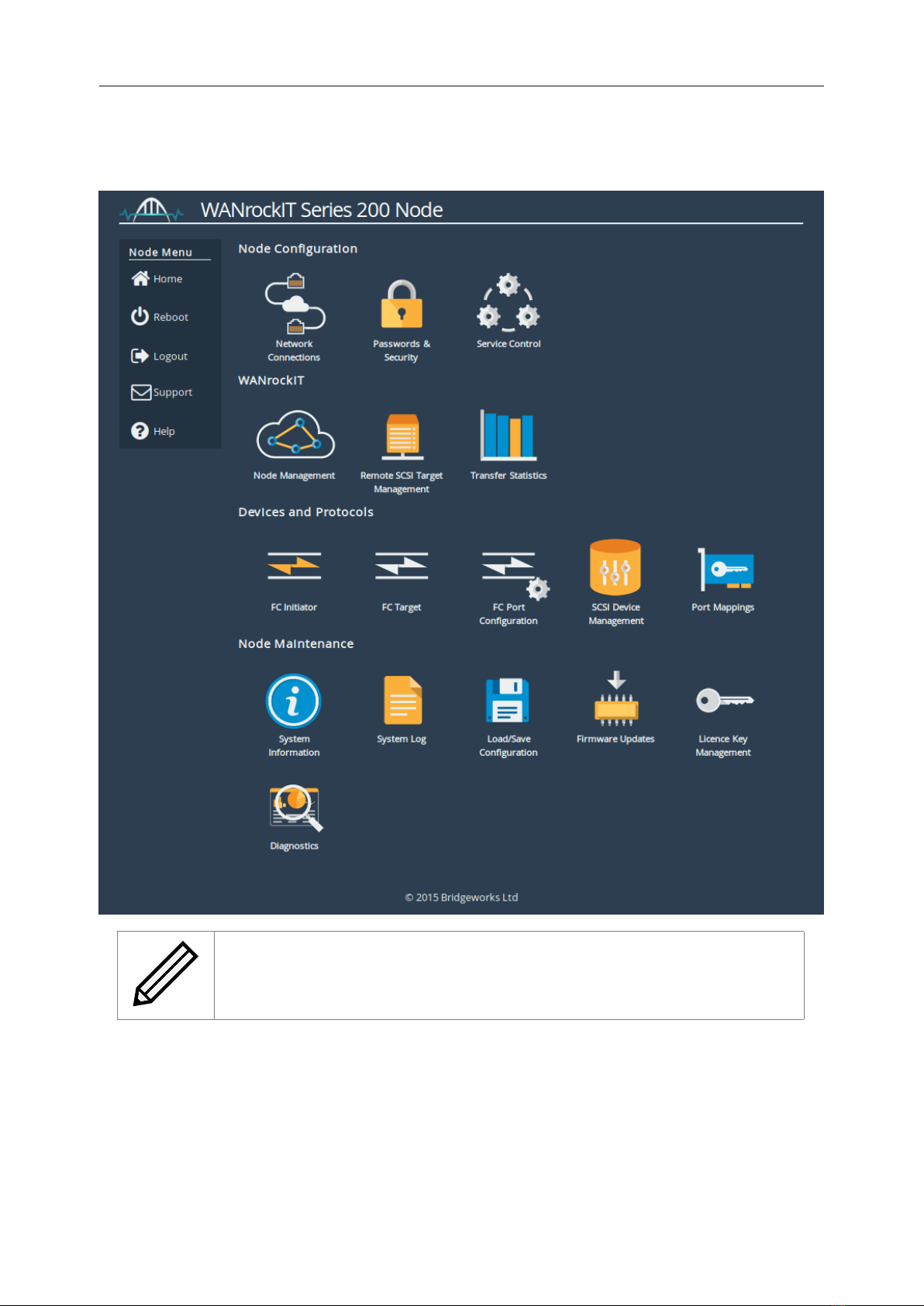

5. Login to the web interface and set your new password. See Chapter 4: Using the Web
Interface.
6. Add a remote node in the Node Management page. See Chapter 6: WANrockIT Configuration.
7. Perform a Learn between your WANrockIT 200 and the remote node. If the speed between
your nodes is less than what you expect, ensure that the network the WAN port is connected
to is not already congested. See Section 6.1.6: Learning.
8. Enable devices connected to the remote node using the Remote SCSI Target Management
page. See Section 6.2: Remote SCSI Target Management.
11

Installing the WANrockIT 200 Node
The following are the basic steps to installing the WANrockIT 200:
• Connecting the Ethernet cables
• Connecting the Fibre Channel Interface
• Connecting the Power Supply
Connecting the Ethernet Interface
The WANrockIT 200 Management Interface and onboard WAN Interface can be used on the
following network configurations:
• 10BASE-T
• 100BASE-T
• 1000BASE-T (Gigabit)
It is not necessary to specify which network type you are connected to, as the WANrockIT 200 will
automatically select the correct network speed.
The connection to the management Ethernet network can be found at the back of the WANrockIT
200, labelled “MGMT A”.
To connect the WANrockIT 200 to the management Ethernet network, insert a Cat 5E cable (or
better) into the “MGMT” port at the back of the unit . When the plug is in the correct position a “click”
should be heard. The other end of the cable should be connected to a network.
The WAN port can be found at the back of the WANrockIT 200, labelled “WAN”.
To connect the “WAN” port, insert a Cat 5E cable (or better) in to the port. The other end of the
cable should be connected to a network.
Important: If the “WAN” port is connected to a congested network, the
performance of Node-to-Node data transfer may be affected.
Connecting the Fibre Channel Interface
With a 8Gb Fibre Channel card installed, the WANrockIT 200 may utilise the following link speeds:
• 2GB
• 4GB
• 8GB
12

It is not necessary to specify which link speed you are using as the WANrockIT 200 will automatically
negotiate the best speed when first powered up.
To connect to the Fibre Channel network, a Small Form-factor Pluggable (SFP) interface module
must be inserted into the SFP receptacle at the back of the WANrockIT 200 as shown in the following
image.
Note: Only use SFP transceivers that meet or exceed the following standards:
EU: IEC/EN 60825-1, North America: FCC, CDRH
The following Optical Fibre cables may be used:
• Multi-mode Optical Fibre 50/125 OM3 Patch Cable (LC), up to 300 meters.
• Multi-mode Optical Fibre 50/125 OM4 Patch Cable (LC), up to 550 meters.
When the multi-mode cables are inserted in to the SFP, a “click” should be heard.
Connecting the Power Supply
Important: Before connecting the power cord, ensure that the wall or rack
plug is removed or is switched off.
The WANrockIT 200 contains two power supplies in a redundant supply configuration. The system
evenly distributes power across both power supplies to maximise efficiency. In order to utilise this
feature, please ensure that both power supplies are connected.
Connect the power supply to the rear of the WANrockIT 200 as shown below and turn on the power
from the wall socket.
13

Note: Before powering up the WANrockIT 200, ensure that all peripherals
are properly connected and are powered up, and that you have connected
the Management port and the WAN porto your network.
To turn on the WANrockIT 200 push the switch on the opposite side to the power connector. The
following image shows the switch. Whenever the WANrockIT 200 is powered on, the switch will be
illuminated in the colour green and system fans will be easily heard.
14

Using the Web Interface
The primary method for configuring any option is through the web interface. The following section
highlights the requirements needed to access the web interface of the Node.
Browsers
This Node supports the following browsers:
• Microsoft Internet Explorer 10
• Microsoft Internet Explorer 11
• Microsoft Edge1
• Mozilla Firefox 61.0.1 1
• Google Chrome 66 1
Note: JavaScript must be enabled within the web browser to use the web
interface.
Important: If you choose to use a browser that is not in the list of supported
browsers, Bridgeworks cannot guarantee the behaviour of the Node’s
functionality.
Connecting to the Web Interface
Note:
• DHCP is enabled by default on the management interface.
• The default hostname is bridgeworks.
• The default static IP address of the management interface is:
Management A 10.10.10.10
If the Node is successfully connected to your DHCP server, and DNS resolution is enabled on
your network by default, you can access the Node’s web interface from the default hostname by
navigating to: http://bridgeworks/
If the Node fails to receive a DHCP address, the web interface can be accessed from the default
static IP address by navigating to: http://10.10.10.10/ or http://10.10.10.12/
1Latest version as of release
15

Important: Your host will likely need to be directly-connected to the Node
if DHCP is not enabled, and its subnet set appropriately. See Appendix A:
Accessing the Node from Windows using a static IP Address for help with
accessing the Node web interface without DHCP.
From within your web browser, connect to the Node’s web interface using default hostname or IP
address of a connected management interface.
Once you have connected to the web interface on the Node you will see the entry page shown
below:
Enter and confirm the new web interface password to be presented with the login screen. The
password must be between 5 and 65 characters and can contain symbols and numbers.
To access the web interface a username and password must be used. The default username is:
• Username: admin
16

Management Console (Home screen)
The web interface will now display the Console Home screen as shown below:
Note: The web interface may have different icons to the ones shown above
depending on the configuration you have purchased.
The web interface is split into two sections. The left hand Node Menu panel typically remains
constant wherever you are within the web interface. It allows you to reboot or logout of the web
interface. The Home link may be used from any page to return to the Home screen.
17

Note: Whenever a Reboot command is issued, it may take several minutes
for the Node to become accessible again.
The Support link will open up a new tab in your browser at the Bridgeworks website support page.
The Help is contextually aware of which page you are currently viewing on the web interface and
will provide you with help relevant to the display and configuration data.
18

Node Configuration
This section details the configuration of the Node’s basic network and service settings.
Network Connections
This configuration page allows the administrator to configure network interface settings and view
network statistics.
From the Home screen, select the Network Connections icon under the Node Configuration section.
The web interface will display the following:
Global Network Configuration
Hostname
In the Hostname field, enter the name you wish to use to address this Node. It is a good idea to
make the name relevant to the Node’s location and/or purpose.
19

You can then access the web interface from this hostname in future, from any DHCP-enabled
management interface.
Enable IPv6
Selecting the Enable IPv6 checkbox will enable the Node to use IPv6 addresses. As with IPv4, you
can either choose to use DHCP or assign a static IPv6 address.
Network Interfaces
This section displays each network port present on the Node, along with its current status/link
speed, and hardware identifier (MAC address).
To change the settings of a specific network port, click on its icon. The web interface will display the
page for the port.
20
