Hoods
Installation
BRIGADEBRIGADE

Table of Contents
Warnings & Important Information _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3
RDWHC Classic Chimney Wall Hoods w/Standard Ventilator
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Clearance Dimensions _______________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6
Interior Ventilator Dimensions __________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ 7
Planning Information _______________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Installation Procedure
Installation (CRVCH Classic Chimney Wall Hoods w/Standard Ventilator) _________________________ 9
Duct Cover (CRVCH Classic Chimney Wall Hoods w/Standard Ventilator) _______________________ 11
Installation (CRVCH Classic Chimney Wall Hoods w/Recirculating Kit) __________________________ 12
Service & Registration ______________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 5
3
IMPORTANT–Please Read and Follow!
NOTE: If installing hood with warming shelf panel,
install warming shelf panel first.
IMPORTANT – PLEASE READ AND FOLLOW
• Before beginning, please read these instructions
completely and carefully.
• DO NOT remove permanently affixed labels,
warnings, or plates from the product. This may
void the warranty.
• Please observe all local and national codes and
ordinances. If no local codes are applicable, wire
in accordance with the National Electrical Code,
ANSI/NFPA 70-latest edition.
• The installer should leave these instructions with
the consumer who should retain for local
inspector’s use and for future reference.
• Check with a qualified and trained installer or local
codes for makeup air requirement, if any.
This hood is for residential installation only and is
not designed for installation over a commercial
product. Make sure power is off at the main circuit
breaker or fuse box before making connections. To
avoid risk of fire, electric shock, or injury to persons,
turn off the electricity to the hood from the power
supply before servicing or cleaning.
Our hoods are equipped with the variable speed
controls for blowers. These units will not function
with a single speed ventilator. All Viking Range
Corporation ventilator kits are designed specifically
for use with Viking Range Corporation hoods. Use of
any other ventilator kit will void the hood warranty.
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF A RANGETOP
GREASE FIRE
1. Never leave surface units unattended at high
setting. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
2. Always turn hood ON when cooking at high
heat or when cooking flaming foods. (i.e.
crepes suzette, cherries jubilee, peppercorn
beef flambé).
3. Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING
1. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
2. Sufficient air is needed for proper combustion
and exhausting of gases through the flute
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), and the
American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the
local code authorities.
3. When cutting or drilling into wall or ceiling, do
not damage electrical wiring or other hidden
utilities.
4. Ducted fans must always be vented to the
outdoors.
5. WARNING!: To reduce risk of fire, use only
metal ductwork.
6. CAUTION!: To reduce risk of fire and to
properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls
or ceilings, or into attics, crawl spaces, or
garages.
7. CAUTION!: To Reduce the Risk of Fire and
Electric Shock, Install this range hood only with
remote blower models manufactured by Viking
Range Corporaton, model numbers –
DEV900/DEV1200, VEV900/VEV1200, OR
DEV1500, VEV1500 or integral blowers
manufactured by Viking Range Corporation,
model numbers – DIV300, DIV440, DIV600,
DIV800, DIV1200, VIV300, VIV600, or VIV1200.
NOTE – Please refer inside for specific
canopy/blower combinations.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
• Before servicing or cleaning unit, switch power off
at service panel and lock service panel to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
2

5
IMPORTANT–Please Read and Follow!
4
WARNING
TO REDUCE THE RISK OF
FIRE, ELECTRICAL SHOCK,
OR INJURY TO PERSONS
Range hoods must be installed
with the ventilators that are
specified on their carton
indicating suitability with this model. Other
ventilators cannot be substituted.
CAUTION
For general ventilating use only. DO NOT use
to exhaust hazardous or explosive materials
and vapors.
WARNING
TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGETOP
GREASE FIRE, OBSERVE THE
FOLLOWING. (Based on “Kitchen Firesafety
Tips,” published by NFPA.)
1. SMOTHER FLAMES with a close fitted lid,
cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out
immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN. You
may be burned.
3. DO NOT USE WATER, including wet
dishcloths or towels a violent steam
explosion will result.
4. Use an extinguisher ONLY if
• You know it is a Class ABC extinguisher,
and you already know how to operate it.
• The fire is small and contained in the area
where it started.
• The fire department is being called.
• You can fight the fire with your back to an
exit.
CRVCH Classic Chimney Wall Hoods w/Standard Ventilator
Description 30” 36”
Duct cover width 16” (40.6 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 18” (45.7 cm) to 30” (76.2 cm)
Number of lights 2
Number of filters 2
Interior ventilator kit 460 CFM
Interior duct size* 7” (17.8 cm)
Interior—Maximum amps 5.6
* Disregard when using recirculating kits.
460 CFM blower is shipped with hood.
NOTE:
All products must be hard wired with 2-wire with ground.
24”
(61.0 cm)
16”
(40.6 cm)
12”
(30.5 cm)
18”
(30.5 cm)
to
30”
(76.2 cm)
12”
(30.5 cm)
A
A (Hood width)
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
2”
(5.1 cm)
Dimensions & Specifications
(CRVCH Classic Chimney Wall Hoods w/Standard Ventilator)
NOTE: Duct cover included.

6

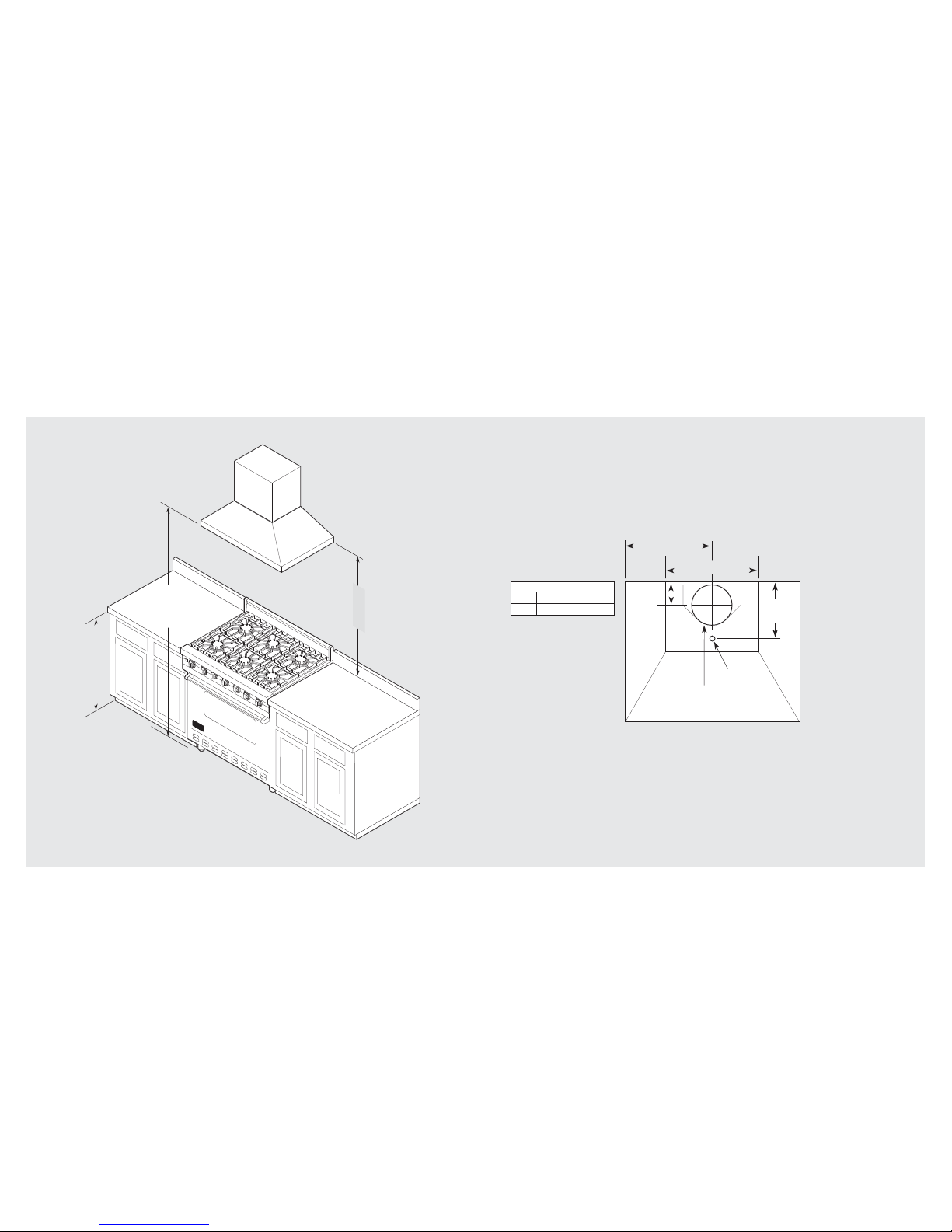

Clearance Dimensions
7
30”min.
(76.2 cm)
to
33”max.
(83.8 cm)
66”min.
(167.6 cm)
to
69”max.
(175.3 cm)
36”
(91.4 cm)
A
14-15/16” (37.9 cm)
17-15/16” (45.6 cm)
16” (40.6 cm)
A
4”
(10.2 cm)
120 V
7” (17.8 cm) dia.
duct location
9-3/4”
(24.8 cm)
30”W.
36”W.
460 CFM Interior Ventilator Installation
(CRVCH Classic Chimney Wall Hoods w/Standard Ventilator)(CRVCH Classic Chimney Wall Hoods w/Standard Ventilator)
Top view
Interior Ventilator Dimensions

98
Planning Information
Plan where the duct work will be located. Install
proper-sized duct work, roof, or wall cap for the
type of blower you are using. Adjust your
measurements for various heights of ceilings,
soffits, cabinets, or ranges/rangetops.
Proper installation of ducting is extremely
important to ensure maximum performance
from any ventilation product.
• All CFMs are based on tests at 0.1 static pressure:
without applying static pressure, CFM would be
greatly overstated.
• Straight runs and gradual turns are best; for
example, each 90º elbow is equivalent to 5-10 feet
(1.52-3.05 m) of straight run.
• Never use flexible duct; it creates back pressure/air
turbulence and greatly reduces performance.
• Proper performance is dependent on proper
ducting; make sure that a qualified and trained
installer is used.
• Check with a qualified and trained installer or local
codes for makeup air requirement, if any.
• Max. amp rating for hoods includes recommended
ventilator kit rating; all products must be hard
wired direct with 2-wire with ground.
Check Framing
NOTE: Because of the weight of the hood make sure
that the mounting screws are driven into the framing
and not just the drywall. It may be necessary to drill
additional holes in the canopy for proper alignment.
Some hoods require a locally supplied wood strip for
mounting. Check installation procedure of your hood
on page 10 to determine if a wood strip is required.
Electrical Supply
Run 120 VAC electrical wiring from service panel
to installation location. See specification pages
for the maximum amp requirements.
Roof cap
7” round duct
Duct cover or soffit
300 or 600 CFM
single blower
interior-power
typical ductwor
k
Hood
Roof cap
10” round duct
Duct cover or soffit
1200 CFM
single blower
interior power
typical ductwor
k
Hood
Exterior blower
10” round duct
Duct cover or soffit
900, 1200, or
1500 CFM
exterior power
typical ductwor
k
Hood
Duct Duct cover or soffit
Wall installation
exterior power
typical ductwork
NOTE: Wall exhaust must be a minimum of 24” (61.0 cm)
from ground. This may vary depending on local codes
and geogra
p
hic location.
Hood
Wall cap

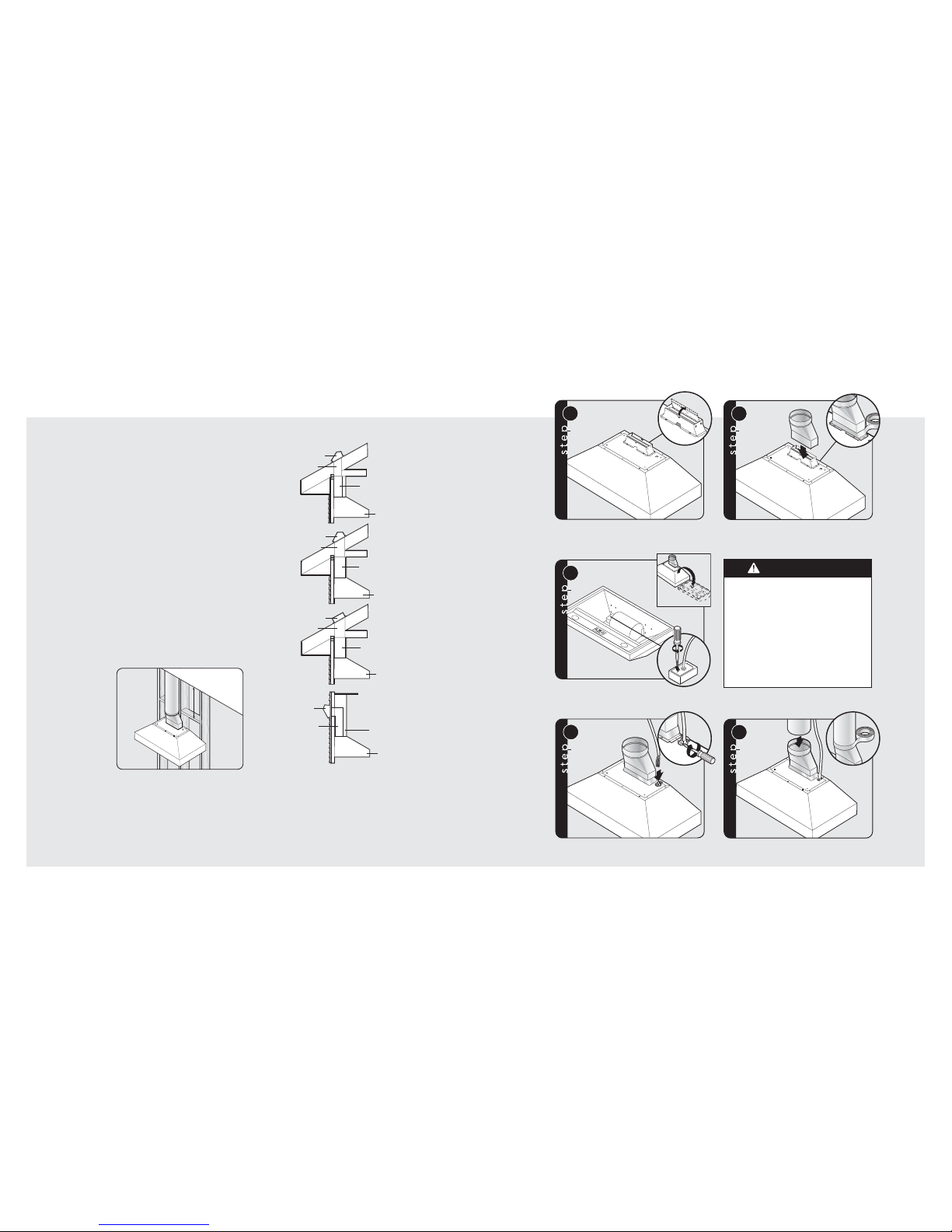

Installation (CRVCH Classic Chimney Wall Hoods w/Standard Ventilator)
1
Check damper for unrestricted movement,
adjust if necessary.
2
3
Attach transition to damper. Seal with aluminum tape.
Flip hood over and remove electrical box cover.
1
4
2
1
5
Insert 6” of electrical wiring through the
top of vent hood and secure using wiring restrain.
Refer to local codes.
Slide duct over transition and tape around joint.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING
• Use this unit only in the manner intended by
the manufacturer. If you have any questions,
contact the manufacturer.
• Before servicing or cleaning unit, switch
power off at service panel and lock service
panel to prevent power from being switched
on accidentally. When the service
disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.

1110
CAUTION: If not using a duct cover, using
screws provided make sure top mounting screws are
secured into soffit or cabinet frame. Use additional
mounting screws, if necessary.
Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE:
Housing wiring must be properly installed for
wiring to be correct when wiring unit.
5/16”
nut driver
BLACK
BLACK
WHITE
WHITE
GREEN
BARE OR GREEN
7
Replace electrical box cover. Make connection to
breaker box.
1
2
3
9
1
1
2
8
Slide spacer front over front lip. Push spacer rear up,
then slide back over rear lip.
Slide filter front over front lip. Push filter rear up,
then slide back over rear lip.
2
1
3
10 34
2
Place duct cover top inside duct cover base and lower until
desired height is found. Mark height. Use the retaining nuts and
bolts to fasten in place from the inside and remove tape.
Slide duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
1
2
Measure distance from ceiling to canopy. Tape to avoid scratching.
Duct Cover (CRVCH Classic Chimney Wall Hoods w/Standard Ventilator)
CAUTION: Secure vent hood to wall using screws
provided. Use additional mounting screws and
wall anchors, if necessary.
6
5/16”
nut driver
2
1
3
11
Slide filter front over front lip. Push filter rear up,
then slide back over rear lip.

12 13
CAUTION: Secure vent hood. Make sure mounting
screws are secured into framing using additional
mounting screws and wall anchors, if necessary.
Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE: Housing wiring must be properly installed for
wiring to be correct when wiring unit.
7
5/16”
nut driver
BLACK
BLACK
WHITE
WHITE
GREEN
BARE OR GREEN
8
3
4
5
Attach with screws and lock washers provided. Attach with screws.
Remove electrical box cover.
1
6
2
Flip hood over. Insert 6” of electrical wiring through
the top of vent hood and secure using wiring restrain.
Refer to local codes.
Replace electrical box cover. Make connection to
breaker box.
1
1
2
9
10
Slide filter front over front lip. Push filter rear up,
then slide back over rear lip.
2
1
11
3
Assemble brackets to mesh filters and insert
charcoal filters.
2
1
2
Remove damper and discard with transition. Turn recirculating unit upside down. Place vent hood
upside down on recirculating unit.
Installation (CRVCH Classic Chimney Wall Hoods w/Recirculating Kit)
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING
• Use this unit only in the manner intended by
the manufacturer. If you have any questions,
contact the manufacturer.
• Before servicing or cleaning unit, switch
power off at service panel and lock service
panel to prevent power from being switched
on accidentally. When the service
disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.

1514
Slide filter front over front lip. Push filter rear up,
then slide back over rear lip.
2
1
3
13
Slide spacer front over front lip. Push spacer rear up,
then slide back over rear lip.
2
1
3
12
Service & Parts
Only authorized replacement parts may be
used in performing service on the appliance.
DO NOT repair or replace any part of the
appliance unless specifically recommended in
the manual. All other servicing should be
referred to a qualified technician.
Record the following information indicated
below. You will need it if service is ever required.
The serial number and model number for your
appliance are located on the identification plate
mounted on the inside of the hood canopy.
Model number
_________________________________________
Serial number
_________________________________________
Date of purchase
_________________________________________
Date installed
_________________________________________
Dealer's name
_________________________________________
Address
_________________________________________
Service & Registration
