Professional Indoor and
Outdoor Hoods
Installation Guide

3
NOTE:
If installing hood with warming shelf panel, install
warming shelf panel first.
IMPORTANT – PLEASE READ AND FOLLOW
• Before beginning, please read these instructions
completely and carefully.
• Do not remove permanently affixed labels, warnings, or
plates from the product. This may void the warranty.
• Please observe all local and national codes and
ordinances. If no local codes are applicable, wire in
accordance with the National Electrical Code,
ANSI/NFPA 70-latest edition.
• Damp environment approved models should be installed
in a covered non-enclosed area and should be protected
from the elements as much as possible.
• The installer should leave these instructions with the
consumer who should retain for local inspector’s use and
for future reference.
• Check with a qualified and trained installer or local codes
for makeup air requirement, if any.
This hood is for residential installation only and is not
designed for installation over a commercial product. Make
sure power is off at the main circuit breaker or fuse box
before making connections. To avoid risk of fire, electric
shock, or injury to persons, turn off the electricity to the
hood from the power supply before servicing or cleaning.
Viking hoods are equipped with variable speed control
blowers. These units will not function with a single speed
ventilator. All Viking Range ventilator kits are designed
specifically for use with Viking Range hoods. Use of any
non-Viking Range ventilator kit will void the hood warranty.
Our hoods are equipped with the variable speed controls
for blowers. These units will not function with a single
speed ventilator. All Viking ventilator kits are designed
specifically for use with Viking hoods. Use of any non-
Viking ventilator kit will void the hood warranty.
READ AND SAVE THESE
INSTRUCTIONS
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Installation work and electrical wiring must be
done by qualified person(s) in accordance with
all applicable codes and standards, including
fire-rated construction.
2. Sufficient air is needed for proper combustion
and exhausting of gases through the flute
(chimney) of fuel burning equipment to prevent
back drafting. Follow the heating equipment
manufacturer’s guideline and safety standards
such as those published by the National Fire
Protection Association (NFPA), and the
American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the
local code authorities.
3. When cutting of drilling into wall or ceiling, do
not damage electrical wiring and other hidden
utilities.
4. Ducted fans must always be vented to the outdoors.
5. WARNING!: To reduce risk of fire, use only
metal ductwork
6. CAUTION!: To reduce risk of fire and to
properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls
or ceilings, or into attics, crawl spaces, or
garages.
7. CAUTION!: To Reduce the Risk of Fire and
Electric Shock, Install this rangehood only with
remote blower models manufactured by Viking,
model numbers – DEV900/DEV1200,
VEV900/VEV1200, OR DEV1500, VEV1500 or
integral blowers manufactured by Viking, model
numbers – DIV300, DIV440, DIV600, DIV800,
DIV1200, VIV300, VIV600, or VIV1200. NOTE –
Please refer inside for specific canopy/blower
combinations.
WARNING
WARNING
To reduce the risk of fire, electric shock, or injury
to persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
• Before servicing or cleaning unit, switch power off
at service panel and lock service panel to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
2
Warnings & Important Information
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 3 - 4
CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator 30”, & 36”
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5
Clearance Dimensions _______________________________________________________ _ _ _ _ 6
Interior Ventilator Dimensions _________________________________________________ _ _ _ 7
CVWH 18”H. 24”Deep Wall Hoods 30”, 36”, 42”, 48”, & 60”
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
Clearance Dimensions ______________________________________________________ _ _ _ _ _ _ _ 9
Interior Ventilator Dimensions _________________________________________________ _ _ _ _ 1 0
Exterior Ventilator Dimensions _________________________________________________ _ _ 1 1
CVWHO 18”H. Outdoor Wall Hoods 36”, 48”, & 60”
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 2
Clearance Dimensions ______________________________________________________ _ _ _ _ 1 3
CVCWH Chimney Wall Hoods 30”, 36”, 42”, 48”, & 60”
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 4
Clearance Dimensions ______________________________________________________ _ _ _ _ 1 5
Interior Ventilator Dimensions _________________________________________________ _ _ 1 6
Exterior Ventilator Dimensions _________________________________________________ _ _ 1 7
CVCIH Chimney Island Hoods 36”, 42”, 54”, & 66”
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 1 8
Clearance Dimensions_______________________________________________________ _ _ _ _ 1 9
Interior Ventilator Dimensions _________________________________________________ _ _ 2 0
Exterior Ventilator Dimensions _________________________________________________ _ _ 2 1
CVBCV Wall Custom Ventilator System
D i m e n s i o n s & S p e c i f i c a t i o n s _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 2 2
Clearance Dimensions_______________________________________________________ _ _ _ _ 2 4
VBCV Ventilator Dimensions ____________________________________________________ _ 2 5
Planning Information_______________________________________________________ _ _ _ _ _ _ _ _ _ 2 7
Installation Procedures
Installation (VWH 12”H. Wall Hoods w/Standard Ventilator) __________________________28
Duct Cover Option (VWH 12”H. Wall Hoods w/Standard Ventilator)___________________ 30
Installation (VWH 12”H. Wall Hoods w/Recirculating Kit) _____________________________ 30
Installation (VWH 18”H. Wall & VCWH Chimney Wall Hoods) ________________________ 33
Duct Cover Option (VWH 18”H. Wall Hoods)_______________________________________34
Duct Cover Option (VCWH Chimney Wall Hoods) __________________________________ 35
Installation (VCIH Island Hoods) _________________________________________________ _ 3 6
Service & Registration______________________________________________________ _ _ _ _ _ _ _ _ _ 3 8
Wiring Diagram __________________________________________________________ _ _ _ _ _ _ _ _ _ _ 3 9
Table of Contents IMPORTANT–Please Read and Follow!

54
WARNING
To reduce the risk of injury to persons in the
event of a rangetop grease fire, observe the
following. (Based on “Kitchen Firesafety Tips,”
published by NFPA.)
1. SMOTHER FLAMES with a close fitted lid, cookie
sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN. You may be
burned.
3. DO NOT USE WATER, including wet dishcloths or
towels a violent steam explosion will result.
4. Use an extinguisher ONLY if
• You know it is a Class ABC extinguisher, and you
already know how to operate it.
• The fire is small and contained in the area where
it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
21”
(53.3 cm)
A
10”
(25.4 cm)
12 ”
(30.5 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
5”
(12.7 cm)
21”
(53.3 cm)
A
12 ”
(30.5 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
5”
(12.7 cm)
12 ”
(30.5 cm)
(CVWH 10”H./12”H. Wall Hoods w/Standard Ventilator 30”, & 36”)
* Disregard when using recirculating kits.
460 CFM blower is shipped with hood. Max duct run is 50 ft (15.2 m).
NOTE: Optional duct cover sold separately.
CVWH 10”H./12”H. Wall Hoods w/Standard
Ventilator
Description 30” 36”
Duct cover width 29-7/8” (75.9 cm) 35-7/8” (91.1 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 12” (30.5 cm)
Number of filters 2
Heat lamps N/A
Interior ventilator kit 460 CFM Standard
Interior duct size* 7” (17.8 cm)
Interior—Maximum amps 4.9
IMPORTANT–Please Read and Follow! Dimensions & Specifications
WARNING
TO REDUCE THE RISK OF FIRE,
ELECTRICAL SHOCK, OR INJURY
TO PERSONS
Rangehoods must be installed with
the ventilators that are specified on
their carton indicating suitability with
this model. Other ventilators cannot be substituted.
CAUTION
For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.

6 7
* NOTE: When installing with a 24” high-shelf,
the 27” (68.6 cm) max. dimensions must be used.
24”min.
(61.0 cm)
to
27”max.*
(68.6 cm)
60”min.
(152.4 cm)
to
63”max.
(160.0 cm)
36”
(91.4 cm)
A
B
C
D
18”
(4.6 cm)
3-7/8”
(9.8 cm)
3-4”
(1.9 cm)
7” (17.8 cm) dia.
duct location
Electrical
hookup
1/2”
(1.3 cm)
4”
(10.2 cm)
3-1/2”
(8.9 cm)
A
24”W. 23-7/8” (60.6 cm)
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
B
24”W. 5-1/4” (13.3 cm)
30”W. 8-1/4” (20.9 cm)
36”W. 11-1/4” (28.6 cm)
C
24”W. 11-15/16” (30.3 cm)
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
D
24”W. 5/8” (1.6 cm)
30”W. 3-5/8” (9.2 cm)
36”W. 6-5/8” (16.8 cm)
460 CFM Interior Ventilator Installation
Top View
(CVWH 10” H/12”H. Wall Hoods w/Standard Ventilator)
(CVWH 10” H/12”H. Wall Hoods w/Standard Ventilator)
Clearance Dimensions Interior Ventilator Dimensions

98
24”
(61.0 cm)
A
18”
(45.7 cm)
12”
(30.5 cm)
6”
(15.2 cm)
A (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48“W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
(CVWH 18”H. 24” Deep Wall Hoods 30”, 36”, 42”, 48”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-
grill. Max duct run is 50 ft (15.2 m).
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft (22.9 m).
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-
wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
36”
(91.4 cm)
(CVWH 18”H. Wall Hoods)
NOTE: Optional duct cover sold separately.
CVWH 18”H. Wall Hoods
Description 30” 36” 42” 48” 60”
Duct cover width 29-7/8”
(75.9 cm)
35-7/8”
(91.1 cm)
41-7/8”
(106.4 cm)
47-7/8”
(121.6 cm)
59-7/8”
(152.1 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 12” (30.5 cm)
Number of filters 2 2 2 3 4
Heat lamps 1 1 1 2 3
Interior ventilator kits VINV300/
600/1200
VINV300/
600/1200
VINV600/
1200
VINV1200* VINV1200*
Exterior ventilator kits DEV900/
1200*
DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits DIL1200 DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size 7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
10”
(25.4 cm)
10”
(25.4 cm)
Exterior duct size 10” (24.5 cm)
Interior—Maximum amps 4.2/5.2/8.2 4.2/5.2/8.2 5.2/8.2 10.8 10.8
Exterior—Maximum amps 8.0/5.3 8.0/5.3 8.0/5.3 7.8/8.5 7.8/8.5
In-Line—Maximum amps 5.3/7.2 5.3/7.2 5.3/7.2 9.6 10.0
Dimensions & Specifications Clearance Dimensions

1110
10” (25.4 cm)
dia. duct location
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
A
5-1/2”
(14.0 cm)
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
A
B
7”(17.8 cm)
dia. duct location
4-5/8”
(11.7 cm)
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
10” (25.4 cm)
dia. duct location
A
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
5-15/16”
(15.1 cm)
A
B
10” (25.4 cm)
dia. duct location
5-15/16”
(15.1 cm)
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation for all
Wall Hoods
1200 or 1500 CFM Exterior or In-Line Ventilator Installation for all
Wall Hoods
300 or 600 CFM Interior Ventilator Installation for all Wall Hoods
1200 CFM Interior Ventilator Installation for all Wall Hoods
Top View Top View
Top View Top View
(CVWH 18”H. Wall Hoods) (CVWH 18”H. Wall Hoods)
Exterior Ventilator Dimensions
Interior Ventilator Dimensions

1312
27”
(68.6 cm)
A
18”
(45.7 cm)
12”
(30.5 cm)
6”
(15.2 cm)
A (Hood width)
36”W. 35-7/8” (91.1 cm)
48“W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
Seal joints with silicone.
Provided on “T” Series only.
(CVWHO 18”H. Outdoor Wall Hoods 36”, 48”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used with all outdoor models and when indoor models
are installed over range/rangetop with gas char-grill. Max duct run is 50 ft (15.2 m).
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft (22.9 m).
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-
wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
NOTE: Optional duct cover sold separately.
30”min.
(76. 2 cm)
to
36” max.
(91.4 cm)
36”
(91.4 cm)
66” min.
(167.6 cm)
to
72” max.
(182.9 cm)
27”
(68.6 cm)
DIM “X”
+ 4-1/2”
(11.4 cm)
18”
(45.7 cm)
(CVWHO 18”H. Outdoor Wall Hoods)
Note: Outdoor Models must be installed in a covered, non-enclosed area, and should be protected from
the elements as much as possible.
The bottom of the hood should be 30” (76.2 cm) to 36” (91.4 cm) above the grill surface. The hood
should be installed 4-1/2” (11.4 cm) plus the distance between the back trim and surface from the
back wall. (Note: There is a 3” minimum clearance from the back trim to non-combustible surfaces,
and a 24” minimum to combustible surfaces.) This will require building the hood out from the wall.
Any combustible material used for this purpose must be covered with locally-supplied stainless
steel. Viking also recommends using a backsplash.
CVWHO 18”H. Outdoor Wall Hoods
Description 36” 48” 60”
Duct cover width 35-7/8” (91.1 cm) 47-7/8” (121.6 cm) 59-7/8” (152.1 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 12” (30.5 cm)
Number of filters 2 3 4
Interior ventilator kits VINV1200* VINV1200* VINV1200*
Exterior ventilator kits DEV1200*/1500** DEV1200*/1500** DEV1200*/1500**
In-line ventilator kits DIL1200 DIL1200 DIL1200
Interior duct size 10” (25.4 cm)
Exterior duct size 10” (25.4 cm)
Interior—Maximum amps 9.0 11.4 11.8
Exterior—Maximum amps 6.1/6.8 8.4/9.1 8.8/9.5
In-Line—Maximum amps 7.9 10.2 10.6
Dimensions & Specifications Clearance Dimensions

1514
24”
(61.0 cm)
B
A
18”
(45.7 cm)
12”
(30.5 cm)
to
24”
(61.0 cm)
6”
(15.2 cm)
A (Duct width)
30”W. 12“ (30.5 cm)
36”W. 12“ (30.5 cm)
42”W. 12“ (30.5 cm)
48“W. 18“ (45.7 cm)
60”W. 24“ (61.0 cm)
66”W. 24“ (61.0 cm)
B (Hood width)
30”W. 29-7/8“ (76.2 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
48“W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
(CVCWH Chimney Wall Hoods 30”, 36”, 42”, 48”, 54”, & 60”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-
grill. Max duct run is 50 ft (15.2 m).
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft (22.9 m).
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire
with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
36”
(91.4 cm)
(CVCWH Chimney Wall Hoods)
NOTE: Optional duct cover sold separately.
CVCWH Chimney Wall Hoods
Description 30” 36” 42” 48” 60”
Duct cover width 12” (30.5 cm) 12” (30.5 cm) 12” (30.5 cm) 18” (45.7 cm) 24” (61.0 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 12” (30.5 cm) to 24” (61.0 cm)
Number of filters 2 2 2 2 3
Heat lamps 1 1 1 2 3
Interior ventilator kits VINV300/600 VINV300/600 VINV600 VINV1200* VINV1200*
Exterior ventilator kits DEV900/
1200*
DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits DIL1200 DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size 7” (17.8 cm) 7” (17.8 cm) 7” (17.8 cm) 10” (25.4 cm) 10” (25.4 cm)
Exterior duct size 10” (25.4 cm)
Interior—Maximum amps 4.2/5.2 4.2/5.2 5.2 10.8 10.8
Exterior—Maximum amps 8.0/5.3 8.0/5.3 8.0/5.3 7.8/8.5 7.8/8.5
In-Line—Maximum amps 5.3/7.2 5.3/7.2 5.3/7.2 9.6 10.0
Dimensions & Specifications Clearance Dimensions

16 17
A
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
66”W. 32-15/16” (83.7 cm)
C
48”W. 18” (45.7 cm)
60”W. 24” (61.0 cm)
66”W. 24” (61.0 cm)
10” (25.4 cm) dia.
duct location
6”
(15.2 cm)
1-1/2”
(3.8 cm)
1-1/2”
(3.8 cm)
A
B
C
120 V
power
supply
B
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
7” (17.8 cm) dia.
duct location
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
120V
power
supply
1-1/2”
(3.8 cm)
8”
(20.3 cm)
12”
(30.5 cm) 1-1/2”
(3.8 cm)
A
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
A
48”W. 23-15/16” (60.8 cm)
60”W. 29-15/16” (76.0 cm)
66”W. 32-15/16” (83.7 cm)
C
48”W. 18” (45.7 cm)
60”W. 24” (61.0 cm)
66”W. 24” (61.0 cm)
10” (25.4 cm) dia.
duct location
6”
(15.2 cm)
1-1/2”
(3.8 cm)
1-1/2”
(3.8 cm)
A
B
C
120 V
power
supply
B
48”W. 47-7/8” (121.6 cm)
60”W. 59-7/8” (152.1 cm)
66”W. 65-7/8” (167.3 cm)
10” (25.4 cm) dia.
duct location
B
A
30”W. 14-15/16” (37.9 cm)
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
120V
power
supply
1-1/2”
(3.8 cm)
8”
(20.3 cm)
12”
(30.5 cm) 1-1/2”
(3.8 cm)
A
B
30”W. 29-7/8” (75.9 cm)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation
for 30”, 36”, & 42” models
900, 1200 or 1500 CFM Exterior or In-Line Ventilator Installation
for 48”, & 60”models
300 or 600 CFM Interior Ventilator Installation
for 30”, 36”, & 42” models
1200 CFM Interior Ventilator Installation
for 48”, & 60”models
Top View Top View
Top View Top View
(CVCWH Chimney Wall HoodsF(CVCWH Chimney Wall HoodsF
Interior Ventilator Dimensions Exterior Ventilator Dimensions

1918
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-
grill. Max duct run is 50 ft (15.2 m).
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft (22.9 m).
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire
with ground. An interior or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
30”
(76.2 cm)
C
A
18”
(45.7 cm)
B
6“
(15.2 cm)
C (Hood width)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
B (Duct height)
36”W.
42”W.
54”W.
66”W.
12” (30.5 cm)
or
24” (61.0 cm)
or
36” (91.4 cm)
A (Duct width)
36”W. 12” (30.5 cm)
42”W. 12” (30.5 cm)
54”W. 18” (45.7 cm)
66”W. 24” (70.0 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
36”
(91.4 cm)
(CVCIH Chimney Island Hoods)
NOTE: Optional duct cover sold separately.
(CVCIH Chimney Island Hoods 36”, 42”, 54”, & 66”)
CVCIH Chimney Island Hoods
Description 36” 42” 54” 66”
Duct cover width 12” (30.5 cm) 12” (30.5 cm) 18” (45.7 cm) 24” (70.0 cm)
Duct cover depth 12” (30.5 cm)
Duct cover height 12” (30.5 cm) or 24” (61.0 cm) or 36” (91.4 cm)
Number of filters 4 4 6 8
Heat lamps N/A
Interior ventilator kits VINV600 VINV600 VINV1200* VINV1200*
Exterior ventilator kits DEV900/1200* DEV900/1200*/1500** DEV1200*/1500** DEV1200*/1500**
In-line ventilator kits DIL1200 DIL1200 DIL1200 DIL1200
Interior duct size 7” (17.8 cm) 7” (17.8 cm) 10” (25.4 cm) 10” (25.4 cm)
Exterior duct size 10” (25.4 cm)
Interior—Maximum amps 4.2/5.2/8.2 5.2/8.2 8.9 9.3
Exterior—Maximum amps 7.4/4.7 7.4/4.7/5.5 5.6/6.4 6.4/7.4
In-Line—Maximum amps 4.7/6.5 3.9/5.7 7.4 7.4
Dimensions & Specifications Clearance Dimensions

2120
A
54”W. 26-15/16” (68.4 cm)
66”W. 32-15/16” (83.7 cm)
C
54”W. 18” (45.7 cm)
66”W. 24” (61.0 cm)
1-1/8”
(2.9 cm)
1-1/8”
(2.9 cm)
10” (25.4 cm) dia.
duct location
B
A
C
6”
(15.2 cm)
120 V
power
supply
B
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
7” (17.8 cm) dia.
duct location
12”
(30.5 cm)
120 V
power
supply
1-1/8”
(2.9 cm)
B
A
A
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
1-1/8”
(2.9 cm)
6”
(15.2 cm)
B
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
A
54”W. 26-15/16” (68.4 cm)
66”W. 32-15/16” (83.7 cm)
C
54”W. 18” (45.7 cm)
66”W. 24” (61.0 cm)
1-1/8”
(2.9 cm)
1-1/8”
(2.9 cm)
10” (25.4 cm) dia.
duct location
B
A
C
6”
(15.2 cm)
120 V
power
supply
B
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
10” (25.4 cm) dia.
duct location
12”
(30.5 cm)
1-1/8”
(2.9 cm)
120 V
power
supply
1-1/8”
(2.9 cm)
6”
(15.2 cm)
B
A
A
36”W. 17-15/16” (45.6 cm)
42”W. 20-15/16” (53.2 cm)
B
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
900 or 1200 CFM Exterior or In-Line Ventilator Installation
for all Chimney Island Hoods
900, 1200 or 1500 CFM Exterior or In-Line Ventilator Installation
for all Chimney Island Hoods
600 CFM Interior Ventilator Installation
for all Chimney Island Hoods
1200 CFM Interior Ventilator Installation
for all Chimney Island Hoods
Top View Top View
Top View Top View
(CVCIH Chimney Island HoodsF(CVCIH Chimney Island HoodsF
Exterior Ventilator Dimensions
Interior Ventilator Dimensions

2322
(CVBCV Wall Custom Ventilator System 36”, 42”, 48”, & 60”)
21-7/16”
(54.5 cm)
A*
Bottom Cutout Dimensions
*For best
results, center
the unit over
the burners of
the cooking
product (front
to back; right to
left).
Wall Hoods
Description A (Hood Width)
36” W. 33-7/16” (84.9 cm)
42” W. 39-7/16” (100.2 cm)
48” W. 45-7/16” (115.4 cm)
60” W. 57-7/16” (145.9 cm)
Make sure the
back wall of the
custom hood
canopy is flush
with the cutout so
the ventilator
system may be
mounted as shown
on page 25.
A27-7/16”
(54.5 cm)
Custom Hood Canopy
1) Position ventilator
system inside of the
custom hood canopy
and center it front to
back and left to right.
2) Bottom mounting holes
fasten ventilator system
to bottom of custom
hood canopy with the
screws provided.
Built-In Ventilator
System
3) OPTIONAL
Rear mounting holes fasten
ventilator system to rear of
custom hood canopy.
(Custom Hood Canopy CutoutsF

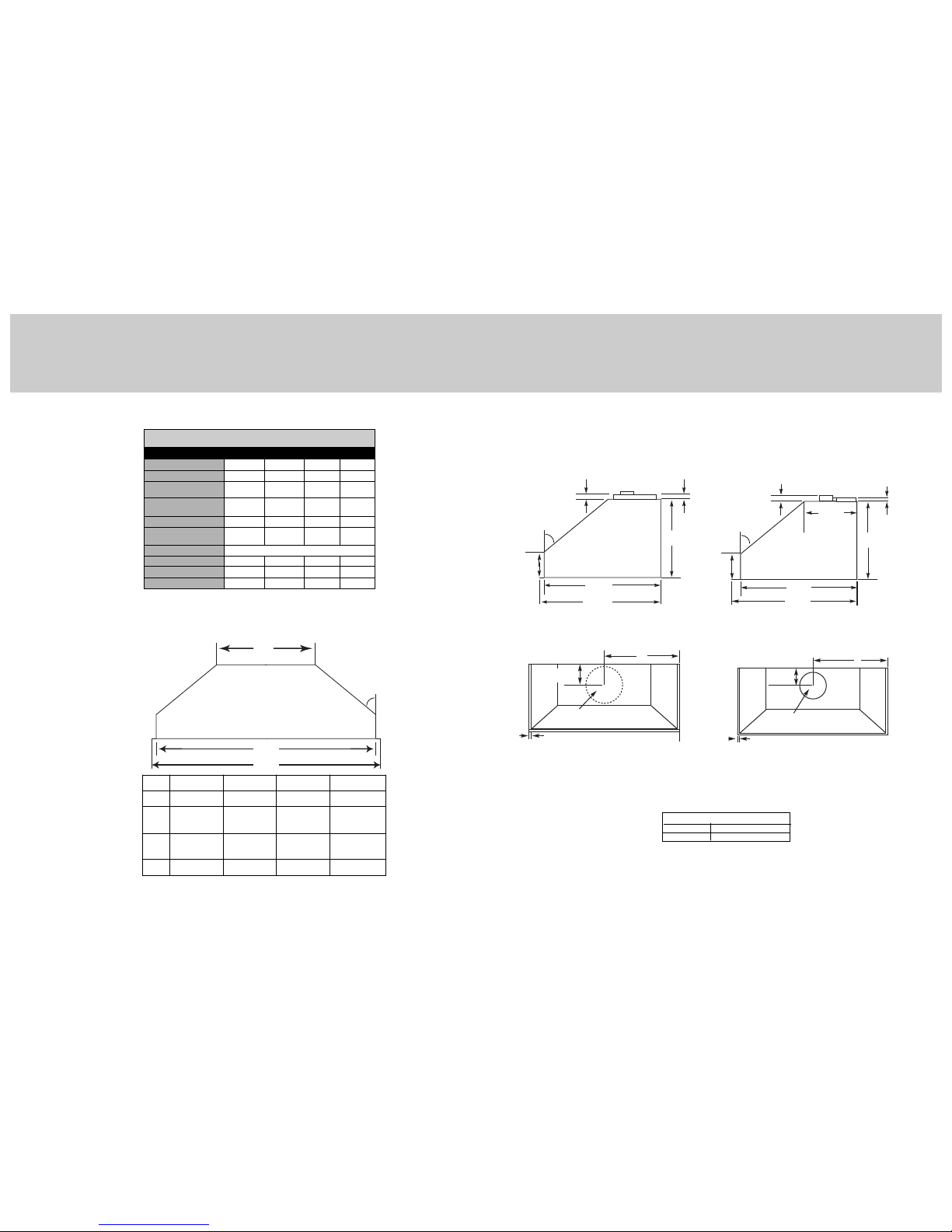

Dimensions & Specifications Clearance Dimensions
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
36”
(91.4 cm)
(Custom Hood)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)

25
1-1/2”
(3.81 cm)
1”
(2.54 cm)
21-5/16”
(54.1 cm)
21-7/8”
(55.8 cm)
6”
(15.2 cm)
4
1
o
17-1/4”
(43.8 cm)
7/8”
(2.2 cm)
1-1/2”
(3.8 cm)
17-1/4”
(43.8 cm)
11-1/2”
(29.2 cm)
21-5/16”
(54.1 cm)
6”
(15.2 cm)
21-7/8”
(55.8 cm)
4
1
o
9/16” (1.4 cm)
D
10” (25.4 cm)
dia. duct location
5-1/2”
(14.0 cm)
D
9/16” (1.4 cm)
7” (17.8 cm)
dia. duct location
4-5/8”
(11.7 cm)
For 900, 1200 or 1500 CFM Exterior
or In-Line Ventilator Installation
For 300, 600 or 1200 CFM Interior
Ventilator Installation
900 or 1200 CFM Exterior
or In-Line Ventilator Installation
36”, 42” W. Models
300 or 600 CFM Interior
Ventilator Installation
36”, 42” W. Models
D
36” W. 17-1/8” (43.5 cm)
42” W. 20-1/8” (51.1 cm)
24
(CVBCV Wall Custom Ventilator System)
Built-In Wall Custom Ventilator
System Dimensions (CVBCV ModelsF
Clearance Dimensions
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas
char-grill. Max duct run is 50 ft (15.2 m).
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft (22.9 m).
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-
wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
CVBCV Wall Custom Ventilator System
Description 36” 42” 48” 60”
Number of filters 2 2 3 4
Heat lamps 1 1 2 3
Interior ventilator kits VINV300/
600/1200*
VINV600/
1200*
VINV1200* VINV1200*
Exterior ventilator kits DEV900/
1200*
DEV900/
1200*
DEV1200*/
1500**
DEV1200*/
1500**
In-line ventilator kits DIL1200 DIL900/1200 DIL1200 DIL1200
Interior duct size 7”/10”
(17.8/25.4 cm)
7”/10”
(17.8/25.4 cm)
10”
(25.4 cm)
10”
(25.4 cm)
Exterior duct size 10” (25.4
Interior—Maximum amps 4.2/5.2 10.8 10.8 10.8
Exterior—Maximum amps 8.0/5.3 8.0/5.3 7.8/8.5 7.8/8.5
In-Line—Maximum amps 5.3/7.2 5.3/7.2 9.6 10.0
D
A
B
C
36”W. 42”W. 48”W. 60”W.
A25”(63.5 cm) 25”(63.5 cm) 25”(63.5 cm) 31”(78.7 cm)
B33-1/4”
(84.5 cm)
39-1/4”
(99.75 cm)
45-1/4”
(114.3 cm)
57-1/4”
(144.8 cm)
C34-1/4”
(87.0 cm)
40-1/4”
(102.2 cm)
46-1/4”
(117.5 cm)
58-1/4”
(148.0 cm)
D20o32o42o49o

2726
9/16” (1.4 cm)
D
C
10” (25.4 cm)
dia. duct location
5-1/2”
(14.0 cm)
1200 or 1500 CFM Exterior or In-Line Ventilator Installation
48”, 60” W. Models
9/16” (1.4 cm) C
10” (25.4 cm)
dia. duct location
5-1/2”
(14.0 cm)
D
1200 CFM Interior Ventilator Installation
36”, 42”, 48”, 60” W. Models
C
36” W. 34-1/4” (87.0 cm)
42” W. 40-1/4” (102.2 cm)
48” W. 46-1/4” (117.5 cm)
60” W. 58-1/4” (148.0 cm)
D
36” W. 17-1/8” (43.5 cm)
42” W. 20-1/8” (51.1 cm)
48” W. 23-1/8” (58.7 cm)
60” W. 29-1/8” (74.0 cm)

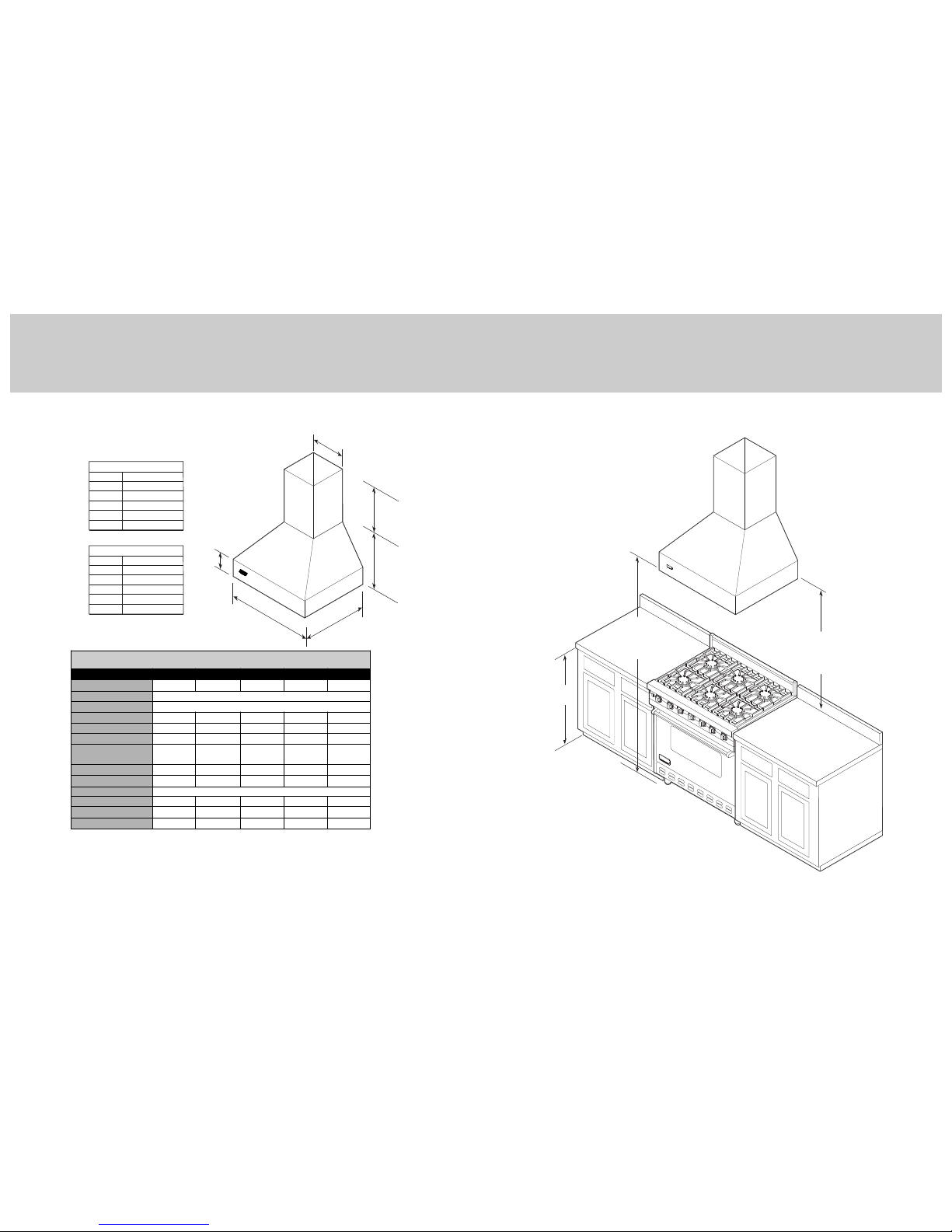

Proper installation of ducting is extremely
important to ensure maximum performance
from any ventilation product.
• All CFMs are based on tests at 0.1 static
pressure: without applying static pressure, CFM
would be greatly overstated.
• Straight runs and gradual turns are best; for
example, each 90º elbow is equivalent to 5-10
feet (1.52-3.05 cm) of straight run.
• Never use flexible duct; it creates back pressure/air
turbulence and greatly reduces performance.
• Proper performance is dependent on proper
ducting; make sure that a qualified and trained
installer is used.
• Check with a qualified and trained installer or
local codes for makeup air requirement, if any.
• Max. amp rating for hoods includes
recommended ventilator kit rating; all products
must be hard wired direct with 2-wire with ground.
Plan where the duct work will be located. Install
proper-sized duct work, and roof or wall cap for the
type of blower you are using. Recommended hood
locations for the most common installations are
shown. Adjust your measurements for various heights
of ceilings, soffits, cabinets, or ranges/rangetops.
Check Framing
NOTE: Because of the weight of the hood make sure
that the mounting screws are driven into the framing
and not just the drywall. It may be necessary to drill
additional holes in the canopy for proper alignment.
Roof cap
7” round duct
Duct cover or soffit
300 or 600 CFM
single blower
interior-power
typical ductwor
k
Hood
Roof cap
10” round duct
Duct cover or soffit
1200 CFM
single blower
interior power
typical ductwor
k
Hood
Exterior blower
10” round duct
Duct cover or soffit
900, 1200, or
1500 CFM
exterior power
typical ductwor
k
Hood
Duct Duct cover or soffit
Wall Installation
exterior power
typical ductwork
NOTE: Wall exhaust must be a minimum of 24” (61.0 cm)
from ground. This may vary depending on local codes
and geogra
p
hic location.
Hood
Wall cap
Built-In Wall Custom Ventilator
System Dimensions (cVBCV ModelsFPlanning Information

29
CAUTION: If not using a duct cover, using screws
provided, make sure top mounting screws are secured
into soffit or cabinet framing. Use additional mounting
screws, if necessary.

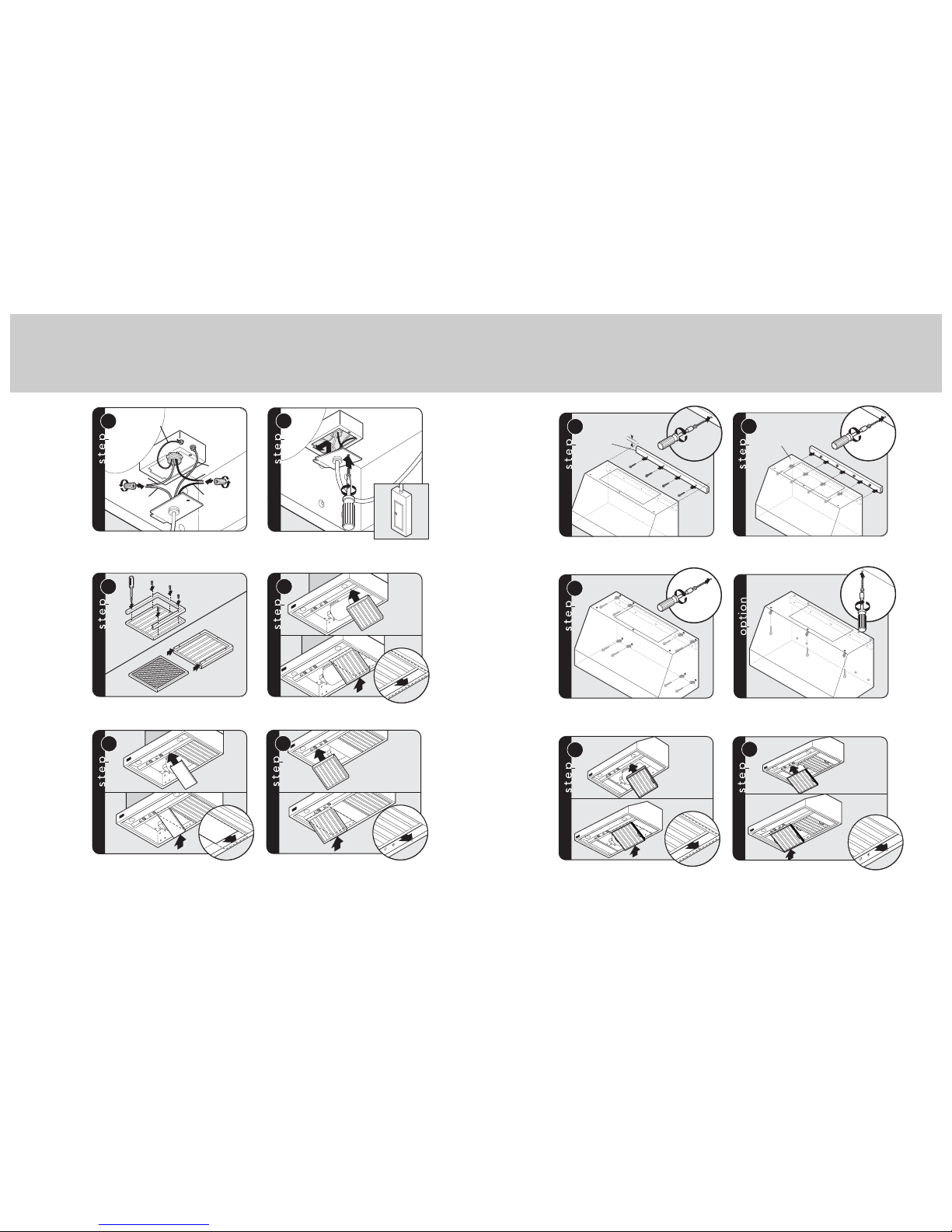

Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE: Housing wiring must be properly installed for
wiring to be correct when wiring unit.
5/16”
nut driver
BLACK
BLACK
WHITE
WHITE
GREEN
BARE OR GREEN
7
Replace electrical box cover. Make connection to
breaker box.
1
1
2
8
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
1
3
9
CAUTION: Secure vent hood to wall using screws
provided. Use additional mounting screws and wall
anchors, if necessary.
6
5/16”
nut driver
28
1
Check damper for unrestricted movement, adjust if
necessary.
2
3
Attach transition to damper. Seal with aluminum tape.
Flip hood over and remove electrical box cover.
1
4
2
1
5
Insert 6” of electrical wiring through the top of vent hood
and secure using wiring restrain. Refer to local codes.
Slide duct over transition and tape around joint.
WARNING
To reduce the risk of fire, electric shock, or injury
to persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
• Before servicing or cleaning unit, switch power off
at service panel and lock service panel to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
1
2
3
10
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
Installation (CVWH 10” H/12”H. Wall Hoods w/Standard Ventilator)

31

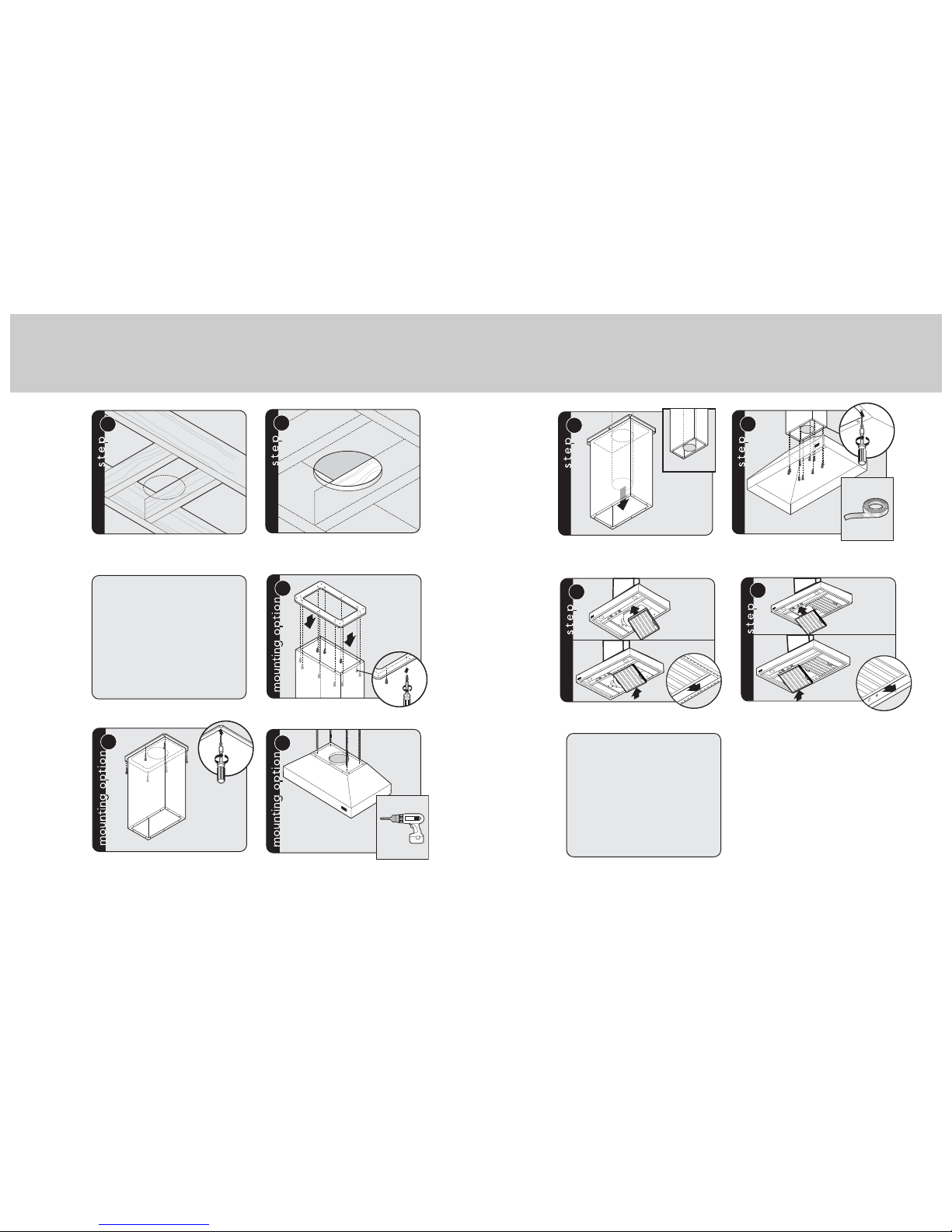

CAUTION: Secure vent hood. Make sure mounting
screws are secured into framing. Use additional
mounting screws and wall anchors, if necessary.
7
5/16”
nut driver
5
Remove electrical box cover.
1
6
2
Flip hood over. Insert 6” of electrical wiring through the
top of vent hood and secure. Refer to local codes.
3
4
Attach with screws and lock washers provided. Attach with screws.
WARNING
To reduce the risk of fire, electric shock, or injury
to persons, observe the following:
• Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
• Before servicing or cleaning unit, switch power off
at service panel and lock service panel to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
30
1
2
Remove damper and discard with transition. Turn recirculating unit upside down. Place vent hood
upside down on recirculating unit.
Installation
(CVWH 10” H/12”H. Wall Hoods w/Recirculating Kit)
12
2
Measure distance from ceiling to canopy. Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.

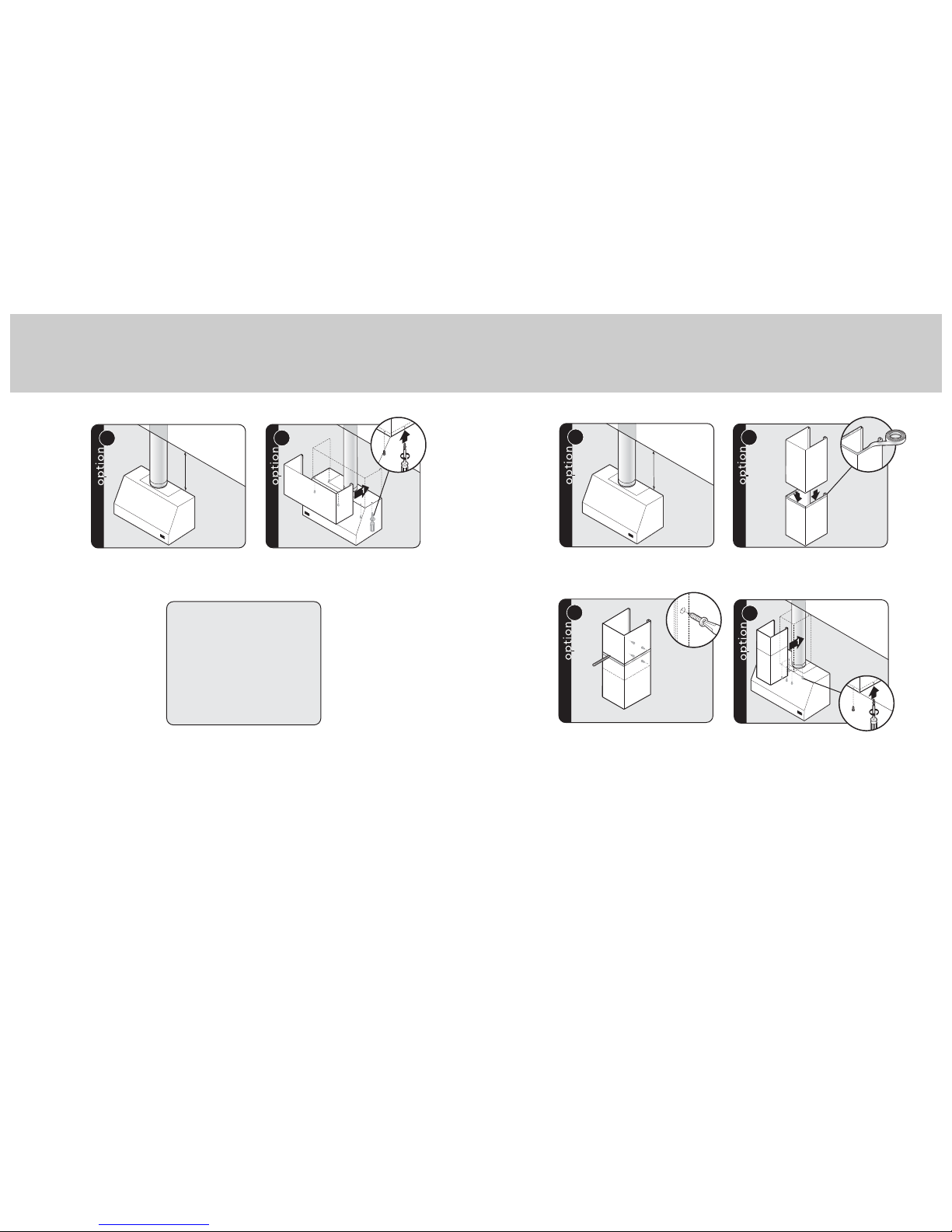

Duct Cover Option
(CVWH 10” H/12”H. Wall Hoods w/Standard Ventilator)
Installation
(CVWH 10” H/12”H. Wall Hoods w/Recirculating Kit)

33
1-13/16”
(4.6 cm)
1-1/2”x 3/4”
(3.8 cm) x (1.9 cm)
wood strip
1
5/16”
nut driver
Slot for
wood strip
2
5/16”
nut driver
Measure down 1-13/16 (4.6 cm) from desired height of
hood and secure 1-1/2” x 3/4” wood strip (provided
locally) to wall using screws provided.
Use additional mounting screws to secure hood to
wood strip.
3
5/16”
nut driver
5/16”
nut driver
CAUTION: Secure vent hood to wall using screws
provided. Use additional mounting screws and wall
anchors, if necessary.
CAUTION: If not using a duct cover, using screws
provided, make sure top mounting screws are secured
into soffit or cabinet framing use additional mounting
screws, if necessary.
32
Connect black to black, white to white, and the
green/bare wire under the green screw.
NOTE: Housing wiring must be properly installed for
wiring to be correct when wiring unit.
Replace electrical box cover. Make connection to
breaker box.
Assemble brackets to baffles and insert charcoal filters.
BLACK
BLACK
WHITE
WHITE
GREEN
BARE OR GREEN
8
1
1
2
9
10
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
3
11
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
3
13
Slide spacer front over front lip. Push spacer rear up,
then slide back over rear lip.
1
2
3
12
1
2
1
3
4
1
2
3
5
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
Installation
(CVWH 18”H. Wall & VCWH Chimney Wall Hoods)
Installation (con’t)
(CVWH 10” H/12”H. Wall Hoods w/Recirculating Kit)

35
34

Place duct cover top inside duct cover base and lower until
desired height is found. Mark height. Use the retaining
nuts and bolts to fasten in place and remove tape.
Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
1
2
Measure distance from ceiling to canopy. Tape to avoid scratching.
34
12
2
Measure distance from ceiling to canopy. Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
To install ventillation kit
refer to ventillation kit
installation instructions.
Duct Cover Option (CVCWH Chimney Wall Hoods)Duct Cover Option (CVWH 18”H. Wall Hoods)

37
4
5/16”
nut
driver
Attach canopy to duct cover/soffit. Seal top of hood to
duct with aluminum tape.
3
To install ventillation kit
refer to ventillation kit
installation instructions.
Run duct work down to bottom edge of duct
cover/soffit and secure in place. Make sure the duct
does not stick down past the cover.
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
1
2
1
3
5
1
2
3
6
Slide filter front over front lip. Push filter rear up, then
slide back over rear lip.
36
Check framing where cutout will be.
NOTE: 200 lb. limit
.
Cut appropriate size hole in ceiling. Either 7” or 10”
depending on your specific unit and ventillator kit.
1
2
Mounting options:
Using duct cover with ceiling mounting
bracket. (Option A - VCIH only)
Using threaded rod for additional support.
(Option B)
Attaching hood directly to soffit or
duct cover.
(Skip to step 3)
A1
Attach duct cover to optional ceiling mounting bracket.
Attach duct cover to ceiling. The ceiling bracket can be
hidden by using a locally supplied trim.
A2
5/16”
nut
driver
B1
Additional support option. Drill holes in all four corners
for threaded rod and run rods from hood to ceiling.
Installation (CVCIH Island Hoods) Installation (CVCIH Island Hoods)

38 39
If service is required, call your dealer or authorized service agency.
The name of the authorized service agency can be obtained from the dealer or distributor in
your area or online at brigade.ca
Have the following information readily available.
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an
authorized service agency, or if you continue to have service problems, contact Viking Range,
LLC at 1-888-(845-4641), or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Record the information indicated below. You will need it if service is ever required. The model
and serial number for your hood is located behind the baffle filter on the left side panel in the lower
right corner.
M o d e l n o . _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ S e r i a l n o . _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
D a t e o f p u r c h a s e _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ D a t e i n s t a l l e d _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
D e a l e r ’s n a m e _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Address ________________________________________________________
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
If service requires installation of parts, use only authorized parts to ensure protection under the
warranty.
THIS MANUAL SHOULD REMAIN WITH THE HOOD FOR FUTURE REFERENCE.
Service & Registration
