Briggs & Stratton 098900 Series Setup guide

COPYRIGHT by BRIGGS & STRATTON CORPORATION
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
PRINTED IN U.S.A.
FORM MS−0235−08/08/2008
REPLACES FORM MS−0235−06/30/2008
FILE IN SECT. 2 OF SERVICE MANUAL
098900
Illustrated Parts List
Model Series
098900
TYPE NUMBERS
0101 through 2254.
TABLE OF CONTENTS
Air Cleaner 5. . . . . . . . . . . . . . . . . . . . . . . . .
Blower Housing/Shrouds 7. . . . . . . . . . . .
Brake 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft 3. . . . . . . . . . . . . . . . . . . . . . . . . . .
Carburetor 4. . . . . . . . . . . . . . . . . . . . . . . . . .
Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankcase Cover/Sump 3. . . . . . . . . . . . . .
Crankshaft 3. . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 2. . . . . . . . . . . . . . . . . . . . . .
Exhaust System 6. . . . . . . . . . . . . . . . . . . .
Flywheel 7. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Supply 4. . . . . . . . . . . . . . . . . . . . . . . . .
Gasket Set −Engine 2. . . . . . . . . . . . . . . . .
Gasket Set −Valve 2. . . . . . . . . . . . . . . . . .
Governor Spring 5. . . . . . . . . . . . . . . . . . . .
Ignition 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . . .
Operator’s Manual 2. . . . . . . . . . . . . . . . . .
Piston/Rings/Connecting Rod 3. . . . . . . .
Rewind Starter 7. . . . . . . . . . . . . . . . . . . . . .
Warning Label 2. . . . . . . . . . . . . . . . . . . . . .

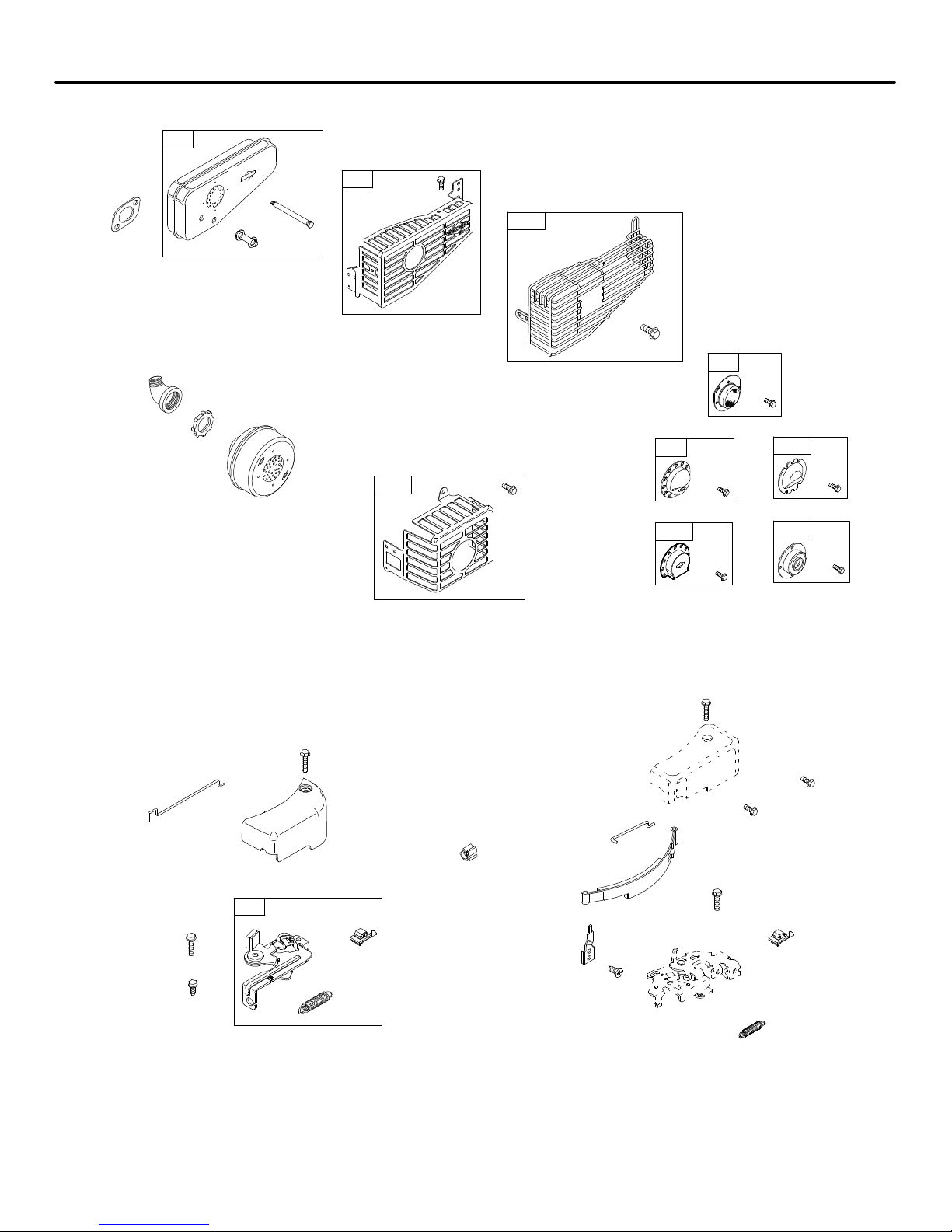

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−2 Assemblies include all parts shown in frames. 08/08/2008
2
10
9
8
11
200
383
337
635
13
7
5
847
524
525
287
842
523
3
7
444
12
20
163
9
51
524
358 ENGINE GASKET SET
883
51A
7 9
1095 VALVE GASKET SET
883
1668
523A
718
870 871869
3
2
287
426
524
50 54
51
51A
54
50A
529
1330 REPAIR MANUAL1058 OPERATOR’S MANUAL 1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−3 Assemblies include all parts shown in frames. 08/08/2008
3
45
25
26
27
28
27
32
29
35
40 45
36
40
34
33
24
46
43
46A
374
377
357
101
743
83
721
15
22
16B
741
718A
178
1143
22A
444
4A
12
20
20A
12
4
20
741A
718A
16A
741
16

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−4 Assemblies include all parts shown in frames. 08/08/2008
4
365
529
181
957
190A
190
670
180
90 976
394
913
393
390
612
617
97
130
633
163
106
957A
957B
724
1218

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−5 Assemblies include all parts shown in frames. 08/08/2008
5
267
269
268
270
271
201
334 851
333
426
24
209 211
188
356A
356
578
535
643 534
163
535A
536
222A
621222
265
265A
265B

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−6 Assemblies include all parts shown in frames. 08/08/2008
6
R
300A
300
613
81
836
836
832
832A
994
346
883
298
303
676C
676B
676A
676
677
677
677
677
836A
832B
236
772
925
772A
745
815
772
236A
923A 1208
621
922A
923
621
922
933
745A
729
772B

098900
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−7 Assemblies include all parts shown in frames. 08/08/2008
7
930
74
73
75
332
455
363
23
37
305 37A
78
71
70
67
68
66
304
257
1036 EMISSIONS LABEL
930A
930B
73B
78
459
608
55 65
592
1211
1210
60
58
689
456
597
56
57
678
59
58A
60A
304A
921
969

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−8 Assemblies include all parts shown in frames. 08/08/2008
8
1 699653 Cylinder Assembly
2 399269 Kit−Bushing/Seal
(Magneto Side)
3K299819S Seal−Oil
(Magneto Side)
4 698691 Sump−Engine
(Used After Code Date
02111200).
−−−−−− Note −−−−−−
395384 Sump−Engine
(Used Before Code
Date 02111300).
4A Sump−Engine
(NO LONGER
AVAILABLE)
5 790169 Head−Cylinder
7KΔ698717 Gasket−Cylinder Head
8 791781 Breather Assembly
9KΔ695890 Gasket−Breather
10 691666 Screw
(Breather Assembly)
11 691245 Tube−Breather
12 K692218 Gasket−Crankcase
(Standard)
(.015” Thick)
−−−−−− Note −−−−−−
K270895 Gasket−
Crankcase
(.005” Thick)
K270896 Gasket−
Crankcase
(.009” Thick)
13 691640 Screw
(Cylinder Head)
15 691680 Plug−Oil Drain
16 796212 Crankshaft
(Used After Code Date
08071300).
Used on Type No(s).
1602, 1615, 1650,
1651, 2000, 2001,
2002, 2011, 2012,
2030, 2031, 2033,
2063, 2069, 2070,
2139, 2210, 2239,
2249, 2252.
−−−−−− Note −−−−−−
796211 Crankshaft
(Used After Code Date
08071300).
Used on Type No(s).
1616, 2013, 2032,
2065, 2078, 2086,
2087, 2100, 2101,
2166, 2178, 2180,
2250, 2251, 2253,
2254.
796213 Crankshaft
(Used After Code Date
08071300).
Used on Type No(s).
1618.
16A 692990 Crankshaft
Used on Type No(s).
0899, 1110, 2026,
2027, 2028, 2029,
2066, 2077, 2085,
2093, 2097, 2099,
2109, 2125, 2163,
2179, 2192, 2194,
2198, 2203, 2207,
2209, 2215, 2229,
2231, 2242, 2243,
2244, 2246.
−−−−−− Note −−−−−−
692990 Crankshaft
(Used Before Code
Date 08071400).
Used on Type No(s).
1602, 1615, 1650,
1651, 2000, 2001,
2002, 2011, 2012,
2030, 2031, 2033,
2063, 2069, 2070,
2139, 2210, 2239,
2249, 2252.
793062 Crankshaft
Used on Type No(s).
0115, 0120, 0123,
0128, 0129, 0131,
0132, 0144, 0145,
0151, 0197, 0198,
0306, 0308, 0312,
0313, 0320, 0321,
0323, 0326, 0337,
0338, 0344, 0347,
0350, 0353, 0354,
0358, 0366, 0371,
0373, 0374, 0378,
0380, 0381, 0383,
0386, 0388, 0389,
0395, 0401, 0837,
1144, 1316, 1516,
1644, 2023, 2044,
2045, 2047, 2064,
2098, 2137, 2144,
2147, 2181, 2186,
2213, 2216, 2227,
2232, 2235, 2236,
2238, 2240.
793062 Crankshaft
(Used Before Code
Date 08071400).
Used on Type No(s).
1616, 2013, 2032,
2065, 2078, 2086,
2087, 2100, 2101,
2166, 2178, 2180,
2250, 2251, 2253,
2254.
692991 Crankshaft
Used on Type No(s).
1603, 1607, 1612,
2010, 2024, 2025,
2050, 2202, 2211,
2212, 2214, 2217,
2222, 2224, 2225,
2228, 2234, 2237,
2247, 2248.
692991 Crankshaft
(Used Before Code
Date 08071400).
Used on Type No(s).
1618.
791342 Crankshaft
Used on Type No(s).
2103.

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−9 Assemblies include all parts shown in frames. 08/08/2008
9
16B 492748 Crankshaft
−−−−−− Note −−−−−−
496069 Crankshaft
Used on Type No(s).
0130, 2030.
690805 Crankshaft
Used on Type No(s).
0125, 0139, 0140,
0143, 0148, 0167,
0322, 0328, 0364,
0402, 0866, 0891,
1303, 1304, 1305,
1318, 1518, 2043.
493618 Crankshaft
Used on Type No(s).
0119, 0137, 0141,
0341, 0359, 0382.
20 K391483S Seal−Oil
(PTO Side)
20A K691952 Seal−Oil
(PTO Side)
(Auxiliary PTO)
22 692551 Screw
(Crankcase
Cover/Sump)
(1 3/16” Long)
22A 691108 Screw
(Crankcase
Cover/Sump)
(3/4” Long)
23 795549 Flywheel
−−−−−− Note −−−−−−
795695 Flywheel
(Used After Code Date
08012900).
Used on Type No(s).
1602, 1603, 2069,
2250, 2251.
690843 Flywheel
(Used Before Code
Date 08013000).
Used on Type No(s).
1602, 1603, 2069,
2250, 2251.
690843 Flywheel
Used on Type No(s).
0115, 0132, 0137,
0138, 0139, 0141,
0143, 0145, 0328,
0345, 0346, 0347,
0358, 0364, 0369,
0382, 0386, 0395,
0890, 1302, 1303,
1304, 1305, 1446,
2043, 2044, 2045,
2047, 2050, 2146,
2147, 2186, 2222,
2224, 2228.
24 222698S Key−Flywheel
25 790908 Piston Assembly
(Standard)
(Used After Code Date
04111400).
−−−−−− Note −−−−−−
699657 Piston
Assembly
(Standard)
(Used After Code Date
030803000 and Before
Code Date 04111500).
790908 Piston
Assembly
(Standard)
(Used After Code Date
92092800 and Before
Code Date 03080400).
793214 Piston
Assembly
(Standard)
(Used Before Code
Date 92092900).
792532 Piston
Assembly
(.020” Oversize)
(Used After Code Date
92092800).
298906 Piston
Assembly
(.020” Oversize)
(Used Before Code
Date 92092900).
26 790909 Ring Set
(Standard)
(Used After Code Date
04111400).
−−−−−− Note −−−−−−
699658 Ring Set
(Standard)
(Used After Code Date
030803000 and Before
Code Date 04111500).
498680 Ring Set
(Standard)
(Used After Code Date
92092800 and Before
Code Date 03080400).
298982 Ring Set
(Standard)
(Used Before Code
Date 92092900).
795134 Ring Set
(.020” Oversize)
(Used After Code Date
04111400).
498682 Ring Set
(.020” Oversize)
(Used After Code Date
96020500 and Before
Code Date 04111500).
298984 Ring Set
(.020” Oversize)
(Used Before Code
Date 96020600).
27 691588 Lock−Piston Pin
28 699659 Pin−Piston
(Standard)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
298909 Pin−Piston
(Standard)
(Used Before Code
Date 03080400).

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−10 Assemblies include all parts shown in frames. 08/08/2008
10
29 699655 Rod−Connecting
(Standard)
32 691664 Screw
(Connecting Rod)
33 296676 Valve−Exhaust
34 296677 Valve−Intake
35 690520 Spring−Valve
(Intake)
36 690520 Spring−Valve
(Exhaust)
37 690482 Guard−Flywheel
(Carburetor Side)
37A 691209 Guard−Flywheel
(Muffler Side)
40 692194 Retainer−Valve
43 698690 Slinger−Governor/Oil
(Used After Code Date
02110400).
−−−−−− Note −−−−−−
691983 Slinger−
Governor/Oil
(Used Before Code
Date 02110500).
45 691762 Tappet−Valve
46 691998 Camshaft
46A 690645 Camshaft
(Clockwise)
Used on Type No(s).
0123, 0165, 0371,
0373, 0374, 0378,
0865, 1351, 1551,
1651, 2065, 2178.
−−−−−− Note −−−−−−
690644 Camshaft
(Counterclockwise)
Used on Type No(s).
0114, 0117, 0121,
0126, 0127, 0133,
0147, 0149, 0166,
0317, 0319, 0390,
0394, 0396, 0399,
0407, 0849, 1350,
1650, 2026, 2027,
2049, 2066, 2194,
2196, 2207, 2211.
50 699644 Manifold−Intake
(Used After Code Date
03080300).
50A 693446 Manifold−Intake
(Used Before Code
Date 03080400).
51 K699649 Gasket−Intake
(Used After Code Date
03080300).
51A 270345S Gasket−Intake
(Used Before Code
Date 03080400).
54 691111 Screw
(Intake Manifold)
55 692144 Housing−Rewind
Starter
56 281336S Pulley−Starter
57 490179 Spring−Rewind Starter
58 697316 Rope−Starter
(88 5/8” Long)
58A 691921 Rope−Starter
(70” Long)
59 396892 Insert−Grip
60 691915 Grip−Starter Rope
60A 393152 Grip−Starter Rope
65 690837 Screw
(Rewind Starter)
66 399671 Clutch−Starter
(Used Before Code
Date 97060600).
67 394897 Housing−Clutch
(Used Before Code
Date 97060600).
68 691604 Ball−Clutch
(Used Before Code
Date 97060600).
70 691945 Ratchet−Clutch
71 691359 Cover−Ratchet
(Used Before Code
Date 97060600).
73 699850 Screen−Rotating
(Used After Code Date
97060500).
73B 691725 Screen−Rotating
(Used Before Code
Date 97060600).
74 690345 Screw
(Rotating Screen)
75 691736 Washer
(Flywheel)
78 692198 Screw
(Flywheel Guard)
81 691179 Lock−Muffler Screw
83 691240 Shaft−Auxiliary Drive
−−−−−− Note −−−−−−
690506 Shaft−Auxiliary
Drive
Used on Type No(s).
0396, 1350, 1650,
2196.
690514 Shaft−Auxiliary
Drive
Used on Type No(s).
0147, 0317, 0319,
0390, 0399, 0407,
2207.
691249 Shaft−Auxiliary
Drive
Used on Type No(s).
0117, 0133, 0149,
0371, 0373, 0374,
0378, 0849, 2049,
2178, 2211.
90 498809 Carburetor
(Used After Code Date
96051900).
−−−−−− Note −−−−−−
494775 Carburetor
(Used Before Code
Date 96052000).
97 691931 Shaft−Throttle
101 691623 Pin−Shaft
106 691901 Seat−Inlet
130 691190 Valve−Throttle
163 K271139S Gasket−Air Cleaner
178 690398 Cover−Drive Gear
180 494406 Tank−Fuel
181 493982S Cap−Fuel Tank
188 692198 Screw
(Control Bracket)
190 691640 Screw
(Fuel Tank)
(1 3/4” Long)
190A 691108 Screw
(Fuel Tank)
(9/16” Long)
200 691912 Blade−Governor
201 690347 Link−Air Vane

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−11 Assemblies include all parts shown in frames. 08/08/2008
11
209 691297 Spring−Governor
(Used After Code Date
96051900).
−−−−−− Note −−−−−−
262760 Spring−
Governor
(Used Before Code
Date 96052000).
690251 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0120, 0121, 0123,
0125, 0126, 0127,
0128, 0131, 0140,
0141, 0144, 0147,
0148, 0150, 0151,
0166, 0167, 0197,
0312, 0313, 0314,
0317, 0319, 0320,
0325, 0347, 0353,
0366, 0367, 0370,
0379, 0380, 0382,
0383, 0386, 0388,
0390, 0392, 0393,
0396, 0397, 0398,
0399, 0401, 0891,
1144, 1315, 1316,
1318, 1350, 1351,
1515, 1516, 1518,
1551, 1612, 1615,
1616, 1618, 1644,
1650, 1651, 2002,
2012, 2023, 2024,
2025, 2026, 2027,
2044, 2066, 2078,
2086, 2087, 2093,
2097, 2100, 2101,
2125, 2139, 2147,
2166, 2179, 2180,
2181, 2186, 2192,
2193, 2194, 2196,
2197, 2198, 2209,
2212, 2214, 2227,
2229, 2231, 2232,
2234, 2235, 2243,
2253.
692211 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0120, 0121, 0123,
0125, 0126, 0127,
0128, 0131, 0140,
0147, 0148, 0150,
0151, 0166, 0167,
0197, 0312, 0313,
0314, 0317, 0319,
0320, 0325, 0353,
0358, 0362, 0366,
0367, 0370, 0371,
0373, 0379, 0380,
0383, 0388, 0390,
0392, 0393, 0394,
0396, 0397, 0398,
0399, 0401, 1144,
1305, 1315, 1316,
1318, 1350, 1351,
2222.
690252 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0115, 0129, 0132,
0137, 0138, 0139,
0143, 0145, 0307,
0322, 0328, 0345,
0346, 0352, 0363,
0364, 0368, 0369,
0372, 0377, 0381,
0395, 0402, 0890,
1302, 1303, 1304,
1446, 1472, 1477,
2043, 2050, 2146,
2168, 2224.
262942 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0115, 0132, 0137,
0139, 0143, 0307,
0322, 0328, 0352,
0363, 0364, 0368,
0372, 0377, 0381,
0395, 0402, 1304.
262943 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0129, 0138, 0345,
0346, 0369, 1302,
1303.
690254 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0358, 0362, 0371,
0394, 1305, 2013,
2045, 2047, 2147,
2178, 2250, 2251.
692531 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0141, 0309, 0376,
0385, 0403.
691861 Spring−
Governor
(Used After Code Date
96051900).
Used on Type No(s).
0373, 0374, 0378,
2238.
690253 Spring−
Governor
(Used Before Code
Date 96052000).
Used on Type No(s).
0373, 0374, 0378.
690250 Spring−
Governor
Used on Type No(s).
1602, 1603, 2032,
2063, 2069, 2077,
2163E1, 2202, 2210,
2215, 2225, 2246.
692698 Spring−
Governor
Used on Type No(s).
2222, 2228.
691862 Spring−
Governor
Used on Type No(s).
0145, 2163B1.

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−12 Assemblies include all parts shown in frames. 08/08/2008
12
211 691859 Spring−Governed Idle
222 691446 Bracket−Control
Used on Type No(s).
0101, 0110, 0114,
0117, 0119, 0121,
0123, 0125, 0126,
0127, 0128, 0129,
0130, 0131, 0133,
0134, 0140, 0142,
0147, 0148, 0149,
0150, 0151, 0165,
0166, 0167, 0168,
0197, 0198, 0199,
0300, 0310, 0312,
0313, 0314, 0317,
0319, 0320, 0321,
0323, 0325, 0330,
0334, 0337, 0341,
0350, 0355, 0360,
0361, 0362, 0365,
0370, 0371, 0376,
0379, 0380, 0383,
0388, 0390, 0391,
0392, 0393, 0394,
0396, 0397, 0398,
0399, 0404, 0407,
0810, 0837, 0849,
0865, 0866, 0891,
0899, 1110, 1607,
2000, 2001, 2002,
2010, 2023, 2024,
2025, 2026, 2027,
2029, 2030, 2031,
2032, 2042, 2049,
2065, 2066, 2068,
2093, 2097, 2098,
2099, 2100, 2103,
2110, 2125, 2137,
2139, 2179, 2180,
2181, 2191, 2192,
2193, 2194, 2196,
2197, 2198, 2204,
2207, 2209, 2211,
2212, 2213, 2217,
2229, 2234, 2235,
2236, 2237, 2238,
2240, 2244, 2247,
2248, 2253, 2254.
222A 691445 Bracket−Control
236 691867 Link−Lockout
(Used After Code Date
97071300).
236A 691826 Link−Lockout
(Used Before Code
Date 97071400).
257 691660 Screw
(Starter Clutch)
265 692179 Clamp−Casing
265A 690798 Clamp−Casing
265B 691024 Clamp−Casing
267 691044 Screw
(Casing Clamp)
268 691025 Casing−Control Wire
(Cut To Required
Length)
269 691026 Wire−Control
(Cut To Required
Length)
270 691027 Nut
(Control Wire Casing)
271 691028 Lever−Control
287 691002 Screw
(Dipstick Tube)
298 691720 Locknut−Muffler/Elbow
300 692307 Muffler
(Super Lo Tone)
300A 394569S Muffler
(Round Lo Tone)
303 690291 Elbow−Exhaust
304 691484 Housing−Blower
(Compliance Engines)
−−−−−− Note −−−−−−
692536 Housing−
Blower
(Non Compliance
Engines)
Used on Type No(s).
1602, 1603, 2011,
2012, 2028, 2033,
2044, 2045, 2047,
2050, 2063, 2064,
2065, 2069, 2070,
2077, 2078, 2085,
2086, 2087, 2101,
2109, 2144, 2147,
2163, 2178, 2186,
2202, 2203, 2210,
2214, 2215, 2216,
2222, 2224, 2225,
2227, 2228, 2232,
2239, 2242, 2243,
2246, 2249, 2250,
2251, 2252.
304A 694051 Housing−Blower
(Non Compliance
Engines)
Used on Type No(s).
2013.
305 692198 Screw
(Blower Housing)
332 690662 Nut
(Flywheel)
333 793281 Armature−Magneto
334 691061 Screw
(Magneto Armature)
337 802592S Plug−Spark
−−−−−− Note −−−−−−
697451 Plug−Spark
Used on Type No(s).
1615, 1650, 1651,
2002, 2011, 2012,
2013, 2023, 2024,
2031, 2032, 2033,
2063, 2064, 2065,
2069, 2070, 2085,
2086, 2087, 2093,
2097, 2101, 2103,
2137, 2139, 2163,
2166, 2178, 2180,
2181, 2186, 2192,
2194, 2210, 2216,
2225, 2232, 2246,
2248, 2249, 2251,
2253.
346 690661 Screw
(Spark Arrestor)
356 692390 Wire−Stop
356A 398808 Wire−Stop
357 692191 Key−Drive Pulley
358 794209 Gasket Set−Engine
363 19069 Puller−Flywheel
365 790029 Screw
(Carburetor)
374 691074 Washer
(Camshaft)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−13 Assemblies include all parts shown in frames. 08/08/2008
13
377 692193 Key−Woodruff
383 89838S Wrench−Spark Plug
390 691839 Spring−Choke
Diaphragm
393 691837 Screen−Carburetor
394 795083 Diaphragm−Carburetor
(Used After Code Date
07080800).
−−−−−− Note −−−−−−
495770 Diaphragm−
Carburetor
(Used Before Code
Date 07080900).
426 691107 Screw
(Governor Blade)
444 K691868 Gasket−Drive Gear
Cover
455 691236 Cup−Flywheel
456 692299 Plate−Pawl Friction
459 281505S Pawl−Ratchet
523 692040 Dipstick
523A 691913 Dipstick
524 K691876 Seal−Dipstick Tube
525 691320 Tube−Dipstick
529 692189 Grommet
534 691417 Screw
(Air Cleaner)
535 698369 Filter−Air Cleaner
Foam
(Used After Code Date
02101000).
535A 272235S Filter−Air Cleaner
Foam
(Used Before Code
Date 02101100).
536 698472 Cleaner−Air
578 398153 Wire Assembly
592 690800 Nut
(Rewind Starter)
597 691696 Screw
(Pawl Friction Plate)
608 690101 Starter−Rewind
(70” Rope)
−−−−−− Note −−−−−−
499706 Starter−Rope
(88 5/8” Rope)
499925 Starter−
Rewind
(88 5/8” Rope)
Used on Type No(s).
0890.
612 496046S Tube−Pick Up
613 691413 Screw
(Muffler)
617 270344S Seal−O Ring
(Intake Manifold)
621 692310 Switch−Stop
633 691321 Seal−Choke/Throttle
Shaft
(Throttle)
635 66538S Boot−Spark Plug
643 691911 Retainer−Air Filter
668 692889 Spacer
(Cylinder)
670 691633 Spacer−Fuel Tank
(Non Compliance
Engines)
(13/16” Long)
(Used After Code Date
97071300).
−−−−−− Note −−−−−−
691631 Spacer−Fuel
Tank
(Compliance Engines)
(11/16” Long)
(Used Before Code
Date 97071400).
676 396548 Deflector−Muffler
Used on Type No(s).
0132, 0319, 0328,
0369, 2069.
676A 393760 Deflector−Muffler
Used on Type No(s).
0317, 0341, 0346,
0402, 0890, 1446,
2027, 2146, 2202,
2225, 2231.
676B 393756 Deflector−Muffler
Used on Type No(s).
0147, 0322, 0341,
0345, 0359, 0381,
0382, 1315, 1316,
1318, 1350, 1351,
1515, 1516, 1518,
1612, 1615, 1616,
1618, 1650, 1651,
2027, 2045, 2214.
676C 397931 Deflector−Muffler
Used on Type No(s).
0374, 0378, 2178,
2211.
677 690661 Screw
(Muffler Deflector)
678 691924 Spacer−Rewind
689 691855 Spring−Friction
718 690959 Pin−Locating
(Cylinder)
718A 499047 Pin−Locating
(Crankshaft)
(Used Before Code
Date 08071400).
721 690397 Stop−Shaft
724 697478 Retainer−Seal
729 690586 Clip−Wire
741 796210 Gear−Timing
(Used After Code Date
08071300).
741A 691805 Gear−Timing
(Used Before Code
Date 08071400).
743 690516 Gear−Drive
−−−−−− Note −−−−−−
691772 Gear−Drive
(Counterclockwise)
Used on Type No(s).
0114, 0117, 0121,
0126, 0127, 0133,
0147, 0149, 0166,
0317, 0319, 0390,
0394, 0396, 0399,
0407, 0849, 1350,
1650, 2026, 2027,
2049, 2066, 2194,
2196, 2207, 2211.
745 691146 Screw
(Brake)
(7/8” Long)
745A 690859 Screw
(Brake)
(1/2” Long)
772 691183 Screw
(Linkage Cover)
(3/4” Long)
(Top)
772A 690345 Screw
(Linkage Cover)
(7/16” Long)
(Front)

REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
098900
KEngine Gasket Set−Reference 358 ΔValve Gasket Set−Reference 1095
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
0235−14 Assemblies include all parts shown in frames. 08/08/2008
14
772B 691111 Screw
(Linkage Cover)
(1 1/8” Long)
(Front)
815 690324 Screw
(Band Brake Pivot)
832 699299 Guard−Muffler
832A 699670 Guard−Muffler
832B 790743 Guard−Muffler
836 690664 Screw
(Muffler Guard)
(13/32” Long)
836A 790745 Screw
(Muffler Guard)
(1/2” Long)
842 K691870 Seal−O Ring
(Dipstick Tube)
847 691440 Dipstick/Tube
Assembly
851 493880S Terminal−Spark Plug
869 699641 Seat−Valve
(Intake)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
691701 Seat−Valve
(Intake)
(Used Before Code
Date 03080400).
870 699642 Seat−Valve
(Exhaust)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
691702 Seat−Valve
(Exhaust)
(Used Before Code
Date 03080400).
871 699643 Bushing−Valve Guide
(Exhaust Valve)
(Used After Code Date
03080300).
−−−−−− Note −−−−−−
231348 Bushing−Valve
Guide
(Exhaust Valve)
(Used Before Code
Date 03080400).
63709 Bushing−Valve
Guide
(Intake Valve)
883 KΔ691880 Gasket−Exhaust
913 494409 Seat−Check Valve
921 694044 Cover−Blower Housing
Used on Type No(s).
2013.
922 692135 Spring−Brake
(Used After Code Date
97071300).
922A 691809 Spring−Brake
(Used Before Code
Date 97071400).
923 691487 Brake
923A 394867 Brake
925 691349 Cover−Linkage
(Used After Code Date
97071300).
930 691330 Guard−Rewind
930A 690601 Guard−Rewind
930B 691348 Guard−Rewind
933 690428 Pivot−Band Brake
957 497929S Cap−Fuel Tank
(Black)
957A 692050 Cap−Fuel Tank
(Red)
Used on Type No(s).
0149, 0165, 0849,
1110, 2049, 2065.
957B 791129 Cap−Fuel Tank
(Black)
Used on Type No(s).
2011, 2050, 2224,
2228.
969 694046 Screw
(Blower Housing
Cover)
(2 1/3” Long)
Used on Type No(s).
2013.
976 694394 Primer−Carburetor
994 398067 Arrestor−Spark
1036 Label−Emissions
(Available From A
Briggs & Stratton
Authorized Dealer)
1058 277038 Operator’s Manual
1095 498526 Gasket Set−Valve
1143 691141 Screw
(Drive Gear Cover)
1208 691146 Screw
(Brake Bracket)
1210 499901 Pulley/Spring
Assembly
(Pulley)
1211 499901 Pulley/Spring
Assembly
(Spring)
1218 695866 Seal−O Ring
(Carburetor)
1319 794467 Label−Warning
1330 270962 Repair Manual
