Briggs & Stratton Series 82200 to 82299 Setup guide

TO FIND
THE CORRECT NUMBER OF THE PART YOU NEED:
FOLLOW THE INSTRUCTIONS BELOW
A. Refer to Engine Model, Type and Code Number that is stamped on the blower housing of engine.
Engine type numbers such as 0123 01 are listed only as 0123 in most instances. The two digits (01
or 02, etc.) to the right of the space may be required for more accurate parts identification in some
instances. Select the Illustrated Parts List covering the correct Model Series and Type Number.
B. Refer to the Illustrations and compare the original part with Illustration. The number next to the
illustration is the Reference Number. Assemblies include all parts shown in frames. All parts shown
in assembly frames having individual reference numbers can be purchased separately.
C. After the Reference Number has been identified, refer to the Numerical text, where Reference and
Primary Part Number are listed. THE PRIMARY PART IS USED ON ALL TYPE NUMBERS
EXCEPT THOSE TYPE NUMBERS UNDER “NOTE.”
D. If a “Note” appears below the Primary Part Number, it means that this part differs from the Primary
Part for certain types. If your Type number is listed under “Note,” order the part referred to at the
“Note.”
E. If your Engine Type Number does not appear after any part number listed under “Note,” use the
Primary Part Number.
F. For Engine Type Numbers not covered by this book, check other Parts Lists having the same
engine model or contact your source of supply.
Illustrated Parts List
Industrial/Commercial
Model Series
82200 to 82299
TYPE NUMBERS
0300 through 0393,
2135 through 2152,
4002 through 4011,
4014 through 4021,
4025, 4035, 4036,
4045, 4049, 4090,
4091, 4092, 4844,
4845, 4846, 8200,
8244, 8301, 8305,
8306, 8309.
®
BRIGS& T
GSTRA TON
PRINTED IN U.S.A. COPYRIGHT
82200 to 82299
FORM MS-8992–12/94
REPLACES FORM MS-8992–2/94
FILE IN SECT. 2 OF SERVICE MANUAL

82200 to 82299
8992–2 Assemblies include all parts shown in frames. 124
2
REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
307
357
13
383
16
635
337
33 34
10 40
8
15
17
741
308
7
36 35
9
552
1
306
870
869
871
5
527
528
529
11
15A
41
42
44
40
1058 OWNER’S MANUAL
1019 LABEL KIT
1 395567 Cylinder Assembly
5 210812 Head–Cylinder
7K272167 Gasket–Cylinder Head
8 294178 Breather Assembly
9K27549 Gasket–Breather
11 231527 Tube–Breather
10 94688 Screw–Sem
13 Screw–Cylinder Head
See Last Pages.
15 91249 Plug–Oil Drain
15A 93448 Plug–Oil Drain
(Hex. Socket Head)
16 Crankshaft
See Last Pages.
17 Bearing–Ball
See Last Pages.
33 Valve–Exhaust
See Last Pages.
34 296677 Valve–Intake
35 260552 Spring–Valve
(Intake)
36 Spring–Valve
(Exhaust)
See Last Pages.
40 93312 Retainer–Valve
41 Retainer–Valve
See Last Pages.
42 230127 Keeper–Valve
44 230126 Pin–Retainer
306 224377 Shield–Cylinder
(Used After Code Date
90020500).
––––––– Note –––––
220478 Shield–Cyl.
(Used Before Code
Date 90020600).
307 93490 Screw–Sem
308 223390 Cover–Cylinder Head
337 492167 Plug–Spark
(1–7/8”High, 48 mm)
––––––– Note –––––
298809 Plug–Spark
(1–1/2”High, 37 mm)
802592 Plug–Spark
(1–7/8”High, 48 mm,
Resistor Type)
357 91539 Key–Drive Pulley
383 89838 Wrench–Spark Plug
527 223786 Clamp–Tube
528 66578 Grommet
529 67838 Grommet
552 231079 Bushing–Gov. Shaft
(Mech. Gov.)
635 66538 Boot–Spark Plug
741 261533 Gear–Timing
––––––– Note –––––
261721 Gear–Timing
(For Ball Bearing)
(Used Before Code
Date 93071900).
869 211172 Seat–Valve
(Used After Code Date
88073100).
––––––– Note –––––
210879 Seat–Valve
(Used Before Code
Date 88080100).
870 211291 Seat–Valve
871 262001 Bushing–Guide
(Exhaust Valve)
––––––– Note –––––
63709 Bushing–Guide
(Intake Valve)
1019 491075 Label Kit
1058 271977 Owner’s Manual
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–3 Assemblies include all parts shown in frames. 124
3
18
20
28
220
22
45
32
30
358 GASKET SET
19
27
20
29
27
26
25
46
562
616
592 227
21
12
506 353
507
353
354
230
614
615
219
REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
32
31
12 K270833 Gasket–Crankcase
(.015”Thick, Standard)
K270895 Gasket–
Crankcase
(.005”Thick)
K270896 Gasket–
Crankcase
(.009”Thick)
18 Cover–Crankcase
See Last Pages.
19 293708 Bushing
Include(s):
220538 Bushing
20 K495355 Seal–Oil
(Used After Code Date
93071800).
––––––– Note –––––
K393812 Seal–Oil
(Used Before Code
Date 93071900).
21 66768 Plug–Oil Fill
22 Screw–Hex. Head
See Last Pages.
25 Piston Assembly
See Last Pages.
26 295657 Ring Set
(Standard)
297201 Ring Set
(Std. Chrome)
295658 Ring Set
(.010”O.S.)
295659 Ring Set
(.020”O.S.)
295660 Ring Set
(.030”O.S.)
27 26026 Lock–Piston Pin
28 298909 Pin–Piston
(Standard)
298908 Pin–Piston
(.005”O.S.)
29 294367 Rod–Connecting
(Standard)
296079 Rod–Conn.
(.020 Undersize)
30 220670 Dipper–Conn. Rod
31 222282 Washer–Flat
32 94404 Screw–Conn. Rod
45 230173 Tappet–Valve
46 493747 Gear–Cam
219 Gear–Governor
See Last Pages.
220 221551 Washer–Thrust
227 490454 Lever Assy.–Governor
230 222450 Washer–Gov. Lever
353 92791 Washer–Lock
354 90576 Nut–Hex.
358 Gasket Set
See Last Pages.
506 90200 Screw–Fillister Head
507 66895 Insulator
562 93613 Bolt–Governor Lever
592 231082 Nut–Hex.
614 93306 Pin–Cotter
615 93307 Retainer–E-Ring
616 231077 Crank–Governor
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–4 Assemblies include all parts shown in frames. 124
4
634
987
611
108
679
680
PARTS USED ON
ENGINES WITH AIR
VANE GOVERNOR
154 152
95
96
124
127A 149 118
899
153
52
898 433
435
156
127B
127 392
394434
432
90
97
257 To replace carburetor assembly, determine fuel tank capacity as shown
Carburetor
Mounting
Surface
Large Fuel Pipe
D
Fuel Tank
Capacity
(Quarts)
D
(Inches)
123
2–5/16 4–1/4 4–7/8
D=Fuel Pipe Length (Approx.)
187
121 CARBURETOR KIT
52 KD271936 Gasket–Intake
90 Carburetor
See Last Pages.
95 93499 Screw–Sem
96 223793 Valve–Throttle
97 495313 Shaft–Throttle
(Used After Code Date
92090600).
––––––– Note –––––
490371 Shaft–Throttle
(Used Before Code
Date 92090700).
108 490495 Valve–Choke
––––––– Note –––––
495949 Valve–Choke
Used on Type No(s).
0386.
118 231533 Valve–Idle Adjust
121 495606 Carburetor Kit
(Used After Code Date
92060700).
––––––– Note –––––
494624 Carburetor Kit
(Used Before Code
Date 92060800).
124 93357 Screw–Hex. Head
127 220352 Plug–Welch
127A 223789 Plug–Welch
127B 223472 Plug–Welch
(Well)
(Used After Code Date
87011100).
––––––– Note –––––
223790 Plug–Welch
(Used Before Code
Date 87011200).
149 26336 Spring–Needle Valve
152 260575 Spring–Adjustment
153 490501 Screw–Carb. Lever
154 93527 Screw–Rd. Hd.
156 492905 Lever–Speed Adjuster
187 231067 Line–Fuel
(For 2 Quart Tank)
––––––– Note –––––
231068 Line–Fuel
(For 3 Quart Tank)
257 93543 Screw–Fillister Hd.
392 262328 Spring–Diaphragm
394 D272538 Diaphragm–Carb.
(Used After Code Date
92090600).
––––––– Note –––––
D270026 Diaphragm–
Carburetor
(Used Before Code
Date 92090700).
432 221377 Cap–Spring
433 93265 Pin
434 214021 Cover–Diaphragm
(Used After Code Date
92090600).
––––––– Note –––––
210959 Cover–Diaph.
(Used Before Code
Date 92090700).
435 93141 Screw–Sem
611 Tube–Pick-up
See Last Pages.
634 271853 Washer–Throttle Shaft
679 270382 Washer–Choke Shaft
(Foam)
680 221839 Washer (Brass)
898 92507 Washer–Lock
899 93397 Washer–Lock
987 398970 Seal–Throttle Shaft
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–5 Assemblies include all parts shown in frames. 124
5
156B
156
156A
216A
542
995A
209
541
541
370
201
779
542
995
217
414 539
538
PARTS USED ON
ENGINES WITH AIR
VANE GOVERNOR
348
202A
153
99
1012
99 490956 Spring & Screw
153 490501 Screw–Carb. Lever
156 492905 Lever–Speed Adjuster
156A 223857 Lever–Speed Adjuster
(Remote or Manual
Control)
156B 223855 Lever–Speed Adjuster
(Choke-A-MaticR)
201 262325 Link
202A 262470 Link
209 262317 Spring–Governor
––––––– Note –––––
260041 Spring–Gov.
Used on Type No(s).
0320, 0337, 0339,
0349, 0351, 0353,
0372, 4007, 4020,
4021, 4035, 4090.
262391 Spring–Gov.
Used on Type No(s).
0311, 0313, 0318,
0321, 0322, 0331,
0348, 0349, 0369,
0373, 0377, 0381,
0382, 0384, 0386,
0389, 0392, 0393,
4002, 4004, 4016,
4018, 4036, 4045,
4091, 4092.
262809 Spring–Gov.
Used on Type No(s).
0315, 0344, 0357.
216A 262320 Link
(Choke-A-MaticR)
217 262281 Spring–Link
348 296110 Switch–Stop
370 66432 Washer–Plain
414 221198 Washer–Link
538 260683 Rod–Control
539 260684 Link
541 22398 Washer–Speed
542 93572 Screw–Hex. Head
779 262570 Link
995 223887 Bracket–Link
995A 497195 Bracket–Link
(Used After Code Date
94083100).
––––––– Note –––––
491577 Bracket–Link
(Used Before Code
Date 94090100).
1012 490507 Retainer–Link
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–6 Assemblies include all parts shown in frames. 124
6
634
987
611
108
679
680
PARTS USED ON
ENGINES WITH
MECHANICAL
154 152
95
96
124
127A 149 118
52
433
435
127B
127
392
394
434
432
90A
97A
203 205
202
To replace carburetor assembly, determine fuel tank capacity as shown
Carburetor
Mounting
Surface
Large Fuel Pipe
D
Fuel Tank
Capacity
(Quarts)
D
(Inches)
3
4–7/8
D=Fuel Pipe Length (Approx.)
GOVERNOR.
2
4–1/4
121 CARBURETOR KIT
187
52 KD271936 Gasket–Intake
90A Carburetor
See Last Pages.
95 93499 Screw–Sem
96 223793 Valve–Throttle
97A 490048 Shaft–Throttle
108 490495 Valve–Choke
118 231533 Valve–Idle Adjust
121 495606 Carburetor Kit
(Used After Code Date
92060700).
––––––– Note –––––
494624 Carburetor Kit
(Used Before Code
Date 92060800).
124 93357 Screw–Hex. Hd.
127 220352 Plug–Welch
127A 223789 Plug–Welch
127B 223472 Plug–Welch
(Used After Code Date
87011100).
––––––– Note –––––
223790 Plug–Welch
(Used Before Code
Date 87011200).
149 26336 Spring–Needle Valve
152 260575 Spring–Adjustment
154 93527 Screw–Rd. Hd.
187 231067 Line–Fuel
(For 2 Quart Tank)
––––––– Note –––––
231068 Line–Fuel
(For 3 Quart Tank)
202 262270 Link
203 280720 Crank–Bell
205 231520 Screw–Shoulder
392 262328 Spring–Diaphragm
394 D272538 Diaphragm–Carb.
(Used After Code Date
92090600).
––––––– Note –––––
D270026 Diaphragm–
Carburetor
(Used Before Code
Date 92090700).
432 221377 Cap–Spring
433 93265 Pin
434 214021 Cover–Diaphragm
(Used After Code Date
92090600).
––––––– Note –––––
210959 Cover–
Diaphragm
(Used Before Code
Date 92090700).
435 93141 Screw–Sem
611 Tube–Pick-Up
See Last Pages.
634 271853 Washer (Foam)
679 270382 Washer (Foam)
680 221839 Washer (Brass)
987 398970 Seal–Throttle Shaft
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–7 Assemblies include all parts shown in frames. 124

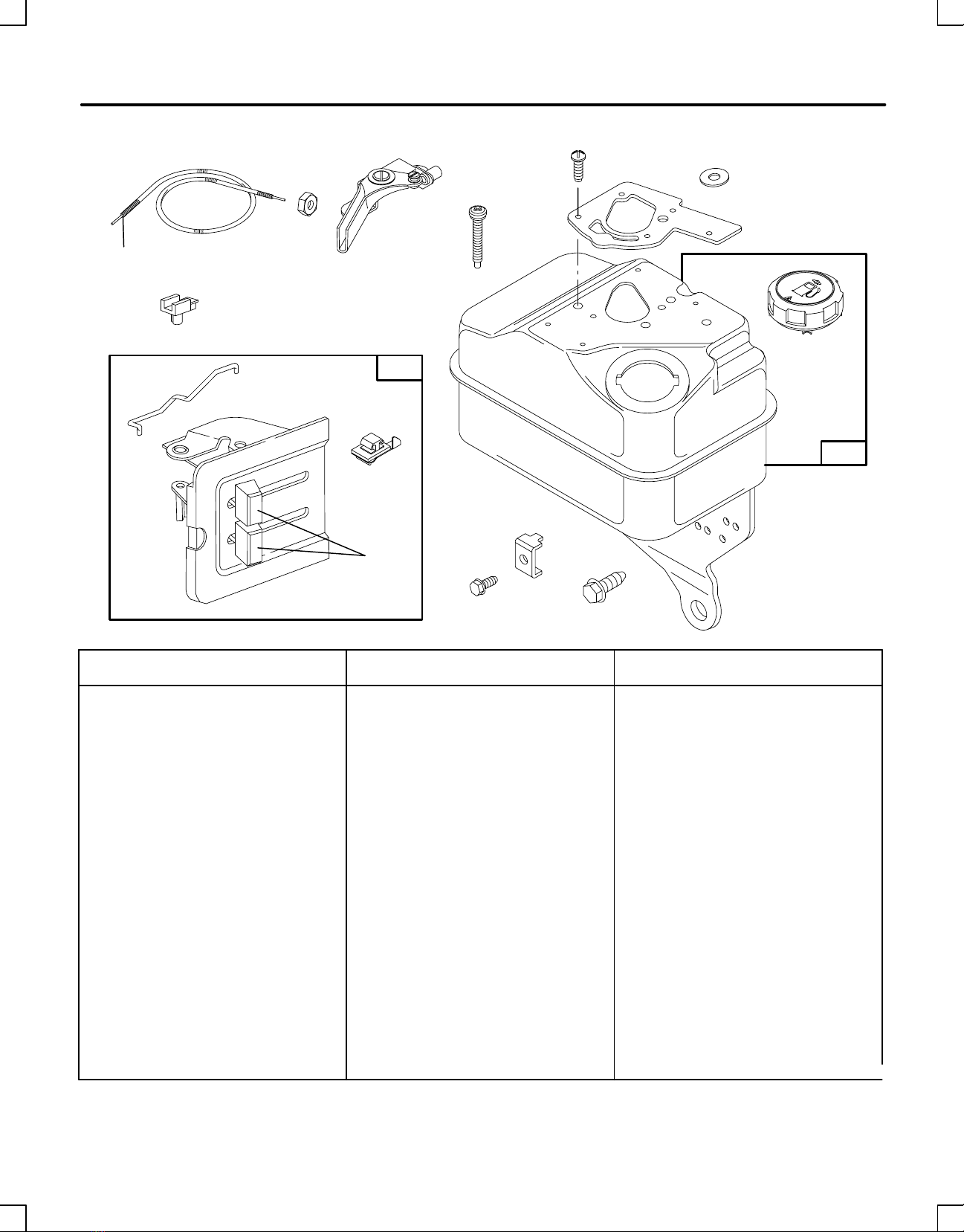

7
270
269 268
271
267
265
181
190 191
180
526
222
621
467
216
1012
190A
641
180 Tank–Fuel
See Last Pages.
181 494559 Cap–Fuel Tank
190 94094 Screw–Sem
190A 94677 Screw–Sem
191 KD272489 Gasket–Tank Mtg.
(Used After Code Date
92060700).
––––––– Note –––––
KD272410 Gasket–
Tank Mtg.
(Used Before Code
Date 92060800).
216 262359 Link
(Used After Code Date
87030100).
––––––– Note –––––
262274 Link
(Used Before Code
Date 87030200).
222 490648 Bracket–Control
265 221370 Clamp–Casing
267 93496 Screw–Sem
268 66986 Casing–Wire
(48”Long)
––––––– Note –––––
If Longer Casing is
Needed, Specify
Length in Inches; If a
Shorter Casing is
Needed, Order and
Cut to Required
Length.
269 26099 Wire–Control
(54”Long)
––––––– Note –––––
If Longer Wire is
Needed, Specify
Length in Inches; If
Shorter Wire is
Needed, Order and
Cut to Required
Length.
270 63426 Locknut–Casing
271 290568 Lever–Control
467 280715 Knob
526 Screw–Sem
See Last Pages.
621 396847 Switch–Stop
641 220680 Washer
(Used on Engines
Without Ref. 222)
1012 490507 Retainer–Link
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–8 Assemblies include all parts shown in frames. 124
8
190 191
180A
526
181
267 265A
267
346
621
354
520
353
985
207
206
224
204
280
208
916
223
209A
201A
232
190A
180A 495376 Tank–Fuel
(2 Quart) (Mech. Gov.)
––––––– Note –––––
495388 Tank–Fuel
(3 Quart)
(Used After Code Date
92060700).
490527 Tank–Fuel
(3 Quart)
(Used Before Code
Date 92060800).
181 494559 Cap–Fuel Tank
190 94094 Screw–Sem
190A 94677 Screw–Sem
191 KD272489 Gasket–Tank Mtg.
(Used After Code Date
92060700).
––––––– Note –––––
KD272410 Gasket–
Tank Mtg.
(Used Before Code
Date 92060800).
204 222962 Bushing–Lever
(Mech. Gov.)
206 231266 Nut–Control Rod
207 26855 Spring–Control Rod
208 262323 Rod–Control
209A 262289 Spring–Governor
(Mech. Gov.)
Used on Type No(s).
4846, 8301, 8306.
––––––– Note –––––
262285 Spring–Gov.
Used on Type No(s).
8244, 8309.
262291 Spring–Gov.
Used on Type No(s).
4844, 4845, 8305.
201A 262278 Link
(Mech. Gov.)
223 223097 Lever–Gov. Control
(Mech. Gov.)
224 93491 Rivet
(Mech. Gov.)
232 262310 Spring–Link
265A 221535 Clamp–Casing
267 93496 Screw–Sem
280 223798 Bracket–Rod
––––––– Note –––––
223235 Bracket–Rod
Used on Type No(s).
0382, 4003, 4004,
4008, 4010, 4019,
4092, 8301, 8306,
8309.
346 93705 Screw–Sem
353 92791 Washer–Lock
354 90576 Nut–Hex.
520 93722 Terminal
526 Screw–Sem
See Last Pages.
621 396847 Switch–Stop
916 280321 Rack–Governor
985 398525 Insulator
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–9 Assemblies include all parts shown in frames. 124
9
968
535
969
967
536
445
467A
166
446
163B
642
852
163
966
971
643
643A
163A
855
535A
163 K271935 Gasket–Air Cleaner
163A 271139 Gasket–Air Cleaner
163B 272631 Gasket–Air Cleaner
166 231819 Stud–Air Cleaner
445 396424 Filter–Air
446 222844 Base–Air Cleaner
467A 493903 Knob
535 491435 Filter–Air
535A 271466 Filter–Air
536 494279 Cleaner–Air
642 493822 Cover–Air Cleaner
643 280737 Retainer–Air Filter
643A 280726 Retainer–Air Filter
852 396397 Cleaner–Air
855 281189 Adapter–Air
966 492797 Base–Air Cleaner
967 491588 Filter–Air
968 223765 Cover–Air Cleaner
969 490073 Screw–Cover Mtg.
(Includes Grommet)
971 94018 Screw–Sem
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–10 Assemblies include all parts shown in frames. 124

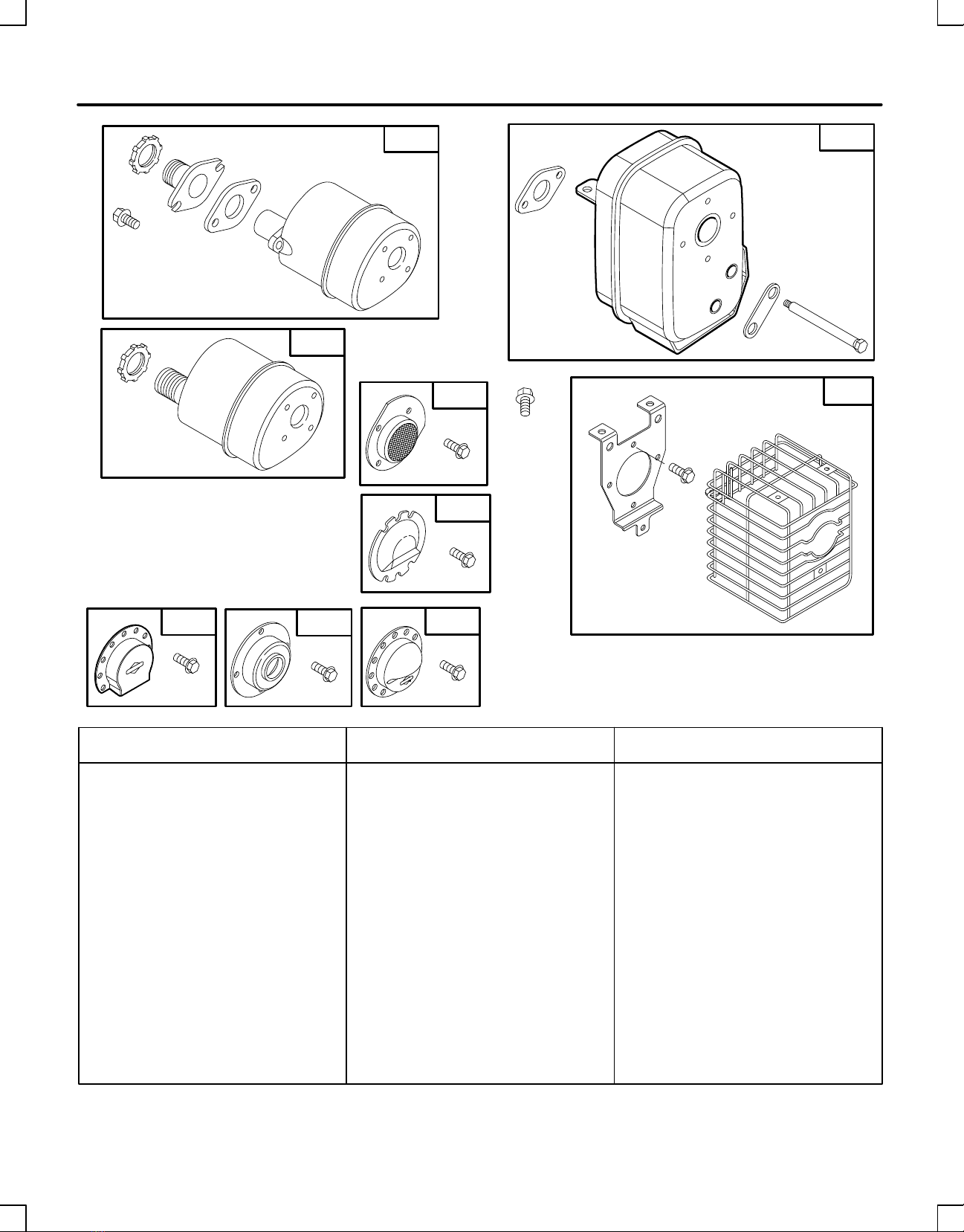

10
81A
346
613
53
981
864 883
298
883
346
346 346
298
299
299A
994
300
676
832
676A
346
676B
346
676C
284
53 94523 Screw–Hex.Head
81A 223256 Lock–Screw
284 93801 Screw–Hex.Head
298 220859 Locknut–Muffler
299 493288 Muffler–Exhaust
299A 392811 Muffler–Exhaust
(Lo–Tone)
300 395959 Muffer–Exhaust
346 93705 Screw–Sem
613 94042 Screw–Muffler
676 393760 Deflector–Muffler
676A 397931 Deflector–Muffler
676B 393756 Deflector–Muffler
676C 396548 Deflector–Muffler
832 490571 Guard–Muffler
864 492232 Adapter–Muffler
883 K272252 Gasket–Exhaust
981 223395 Bracket–Muffler
994 398067 Arrester–Spark
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–11 Assemblies include all parts shown in frames. 124
11
608
60
66
1016
58
57 56 73
76
24 75
23
71 70 67
68
74
305
363
200
356
333
851 334
CYLINDER HEAD
0’CLOCK POSITION
12
9
6
3
23 296884 Flywheel
––––––– Note –––––
395653 Flywheel
Used on Type No(s).
0313, 0349.
24 222698 Key–Flywheel
56 280439 Pulley–Starter
57 490179 Spring–Rewind Starter
58 66734 Rope–Starter
(48–5/8”Long)
––––––– Note –––––
280406 Rope–Starter
(82”Long)
280399 Rope–Starter
(99”Long)
60 393152 Grip–Starter Rope
66 399671 Clutch–Starter
67 394897 Housing–Clutch
68 63770 Ball–Clutch
70 298799 Ratchet–Clutch
71 394506 Washer–Retainer
73 221661 Screen–Rotating
74 93490 Screw–Sem
––––––– Note –––––
94062 Screw–Hex. Hd.
Used on Type No(s).
0320, 0333, 0357,
0358, 0360, 0373,
4006, 4007, 4008,
4011, 4014, 4016,
4020, 4021, 4025,
4846.
75 224061 Washer–Spring
76 68238 Washer–Sealing
200 490529 Blade–Governor
305 93158 Screw–Sem
333 397316 Armature–Magneto
334 93381 Screw–Sem
356 490346 Wire–Stop
363 19069 Flywheel Puller
608 491046 Starter–Rewind
(10 o’clock)
––––––– Note –––––
491728 Starter–
Rewind
(12 o’clock)
Used on Type No(s).
0311, 0313, 0318,
0319, 0322, 0323,
0335, 0336, 0337,
0344, 0348, 0349,
0353, 0372, 0374,
0377, 0378, 0382,
0386, 0392, 0393,
2135, 2136, 2140,
2149, 2150, 2152,
4004, 4010, 4036,
4049, 4092, 4844,
4845, 8244, 8305.
851 221798 Terminal–Cable
1016 490817 Spacer
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–12 Assemblies include all parts shown in frames. 124

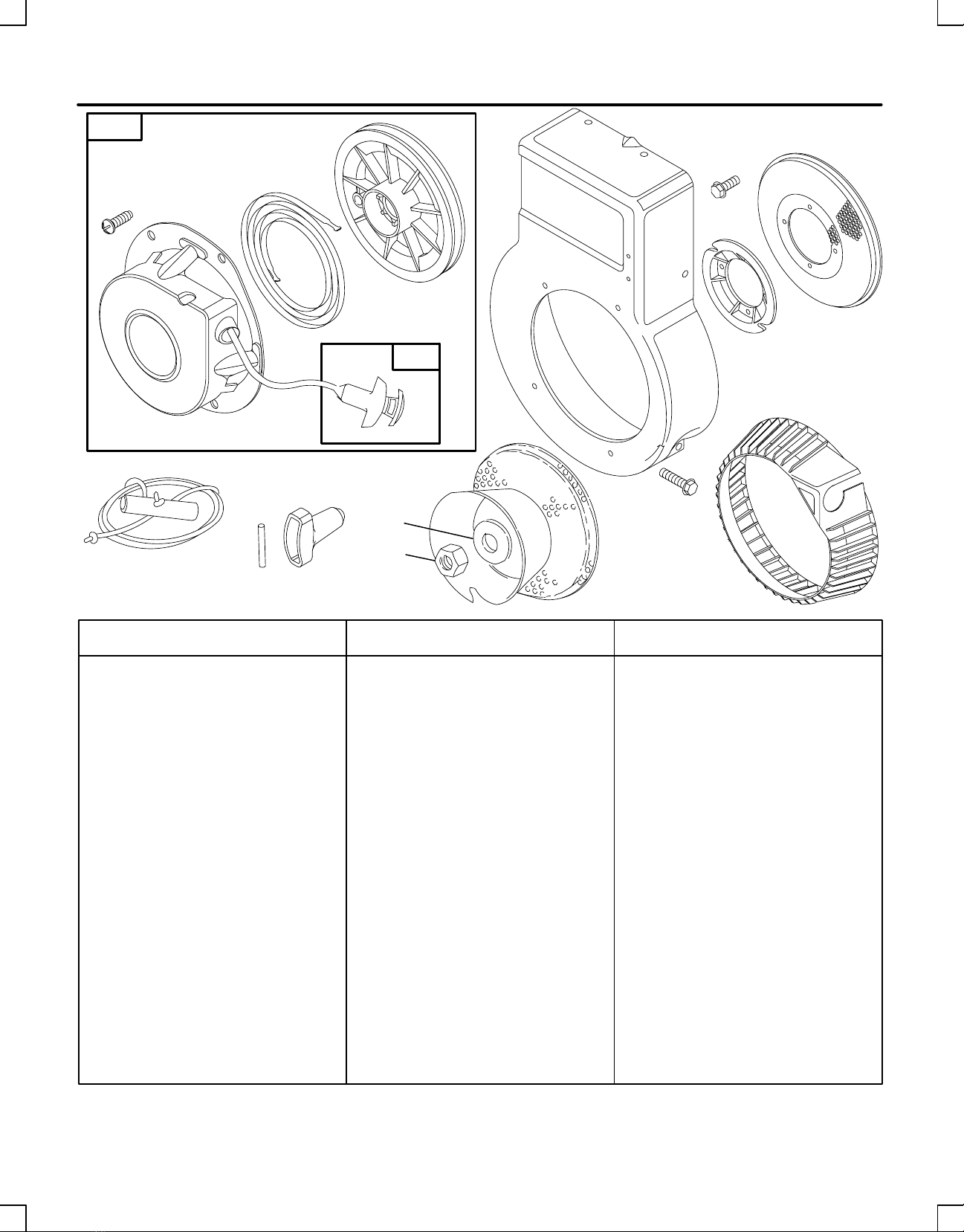

12
57
56
74A
305
304
330
60A
59
608A
58
74A
949
73
325
325A
75
332
60B
59A
56 280439 Pulley–Starter
57 490179 Spring–Rewind Starter
58 66734 Rope–Starter
(48–5/8”Long)
––––––– Note –––––
280406 Rope–Starter
(82”Long)
280399 Rope–Starter
(99”Long)
59 490653 Insert–Starter Grip
59A 230228 Pin–Starter Grip
60A 490652 Grip–Starter Rope
60B 66728 Grip–Starter Rope
73 221661 Screen–Rotating
74A 94418 Screw–Starter Mtg.
(Used After Code Date
88020700).
––––––– Note –––––
93067 Screw–Starter
Mounting
(Used Before Code
Date 88020800).
75 224061 Washer–Spring
304 491117 Housing–Blower
––––––– Note –––––
490443 Housing–
Blower
Used on Type No(s).
0325, 0328, 0350.
305 93158 Screw–Sem
325 280810 Pulley–Starter
325A 298731 Pulley–Starter
(Special, 5/8”Dia.
Hole)
330 69932 Rope–Starter
332 92284 Nut–Flywheel
608A 494068 Starter–Rewind
(10 o’clock)
949 281192 Guard–Finger
(Used After Code Date
91080400).
––––––– Note –––––
280684 Guard–Finger
(Used Before Code
Date 91080500).
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

82200 to 82299
8992–13 Assemblies include all parts shown in frames. 124
13
79
86
1
23
87
89
85
84
82A 81
305
37
82 189
20
3
REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
83
88
80
847
523
525
525A
524
1 395567 Cylinder Assembly
2 399269 Bushing
3K299819 Seal–Oil
20 393812 Seal–Oil
37 220971 Guard–Flywheel
79 290779 Case Assy.–Gear
80 K27667 Gasket–Gear Case
81 220234 Lock–Screw
82 91541 Screw–Hex. Hd.
(7/8”Long)
82A 92279 Screw–Hex. Hd.
(1–1/2”Long)
83 211293 Shaft Assembly–Drive
84 92617 Plug–Breather
85 92747 Screw–Gear Cover
86 291730 Cover Assembly–Gear
87 K19011 Seal–Oil
88 K27313 Gasket–Cover
89 93448 Plug–Oil Drain
189 90366 Washer–Lock
305 93158 Screw–Sem
523 297357 Cap–Oil Fill
524 65304 Gasket–Cap
525 91258 Nipple–Pipe
525A 394884 Adapter–Oil Fill
847 493955 Tube Assy.–Oil
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

8992–14 Assemblies include all parts shown in frames. 124
14
82200 to 82299
13 94547 Screw–Cylinder Head
––––––– Note –––––
94547 Screw–Cylinder
Head
93583 Stud–Cylinder
Head
22963 Washer
Used on Type No(s).
0311, 0313, 0318,
0322, 0323, 0331,
0355, 0362, 0371,
0377, 0381, 0382,
0389, 4002, 4003,
4004, 4005, 4007,
4008, 4010, 4011,
4015, 4016, 4018,
4019, 4035, 4036,
4045, 4049, 4090,
4091, 4092, 4844,
4845, 4846, 8309.
16 495211 Crankshaft
(Used After Code Date
93071800).
493633 Crankshaft
(Used Before Code
Date 93071900).
––––––– Note –––––
To Replace Crankshaft
Gear Pin–
Order Part No.
230978.
397252 Crankshaft
Used on Type No(s).
0325, 0346, 0361,
0385, 4006, 4014,
4021.
399006 Crankshaft
(Used After Code Date
93071800).
494033 Crankshaft
(Used Before Code
Date 93071900).
Used on Type No(s).
4844, 4845, 8244,
8305.
493599 Crankshaft
Used on Type No(s).
0302, 0316, 0323,
0336, 0337, 0340,
0341, 0342, 0360,
0367, 0374, 0382,
2149, 2152, 4005,
4010, 4011, 4049,
4092.
493767 Crankshaft
(Used After Code Date
93071800).
Used on Type No(s).
0392, 0393.
493849 Crankshaft
(Used Before Code
Date 93071900).
Used on Type No(s).
0312, 0315, 0318,
0322, 0324, 0354,
0357, 0377, 0386,
0393, 2140, 4002,
4003, 4016, 4018,
4019.
——————————
495210 Crankshaft
(Used After Code Date
93071800).
492095 Crankshaft
(Used Before Code
Date 93071900).
Used on Type No(s).
0311, 0313, 0319,
0321, 0344, 0348,
0349, 0350, 0364,
0368, 0369, 0373,
0384, 0385, 2136,
4004, 4008, 4025,
4036, 4091.
17 495484 Bearing–Ball
(Used After Code Date
93071800).
––––––– Note –––––
99158 Bearing–Ball
(Used Before Code
Date 93071900).
18 496674 Cover–Crankcase
(Used After Code Date
93071800).
395259 Cover–
Crankcase
(Used Before Code
Date 93071900).
Used on Model Series
82232.
––––––– Note –––––
496679 Cover–
Crankcase
(Used After Code Date
93071800).
394909 Cover–
Crankcase
(Used Before Code
Date 93071900).
Used on Model Series
82252.
22 94607 Screw–Hex. Head
––––––– Note –––––
92747 Screw–Gear
Cover
Used in Two Top Holes
to Mount Cover
Used on Model Series
82252.
93656 Stud–Crkcse.
Used in No. 1 Position.
90832 Washer–Lock
Used on Type No(s).
0389, 4002, 4003,
4007, 4008, 4015,
4035, 4036, 4045,
4090, 4091, 4846.
25 295455 Piston Assembly
(Standard)
295456 Piston Assy.
(.010”O.S.)
295457 Piston Assy.
(.020”O.S.)
295458 Piston Assy.
(.030”O.S.)
33 262986 Valve–Exhaust
(Used After Code Date
93120700).
262580 Valve–Exhaust
(Used Before Code
Date 93120800 and
After Code Date
90051300).
260443 Valve–Exhaust
(Used Before Code
Date 90051400).
––––––– Note –––––
296676 Valve–Exhaust
Include(s):
93312 Retainer
Used on Type No(s).
0314, 0315, 0316,
0320, 0324, 0325,
0326, 0327, 0328,
0333, 0335, 0336,
0342, 0344, 0347,
0350, 0351, 0354,
0357, 0358, 0360,
0361, 0364, 0369,
0370, 0371, 0372,
0373, 0384, 0385,
0390, 0391, 2150,
2152, 4007, 4008,
4011, 4014, 4016,
4020, 4021, 4025,
4845, 4846, 8309.
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

8992–15 Assemblies include all parts shown in frames. 124
15
82200 to 82299
36 260552 Spring–Valve
(Exhaust)
(Used After Code Date
93120700).
262750 Spring–Valve
(Exhaust)
(Used Before Code
Date 93120800 and
After Code Date
90051300).
26826 Spring–Valve
(Exhaust)
(Used Before Code
Date 90051400).
––––––– Note –––––
26478 Spring–Valve
(Exhaust)
Used on Type No(s).
2150, 2152, 4011.
41 491442 Retainer–Valve
(Used Before Code
Date 93120800 and
After Code Date
90051300).
––––––– Note –––––
292259 Retainer–
Valve
(Used Before Code
Date 90051400).
90 495459 Carburetor
(Air Vane)
(For 2 Quart Tank)
(Used After Code Date
92090600).
492645 Carburetor
(Used Before Code
Date 92090700).
––––––– Note –––––
495460 Carburetor
(For 3 Quart Tank)
495461 Carburetor
(For 1 Quart Tank)
496434 Carburetor
(For 2 Quart Tank)
Used on Type No(s).
0386, 0393.
90A 495458 Carburetor
(For 2 Quart Tank)
––––––– Note –––––
495457 Carburetor
(For 3 Quart Tank)
(Used After Code Date
92090600).
492643 Carburetor
(Used Before Code
Date 92090700).
180 495377 Tank–Fuel
(2 Qt.)
(Used After Code Date
92060700).
490502 Tank–Fuel
(2 Qt.)
(Used Before Code
Date 92060800).
––––––– Note –––––
495391 Tank–Fuel
(3 Quart)
Used on Type No(s).
0301, 0302, 0311,
0313, 0314, 0317,
0318, 0319, 0324,
0326, 0337, 0341,
0342, 0348, 0349,
0358, 0360,0369,
0373, 0377, 0384,
0385, 4002.
495368 Tank–Fuel
(1 Quart)
Used on Type No(s).
0315, 0321, 0323,
0324, 0327, 0357,
4016.
219 494845 Gear–Governor
(Mech. Gov.)
(Used After Code Date
91060900).
––––––– Note –––––
391737 Gear–Gov.
(Used Before Code
Date 91061000).
358 495602 Gasket Set
(Used After Code Date
92060700).
––––––– Note –––––
397144 Gasket Set
(Used Before Code
Date 92060800).
526 93343 Screw–Sem
––––––– Note –––––
93686 Screw–Self Tap.
Use(s):
66432 Washer
Used on Type No(s).
0315, 0321, 0327,
0357, 4016.
611 391813 Tube–Pick-Up
––––––– Note –––––
297219 Tube–Pick-Up
Used on Type No(s).
0315, 0321, 4016.
KIncluded in Gasket Set–See Ref. 358.
DIncluded in Carburetor Kit–See Ref. 121.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
