IMPORTANT INFORMATION
Congratulations on your purchase of a top quality VICTA Blower.
This instruction manual will aid in the assembly, operation and maintenance of your new Blower.
Please read carefully to ensure safety and the long life of your product.
Keep this instruction manual in a safe place for future reference or if service is required on your unit.
General safety regulations
• Read the instructions carefully. Ensure you are familiar with all controls and learn how
to operate the machine properly.
• Stay alert and watch what you are doing when operating a power tool. Do not operate
the blower under the influence of alcohol, drugs or medication or when you are tired
or sick.
• Operate the blower at reasonable hours only - not early in the morning or late at night
when people might be disturbed. Check with your local council for operation times.
• Do not operate the blower indoors or in confined spaces.
• While the blower is running, always keep hands and feet away from blower tube.
(Keep away from any bystanders or animals when in use.)
• Use only manufacturer’s genuine recommended replacement parts and accessories.
WARNING Read all safety warnings and all instructions before use! Failure
to follow the warnings and instructions may result in fire and/or serious
injury. Save all warnings and instructions for future reference.
Do not operate the unit before reading this manual!
Warning! Be careful of objects being
thrown out!
Read the directions for
use before operating
the machine.
Read the manual
before carrying out any
maintenance work.
Wear safety goggles,
a helmet and ear
protection.
Wear sturdy, enclosed safety
boots.
Wear safety gloves. Protect the machine
from rain and damp.
Do not use in rain.
Warning! Rotating parts!
Be sure impeller cover is
fitted secure.
Bystanders must be at
least 15 metres away from
operating unit.

Not for
Reproduction
Table of Contents
NOTE – WARRANTY DETAILS ARE NOT WRITTEN WITHIN THIS OPERATOR’S
MANUAL. REFER TO OTHER DOCUMENTS SUPPLIED WITH THIS MACHINE FOR
WARRANTY DETAILS.
THE WARRANTY DOCUMENTS MAY INCLUDE TECHNICAL SPECIFICATIONS
THAT ARE SPECIFIC TO EACH MODEL THAT ARE NOT WRITTEN WITHIN THIS
OPERATOR’S MANUAL.
Quick Start
Quick Start Guide 1
Features & Definitions
Feature Definitions 2
Safety & Handling
Safety Instructions 3
Hazards 5
Personal Safety Equipment 5
Assembly Procedures
Assembly 6
Operating Instructions
Fuelling Procedures 7
Starting Instructions 8
Stopping Instructions 8
Blowing Tips 9
Maintenance & Care
Air Filter 10
Spark Plug 11
General Maintenance 11
Cleaning & Storage 12
Maintenance Chart 13
Troubleshooting
Troubleshooting 14

Not for
Reproduction
1
QUICK START
Quick Start Guide
• That there are no leaks in the fuel system
• That all screws are securely fastened
• Blower nozzles and impeller cover are secured in the correct position
Check the position & operation of controls to ensure you are
comfortable before you start using the machine.
Check all components are assembled as per assembly instructions on
page 6.
Before every use, check the machine for the following:
Quick Start Guide
• Place the Blower on a hard, level surface.
• Press the PRIMER 10 times.
1 – Get ready…
• Set the choke lever to "COLD" position.
2 – Set
• Pull the starter cord until you feel it resist.
Then tug sharply on the starter cord 2 or 3 times.
*The engine may start or run for a short period set
on cold. Choke can be set to hot while the engine
is running.
• Now, set the choke lever to the "HOT" position.
• If required, tug sharply on the starter cord 2 or 3
times or until the engine starts
**In cold conditions, the engine may require 5-10
seconds running at idle. Pulling the trigger during
warm-up may help starting.
3 – Go! 3.
CAUTION! ENSURE FEET, LEGS & HANDS ARE CLEAR OF THE
IMPELLER COVER AND BLOWER TUBE/NOZZLE
2. 2.
1.
PRIMER

Not for
Reproduction
2
Unit details
1. Engine
2. Cruise control
3. On/off switch
4. Throttle trigger
5. Spark plug
6. Starter handle
7. Primer
8. Choke
9. Intake grill
10. Handle
11. Air filter cover
12. Fuel tank
13. Foot
14. Vac bag
15. Flat end tube
16. Round end tube
17. Upper blow tube
18. Vac bag tube
19. Suction end tube assembly
1
2
4
6
3
7
11
8
5
13
10
14
18
17
16
15
12
9
FEATURES DEFINITIONS
19

Not for
Reproduction
3
Transporting the blower
• Proper handling of the blower will reduce the risk of personal injury.
When transporting the blower make sure to always switch off the blower, remove any fuel
and the blower tube.
Before using the blower
•The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before using the blower, always wear goggles or safety glasses
with side shield and a full-face shield when needed. Always wear nonslip safety shoes, ear muffs
and a dust mask when operating.
• Do not start the blower until you have studied the instruction manual.
• Know the blower controls and learn how to stop operating the unit quickly in an
emergency by pressing the STOP switch.
• Before using the blower ensure it is not worn or damaged.
• Ensure all screws and fasteners are tightened before use
• Discontinue use and switch off blower if operation is irregular. Have the blower inspected
by authorised service technician before restarting.
Operating the blower
• When using the blower, hold the handle firmly at all times. Discontinue use if discomfort
occurs from vibration. Avoid long exposure without rest periods.
• Keep all body parts away from the blower nozzle end. Make sure the unit is OFF and spark
plug is disconnected when clearing jammed material.
• Keep your work area clean and well lit.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools can create sparks which may ignite the
dust or fumes.
• Keep children, bystanders and pets away when operating the power tool. Ensure there is a
minimum distance of 15 metres.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
blower impeller & cause damage or injury.
• Operate only in daylight or good artificial light.
• Keep hands away from nozzle end and impellor cover when the blower is running.
• Walk with the blower. Never run.
• To maintain full control of the blower, keep a proper footing at all times with your weight
evenly balanced over both feet and never over reach.
• Always keep the handle dry and free from oil and grease.
Safety Instructions

Not for
Reproduction
4
Safety Instructions
• Always stop the blower and disconnect spark plug if the following conditions apply;
- if a foreign object enters the blower tube or impeller and the blower begins to vibrate
abnormally, STOP the operation and inspect for any damage or blockages.
- before clearing any blockage.
- before checking, cleaning or working on the unit.
- whenever leaving the blower unattended.
- if the unit becomes jammed.
- if the unit becomes excessively hot.
• Do not use the blower if the switch does not turn it ON and OFF.
• Store blower out of the reach of children
• Blowers are not intended for use by children.
• Do not allow persons unfamiliar with these instructions to operate the blower.
• Always use blower with full blower nozzle extension so air stream can be close to the
ground. Do not operate blower without nozzle attachment securely assembled (pg 6).
Maintaining the blower
• Periodically check the blower for correct assembly, breakage of parts and any other condition
that may affect the blower operation. If damaged, have the unit repaired before use.
• Store the blower in a well ventilated area, away from any naked flames such as those
found in gas hot water heaters.
• VICTA recommends that all maintenance, repair and inspection work be carried out by a
VICTA Authorised Service Centre.
• Check blower tube is correctly attached before and after each use.

Not for
Reproduction
5
Safety instructions
Hazards
NOTE : The following safety precautions must be strictly observed to avoid the risk of
damage or personal injury.
• Check all fasteners regularly. Always ensure that the blower is in a safe operating
condition.
• Never try to clear debris from the blower while the unit is in operation.
Personal Safety Equipment
Recommended safety equipment to wear when working with your blower.
Safety Gloves Dust mask
Ear muffs Eye protection Safety boots
The following safety precautions must be strictly observed to avoid the risk of damage or
personal injury.
Do not start or operate the unit inside a closed room or building. Breathing exhaust
fumes can kill.
Be careful when operating the unit on slippery ground or overgrown terrain. Be attentive
for concealed hazards, such as ditches, tree stumps and roots.
Maintain solid footing and balance while operating the unit. Operate only on
ground level.
Do not operate on elevated structures such as ladders or roofs.
Do not cover blower tube end. Do not block modify or insert objects into blower end
tube. When handling blower for assembly or maintenance tasks, always wear protective
gloves.
Bystanders must be at least 15 metres away during operation of the unit as rocks and
other materials may be thrown at high velocities. Switch the unit off immediately if
approached.
Keep body away from hot muffler parts.
Stop the blower immediately if the blower starts to vibrate abnormally.
Do not blow above shoulder height. Always point to blower towards the
ground.
Never aim/blow at people or animals and do not operate near open windows.
Do not insert object into impeller cover or use the blower to propel or fire
projectiles.

Not for
Reproduction
6
ASSEMBLY PROCEDURES
Blower tube assembly.
Use as a vacuum collector.
Assembly

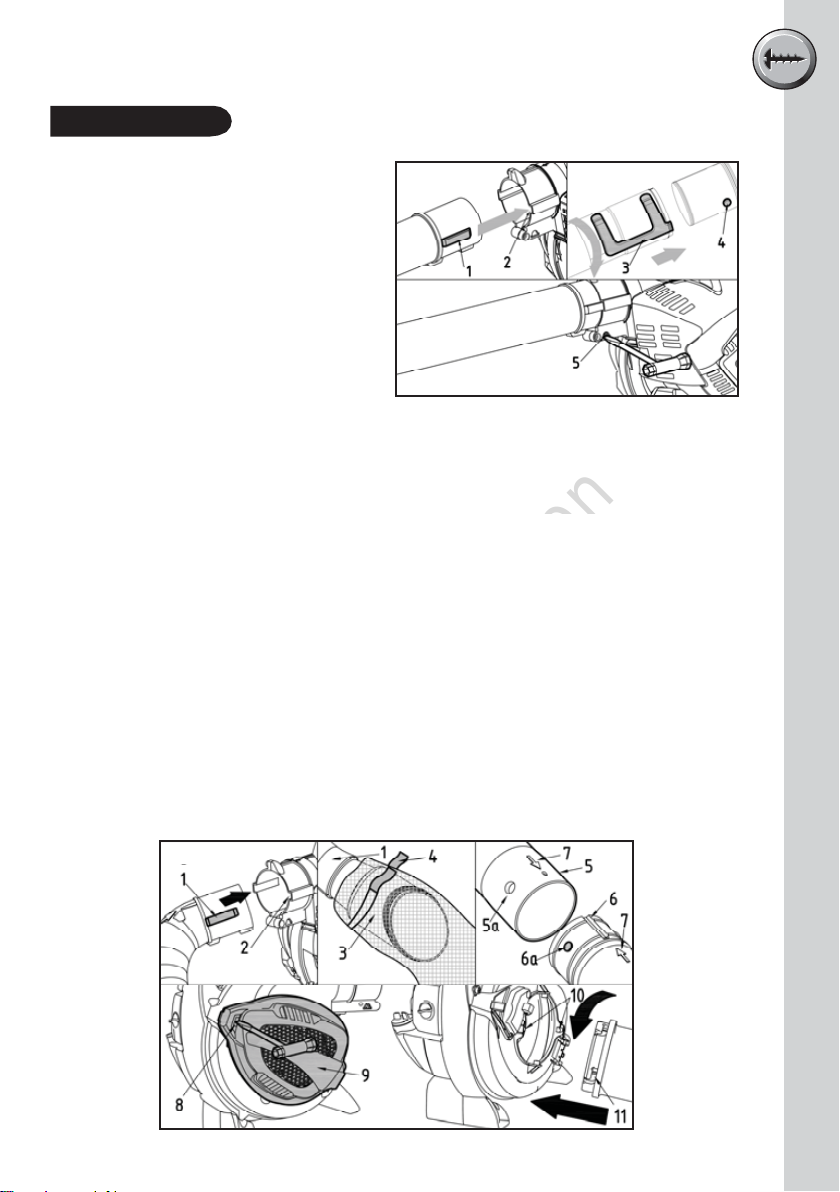

• Align the keyway of the first
upper tube (1) with the air outlet
compartment (2), then push the tube
until it is fitting firmly in place.
• Align the keyway of the lower blower
tube (3) with the protrusion (4) of the
upper tube, push the tube in and
rotate it 90 degrees clockwise to one
of the two foreseen positions, until it is
fitting firmly in place.
• Align the protrusions of the bag coupling tube (1) with the air outlet compartment (2),
then push the tube until it is fitting firmly in place.
• Insert the end nozzle of the coupling tube (1) in the bag inlet (3) and close the inlet
with the Velcro fastener provided (4).
• Connect the first vacuum tube (5) to the second (6), aligning the two reference
arrows (7) and pushing it as far as possible until the protrusion (6a) of the second
tube is firmly inserted in the hole (5a) of the first vacuum tube.
• Insert the screwdriver included in the kit in the hole (8) and press to release the catch
and open the intake grille (9).
• Align the reference plugs (10) with their respective compartments (11) on the first
vacuum tube and turn it counter clockwise, until it is fitted firmly in place.
• Position the bag over the shoulder and use the adjustable shoulder strap to regulate
the height.
NOTE Fit the lower tube with a flat or round end depending on the type of work to be
accomplished.
To remove the upper tube (1), insert the screwdriver included in the kit in the hole (5)
and press firmly until you can slide the tube out from the air outlet nozzle.
NOTE The machine is correctly as sembled when the rounded part of the chute is
pointed towards the ground.

Not for
Reproduction
7
Check the machine for the following each time before use:
• That there are no leaks in the fuel system
• That all screws are securely fastened
• Blower air tube, blower nozzle and impeller cover are secured in the correct position
NOTE: Do not use the blower unless fully assembled. Both blower air tube and blower
nozzle to be assembled.
Check the position & operation of controls to ensure you are
comfortable before you start using the machine.
Check all components are assembled as per assembly instructions on
page 6 before starting the machine.
Before Starting Machine
Recommended fuels
• Use only a mixture of normal unleaded petrol and 2-stroke engine oil. Mix the fuel
mixture as indicated on the fuel mixing table.
• Start the machine at least 3m away from the refuelling site to avoid the possible
risk of fire.
• Do not smoke whilst refuelling or working with the machine.
• Do not use the blower near inflammable liquids or gases. This could result in an
explosion and/or fire.
• Pour the correct quantities of petrol and 2-stroke oil into a container. Then shake the
container well.
• Add 450ml of fuel/oil mix into the fuel tank and secure cap.
Fuel and Oil
Fuel Mixture Table
Petrol (unleaded) 2-stroke oil
5 litre 100 ml (Only for Victa Formula V 2-stroke Oil)
Mixing procedure: 50 parts unleaded petrol to 1 part 2-stroke oil
USE Clean fresh "Regular Unleaded Fuel"
Fuel with up to 10% ethanol can be used
NOTE: Product may need to be reprimed if it has run out of fuel.
• Do not use a fuel mixture which has been kept for longer than 90
days, it may damage the unit.
• Only use containers designed and approved for the purpose to
transport and store fuel.
• The use of other oils and or ratios will affect the engine lubrication,
which may cause engine damage and void engine manufacturer's
warranty.
• Victa recommends the use of Victa Formula V 2-stroke oil at 50:1
fuel to oil ratio only.
OPERATING INSTRUCTIONS
