Briggs & Stratton 1695762 User manual

Clean Sweep Triple Catcher
Mfg. No. Description
1695762 Clean Sweep Triple Catcher
1738408
Rev. -
Clean Sweep
Triple Catcher
ATTACHMENT
OPERATOR’S
MANUAL
Not for
Reproduction

2
Not for
Reproduction

3
Table of Contents
Operator Safety
General Warnings........................................... 4
Safety Decals ................................................. 4
Assembly
Contents of Turbo Installation Kit ................... 5
Turbo Installation ............................................ 6
Counter Balance Installation......................... 11
Front Weight Carrier Installation................... 11
Hitch & Tube Installation............................... 12
Tube & Deflector Assembly .......................... 14
Catcher Bag Assembly ................................. 14
Collector Assembly....................................... 15
Operation
Before Operation .......................................... 16
Mowing with the Catcher .............................. 16
Required Accessories................................... 16
After Operation ............................................. 16
Storing the Grass Catcher ............................ 16
Removal ............................................................ 17
Warranty............................................................ 18
NOTE: In these instructions, “left” and “right” are
referred to as seen from the operating position.
Not for
Reproduction

4
Operator Safety
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of
unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. The triangle
in text signifies important cautions or warnings which must be followed.
SAFETY DECALS
This unit has been designed and manufactured to provide
you with the safety and reliability you would expect from
an industry leader in outdoor power equipment manufac-
turing.
Although reading this manual and the safety instructions it
contains will provide you with the necessary basic knowl-
edge to operate this equipment safely and effectively, we
have placed several safety labels on the unit to remind
you of this important information while you are operating
your unit.
All DANGER, WARNING, CAUTION and instructional
messages on your rider, attachments and mower should
be carefully read and obeyed. Personal bodily injury can
result when these instructions are not followed. The infor-
mation is for your safety and it is important! The safety
decals below are on your product.
If any decals are lost or damaged, replace them at once.
See your local dealer for replacements.
• Know the unit’s controls and how to stop quickly.
READ THE OPERATOR’S MANUALS.
• Read and obey all safety decals.
• Only allow responsible adults, who are familiar with
the instructions, to operate the unit.
• Disengage the PTO. Shut off the engine and wait for
all moving parts to stop before attaching, adjusting, or
disconnecting any part of the collection system.
• Check the collection system to make sure it is bolted
tightly to the unit.
• DO NOT operate the unit without either the entire
grass catcher or the deflector in place.
• Turn off the PTO to disengage the blades when not
mowing.
• DO NOT mow in reverse. Always look down and
behind before and while travelling in reverse.
• DO NOT turn sharply when travelling alongside a
building or any object. Slow down before turning.
• DO NOT carry passengers.
• When collection system is removed from the mower
deck, the deflector must be properly installed.
• Collector bags are subject to deterioration and wear
during normal use. Inspect the bag periodically for
tears, holes, or weak spots and replace with a new
bag that meets manufacturer’s durability standards.
• If the mower stalls or the collector chute plugs:
1. Disengage the PTO;
2. Stop the engine and remove the key;
3. Set the parking brake, and wait for all moving
parts to stop.
4. Remove the foreign object or clear the chute
with a piece of wood before restarting the
engine. NEVER place hands into COLLECTOR
OR MOWER housing to clear jammed objectS.
Blower OR MOWER may rotate when object is
removed.
• For added stability and to prevent tipping or loss of
control:
a. Use reduced speed on uneven ground and when
turning corners.
b. Reduce loads on hillsides. It is recommended
that the collection system be kept only half full when
negotiating any slopes. Start mowing on slopes
when the collection system is empty.
c. Mow up and down the face of slopes; never
across the face of any slope.
• When operating on slopes, use front counterweights.
Never operate on slopes greater than 17.6% (10°).
Attachment Decals
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective operation.
Decal -
WARNING: Do Not Open Cover
Part Number 1704405
Decal -
WARNING
Part Number 1717291
GENERAL WARNINGS
Read and obey all operation and warning decals.
Not for
Reproduction

5
50"
44"
35
49
48 78
6
4
5
Existing Hardware
(Bolt, Washer, Lockwasher, & Nut)
40
41
42
43
22
38
44
1
1
2
3
9
18
18
15
16
17
8
14
13
Existing Pulley
& Spacer
Torque to
55-70 ft. lbs.
24
25
26
27
32
31
30
36
37
38
22
39
19
27
8
27
34
27
45
11
21
2
22
20
23
33
29
10
12
47
46
17
28
Existing Hardware
Existing
Hardware
Assembly
Ref.Qty. Description
1 2 CAPSCREW, Hex Head, 5/16-18 x 1
2 6 WASHER, 5/16
3 1 SUPPORT, Belt Cover
4 4 NUT, Hex, Nylon Lock, #10-24
5 1 ROD, Deflector
6 4 SCREW, Truss Head, #10-24 x 3/4
7 1 PIVOT ASSEMBLY
8 4 NUT, Hex Whizlock, 5/16-18
9 1 NUT, Nylock, Hex 5/16-18
10 1 COVER-BELT 50”
11 1 DECAL, Warning
12 1 COVER-BELT 44”
13 1 NUT, Hex, 3/8-16
14 1 LOCKWASHER, 3/8
15 1 BRACKET, Idler
16 1 LATCH, Belt Cover
17 2 WASHER, Flat, 3/8
18 1 CAPSCREW, Hex Head, 3/8-16 x 2
19 1 PULLEY ASSEMBLY, Idler
20 1 BELT STOP
21 1 CAPSCREW, 5/16-18 x 1-1/2
22 3 LOCKWASHER, 5/16
23 1 SPACER
24 1 NUT, Sleeve
25 1 WASHER, Belleville
26 1 PULLEY
27 1 HUB
28 1 PLATE ,Spring Support
29 1 SPACER, Pulley
30 1 CAPSCREW, Hex Head, 5/16-18
31 1 WASHER, 5/16
32 1 LATCH, Spring
33 1 SPACER
34 1 WASHER,3/8
35 1 COG BELT, 50” Turbo
36 1 NUT, Hex Lock, 5/16-18
37 1 NUT,Wing, Special, 5/16
38 2 NUT, Hex, 5/16-18
39 1 BRACKET, Anchor
40 1 CARRIAGE BOLT, 5/16-18
41 1 BRACKET ASSEMBLY, Cutoff
42 1 SPACER
43 1 BRACKET
44 2 CAPSCREW, Hex Head, 5/16-18 x 7/8
45 1 CARRIAGE BOLT, 5/16-18 x 3/4
46 1 SPRING, Compression
47 1 SPACER, Spring Holder
48 1 BRACKET, Mounting
49 1 COG BELT, 44” Turbo
Figure 1
Not for
Reproduction

6
Assembly
Install Deflector Hinge Assembly
1. Remove the bolts (A, Figure 4) securing the RH arbor
cover, then remove the cover from the deck. Discard
the cover and bolts (A).
2. Remove and discard the plastic plugs from the deck at
the locations used by bolts (F& B, Figure 5).
3 Slide the deflector rod (D) through the pivot bracket
(E).
4 Secure the front of the pivot bracket with a 5/16-18 x
3/4” carriage bolt (F) and flange whizlock nut (C).
5 Secure the back of the pivot bracket (E) and belt cover
support (A) with a 5/16-18 x 1 capscrew (B), 5/16
washer (G), and flange whizlock nut (C).
Install Discharge Baffle
1. Attach the baffle bracket (A, Figure 3) under the
mower housing as shown, and insert the carriage bolt
(from step 1) through the bracket & deck hole at (B).
2. Attach the “L” bracket (C) to the baffle (A), and over
the stone guard (D). Attach with carriage bolt, spacer,
lockwasher and nut as shown.
Turbo Installation
Remove Mower Deck
Remove the mower deck from the unit (see Operator’s
Manual for instructions).
Deflector Removal
1. Remove and retain the carriage bolts, washers,
lockwashers, and nuts (A, Figure 2) holding the
deflector rod to the deck. Remove and discard the
deflector rod. Retain the deflector.
E
F
C
C
G
D
BA
A
Figure 3
Figure 2
Figure 5
A
B
C
D
A
Figure 4
Not for
Reproduction

7
Assembly
Install Deflector
1. See Figure 6. Drill four 13/64” holes from the bottom
of the deflector at the pre-molded drill points (A,
bottom of deflector).
2. Attach the deflector to the support rod wire-form using
four #10-14 x 3/4 truss head screws and nylock nuts.
C
B
Figure 6
Install Belt Guide
1. See Figure 7 & 8. Locate the taptite screw that will be
replaced by capscrew (C). Remove and discard the
taptite screw
2. Assemble the 5/16-18 x 1-1/2 capscrew (C),
lockwasher (E), washers (B), belt stop (D) and spacer
(A).
3. Secure the belt stop assembly to the deck in the loca-
tion shown.
Note The belt stop (D, Figures 7 & 8) is located and ori-
ented differently in 44” and 50” applications. For all appli-
cations, when turbo is installed, belt stop (D) should be
outside the belt 1/8” away from the backside of the belt.
C
E
D
A
Figure 8
B
44” Models
C
E
D
A
Figure 7
B
50” Models
A
Not for
Reproduction

8
Assembly
Install Idler Assembly
1. See Figure 9. Remove and discard the two taptite
screws from locations (E).
2. Insert two 5/16-18 x 7/8 capscrews (C) through the
mower deck and arbor. Tighten the capscrews.
3. Mount the idler pulley assembly (A) to the deck using
the two 5/16-18x 7/8 capscrews (C) and 5/16-18
whizlock nuts (D).
Install Turbo Drive Pulley
1. See Figure 10. Remove the arbor drive belt from the
right side arbor pulley.
2. Remove and discard the flange nut and spring
washers securing the arbor pulley and spacer (A).
Retain the pulley and spacer (A).
3. Install the new spacers (B&F), turbo drive pulley (C),
spring washer (D), and sleeve nut (E). Be sure the
notches in the pulleys and spacers are aligned. Install
the spring washer concave side down. Torque the
sleeve nut to 55-70 ft. lbs. (74-95 N.m).
4. Reinstall the arbor drive belt on the lower pulley.
A
D
B
C
D
E
B
C
A
Figure 9
Figure 10
Original
Pulley and
Spacer
E
Torque to
55-70 ft. lbs.
Install Anchor Bracket
1. See Figure 12. If not already done, assemble the
anchor bracket and related components as shown in
Figure 11.
2. Attach the anchor bracket assembly (B, Figure 12) to
the mower deck using 5/16-18 x 1 capscrews (A) and
5/16-18 locknuts (C).
NOTE: The deflector latch MUST secure the deflector in a
down position—as shown in Figure 7.
B
Figure 12
Figure 11
A
C
B
H
DG
E
F
A
C
F
Not for
Reproduction

9
Assembly

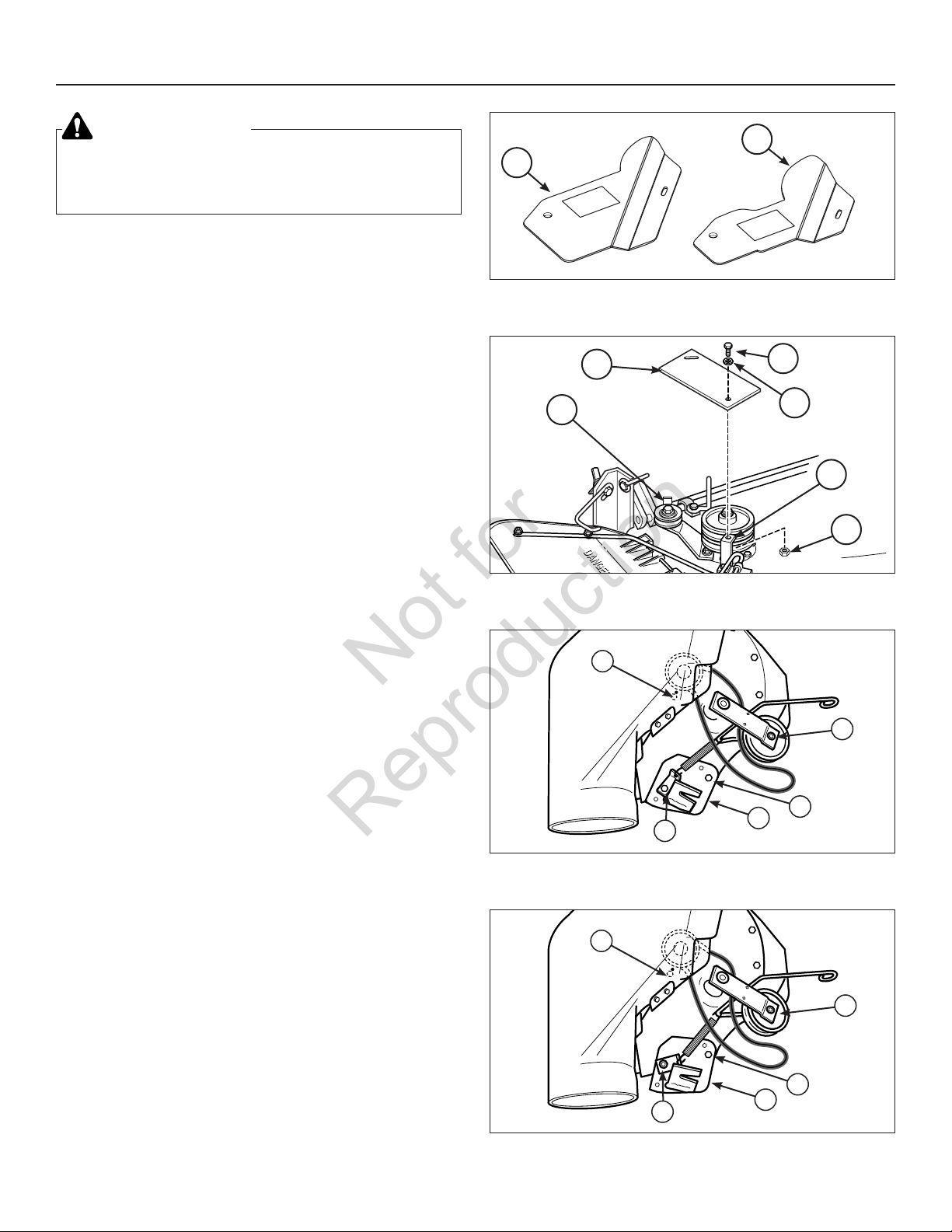

Install Belt Cover Plate
1. Attach the belt cover plate (B, Figure 14) to the support
bracket (E) using a 5/16-18 x 1 capscrew (C), washer
(D) and nylock nut (F).
NOTE: This cover plate must be able to pivot on the sup-
port bracket. Different belt covers are required for differ-
ent applications. Refer to Figure 13.
2. Rotate the belt cover until the notch catches the idler
assembly belt cover latch (A, Figure 14). Cover latch
(A) may need to be rotated for proper alignment.
Belt Cover
B
A
Figure 14
50" 44"
Install Turbo Belt
1. Locate the correct drive belt for your installation: 44”
models require drive belt 1736553, 50” models require
drive belt 1736554 (the part number is stamped on the
belt).
2. Loosen the hardware securing the drive pulley belt
guide (B, Figure 15 & 16) and the idler pulley (C)
3. Install the drive belt as shown in Figures 15 & 16.
4. Tighten the hardware securing the drive pulley belt
guide (B) and idler pulley (C). The idler belt guide
should be within 1/16” of the belt.
B
AD
D
D
D
C
C
A
Figure 15
Figure 16
WARNING
When the turbo blower assembly is removed from
the mower deck, the deflector MUST be properly
installed.
Install Mounting Bracket
1. See Figures 15 & 16. Locate and remove the two
longer capscrews used to secure the rear of the turbo
housing and idler spring anchor.
2. Install the turbo mounting bracket (A) using the
removed hardware. Note that the bracket is mounted
in two different positions depending on the application.
Figure 13
B
A
E
C
D
F
B
Not for
Reproduction

10
Assembly
Mower Deck
Arbor Pulley
Mower Deck
Turbo Drive Pulley
Turbo Drive
Pulley
Idler
Pulleys
To Slacken
Belt
CAUTION
Before you begin operating the unit with the Turbo
attached, be certain you have read all of the safety
and operational information on the last page of this
instruction sheet, as well as the Operator’s Manual
for the tractor and any grass catchers or other
collection devices used in conjunction with this
turbo blower.

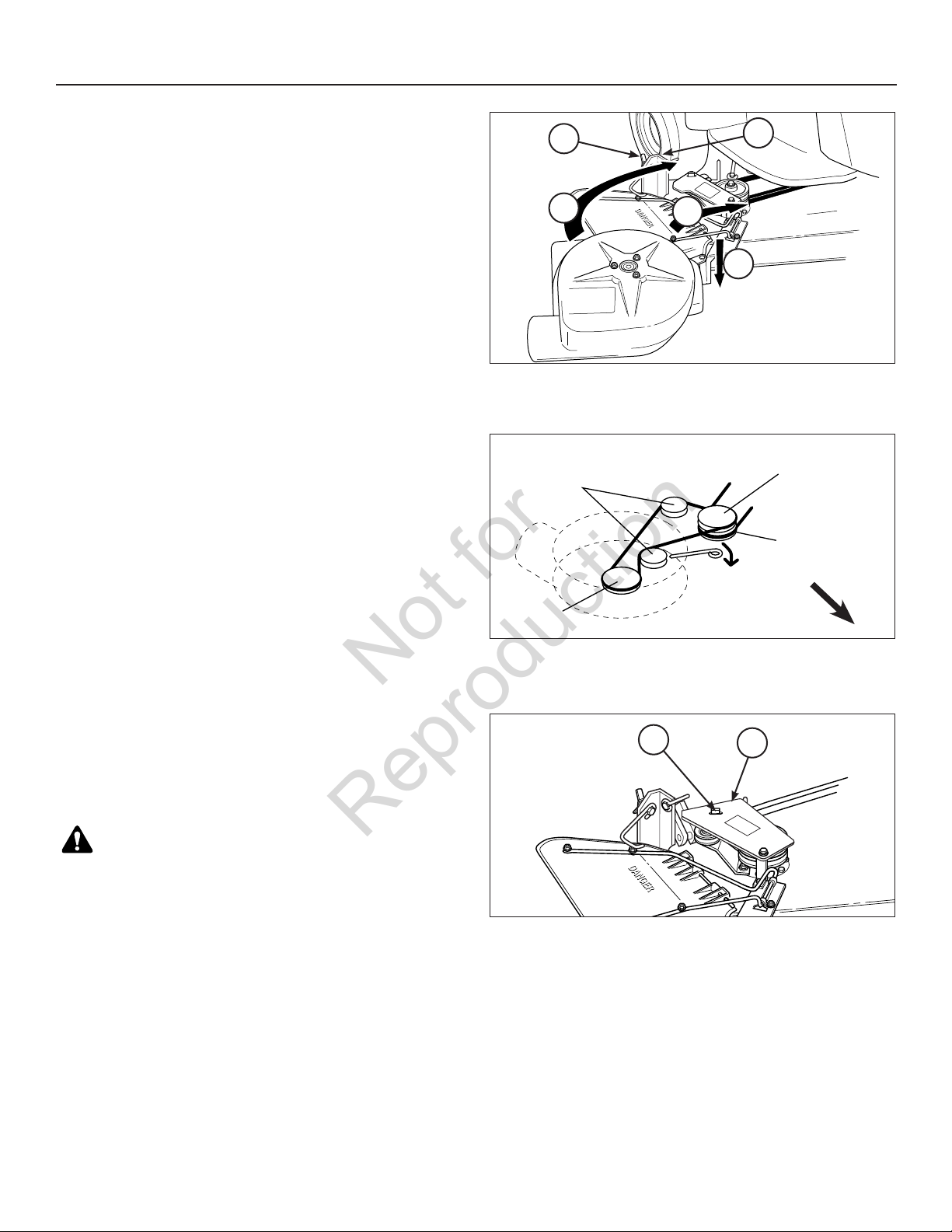

Install Turbo Drive Belt
1. See Figure 18. Attach the turbo belt to the top RH
pulley on the mower deck. Pull back on the belt
tensioning lever to slacken the belt. A view (from right
front of mower) of the belt routing is shown at right.
NOTE: While attaching, it may be necessary to unlatch the
turbo and realign the belt on the pulleys inside the turbo
housing.
2. After the belt is installed, adjust the belt stop (D, FIgure
7 & 8) so that it is 1/8” away from the backside of the
belt.
Figure 18
Figure 19
BA
Secure Belt Cover
1. The belt cover plate (A, Figure 19) is a safety shield
— after attaching or detaching the turbo unit, it
MUST BE rotated onto the belt cover latch (B).
Install Turbo Blower
1. Install the turbo unit by sliding the turbo pivot rod into
the pivot bracket at the front edge of the mower deck
(A, Figure 17).
2. Tilt the deflector (B) UP.
3. Rotate the turbo unit (C) into position on the discharge
of the mower deck, and “latch” the slot in the turbo
housing over and onto the anchor bracket at (D).
Tighten the wing nut (E) to secure. A
B
C
Figure 17
ED
FRONT
Not for
Reproduction

11
Assembly
Figure 20
Figure 21
B
D
A
LF
G
H
K
I
J
E
C
M
A. Rear Deck Lift Lever
B. Trunnion (Existing)
C. Hair Pin (Existing)
D. Spacer, Spring (New)
E. Spring (New)
F. Washer (New)
G. Plate, Spring Support (New)
H. Spacer (Existing)
I. Eyebolt (Existing)
J. Washer (Existing)
K. Capscrew (Existing)
L. Nut (Existing)
M. Mower Deck
D
F
B
B
E
Counter Balance & Weight Carrier
Installation
Counter Balance Installation
1. Remove hair pin (C, Figure 20) from trunnion (B).
Remove trunnion (B) from rear deck lift lever (A).
Mark or measure trunnion position on rear deck lift
lever. Remove trunnion (B) from eyebolt (I).
2. Remove capscrew (K), washer (J), eyebolt (I), spacer
(H) and nut (L) from mower deck (M).
3. Thread eyebolt (I) through plate (G) as shown.
Front Weight Carrier Installation
1. Install carrier (A, Figure 21) as shown securing with
1/2-13 x 1-1/4 capscrews (B), and 1/2-13 locknuts (C).
2. Rod (D) and safety clip (E) are used to secure required
weights.
E
A
A
C
C
5. Slide washer (F), spring (E), and spacer (D) onto
eyebolt (I) as shown.
6. Install trunnion (B) onto eyebolt (I) to position of
measurement or mark from step 1.
7. Install trunnion (B) into rear deck lift lever (A) secure
with hair pin (C). Check deck leveling as described in
Operators Manual and make necessary adjustments.
Not for
Reproduction

12
Figure 22
Hitch & Tube Installation
Install Hitch Plate and Back Plate
Flat Style Bumper
1. Remove and discard hardware holding heat shield (A,
Figure 22) to upper and lower bumper (B).
2. Open existing holes (C) in heat shield and upper &
lower bumper to 17/32”.
3. Install hitch plate (D) to upper and lower bumper
keeping heat shield in between as shown. Secure with
1/2-13 x 1-1/4 capscrews (E) and 1/2-13 locknuts (F).
Tube Style Bumper
1. Center the and secure hitch plate (A, Figure 23) to the
bumper (B) with u-bolts (C) and 3/8-16 locknuts (D) as
shown.
Figure 23
Assembly
A
B
C
C
D
F
E
AB
D
C
Not for
Reproduction

13
Assembly
B C
D
D
E
F
G
H
H
I
A
Figure 24
A
B
B
D
C
Figure 25
All Style Bumpers
1. Install the cover plate (A, Figure 24) on the back plate
(B). Secure with four 5/16-18 x 3/4 capscrews (C),
washers (D) and 5/16-18 locknuts (E).
2. Attach the back plate to the support assembly (F)
using 5/16-18 x 1 carriage bolts (G), 5/16 lockwashers
(H) and 5/16 nuts (I).
3. Set the back plate and support (A, Figure 25) onto pins
of hitch plate (B). Secure with rod (C) and hair pin (D).
Not for
Reproduction

14

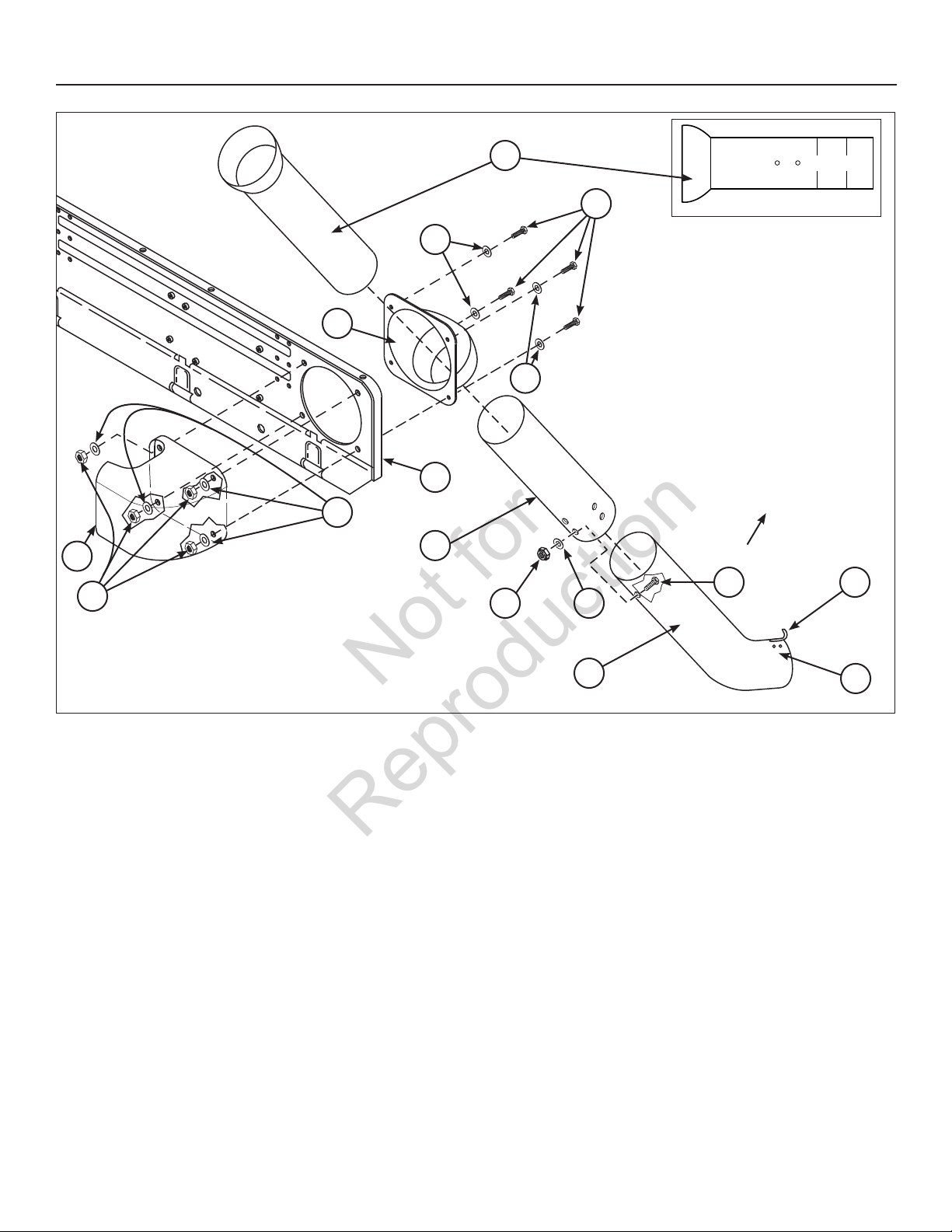

Figure 26
A. Upper Tube
B. Socket
C. Deflector
D. Back Plate
E. Capscrew, 5/16-18 x 1
F. Washer, 5/16
G. Locknut, 5/16-18
H. Lower Tube
I. Middle Tube
J. Capscrew, #10-32 x 1/2
K. Washer, #10
L. Nut, #10-32
M. Clip
N. Holes
Assembly
A B
A
B
D
Install Tubes & Deflector
1. Some 50” models covered by this manual require upper
tube (A, Figure 26) to be shortened. Shorten tube by
cutting through along line “B” line. See inset, Figure 26.
2. If not already done, insert the upper tube into the socket
(B) from the front. This will require some effort.
3. Mount the socket and deflector (C) to the back plate
(D) using the four 5/16-18 x 1 capscrews (E), eight
flat washers (F), and four nylock nuts (G) as shown in
Figures 5 & 7.
4. Insert the lower tube (H, Figure 5) into the middle tube
(I). Secure the tubes as shown in Figure 5 using #10-
32 x 1/2 capscrews (J), washer (K) and #10-32 nut (l).
E
F
F
H
G
F
CI
J
KL
M
N
5. Insert middle tube and lower tube assembly into upper
tube.
6. Secure the elbow of tube assembly to the turbo using
clip (M). Clip may need to be relocated to a different
set of holes (N) to ensure secure fit.
Note: Use correct hole locations to maintain proper tube
connections and prevent lower tube from disconnecting
from the turbo.
Not for
Reproduction

15

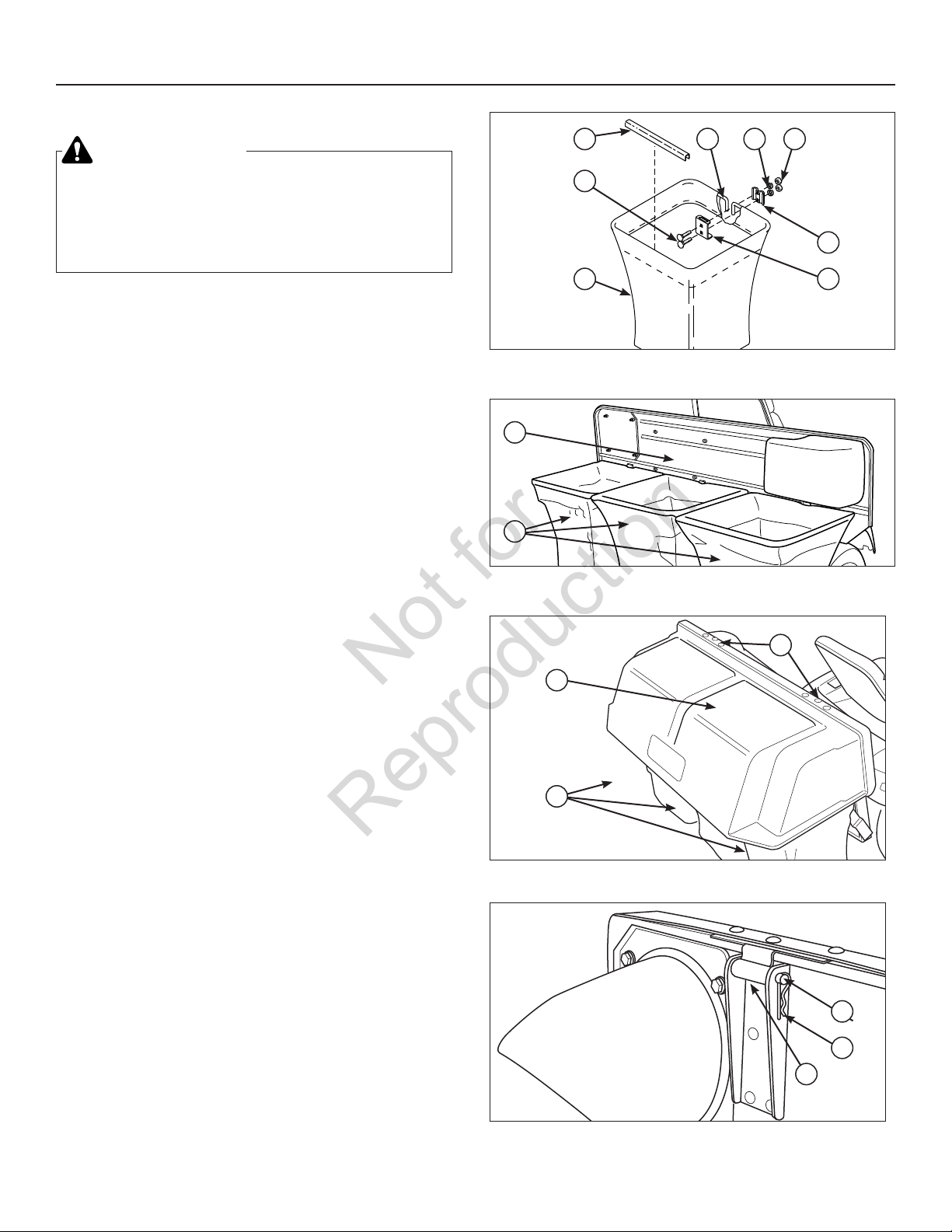

Figure 27
H
B D
C
GFA
Assembly
Collector Assembly
Assemble Catcher Bags
1. Insert the wire hoop (A, Figure 27) through the cloth
bag (B).
2. Install the clamp (C) and hanger bracket (D). Secure
with two 5/16-18 x 3/4 carriage bolts (E), lockwashers
(F) and nuts (G).
3. Secure clip (H) onto the front of each bag.
Install Cover
1. Hook the bags (A, Figure 28) on the back plate (B).
Note: If desired, the bags can be lined with 30 gallon
trash bags for easy disposal.
2. Set the cover (A, Figure 29) on top of the bags (B) and
align the hinges (C).
3. Install the hinge pins (A, Figure 30) through the the
hinges (B) and secure with a hair pin clip (C).
Note: Push the hair pin clips all the way on or they will
be bent by the hinge when the cover is opened.
CAUTION
Before you begin operating the unit be certain
you have read all of the safety and operational
information of this instruction sheet, as well as
the Operator’s Manual for the tractor and any
other attachments.
E
A
B
Figure 28
C
B
A
Figure 29
C
A
D
Figure 30
Not for
Reproduction

16
Operation
Before Operation
Clear the lawn of all sticks, stones, wire and other debris
which may be caught or thrown by the mower blades.
Check grass condition. If wet, wait until later in the day.
If grass is wet, the grass catcher is likely to become
plugged.
For efficient bagging, air circulation under the
mower deck, through the chute and into the bag is
very important.
For this reason, BEFORE YOU BEGIN MOWING you
should make certain the underside of the mower and
the underside of the catcher lid are free from grass and
debris.
Make sure that there is a snug fit between mower deck,
blower housing, tubes, and grass catcher cover.
Mowing with the Catcher
Always operate with throttle at full speed when mowing.
Grass should be cut often, and not too short. If grass
is too long or lush it may be necessary to keep ground
speed to a minimum or to cut only half the width of the
mower to prevent clogging. If grass is long, operate with
mower in high cutting position for first pass, cutting again
in a lower position on a second pass.
Do not open the cover with mower engaged.
If a large amount of cut grass is spilling out from under
deck, the tube may be plugged or the bags may be full—
discontinue mowing, stop the unit, disengage the PTO,
shut off the engine and then empty the catcher or clear the
tube.
WARNING
ALWAYS shut off the tractor. Disengage the
PTO, and allow all moving parts to stop BEFORE
disconnecting or clearing tube, or emptying catcher.
Before leaving the operator’s position for any
reason, engage the parking brake, disengage the
PTO, stop the engine and remove the key.
To reduce fire hazard, keep the engine, rider and
mower free of grass, leaves and excess grease.
Do not stop or park rider over dry leaves, grass or
combustible materials.
Required Accessories
A front-mounted factory approved weight carrier and
66 lbs. worth of weights are required when using this
rear-mounted grass catcher. Never operate on slopes
greater than 17.6% (10°).
After Operation
Remove any debris from the the screen on the underside
of the lid. Note: The lid screen can be partially removed
for easier cleaning and should be cleaned regularly.
The blower housing and tube should be removed for
cleaning.
Inspect the grass bags for wear or damage. Make sure
that there is a snug fit between mower deck, blower
housing, tubes, and grass catcher cover.
Storing the Grass Catcher
Clean the grass catcher thoroughly using a mild deter-
gent (other products may damage the tube). Remove
any debris from the the screen on the underside of the
lid.
If paint has been scratched on metal parts, touch up with
paint, or apply a thin film of oil to prevent corrosion.
Store in a dry area. Dry thoroughly before storing for a
long period of time. Always store away from moisture.
Do not leave grass in bagger containers. Empty
containers after each use and before storing.
Failure to do so may result in spontaneous
combustion which could develop into a fire.
CAUTION
CAUTION
Before you begin operating the unit be certain
you have read all of the safety and operational
information of this instruction sheet, as well as the
Operator’s Manual for the tractor and any other
attachments.
Not for
Reproduction

17

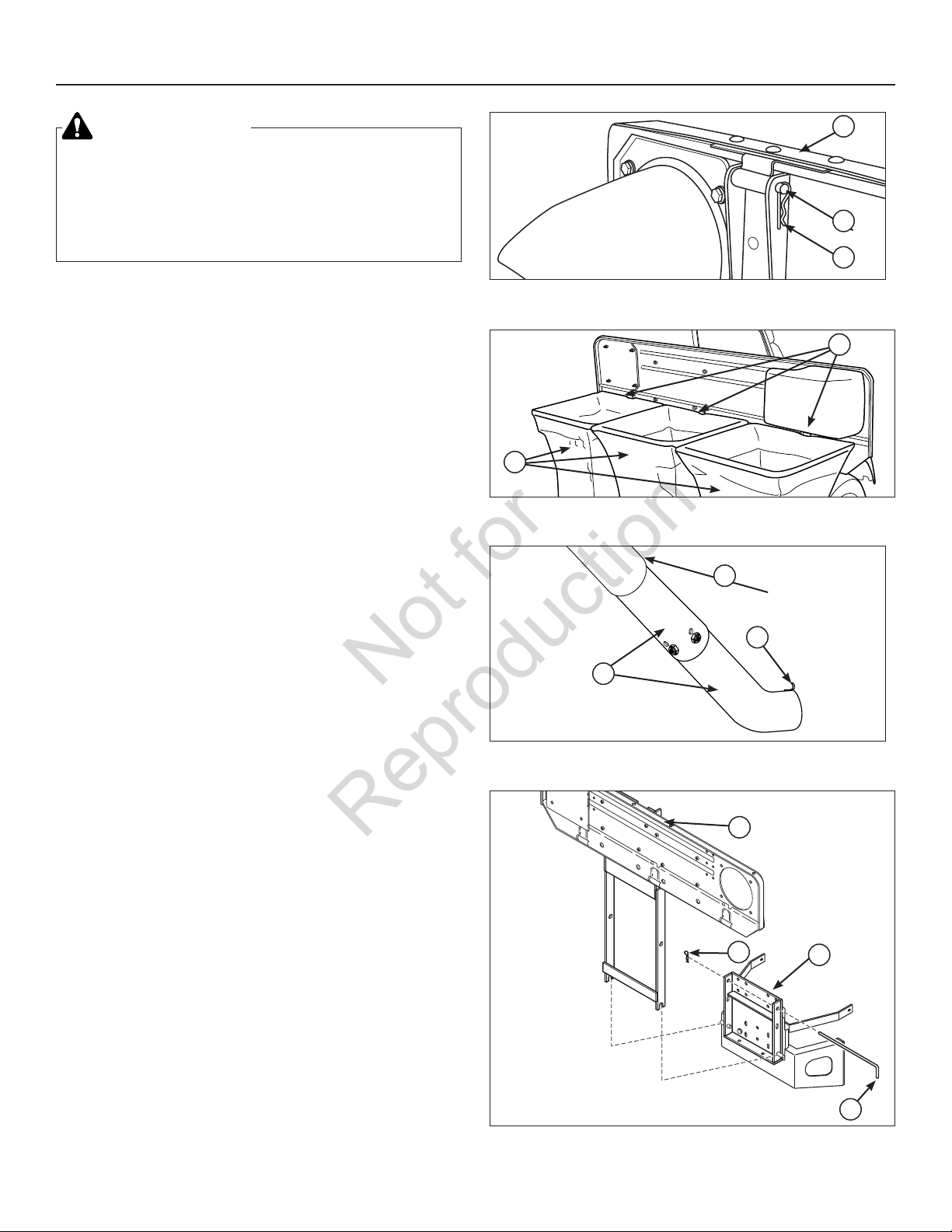

Removal
WARNING
OPERATION WITHOUT TURBO & CATCHER
For operation without turbo, the mower deflector
MUST be properly installed in the down position and
retained by the spring latch (See Turbo Operator’s
Manual).
Removing the Grass Catcher
Removing the Grass Catcher & Tubes
1. Remove the hair pin clips (A, Figure 31) and hinge
pins (B) and remove the cover (C).
2. Remove the bags (A, Figure 32) by lifting them off
their hooks (B). Empty any grass out the bags.
3. Release clip (A, Figure 33) and remove middle and
lower tube assembly (B) from turbo and upper tube
(C).
4. Warning: Back plate (A, Figure 34)will fall when
rod (B) is removed. Remove the hair pin (C)and rod
(B) from hitch plate (D) while holding back plate (A).
5. Lift the back plate and support assembly (A) off hitch
plate (D).
A
B
C
Figure 31
A
Figure 32
B
A
BTo Turbo
Blower
C
Figure 33
A
D
C
B
Figure 25
Not for
Reproduction

18
BRIGGS & STRATTON POWER PRODUCTS GROUP, L.L.C. OWNER WARRANTY POLICY
LIMITED WARRANTY
Briggs & Stratton Power Products Group, LLC will repair and/or replace, free of charge, any part(s) of the equipment that is
defective in material or workmanship or both. Briggs & Stratton Corporation will repair and/or replace, free of charge, any part(s)
of the Briggs and Stratton engine* (if equipped) that is defective in material or workmanship or both. Transportation charges on
product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for the time
periods and subject to the conditions stated below. For warranty service, find the nearest Authorized Service Dealer using our
dealer locator at www.BriggsandStratton.com.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are
limited to one year from purchase or to the extent permitted by law. Liability for incidental or consequential damages are excluded to
the extent exclusion is permitted by law.
Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you.This
warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country.
WARRANTY PERIOD
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period
of time stated above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all
other uses, including use for commercial, income producing or rental purposes. Once product has experienced commercial use, it shall
thereafter be considered as commercial use for purposes of this warranty.
No warranty registration is necessary to obtain warranty on Briggs & Stratton products. Save your proof of purchase receipt. If you do not
provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to
determine warranty eligibility.
ABOUT YOUR WARRANTY
We welcome warranty repair and apologize to you for being inconvenienced. Warranty service is available only through servicing dealers
authorized by Briggs & Stratton or BSPPG, LLC.
Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. This warranty only
covers defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair,
normal wear and tear, or stale or unapproved fuel.
Improper Use and Abuse - The proper, intended use of this product is described in the Operator’s Manual. Using the product in a way not
described in the Operator’s Manual or using the product after it has been damaged will void your warranty. Warranty is not allowed if the
serial number on the product has been removed or the product has been altered or modified in any way, or if the product has evidence of
abuse such as impact damage, or water/chemical corrosion damage.
Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the
Operator’s Manual, and serviced or repaired using genuine Briggs & Stratton parts. Damage caused by lack of maintenance or use of
non-original parts is not covered by warranty.
Normal Wear - Like all mechanical devices, your unit is subject to wear even when properly maintained.This warranty does not cover
repairs when normal use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting
blades, and brake pads (engine brake pads are covered) are not covered by warranty due to wear characteristics alone, unless the cause
is due to defects in material or workmanship.
* Applies to Briggs and Stratton engines only. Warranty coverage of non-Briggs and Stratton engines is provided by the engine
manufacturer.
Item Consumer Use Commercial Use:
Equipment 1 Years N/A
Not for
Reproduction

19
Not for
Reproduction

Briggs & Stratton Yard Power Products Group
Copyright © 2011 Briggs & Stratton Corporation
Milwaukee, WI USA. All Rights Reserved
Not for
Reproduction
