ENGLISH
2
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 3
SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7
FEATURES AND CONTROLS. . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 11
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 16
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 20
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TABLE OF CONTENTS
WARRANTY
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC BACKPACK SPRAYER OWNER WARRANTY POLICY
WARRANTY PERIOD
effective November 1, 2009; replaces all undated Warranties and all Warranties dated before November 1, 2009.
LIMITED WARRANTY
Briggs & Stratton Power Products Group, LLC will repair or replace, free of charge, any part(s) of the backpack
sprayer that is defective in material or workmanship or both. Transportation charges on product submitted for repair or
replacement under this warranty must be borne by purchaser. This warranty is effective for the time periods and subject
to the conditions stated below. For warranty service, find the nearest Authorised Service Dealer in our dealer locator
map at BRIGGSandSTRATTON.COM.
THERE IS NO OTHER EXPRESS WARRANTY. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM PURCHASE, OR TO THE EXTENT PERMITTED
BY LAW. ANY AND ALL IMPLIED WARRANTIES ARE EXCLUDED. LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARE EXCLUDED TO THE EXTENT EXCLUSION IS PERMITTED BY LAW. Some states or countries do not allow
limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state or country to country.
The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues
for the period of time stated above. “Consumer use" means personal residential household use by a retail consumer.
“Commercial use" means all other uses, including use for commercial, income producing or rental purposes. Once equipment
has experienced commercial use, it shall thereafter be considered as commercial use for purposes of this warranty.
NO WARRANTY REGISTRATION IS NECESSARY TO OBTAIN WARRANTY ON BRIGGS & STRATTON PRODUCTS. SAVE
YOUR PROOF OF PURCHASE RECEIPT. IF YOU DO NOT PROVIDE PROOF OF THE INITIAL PURCHASE DATE AT THE TIME
WARRANTY SERVICE IS REQUESTED, THE MANUFACTURING DATE OF THE PRODUCT WILL BE USED TO DETERMINE
THE WARRANTY PERIOD.
Consumer Use 6 months
Not for
Reproduction

ENGLISH 3
ABOUT YOUR WARRANTY
We welcome warranty repair and apologise to you for being inconvenienced. Any Authorised Service Dealer may perform warranty
repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example,
warranty service would not apply if equipment damage occurred because of misuse, lack of routine maintenance, shipping, handling,
warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the backpack
sprayer or engine has been removed or the equipment has been altered or modified. During the warranty period, the Authorized
Service Dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and
service. This warranty will not cover the following repairs and equipment:
• Normal Wear: Outdoor Power Equipment, like all mechanical devices, needs periodic parts and service to perform well.
This warranty does not cover repair when normal use has exhausted the life of a part or the equipment. Maintenance and wear
items such as filters, seals, spark plugs, gaskets, clutch pads, are not covered by warranty due to wear characteristics alone,
unless the cause is due to defects in material or workmanship.
• Installation and Maintenance: This warranty does not apply to equipment or parts that have been subjected to improper
or unauthorised installation or alteration and modification, misuse, negligence, accident, overloading, overspeeding,
improper maintenance, repair or storage so as, in our judgment, to adversely affect its performance and reliability. This
warranty also does not cover normal maintenance such as air filters, adjustments, fuel system cleaning and obstruction
(due to chemical, lime, dirt, and so forth).
• Stale Fuel: In order to function correctly, this product requires fresh fuel that conforms to the criteria specified in the Operator's
Manual. Damage caused by stale fuel (carburettor leaks, clogged fuel tubes, sticking valves etc) is not covered by warranty.
• Other Exclusions: This warranty excludes wear items such as quick couplers, seals, o-rings, pumps that have been
run without water supplied or damage or malfunctions resulting from accidents, abuse, modifications, alterations, or
improper servicing or freezing or chemical deterioration. Accessory parts, such as guns, hoses, nozzle extensions
(wands), and nozzles, are excluded from the product warranty. This warranty excludes used, reconditioned, and
demonstration equipment and failures due to acts of God and other force majeure events beyond the manufacturers
control.
Not for
Reproduction

ENGLISH
4
SAFETY RULES
SAVE THESE INSTRUCTIONS
Before operating, please read this manual carefully
and become familiar with your backpack sprayer.
Know its applications, its limitations, and any
hazards involved.
Important Safety Information
Safety Goggles,
Ear & Respiratory
Protections
Sturdy
Footwear
Safety Gloves Protective
Clothing
Keep Bystanders
Away When Spraying
Read Manual
Fire
Safety Symbols and Meanings
Hot Surface
The safety symbol indicates a potential personal injury
hazard. A signal word (DANGER, WARNING, or CAUTION) is
used with the alert symbol to designate a degree or level of hazard
seriousness. A safety symbol may be used to represent the type of
hazard. The signal word NOTICE is used to address practices not
related to personal injury.
DANGER indicates a hazard which, if not avoided, will result
in death or serious injury.
WARNING indicates a hazard which, if not avoided, could
result in death or serious injury.
Do Not Drink Slippery surface Fall Electrical
Shock
WARNING RESPIRATION HAZARD.
Using the product potentially has respiration hazard
to breathing during or near operation. The hazard
relates to both the Engine exhaust and the
Sprayer liquid application.
Wear respiratory protection and appropriate protective clothing.
Engine exhaust contains carbon monoxide, a poisonous gas
that could kill you in minutes. You CANNOT smell it, see it, or
taste it. Even if you do not smell exhaust fumes, you could still
be exposed to carbon monoxide gas.
Spraying of some agricultural chemical liquids could be
harmful if inhaled or ingested, resulting in death, serious injury,
nausea, fainting or poisoning.
• Operate this product ONLY outside far away from windows,
doors and vents to reduce the risk of carbon monoxide gas
from accumulating and potentially being drawn towards
occupied spaces. Install battery-operated carbon monoxide
alarms or plug-in carbon monoxide alarms with battery
pack-up according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.
• DO NOT run this product inside homes, garages, basements,
crawlspaces, sheds, or other partially-enclosed spaces even
if using fans or opening doors and windows for ventilation.
Carbon monoxide can quickly build up in these spaces and
linger for hours, even after this product has shut off.
• ALWAYS place the spray downwind from the operator and
point the engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this product,
shut it off and get to fresh air RIGHT AWAY. See a doctor. You
may have carbon monoxide poisoning.
• Use a respirator or mask whenever there a chance that vapors
may be inhaled when using chemicals.
• Read the mask instructions and ensure the mask will provide
the necessarily protection against inhaling harmful vapors
when using chemicals.
Chemical
Burn
Toxic
Fumes
KickbackProjectileFlying
Objects
CAUTION indicates a hazard which, if not avoided, could
result in minor or moderate injury.
NOTICE - address practices not related to personal injury.
Explosion
Not for
Reproduction

ENGLISH 5
WARNING EXHAUST HEAT/GASES.
Exhaust heat/gases could ignite combustibles,
structures or damage fuel tank causing a fire,
resulting in death, serious injury and/or property
damage. Contact with muffler area could cause
burns resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Use only original spare parts from the manufacturer or
approved by the manufacturer.
• No spark arrestor is fitted on the exhaust port for this
product. In some regions, the spark arrestor may be
required. Please check your local/national regulatory
authorities.
WARNING RISK OF ELECTROCUTION.
Contact with power source could cause electric
shock or burn resulting in death or serious injury.
• Never spray near power source.
• Before performing adjustments or repairs, disconnect the
spark plug wire and keep it away from the spark plug.
WARNING SLIP AND FALL.
Use of backpack sprayer could create
puddles and slippery surfaces causing you
to fall resulting in death or serious injury.
Kickback from spray gun could cause you to fall resulting in
death or serious injury.
• Operate the backpack sprayer from a stable surface.
• The chemical spraying area should have adequate slopes
and drainage to reduce the possiblity of fall due to slippery
surfaces.
• DO NOT overreach or stand on unstable support. Keep good
footing and balance at all times.
• Only use at ground level. DO NOT climb or crawl with the
unit.
• Firmly grasp spray gun with both hands at all times to avoid
injury when spray gun kicks back.
WARNING CHEMICAL BURN HAZARD.
Chemicals could cause burns resulting
in death, serious injury and/or property
damage.
• DO NOT use caustic liquid with backpack sprayer.
• Use ONLY agricultural safe chemicals. Follow all
manufacturer's instructions.
• Wash your hands after handling this product.
• DO NOT drink any liquids from this product or use the
machine tank liquids for any cleaning purposes.
WARNING KICKBACK.
Starter cord kickback (rapid retraction) will pull hand
and arm toward engine faster than you can let go
which could cause broken bones, fractures, bruises, or
sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is felt
and the pull rapidly to avoid kickback.
WARNING RISK OF EYE OR BODILY INJURY.
Spray could splash back, propel objects or
cause internal harm resulting in serious injury.
• Always wear indirect vented (chemical splash) safety goggles
marked to comply with ANSI Z87.1 when using or in vicinity
of this equipment. NEVER substitute safety glasses or dry-
condition goggles for indirect vented safety goggles.
• Know how to stop the backpack sprayer quickly. Be thoroughly
familiar with the controls.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• DO NOT allow CHILDREN to operate the backpack sprayer.
• This appliance must be attended during operation.
• Keep bystanders away when spraying.
• Inspect high pressure hose before each use. NEVER repair high
pressure hose; replace it.
• DO NOT repair leaking connections with sealant of any kind;
replace o-rings and gaskets.
• DO NOT leave spray wand unattended while the choke valve is
in OPEN position.
• Always be certain spray wand and accessories are correctly
attached.
• Stay alert – watch what you are doing.
• DO NOT operate the product when fatigued, ill or under the
influence of alcohol or drugs or medication.
WARNING RISK OF DAMAGING HEARING.
Hearing loud noise for a long time
could damage ear that resulting
permanent hearing loss.
• Always wear ear protection.
• The measured sound power level is rated in accordance with
EN ISO 20361.
Not for
Reproduction

ENGLISH
WARNING LIFTING WEIGHT HAZARD.
The Sprayer weight may exceed the physical capability of the
operator. Assessment of the lifting limitations of the operator
prior to use should be considered to avoid back injury or other
serious injury caused by heavy lifting. The machine can weigh
above 31kg when full, depending on the chemical used.
• DO NOT use the machine if the operator has had previous
back injury or physical impairments.
• When start using your backpack sprayer for the first time,
check the weight of the unit with the sprayer tank empty to
ensure lifting comfort and capability. Start with the amount
of liquid that you can carry on your back and may not need
to be the full capacity of the sprayer tank. You can increase
the amount of liquid progressively depending on the operator
experience and capability.
• Rest operator regularly & remove the sprayer from back
when idle.
• The operator should only increase the tank filling capacity
level, after comfortable using the machine according to the
application terrain and environment.
• DO NOT fill or increase the tank capacity whilst the operator
is wearing the machine. Only Fill the tank whilst on surface
level ground.
• Never lifting the unit alone and always use safe lifting
practices. It is recommended when putting the backpack
sprayer on your back or putting down to remove, place the
unit on a higher level surface just about the waist high. eg,
using a Stool or Stand Support, Workbench, or from the back
of a vehicle utitily tray.
• DO NOT lift the machine directly onto the operators back
from the ground.
• DO NOT put the machine on the operators back whilst the
operator is in a sitting position.
6
Operating Safety
• Read, understand, and follow instructions and warnings in this
manual and on the machine, engine and attachment labels,
before use.
• This product has been designed and is intended for agricultural
and pest control applications. For agricultural or pest control
chemicals/additives such as pesticides, herbicides and
insecticides, please follow chemical manufacturers instructions
for recommended usage procedures and safety precautions.
DO NOT use the sprayer for purposes other than is intended.
• Always check if there is any restriction on use of plant
protection products with your local/national regulatory
authorities.
• Know the controls and the proper use of the machine before
lifting, wearing or starting.
• If unsure of the correct backpack sprayer operation, DO NOT
operate, seek training on safe operation of the backpack
sprayer by a trained professional or an accredited training
provider.
• The equipment should only be used in good weather conditions
and with clear visibility.
• Ensure you are in a good physical condition when using this
product. DO NOT operate the product when fatiqued, ill or
under influence of alcohol, drugs or medication.
• Keep firm footing and balance at all times, especially when
working in rice paddy fields when the soil is mostly wet,
slippery, uneven surface and cover with a thick mud (your feet
might get stuck in the mud).
• Protect yourself when operating unit by wearing safety glasses,
protective clothing, safety gloves, ear protection, respiratory
protection and sturdy footwear - safety boots.
• Always inspect if the rubber mounts are in good conditions. If
the rubber mounts are cracked or otherwise damaged, DO NOT
operate the product until the components have been replaced.
• DO NOT spray flammable, combustible, or corrosive liquids.
• DO NOT spray hot liquids.
• DO NOT use to spray paints, solvents or adhesives.
• DO NOT use near crop burning or for incinerating purposes.
• DO NOT use as a fire fighting aparatus.
• DO NOT use with caustic or other cleaning applications
• DO NOT use for medical applications such as the control of
livestock or animal disease.
NOTICE High pressure spray could damage fragile items
including glass.
• DO NOT point spray gun at glass or other fragile items.
NOTICE Improper treatment of backpack sprayer could damage
it and shorten its life.
• If you have questions about intended use, ask dealer or
contact authorised service centre.
• DO NOT operate units with broken or missing parts, or
without protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT modify backpack sprayer in any way other than as
specified in this Operator's Manual.
• Before starting backpack sprayer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
• DO NOT move backpack sprayer by dragging along the
ground or by pulling on the hoses or wands. Move the unit
only by lifting the unit by either the lifting grip on both sides
of the sprayer tank or by the straps.
• This equipment is designed to be used with Briggs &
Stratton authorised parts ONLY. If equipment is used with
parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.
Not for
Reproduction

ENGLISH
Transporting and Storage Safety
• DO NOT store unit and fuel container where fumes may reach
an open flame, spark or pilot light such as in a water heater,
furnace, clothes dryer or other gas appliance.
• Hand carry the unit in the upright position with the engine
stopped and the muffler away from your body
• Store the unit in the upright position.
• Allow the engine to cool before transporting or storing the unit.
• Empty the sprayer tank and fuel tank after each use and before
transporting or storing the unit.
• When transporting, place the unit in the vertical/upright
position on the cargo trailer/utility vechicle or similar. Use a
rope or safety barrier or similiar to securely lock the unit from
moving and avoid breakage.
• Never operate the machine from a moving vehicle. eg, DO
NOT operate standing from the tray or out the window of a
utility truck.
• Never operate or ride on a vehicle whilst wearing or operating
the machine. eg. DO NOT ride a motocycle or an animal whilst
wearing the sprayer.
• DO NOT run whilst wearing or operating the sprayer. Always
walk.
• The unit is intended for bipedal upright pedestrian operation.
DO NOT operate in a manner other than is intended, including:
- DO NOT operate whilst sitting or crawling.
- DO NOT operate elevated or suspended from the ground.
Maintenance Safety
• Keep engine free of grass, leaves or excess grease to reduce
fire hazard and engine overheating.
• When draining fuel tank, drain fuel into an approved
container outdoors and away from open flame.
• Always provide adequate ventilation when running engine.
Exhaust gases contain carbon monoxide, an odorless and
deadly poison.
• Service engine or pump and make adjustments only when
engine is stopped. Remove spark plug wire from spark plug
and secure wire away from spark plug.
• DO NOT change engine governor speed settings or
overspeed engine.
• DO NOT test for spark with spark plug removed.
Safe Handling of Gasoline
To avoid personal injury or property damage, use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive.
• Extinguish all cigarettes, cigars, pipes and other sources of
ignition.
• Use only an approved fuel container.
• DO NOT fill fuel containers inside a vehicle or on a truck or
trailer. Always place the containers on the ground away from
the vehicle before filling.
• DO NOT refuel the machine indoors or in a closed environment.
• DO NOT remove fuel cap or add fuel with the engine running.
Allow the engine to cool before refueling.
• Never overfill a fuel tank. Replace fuel cap and tighten securely.
• DO NOT store the machine or fuel container inside where there
is an open flame, spark or pilot light such as on a water heater
or other appliance.
• If fuel is spilled, clean up immediately and change clothing if
soiled with fuel.
Protection for Children
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to the
machine and the spraying activity. Never assume that children
will remain where you last saw them.
• Keep children out of the spraying area and under the
watchfull care of a responsible adult.
• Do not allow children or others to use or touch the
equipment or attachments. They can be seriously injured.
• Allow only responsible or trained persons who understand
these instructions to operate this equipment.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
• Avoid spray drift. Always taking into account different
parameters such as nozzles, pressure, boom height, wind
speed and etc.
• DO NOT aim the spray wand at people or animals.
• This product is a stand-alone machine and must not be
connected to other equipment.
• It is recommended when starting for the first time, the
backpack sprayer should be started with clean water to
check for leaks and safe operation.
• It is recommended when using a new chemical or working
in a new environment to check the operation with clean
water to avoid unintensional environmental impacts through
incorrect use. eg. Unwanted overspray or lack of control
when applying to specific plantation, or unwanded damage
to protected plantation.
• Keep bystanders away when spraying
• DO NOT use the sprayer near ledges, escarpments or cliff
edges, where there are risks of falls.
• DO NOT climb structures whilst wearing or operating the
unit, including trees, walls, buildings and fences.
• Avoid walking with the sprayer on steep slopes or on steps.
7
Not for
Reproduction

ENGLISH
FEATURES AND CONTROLS
KNOW YOUR BACKPACK SPRAYER
Read the Operator’s Manual and safety rules before operating your backpack sprayer.
Compare the illustrations with your backpack sprayer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
(A) Sprayer tank – Used to hold the agricultural chemical diluted
liquid. Strainer is included in the tank to prevent any debris to
get into the tank during filling.
(B) Engine – The power source of the backpack sprayer.
(C) Sprayer frame – Stabilises the backpack sprayer when in
the upright position and to support the sprayer tank, pump
and engine.
(D) Backpad – Provides back support.
(E) Dual action plunger pump – Connected with the engine and
pushes the chemical diluted liquid out from the sprayer tank
(F) Drain cap – Used to close and drain the liquid.
(G) Straps – Two padded straps that go over the shoulders.
(H) Sprayer tank lid – Used to close and prevent the chemical
diluted liquid from spilling out of the sprayer tank.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
RS (Other side not shown)
(I) 3 nozzle spray wand – Used for larger area applications.
(J) Extension rod – length extension for 3 nozzle spray wand.
(K) Single nozzle wand – Used for straight spraying applications
(L) Sprayer hose assembly – High pressure hose that connect the
pump outlet & spray wand.
(M) Pump outlet - Pump discharge port.
(N) Rubber mount – Used to absorb vibration from the engine
and pump
(O) Throttle control lever – Controls the engine speed.
(P) Stop switch – Pressed to stop the engine immediately.
(Q) Pressure regulation – Used to adjust the pressure for
appropriate spray conditions.
(R) Pressure locking plate – Used to lock the pressure position.
(S) Grease cups (2 places)– Used to apply & lubricate the plunger.
8
Not for
Reproduction

ENGLISH
ASSEMBLY
Your backpack sprayer requires minimal assembly and is ready for use after it has been properly serviced with recommended oil and
fuel.
UNPACK THE BACKPACK SPRAYER
1. Remove all components from carton.
2. Ensure you have all included items prior to assembly.
ASSEMBLE THE BACKPACK SPRAYER
1. Connect the spray hose assembly and the pump outlet
2. Connect the spray hose assembly and spray wands.
3. Install & Ajust the Straps Assembly with the Unit.
CARTON CONTENTS
Check all contents. If any parts are missing or damaged, call Briggs and Stratton Customer Service for help on 1800 743 4115. If
calling for assistance, please have the model, revision, and serial number from the identification label available.
A package contains the items as illustrated.
1.Unit
2.Spray hose assembly (including the handle, seals and cock valve)
3.Three Nozzle wand (including extension rod)
4.Single nozzle wand
NOTE: Some models are supplied with additional accessories such as Operators Manuals, Fitment Packs, Mixing Bottles and Other
Kits and are subject to change without notice.
1
2
4
3
9
Not for
Reproduction

ENGLISH
Connect the spray hose assembly and the
pump outlet
1. Attach the spray hose to the pump outlet (A) by tighening
the wing nut (B). Tighten by hand only as overtightening may
damage hose fittings.
Connect the spray hose assembly and spray
wands.
1. For 3 nozzle spray wand: Screw the extension rod (D) onto
the cock valve (C). Screw the 3 nozzle spray wand (E) onto the
extension rod (D). Ensure all connections are secured. Tighten
by hand only.
2. For single nozzle wand: Screw the single nozzle wand (F)
onto the cock valve (C). Ensure the connection is secured. The
single wand is equipped with the flow adjustment. Tighten by
hand only.
NOTE: If there is a leakage from the single nozzle wand (F)
fittings, retighten the fittings with a spanner or multigrip.
ABC
E
D
F
C
3 nozzle spray wand Single nozzle spray wand
3. After the spray hose assembly is connected with the spray wand,
inspect and ensure all connections in the spray hose assembly
such as the seals (G), cock valve (H), handle (I) and spray hose (J)
are tighly secured (hand tighten only).
G
H
I
J
10
Not for
Reproduction

ENGLISH 11
Install and adjust the straps assembly with
the unit
1. Hook the harness clip (L) into the fastening eyelet (M).
2. Slip the hardness strap (K) over your shoulder.
3. Adjust the length of the strap for comfortable and balanced
position.
K
L
M
Checklist Before Starting the Backpack
Sprayer
Review the unit's assembly to ensure you have performed all of
the following:
1. Be sure to read Operator Safety and Operation before using
the backpack sprayer.
2. Check for properly tightened hose connections and other
connections including the spray hose assembly.
3. Check to make sure there are no kinks, cuts, or damage to
hoses.
WARNING
Spray hose assembly and fittings are important for safety of
the appliance. Use only hoses and fitting recommended by the
manufacturer.
Not for
Reproduction

ENGLISH
Apply chemical diluted liquid
OPERATION
HOW TO USE YOUR BACKPACK SPRAYER
If you have any problems operating your backpack sprayer,
please call Briggs and Stratton on 1800 743 4115 or visit
briggsandstratton.com
Mixing the chemicals/additives should be carried out in a well
ventilated area with adequate lighting. To mix the chemicals/
additives, please refer to chemical manufacturers instructions.
To apply the chemical diluted liquid, follows these steps:

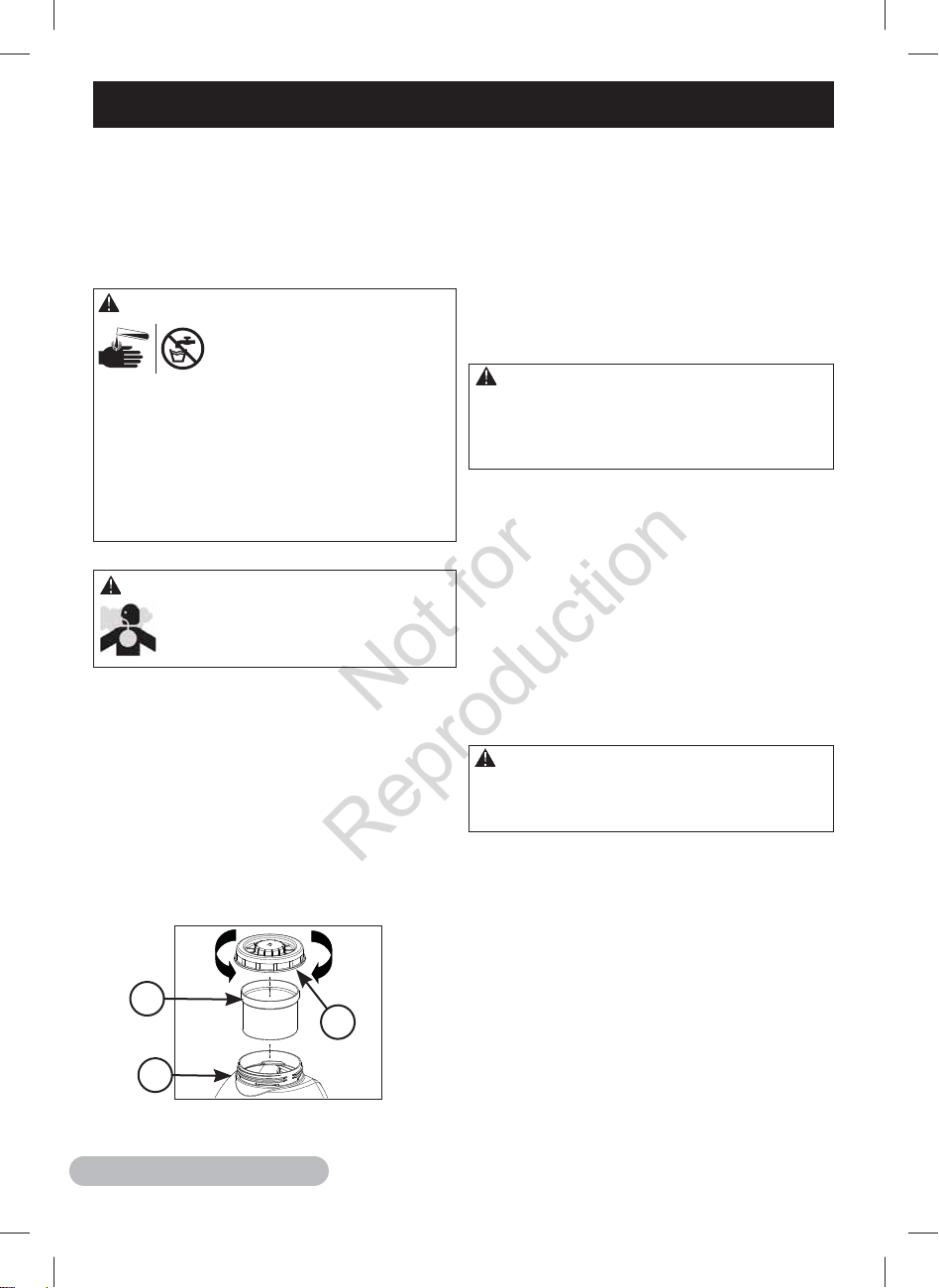

1. Open the sprayer tank lid (A).
2. Fill the chemical dilute liquid into the sprayer tank (C) through
the strainer (B) using an approved filling device or container by
chemical manufacturer. Ensure the chemical dilute liquid inside
the sprayer tank is free from any debris.
3. Once filled, close the tank lid (A) securely.
WARNING CHEMICAL BURN HAZARD.
Chemicals could cause burns resulting
in death, serious injury and/or property
damage.
• DO NOT use caustic liquid with backpack sprayer.
• Use ONLY agricultural safe chemicals. Follow all
manufacturers instructions.
• Always wearing safety glasses, protective clothing, safety
gloves, respiratory protection and substantial footwear.
• Wash your hands after handling this product.
• DO NOT drink any liquids from this product.
OPEN
CLOSE
B
C
A
Apply fuel and oil
Mix Fuel and oil
Use the provided bottle and mix gasoline and a high quality
2-cycle oil with at a 25:1 gasoline-to-oil ratio.
Fuel must meet these requirements:
• Clean, fresh, unleaded gasoline
• A minimum of 87 octane/87 AKI (91 RON).
• Gasoline with up to 10% ethanol (gasohol) or up to 15%
MTBE (methyl tertiary butyl ether) is acceptable.
CAUTION
Do not use unapproved gasoline, such as E85. Do not modify
the engine to run on alternate fuels. This will damage the engine
components and void the engine warranty.
WARNING
Avoid contaimination of the environment during mixing and
filling. Any chemical spillages should be cleaned up immediately
to prevent any chemicals from draining into waterways, sewer or
near river. Please refer to chemical manufacturers instructions.
WARNING RESPIRATION HAZARD.
Some agricultural chemicals could be harmful if
inhaled or ingested, resulting in death, serious
injury, nausea, fainting or poisoning.
NOTE: It is recommended when starting for the first time, the
backpack sprayer should be started with clean water to check for
leaks and correct operation.
12
NOTE: DO NOT operate or fill the tank without the strainer
(B). Usage without the strainer will damage and block the
pump. DO NOT dilute additive with dirty water, including water
with organic or synthetic waste that may block the pump.
Not for
Reproduction

ENGLISH
WARNING FIRE OR EXPLOSIVE.
Gasoline and its vapors are extremely
flammable and explosive. Fire or explosive can
cause severe burns or death.
When Adding Fuel
• Turn engine off and let engine cool at least 2 minutes before
removing the fuel cap.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of gasoline,
do not fill above the bottom of the fuel tank neck.
• Keep gasoline away from sparks, open flames, pilot lights,
heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
• If fuel spills, wait until it evaporates before starting engine.
• DO NOT light a cigarette or smoke.
• DO NOT use the machine or handle fuel near crop burning
operations.

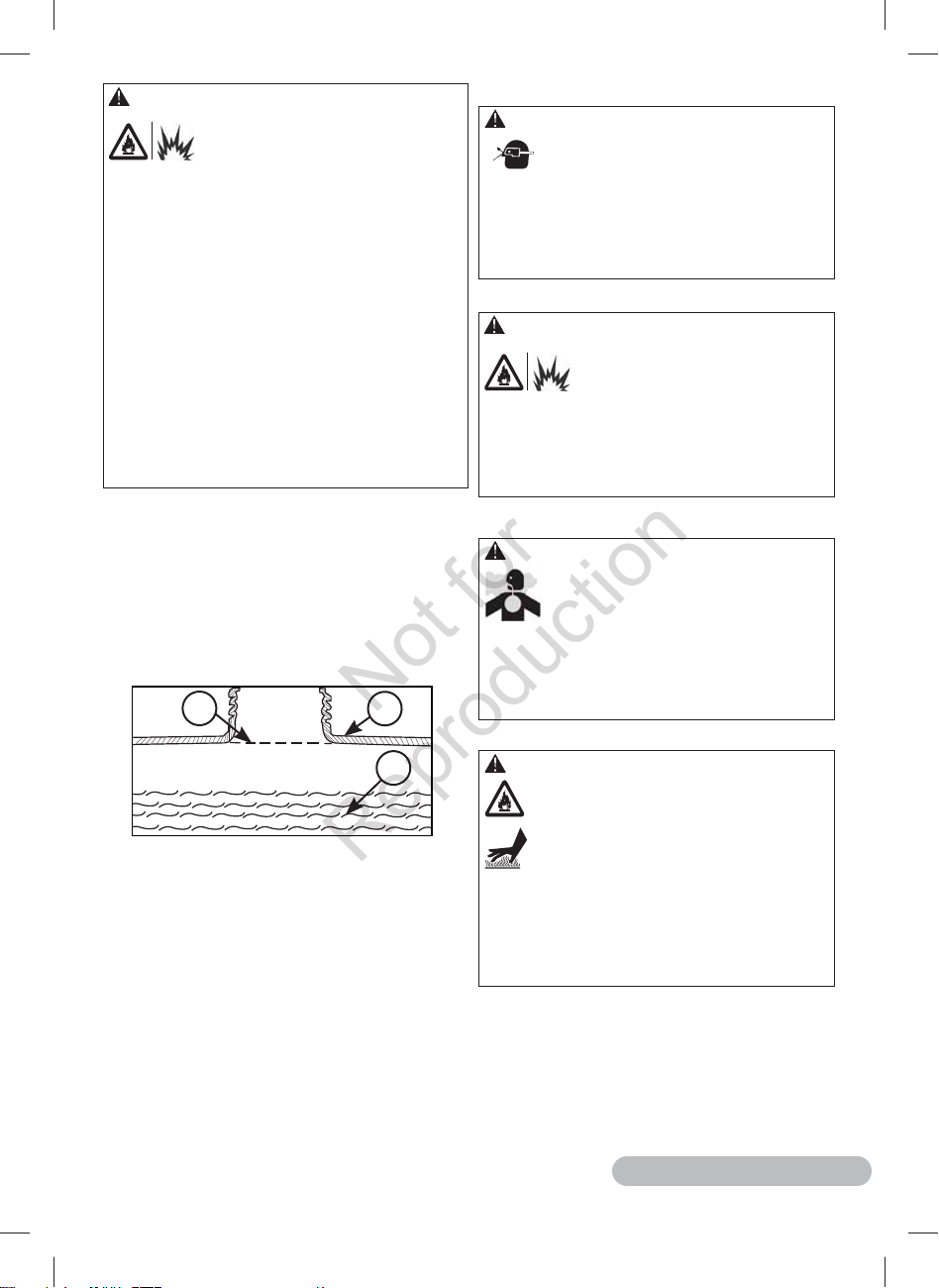

To apply the fuel and oil mixture, follows these steps:
1. Open the fuel cap.
2. Slowly add fuel and oil mixture (D) to the fuel tank (F). DO
NOT fill above the bottom of the fuel tank neck (E).
3. Install fuel cap and let any spilled fuel evaporate before
starting engine.
E
D
F
13
How to Start Your Backpack Sprayer
Warning RISK OF EYE INJURY.
Spray could splash back or propel objects resulting
in serious injury.
• Always wear indirect vented (chemical splash) safety
goggles marked to comply with ANSI Z87.1 when using
or in vicinity of this equipment. NEVER substitute safety
glasses or dry-condition goggles for indirect vented safety
goggles.
WARNING FIRE OR EXPLOSIVE.
Gasoline and its vapors are extremely
flammable and explosive. Fire or explosive
can cause severe burns or death.
When Starting Engine
• Ensure that spark plug, muffler, fuel cap and air cleaner (if
equipped) are in place and secured.
• Do not crank the engine with the spark plug removed.
WARNING POISONOUS GAS HAZARD.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas. Breathing carbon
monoxide can cause headache, fatigue, dizziness,
vomiting, confusion, seizures, nausea, fainting
or death.
• Operate equipment ONLY outdoors.
• Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes, or other openings.
WARNING EXHAUST HEAT/GASES.
Exhaust heat/gases could ignite combustibles,
structures or damage fuel tank causing a fire,
resulting in death, serious injury and/or property
damage. Contact with muffler area could cause burns
resulting in serious injury.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• DO NOT spray flammable liquids.
• Allow equipment to cool before touching.
• Use only original spare parts from the manufacturer or
approved by the manufacturer.
Not for
Reproduction

ENGLISH
J
MAX.
SPEED
IDLE

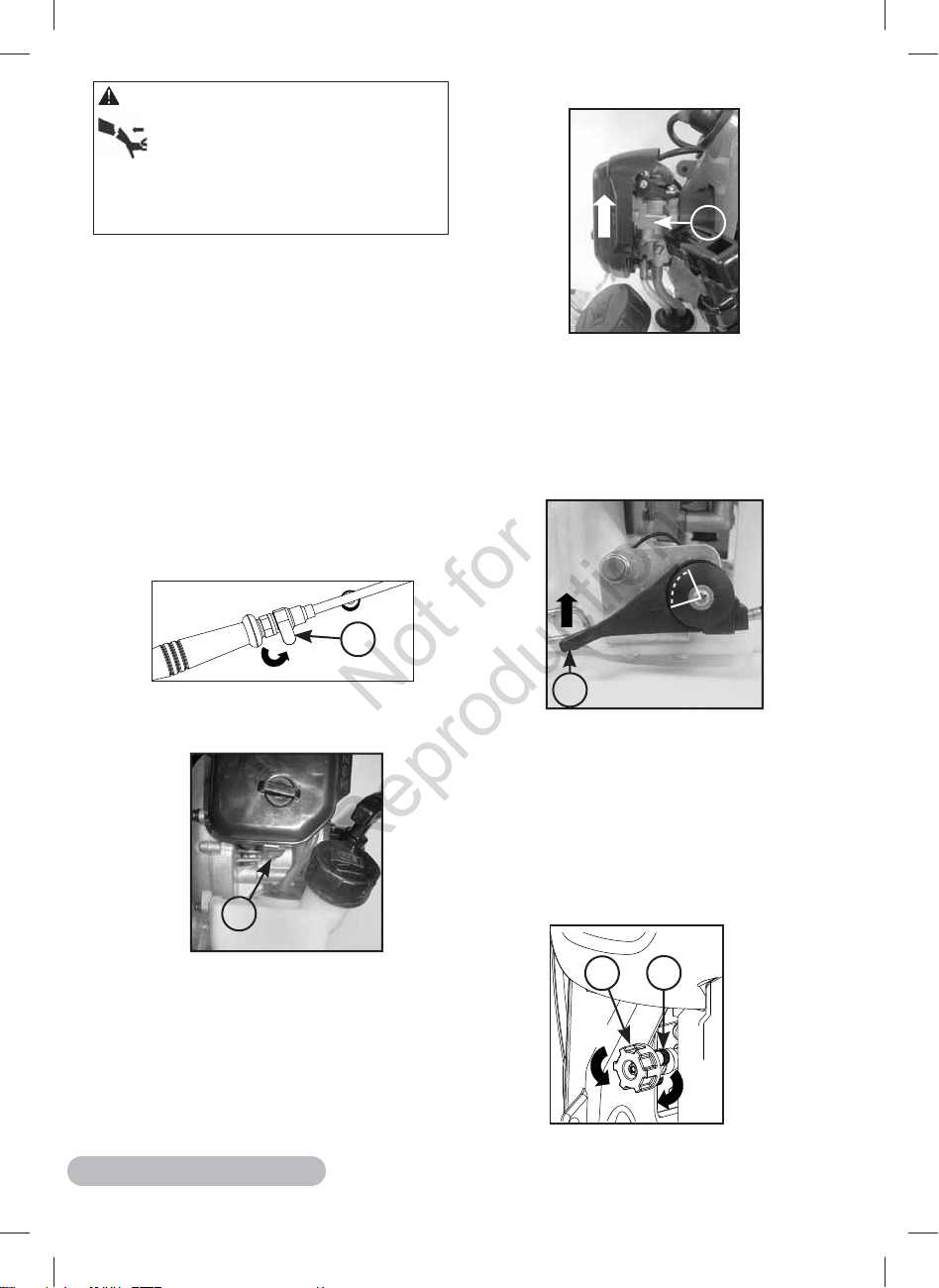

To start your backpack sprayer for the first time, follow these
instructions step-by-step. This starting information also applies
if you have the backpack sprayer sit idle for at least a day.
1. Place the backpack sprayer on flat and stable surface.
2. Check and ensure before starting the engine, the cock valve
(G) is completey closed.
3. Prime the clear fuel bulb (H) at the bottom of the carburetor
until it becomes hard and full of fuel.
CLOSE G
4. Place the choke lever (I) to up position.
NOTE: DO NOT close the choke when starting a warm engine.
A warm (hot) engine can be:
- an engine that has just stopped running.
- an engine in hot ambient temperatures.
5.Move the throttle control lever (J) up about 1/3 from the "idle"
position. DO NOT increase throttle lever (J) until the unit is on the
operators back and the unit is ready for spraying.
H
14
6.Set the pressure regulation dial (K) to appropriate spray
conditions. The pressure regulation dial is used to control the
amount of pressure the pump will produce. When set, excess
pressure is vented back into the tank supply to ensure a maximum
output pressure at the wand. To set the pressure, follows these
steps:
- Turn in clockwise direction to increase the pressure, or;
Turn in anticlockwise direction to decrease the pressure.
- To lock the pressure regulation dial, tighten the pressure
locking plate (L) in anticlockwise direction.
INCREASE
DECREASE
KL
WARNING KICKBACK.
Starter cord kickback (rapid retraction) will pull hand
and arm toward engine faster than you can let go
which could cause broken bones, fractures, bruises,
or sprains resulting in serious injury.
• When starting engine, pull cord slowly until resistance is
felt and the pull rapidly to avoid kickback.
NOTICE DO NOT run the pump without the chemical diluted
liquid in the sprayer tank.
• Damaged to equipment resulting from failure to follow this
instruction will void warranty.
• DO NOT run the engine on idle for extended periods. If the
machine is inactive, turn off the engine when not in use.
• Never leave the engine running unattended.
• DO NOT run the engine at maximum speed with the wand
cock valve closed for extended periods.
I
Not for
Reproduction

ENGLISH
How to Stop Your Backpack Sprayer
OPEN
G
8. After the engine has warmed
up, move the choke lever (I) to
the open position (Down).
M
MAX.
SPEED
IDLE
J
NOTE: If it becomes necessary to stop the unit immediately in
the event of an emergency, press and hold down the stop switch
button (M) immediately.
How to Spray
3. Start to lift the control throttle lever to increase the engine
speed. The chemical diluted liquid should starts to spray out
from the nozzle.
Putting on The Backpack Sprayer
1. Never lifting the unit alone and always use safe lifting practices.
It is recommended when putting the backpack sprayer on your
back or putting down, place the unit on a higher level surface just
about the waist high.
2. Slip the hardness straps over your shoulder.
3. Check and adjust strap tension comfort before lifing.
15
I
You should now be familiar with how to START and STOP your
backpack sprayer. If not, please refer to the previous section to
familiarise yourself with STARTING and STOPPING the system
before continuing.
To start spraying, follows these steps:
1. Lift the backpack sprayer onto your back with the engine is
running on idle.
2. Open the cock valve (G).
WARNING CHEMICAL BURN HAZARD.
Chemicals could cause burns resulting
in death, serious injury and/or property
damage.
• Always wearing safety glasses, protective clothing, safety
gloves, respiratory protection and substantial footwear.
• Wash your hands after handling this product.
• Always follow the chemical manufacturers instructions.
WARNING POISONOUS GAS HAZARD.
Some agricultural chemicals could be harmful if
inhaled or ingested, resulting in death, serious
injury, nausea, fainting or poisoning.
WARNING
It is important to clearly know how to stop the engine at any
time. Check the location and function of the stop switch before
putting the machine on the operators back. Ensure the machine
is removed from the operators back before restarting.
To stop your backpack sprayer, follow these instructions step-
by-step.
1. Put the throttle control lever to idle position (J).
2. Press and hold down the stop switch button (M) until the
engine is completely stop.
7. Hold the unit firmly and pull the starter cord slowly until
resistance is felt. Then pull rapidly until the engine starts.
NOTE: DO NOT pull the cord
or start the machine whilst on
the operators back. Always
start the machine on level
ground. WARNING LIFTING WEIGHT HAZARD.
The Sprayer weight may exceed the physical capability of the
operator. Assessment of the lifting limitations of the operator
prior to use should be considered to avoid back injury or other
serious injury caused by heavy lifting.
Not for
Reproduction

ENGLISH
16
Spray flow rate for each nozzle
A single nozzle spray wand and a 3 nozzle wand are supplied
as standard equipment with the unit.
The following table is a general output data for each nozzle at
max. speed and pressure setting:
Wand Operation
The spray wands are designed and intended to dispense liquids
from the tank onto vegitation as required. The wands must not
be used for any other purpose other than intended.
•DO NOT used the wands to lever or lift objects (including
vegitation) as this may bend or damage the wand.
•DO NOT strike any object with the wand as this may result in
serious injury or damage.
•DO NOT use the wand to support balance (eg. DO NOT use
as a walking stick) as this will damage the wand.
Single nozzle wand
3 Nozzles wand
7LPM/Nozzle
1.5LPM/Nozzle
Flow rateWand Type
Spray pressure setting tips
The spray pressure setting method can be done in two ways.
1. Pressure setting via the pressure regulation dial.
- Turn in clockwise direction to increase the pressure, or;
- Turn in anticlockwise direction to decrease the pressure.
2. Pressure setting via the throttle control lever adjustment .
This will maximise the performance and fuel efficiency:
- Lower engine speed for lower spray pressure, or;
- Maximum engine speed for maximum spray pressure.
NOTE: Limiting the pressure using the pressure regulator
dial will provide better protection of inadvertent error when
the operator increases the pressure via the throttle control
lever. Setting a lower pressure for longer periods of time,
using both the pressure regulator and a lower RPM together is
recommended to reduce wear on components.
WARNING
DO NOT make any other adjustments or modifications on the
sprayer to avoid contaimination of the environment, operator
or bystanders.
Not for
Reproduction

ENGLISH
MAINTENANCE
Maintenance Schedule
WARNING
Unintentional sparking can result in fire or electric
shock.
Fire hazard.
Contact with muffler area could cause burns resulting
in serious injury.
Some agricultural chemicals could be harmful if
inhaled or ingested, resulting in death, serious injury,
nausea, fainting or poisoning.
Chemicals could cause burns resulting in death,
serious injury and/or property damage.
Before performing adjustments or repairs:
• STOP engine
• Before performing adjustments or repairs, disconnect the
spark plug wire and keep it away from the spark plug.
• Use only original spare parts from the manufacturer or
approved by the manufacturer.
• Avoid serious burns. Allow all parts to cool before working
on machine.
• Always wearing safety glasses, protective clothing, safety
gloves, respiratory protection and substantial footwear.
Follow the hourly or calendar intervals, whichever occurs first.
More frequent service is required when operating in adverse
conditions noted below.
Daily
• Check/clean the sprayer tank strainer 1
• Clean for any debris
• Check the spray nozzle
Before use
• Inspect the whole unit for damage or leak
Every 50 Hours or Annually
• Clean or re-adjust spark plug gap. Replace if necessary
• Check the hoses and fittings1
• Empty and clean the sprayer tank
• Empty the fuel tank
• Inspect all accessible fasterners. If loose - retighen/replace
• Inspect and clean air filter 1, 2
• Inspect muffler for debris and damage. Replace if necessary
• Check pump oil level
1Clean if clogged. Replace if damaged or torn.
2Service more often under dirty or dusty conditions.
General Recommendations
Regular maintenance will improve the performance and extend the
life of the backpack sprayer. See any qualified dealer for service.
The backpack sprayer warranty does not cover items that have
been subjected to operator abuse or negligence. To receive full
value from the warranty, the operator must maintain backpack
sprayer as instructed in this manual including proper storage as
detailed in the storage section of this manual.
Before Each Use
1. Clean debris.
2. Check the sprayer tank strainer and sprayer tank for debris or
damage.
3. Check all hoses and fittings for leaks or damage.
4. Check the grease cups.
5. Check spray nozzle.
6. Check pump oil level.
• Check the grease cups. Refill if necessary
• Check the grease cups. Refill if necessary
• Apply grease to the plunger every 3 hours of operation
17
Not for
Reproduction

ENGLISH
Check The Grease Cups (2 places)
The plunger within the pump needs to be lubricated every 3
hours during operation or as required:
1. Hand turning of the screw cap in clockwise direction until you
feel resistance of the grease starting to inject
2. Then turn one full circle rotation (both screw caps - each side
of the pump). Avoid applying too much grease and may result in
wasted grease leaking from the screw cap. Clean excess grease
from the screw cap as required.
2. Examine all tubes connection and clean if clogged or replace
if damaged. Examine the hose clamp fittings and retighten if
loose or replace if damaged.
NOTICE Run the pump without grease can damage the pump
and/or shorten its life.
To apply grease
Screw Cap
(2 Places - Both
sides of Pump)
Grease Cup
hidden in image
below the Screw
Cap
18
Check & Clean The Sprayer Strainer & Sprayer Tank
Examine the sprayer strainer and sprayer tank. Remove the
sprayer strainer and clean if the screen is clogged with a soft
brush and water. If the screen is damaged, replace it. Clean
the interior of the sprayer tank with a soft brush and rinse it
with water.
Check All Hoses and Fittings For Leaks or Damage
1. The spray hose can develop leaks from wear, kinking, rubbing
or abuse. Inspect the hose each time before using it. Check for
cuts, leaks, abrasions or bulging of cover, damage or movement
of couplings. If any of these conditions exist, replace the hose
immediately.
Warning
Spray hose assembly and fittings are important for safety of the
appliance. NEVER repair this hose. Replace it. Use only hoses
and fitting recommended by the manufacturer.
BACKPACK SPRAYER MAINTENANCE
Clean Debris
Daily or before use, clean accumulated debris from backpack
sprayer. Keep the pump, the sprayer tank, frame and controls
clean. Keep area around and behind the muffler free from any
combustible debris. Inspect cooling air slots and openings on
the backpack sprayer. These openings must be kept clean and
unobstructed.
The backpack sprayer parts should be kept clean to reduce the
risk of overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of the backpack sprayer can
damage it and/or shorten its life.
• DO NOT insert any objects through cooling slots.
NOTICE Before starting the machine at each use, examine
both the grease cups by opening the screw cap completely
anticlockwise. Refill by hand with No. 3 Lithium grease if
required (approx. 1.5grams each cavity) and replace the screw
cap.
• DO NOT operate the machine without grease.
• DO NOT operate the machine for extrended periods without
applying grease to the plunger.
• DO NOT operate the machine without the grease cup screw
caps assembled.
Not for
Reproduction

ENGLISH
Check Spray Nozzle.
A clogged spray nozzle can cause the spray pressure and flowrate
to drop. All excessive pressure will go back to the sprayer tank.
To correct the problem, immediately clean the spray tip by
following these instructions:
1. Stop engine & remove the unit from the operators back.
2. Disconnect the spray wand from the Spray hose assembly.
3. To remove the nozzle cap (N/P), turn in anticlockwise direction.
4. Inspect and clean the spray tip (O/Q) and metal strainer (R)
for 3 nozzle spray wand from any foreign material clogging or
restricting the spray nozzle. Replace if damaged.
5. Reinstall the nozzle cap and the spray wand with the spray hose
assembly tighly (hand tighten) .
Checking Pump Oil Level
Oil level should be checked prior to each use.
1. Make sure the backpack sprayer is on a level surface.
2. To get access to the back of the pump, you need to unbutton
the top backpad only.
3. Verify the oil is showing as 3/4's full (approx. 140ml) in the
oil glass window.
4. Replace and re-button the backpad into place before using.
NOTICE DO NOT attempt any oil maintenance on this pump.
The pump is pre-lubricated and sealed from the factory. If
refilling is required, see an Authorized Dealer or Service Centre.
NOTICE Do not use pressurized air or solvents to clean the
filter as the filter can be damaged.
T
S
U
Tongue
location
3 nozzle spray wand
Single nozzle spray wand
N
O
P
Q
R
WARNING
Gasoline and its vapors are extremely
flammable and explosive. Fire or explosive
can cause severe burns or death.
• Never start or run the engine with the air cleaner assembly
removed or with the air filter removed.
• Never clean the air filter with petrol or inflammable solvents.
• Always switch off the machine and disconnect spark plug H.T
lead before carrying out any maintenance work.
Air Cleaner Maintenance
Rubber seal
Rubber seal
19
1. Remove the retaining knob (S) from air filter cover (T).
2. Remove air filter cover (T) and the filter element (U).
3. Clean the filter element by washing in soapy water and
allowing it to dry completely.
4. Soak in a mixture of 25:1 two stroke oil and squeeze off
excess.
5. Assemble in reverse order.
NOTICE Make sure the air filter element and cover are fitted
correctly. DO NOT operate the engine without the air filters
element and cover fitted. Warranty coverage will be void if
engine is damaged due to incorrect installation of the air filter.
Not for
Reproduction

ENGLISH
WARNING CHEMICAL DISPOSAL.
ALL Chemical Additives should be handles and disposed
of responsibly with care. Refer to local regulations and
recommendations of the chemical manufacturer before
disposal
Check the spark plug for carbon deposits after 10 hours of
operation and clean if necessary. Thereafter service the spark
plug after every 25 hours of operation.
1. Pull off the spark plug boot by twisting side to side gently.
2. Remove the spark plug with the supplied spark plug tube
spanner.
3. Assemble in reverse order.
After Each Use
4. To clean the sprayer tank:
a. Remove the drain cap (V).
b. Thoroughly rinse the sprayer tank with a clean water.
c. Replace the drain cap (V) and fill the sprayer tank with a clean
water about 1/4 full.
d. Turn on the engine and start spraying through the nozzle to flush
the pump, hose and wand to remove any residual chemicals.
e. Repeat step 4a to drain out the remaining clean water inside the
sprayer tank and replace the drain cap (V) when finished.
V
W
Spark Plug Maintenance
Champion RCJ6Y.
Spark plug gap = (0.6 - 0.7 mm).
Tighten the spark plug with a torque of 12 - 15 Nm.
0.7mm
5. Disconnect the suction hose (Y) by removing the hose clip (X)
to allow any residual clean water to drain from the pump.
NOTE: Water left in the pump could freeze and damage the pump
in cold climates.
6. Reconnect the suction hose (Y) with the hose clip (X).
7. Rinse and brush the tank filter with a soft brush.
8. Wipe the unit with a clean coth or rag.
Y
X
NOTICE Lack of maintenance or improper maintenance, use of
non-conforming components and removal of safety devices can
reduce the performance and the life of the backpack sprayer.
NOTICE Rinse and washdown water should be disposed
correctly. Always check with your local regulations and chemical
manufacturers instructions.
WARNING CHEMICAL BURN HAZARD.
Chemicals could cause burns resulting
in death, serious injury and/or property
damage.
• Always wearing safety glasses, protective clothing, safety
gloves, respiratory protection and substantial footwear.
• Wash your hands after handling this product.
• Always follow the chemical manufacturers instructions.
3. To empty the sprayer tank:
a.Place a recommended chemical container by the chemical
manufacturers under the sprayer drain port (W).
b.Remove the drain cap (V).
c.Drain out the remaining chemical diluted liquid into the
container before cleaning.
Always empty and clean the sprayer tank after each use,
changing chemicals and before storing the unit. Follow these
procedures after every use:
WARNING RESPIRATORY HAZARD.
Some agricultural chemicals could be harmful if
inhaled or ingested, resulting in death, serious
injury, nausea, fainting or poisoning.
20
1. Stop the engine.
2. Place the unit on a level surface.
Not for
Reproduction
