Manual No. 80020217 Revision A
Outdoor Inverter Generator
Operator’s Manual
Model Number _____________________________
Revision __________________________________
Serial Number ______________________________
Date Purchased ____________________________
Copyright © 2016. Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. All rights reserved.
BRIGGS & STRATTON POWER PRODUCTS is a registered
trademark of Briggs & Stratton Corporation
Milwaukee, WI, USA
1800-356-632 (AUS) or 0800-484-282 (NZ)
BRIGGSandSTRATTON.com.au

Not for
Reproduction
2 BRIGGSandSTRATTON.com.au
Equipment Description
Table of Contents
Equipment Description .........................2
Features and Controls .........................4
Operation....................................6
Maintenance ................................11
Storage ....................................14
Troubleshooting/Specifications .................15
Warranty ...................................16

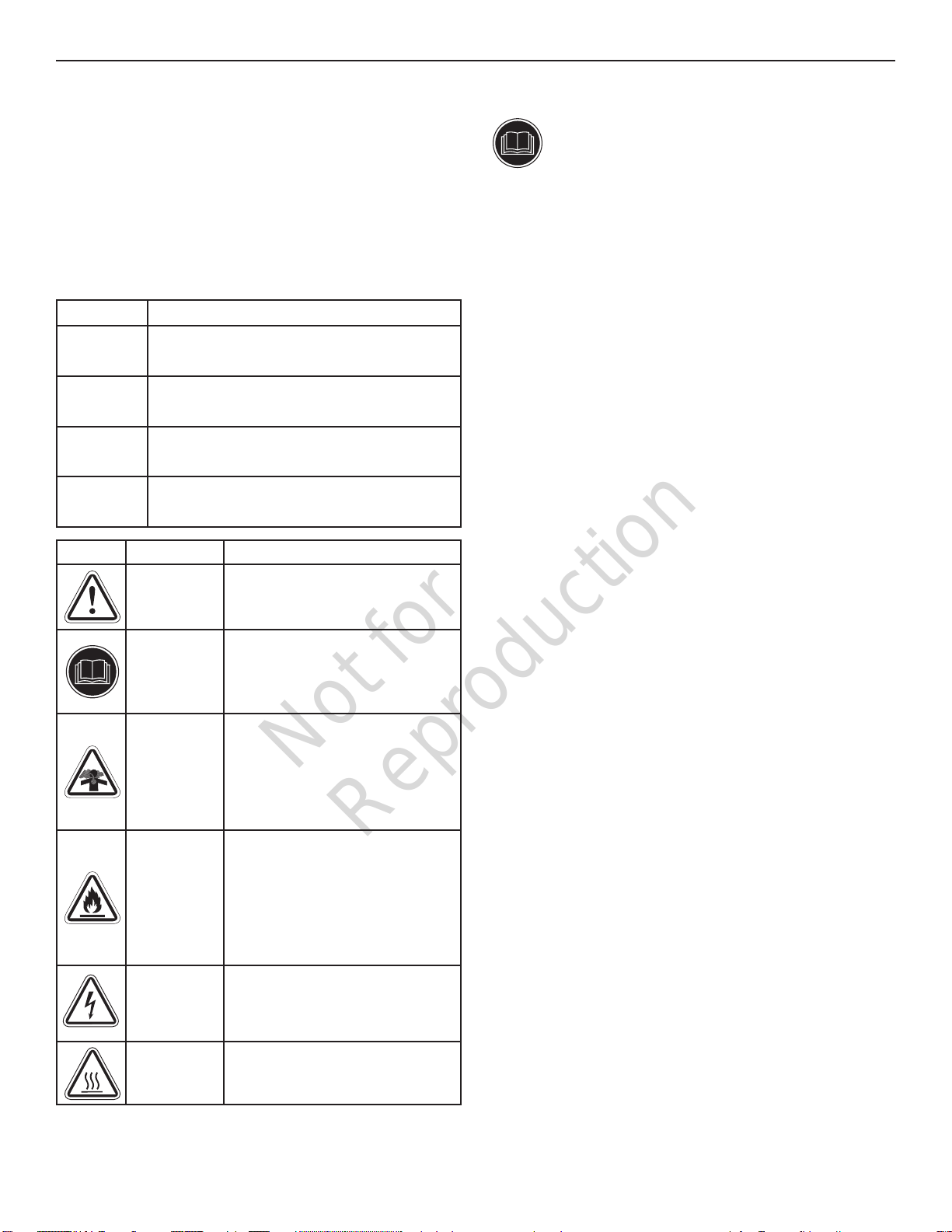

Symbols and Meanings
Signal Meaning
DANGER Indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING Indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a hazard which, if not avoided,
could result in minor or moderate injury.
NOTICE Indicates information considered important,
but not hazard-related
Symbol Name Explanation
Safety Alert
Symbol
Indicates a potential personal injury
hazard.
Operator’s
Manual
Failure to follow warnings,
instructions and operator’s manual
could result in death or serious
injury.
Toxic Fumes
Engine exhaust contains carbon
monoxide, a poisonous gas that
could kill you in minutes. You
cannot smell it or see it.
Fire
Fuel and its vapors are extremely
flammable which could cause
burns or fire resulting in death or
serious injury.
Engine exhaust could cause fire
resulting in death or serious injury.
Electric
Shock
Generator could cause electrical
shock resulting in death or serious
injury.
Hot Surface Muffler could cause burns or
resulting in serious injury.
Equipment Description
Read this manual carefully and become familiar
with your product. Know its applications, its
limitations, and any hazards involved. Save these
original instructions for future reference.
The inverter generator is an engine–driven, revolving
field, alternating and direct current (AC & DC) generator.
It was designed to supply electrical power for operating
compatible electrical lighting, appliances, tools and
motor loads. The generator’s revolving field is driven
at about 4,500 rpm (with QPT™ (QUIET POWER
TECHNOLOGY™) switch off) by a single-cylinder engine.
The inverter generator produces power that can be used for
outdoor items using extension cords or an optional parallel
kit. This inverter generator is not intended to restore power to
a home. Extension cords running directly into the home
increase your risk of carbon monoxide poisoning through
openings. Install carbon monoxide alarm(s).
Every effort has been made to ensure that the information in this
manual is both accurate and current. However, the manufacturer
reserves the right to change, alter or otherwise improve the
generator and this documentation at any time without prior notice.
NOTICE If you have questions about intended use, contact an
authorized service dealer. This equipment is designed to be used
with Briggs & Stratton Power Products authorized parts only.
System Ground
The generator has a system ground that connects the
generator frame components to the ground terminals on the
AC output receptacles. The generator neutral is floating,
which means that the AC stator winding is isolated from
the grounding fastener and the AC receptacle ground pins.
Electrical devices, such as RCD, requiring a grounded
neutral may not operate properly from this generator.
Earthing of the generator is not required.
Special Requirements
There may be regulations, local codes, or ordinances that
apply to the intended use of the generator. Please consult
a qualified electrician, electrical inspector, or the local
agency having jurisdiction.
This generator is not intended to be used at a construction
site.

Not for
Reproduction
3

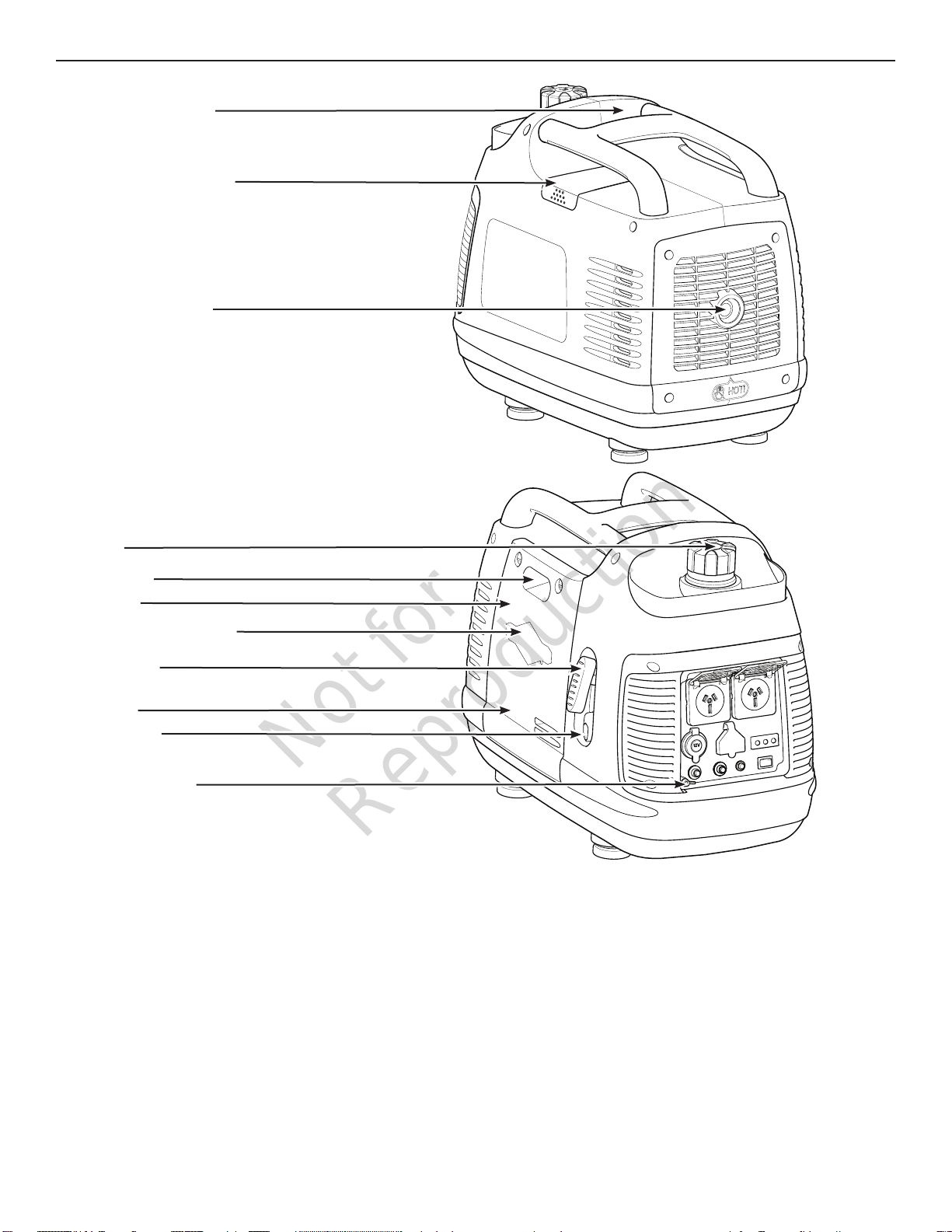

Equipment Description
Air Cleaner (under side maintenance cover) — Filters
engine intake air.
Choke Lever — Used when starting a cold engine.
Fuel Cap — Add unleaded fuel here.
Engine Switch — Set this switch to ON (I) before using
recoil starter. Set switch to OFF (0) to stop engine. Also
turns fuel valve on and off.
Grounding Fastener — Consult your local agency having
jurisdiction for grounding requirements in your area.
Identification Label — Provides model and serial number of
generator.
Oil Fill Cap (under side maintenance cover) — Check and
add engine oil here.
Recoil Starter — Used to start the engine manually.
Side Maintenance Cover — Remove to gain access to the
air cleaner and oil service.
Spark Arrester Muffler — Exhaust muffler lowers engine
noise and is equipped with a spark arrester screen.
Top Maintenance Cover — Remove to gain access to the
spark plug.
Engine Switch
Oil Fill Cap
Top Maintenance Cover
Fuel Cap
Grounding Fastener
Choke Lever
Spark Arrester Muffler
Air Cleaner
Identification Label
Side Maintenance Cover
Recoil Starter

Not for
Reproduction
4 BRIGGSandSTRATTON.com.au
Features and Controls
12 Volt DC
Receptacle
230 Volt AC 15 Amp
Receptacle
Circuit
Breaker
Compare the illustrations with your generator to familiarize yourself with the locations of various controls and product
warnings.
Generator
Reset
12 Volt DC Receptacle — Use this receptacle to supply
power for 12 Volt DC accessories that are rated 60 watts
(5 Amp) or less. This receptacle is protected by a push to
reset circuit breaker.
230 Volt AC, 15 Amp Receptacle — May be used to supply
electrical power for the operation of 230 Volt AC, 15 Amp,
single phase, 50 Hz electrical, lighting, appliance, tool, and
motor loads.
Circuit Breaker — A “push to reset” circuit breaker is
provided to protect the generator against electrical
overload when running in parallel.
DC Circuit Breaker — The 12 Volt DC receptacle is
provided with a “push to reset” circuit breaker to protect the
generator against electrical overload.
Generator Reset — Push to reset generator if overloaded.
Low Oil Indicator — A yellow LED light comes on when the
oil in the generator drops below a preset level.
Output Indicator — A green LED light comes on when the
generator is working correctly and producing power at the
receptacles.
Overload Alarm — A red LED light comes on and
cuts power to the receptacles when the generator is
overloaded.
Parallel Operation Port — Use this port with optional
parallel operation kit to allow two generators to run in
parallel.
QPT Switch— Use this switch to turn the QPT on and off.
DC Circuit
Breaker
Low Oil
Indicator
Output
Indicator
Overload
Alarm
Parallel
Operation Port
QPT
Switch

Not for
Reproduction
5
Features and Controls
Muffler
Point away from home

Not for
Reproduction
6 BRIGGSandSTRATTON.com.au
Operation
Operation
Step 1: Safe Location
Before starting the inverter generator there are two equally
important safety concerns regarding carbon monoxide
poisoning and fire that must be addressed.
Operation Location to Reduce the Risk of
Carbon Monoxide Poisoning
The engine exhaust of all fossil fuel burning equipment,
such as an inverter generator, contains carbon monoxide,
a poisonous gas that could kill you in minutes. You cannot
smell it, see it, or taste it. Even if you do not smell exhaust
fumes, you could still be exposed to carbon monoxide gas.
A carbon monoxide alarm is an electronic device that
detects hazardous levels of carbon monoxide. When there
is a buildup of carbon monoxide, the alarm will alert the
occupants by flashing visual indicator light and alarm.
Smoke alarms cannot detect carbon monoxide gas.
WARNING! Engine exhaust contains carbon
monoxide, a poisonous gas that could kill you in
minutes. You cannot smell it, see it, or taste it.
Even if you do not smell exhaust fumes, you could still be
exposed to carbon monoxide gas.
• Operate this product only outdoors far away from
windows, doors and vents to reduce the risk of carbon
monoxide gas from accumulating and potentially being
drawn towards occupied spaces.
• Install battery-operated carbon monoxide alarms or
plug-in carbon monoxide alarms with battery back-up
according to the manufacturer’s instructions. Smoke
alarms cannot detect carbon monoxide gas.
• Do not run this product inside homes, garages,
basements, crawlspaces, sheds, or other partially-
enclosed spaces even if using fans or opening doors
and windows for ventilation. Carbon monoxide can
quickly build up in these spaces and can linger for
hours, even after this product has shut off.
• Always place this product downwind and point the
engine exhaust away from occupied spaces.
If you start to feel sick, dizzy, or weak while using this
product, get to fresh air right away. See a doctor. You may
have carbon monoxide poisoning.
Carbon monoxide alarm
Install carbon monoxide alarms inside
your home. Without working carbon
monoxide alarms, you will not realize
you are getting sick and dying from
carbon monoxide poisoning.

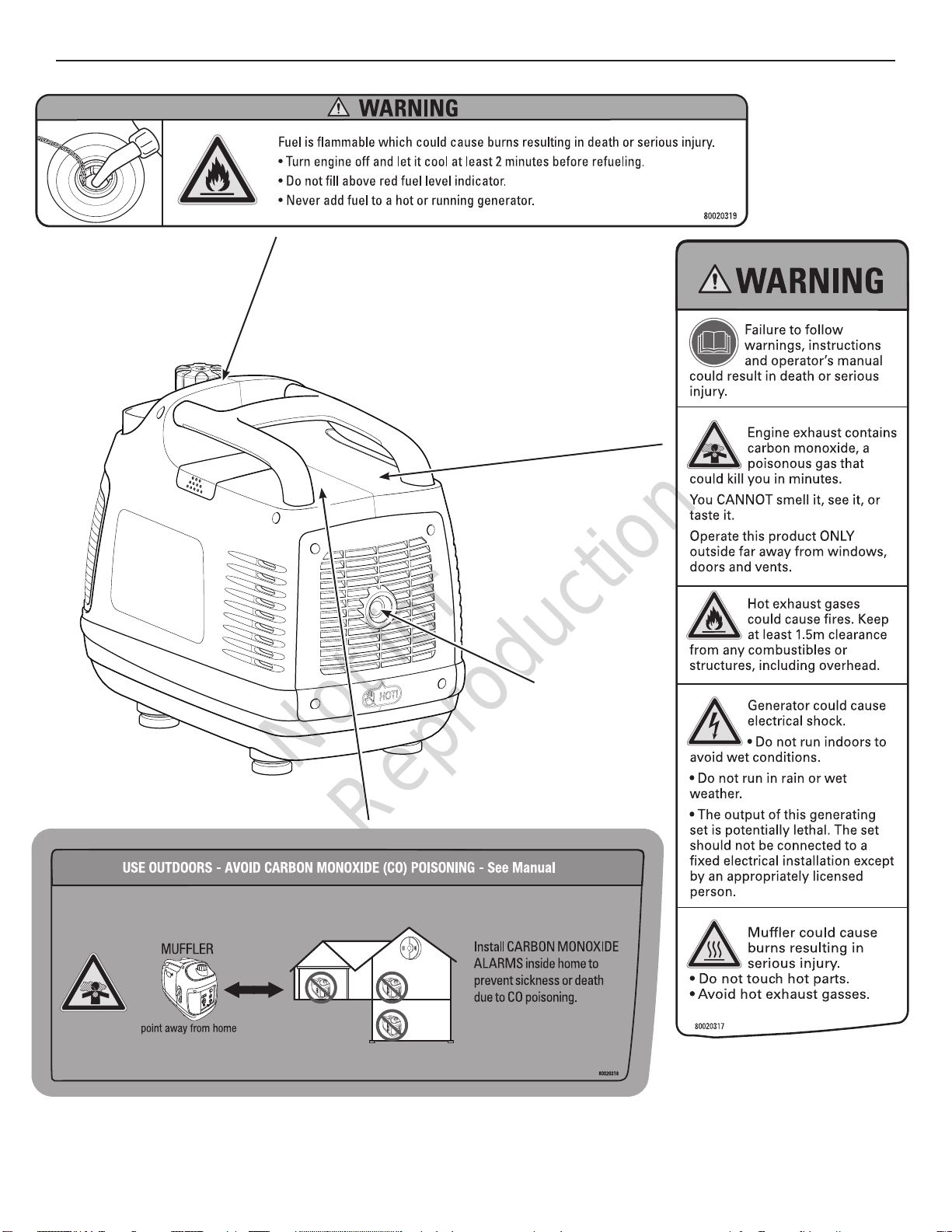

CARBON MONOXIDE ALARM(S)
USE OUTDOORS - AVOID CARBON MONOXIDE POISONING
point away
from home
MUFFLER

Not for
Reproduction
7
Operation

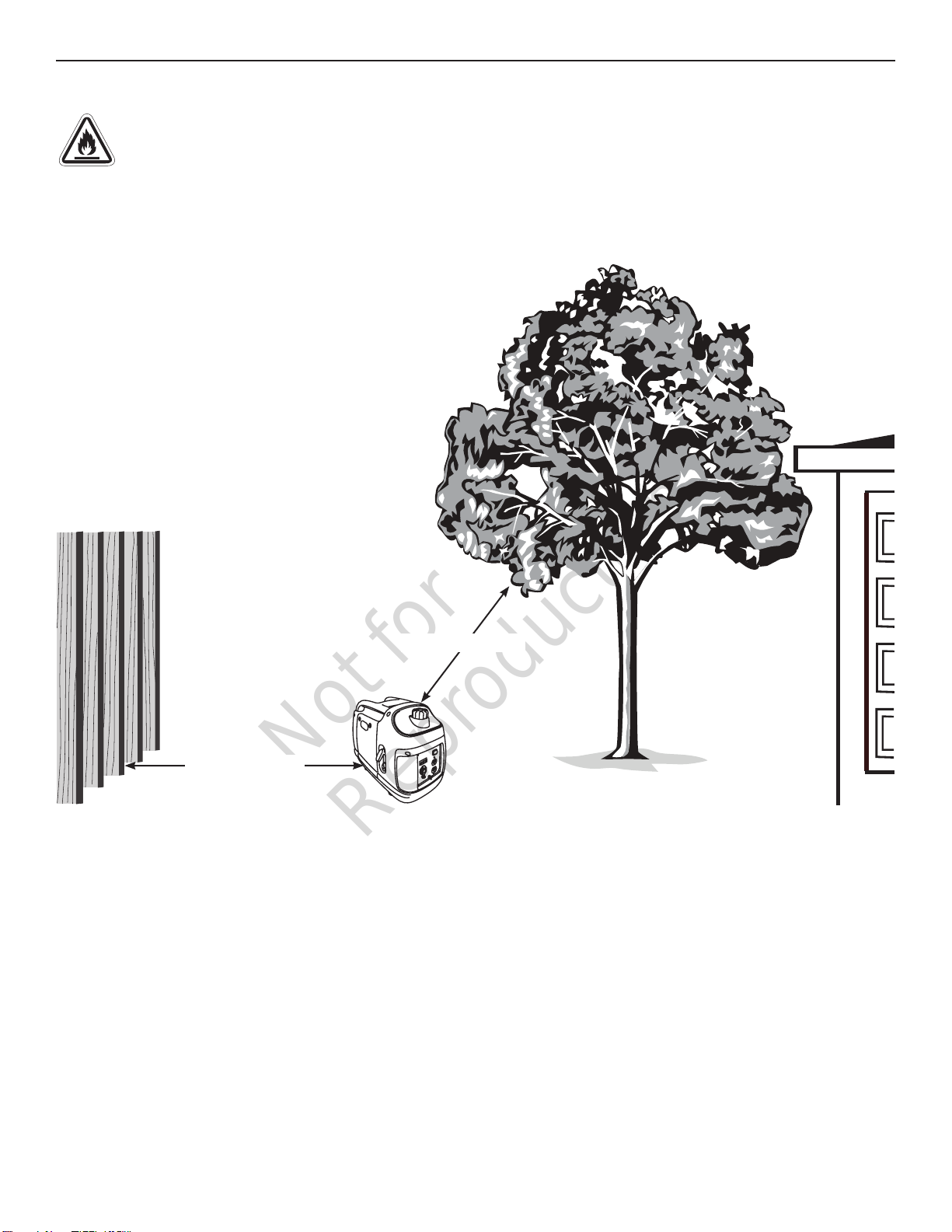

Operation Location to Reduce the Risk of Fire
WARNING! Exhaust heat/gases could ignite
combustibles, structures or damage fuel tank
causing a fire, resulting in death or serious injury.
• Inverter generator must be at least 1.5 m (5 ft.) from any
structure, overhang, trees, windows, doors, any wall
opening, shrubs, or vegetation over 30.5 cm (12 in.) in
height.
• Do not place inverter generator under a deck or other
type of structure that may confine airflow. Smoke alarm(s)
must be installed and maintained indoors according to the
manufacturer’s instructions/recommendations.
• Carbon monoxide alarms cannot detect smoke.
• Do not place inverter generator in manner other than
shown.
1.5 m (5 ft.) min.
1.5 m (5 ft.) min.

Not for
Reproduction
8 BRIGGSandSTRATTON.com.au
Operation
Step 2: Oil and Fuel
Oil Recommendations
We recommend the use of Briggs & Stratton Warranty
Certified oils for best performance. Other high-quality
detergent oils are acceptable if classified for service SF or
higher. Do not use special additives.
Outdoor temperatures determine the proper oil viscosity for
the engine. Use the chart to select the best viscosity for the
outdoor temperature range expected.
* Below 4°C (40°F) the use of SAE 30 will result in hard starting.
** Above 27°C (80°F) the use of 10W30 may cause increased oil
consumption. Check oil level more frequently.
Checking/Adding Engine Oil
Oil level should be checked prior to each use or at least
every 8 hours of operation. Keep oil level maintained.
1. Place generator on a level surface.
2. Loosen the two maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil fill and remove yellow oil fill cap.
4. Verify oil is at the point of overflowing at the oil fill
opening.
5. If needed, using oil funnel, slowly pour recommended
engine oil into oil fill opening to the point of overflowing.
NOTICE DO NOT attempt to crank or start engine before
it has been properly serviced with recommended oil. This
could result in an engine failure.
6. Replace oil fill cap and fully tighten.
7. Replace the maintenance cover and hand tighten the
two maintenance cover screws.
Add Fuel
Fuel must meet these requirements:
• Clean, fresh, unleaded fuel with a minimum of
87 octane/87 AKI (91 RON).
• Gasoline with an ethanol content up to 10% is acceptable.
E10
E15
NOTICE Do not mix oil in fuel or modify engine to run on
alternate fuels. Use of unapproved fuels could damage
engine and will not be covered under warranty.
See High Altitude for 1524 m (5,000 ft.) and above.
WARNING! Fuel and its vapors are extremely
flammable which could cause burns or fire
resulting in death or serious injury.
• Do not refuel during operation.
• Turn engine off and let it cool at least 2 minutes before
removing fuel cap.
• Fill fuel tank outdoors. Keep fuel away from sparks, open
flames, pilot lights, heat, and other ignition sources.
Check fuel lines, tank, cap and fittings frequently for
cracks or leaks. Replace if necessary.
1. Clean area around fuel fill cap, remove cap.
2. Slowly add unleaded fuel to red fuel level indicator in
fuel tank. Be careful not to fill above the indicator. This
allows adequate space for fuel expansion.
Fuel Level
Indicator

Not for
Reproduction
9
3. Install fuel cap and let any spilled fuel evaporate
before starting engine.
High Altitude
At altitudes over 1524 m (5,000 ft.), a minimum 85 octane/85
AKI (89 RON) fuel is acceptable. To remain emissions
compliant, high altitude adjustment is required. Operation
without this adjustment will cause decreased performance,
increased fuel consumption,
and increased emissions.
See an authorized Briggs & Stratton dealer for high altitude
adjustment information. Operation of the engine at altitudes below
762 m (2,500 ft.) with the high altitude kit is not recommended.
Transporting
When transporting equipment with a vehicle or trailer, turn engine
switch to OFF (0) position. Do not tip engine or equipment at an
angle which causes fuel to spill.
Step 3: Generator Start Up
Disconnect all electrical loads from the generator. Use the
following start instructions:
1. Make sure unit is outdoors on a level surface.
NOTICE Failure to operate the unit on a level surface may
cause the unit to shut down.
2. Turn the engine switch to the ON (I) position.
3. Push choke lever to CHOKE ( ) position.
NOTICE To start the engine for the very first time, after
running out of fuel or after a long period of storage, fill fuel
tank as described in Add Fuel. It will require more than
several start attempts until the air in the fuel system has
been purged.
5. Grasp recoil handle and pull slowly until slight
resistance is felt. Then pull rapidly to start engine.
6. Slowly move choke lever to RUN ( ) position. If
engine falters, move choke lever to half choke position
until engine runs smoothly, and then to RUN ( )
position.
NOTICE If engine starts but fails to run, see Low Oil
Indicator.
QPT (QUIET POWER TECHNOLOGY™)
This feature is designed to greatly improve fuel economy.
When this switch is turned ON (I), the engine speed will
increase as electrical loads are connected, and decreased
as electrical loads are removed.
With the switch off, engine will run at full governed speed.
NOTICE Always have the switch OFF (0) when starting or
stopping the generator or when using the DC receptacle.
Step 4: Connecting Electrical Loads
Make sure the green output indicator light comes on (it
may take up to three seconds).
Using Extension Cords
When using extension cords or mobile distribution
networks, the total length of cords for a cross section of
1.5mm2should not exceed 60 m, for a cross section of
2.5mm2this should not exceed 100 m.
Use only grounded extension cords marked for outdoor
use rated for your loads. Follow cord safety instructions.
WARNING! Damaged or overloaded extension
cords could overheat, arc, and burn resulting in
death or serious injury.
NOTICE For generator output required see Generator
Capacity. Connect electrical loads in off position then turn
on for operation.
230 Volt AC, 15 Amp Receptacles
These receptacles are protected against overload by an
internal overload system.
Use receptacles to operate 230 Volt AC, single–phase,
50 Hz electrical loads requiring up to 1,700 watts (1.7 kW)
at 7.4 Amps of current. Use cord sets that are rated for
230 Volt AC loads at 15 Amps (or greater).
Operation
Engine Switch
Choke Lever

Not for
Reproduction
10 BRIGGSandSTRATTON.com.au
12 Volt DC Receptacle
The maximum current available for the 12 Volt DC
receptacle is 60 Watts (5 Amps). A DC circuit breaker
protects this receptacle from overloads. If an overload
occurs, the circuit breaker will trip (push button pops out).
Wait a few minutes and push the button in to reset the
circuit breaker.
This receptacle along with the USB adapter allows you to
recharge any USB powered device with a USB charging
cable (not included).
NOTICE For charging ITE (Information Technology
Equipment) only.
NOTICE When using this receptacle, push the QPT
switch to the OFF (0) position.
Output Indicator
The green LED output indicator light comes on when
the generator is operating normally. It indicates that the
generator is producing power at the receptacles.
Overload Alarm
The red LED overload alarm light comes on and cuts
power to the receptacles if you overload the generator. The
green output indicator light will also go off. If the generator
was overloaded, you must turn off and unplug all electrical
loads, then push the generator reset button to continue
operating.
Low Oil Indicator
The low oil indicator system is designed to prevent engine
damage caused by not enough engine oil. If the engine
oil level drops below a preset level, the yellow LED low
oil indicator light comes on and an oil switch will stop
the engine. If the engine stops or the yellow LED low oil
indicator light comes on when you pull the recoil handle,
check the engine oil level.
Parallel Operation
Two Briggs & Stratton inverter generators can be run
in parallel with a Briggs & Stratton parallel operation kit
(optional equipment). When running in parallel, the total
output of power is shown in chart.
NOTICE Total electrical load connected to the parallel kit
must not exceed the maximum output.
See the parallel operation kits instruction sheet for detailed
instructions on installation and operation of the connected
generators.
NOTICE
• Turn electrical loads OFF and disconnect from both
generators.
• The QPT switch must be in the same position on both
generators.
• Connect the parallel kit’s power cables to both
generators before starting the engines. See instruction
sheet supplied with parallel kit.
• Start engine on one of the inverter generators
according to Generator Start Up.
• Once the green LED output indicator light on the first
generators is steady, start second generator.
• Connect and turn on electrical loads to the parallel
panel receptacles.
• DO NOT disconnect parallel kit’s power cables after
engines have been started.
• Shut down engines as described in Generator
Shutdown.
Operation
Models Maximum Output
P2200 & P2200 3000 Watts
P2200 & P3000 3000 Watts
P3000 & P3000 4800 Watts

Not for
Reproduction
11
Generator Capacity
To make sure your generator can supply enough running
watts and starting watts for the items you will power at the
same time, follow these simple steps:
1. Select the items you will power at the same time. See
following list for typical wattages.
* Typical wattages listed are approximate only. Check tool
or appliance for actual wattage.
** Per Briggs & Stratton 628K, Starting Watts represents
the momentary electrical current the generator can
provide to start electric motors. Starting Watts does
not represent the power required to continuously run
electrical loads. Starting Watts is the maximum current
that can momentarily be supplied when starting a motor,
multiplied by the generator’s rated voltage.
2. Total the running watts. This is the amount of power
your generator must produce to keep your items
running. See following example:
Example
Total running watts = 2355
Highest starting watts = 2000
Total generator watts required = 4355
3. Estimate the starting watts you will need. Because not
all motors start at the same time, total starting wattage
can be estimated by adding only the item with the
highest additional starting watts requirements to the
total running watts from step 2.
Power Management
To manage generator power, sequentially add loads as
follows:
1. With nothing connected to generator, start the engine
outdoors.
2. Plug in and turn on the first load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Never add more loads than the generator capacity. Take
special care to consider surge loads in generator capacity.
Step 6: Generator Shutdown
1. Turn off and unplug all electrical loads from generator
panel receptacles. Never stop engine with electrical
devices plugged in and turned on.
2. Let engine run at no-load for one minute to stabilize
internal temperatures of engine and generator.
3. Turn engine switch to OFF (0) position.
Operation
Tool or Appliance Running Watts Starting Watts
Window air conditioner 1200 1800
Refrigerator 800 2000
Television 280 —
Light (75 Watts) 75 —
2355 Total
Running Watts
2000 Highest
Starting Watts
Tool or Appliance Running
Watts*
Starting
Watts**
Light Bulb - 75 Watt 75 -
Sump Pump 800 1200
Refrigerator/Freezer 800 2000
Water Well Pump - 1/3 HP 1000 2000
Window AC - 10,000 BTU 1200 1800
Furnace Fan Blower - 1/2 HP 800 1300
Microwave Oven - 1000 Watt 1000 -
Color Television - 42” 280 -
Personal Computer w/17” monitor 800 -
Garage Door Opener - 1/2 HP 480 520

Not for
Reproduction
12 BRIGGSandSTRATTON.com.au
Maintenance
Maintenance Schedule
Follow the hourly or calendar intervals, whichever occurs
first. More frequent service is required when operating in
adverse conditions noted below.
1Service more often under dirty or dusty conditions.
2See any authorized dealer for service.
General Recommendations
Regular maintenance will improve the performance and
extend the life of the generator. See any authorized dealer
for service.
The generator’s warranty does not cover items that have
been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the generator as instructed in this manual.
All service and adjustments should be made at least once
each season. A new spark plug and clean air filter assure
proper fuel-air mixture and help your engine run better and
last longer. Follow requirements in Maintenance Schedule.
Cleaning
Daily or before use, look around and underneath
the generator for signs of oil or fuel leaks. Clean any
accumulated debris. Keep area around muffler free from
any debris.
• Use a soft bristle brush to loosen caked on dirt or oil.
• Use a damp cloth to wipe exterior surfaces clean.
NOTICE Improper treatment of generator could damage
it and shorten its life. Do not expose generator to excessive
moisture, dust, dirt, or corrosive vapors. Do not insert any
objects through cooling slots.
Cleaning Fuel Strainer
The fuel strainer helps prevent debris from entering the fuel
system.
Clean the fuel strainer as follows:
1. Make sure generator is on a level surface.
2. Remove the fuel cap and fuel strainer.
3. Wash fuel strainer in liquid detergent and water.
4. Wipe fuel strainer clean with a clean, dry cloth.
5. Carefully reinstall the fuel strainer and fuel cap.
Engine Maintenance
Check Engine Oil Level
Oil level should be checked prior to each use or at least
every 8 hours of operation. Keep oil level maintained. See
Checking/Adding Engine Oil.
Changing Engine Oil
If you are using your generator under extremely dirty or
dusty conditions, or in extremely hot weather, change the
oil more often.
CAUTION Avoid prolonged or repeated skin contact
with used motor oil. Used motor oil has been shown
to cause skin cancer in certain laboratory animals.
Thoroughly wash exposed areas with soap and water.
KEEP OUT OF REACH OF CHILDREN. DON’T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
Change oil while engine is still warm from running, as
follows:
1. Make sure unit is on a level surface.
2. Loosen the side maintenance cover screws and
remove the side maintenance cover.
3. Clean area around oil fill and remove oil fill cap.
4. Tip your generator to drain oil from oil fill into a
suitable container making sure you tip your unit toward
the oil filler neck. When crankcase is empty, return
generator to upright position.
Maintenance
Every 8 Hours or Daily
• Clean debris
• Check engine oil level
First 10 Hours
• Change engine oil
Every 50 Hours or 3 Months
• Service engine air cleaner and breather filter1
Every 100 Hours or 6 Months
• Clean fuel strainer
• Change engine oil1
• Service spark plug
• Inspect muffler and spark arrester
Every 250 Hours or Yearly
• Check valve clearance2
Fuel Cap
Fuel Strainer

Not for
Reproduction
13

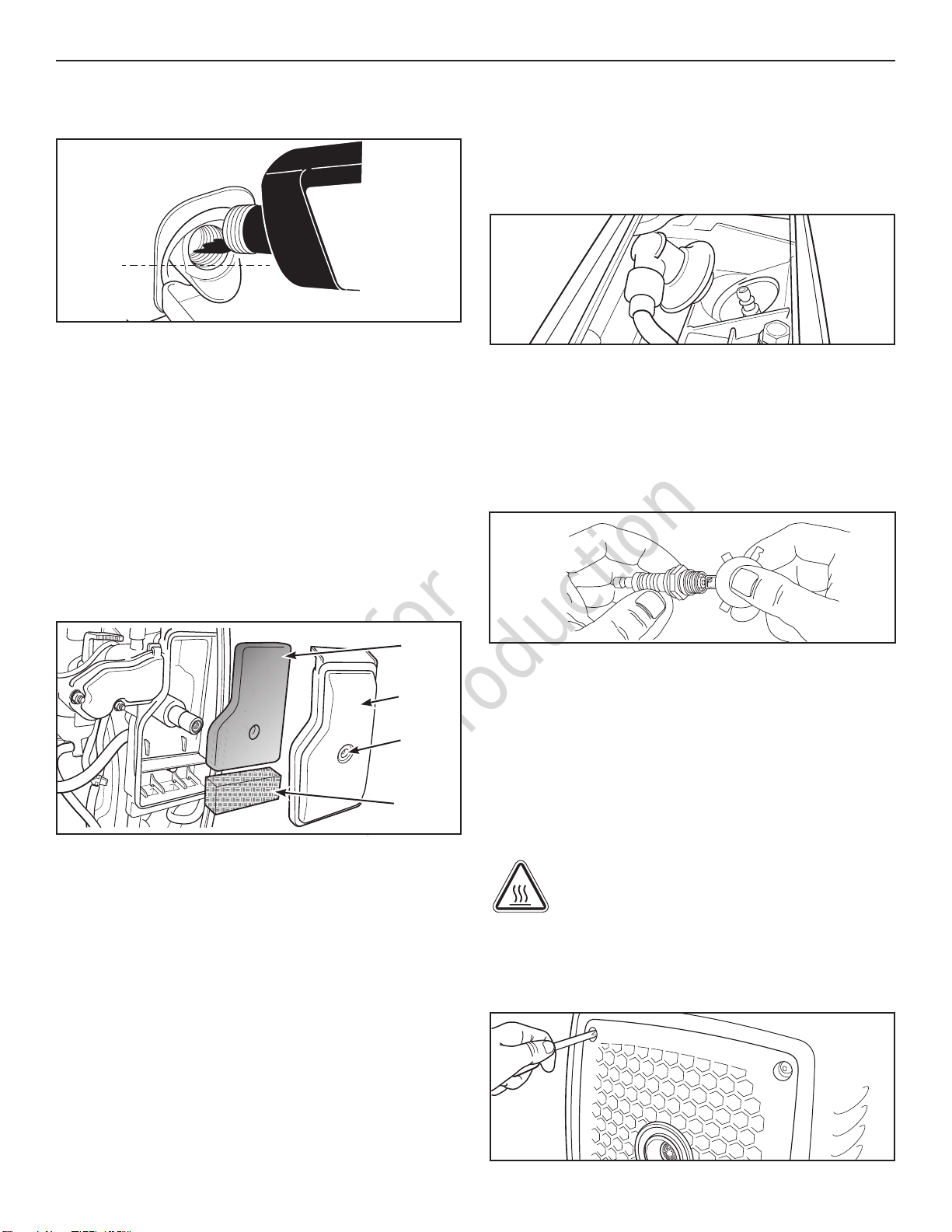

Maintenance
5. Slowly pour oil (about 0.4 l (13.5 oz.)) into oil fill
opening to the point of overflowing at oil fill cap.
DO NOT overfill.
6. Reinstall oil fill cap. Finger tighten cap securely.
7. Wipe up any spilled oil.
8. Reinstall the side maintenance cover and hand tighten
the cover screws.
Service Air Cleaner
Your engine will not run properly and may be damaged if
you run it with a dirty air cleaner. Clean or replace more
often if operating under dusty or dirty conditions.
To service the air cleaner, follow these steps:
1. Loosen the side maintenance cover screws and
remove the side maintenance cover.
2. Loosen air cleaner cover screw and remove air
cleaner cover.
3. Carefully remove foam air cleaner and breather filter
by pulling it out towards you.
4. Wash foam air cleaner and breather filter in liquid
detergent and water only. Squeeze dry in a clean
cloth.
NOTICE If the filter is excessively dirty, replace with a
new filter. See Common Service Parts.
5. SATURATE foam air cleaner in clean engine oil and
squeeze in a clean cloth to remove excess oil.
6. Reinstall clean or new foam air cleaner and breather
filter inside base.
7. Reinstall the air cleaner cover and tighten screw.
8. Reinstall the side maintenance cover and hand tighten
the cover screws.
Service Spark Plug
Changing the spark plug will help your engine to start
easier and run better.
1. Remove top maintenance cover.
2. Clean area around spark plug and remove spark plug
boot.
3. Remove spark plug and inspect spark plug.
4. Replace spark plug if electrodes are pitted, burned
or porcelain is cracked. Use the recommended
replacement plug. See Common Service Parts.
5. Check electrode gap with wire feeler gauge and reset
spark plug gap to recommended gap if necessary
(see Specifications).
6. Install spark plug and tighten firmly. Reinstall spark
plug boot.
7. Reinstall top maintenance cover.
Inspect Muffler and Spark Arrester
The engine exhaust muffler has a spark arrester screen.
Inspect the muffler for cracks, corrosion, or other damage.
Inspect spark arrester screen for damage or carbon
blockage. Clean if carbon blockage is found using brush
and commercial solvent or replace if damaged.
WARNING! Contact with muffler area could
cause burns resulting in serious injury.
• Do not touch hot parts.
Clean and inspect the spark arrester as follows:
1. To remove muffler guard, remove four screws that
connects guard to generator.
Cover
Filter
Screw
Breather
Filter

Not for
Reproduction
14 BRIGGSandSTRATTON.com.au
Maintenance/Storage
2. Remove screw that attaches spark arrester screen to
muffler. Remove spark arrester screen.
3. Inspect screen and obtain a replacement if torn,
perforated or otherwise damaged. DO NOT use a
defective screen. If screen is not damaged, clean it
with a brush.
4. Reattach screen to muffler. Reattach muffler guard.
Check Valve Clearance
Regular valve clearance check and adjustment will improve
performance and extend engine life. This procedure cannot
be done without partial engine disassembly and the use
of special tools. For this reason we recommend that you
have an authorized Service Dealer check and adjust valve
clearance at recommended intervals (see Maintenance
Schedule).
Common Service Parts
Foam Air Cleaner..........................311388GS
Breather Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . .311389GS
Resistor Spark Plug.................... NGK CR7HSA
Engine Oil Bottle ...................100005 or 100028
Synthetic Oil Bottle .......................... 100074
Fuel Stabilizer .....................100120 or 100117
Spark Arrester ............................315584GS
Contact an authorized service dealer or
BRIGGSandSTRATTON.com for a full list of parts and
diagrams.
Storage
If storing the unit for more than 30 days, use the following
guidelines to prepare it for storage.
Long Term Storage Instructions
1. Clean the generator as outlined in Cleaning.
2. Change engine oil while engine is still warm, drain oil
from crankcase. Refill with recommended grade. See
Changing Engine Oil.
3. Treat or drain fuel from generator as fuel can become
stale when stored over 30 days.
Stale fuel causes acid and gum deposits to form in the fuel
system or on essential carburetor parts. To keep fuel fresh,
use Briggs & Stratton® Advanced Formula Fuel Treatment
& Stabilizer, available wherever Briggs & Stratton genuine
service parts are sold. See Common Service Parts.
There is no need to drain gasoline from the engine if a
fuel stabilizer is added according to instructions. Run the
engine for 2 minutes to circulate the stabilizer throughout
the fuel system before storage.
If gasoline in the engine has not been treated with a fuel
stabilizer, it must be drained into an approved container.
Run the engine until it stops from lack of fuel. The use of a
fuel stabilizer in the storage container is recommended to
maintain freshness.
WARNING! Fuel and its vapors are extremely
flammable and explosive which could cause
burns, fire or explosion resulting in death or
serious injury.
• When storing fuel or equipment with fuel in tank, store
away from furnaces, stoves, water heaters, clothes dryers
or other appliances that have pilot light or other ignition
source because they could ignite fuel vapors.
• When draining fuel, turn generator engine off and let it
cool at least 2 minutes before removing fuel cap. Loosen
cap slowly to relieve pressure in tank. Drain fuel tank
outdoors. Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
• Check fuel lines, tank, cap and fittings frequently for
cracks or leaks. Replace if necessary.
4. Store generator in clean, dry area and cover with a
suitable protective cover that does not retain moisture.
WARNING! Storage covers could cause a fire
resulting in death or serious injury.
• Do not place a storage cover over a hot generator. Let
equipment cool for a sufficient time before placing the
cover on the equipment.

Not for
Reproduction
15
Troubleshooting/Specifications
Problem Cause Correction
Engine is running, but no AC
output is available.
1. One of the circuit breakers is open.
2. Poor connection or defective cord set.
3. Connected device is bad.
1. Reset circuit breaker.
2. Check and repair.
3. Connect another device that is in
good condition.
Engine runs well at no-load but
“bogs down” when loads are
connected.
1. Generator is overloaded. 1. See Generator Capacity.
Engine will not start; starts and
runs rough or shuts down when
running.
1. Engine switch set to off (0) position.
2. Low oil level.
3. Dirty air cleaner.
4. Out of fuel.
5. Spark plug wire not connected to
spark plug.
6. Flooded with fuel.
1. Set switch to on (I) position.
2. Fill crankcase to proper level or
place generator on level surface.
3. Clean or replace air cleaner.
4. Fill fuel tank.
5. Connect wire to spark plug.
6. Wait 5 minutes and re-crank
engine.
For all other issues, see a Briggs & Stratton authorized dealer.
Specifications
Running Watts* ........................................... 1,700
Starting Watts** ........................................... 2,200
AC Current at 230 Volts AC ..............................7.4 Amps
AC Current at 12 Volts DC ...............................5.0 Amps
Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz at 4500 rpm
Phase .............................................Single Phase
Displacement ................................. 111 cc (6.77 cu. in.)
Spark Plug Gap ........................0.6-0.7 mm (0.023-0.027 in.)
Intake Valve Clearance ..........0.08-0.12 mm (0.0031-0.0047 in.) cold
Exhaust Valve Clearance ........0.13-0.17 mm (0.0051-0.0067 in.) cold
Fuel Capacity ...........................3.7 Liters (1.0 U.S. Gallons)
Oil Capacity ...............................0.4 Liters (13.5 Ounces)
Sound Pressure @ 7 m§ ...................................78 dBA
Power Ratings: The gross power rating for individual gasoline engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are
derived at 2600 RPM for those engines with “rpm” called out on the label and 3060 RPM for all others; horsepower values are derived at
3600 RPM. The gross power curves can be viewed at www.BRIGGSandSTRATTON.COM. Net power values are taken with exhaust and
air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than
net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide
array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of
power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner,
exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity,
altitude), and engine-to engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of
higher rated power for this engine.
* Generator rated in accordance with CSA (Canadian Standards Association) standard C22.2 No. 100-14, Motors and Generators.
** This generator is rated in accordance with Briggs & Stratton standard 628K.
§ Measured sound values in accordance to AS 2790-1989, Electricity Generating Sets - Transportable (Up to 25 kw).

Not for
Reproduction
16 BRIGGSandSTRATTON.com.au
Warranty
80015715_EN Rev -
BRIGGS & STRATTON PRODUCTS WARRANTY POLICY
LIMITED WARRANTY
Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship
or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for
and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at
BRIGGSandSTRATTON.COM The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for
inspection and testing.
There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to the
warranty period listed below, or to the extent permitted by law. Liability for incidental or consequential damages are excluded to the extent exclusion
is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you
may also have other rights which vary from state to state or country to country.**
WARRANTY PERIOD
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at
BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing to [email protected], Briggs & Stratton Australia Pty Ltd, 1
Moorebank Avenue, NSW, Australia, 2170.
The warranty period begins on the date of purchase by the first retail or commercial consumer. “Consumer use” means personal residential household use by a retail
consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial
use, it shall thereafter be considered as a commercial use product for purposes of this warranty.
To ensure prompt and complete warranty coverage, register your product at the website shown above or at www.onlineproductregistration.com, or mail the complete
registration card (if provided), or call 1-800-743-4115 (in USA).
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the
product will be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs & Stratton products.
ABOUT YOUR WARRANTY
Warranty service is available only through Briggs & Stratton Authorized Service Dealers. Most warranty repairs are handled routinely, but sometimes requests for
warranty service may not be appropriate. This warranty covers only defects in materials or workmanship. It does not cover damage caused by improper use or abuse,
improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
Improper Use and Abuse - The proper, intended use of this product is described in the Operator’s Manual. Using the product in a way not described in the Operator’s
Manual or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the
product has been removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage or water/chemical
corrosion damage.
Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the Operator’s Manual, and serviced or
repaired using genuine Briggs & Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is not covered by warranty.
Normal Wear and Tear - Like most mechanical devices, your unit is subject to wear even when properly maintained. This warranty does not cover repairs when normal
use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are
not covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.
Stale or Unapproved Fuel - In order to function correctly, this product requires fresh fuel that conforms to the criteria specified in the Operator’s Manual. Engine or
equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty.
Other Exclusions - This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration.
Attachments or accessories that were not originally packaged with the product are also excluded. There is no warranty coverage on equipment used for primary power in
place of utility power or on equipment used in life support applications. This warranty does not include used, reconditioned, second-hand, or demonstration equipment or
engines. This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer’s control.
Consumer Use Commercial Use
36 months 12 months
