Thank you for purchasingthis quality-built Briggs & Stratton home generator.We're pleasedthat you've placedyour
confidence in the Briggs & Stratton brand.When operatedand maintained according to the instructions in this manual, your
home generatorwill provide many years of dependableservice.
This manual contains safety information to makeyou awareof the hazardsand risks associatedwith home standby
generators and how to avoidthem. Becausewe do not necessarily know all the applicationsthis equipmentcould be used
for, it is important that you read and understandthese instructions thorougMy beforeattempting to start or operatethis
equipment. Savethese original instructionsfor future reference.
Thishome generater requiresprofessionalinstallationbefere use. Referto the separate installation manualfor full
information. Your installer should follow the instructions completely.
Where te Find Us
You never haveto look far to find Briggs & Stratton support and servicefor your generator. Consultyour Yellow Pages.There
arethousands of Briggs & Stratton authorized service dealersworldwide who provide quality service.You canalso contact
TechnicalService by phoneat 800 743-4115, or click on Finda Dealerat BRIGGSandSTRATTON.COM,which provides a list of
authorized dealers.
Generaterand engine model and serial numbers should be recorded in the instaiiatien manual.
Briggs & Stratton PowerProducts Group, LLC
P,O, Box702
Milwaukee, Wl 53201o0702
Copyright @2012. All rights reserved. No part of this material
may be reproducedor transmitted in anyform without the express
written permission of Briggs & Stratton PowerProducts Group, LLC.

Tableof Contents
Maintenance .................................. 20
Service CodeDetectionSystem ................................. 20
Warranty ..................................... 32
Limited Warranty ............................................ 32
Warranty Period ............................................ 32
About Your Warranty......................................... 33
Generater Speciflcatiens .......................... 34
Engine Specifications ............................ 34
Common Service Parts ........................... 34
Fran(;ais Espaffo[

SaveThesemnstructions
mmportantSafety mnstructions
SAVETHESEiNSTRUCTiONS- This manualcontains
important instructions that should be followed during
installation and maintenanceof the generatorand batteries.
Safety Symbeia and Meanings ?
Explosion Fire Electrical Shock
Toxic Fumes Rotating Parts Hot Surface
9)
Auto Start Explosive Pressure Chemical Burn
Lift Hazard ReadManual
The safety alert symbol indicatesa potential personal
injury hazard.A signalword (DANGER,WARNING or
CAUTION)is usedwith the alert symbol to designatea
degree or levelof hazardseriousness. A safety symbo
may be usedto representthe type of hazard.Thesignal
word NOTICEis usedto address practices not relatedto
personal injury.
,A DANGERindicatesa hazardwhich, if not avoided, wi//
result in deathor serious injury.
A WARNINGindicatesa hazardwhich, if not avoided, cou/d
result in deathor serious injury.
,A CAUTIONindicatesa hazardwhich, if not avoided, cou/d
result in minor or moderate injury.
NOTICEaddressespractices not relatedto personal injury.
The manufacturer cannot possibly anticipateevery possible
circumstance that might involve a hazard.Thewarnings in
this manual,and the tags and decals affixedto the unit are,
therefore, not all-inclusive, if you use a procedure, work
method or operatingtechnique that the manufacturer does
not specifically recommend, you must satisfy yourself that
it is safe for you and others. You must also makesure that
the procedure, work method or operating technique that you
choose does not renderthe generatorsystem unsafe.
WARNING Runningengine gives off carbon monoxide,
an odorless, colorless, poison gas.
Breathingcarbon monoxide could result in death,
serious injury, headache,fatigue, dizziness,
vomiting, confusion, seizures, nauseaor fainting.
Operatethis product ONLYoutdoors in an areathat will
not accumulatedeadlyexhaustgas.
Keepexhaustgasawayfrom anywindows, doors,
ventilation intakes,soffit vents, crawl spaces,open garage
doors or other openingsthat canallow exhaustgas
to enter insideor be drawn into a potentiallyoccupied
building or structure.
Carbonmonoxide detector(s) MUST be installed and
maintainedindoors accordingto the manufacturer's
instructions/recommendations. Smoke alarms cannot
detectcarbon monoxide gas.
A WARNING Theengine exhaustfrom this product
contains chemicals known to the State of Californiato
causecancer, birth defects, or other reproductive harm.
WARNING Certaincomponents in this product and
relatedaccessoriescontain chemicals known to the State
of California to causecancer, birth defects,or other
reproductive harm. Wash handsafter handling.
WARNING Storage batteriesgive off explosive
hydrogen gas during recharging.
Slightest spark will ignite hydrogen
and cause explosion, resulting
in death, serious injury',and/or
property damage.
Battery,electrolyte fluid contains acidand is
extremely caustic.
Contactwith battery,contents will causesevere
chemical burns.
A battery'presents a risk of electrical shock and high short
circuit current.
°DONOTdispose of battery,in a fire. Recyclebattery,.
°DONOTallow any openflame, spark, heat,or lit cigarette
during andfor several minutesafter charginga battery,.
°DONOTopen or mutilatethe battery,.
°Wear protective goggles, rubber apron, rubber boots and
rubber gloves.
°Removewatches, rings, or other metal objects.
°Usetools having insulated handles.

,a, WARNING Generatorproduces hazardousvoltage.
Failureto properly ground generatorcould result in
electrocution.
Failureto isolate generator from utility power could
result in deathor serious injury to electric utility
workers due to backfeedof electrical energy.
o Whenusing generatorfor backup power, notify
utility company.
o DONOTtouch barewires or bare receptacles.
o DONOTusegeneratorwith electricalcords which are
worn, frayed, bare or otherwise damaged.
o DONOThandlegeneratoror electricalcords while
standing in water, while barefoot,or while handsor feet
arewet.
o if you must work around a unit while it is operating,
stand on an insulateddry surfaceto reducethe risk of a
shock hazard.
o DO NOTallow unqualifiedpersons or childrento operate
or servicegenerator.
o in caseof an accidentcausedby electricalshock,
immediately shut down the source of electricalpower and
contactthe localauthorities. Aveid direct contact with
thevictim.
o Despitethe safe designof the generator,operatingthis
equipment imprudently, neglectingits maintenanceor
being carelesscan causepossible injury or death.
o Remainalert atall times while working on this equipment.
Neverwork on the equipment whenyou are physically or
mentallyfatigued.
o Beforeperforming anymaintenanceon the generator,
disconnectthe battery cableindicated by a NEGATIVE,
NEGor (°) first. Whenfinished, reconnectthat cablelast.
o After your system is installed,the generator may crank
and start without warning any time there is a power
failure. To preventpossible injury, alwaysset the
generator'ssystem switch to OFF,removethe service
disconnectfrom the disconnect box ANDremovethe
15 Amp fuse BEFOREworking on the equipment.
WARNING
o
o
Propaneand Natural Gasare extremely
flammable and explosive,which could
_ cause burns, fire or explosion resulting
in death,serious injury and/or property'
damage.
DONOToperatethe equipment if the "fuel shut-off" valve
is missing or inoperative.
Installthe fuel supply system according to NFPA37 and
other applicablefuel-gas codes.
Beforeplacingthe generatorinto service,the fuel system
lines must be properly purged and leaktested.
After the generatoris installed,you should inspectthe fuel
system periodically.
NOleakageis permitted.
DONOToperateengine if smell of fuel is presentor other
explosiveconditions exist.
DONOTsmoke around the generator.Wipe up any oil
spills immediately.Ensurethat no combustible materials
are left in the generatorcompartment. Keepthe areanear
the generatorcleanand free of debris.
WARNING Starter and other rotating parts can
_ ntangle hands, hair, clothing, or accessories
resulting in serious injury.
o NEVERoperategeneratorwithout protective housings,
covers, or guardsin place.
o DONOTwear looseclothing, jewelry or anythingthat may
be caught in the starter or other rotating parts.
o Tie up long hair and removejewelry.
o Beforeservicing, remove 15 Amp fuse from control panel
and disconnect Negative (NEGor °) battery cable.

,& WARNINGExhaustheat/gasescould ignitecombustibles
or structures resulting in death, serious
injury and/or property damage.Contactwith
muffler areacould causeburns resulting in
serious injury.
o DONOTtouch hot parts and AVOIDhot exhaustgases.
o Allow equipmentto cool beforetouching.
o Exhaustoutlet sideof weatherproof enclosure must
haveat bast 5 ft. (1.5 m) minimum clearancefrom any
structure, shurbs, trees or anykind of vegetation.
o Standbygeneratorweatherproof enclosuremust be at
bast 5 ft. (1.5 m) from windows, doors, anywall opening,
shrubs or vegetationover 12 inches (30.5 cm) in height.
o Standbygeneratorweatherproof enclosuremust havea
minimum of 5 ft. (1.5 m) overheadclearancefrom any
structure, overhangor trees.
o DO NOTplaceweatherproof enclosureunder a deck or
othertype of structure that may confine airflow.
o Useonly flexible fuel line provided. Connectprovidedfuel
line to generator, DONOTusewith or substitute any other
flexible fuel line.
o Smokedetector(s) MUSTbe installed and maintained
indoors according to the manufacturer's instructions/
recommendations.Carbonmonoxide alarms cannot
detectsmoke.
o Keepat bast minimum distancesshown in Genera!
Location Guide/inesto insurefor proper generatorcooling
and maintenanceclearances.
o it is a violation of California PuNic ResourceCode,
Section4442, to useor operatethe engineon any forest°
covered,brusbcovered, or grass_coveredland unless
the exhaustsystem is equipped with a spark arrester,as
definedin Section4442, maintainedin effectiveworking
order. Otherstates or federaljurisdictions may have
similar laws.
Contactthe original equipment manufacturer,retailer, or
dealerto obtain a spark arrester designedfor the exhaust
system installedon this engine.
o Replacementparts must bethe sameand installedin the
same position asthe original parts.
,& CAUTION Installing the 15A fuse could causethe
engineto start at anytime without warning
resulting in minor or moderateinjury.
o Observethat the 15 Amp fuse has beenremovedfrom the
control panelfor shipping.
o DONOTinstall this fuse until all plumbing andwiring has
beencompletedand inspected.
CAUTION Excessivelyhigh operating speedscould
result in minor injury and/or equipment damage.
Excessivelylow speeds impose a heavyload on generator.
o DONOTtamper with governedspeed.Generatorsupplies
correct ratedfrequencyand voltage when running at
governedspeed.
o DONOTmodify generatorin anyway.
NOTICE improper treatment of generatorcan damageit
and shorten its life.
o Usegeneratoronly for intendeduses.
o if you havequestions about intendeduse,contact your
authorizeddealer.
o Operategeneratoronly on levelsurfaces.
o Adequate,unobstructed flow of cooling andventilating air
is criticalto correct generatoroperation.
o TheOil Fill, Oil Drainand the Control Paneldoors must be
installed wheneverthe unit is running.
o DONOTexposegeneratorto excessivemoisture, dust,
dirt, or corrosive vapors.
o Despitethe safedesign of the generator,operatingthis
equipment imprudently, neglecting its maintenanceor
being carelesscancause possible injury or death.
o Remainalertat all times while working on this equipment.
Neverwork on the equipmentwhen you are physically or
mentallyfatigued.
o DONOTstart enginewith air cleaneror air cleaner
cover removed.
o DONOTinsert any objectsthrough cooling slots.
o DONOTusethe generatoror anyof its parts as a step.
Steppingon the unit can causestress and break parts,
This may result in dangerousoperatingconditions from
baking exhaustgases,fuel leakage,oil leakage,etc.
o if connecteddevicesoverheat,turn them off and
disconnect them from generator.
Shut off generatorif:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively:
-unit makes unusual noises.

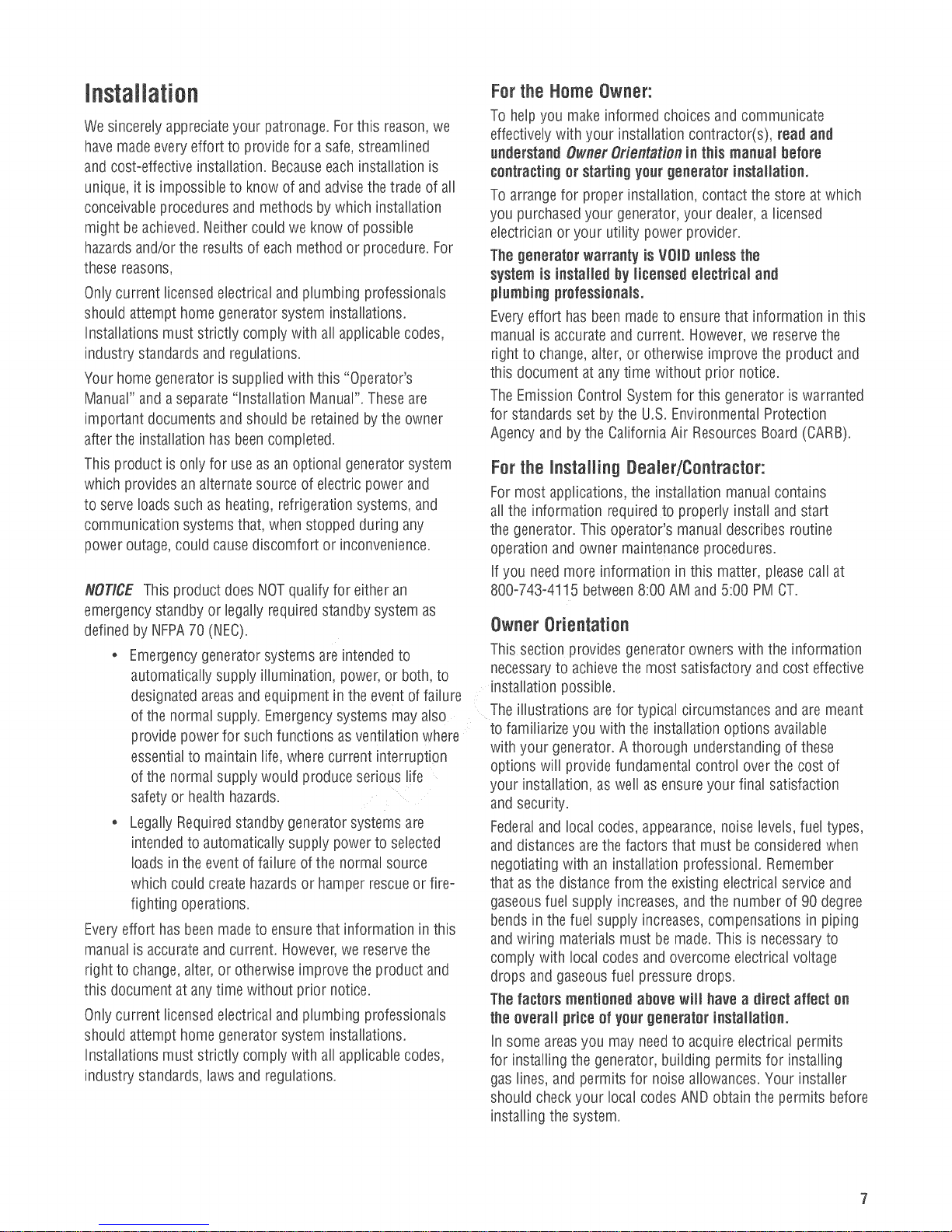

JflstaJJatiofl
Wesincerely appreciateyour patronage. Forthis reason,we
havemadeevery effort to providefor a safe,streamlined
and cost-effective installation. Becauseeachinstallation is
unique, it is impossible to know of and advisethetrade of all
conceivableprocedures and methods bywhich installation
might be achieved.Neither couldwe know of possible
hazardsand/or the results of eachmethod or procedure. For
these reasons,
Onlycurrent licensed electrical and plumbing professionals
should attempt homegenerator system installations.
Installations must strictly comply with all applicablecodes,
industry standardsand regulations.
Your home generatoris supplied with this "Operator's
Manual" and a separate"installation Manual'LTheseare
important documents and should be retainedbythe owner
after the installation has beencompleted.
Forthe Nome Owner:
To help you make informed choices and communicate
effectively with your installation contractor(s), read and
understand Owner Orientation in this manual before
contracting or starting yourgenerator installation.
To arrangefor proper installation, contact the store atwhich
you purchased your generator, your dealer,a licensed
electrician or your utility power provider.
The generator warranty isVO_Bunless the
system is installedby licensedelectrical and
plumbingprofessionals.
Ever}'effort hasbeen madeto ensurethat information in this
manual is accurateand current. However,we reservethe
right to change,alter, or otherwise improve the product and
this document at any time without prior notice.
TheEmission Control System for this generator is warranted
for standards set by the U.S.EnvironmentalProtection
Agency and by the California Air Resources Board (CARB).
This product isonly for use asan optional generatorsystem
which provides an alternatesource of electric power and
to serve loads such as heating, refrigeration systems, and
communication systemsthat, when stopped during any
power outage, could causediscomfort or inconvenience.
For the Mnstalling Dealer/Contractor:
For most applications, the installation manual contains
all the information required to proPerly install and start
the generator. This operator's manual describes routine
operation and owner maintenanceprocedures.
if you needmore information in this matter, pleasecall at
NOTICE This product does NOTqualify for eitheran 800-743-4115 between8:00 AM and 5:00 PM CT.
emergencystandbyor legally required standbysystem as
defined by NFPA70 (NEC). Owner Orientation
° Emergencygenerator systems are intendedto This section provides generator owners with the information
automatically supply illumination, power,or both, to necessaryto achievethe most satisfactory and cost effective
designatedareasand equipment in the event of failure instaflation possible.
of the normal supply. Emergencysystems may also .......Theillustrations are for typical circumstances and are meant
provide power for such functions asventilation where to familiarize you with the installation options available
essentialto maintain life, where current interruption with your generator. A thorough understanding of these
options will providefundamental control overthe cost of
of the normal supply would produce serious life your installation, aswell asensureyour final satisfaction
safety or healthhazards, and security.
, LegallyRequiredstandby generatorsystems are Federaland localcodes, appearance,noise levels,fuel types,
intendedto automaticallysupply powerto selected and distances are the factors that must be considered when
loads in the event of failure of the normal source negotiating with an installation professional. Remember
which could create hazardsor hamper rescueor fire- that asthe distance from the existing electrical serviceand
fighting operations, gaseousfuel supply increases,and the number of 90 degree
bends in the fuel supply increases,compensations in piping
Ever},effort has beenmadeto ensurethat information in this and wiring materialsmust be made. This is necessaryto
manual is accurateand current. However,we reservethe comply with local codes and overcome electrical voltage
right to change,alter, or otherwise improve the product and drops and gaseousfuel pressure drops.
this document at anytime without prior notice. Thefactors mentioned above wiii have a direct affect on
Onlycurrent licensed electrical and plumbing professionals the overall priceof yoer generator installation.
should attempt homegenerator system installations, in some areasyou may needto acquireelectrical permits
Installations must strictly comply with all applicablecodes, for installing the generator, building permits for installing
industry standards, laws and regulations, gas fines,and permits for noise allowances.Your installer
should checkyour local codesAND obtain the permits before
installing the system.

Fuel Factors
,a_WARNING Propaneand Natural Gasareextremely
flammable and explosive,which could
_ causeburns, fire or explosion resulting
in death, serious injury and/or property
damage.
° Theresidentialgenerator is equippedwith an automatic
safetygas "fuel shutooff"valve.
° DONOToperatethe equipment if the "fuel shut-off" valve
is missing or inoperative.
An important consideration affecting the entire installation
is the type of fuel usedby your generator. The system was
factory tested and adjusted using either natural gas or liquid
propane (LP vapo¢ Forproper enginefunction, factors
that are inherentto eachof these fuels, your location and
the duration of possible utility interruptions are important
considerations in the following fuel guidelines:
°Use clean, dry fuel, free of moisture or any
particulate material. Using fuels outside the
following recommendedvalues may cause
performance problems.
, in engines set up to run on propane (LPL commercial
grade HD5propane with a minimum fuel energy of
2500 BTUsift3 with maximum propylenecontent of
5% and butane and heaviergas content of 2.5% and
minimum propanecontent of 90%.
Natural gas rating will depend on specific fuel but typical
@rates are between10 to 20% off the LP gas rating.
Natural gas or LP enginesare certified to operate on natural
or liquid propane gas.The emissions control system for this
engine is EM (Engine Modifications).
Power Decreasea_Nigh Altitude or Nigh Temperature
Air density is less at high altitudes, resulting in less available
engine power_Specifically,engine power will decrease3.5%
for each1,000 feet (300 meters) abovesealeveland 1% for
each10° F(5.6°C) above77°F (25°C). Makesureyou and
your installer consider these factors when determining total
generator load.

Generator Location
Theactual physical location of your generator hasa direct
affect on:
1. Theamount of plumbing requiredto fuel
your generator.
2. Theamount of wiring required to control and connect
your generator.
Specific location guidelinesare discussed in the installation
manual. Acquaint yourself with that information and confer
with your installer. Besureto ask how your site might
affect installation costs and compliancewith local codes
and standards.
, Install generatoroutdoors in an areathat will not
accumulate deadlyexhaustgas.
, DONOTinstall generatorwhere exhaustgas could
accumulate and enter inside or be drawn into a
potentially occupied building or structure.
, Bylaw it is required in many statesto havea Carbon
Monoxide (CO)detector in operatingcondition in
your home. Carbonmonoxide detector(s) (A) MUST
be installed and maintained indoors according to the
manufacturer's instructions/recommendations. A CO
monitor is an electronic devicethat detects hazardous
levels of CO.Whenthere is a buildup of CO,the
monitor will alertthe occupants byflashing visual
indicator light and alarm. Smoke alarms cannot detect
COgas.
WAF_N_NG
Runningengine gives off carbon monoxide,
an odorless, colorless, poison gas.
Breathingcarbon monoxide could result in death,
serious injury, headache,fatigue, dizziness,
vomiting, confusion, seizures, nauseaor fainting.
Operatethis product ONLYoutdoors in an areathat will
not accumulatedeadlyexhaustgas.
Keepexhaustgasawayfrom anywindows, doors,
ventilation intakes,soffit vents, crawl spaces,open garage
doors or other openingsthat canallow exhaustgas
to enter insideor be drawn into a potentiallyoccupied
building or structure.
Carbonmonoxide detector(s) MUST be installed and
maintainedindoors accordingto the manufacturer's
instructions/recommendations. Smoke alarms cannot
detectcarbon monoxide gas.
,A WARNING Exhaustheat/gasescould ignite
combustibles or structures resulting in death,
serious injury and/or property damage.
°Exhaustoutlet sideof weatherproofenclosure must
haveat bast 5 ft. (1.5 m) minimum clearancefrom any
structure, shrubs,trees, or any kind of vegetation.
° Standbygeneratorweatherproof enclosuremust be at
bast 5 ft. (1.5 m) from windows, doors, any wall opening,
shrubs or vegetationover 12 in. (30.5 cm) in height.
° Standbygeneratorweatherproof enclosuremust havea
minimum of 5 ft. (1.5 m) overheadclearancefrom any
structure, overhangor trees.
, DONOTpbce weatherproofenclosure under a deck or
othertype of structure that may confine airflow.
o USEONLYflexible fuel line provided. Connectprovided
fuel line to generator, DONOTusewith or substitute any
otherflexible fuel line.
, Smokedetector(s) MUSTbe installed and maintained
indoors according to the manufacturer's instructions/
recommendations.Carbonmonoxide alarms cannot
detectsmoke.
, DONOTplaceweatherproofenclosure in mannerother
than shown in illustrations.
°Ensureexhaustgas is kept awayfrom anywindows,
doors, ventilation intakes,soffit vents, crawl spaces,
open garage doors or other openingsthat can
allow exhaust gasto enter insideor be drawn into
a potentially occupied building or structure. Your
neighbor's home may be exposedto the engine exhaust
from your standby generator and must be considered
when installing your standby generator.
, Wind and air currents should be taken into
consideration when positioning generator.
Seethe installation manualfor full details on safe generator
location.

Detivery Mnspection
Carefullyinspect the generator for anydamagethat may have
occurred during shipment.
If loss or damageis noted attime of defivery, havethe
person(s) making defiverynote aft damageon the freight bifl
and affix his signature underthe consignor's memo of loss
or damage. If loss or damageis noted after defivery, separate
the damagedmaterials and contact the carrier andyour
instafler for claim procedures.Missing or damagedparts are
not warranted.
The heinegenerater system is supplied with:
* Oil (5W30 Synthetic)
° Flexiblesteel fuel fine
, Installation and start-up manual
, Operator's manual
, Spare accessroof keys
°Spare 15 Amp ATO-typefuse
Not included:
, Carbon monoxide detector(s)
, Smoke detector(s)
,Starting battery
,Connectingwire and conduit
,Fuelsupply valves/plumbing
,Crane, rifting straps, chains or cables
,Two 60" lengths of 3/4" nominal minimum scheduled
40 steel pipe (NOTconduit)
,Torque screwdriver. 5 to 50 inch-pound range
-Voltage/frequency meter
10

Controts
15kW, 16kW and 20kW Generator (Front View)
Readthis Operator's Manual and importantSafety instructions before eperatino yourgenerater.
Comparethe illustrations with your generatorto familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
\\\
Generatoris shown with roof and accesscovers removed
for clarity.
AoLiftingHoles Providedat eachcorner for lifting
generator.
BoAlternator An electricalmachinethat generatesan
alternating current
CoMuffler High-performance muffler lowers engine noise
to comply with most residentialcodes.
I} oCircuit Breaker-- Protectsthe system from shorts and
other over-current conditions.
EoControl Board Usedfor generator operationcontrol,
menustart-up, and informational display functions.
Foair Cleaner Usesa dry type filter elementto protect
enging byfiltering dust and debrisout of intake air.
G=EngineLabel identifies engine model andtype
H =SparkPlug A devicein the cylinder head ofthe engine
that ignites the fuel mixture by meansof an electricspark.
3o0il Filter -- Filtersengine oil to prolong generatorlife.
KoBattery (installer supplied} -- 12 Volt DC,leadacid,
automotive style battery provides power to startthe
engine.
LoOil Heater Port/Oil Drain Hose Port Providedto allow
an optional heatingelementto be installed. Providedto
facilitate oil changing.
MoGeneratorData Label identifies generatormodel
number and serial number. Locatedinside battery access
compartment.
11

15kW, 16kW and 20kW Generater (Back View)
Readthis Operator'sManual and importantSMetv instructions beforeoperating yourgenerator.
Comparethe illustrations with your generatorto familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
o
@
o
7....
!
!
Generatoris shown with roof and accesscovers removed
for clarity,
AoLifting Holes -- Providedat eachcorner for rifting
generator.
2oFuelSolenoid -- Automatically opensand closesto
supply fuel to unit when needed.
CoFuel Regulntnr -- Controls fuel flow to engine for proper
opertion,
I} oFuelSelectnr Valve-- Usedto selectproper fuel type
(LP or NG),
EoSpark Plug -- A devicein the cylinder headof the engine
that ignites the fuel mixture by meansof an electric spark.
F oOil Fiii Cap-- Location for adding oil to engine,
E;oElectricalField Wiring Inie_-- Wires to and from
generator arecentered in this location,
HoAir Cleaner-- Usesa dry type filter elementto protect
engine by filtering dust and debris out of intakeair,
3 oEngine Oil Dipstick- Allows userto checkengine oil
leveleasily,
K oOil Nearer Pnrt-- Providedto allow an optional heating
elementto be installedto warm engine oil to promote
easystarting in cold climates.
12

Access Panels
Thegenerator is equipped with an enclosurethat hasseveral
access panels,as shown.
Theaccess panels and the components located behind them
are listed below:
A - Roof (Control Panel,air filter, oil dipstick, and circuit
breaker)
B - FrontAccess Panel(oil drain and oil filter)
C° Battery,Panel (battery,and generatordata label)
D - RearAccess Panel(fuel regulator, fuel selector, and
engine starter)
E - Control PanelCover (field wiring and control wires)
Eachgeneratoris shippedwith a set of identical keys.These
keysfit in the lock on the front removablepanel,The roof
must be unlocked in order for it to open.
®
®
©
13

Te epen roof:
1. insert key into lock (A) of front panel.Gently push
down on roof abovethe lock to aid in turning the key.
Turn key one quarterturn clockwise.
2, Lift roof to the open position.
Te remeve front panel:
1, Removethetwo bolts(B)that securethe panelto theunit.
2. Lift panelto remove from unit.
To remeve rear panel
1, Ensurethe roof is in the open position.
2. Removethetwo bolts (C)that securethe panelto the
unit.
Tesecure frent panel:
1, Placepanel in unit.
2, Securethe panel with two bouts.
3. Lift panelto remove from unit.
To secure rear panel:
1, Slide panel into placeon unit.
2. Securethe panelwith two bolts.
To remeve battery panel:
1. Ensurethe roof is in the open position.
2. Removethetwo bolts (B) that securethe panelto the
unit.
3. Lift up on paneland remove.
To secure battery panel:
1, Placepanel in unit.
2. Securethe panel with two bolts.
14

System Control Panet
Comparethis control panel illustration with your generatorto familiarize yourself with the location of these important controls:
®
®
J
A o Menu/Programming Navigation Buttons _ SeeMenu
section for details
B - Mini USBPortt Authorized DealerService Use Only
CoGeneratorOperationControlButtens
,"AUTO" Normal operating position. Press and how
button to put unit into Automatic mode. if an utility
power outage is sensed,the systemwill start the
generator.When utility power is restored,auto lets the
engine stabilizeinternal temperatures, shuts off the
generator, and waits for the next utility outage.
,"OFF" Turns off running generator, prevents unit from
starting, and resetsany detectedservicecodes.
OFFmust be pressedand held for more than 5
seconds in order to reset servicecodes.
,"MANUAL" Usedto manually start the generator.
"AUTO" LED_ LEDwill light when unit is placedinto
Auto mode. LEDwill blink if exercisecycle is not set
or set to OFF.
B - 15 Amp Fuse-- Protects the homegenerator DCcontrol
circuits, if the fuse has 'blown' (melted open) or was
removed,the engine cannot crank or start. Replacethe
fuse using only an identical ATO15A fuse. One spare
fuse is supplied with the unit.
E - Cover_ This protective cover must be openedto access
the fuse and the USB port.
F - Bigitai Bispiav -- Displays generator mode, menu
options, service codes, and service engine indicators
15

The following chart shows the icons for the buttons that control the system control panel.
X
>
f--------,
1
k_0
MENU
ESCAPE(EXIT)
RIGHTARROW
LEFTARROW
MANUALMODE
OFF
AUTOMATICMODE
ENTERTHEMENU(VIEWSETTINGS)
PRESSTO CONFIRMSELECTIONWHENPROGRAMMING.
RETURNTOLASTMENUiTEM
TOGGLETHROUGHMENUOPTIONS
SETTINGSYSTEMPARAMETERS
TOGGLETHROUGHMENUOPTIONS
SETTINGSYSTEMPARAMETERS
USEDTO MANUALLYSTARTTHEGENERATOR.PRESSAND HOLDBUTTON
TOSTARTTHEGENERATOR.
TURNSOFFRUNNINGGENERATOR,PREVENTSUNiT FROMSTARTING,AND
RESETSANY DETECTEDService codeS.
NORMALOPERATINGPOSiTiON.PRESSAND HOLDBUTTONTO PUTUNiT
iNTOAUTOMATICMODE.iFA UTiLiTY POWEROUTAGEiS SENSED,THE
SYSTEMWiLL STARTTHEGENERATOR.WHENUTiLiTY POWERiS
RESTORED,AUTOLETSTHEENGINESTABiLiZEiNTERNALTEMPERATURES,
SHUTSOFFTHEGENERATOR,ANDWAITS FORTHENEXTUTiLiTY POWER
OUTAGE.
Thefollowing chart describes keysequencesfor accessing different programming modes;
<>
<3x}
X
GENERAL
SET-UP
ADVANCED
SETTINGS
PRESSAND HOLD[ARROWLEFTANDARROWRIGHT]FORTHREE
SECONDSTO ENTERTHE PROGRAMMODE.
PRESSAND HOLD[ARROWLEFT,ARROWRIGHTAND ESC]FOR
THREESECONDSTO ENTERTHEADVANCEDSETTINGSMODE.
PRESSAND HOLD[MENU AND ESC]FORTHREESECONDSTO
ENTERTHEWIRELESSLiNKiNG MODE.
16

General Set Up Screen
Forgeneralset up, press and holdthe left arrow and right arrow_-] [_ for 3 seconds.Followthe prompts
asoutlined below, L_ L_
NOTE: Date and Time were set at the factory and stored in the control pane[ memory, The Exercise Cycle was
also set at the factory, The default exercise cycle occurs on Tuesdays, at 2:00 RM, Central Standard Time,
To updated or change these settings, follow the steps be]ow,
@
Display will scroll last service code event, date, time, and
temperature of when the event occured.
IF DURING PROGRAMMING NO BUTTONS ARE PRESSEDFOR30 SECONDS,
THE CONTROL PANELWILL AUTOMATICALLY EXITTHE PROGRAM MODE.
17

Control Panel Prompts
AutomaticMode
in Automatic Mode,the display screen will display via
scrolling text:
°GENERATORREADY- if the unit is in standby and
utility power is present.
°GENERATORON- if the unit is running and utility
power is not present.
°SERVICECODE- if a system service codehas been
detected.
General System Parameters
Toview general system parameters, pressthe MENUbutton.
Thefollowing will scroll across the digital display andthen
move to the next item:
°Runtime
°Date
°Time
°ExerciseCycle date and start time
The usercan press the LEFTARROWor RIGHTARROWat
anytime to move to the next item.
The usercan press ESCAPEto go backto GENERATOR
READY.
if no user inputs are madefor 10 seconds after all the items
havebeen displayed,the control board will resetto
GENERATORREADY.
AUTOMATJCMODE_ -1
[
GENERATORREADYorSERVICECODEDESCRIPTIONt
iwho,G neratOr.oTR.,,,i,ga,teMOde)
l
ENE I_T R °
GRA_ 0 ON 1
(WhenGeneratorRunning_AutoMode)I
E,,ATE
TIME
J
18

MrnportantOwner's Considerations
Engine Oil
NOTICE Any attempt to crank or start the engine before it
has been properly servicedwith the recommendedoil will
result in equipment failure.
,DONOTattempt to crank or startthe engine before it has
beenproperly servicedwith the recommendedoil. This
may result in an enginefailure.
, Damageto equipment resultingfrom failureto follow this
instruction will void generatorwarranty'.
Theengine is shipped from the factory'pro-run and filled
with synthetic oil (API SJiCF5W-30). This allows for system
operation in a wide rangeof temperature and climate
conditions. Beforestarting the engine, checkoil leveland
ensurethat engine is serviced as described in Maintenance.
Battery
The instalbr must supply a rechargeable12 volt DCstarting
battery. See Batter};in Final Installation Considerationsin the
installation manual.
WARNING Battery posts, terminals and related
accessoriescontain lead and lead compounds, chemicals
known to the State of California to causecancer and
reproductive harm. Wash handsafter handling
With the battery installed, all wiring to transfer switch and
generator completed, utility power supplied to the automatic
transfer switch, and the unit in AUTOmode the battery
receivesa trickle chargewhile the engine is not running. The
trickle chargecannot be usedto rechargea battery that is
completely discharged.
15 Amp Fuse
Thegenerator's 15 Amp fuse is critical to correct system
operation. The 15 Amp fuse was removedat the factory to
prevent the unit from starting during shipping. Your installer
will ensurethe fuse is properly installed upon completion of
the installation.
Automatic Operation Sequence
Thegenerator's control board constantly monitors utility
voltage.Should utility voltage drop below a preset level, the
control board will signal the engineto crank and start.
,A CAUTION With the system switch set to AUTO,the
engine could crank and start at anytime without
warning, resulting in minor or moderate injury,.
° To preventpossible injury that may be causedby such
suddenstarts, alwaysset the system switch to OFFif
performing maintenanceon the system.
° Removethe 15 Amp fuse beforeworking on or around
the generatoror transfer switch.
When utility voltage is restored abovea preset voltage level,
the engine is signaledto shut down.
Theactual system operation is not adjustable and is
sequencedby sensors and timers on the control board,
asfollows:
Utility VoltageI}repeut Sensor
*This sensor monitors utility source voltage.
° if utility source voltage drops below about 70 percent
of the nominal supply voltage,the sensor energizes
a 3 second timer. The timer is usedto 'sense'
brown-outs.
° Oncethe timer has expired,the enginewill crank
and start.
Utility VoltagePickup Sensor
This sensor monitors utility powervoltage. When utility
voltage is restored above80 percent of the nominal source
voltage,a time delaystarts timing andthe enginewill go to
engine cool-down.
Engine Cool-down Timer
When utility power is sensedand the load transfers to the
utility source, the engine will go into a cool down period as
described below:
,if the generator has run for MOREthan 5 minutes, once
the utility transfer occurs, the enginewill continue to
run for about 1 minute beforeshutting down.
, if the generator has run for LESSthan 5 minutes, once
the utility transfer occurs, the enginewill continue to
run until 5 minutes has elapsedbeforeshutting down.
19

Setting ExerciseTimer
Thegenerator is equipped with an exercisetimer. Duringthe
exerciseperiod, the unit runs for approximately 20 minutes
and then shuts down. Electricalload transfer DOESNOT
occur during the exercisecycle (unless an utility power
outage occurs).
Thegeneratorwill only enterthe exercisecycle if the unit is
in the AUTOmodeand this exactprocedure is followed.
Toset the exercise timer:
HOTICE Thegenerator is set with a deservicecode exercise
cycle setting of Tuesdayat 2:00 P.M, CentralTime.To
changethe cycle setting, proceedto the following steps:
1. Choosethe day and time you want your generatorto
exercise.
2. Pressand hold the left arrow and right arrow
simultaneously for 3 secondsto enterthe GeneralSet-
Upprogram mode. SeeGeneralSet-Up flow chart in
Menu Section.
3. Verify and/or set the time and date on the unit.
4. Goto the SETEXERCISEprompt and hit the "OK"
button.
HOTICE items will flash until they are selected.
SELECTDAY: Usethe left or right arrow to toggle
through the days of the week, Oncethe day is selected,
hit the "OK" button.
SELECTHOUR:Usethe left or right arrow to toggle
through between 1 and 12. Choosethe hour of day you
want the generatorto exercisethen hit the "OK" button.
SELECTMINUTE:Usethe left of right arrow to toggle
between :00 and :59. Choosethe minute of the day you
want the generatorto exercisethen hit the "OK" button.
SELECTAMiPM: Usethe left of right arrow to toggle
betweenAM and PM. Oncechosen, hit the "OK" button.
HOTICE During the weekly exercisecycle,the generatorwill
run for 20 minutes, but it will not supply powerto the home.
During the exercisecycle, the in-home monitor will continue
blinking the GENERATORREADYgreen LED.
if you want to changethe dayand time the unit exercises,
simply perform the procedure again.
Toturn off the generatorexercisecycle, go to the OFF
selectionwithin the day of the week menu and press OK.The
display will then scroll: EXERCISECYCLEOFF.
Servicing the System
Beforeperforming any generatormaintenance,always
perform the following steps:
1. Set generator's circuit breakerto its OFFposition.
2. Press and hold the control board OFFbutton.
3. Remove15 Amp fuse from control board.
4, U_iii_ vei_ageis presen_a_genera_ercentrei beard.
Disconnect power before servicing control board by
removing the fusesfrom the transfer switch.
5. After all servicing hasbeen completed, replacefuses in
transfer switch, replace15 Amp fuse in control board,
set circuit breakerON and press and hold control board
AUTObutton.
Service Cede Detectien System
Thegenerator may haveto run for long periods of time
with no operator present.Forthat reason,the system is
equipped with sensors that automatically shut down the
generator in the event of potentially damaging conditions,
such aslow oil pressure, high temperature, over speed,and
other conditions.
Thegenerator's control board shows servicecode
descriptions scrolling acrossthe digital display. Theservice
code descriptions are listed below:
o Low BatteryVoltage
°Low Oil Pressure
* UnderVoltage
*OverVoltage
o Engine DoesNot Start
o Low Frequency
o Engine Overspeed
o High Oil Temperature
o Transfer Switch Servicecode
o Battery,ChargeCircuit
28
