Brinkmann CHARCOAL SMOKER CHARCOAL GRILL User manual

TRIPLE FUNCTION
CHARCOAL SMOKER • CHARCOAL GRILL • GAS GRILL
FUMADOR DE CARBÓN DE LEÑA • PARRILLA DE
CARBON DE LEÑA • PARRILLA DE GAS
WARNING/ADVERTENCIA
HAZARDOUS EXPLOSION MAY RESULT IF THESE WARNINGS AND INSTRUCTIONS ARE IGNORED. READ AND
FOLLOW ALL WARNINGS AND INSTRUCTIONS IN THIS MANUAL TO AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
SE PUEDE PRODUCIR UNA EXPLOSIÓN PELIGROSA SI SE HACE CASO OMISO A ESTAS ADVERTENCIAS E
INSTRUCCIONES. LEAY SIGA TODAS LAS ADVERTENCIAS E INSTRUCCIONES EN ESTE MANUAL PARA
EVITAR LESIONES PERSONALES, INCLUSO LA MUERTE, O LOS DAÑOS MATERIALES.
ASSEMBLY AND OPERATING INSTRUCTIONS
INSTRUCCIONES DE ARMADO Y OPERACIÓN
SAVE THIS MANUAL FOR FUTURE REFERENCE
GUARDE ESTE MANUAL PARA REFERENCIA FUTURA
OWNER’S MANUAL / MANUAL DEL PROPIETARIO
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE
GRILL OWNER FOR FUTURE REFERENCE.
AVISO PARA EL
INSTALADOR:
ENTREGUE ESTAS INSTRUCCIONES AL
PROPIETARIO DE LA PARRILLA PARA
REFERENCIA FUTURA.

WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR
ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.
WHEN YOU SEE THE SAFETY ALERT SYMBOL
PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
DANGER
IMPORTANT SAFETY
WARNINGS
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your
fire department.
1. DO NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
• DO NOT store a spare LP gas cylinder under or near this appliance.
• Never fill the cylinder beyond 80% full.
• A fire causing death or serious injury may occur if the above is not followed exactly.
WARNING
DANGER
1

2
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation and LP Cylinder Specifications and Safe Use . . . . . . . . . . . 4-6
Connecting LP Cylinder and Hose / Regulator to Grill . . . . . . . . . . . . . . 6-7
Leak Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Pre-start Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Grill and Helpful Hints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
General Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-17
After-Use Safety / Transporting & Storage . . . . . . . . . . . . . . . . . . . . . . . . 17
Proper Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Frequently Asked Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Parts list and Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-35
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Be alert to the possibility of serious bodily injury if the instructions are not followed. Be sure to read and
carefully follow all of the messages.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
FOR COVERS, ACCESSORIES AND OTHER PRODUCTS, PLEASE VISIT US ONLINE AT:
www.brinkmann.net
FOR GRILL WARRANTY REPLACEMENT PARTS, PLEASE VISIT US AT:
www.grillpartsonline.com
GAS GRILL SECTION
CHARCOAL SECTION

3
WARNING
• Never use natural gas in a unit designed for liquid propane gas.
• Never use charcoal or wood briquets in the gas section of this grill. Flavoring chips must be
contained in a metal smoking box to contain ash and prevent fires.
• Read and follow all warnings in the Charcoal Grill General Warning section on page 13 of this
manual.
• Leak test all connections before first use, even if grill was purchased fully assembled and after
each tank refill.
• Never check for leaks using a match or open flame.
CAUTION! Strong odors, colds, sinus congestion, etc. may prevent the detection of
propane. Use caution and common sense when testing for leaks.
• Always keep your gas grill free and clear of gasoline, lighter fluid, paint thinner, or other
flammable vapors and liquids or combustible materials.
• Always check the grill prior to each use as indicated in the "Pre-Start Check List" section of this
manual.
• DO NOT obstruct the flow of combustion or ventilation air.
• Never place more than 15 pounds on the side table. DO NOT lean on the side table.
• Keep children and pets away from hot grill. DO NOT allow children to use or play near this grill.
• DO NOT leave the grill unattended while in use.
• DO NOT allow the gas hose to come in contact with hot surfaces.
• DO NOT allow grease from drain hole to fall on hose or valve regulator assembly.
• Keep any electrical supply cords away from water or heated surfaces.
• Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
• For household use only. DO NOT use this grill for anything other than its intended purpose.
• DO NOT use while under the influence of drugs or alcohol.
• Grill is hot when in use. To avoid burns:
• DO NOT attempt to move the grill.
• Lock the wheels so the unit does not accidentally move.
• Wear protective gloves or oven mitts.
• DO NOT touch any hot grill surfaces.
• DO NOT wear loose clothing or allow hair to come in contact with grill.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS GRILL.
FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL
COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
GAS GRILL GENERAL WARNINGS

4
WARNING
WARNING
LP GAS CYLINDER (NOT SUPPLIED WITH THIS GRILL)
The LP cylinder is available for purchase at the same location the grill was purchased.
The LP (Liquid Propane) gas cylinder specifically designed to be used with this grill must have
a 20 lb. (9.1 kg) capacity incorporating a Type 1 cylinder valve and an over-filling protection
device (OPD).
• This grill is designed to fit Worthington, Manchester or SMPC brand 20 lb. (9.1 kg) cylinders.
Other brand DOT cylinders may fit this grill if the cylinder has similar dimensions of the top and
bottom rings.
• DO NOT connect this grill to an existing #510 POL cylinder valve with Left Hand threads. The
Type 1 valve can be identified with the large external threads on the valve outlet.
• DO NOT connect to a propane cylinder exceeding this capacity.
• DO NOT connect to a cylinder that uses any other type of valve connection device.
INSTALLATION INFORMATION:
The installation of this appliance must be in accordance with:
All applicable local codes, or in the absence of local codes, either:
• National Fuel Gas Code ANSI Z223.1 NFPA 54
• Natural Gas and Propane Installation Code: CAN/CGA B149.1
• Natural Gas Installation Code: CAN/CGA B149.1 (Canada)
• Propane Installation Code: CAN/CGA B149.2 (Canada)
To check your local codes, see your local LP gas dealer or natural gas company. This grill was not
intended to be connected to a natural gas supply line. If an external electrical source is utilized, it
must be electrically grounded in accordance with local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA 22.1.
• FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as a garage,
shed or breezeway.
• Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to
prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill
be situated at least 10 feet (3.1 m) from buildings. Not adhering to these clearances will prevent
proper ventilation and may increase the risk of a fire and/or property damage, which could also
result in personal injury.
• Maintain a minimum clearance of 72 inches (183 cm) between all sides of grill, deck railings,
walls or other combustible material. DO NOT use grill under overhead unprotected combustible
construction.
• DO NOT use or install this grill in or on a recreational vehicle and/or boat.

5
The cylinder must also be equipped with:
• A shut-off valve terminating in a Type 1 gas cylinder valve outlet.
• The nominal cylinder Height = 18 inches (45.7 cm), Diameter = 12 inches (30.5 cm) and bottom
ring diameter = 8 inches (20.3 cm).
• A Type 1 valve that prevents gas flow until a positive seal is obtained.
• An arrangement for vapor withdrawal.
• A collar to protect the cylinder shut-off valve.
• A safety relief device having direct communication with the vapor space of the cylinder.
• A listed over-filling prevention device (OPD).
• Turn off the cylinder valve when your grill is not in use.
• Handle the tank with care.
• Always secure the cylinder in an upright position.
• Never connect an unregulated LP gas cylinder to your grill.
• DO NOT expose LP gas cylinders to excessive heat or ignition sources.
• DO NOT store a spare LP gas cylinder under or near your grill.
• Allow only qualified LP gas dealers to fill or repair your LP gas cylinder.
• DO NOT allow the cylinder to be filled beyond 80% capacity.
• Read and follow all warnings and instructions that are on the cylinder and that accompany this
product.
• Never store a spare LP gas cylinder under or near your grill. This could cause excess pressure
to be expelled through the vapor relief valve resulting in fire, explosion, or severe personal
injury including death.
Note: PROPANE GAS IS HEAVIER THAN AIR AND WILL COLLECT IN LOW AREAS.
PROPER VENTILATION IS EXTREMELY IMPORTANT.
• Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clear from
obstructions and debris.
• DO NOT insert any foreign objects into the valve outlet. Damage to the back-check could
result. A damaged back-check can cause a leak, possibly resulting in explosion, fire, severe
bodily harm, or death.
WARNING
DANGER
CYLINDER SPECIFICATIONS:
When purchasing or exchanging a cylinder for your gas grill, it must be constructed and marked in
accordance with the specifications for LP gas cylinders of the U.S. Department of Transportation
(DOT) or the National Standard of Canada, CAN/CSA-B339 Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and Commission, as applicable; and provided with a listed
over-filling prevention device (OPD), and provided with a cylinder connection device compatible with
the connection for outdoor cooking appliances.

FILLING THE LP GAS CYLINDER:
• Allow only qualified LP gas dealers to properly fill or repair your LP gas cylinder.
• New tanks should be purged prior to filling; inform LP gas dealer if you are using a new tank.
• DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a
dangerous condition. Over-filled tanks can build-up pressure and cause the relief valve to expel
propane gas vapors. The vapor is combustible and if it comes in contact with a spark source or
flame an explosion causing severe burns, bodily harm, or death could occur.
• Always use a protective cylinder cap when grill is not connected to cylinder.
• If you exchange a cylinder with a qualified exchange program, be sure the cylinder has
a Type 1 valve and an over-filling prevention device (OPD).
INSTALLING THE LP GAS CYLINDER ONTO THE GRILL:
1. Check that the cylinder valve is closed by turning the knob
clockwise.
2. Place the cylinder into the tank holder in the bottom
of cabinet.
3. Orient the cylinder such that the valve opening faces the
right side table and so that the hose is not kinked or
damaged.
4. Make sure tank sits securely in tank holder.
5. Attach or detach regulator to the LP gas cylinder only
when cylinder is at rest in tank holder.
HOSE AND REGULATOR:
Your grill is equipped with a Type 1 connection device with
the following features:
1. The system will not allow gas flow from the cylinder until
a positive connection to the valve has been made.
Note: The cylinder valve must be turned off before any
connection is made or removed.
2. A thermal device that will shut off the gas flow if the device is
subject to temperatures above 240°F to 300°F (115°C to
150°C). If this should happen, remove the entire regulator
assembly and dispose of properly. A replacement regulator
assembly can be purchased by contacting customer service
at 800-527-0717. The cause of the excessive heat should be
determined and corrected before using your grill again.
3. A regulator flow limiting device, when activated, restricts the
flow of gas to 10 cubic feet per hour. If the flow limiting device
is activated, perform Regulator Resetting Procedure.
WARNING
6
REGULATOR RESETTING PROCEDURE
1. Turn burner control knobs to "OFF”, turn off the cylinder valve and disconnect regulator from LP gas
tank. Wait approximately two minutes.
2. Reattach regulator and slowly turn cylinder valve back on. The flow limiting device will now be reset.
Tank Holder
Tank Holder

7
WARNING
• Never use your grill without leak testing all gas connections and hoses. See the section on
"Leak Testing" in this manual for proper procedures.
The pressure regulator and hose assembly supplied with your gas grill must be used.
• DO NOT attempt to connect it to any other fuel supply source such as a natural gas line.
• DO NOT use any other pressure regulator/hose assembly other than the one supplied with your grill.
Replacement pressure regulator/hose assembly must be part No 155-3830-0, which can be obtained
by contacting customer service at 800-527-0717.
• DO NOT attempt to adjust or repair the regulator. The regulator is designed to operate at a
maximum output pressure of 11 inches of water column (2.74 kPa).
During assembly and/or replacement of the gas cylinder, keep the gas supply hose free of kinks and/or
damage.
Visually inspect the hose assembly prior to each use for evidence of damage, excess wear, or
deterioration. If found, replace the assembly before using your grill. Only the manufacturer's supplied
replacement should be used.
CONNECTING HOSE AND REGULATOR TO AN LP GAS CYLINDER
• Ensure the tank valve is CLOSED prior to connecting the LP gas cylinder to your grill. Turn the
valve knob clockwise to properly close the valve. Read and follow all instructions and warnings
on the supply hose safety tags. Read and follow all warnings in this manual concerning the safe
use of LP gas cylinders and the hose and regulator before connecting cylinder to grill. Read and
follow all warnings on the LP cylinder.
CONNECTING HOSE AND REGULATOR
1. Check that the cylinder valve is closed by turning the knob clockwise.
2. Check that the grill’s burner control knobs are in the "OFF" positions.
3. Remove the protective plastic cap from the cylinder valve.
4. Hold regulator and insert the nipple of connection device into the LP cylinder valve outlet. Ensure that
the device is centered properly.
5. Turn the large coupling nut clockwise by hand and tighten to a full stop. Take care not to cross thread
the coupling nut onto the cylinder valve. Do not over-tighten the knob onto the valve. Do not use tools
to tighten connection.
Note: If you are unable to make the connection, repeat Steps 4 and 5.
6. Check that the hose does not contain kinks, does not contact sharp edges, and does not contact
surfaces that may become hot during use.
7. Leak check all fittings before lighting your grill. See section on "Leak Testing" in this manual.
WARNING
WARNING

LEAK TESTING:
To prevent fire or explosion hazard:
• DO NOT smoke or permit ignition sources in the area while conducting a leak test.
• Perform test OUTDOORS only in a well ventilated area.
• Never perform a leak test with a match or open flame.
• Never perform a leak test while the grill is in use or while grill is still hot.
WHEN TO PERFORM A LEAK TEST:
• After assembling your grill and before lighting for the first time, even if purchased fully assembled.
• Every time the LP gas cylinder is refilled or if any of the gas components are replaced.
• Any time your grill has been moved.
• At least once per year or if your grill has not been used for more than 60 days.
CHECKING FOR LEAKS:
1. Create a mixture of 50% water and 50% liquid dishwashing soap.
2. Open the lid.
3. Ensure all control knobs are set to the "OFF" position.
4. Turn on the fuel supply at the cylinder valve. Turn the
cylinder valve knob one turn counter-clockwise.
5. Apply the soap water mixture to the following:
Supply tank (cylinder) weld.
Connection nut to tank valve.
Back side of connection nut to brass
nipple.
Brass nipple connection into regulator.
Front, back and sides of regulator and
connections to gas supply hoses.
Hose connection to gas manifold.
The full length of gas supply hose.
Tank valve to cylinder.
8
WARNING
A
B
C
D
E
F
G
H
Watch For Bubbles
DANGER
A
B
C
D
E
G
F
H

WARNING
9
6. Check each place listed (A–H) for growing bubbles which indicates a leak.
7. Turn off gas supply at cylinder valve.
8. Turn on control knobs to release gas pressure in hose.
9. Turn control knobs to "OFF" position.
10. Tighten any leaking connections.
11. Repeat soapy water test until no leaks are detected.
12. Turn off gas supply at cylinder valve until you are ready to use your grill.
13. Wash off soapy residue with cold water and towel dry.
14. Wait 5 minutes to allow all gas to evacuate the area before lighting grill.
WARNING!DO NOT use the grill if leaks cannot be stopped. Contact a qualified gas appliance
repair service.
Note: The leak test must be performed in an area that has adequate lighting in order to see if
bubbles are developing.
Property damage, bodily harm, severe burns, and death could result from failure to follow these
safety steps. These steps should be performed after the grill has been assembled and prior to each
use. DO NOT operate this grill until you have read and understand ALL of the warnings and
instructions in this manual.
PRE-START CHECK LIST:
•Ensure that the grill is properly assembled.
•Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. If it is
evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior the grill being
used. Replace with hose and regulator, Model No. 155-3830-0, which can be obtained by contacting
customer service at 800-527-0717.
•Leak check all gas connections and hose. See section on "Leak Testing".
•Ensure that all electrical supply cords are properly grounded. Keep any electrical supply cord and the
fuel supply hose away from any heated surfaces. Hose should be at least 3 inches from hot surfaces.
•Position your grill on level ground in a well ventilated location, a safe distance from combustible
materials, buildings and overhangs.
•Properly place the empty grease tray under the grease drain hole in the bottom of the
grill to catch grease during use.
• DO NOT obstruct the flow of combustion and ventilation air.

LIGHTING INSTRUCTIONS:
Follow the instructions exactly.
1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside
the grill. An explosion could occur if grill lid is down.
2. Check that all burner control knobs and the cylinder valve are turned to the "OFF" position.
3. Turn on the fuel supply by rotating the cylinder valve knob counter-clockwise to full open.
4. DO NOT stand with head, body, or arms over the grill when lighting.

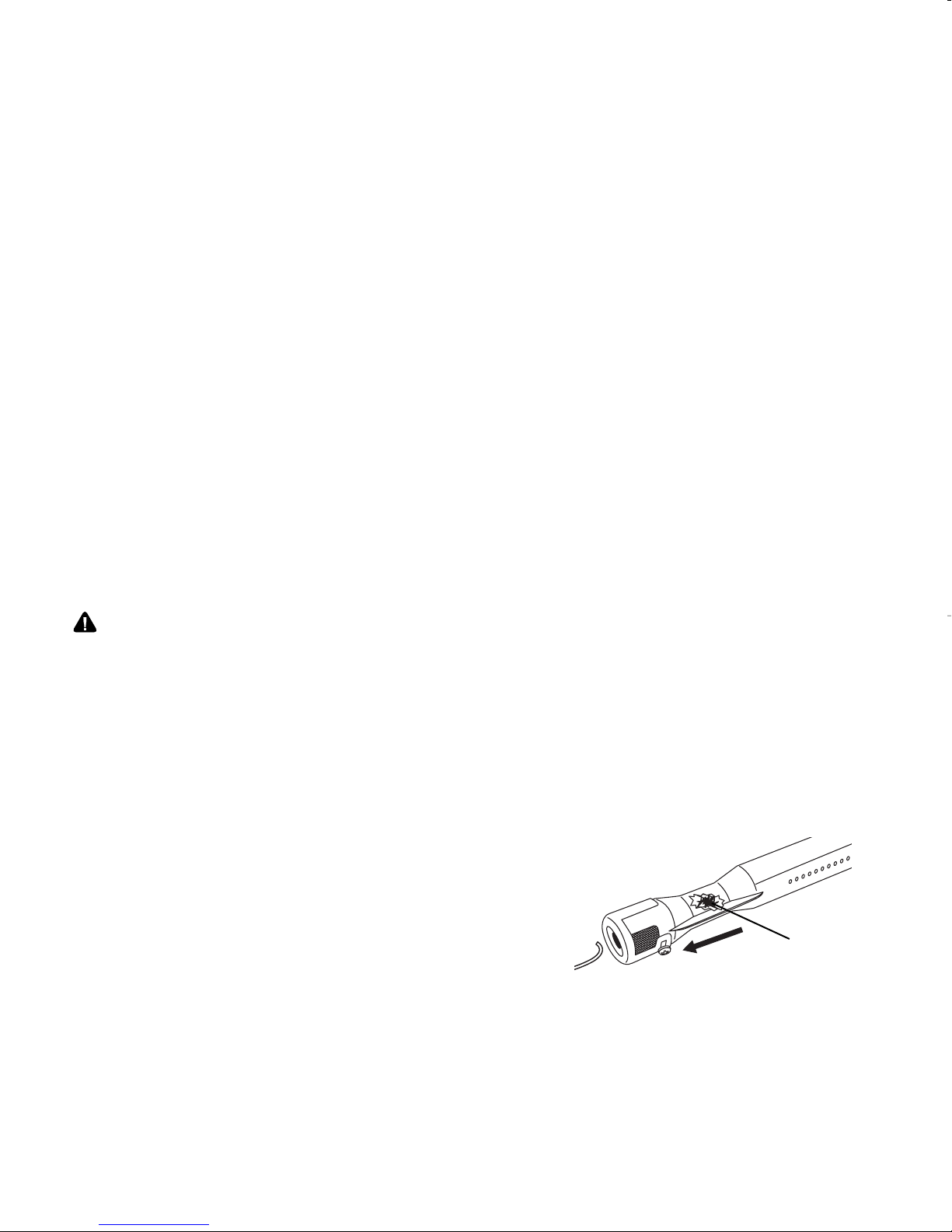

Note: If burner does not light or flame is too low, you may have spider or other insect blockage in burner,
or the flow limiting device has been activated. See "Burner Assembly/Maintenance" under Proper
Care and Maintenance, or "Regulator Resetting Procedure" under Connecting LP Cylinder and
Hose/Regulator to Grill.
LIGHTING THE MAIN BURNERS:
1. Open lid before lighting burner.
2. Make sure all control knobs are in the "OFF" position.
3. Select the burner to be lit. Push and hold down the control knob and turn
SLOWLY (2 to 3 seconds) to “IGNITE”. You should hear the igniter click.
Note: Step 3 may need to be repeated 2-3 times to light grill.
4. If ignition does not occur in 5 seconds, turn control knob to OFF, wait 5
minutes to allow gas to dissipate and repeat lighting procedure.
5. To light the other burner, follow Step 3-4.
6. If the burner does not light within the first few attempts, there is a problem with the gas supply. Turn off
the gas at the burner and cylinder. DO NOT attempt to operate the grill until the problem is found and
corrected. See "Trouble Shooting" section of this manual.
7. To turn off, turn each control knob clockwise until it locks in the "OFF" position. This does not turn off
the gas flow from the cylinder.
MATCH LIGHTING THE MAIN BURNERS:
1. Open lid before lighting.
2. Turn the burner control knobs to "OFF".
3. Place a paper match in the end of the matchlighter. Strike the match and
place through lighting hole in the right hand side of the grill to approximately
1/2" (1 to 2 cm) from the burner.
4. Turn on the FAR RIGHT burner control knob to the "HIGH" position. The
burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to "OFF" and
wait 5 minutes for gas to dissipate and repeat lighting procedure.
6. To light the other burner, push and turn control knob to “HIGH”. Follow Step 5.
7. If the burner does not light within the first few attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and cylinder. DO NOT attempt to operate the grill until the
problem is found and corrected. See "Trouble Shooting" section of this manual.
8. To turn off, turn each control knob clockwise until it locks in the "OFF" position. This does not turn off
the gas flow from the cylinder.
WARNING
10
WARNING
Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip
any of the warnings and instructions contained in the preceding sections of this manual.
Lighting Hole
Matchlighter

TURNING OFF THE GRILL:
1. Turn off the cylinder valve.
2. Turn all burner control knobs to the "OFF" position.
Note: Turn off LP cylinder first to prevent gas from being left in the system under pressure.
CAUTION!
•The cylinder valve should always be in the off,
or closed, position when the grill is not in use.
••
11
To turn off the cylinder valve,
turn knob clockwise until it stops.
OPERATING THE GRILL:
Never use Charcoal or Lighter Fluid inside the Gas section of the grill. Read and follow all
warnings and instructions contained in the preceding sections of this manual.
BREAKING IN YOUR GRILL:
•In manufacturing and preserving the components of your grill, oil residue may be present on the
burner and cooking surfaces of your grill.
•Before cooking on your grill for the first time you should preheat it for 15 minutes on "HIGH" to burn
off these residual oils.
PREHEATING THE GRILL:
•Prior to use, it is recommended that you preheat your grill. This ensures that the grilling surfaces are
at the desired temperatures to sear the food sugars when cooking. After lighting your grill, set the
main burner control knobs to the "HIGH" position for 10 to 15 minutes. Close the cover during the
preheat period.
CONTROLLING FLARE-UPS:
•Flare-ups are a part of cooking meats on a grill. This adds to the unique flavor of cooking on a gas
grill. Excessive flare-ups can over-cook your food and cause a dangerous situation for you and your
grill. Excessive flare-ups result from the build-up of grease in the bottom of your grill. If this should
occur, DO NOT pour water onto the flames. This can cause the grease to splatter and could result in
serious burns or bodily harm. If grease fire occurs close the lid and turn off the main burners until the
grease burns out. Use caution when opening the lid as sudden flare-ups may occur.
WARNING
• DO NOT leave your grill unattended while in use.
• DO NOT move grill when in use. Lock wheels in place to stabilize grill.
• DO NOT use water to extinguish flare-ups.
• Have fire extinguisher readily accessible suitable for use with gas appliances.
WARNING

12
TO MINIMIZE FLARE-UPS:
•Trim excess fat from meats prior to cooking.
•Cook meats with high fat contents (chicken or pork) on Low settings or indirectly.
•Ensure that your grill is on level ground and the grease is allowed to evacuate the grill through the
drain hole in the bottom and into grease cup.
INDIRECT COOKING:
•Indirect cooking is the process of cooking your food without the heat source being directly under your
food. You can sear meats over a high flame on one side of the grill while slow cooking a roast on the
other (unlit) side of the grill.
GRILL COOKING TIPS
CLEANLINESS
• Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw
meat, uncooked poultry or seafood.
• When using a platter to carry raw meat, uncooked poultry or seafood to the grill, make sure to wash the
platter thoroughly with soap and hot water before placing cooked foods back on the platter or use different
platters for raw and cooked foods.
• Never use the same utensils when handling raw meat, uncooked poultry or seafood unless you wash the
utensils thoroughly with soap and hot water.
• Never re-use marinade from raw meat or uncooked poultry on foods that have been cooked and are
ready to be served.
GRILLING TO PROPER TEMPERATURE
• Use a meat thermometer to be sure food has reached a safe internal temperature.
• The US Department of Agriculture recommends the minimum temperature be reached for the
following food items:
Chops . . . . . . . . . . . . . . . . . . . . .145 degrees F (62.8° C)
Ground Meat . . . . . . . . . . . . . . .160 degrees F (71° C)
Pork . . . . . . . . . . . . . . . . . . . . . . .160 degrees F (71° C)
Poultry . . . . . . . . . . . . . . . . . . . . .180 degrees F (82° C)
Roasts . . . . . . . . . . . . . . . . . . . . .145 degrees F (62.8° C)
Seafood . . . . . . . . . . . . . . . . . . . .140 degrees F (60° C)
Vegetables . . . . . . . . . . . . . . . . .145 degrees F (62.8° C)
HELPFUL HINTS
• If you pre-cook meat or poultry, do so immediately before grilling.
• Never defrost meat at room temperature or on a countertop.
• Refrigerate leftovers within 2 hours of taking food off the grill.
• For additional information, please phone the USDA’s toll free Meat & Poultry Hotline at 800-535-4555.

WARNING
• Only use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable
of supporting the weight of the grill. Never use on wooden or other surfaces that could burn.
• DO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray
while tray contains hot coals.
• Proper clearance of 10 feet (3.1 m) between the grill and combustible material (bushes, trees,
wooden decks, fences, buildings, etc.) or construction should be maintained at all times when grill
is in use. Do not place grill under a roof overhang or other enclosed area.
• For outdoor use only. Do not operate grill indoors or in an enclosed area.
• For household use only. Do not use this grill for other than its intended purpose.
• We recommend the use of a Charcoal Chimney Starter to avoid the dangers associated with
charcoal lighting fluid.
• Use charcoal chimney starter or charcoal that has been pre-treated with lighter fluid when starting
fire in charcoal section of your grill.
• Do not store lighter fluid or other flammable liquids, material or charcoal that has been pre-treated
with lighter fluid under the grill.
• Do not use gasoline, kerosene or alcohol for lighting charcoal. Use of any of these or similar
products could cause an explosion possibly leading to severe bodily injury.
• Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe
burns.
• Place grill in an area where children and pets cannot come into contact with unit. Close supervision
is necessary when grill is in use.
• Do not leave grill unattended when in use.
• When adding charcoal and/or wood, use extreme caution and follow instructions in “Adding
Charcoal/Wood During Cooking” section of this manual.
• Do not store or use grill near gasoline or other flammable liquids, gases or where flammable vapors
may be present.
• Use caution when adjusting charcoal grate height. Handle may be hot when in use.
• Never raise or lower charcoal grate when water smoking as hot water may splash onto coals
creating a burst of hot steam and coals.
Grill is hot when in use. To avoid burns:
• DO NOT attempt to move the grill.
• Lock the casters so the unit does not accidentally move.
• Wear protective gloves or oven mitts.
• DO NOT touch any hot grill surfaces.
• DO NOT wear loose clothing or allow hair to come in contact with grill.
CHARCOAL GRILL GENERAL WARNINGS
13

WARNING
• When grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should
happen close lid and turn gas knobs to off position to suffocate the flame. Do not use water to
extinguish grease fires.
• Use caution since flames can flare-up when fresh air suddenly comes in contact with fire. When
opening the lid, keep hands, face and body a safe distance from hot steam and flame flare-ups.
• Never place more than 15 pounds (6.8 kg) on side table. Do not lean on the side table. Always ensure
side table is properly seated.
• Do not exceed a temperature of 400°F (205°C). Do not allow charcoal and/or wood to rest on the walls
of grill. Doing so will greatly reduce the life of the metal and finish of your grill.
• Use caution when assembling and operating your grill to avoid scrapes or cuts from sharp edges of
metal parts. Use caution when reaching into or under grill.
• When opening lid, make sure it is pushed all the way open. If lid is not fully open, it could fall back to
a closed position and cause bodily injury.
• In windy weather, place grill in an outdoor area that is protected from the wind.
• Close lids and doors to suffocate flame.
• Never leave coals and ashes in grill unattended. Before grill can be left unattended, remaining coals
and ashes must be removed from grill. Use caution to protect yourself and property. Carefully place
remaining coals and ashes in a non-combustible metal container and saturate completely with water.
Allow coals and water to remain in metal container 24 hours prior to disposing.
• Extinguished coals and ashes should be placed a safe distance from all structures and combustible
materials.
• With a garden hose, completely wet the surface beneath and around grill to extinguish any ashes,
coals or embers which may have fallen during the cooking or cleaning process.
• After each use, clean the grill thoroughly and apply a light coat of vegetable oil to interior to prevent
rusting. Cover the grill to protect it from excessive rusting.
• Use caution when lifting or moving grill to prevent strains and back injuries.
• We advise that a fire extinguisher be on hand. Refer to your local authority to determine proper size
and type of fire extinguisher.
• Accessory attachments not manufactured by The Brinkmann Corporation for this particular product
are not recommended and may lead to personal injury or property damage.
• Store the grill out of reach of children and in a dry location when not in use.
• Do not attempt to service grill other than normal maintenance as explained in “After-Use Safety” and
“Proper Care & Maintenance” sections of this manual. Repairs should be performed by The
Brinkmann Corporation only.
• Properly dispose of all packaging material.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GRILL.
FAILURE TO ADHERE TO SAFETY WARNING AND GUIDELINES IN THIS MANUAL COULD RESULT
IN BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
14

CHARCOAL OPERATING INSTRUCTIONS
PLACE THE GRILL OUTDOORS ON A HARD, LEVEL, NON-COMBUSTIBLE SURFACE
AWAY FROM ROOF OVERHANG OR ANY COMBUSTIBLE MATERIAL. NEVER USE ON WOODEN OR
OTHER SURFACES THAT COULD BURN. PLACE THE GRILL AWAY FROM OPEN WINDOWS OR DOORS
TO PREVENT SMOKE FROM ENTERING YOUR HOUSE. IN WINDY WEATHER, PLACE THE GRILL IN AN
OUTDOOR AREA THAT IS PROTECTED FROM THE WIND.
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE OPERATING YOUR GRILL.
Prior to your first use of the Brinkmann Triple Function Grill, follow the instructions below carefully to
preheat your grill. Preheating your grill will rid the grill of paint odor that can impart unnatural flavors to the
first meal prepared on your Brinkmann Triple Function Grill.
IMPORTANT: To protect your grill from excessive rust, the unit must be properly covered at all times
when not in use. A cover for your Triple Function Grill may be ordered directly from
Brinkmann by calling 800-527-0717 (U.S. only).
1. Lightly coat all interior surfaces of the Triple Function Grill including cooking grills with vegetable oil or
vegetable oil spray. Do not coat charcoal grate or charcoal tray.
2. Follow the instructions below carefully to build a fire in the firebox and cooking chamber. You may use
charcoal and/or wood as fuel in the charcoal section of the Triple Function Grill (see “Adding
Charcoal/Wood During Cooking” section of this manual).
Note: We recommend using charcoal that has been pre-treated with lighter fluid or a charcoal chimney
starter
WARNING: DO NOT use lighter fluid or other flammable liquids in or around your grill.
3. With grill and firebox lids and charcoal doors open, stand back and carefully light charcoal and allow
to burn until covered with a light ash (approximately 20 minutes).
If using a Charcoal Chimney Starter, follow all manufacturer’s warnings and instructions regarding the use
of their product. Start with 4 to 6 pounds (1.8 to 2.7 kg) of charcoal. This should be enough charcoal to
cook with, once the preheating process has been completed. When charcoal is burning strong, carefully
place hot coals in center of charcoal grates.
WARNING: DO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal
ash tray while tray contains hot coals.
Note: To extend the life of your grill, make sure that hot coals and wood do not touch the walls of grill.
4. With coals burning strong, close the lids and doors. Allow coals to burn for 20 - 30 minutes. Follow
instructions in Smoking or Grilling/Searing sections below.
IMPORTANT: To protect your smoker from excessive rust, the unit must be covered when not in use. A
smoker cover can be ordered directly from Brinkmann by calling 800-527-0717
(U.S. only).
YOUR BRINKMANN TRIPLE FUNCTION GRILL IS NOW PREHEATED AND READY FOR USE.
PREHEATING YOUR GRILL:
15

1. Follow the instructions above to build a fire in the firebox.
2. With coals burning well, carefully add wood chunks using long cooking tongs (see “Flavoring
Wood” and “Adding Charcoal/Wood During Cooking” sections of this manual.)
3. Place cooking grill on grill support lips. Use charcoal grate adjuster crank to position charcoal
grate to lowest level.
WARNING: Wear protective gloves or oven mitts when adjusting door handle, ash tray or cooking
height.
4. Place food in left side of cooking chamber and close lid.
5. The ideal smoking temperature is between 175°F and 250°F. For large cuts of meat, allow
approximately one hour of cooking time per pound of meat. Always use a meat thermometer to
ensure food is fully cooked before removing from grill.
6. Allow grill to cool, then follow instructions in the “After-Use Safety” and “Proper Care &
Maintenance” sections of this manual.
GRILLING/SEARING
1. Follow the instructions above to build a fire in the left side of cooking chamber.
2. Place cooking grill on grill support lips. Use charcoal grate adjuster crank to position charcoal
grate to desired cooking level. Position it low for slow grilling, in the middle for medium grilling or up
high for searing meats. The firebox can also be used for grilling and searing.
WARNING: Always wear oven mitts/gloves when adjusting cooking levels to protect your
hands from burns.
3. Place food on cooking grill and close grill lid. Always use a meat thermometer to ensure food is fully
cooked before removing from grill.
4. Allow grill to cool, then follow instructions in the “After-Use Safety” and “Proper Care &
Maintenance” sections of this manual.
To obtain your favorite smoke flavor, experiment by using chunks, sticks or chips of flavor producing wood
such as hickory, pecan, apple, cherry, or mesquite. Most fruit or nut tree wood may be used for smoke
flavoring. Do not use resinous wood such as pine as it will produce an unpleasant taste.
Wood chunks or sticks 3" to 4" (7 to 10 cm) long and 1" to 2" (2 to 4 cm) thick work best. Unless the wood
is still green, soak the wood in water for 30 minutes or wrap each piece in foil and tear several small holes
in the foil to produce more smoke and prevent the wood from burning too quickly. A lot of wood is not
required to obtain a good smoke flavor. A recommended amount for the Brinkmann Triple Function Grill is
5 to 6 wood chunks or sticks. Experiment by using more wood for stronger smoke flavor or less wood for
milder smoke flavor.
Additional flavoring wood should not have to be added during the cooking process. However, it may be
necessary when cooking very large pieces of food. Follow instructions and cautions in the “Adding
Charcoal/Wood During Cooking” section of this manual to avoid injury while adding wood.
To increase heat, more wood and/or charcoal may be needed. Follow instructions in “Adding Charcoal/Wood
During Cooking” section of this manual.To maintain the temperature, more wood and/or charcoal may need to
be added during the cooking cycle.
Note: Dry wood burns hotter than charcoal, so you may want to increase the ratio of wood to charcoal to
increase the cooking temperature. Hardwood such as oak, hickory, mesquite, fruit and nut wood are
an excellent fuel because of their burning rate. When using wood as fuel, make sure the wood is
seasoned and dry. DO NOT use resinous wood such as pine as it will produce an unpleasant taste.
FLAVORING WOOD
16
TO INCREASE HEAT
SMOKING

-
TRANSPORTING AND STORAGE:
• Never move a grill when it is hot or when objects are on the cooking surfaces.
• Make sure that cylinder valve is shut off. After moving the grill check that all gas connections are
free of leaks. Refer to instructions for Leak Testing.
• DO NOT store a spare LP gas cylinder (filled or empty) under or near the grill.
• Never store flammable liquids or spray canisters under or near the grill.
• DO NOT extinguish grease fires using water.
• If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinder.
• Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is
disconnected and removed from the outdoor cooking gas appliance.
• Cylinders must be stored outdoors out of reach of children and must not be stored in a building,
garage or any other enclosed area.
• When removing the grill from storage, spider webs or other debris may be blocking the burners. See
"Burner Assembly/Maintenance" under Proper Care and Maintenance.
WARNING
17
• Always allow grill and all components to cool before handling.
• Never leave coals and ashes in grill unattended. Make sure coals and ashes are completely extinguished
before leaving unattended.
• Before grill can be left unattended, remaining coals and ashes must be removed from grill. Use caution to
protect yourself and property. Place remaining coals and ashes in a non-combustible metal container and
completely saturate with water. Allow coals and water to remain in metal container 24 hours prior to
disposing.
• Extinguished coals and ashes should be placed a safe distance from all structures and combustible
materials.
• With a garden hose, completely wet surface beneath and around the grill to extinguish any ashes, coals
or embers which may have fallen during the cooking or cleaning process.
• Cover and store grill in a protected area away from children and pets.
AFTER-USE SAFETY
WARNING
Additional charcoal and/or wood may be required to maintain or increase cooking temperature.
1. Stand back and carefully open grill or firebox lid. Use caution since flames can flare-up when fresh air suddenly
comes in contact with fire.
2. Wearing oven mitts/gloves, use charcoal grate adjuster crank to place charcoal grate at the lowest level of
cooking chamber. Open cooking chamber door or firebox side door to allow access to charcoal grate.
3. Stand back a safe distance and use long cooking tongs to lightly brush aside ashes on hot coals. Use
cooking tongs to add charcoal and/or wood to charcoal grate, being careful not to stir-up ashes and sparks. If
necessary, use your Charcoal Chimney Starter to light additional charcoal and/or wood and add to existing fire.
WARNING: Never add charcoal lighting fluid to hot or even warm coals as flashback may occur causing
severe burns.
4. When charcoal is burning strong again, wear oven mitts/gloves and carefully return charcoal grate to desired
cooking level. Ensure that no ashes, coals or embers have fallen to the ground as a fire may start. As a
precaution, completely wet beneath and around grill with water to extinguish any fallen ashes, coals or
embers.
5. Close the grill and firebox lids and doors. Allow food to continue cooking.
ADDING CHARCOAL/WOOD DURING COOKING

18
CLEANING AND MAINTENANCE:
• Keep the appliance free and clear of combustible materials, gasoline and other flammable vapors
and liquids.
• Keep the ventilation openings of the cylinder enclosure free and clear of debris.
• Visually check burner flames for proper operation (see pictorial in "Burner Assembly/Maintenance" under
Proper Care and Maintenance). Spiders or other insects can nest in the burner causing gas blockage.
• For safe grilling and peak performance of your grill, perform these checks at least twice per year or
after extended periods of storage.
• Be sure to tighten up all hardware (nuts, bolts, screws, etc.) at least twice per year.
CAUTION! Some parts may contain sharp edges. Wear protective gloves if necessary.
• Remove the cooking grills, heat distribution plates, and burners from inside your grill. Use a brush with
hot water and detergent to remove excess residue. NEVER use a commercial oven cleaner. Rinse
completely with water. Towel dry and replace all components as described in the assembly instructions.
BURNER ASSEMBLY/MAINTENANCE
• Although your burners are constructed of stainless steel, they may corrode as a result of the extreme
heat and acids from cooking foods or from the climate your grill is exposed to. Regularly inspect the
burners for cracks, abnormal holes, and other signs of corrosion damage. If found, replace the burner.
•DO NOT obstruct the flow of combustion and ventilation air.
Burner tubes can become blocked by spiders and other insects
building their nests or from grease build up. Blocked burner tubes
can prevent gas flow to the burners and could result in a burner
tube fire or fire beneath the grill. To clean the Burner Assembly
follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting the grill.
1. Turn gas off at control knobs and LP cylinder tank valve.
2. Remove cooking grills and heat distribution plates.
3. Remove screw from each burner "foot" using a screwdriver.
4. Carefully lift each burner up and away from valve openings.
Debris
• To protect your grill from excessive rust, the unit must be properly clean and covered at all times
when not in use. A grill cover may be ordered directly from Brinkmann by calling
800-527-0717 (U.S. only).
• Wash cooking grills, charcoal grate and heat distribution plates with hot, soapy water, rinse well and
dry. Lightly coat grills with vegetable oil or vegetable oil spray.
• Clean inside and outside of grill by wiping off with a damp cloth. Apply a light coat of vegetable oil or
vegetable oil spray to the interior surface to prevent rusting. Do not coat charcoal grate or charcoal
ash tray.
• The stainless steel exterior surface of your grill, can be cleaned with stainless steel cleaner.
• If rust appears on the exterior surface of your grill, clean and buff the affected area with steel wool or
fine grit emery cloth. Touch-up with a good quality high-temperature resistant paint.
• Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned,
then lightly coated with vegetable oil or vegetable oil spray to minimize rusting.
PROPER CARE & MAINTENANCE

19
BURNER ASSEMBLY/MAINTENANCE CONTINUED
5. Use a narrow bottle brush or a stiff wire bent into a small hook to
run through each burner tube and flame port several times.
Note: Wear eye protection when performing procedure 6.
6. Use compressed air to blow into burner tube and out the flame
ports. Check each port to make sure air comes out each hole.
7. Wire brush entire outer surface of burner to remove food residue
and dirt.
8. Check burner for damage, if any large cracks or holes are
found replace burner.
IMPORTANT: Burner opening must slide over valve nozzle.
9. Orient burners CORRECTLY by aligning screw hole in
burner to the left as shown.
Note: Make sure burner tubes align evenly between
crossover channels.
10. Replace screw on each burner and follow the "Gas Leak
Testing" section of this manual. Relight burners to verify
proper operation.
11. Replace heat distribution plates and
cooking grills.
COOKING GRILLS
•Clean with mild soap detergent and water. A brass bristled brush or a nylon cleaning pad can be used to
remove residue from the stainless steel surfaces. Do not use steel wire bristles to clean the cooking grills.
Steel can cause the finish to chip or crack. DO NOT use a commercial oven cleaner.
HEAT DISTRIBUTION PLATES
•Periodically, it may be necessary to inspect and clean the heat distribution plate to prevent excess grease
build-up. When the grill is cold, remove the cooking grills. Inspect the heat distribution plates and replace if
broken or damaged. Do not allow heat distribution plates to become damaged to the extent that they may
fall through onto the burners. Replace the heat distribution plates and cooking grills and light the burners.
Operate the grill on "HIGH" for 10 minutes to remove the excess grease.
PROPER BURNER OPERATION
Valve Nozzle
Burner Opening
Crossover Channel
