OWNER’S MANUAL
TWO BURNER
STAINLESS STEEL PROPANE
CAMPING STOVE
Propane cylinder not included.
WARNING
FAILURE TO FOLLOW ALL WARNINGS
AND INSTRUCTIONS IN THIS MANUAL
COULD LEAD TO PERSONAL INJURY,
INCLUDING DEATH.
RETAIN THIS MANUAL FOR
FUTURE REFERENCE.
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 1

IMPORTANT SAFETY WARNINGS
1
WARNING
1
CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
FOR YOUR SAFETY:
IF YOU SMELL GAS:
1. DO NOT attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
FOR YOUR SAFETY:
DO NOT store or use gasoline or other liquids with flammable vapors in
the vicinity of this or any other appliances.
•FOR OUTDOOR USE ONLY. DO NOT operate indoors (house, tent, garage) or in any
unventilated or enclosed area.
• All burning appliances consume oxygen. This stove uses oxygen from the air and may
produce CO (Carbon Monoxide), which is a colorless, odorless gas that can kill you. Ample
ventilation must be provided to avoid endangering your life. Be certain that the area in which
this appliance is used is properly ventilated at all times.
•DO NOT use as a space heater.
•DO NOT leave stove unattended when hot or in use. Only adults are to operate this stove;
keep children and pets safely away. Carefully monitor all activity around stove to avoid burns
or other injuries.
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 2

2
WARNING
•DO NOT operate stove within 36" from any combustible material including walls and ceiling.
•DO NOT use on/in apartment complex balconies or patios, recreational vehicles, campers or
boats.
• Propane gas is extremely flammable, follow these instructions:
•DO NOT store or use gasoline or other liquids/aerosols with flammable vapors in the
vicinity of this appliance.
• Use only 14.1 oz. or 16.4 oz. LP-gas cylinder(s) constructed and marked in accordance
with the specifications for LP-gas cylinders of the United States Department of
Transportation (DOT) or Transport Canada, CAN/CSA 339. DO NOT use fuel other than
propane.
• Always attach or detach propane cylinder outdoors away from flame, pilot lights or other
sources of ignition and only when appliance is cool to touch.
•DO NOT allow the gas hose to come into contact with any hot surfaces. Inspect the hose
for damage such as burns, chafing, and kinks before each use.
• Read and follow all warnings and instructions on or accompanying propane cylinder.
• Always inspect appliance, propane cylinder, and propane connections for damage, dirt or
debris before attaching propane cylinder. DO NOT use if either has been damaged or
modified.
• Follow directions in the "Gas Leak Testing" section on page 4 of this manual. Never test
for gas leaks with a lit match or open flame. DO NOT operate the stove with a gas leak.
• When transporting, not using, or storing stove always disconnect propane cylinder.
• Propane cylinder should remain upright to prevent liquid propane flare-up.
•DO NOT connect to a remote gas supply such as natural gas or a refillable propane
cylinder.
• In case of fire, turn gas "OFF" at burner control knobs and use Type 'BC' fire extinguisher or
other appropriate means to extinguish flame.
• Keep hands, face and hair away from burners. Use long matches or long-nosed lighter to
light the burners. DO NOT wear loose clothing or allow long hair to hang freely while lighting
or using stove.
• Always snap down legs to form a "V" with the stove base to prevent the stove from becoming
unstable while in use. Use only on a flat surface
•DO NOT move stove while in use. Avoid touching hot surfaces.
• Use only supplied regulator TYQ-8A (Brinkmann part number 450-TYQ8-A).
• Only use replacement/accessory parts manufactured by The Brinkmann Corporation. Repairs
should be performed by The Brinkmann Corporation. For parts or repairs contact The
Brinkmann Corporation’s Customer Service Department at 1-800-527-0717.
• Properly dispose of all packaging materials.
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 3

Counter-Clockwise
Attach Detach
Clockwise

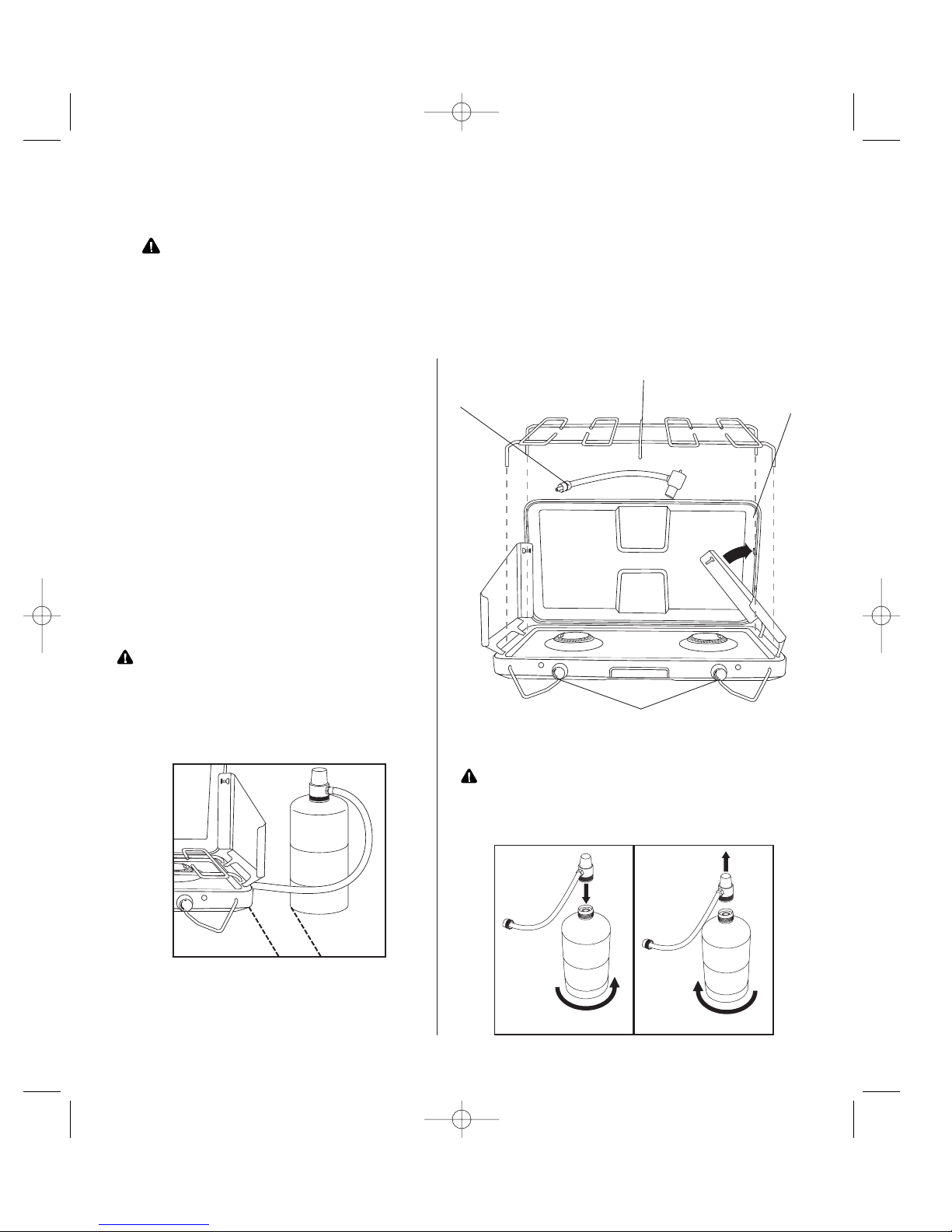

ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS
CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR STOVE.
Inspect contents of the box to ensure all parts are included and undamaged.
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717.
(Proof of purchase will be required.)
3
Step 1
Snap down legs to form a "V" with the stove base.
Step 2
Open lid and align the two wind guards by
inserting notched support arms into wind guards.
Step 3
Remove regulator assembly from under grill
inside stove. Replace grill. Make sure burner con-
trol knobs are in "OFF" position.
Step 4
Attach regulator assembly to stove fitting. HAND
TIGHTEN ONLY. Do not cross-thread connections.
Step 5
Attach propane cylinder to regulator assembly by
turning propane cylinder counter-clockwise.
HAND TIGHTEN ONLY. Do not cross-thread
connections.
CAUTION: Turn cylinder so that it is fully upright. The
cylinder must always sit flat on surface.
See diagram below.
Step 6
Follow "Gas Leak Testing" instructions on page 4
of this manual.
Notched Support Arm
Cooking Grill
Regulator Assembly
WARNING: Always snap down legs to form a "V" with
the stove base to prevent the stove from
becoming unstable while in use.
Burner Control Knobs
NOTE: Propane canister should be
positioned a minimum of 2–3"
from stove. Always use a
canister with a flat bottom.
2–3"
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 4

Watch for Bubbles
4
Step 1
Assemble stove per "Assembly Instructions" on page 3
of this manual. Make sure burner control knobs are in
"OFF" position.
Step 2
Prepare a soapy water solution (one part dishwashing
liquid to three parts water) to test for gas leaks in the
connections. Apply a generous amount of the soapy
mixture to the regulator assembly at the regulator,
along entire length of hose, and at the stove fitting
(located on the right side of stove).
Step 3
With the burner control knobs in the "OFF" position,
check for bubbles where propane canister attaches to
regulator assembly, along entire length of hose, and at
stove fitting. If soapy mixture starts bubbling, gas is
leaking through the connections. Disconnect the
propane canister. Retighten the connection that is
leaking gas. Repeat procedure with soapy mixture until
gas no longer leaks. NEVER USE A FLAME TO CHECK
FOR GAS LEAKS.
Step 4
Once all gas leaks have been sealed, WAIT AT LEAST 5
MINUTES FOR GAS FUMES TO DISSIPATE BEFORE
LIGHTING THE BURNERS.
Carefully follow "Operating Instructions" to light the
burner and properly operate this unit.
GAS LEAK TESTING
Regulator Assembly
Regulator
WARNING
• Gas leak testing must be performed outdoors in a well ventilated area every time cylinder is connected to stove.
• Always keep unit away from open flames, sparks or lit cigarettes.
• Never use a flame to check for gas leaks.
• Never use a unit that has a gas leak. Contact The Brinkmann Corporation’s Customer Service Department for
replacement parts or repairs at 1-800-527-0717.
Stove Fitting
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 5

5
•DO NOT allow gasoline or other flammable vapors or liquids to come in contact with stove while
lighting or at any time during use of stove.
•DO NOT allow the gas hose to come into contact with any hot surfaces. Inspect the hose for damage
such as burns, chafing, and kinks before each use.
WARNING
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY.
OPERATING INSTRUCTIONS
Step 1
Make sure "Gas Leak Testing" from page 4 was completed
and the burner control knobs are in the "OFF" position and
stove is on a flat surface away from combustible material.
Step 2
Decide which burner to light first. Using a long match,
hold the flame beside burner. Turn the burner control knob
SLOWLY counter-clockwise until the burner lights.
WARNING: If the burner does not light within 5 seconds, turn
the burner control knobs "OFF" immediately. Wait
at least 5 minutes until gas fumes have dissipated
before attempting to light burner again.
Step 3
To light the second burner, reduce the flame on the first lit
burner and repeat Step 2 to the other burner.
WARNING: If second burner does not light within 5 seconds,
turn the burner control knobs "OFF" immediately.
Wait at least 5 minutes until gas fumes have
dissipated before attempting to light burner again.
Step 4
Adjust burner flame as necessary by using burner control
knob. Turn stove "OFF" using burner control knobs when
stove is not in use.
Step 5
Allow stove to cool completely, then follow instructions in
the "After-Use Safety" and "Proper Care & Maintenance"
sections of this manual.
Perimeter of base of stove
OFF / Smaller Flame
ON / Larger Flame
Minimum clearance to
combustibles 36 inches from top
and side of stove burners
NOTE: Observe flame height and
color when lit. Flame
should have a blue center
and yellow tip.
Yellow
Blue
Burner
36"
36"
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 6

6
AFTER-USE SAFETY
• Always allow the stove to cool completely before handling.
• Always disconnect the propane cylinder from stove when not in use - a safety cap should be placed on
the propane cylinder.
• Detach regulator assembly and store under grill inside stove.
• Never store propane cylinder in an enclosed area (house, garage, etc.). Store outdoors in a well venti-
lated, shaded area away from any heat source or open flame.
• Fold wind guards and lid back into their closed position. Unfold legs to lock lid down.
• Wash cooking grill with hot, soapy water, rinse well and dry before storing. Wipe remaining exposed parts
of stove with damp cloth. Do not use abrasive materials.
• To protect your stove, the unit must be kept clean and covered at all times when not in use.
• Only use replacement/accessory parts manufactured by The Brinkmann Corporation. Repairs should be
performed by The Brinkmann Corporation. For parts or repairs, contact The Brinkmann Corporation’s
Customer Service Department at 1-800-527-0717.
• Cover and store stove in a protected area away from children and pets.
• After product has been stored and prior to reusing, verify that burners are free from leaves, insects, spider
webs, dirt, etc. as these items can obstruct the flow of combustion air.
• Prior to each use, visually check the burner flame for proper operation as described on page 5.
DO NOT use if burner/flame is not operating properly.
• This stove requires an unobstructed airflow to operate correctly.
• During use or storage, always keep the stove area clear and free of combustible materials, gasoline and
other flammable vapors and liquids.
NOTE: Due to the intense heat from burner, it is normal for discoloration to occur on stove during the first
few uses.
PROPER CARE & MAINTENANCE
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 7

140-0200-1
2/03
For one year from date of purchase, The Brinkmann Corporation warrants the Camping Stove against defects due to
workmanship or materials to the original purchaser. The Brinkmann Corporation’s obligations under this warranty are limited to
the following guidelines:
• This warranty does not cover stoves that have been altered or damaged due to: normal wear, abuse, improper
maintenance, improper use, disassembly of parts and/or attempted repair by anyone other than an authorized employee of
The Brinkmann Corporation.
• This warranty does not cover surface scratching or heat damage to the finish, which is considered normal wear.
• The Brinkmann Corporation may elect to repair or replace damaged units covered by the terms of this warranty.
• This warranty extends to the original purchaser only and is not transferable or assignable to subsequent purchasers.
The Brinkmann Corporation requires reasonable proof of purchase. Therefore, we strongly recommend that you retain your sales
receipt or invoice. To obtain replacement parts for your Camping Stove under the terms of this warranty, please call Customer
Service Department at 1-800-527-0717. A receipt will be required. The Brinkmann Corporation will not be responsible for
any stoves forwarded to us without prior authorization.
EXCEPT AS ABOVE STATED, THE BRINKMANN CORPORATION MAKES NO OTHER EXPRESS WARRANTY.
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN DURATION
TO ONE YEAR FROM THE DATE OF PURCHASE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ANY LIABILITY FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE FAILURE OF THE CAMPING
STOVE TO COMPLY WITH THIS WARRANTY OR ANY IMPLIED WARRANTY IS EXCLUDED. CUSTOMER ACKNOWLEDGES THAT
THE PURCHASE PRICE CHARGED IS BASED UPON THE LIMITATIONS CONTAINED IN THE WARRANTY SET OUT ABOVE. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
ONE YEAR LIMITED WARRANTY
©2003 The Brinkmann Corporation
4215 McEwen Rd
Dallas, Texas 75244 U.S.A
www.brinkmanncorp.com
For Model # 842-0200-0
842-0200-0_Camp Stove-SS.qxd 3/17/03 4:53 PM Page 8
