Parts of Pan Lapse
Status LED Indicator
ON
OFF
4
5
3
1. Smartphone Clamp
2. Tripod Mount for Camera
3. Tripod Mount
4. Power ON/OFF Switch
5. Battery Cover
2
1
6 7 8
6. Red: Battery Low
7. Green: Power On
Non-Stop Rotating
Green Light Blink: Time Lapse working
8. Blue: Bluetooth Connecting
All manuals and user guides at all-guides.com

AAA
AAA
ON
OFF
Power On
ON
OFF
+
+
-
-
All manuals and user guides at all-guides.com

Smartphone Clamp
All manuals and user guides at all-guides.com

Camera Tripod Mount
All manuals and user guides at all-guides.com

Caution
All manuals and user guides at all-guides.com
all-guides.com

For more information please go to:
www.brinno.idcp.eu/index.php/
products/pan-lapse/art200
Installing
Brinno Pan Lapse APP
on your smartphone
All manuals and user guides at all-guides.com

Turn on Bluetooth
Open APP
Brinno APP
1
2
* Only in the status of your smartphone bluetooth o ,
the asking screen will pop up when open app.
All manuals and user guides at all-guides.com

Ready
Approx. Panning Time: 2 min /32 Sec
Speed Panning AngleTime Interval
Stop
1. Scan Device
2. Select Brinno*
* You may rename your device. ( Six characters limited)
3
All manuals and user guides at all-guides.com

Setting
Ready
Approx. Panning Time: 2 min /32 Sec
1
Speed
20
0
Panning AngleTime Interval
Stop
Approx. Panning Time: 2 min /32 Sec
OK
1
3
2
Speed
20
22
21
0
30
15
Panning AngleTime Interval
Set Approx. Video Length
Stop
1. Set Speed
1: Slow
10: Fast
∞: Non Stop(Fastest)
2. Set Time Interval
(This time interval should
match the setting on your
time lapse camera.)
3. Set Panning Angle
(Back-and-forth sweeping)
4. Press “OK”
5. Choose Direction
and Start
1 2 3
4
5 5
? ??
All manuals and user guides at all-guides.com

Approx. Panning Time: 2 min /32 Sec
OK
10
1
∞
Speed
240
1
0
345
15
0
Panning AngleTime Interval
Set Approx. Video Length
Stop
Ready
Approx. Panning Time: 2 min /32 Sec
OK
1
3
2
Speed
4
6
5
45
75
60
Panning AngleTime Interval
Stop

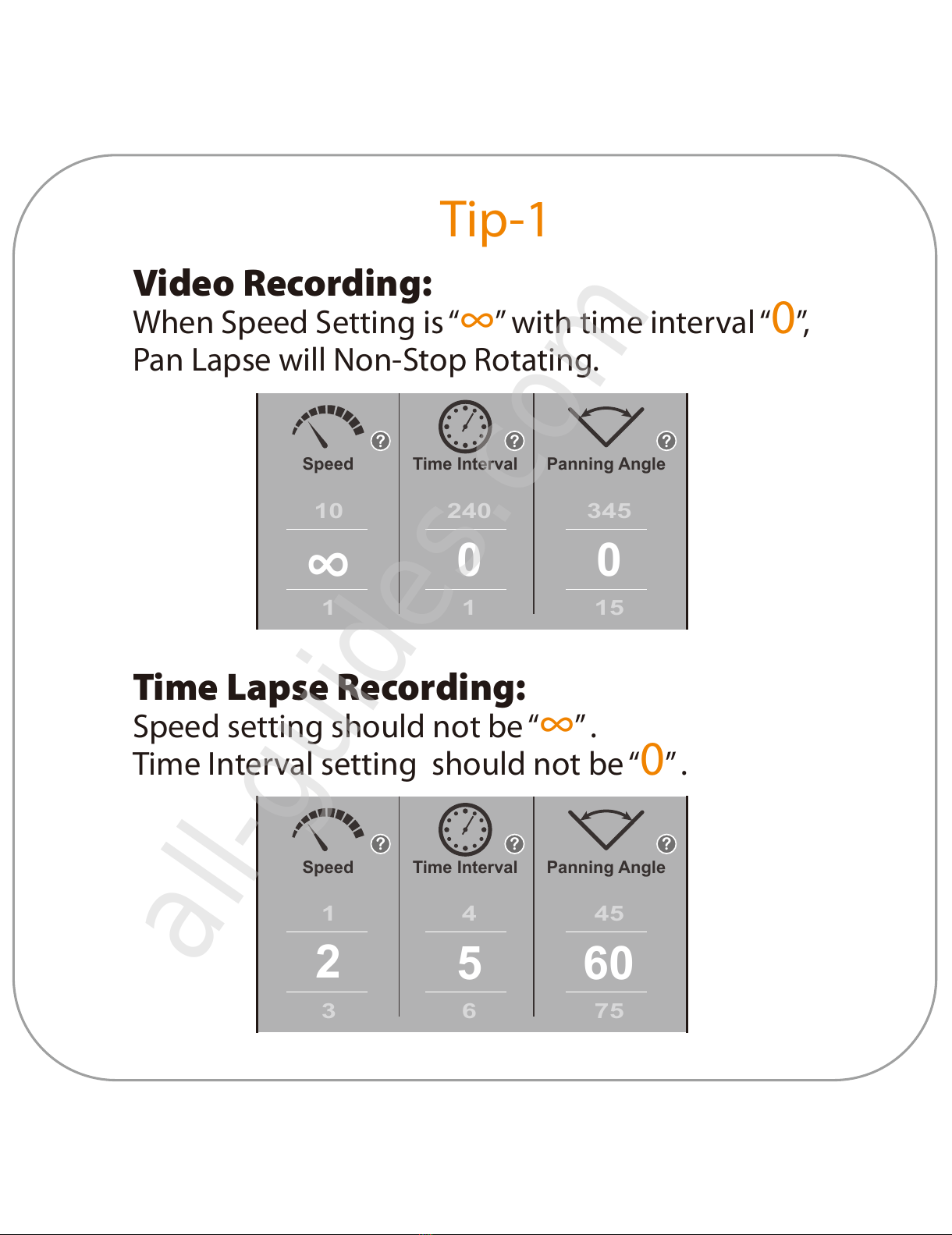

Tip-1
Video Recording:
When Speed Setting is “∞” with time interval “0”,
Pan Lapse will Non-Stop Rotating.
Time Lapse Recording:
Speed setting should not be “∞” .
Time Interval setting should not be “0” .
? ??
? ??
All manuals and user guides at all-guides.com
all-guides.com

Tip-2
How To Set Perfect Panning Angle?
30°30°
Camera
Ex:
If camera Fov=120°
Plan to shoot a 180° panning time lapse
Panning angle = 180°-120° =60°
FOV=120°
All manuals and user guides at all-guides.com

What setting should I use?
Tip-3
Status
(Time Lapse) Speed Time Interval Panning Angle
Scenery 3-5 3-5 On demand
Party 7 1 345°
Status Speed Time Interval Panning Angle
Video ∞0 On demand
All manuals and user guides at all-guides.com
