Britannia K240 90CM User manual

USER INSTRUCTIONS
PRE- PURCHASE INFORMATION
INSTALLATION INSTRUCTIONS
CHIMNEY HOOD
MODELS: K240 90CM and 100CM

Important safety information
These warnings are provided in the interests of safety. Ensure that you understand them all before
installing or using this appliance.Your safety is of paramount importance. If you are unsure about the
meaning of any of these warnings please contact the help line above.
Installation
This hood must be installed in accordance with the installation instructions and all measurements must
be adhered to.
A qualified electrician or competent person must undertake any installation work.
If the cooker hood is installed for use above a gas appliance the provision for ventilation must be in
accordance with the latest edition of the Gas Safety Codes of Practice, and the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building
Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Dept.
The fan motor of this cooker hood incorporates a cut -out device, which will operate if the cooker
hood is installed below the minimum height, or if the motor becomes overheated. If the cutout device
is activated, switch off the fan motor and allow the cooker hood to cool down.The cutout device will
reset itself when the fan motor has cooled significantly.
It is dangerous to alter the specifications or modify the product in any way.
When installed between adjoining wall cabinets, the wall cabinets must not overhang the hob/hotplate.
The following applies when ducting out
If the room where the cooker hood is to be used contains a fossil fuel burning appliance such as a gas
or oil central heating boiler then its flue must be of the room sealed or balanced flue type.This hood is
not suitable for use in a room where any open flue appliance is in use. There shall be adequate
ventilation of the room when the range hood is used at the same time as appliances burning gas or
other fuels.Any local regulations concerning the discharge of exhaust air must be checked and fulfilled
prior to use of the hood.The ducting system for this appliance must not be connected to any existing
ventilation or flue system that is being used for any other purpose.
High level grills
Do not install this hood above a cooker with a high level grill.
Child safety
This appliance is designed to be operated by adults. Children should not be allowed to tamper with the
appliance.
During use
This product is for domestic use only.
Never leave frying pans unattended during use as overheated fats and oils may catch fire.
Do not flambé foods under the cooker hood
Always turn on your hood every time you use your cooker.
Always use pans with lids.
Do not leave naked flames under the cooker hood.
1
Britannia Living,
Glen Dimplex Home Appliances,
Eastern Rise, Trentham Lakes,
Stoke-on-Trent
ST4 8WG
Britannia service & spares department
Tel: [phone] (Option 1)
Email: [e-mail]

Maintenance and service
This appliance can be a fire hazard if the grease filters and charcoal filters are not cleaned and replaced
in accordance with instructions.
Always insist on genuine spare parts.
Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or a more serious malfunction.
In the event of service being required for your cooker hood please contact the service helpline.
Any service work will generally entail removal of the telescopic flue assembly to access key
components including the motor. If the flue assembly has been boxed in by means of a bridging shelf or
any type of furniture this must be removed prior to our engineer’s visit.
2
Electrical connections
Important: Ensure that the electricity supply is switched off
before connecting.
Your appliance must be connected to fixed wiring via the use of a
double pole switched fused spur outlet with at least 3mm contact
separation. (See technical data for fuse rating).
We strongly recommend the appliance is connected by a qualified
electrician who is a member of the N.I.C.E.I.C. or Corgi who will
comply with the I.E.E. and any local regulations.
Note: The terminology “double pole” means that both the live and
neutral supplies are switched and disconnected at the same time.
The terminations labelled SUPPLY are for the internal house wiring and
the terminations labelled LOAD are for connection for the appliance.
WARNING - THIS APPLIANCE
MUST BE EARTHED
Important: The wires in this mains lead are
coloured in accordance with the following code:-
Green/Yellow = Earth, Blue = Neutral, Brown = Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in
your spur box, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter ‘E’ or by the earth symbol or coloured green or green and yellow.The wire which is coloured
blue must be connected to the terminal which is marked with the letter ‘N’ or coloured black.The wire
which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or
coloured red.

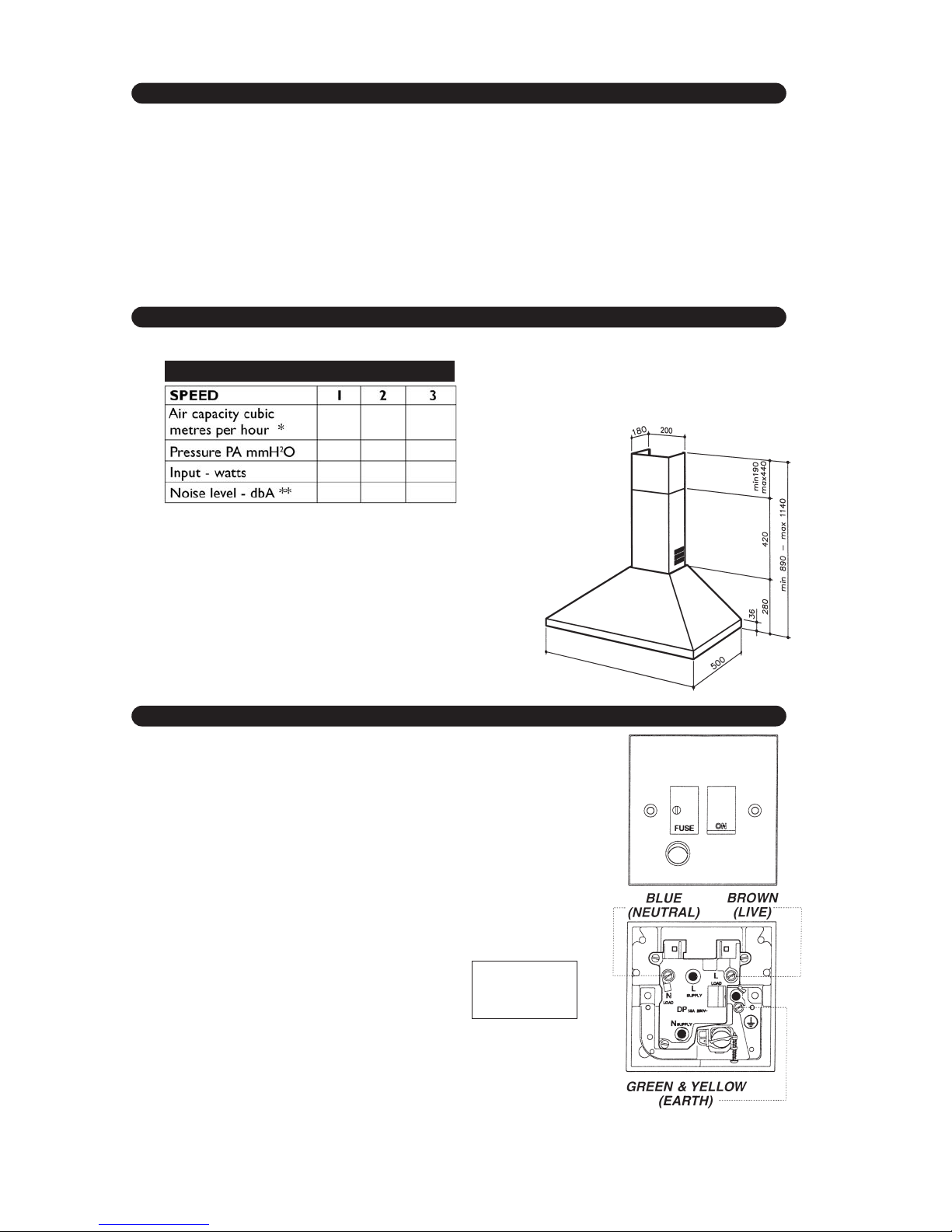

Technical
SPECIFICATION
Technical Data
Fuse rating:
5 AMP
*
**
MODEL K240
SPEED 1 2 3
Air capacity cubic
metres per hour * 500 650 800
Pressure PA mmH2O414446
Input - watts 160 200 250
Noise level - dbA ** 48 54 58
Performance data according to Standard EN61591,
Free air delivery.
Noise level according to
Standard IEC60704-2-13
method.
Finish Stainless Steel
Size 900mm or 1000mm
Controls Push button
Air outlet 150mm diameter
Illumination 2 x lamps 40 watts
Motor 1 x 250watts (3 speeds)
Total wattage 330 watts
Mains supply 230 volts 50 Hz
Connection via a 13 amp fused spur outlet
fused at 5 amps
900-1000
465355 545
3934 42
150110 180
6145 64

Installation
Height above hotplates
For best performance we suggest that the hood is installed at a distance between 65cm to75cm from
the hotplate surface. Under no circumstances should the hood be installed lower than 65cm above the
hotplate surface.
Ducting out/filtering
The hood can be used as a filtering version or as a ducted version. It is always preferable to install the
hood as a ducted version i.e. duct to an outside wall. If this is not practical, charcoal filters can be fitted.
In the filtering mode the air drawn in is purified as it passes through the charcoal filters, the air is then
recycled back into the kitchen. It is realistic to assume that using a hood in filtering mode will circulate
30% less air than by ducting out. Charcoal filters are an optional extra and will require replacing after
120 hours of use or at least every 6 months. Charcoal filters are not required if you duct out. If the
hood is used as a filtering version, please note that the filters will help reduce cooking odours but will
not reduce steam or condensation. If you wish to reduce steam, condensation and cooking odours then
you must duct out.
We strongly recommend that the hood is only used as a filtering version if it is impossible to duct out.
Ducting information
To obtain the best possible extraction performance use 150mm diameter ducting.Wherever possible
utilise rigid circular pipe or “Mega duct” ducting - both types are available via your Britannia dealer. Do
not use expanding concertina type ducting as this is not smooth on the interior and can cause air flow
restrictions. Do not use ducting that has a smaller diameter than 150mm as this will reduce extraction
rates and can increase noise levels. Please note ducting kits and ducting components are optional
accessories and have to be ordered - they are not supplied with the hood.
Maximum length of ducting run
4 metres with 1 x 90 degree bend
3 metres with 2 x 90 degree bends
2 metres with 3 x 90 degree bends
Note: the shorter the ducting run and the least number of bends give the best extraction performance.
Warning: Any ducting used must be fire retardant.
Unpacking the hood
On some models components are packed inside the polystyrene protection pieces.
Do not throw away the box and packaging until installation is fully completed.
3
90 degree bend
Code DUCT/690
Pipe connector
Code DUCT/693
One metre
ducting kit
Comprising: one
metre length pipe,
wall vent and 90
degree bend.
Code DUCT/2609
One metre
length pipe
Code DUCT/1100-6
Two metre
length pipe
Code DUCT/1200-6
One metre and two
metre length pipes can be
cut to the desired length
Wall vent with
gravity flaps
Code DUCT/6900
Combination of 6” (150mm) circular
pipe and flat channel (220mm x 90mm)
which is ideal for running on top of
wall units or between ceiling joists.
Megaduct kit Code DUCT/2652B
Horizontal bend Code DUCT/950
Megaduct Ducting Kit
horizontal
bend
350 1000
1000
1000

4
Installation
Attention:
The appliance should be installed by a qualified electrician or competent person.
1Decide from the outset on the type of installation (filtering fig. 1 or ducted fig. 2 )
Note that the ducting run can go out through the rear wall or through the ceiling.
Installation - ducted version
1Before fixing the hood install the ducting run for air evacuation to the outside.We recommend 150mm
diameter for this model, anything less will impair performance.
2Turn off electricity before preparing a suitable power supply. For the electrical connection requirements
follow the details on page 2.
3Remove the metal grease filters by pressing the catch and pulling the filter outwards. See fig. 3
4Draw a vertical line on the wall to mark the centre line of the hob.Then draw a horizontal line to mark
the bottom edge of the hood. Using the template supplied mark the holes to be drilled for the fixing
screws.Take into account that the minimum distance between the underside of the hood and the hob
is 650mm. See fig. 4 . Drill the two holes and secure the hood to the wall with the screws
and wall plugs provided. See (A) fig. 4 . For added security two additional fixing screws and rawl plugs
must be fitted, see (B) fig. 4 .
5Ensure the electric supply is turned off. Connect hood supply cable to the power supply.
6Connect the ducting to the outlet spigot of the hood.
7Fit bracket ‘W’, fig. 5 , to the wall.
8See fig. 6 . Place the telescopic flue assembly carefully onto the hood and extend the upper
section to the ceiling. Secure to the support bracket using the screws provided.
9Refit the metal grease filters.
Installation in filtering version
1Proceed with the installation, making reference to the instructions for the ducted version
(follow points 2,3,4,5&7 above).Then follow the instructions below.
2Fit the air diverter to the top section of the telescopic flue. See fig. 7
3Place the telescopic flue assembly carefully onto the hood and extend the upper section to the ceiling.
Secure to the support bracket using the screws provided. See fig. 6
4Fit the charcoal filters. Refer to fig. 8
5Re-fit the metal grease filters.
Operation
See fig. 9
A Button A turns the lights on/off.
B Button B turns the motor on to the first speed. It also turns the motor off.
C Button C turns the motor on to 2nd speed.
D Button D turns the motor on to 3rd speed.
E Indicator Light E to signify power on to the motor.

5
Cleaning and maintenance
Always turn off the electricity supply before conducting any cleaning or maintenance.To remove the
metal grease filter for cleaning, see fig. 3 .These can be cleaned by hand in hot soapy water or cleaned
in a dishwasher. Use a reputable stainless steel cleaner for cleaning the exterior of the hood and follow
the manufacturers instructions. If your hood is being used on filtering mode refer to fig. 10 to change
the charcoal filters.
Changing the bulb
First turn off the electricity supply to the hood.
Remove the retaining screw that holds the light diffuser in position. Remove light diffuser. Unscrew the
light bulb and replace it only with Candle Halogen Lamp Ø35 E14, 220/240Vac - 28W or Incandescent.
Please note
The information contained in this booklet is given in good faith and has been written for the use of
hoods over Britannia domestic appliances. Some of the information may not be applicable over other
makes of appliances.We reserve the right to alter any design or specification without notice.
Lamp E14, 220/240Vac - 40W.

6
12 3
465
78 9
10
A
A
B
ABCD E
W
min 65cm
50mm

FOR NATIONWIDE SERVICE
GUARANTEE
What the Guarantee covers
Our service division will repair or replace free of charge any defect or
component that is due to faulty material or workmanship, provided that such
a defect occurs within 2 years of date of purchase and that:
1Our service division is notified promptly of any defects. Under the terms of the
guarantee the appliance must be made available for service during normal working
hours, Monday to Friday.
2The appliance is installed in accordance with these instructions and for normal
domestic use.
3The guarantee does not apply if the appliance is repaired or modified by any other
person than a member of our service division.The guarantee does not cover misuse,
improper installation or any installation in commercial premises.This product is for
domestic use only.
4Any service work will generally entail removal of the telescopic flue assembly to access
key components including the motor. If the flue assembly has been boxed in by means of a
bridging shelf or any type of furniture this must be removed prior to our engineer’s visit.
Before calling for service, please check the following:
1Is there a power failure? Turn on the appliance to check the mains supply.
2check that the fuse has not blown.
3Please note that bulbs are not covered under the guarantee.
In the event of service being required, our service division will request the
following information:
1Your name, address and postcode.
2Your telephone numbers for home and work.
3The model number and colour of the appliance.
4Precise details of the fault.
5Date of purchase.
Please note that when the service engineer visits he will require seeing your proof
of purchase date so please retain your receipt.
04307380/4
Tel: [phone] (Option 1)
Email: [email protected]
