Britax Child Safety Traveller Plus User manual

Traveller Plus
User Guide
P2315_R01e.qxd 11/7/2003 12:59 PM Page 1

Table of Contents
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7
Vehicle Safety Belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Vehicle Seating Positions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–17
LATCH Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–11
Lap-Shoulder Belt Installation (Long Route). . . . . . . . . . . . . . . 12–13
Lap-Shoulder Belt Installation (Short Route). . . . . . . . . . . . . . . 14-15
Lap Belt Only Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-17
Versa-Tether®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Using Restraint Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23
Recline Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Seat Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pad Inserts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Head Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Pommel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chest Clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Buckle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Securing Your Child . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Harness Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Checking Harness Height. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Harness Height Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Buckle Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adjusting Buckle Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-31
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
This product and its components are subject to change without notice.
© 2003 Britax Child Safety, Inc. All rights reserved. Printed in U.S.A.
P231500 R1:10/03
P2315_R01e.qxd 11/7/2003 12:59 PM Page 2

32
• Use only with children who weigh between 22 and 105 pounds
(10 and 48 kg) and whose height is 56 inches (142 cm) or less.
• Snugly adjust the belts provided with this child restraint around
your child. A snug strap should not allow any slack. It lies in a
relatively straight line without sagging. It does not press on the
child’s flesh or push the child’s body into an unnatural position.
• Always secure the top anchorage strap provided with this child
restraint.
• Secure this child restraint with the vehicle’s child restraint
anchorage system if available or with a vehicle belt.
• Follow all instructions on this child restraint and in the written
instructions located on lanyard, under cover in front of seat.
• Register your child restraint with the manufacturer.
• Use vehicle belt (not LATCH connectors) for installations with
children weighing more than 48 pounds (21 kg). Refer to the
vehicle owner’s manual or contact the vehicle manufacturer for
the maximum weight rating for their LATCH anchors. Unless
specified otherwise by the vehicle manufacturer, assume a 48-
pound child is the vehicle LATCH anchor limit.
• Use restraint forward facing only! The American Academy of
Pediatrics recommends forward facing only after one year old.
• This child restraint must not be used in the home, in boats, or
other non-certified applications.
• Secure this child restraint even when it is not occupied. In a
crash, an unsecured child restraint may injure vehicle occupants.
• Never route vehicle belt over child!
• Based on crash statistics, the National Highway Traffic Safety
Administration recommends that parents select the rear seat as
the safest location for a properly installed child restraint. Please
study the section on Vehicle Safety Belts in this booklet to
ensure the child’s safety. If in doubt about installing the child
restraint, consult the vehicle owner’s manual.
• When using in vehicle with air bags, refer to the vehicle owner’s
manual for child restraint installation instructions and precautions.
• Never use the adjuster strap to lift or carry this child restraint. Doing
so could cause damage to the harness adjuster and webbing.
Always carry this child restraint by the shell or tether straps.
•
The primary protection for occupants of a vehicle in a collision is
the body of the vehicle itself; a child restraint will not protect a
child when the vehicle is seriously impacted. However, correctly
installed, a child restraint will substantially improve the chances
for survival in most crashes. Make sure that all users fully
understand the correct ways to use this child restraint in a vehicle.
DO NOT place a child restraint in the front
seat of a vehicle with a passenger air bag
unless the air bag is turned off. DEATH or
SERIOUS INJURY can occur. The back seat
is the safest place for children under 12.
P2315_R01e.qxd 11/7/2003 12:59 PM Page 4

54
Safety Information
Safety Information
• This child restraint system conforms to all applicable Federal
motor vehicle safety standards. This restraint is certified for use in
motor vehicles and aircraft.
• Fill out the registration card and mail it in today!
Child restraints could be recalled for safety reasons. You must
register this restraint to be reached in a recall. Send your name,
address, and the restraint's model number and manufacturing
date to Britax Child Safety, Inc. 13501 South Ridge Drive
Charlotte, NC 28273 or call 1-888-4BRITAX. For recall
information, call the U.S. Government's Auto Safety Hotline at
1-800-424-9393 (202-366-0123 in DC area).
You may also register by visiting BritaxUSA.com.
IMPORTANT NOTES
• Verify that the restraint is secure and that the harness is properly
adjusted around your child each time you use the restraint.
• Adjust the harness to fit the clothes the child is wearing. The
harness will fit a child in winter clothes differently than a child in
summer clothes.
• Cover the restraint if your vehicle is parked in direct sunlight. Parts
of the restraint can become hot enough to burn.
• Store the restraint in a safe place when it is not being used. Avoid
placing heavy objects on top of it.
• To prevent injury due to deterioration or hidden damage,
discontinue use of a restraint that is older than six years or has
been in a severe crash.
•
Do not leave children alone in a vehicle, even for a short time.
•
Do not, except as described in this booklet, attempt to disassem-
ble any part of the restraint or change the way its harness or your
vehicle restraint belts are used.
• Do not leave loose objects, e.g. books, bags, etc., in the back of
your vehicle. In the event of a sudden stop, loose objects will keep
moving, potentially causing serious injuries.
• Do not leave folding vehicle seats unlatched. In the event of a
sudden stop, a loose seat back could prevent the restraint from
protecting your child as well as it should.
• Do not allow children to play with the restraint.
• Do not use anything to raise the restraint off the vehicle seat. In a
crash, it could slide and be unable to protect your child as well as
it should.
Weight Range: 22–105 lbs. (10–48 kg)
Height: The child is too tall when the
top of the ears are above the top of the
restraint. Child's height must be
between 30 inches and 56 inches.
Chest Clip: Position the chest clip at
the middle of the child's chest, level
with the armpits.
P2315_R01e.qxd 11/7/2003 12:59 PM Page 6

76
Features
Features
1
2
3
4
5
6
7
8
9
10
12
13
11
1Head Pad
2Cover
3Harness Retainer
4Harness Slots
5Comfort Pads
6Chest Clip
7HUGS™ Shoulder Pads
8Buckle
9Pommel
10 Belly Pad
11 Perma-Book™ (under cover)
14
4
15
20
19
13
18
17
16
12 Harness Adjuster (under flap)
13 Harness Adjuster Strap
14 Head Pad Straps
15 Versa-Tether®Assembly
16 Harness Straps
17 LATCH/Tether/User Guide
Storage Pouches
18 Harness Yoke
19 Recline Bar
20 LATCH Connectors
P2315_R01e.qxd 11/7/2003 1:01 PM Page 8

8
Vehicle Seating Positions
Vehicle Safety Belts
NOTE: The information in this section only
applies to installation with vehicle seat
belts.
IMPORTANT: Some vehicles have no seating
positions which are compatible with this
restraint, or any other restraint. If in
doubt, contact your vehicle manufacturer
for assistance.
The following types of vehicle seat belts are
not compatible with this restraint:
Front vehicle belts with top or bottom
anchorage points in the door.
Motor driven automatic vehicle belts.
Three-point belts that have separate
retractors for the shoulder section and
the lap section.
Non-locking (ELR) vehicle belts.
The owner's manual for your vehicle will have information on the types
of vehicle belts in your vehicle. If your belt type is listed above, select
another seating position or use LATCH connectors.
This restraint can fit securely in most vehicles using the existing vehicle
belts. However, some types of vehicle designs prevent a secure fit of the
restraint due to the position of the vehicle belt lower anchorage points.
WARNING:
• Forward facing vehicle seats MUST be used with this restraint. Side
facing or rear facing seats in vans, station wagons or trucks
CANNOT be used.
• Britax®and the U.S. Department of Transportation warn that
children 12 and under must ride in the rear seats, away from front
air bags. The only exception is if the air bag has been turned off.
9
P2315_R01e.qxd 11/7/2003 1:02 PM Page 10

10 11
Installation
LATCH Installation
1 Verify that your vehicle is
equipped with LATCH anchors
(Fig A).
• If LATCH anchors are not installed,
you must use standard vehicle
belt installation methods.
2If stored, remove LATCH
connectors from storage
pouches on rear of cover.
3Remove tether from pouch and
loosely attach to approved
anchorage point(s).
• See pages 18–19 for complete
Versa-Tether instructions.
• ALWAYS use the Versa-Tether!
4Place the restraint on the
vehicle seat with the back
facing toward you.
5Route the furthest LATCH
connector under the recline bar,
then attach to LATCH anchor
(Fig. B).
• Apositiveclickconfirms attachment.
• Verify that LATCH harness is not
twisted.
6Rotate seat into forward facing
position.
7RoutetheclosestLATCHconnector
underthereclinebar,thenattach to
LATCH anchor (Fig. C).
• Apositiveclickconfirms attachment.
• Verify that LATCH harness is not
twisted.
8Pushrestraintfirmlyintothevehicle
backrest, while reaching through
belt slots to access loop end of
LATCHharnessadjusterstraps.Pull
straps under recline bar and
through slots to tighten (Fig. D).
Pull strap until all slack is removed
from the LATCH harness.
9Attach Versa-Tether®as
instructed on pages 18–19.
WARNING: Use vehicle belt (not
LATCH connectors) for
installations with children
weighingmore than48pounds
(21kg).Refer tothevehicle owner’smanualor contactthevehicle
manufacturer for the maximum weight rating for their LATCH
anchors. Unless specified otherwise by the vehicle manufacturer,
assume a 48-pound child is the vehicle LATCH anchor limit.
Removal
To remove the restraint, release both LATCH connectors from the
LATCH anchors by pressing the release buttons. Disconnect the Versa-
Tether from the tether anchor. Store LATCH connectors and tether
components in storage pouches on back of cover when not in use.
LATCH Anchors
A
B
D
Installation
C
E
P2315_R01e.qxd 11/7/2003 1:02 PM Page 12

13
Installation
4 Route the vehicle belt around
the back of the restraint then
through the second belt slot,
from the rear of the restraint
to the front
(Fig. C)
.
5 Verify that the vehicle belt is not
twisted, then buckle ( Fig. D) .
• If unable to buckle the vehicle belt
around the restraint using the long
route, use Lap-Shoulder Belt
Installation (Short Route) on pages
14
– 15.
6While pushing the restraint
firmly into the vehicle backrest,
remove all slack from the
vehicle belt.
• First remove slack from the lap
portion of the vehicle belt, then
the shoulder portion (Fig. E & F).
7Verify that the vehicle belt is
tight and the restraint is secure.
8Refer to Figure G to verify
correct routing of the vehicle
belt.
9Attach Versa-Tether®as
instructed on pages 18–19.
• ALWAYS use the Versa-Tether!
E
F
G
12
Installation

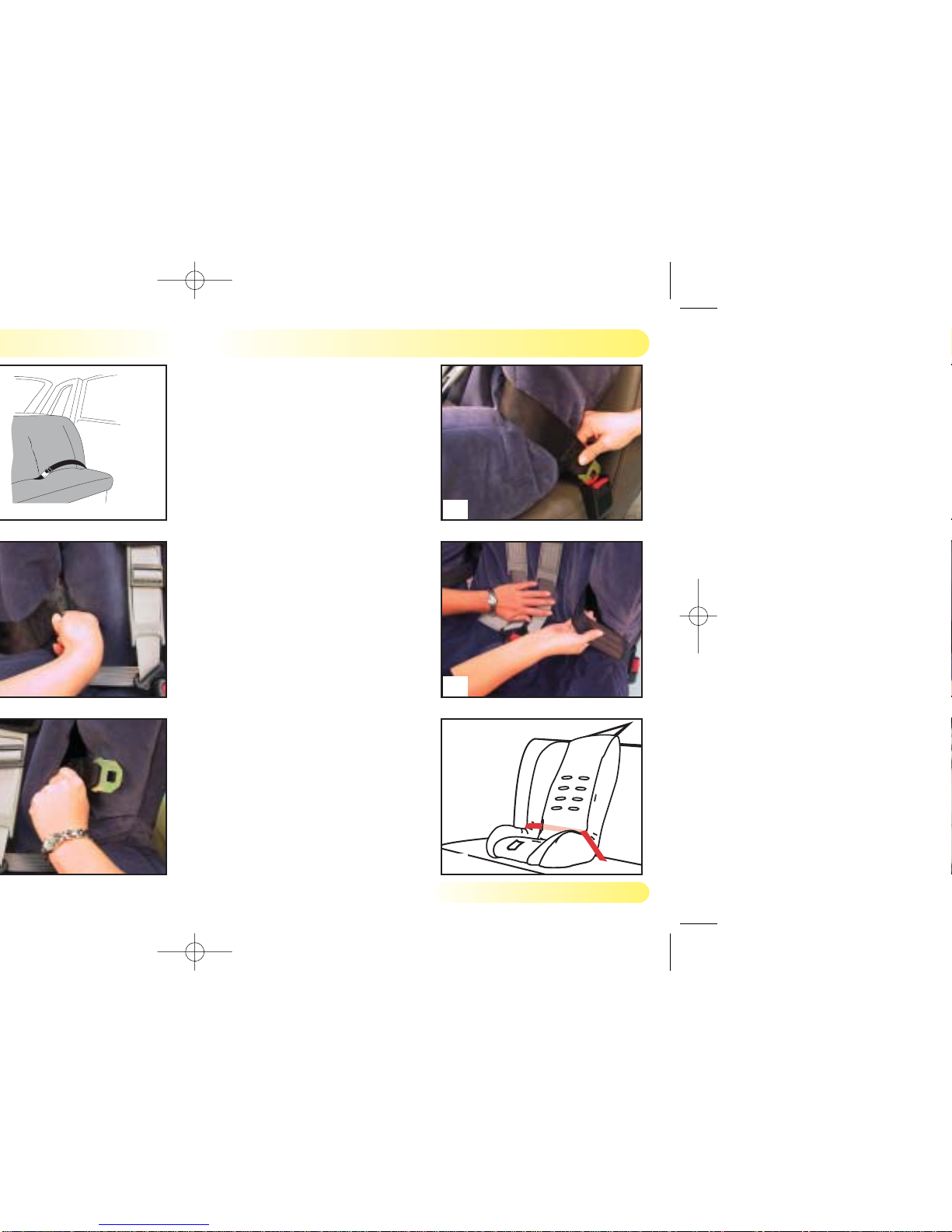

Lap-Shoulder Belt Installation
Long Route
(Recommended vehicle belt route)
•Figure A illustrates a typical lap-
shoulder belt installation.
•
When not in use, always store the
LATCH connectors in storage
pouches sewn in back of cover.
1Place the restraint in a forward
facingpositiononthe vehicle seat.
2Remove tether from pouch and
loosely attach to approved
anchorage point(s).
• See pages 18–19 for complete
Versa-Tether instructions.
• ALWAYS use the Versa-Tether!
3 Pull the vehicle belt out
completely and pass it through
the first belt slot, from the front of
the restraint to the rear (Fig B).
Shoulde
r
Lap
B
A
CD
P2315_R01e.qxd 11/7/2003 1:03 PM Page 14

1514
4 Route the vehicle belt under
the cover then through the
second belt slot, from the
front of the restraint to the
rear
(Fig. C)
.
5 Verify that the vehicle belt is
not twisted, then buckle ( Fig.
D) .
6While pushing the restraint
firmly into the vehicle backrest,
remove all slack from the
vehicle belt.
• First remove slack from the lap
portion of the vehicle belt, then
the shoulder portion (Fig. E).
7Verify that the vehicle belt is
tight and the restraint is secure.
8Refer to Figure F to verify
correct routing of the vehicle
belt.
9Attach Versa-Tether®as
instructed on pages 18–19.
• ALWAYS use the Versa-Tether!
Installation
Lap-Shoulder Belt Installation
Short Route
(Recommended ONLY if vehicle belt is
too short for Long Route)
•Figure A illustrates a typical lap-
shoulder belt installation.
•
When not in use, always store the
LATCH connectors in storage
pouches sewn in back of cover.
1Place the restraint in a forward
facing position on the vehicle
seat.
2Remove tether from pouch and
loosely attach to approved
anchorage point(s).
• See pages 18–19 for complete
Versa-Tether instructions.
• ALWAYS use the Versa-Tether!
3 Pull the vehicle belt out and pass
it through the first belt slot, from
the rear of the restraint to the
front (Fig B).
Installation
D
E
Shoulde
r
Lap
B
A
CF
P2315_R01e.qxd 11/7/2003 1:03 PM Page 16

1716
Installation
Installation
Lap Belt Only Installation
•Figure A illustrates a typical lap
belt only installation.
•
When not in use, always store the
LATCH connectors in storage
pouches sewn in back of cover.
1Place the restraint in a forward
facing position on the vehicle
seat.
2Remove tether from pouch and
loosely attach to approved
anchorage point(s).
• See pages 18–19 for complete
Versa-Tether instructions.
• ALWAYS use the Versa-Tether!
3 Pull the vehicle belt out, then pass
it through the first belt slot, from
the front of the restraint to the
rear
(Fig. B) .
4 Route the vehicle belt around
the back of the restraint then
through the second belt slot,
from the rear of the restraint
to the front (Fig. C) .
B
A
C
5
Verify that the vehicle belt is not
twisted, then buckle ( Fig. D) .
6While pushing the restraint
firmly into the vehicle backrest,
remove all slack from the
vehicle belt. ( Fig. E).
7Verify that the vehicle belt is
tight and the restraint is secure.
8Refer to Figure F to verify
correct routing of the vehicle
belt.
9Attach Versa-Tether®as
instructed on pages 18–19.
D
E
F
P2315_R01e.qxd 11/7/2003 1:04 PM Page 18

1918

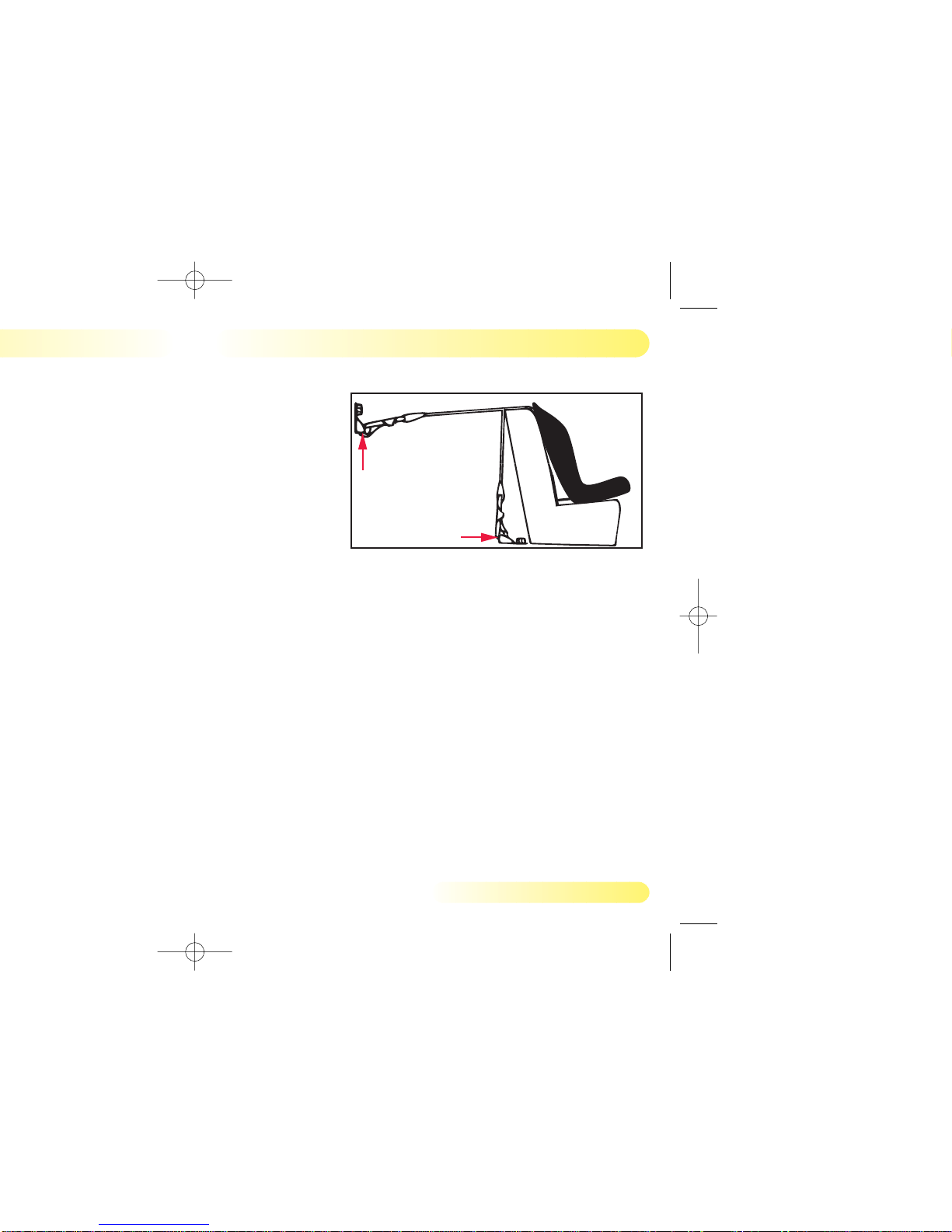

Versa-Tether®
Versa-Tether®
WARNING:
• ATTACH THE VERSA-TETHER ONLY TO TETHER ANCHORS
IDENTIFIED BY YOUR VEHICLE MANUFACTURER AS TETHER
ANCHORAGE POINTS. USE OF OTHER LOCATIONS IS NOT
APPROVED OR PERMITTED.
• THE VERSA-TETHER MUST BE USED AT ALL TIMES. USING
THE TETHER IMPROVES THE STABILITY OF THE RESTRAINT
AND REDUCES THE RISK OF INJURY.
•Use BOTH tether hooks for children heavier than 80 pounds (36
kg). Attach each hook to a separate tether anchor. One tether
anchor is not strong enough for children over 80 pounds.
• If your vehicle does not currently have a tether anchor
attachment, refer to your vehicle owner’s manual or contact
your vehicle manufacturer for assistance.
If a tether anchor is
not available, DO NOT modify your vehicle without advice from
your vehicle manufacturer.
Using the Versa-Tether
1Locate the teth-
er on the back
of the restraint.
2Once the
restraint is
secured with
the vehicle belts
or LATCH, lift
the tether
adjuster tab to
release the tether straps, then pull to fully extend tether.
3Locate the hooks on the strap.
4 Attach tether hook to tether anchor(s) in vehicle (Fig.A-1 OR
Fig. A-2).
• For children less than 80 pounds: hook the tether to an
anchor point using a single hook.
• For children more than 80 pounds: use BOTH tether hooks
and attach each hook to a separate tether anchor (Fig. A).
5 Pull the tether adjuster belt to remove all slack.
6 Verify that there is tension in the tether strap and that the
restraint is properly secured.
1
2
A
P2315_R01e.qxd 11/7/2003 1:04 PM Page 20

2120

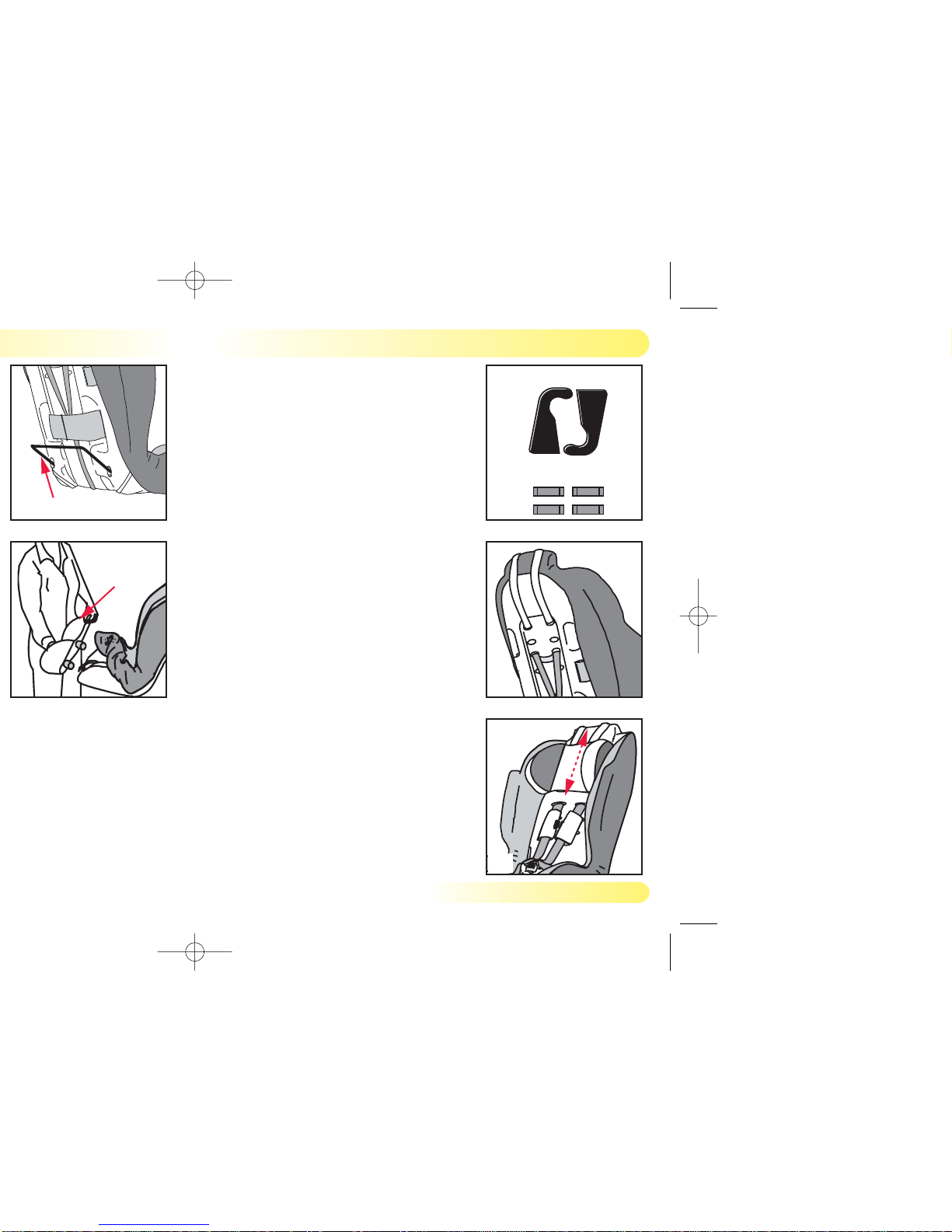

Using Restraint Features
Pad Inserts
The pad inserts are designed to be
adjusted to offer the child more or less
support as needed.
The two flat pads are intended for use
under the cover on the sides of the
restraint. The four foam cylinders are
intended for use under the cover and are
secured by elastic loops.
Head Pad
The head pad should be used to provide
additional padding and support for the
child’s head.
Attaching the Head Pad
Route straps through the top slots, then
over the top of the restraint (Fig. E) . Fasten
the head pad straps using the snap
buttons.
Adjusting the Head Pad
To adjust the height of the head pad, slide
it up or down as needed (Fig. F) .
Flat Pads
Cylinder Pads
Recline Bar
The recline bar allows the restraint recline
to be adjusted for comfort. Use of the
recline bar is optional.
Attaching the Recline Bar
Insert recline bar into the holes in lower
rear of restraint
prior to installation in
vehicle (Fig. A)
.
IMPORTANT: The bottom of the restraint
should be flat on the vehicle seat when
installed.
Seat Extension
The seat extension is intended to provide
extra leg support for taller children. Use
the seat extension when a child’s legs have
grown too long to allow a comfortable
seating position in the restraint alone.
Attaching the Seat Extension
Pull cover back from bottom of restraint. Insert seat extension into the
holes in front of restraint
prior to installation in vehicle (Fig. B) . Replace
cover.
Recline Bar
C
Using Restraint Features
Seat
Extension
B
A
D
E
P2315_R01e.qxd 11/7/2003 1:04 PM Page 22

2322
Using Restraint Features

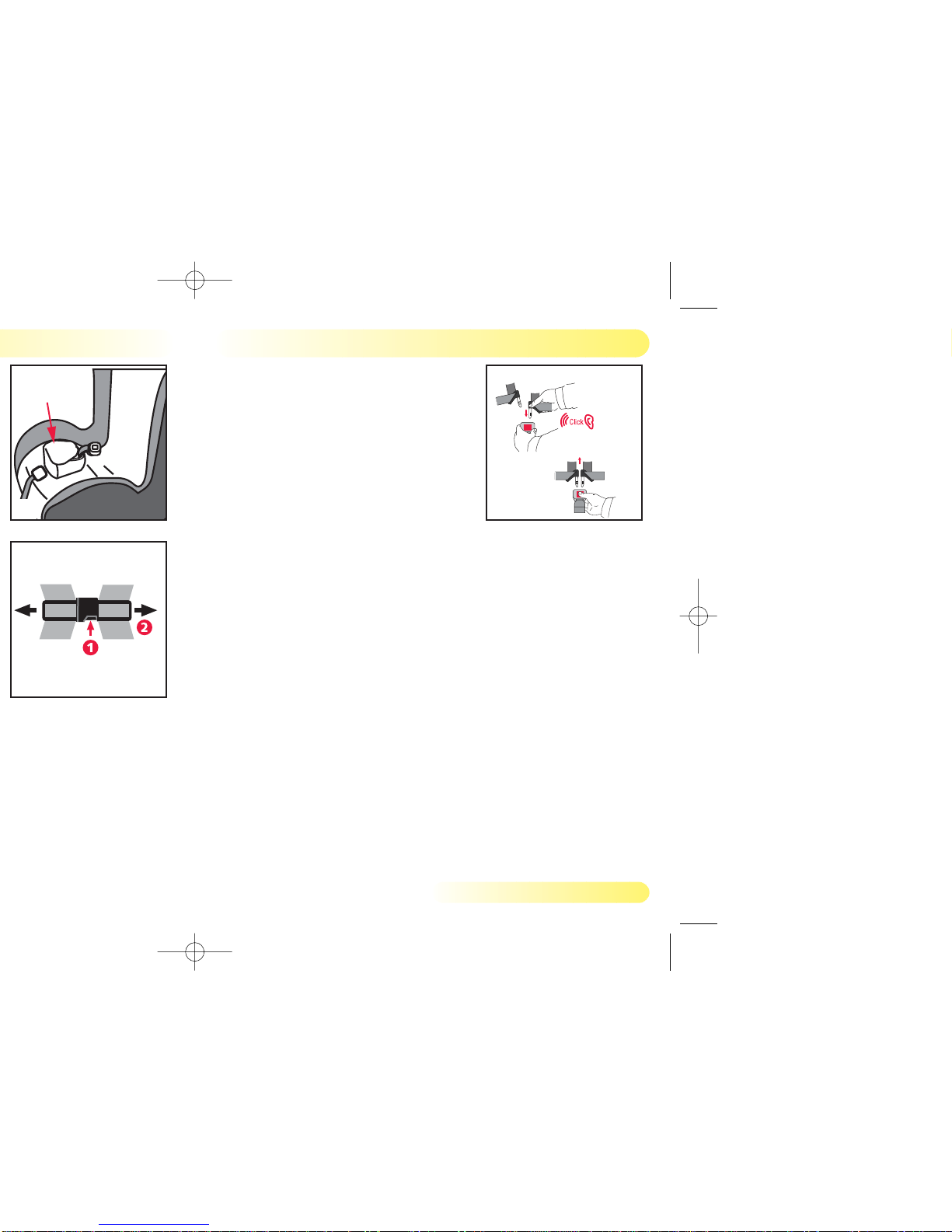

Buckle
Fastening the Buckle
1Hold the buckle with one hand.
2Use your other hand to insert one
tongue at a time into the buckle. Proper
connection is confirmed with a positive
click, after inserting the second buckle
tongue ( Fig. C ) .
Releasing the Buckle
1Brace the rear of the buckle with hand.
2Use thumb to press release button until tongues are ejected from
buckle
(
Fig. C )
.
NOTE: Periodically clean the buckle to ensure proper operation.
See
page 29.
Pommel
The pommel (Fig. A) is intended for extra
comfort with older children. While the
pommel is optional, the belly pad should
always be used.
Removing the Pommel
To remove, slide belly pad and pommel off
the buckle. Replace belly pad.
Installing the Pommel
To install, slide belly pad off buckle to
remove. Slide pommel then belly pad on
buckle.
Chest Clip
IMPORTANT: The correct height for the
chest clip is at the middle of the chest,
level with the armpit.
Fastening the Chest Clip
Close chest clip by fitting the two halves together. The chest clip is
properly secured when a positive click is heard.
Releasing the Chest Clip
Open the chest clip by squeezing the middle tab, then pull the two
pieces apart (
Fig. B )
.
Pommel
Using Restraint Features
B
A
Unbuckle
Buckle
C
P2315_R01e.qxd 11/7/2003 1:04 PM Page 24

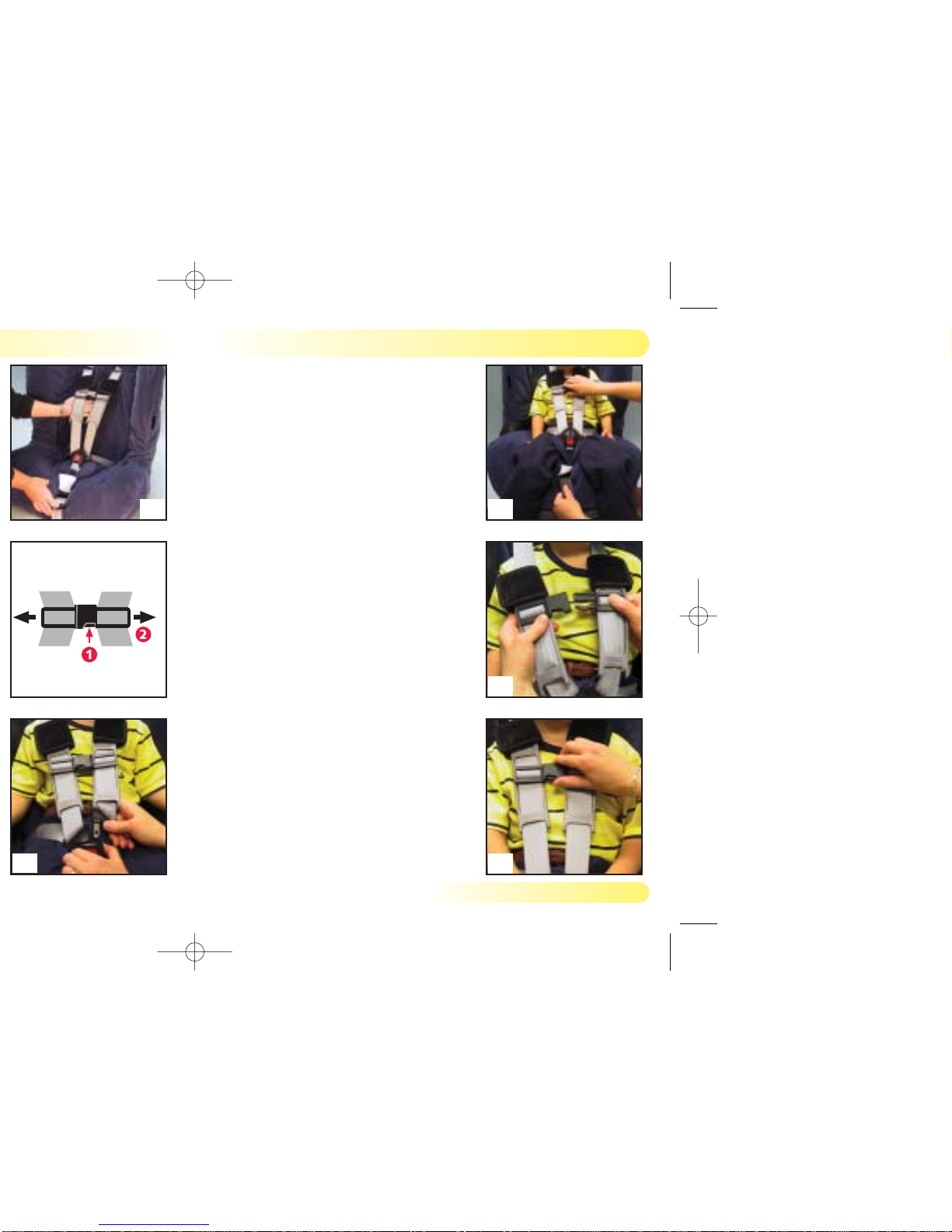

Securing Your Child
Securing Your Child
Once the restraint has been installed in
the vehicle, follow these instructions to
secure your child in the restraint.
IMPORTANT: Before securing your child
in the restraint, always check the
adjuster area for debris (e.g. food,
coins, toys, etc.). If debris is present, it
must be removed to prevent
interference with the adjuster
mechanism.
1Loosen the harness by lifting the
harness adjuster located in front of the
restraint, then pull the shoulder straps
forward (Fig. A).
2Unfasten the chest clip by squeezing
the middle tab
(Fig. B).
3Unfastenthebuckle by pressingdown on
the middle button.
4Move harness straps to the side of the
restraint. To aid in holding the straps,
insert the pieces of the chest clip into
elastic loops on the cover.
5Place child in the restraint.
6Position the harness straps around the
child and fasten the restraint buckle
(Fig. C). Proper connection is
confirmed with a positive click after
inserting the second buckle tongue.
7Gently pull up on the harness straps to
tighten the lap section of the harness,
which should fit low on your child's body.
8Slowly pull the adjuster strap to tighten
the harness around the child (Fig. D).
• Snugly adjust the belts provided with
this child restraint around your child. A
snug strap should not allow any slack. It
lies in a relatively straight line without
sagging. It does not press on the child’s
flesh or push the child’s body into an
unnatural position.
9 F
asten the chest clip by connecting the
two halves together (Fig. E).
• The correct height for the chest clip is at the
middle of the chest, level with the child's
armpit (Fig. F).
• The HUGS pads may be placed in any
position that is comfortable for the child,
within the range of the correctly placed
chest clip.
10 Verify that harness is not twisted and
child is properly secured.
• See Checking Harness Height on page 26.
A
B
C
D
E
F
2524
P2315_R01e.qxd 11/7/2003 1:05 PM Page 26

Adjusting Buckle Position
The buckle has two positions and
should be adjusted to fit your child
(Fig. D). Select the slot closest to, but
not under, the child.
WARNING: Do not use position two (2)
until child exceeds 50 pounds (23 kg)!
Remove the buckle, then rethread in
appropriate position. See page 30 for
buckle removal and rethreading instructions.
2726
Harness Height
Harness Height
3Pull one strap through the shell and
cover, to the front of the restraint.
4Thread the harness strap through the
appropriate harness slot (Fig. C).
5Reattach harness strap to the yoke.
6Repeat steps 3–5 for the second strap.
IMPORTANT: Do not remove HUGS system.
7Pull harness adjuster strap to tighten
the harness.
8Verify that all straps are threaded at the same height and are not
twisted.
Checking Harness Height:
1Place child in restraint, then secure
harness (see pages 22–23 ).
2Observe where the shoulder harness is
positioned on your child.
• Harness straps should be located in the
nearest slot at or above the child’s shoulders.
3If harness height is okay, continue using
restraint without adjustment. If harness
height requires adjustment, refer to
Harness Height Adjustment below.
NOTE: Once the top slots become
necessary, your child may continue to
use the restraint until the top of the
ears become level with the top of the
restraint shell, the child’s shoulder
height exceeds the height of the top
slots, or the child’s weight exceeds 105
pounds (48 kg).
Harness Height Adjustment
1Loosen the harness, by lifting the
harness adjuster while pulling the
shoulder straps forward as far as
possible (Fig. A).
2From the rear of the restraint, unhook the
shoulder harness from the yoke (Fig. B).
Forward Facing
Strap Height
B
C
A
Buckle Position
1
2
D
P2315_R01e.qxd 11/7/2003 1:05 PM Page 28

2928
Care and Maintenance
Care and Maintenance
Cover Removal
1Loosen the harness, by lifting the harness adjuster while pulling the
shoulder straps forward as far as possible.
2Unhook the shoulder straps from the yoke, on the rear of restraint.
3Pull upper harness straps through the shell and cover, to the front
of the restraint.
4Remove the belly pad and pommel from the buckle.
5Gently remove the upper portion of the cover. Be careful not to
damage the energy absorbing foam.
6Pull the lower harness straps, buckle tongues, chest clip, and
buckle through the slots in the cover.
WARNING:
• Do not take apart or attempt to take apart the harness. It is
unnecessary and dangerous to do so.
• Never remove the buckle tongues from the harness. They
cannot be reattached after removal.
• Never remove the HUGS system from the harness straps.
7Remove the entire cover from the restraint.
Refitting the Cover
To refit the cover, reverse Cover Removal directions. Make sure that
the shoulder straps are threaded through the chest clip and that
the harness is not twisted.
Cleaning the Cover
HAND WASH, using cold water and mild soap.
LINE DRY, to prevent cover from shrinking.
DO NOT:
• Bleach
• Machine wash
• Machine dry
Cleaning the Harness
SPONGE CLEAN, using warm water and mild soap.
TOWEL DRY
DO NOT:
• Bleach
•
Machine wash
•
Machine dry
• Disassemble the harness
Cleaning the Shell
SPONGE CLEAN, using warm water and mild soap.
TOWEL DRY
DO NOT:
•
Use abrasive cleaners
•
Disassemble the harness
P2315_R01e.qxd 11/7/2003 1:05 PM Page 30

31
30
Care and Maintenance
Care and Maintenance
Cleaning the Buckle
If your child eats and drinks while
in the restraint, you may need to
check the buckle periodically and
wash out any accumulated debris
or dried liquids.
THOROUGHLY RINSE, using
warm water (Fig. B).
SOAK, overnight if possible,
using warm water to loosen
hardened drinks or food.
TEST THE BUCKLE, by
fastening and unfastening until
a positive click is heard after
inserting the second buckle
tongue (Fig. C). If click is not
heard, repeat cleaning
procedure.
TOWEL DRY
DO NOT:
• Lubricate
•
Use solvents
•
Use soap or household detergents
B
BuckleUnbuckle
C
Buckle Removal
1 Locate the metal buckle strap
retainer on bottom of the
restraint.
2 Pull retainer away from
restraint to loosen.
3 Turn the retainer so that the
short side will go through the slot in the restraint shell (Fig. A) .
4 Push the retainer through slots in the shell and cover, to the
front of the restraint.
Rethreading the Buckle
1 Locate the necessary buckle slot.
2 Turn the buckle retainer so that the short side will go through
the slot in the cover and restraint shell
(Fig. A) .
3 Pull buckle away from restraint until tight, then verify that the
strap is not twisted and the release button is facing out.
4 Verify that the buckle retainer lies flat against the restraint shell.
A
P2315_R01e.qxd 11/7/2003 1:05 PM Page 32

32
Warranty
This restraint was distributed by SnugSeat
®
. SnugSeat warrants this product to the original
purchaser as follows:
LIMITED ONE-YEAR WARRANTY
This product is warranted against defective materials or workmanship for one year from the
date of original purchase. Proof of purchase is required. Your exclusive remedy for this
warranty is that SnugSeat will, at its option, provide repair or replacement components for this
product or refund the original purchase price of the product. SnugSeat reserves the right to
discontinue or change fabrics, parts, models or products, or to make substitutions.
To make a claim under this warranty, you must contact SnugSeat at 1-800-336-7684 or write
to us using the address on the back cover of this booklet. Proof of purchase is required.
PLEASE COMPLETE AND MAIL THE OWNER REGISTRATION CARD WITHIN (30) DAYS OF
PURCHASE.
WARRANTY LIMITATIONS
This warranty does not include damages which arise from negligence, misuse or use not in
accordance with the product instruction.
The use of non-SnugSeat covers, inserts, toys, accessories, or tightening devices is not
approved by SnugSeat. Their use could cause this restraint to fail Federal Safety Standards or
perform worse in a crash. Their use automatically voids the SnugSeat warranty.
LIMITATION OF DAMAGES
The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or
written, express or implied. In no event will SnugSeat, or the retailer selling this product, be
liable to you for any damages, including incidental or consequential damages, arising out of
the use or inability to use this product.
LIMITATIONS OF WARRANTIES AND OTHER WARRANTY TERMS AND
STATE LAWS
Any implied warranties, including implied warranties of merchantability and fitness for a
particular purpose, shall be limited to the duration and terms of the express written warranty.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages, so the above limitations may not apply to
you. This warranty gives you specific legal rights, and you may have other rights, which vary
from state to state. Neither SnugSeat, nor the retailer selling this product, authorizes any
person to create for it any other warranty, obligation, or liability in connection with this product.
P2315_R01e.qxd 11/7/2003 1:05 PM Page 34
