Britax-Romer KIDFIX OEM User manual

2000026094 07/16
GB
15 kg – 36 kg
(~4 Y – 12 Y)
KIDFIX OEM / XP OEM
KIDFIX SICT OEM / XP SICT OEM
User instructions
160831_KIDFIX_OEM_XP_OEM_EN.indd 1 30.09.2016 08:33:43

07
03
09
06
04
05
08
01 02
A
B
- 1 -
1. PRODUCT OVERVIEW
01 ISOFIX fastening points (car) 05 ISOFIT locking arms
02 ISOFIX insertion aids 06 Release knob
03 Belt holder (dark red) 07 Safety button
04 Belt guide (bright red) 08 ISOFIT settings button
ASICT (KIDFIX SICT OEM & KIDFIX XP SICT OEM only) BXP-PAD (XP-PAD (KIDFIX XP OEM
& KIDFIX XP SICT OEM only)
160831_KIDFIX_OEM_XP_OEM_EN.indd 1 30.09.2016 08:33:43

09
10
12
11
- 2 -
USE AS BOOSTER SEAT
(ONLY GROUP 3 / 22 kg – 36 kg)
09 Seat cushion
10 Adjusting handle of the headrest
11 Storage compartment for operating instructions
12 Backrest
160831_KIDFIX_OEM_XP_OEM_EN.indd 2 30.09.2016 08:33:43

16
15
- 3 -
We are pleased that you have chosen our child seat to accompany your child
safely through a new stage of his or her life.
In order to protect your child correctly, the child seat must always be used
and installed as described in these instructions.
If you have any further questions regarding its use, please feel free to contact us:
Britax Childcare
Britax Römer
Kindersicherheit GmbH
Blaubeurer Strasse 71
D-89077 Ulm
Germany
T.: [phone]/-299
F.: [phone]
E.: [email protected]
www.britax.com
Britax Childcare
BritaxExcelsior Limited
1 Churchill Way West
Andover
Hampshire SP10 3UW
United Kingdom
T.: [phone]
F.: [phone]
E.: [email protected]
www.britax.com
These instructions use the following symbols stated below:
Symbol Keyword Explanation
DANGER! Risk of severe personal injury
WARNING! Risk of minor personal injury
CAUTION! Risk of material damage
TIP! Useful notes
Instructions that follow a set sequence are numbered.
Example:
1. Press the button…
Belt guide colours
For better dierentiation, the two vehicle
seat belts are highlighted in dierent
colours. The diagonal seat belt 16 in dark
red and the lap belt 15 in bright red.
Thecolour of the belt guides on the child
safety seat follows the same colour
scheme.
2. INTRODUCTION
160831_KIDFIX_OEM_XP_OEM_EN.indd 3 30.09.2016 08:33:43

- 4 -
BRITAX RÖMER
Vehicle child safety seat
Tested and certified according to ECE* R 44/04
Group Body weight
Child seat II+III 15 to 36 kg
*ECE = European Standard for Child Safety Equipment
The child safety seat has been designed, tested and certified according to
therequirements of the European Standard for Child Safety Equipment
(ECER44/04). The seal of approval E (in a circle) and the approval number are
located on the orange approval label (sticker on the child safety seat).
DANGER! This approval will be invalidated if you make any modifications to
the child safety seat. Only the manufacturer is permitted to make modifications
to the child safety seat. The child seat is approved for use both with and
without the XP-PAD.
WARNING! The child seat must only be used to secure your child in the
vehicle. It is in no way suitable for use as a seat or toy in the home. It is in no
way suitable as a seat or toy in the home.
DANGER! Never secure your child or the child safety seat with a 2-point
belt. If you secure your child in the child seat with only a 2-point belt,
then in the event of an accident this may cause serious injuries to your child,
possibly resulting in death.
3. CERTIFCATION
160831_KIDFIX_OEM_XP_OEM_EN.indd 4 30.09.2016 08:33:43

- 5 -
15 – 36 kg
4. USE IN THE VEHICLE
Please observe the instructions for using children's restraining systems
inthe operating instructions of your vehicle. The seat can be used in vehicles
with ISOFIX anchoring systems and a 3-point seat belt (see type list).
Please find the information on the seats approved for child safety of the weight
class 15 to 36 kg in the operating instructions of your vehicle.
The child seat is approved for one installation type:
Symbol Installation type Approval type
with the ISOFIT locking arms into theISOFIX
fastening points in the vehicle. Check the list of
vehicle types.
semi-universala)
a) This means that the child safety seat may only be used in vehicles that are listed in the vehicle type
list enclosed. This type list is consistently kept up to date. The latest version can be obtained from
us or from www.britax.com.
You can use your child safety seat as follows:
In the direction of travel Yes
Against the direction of travel No
1)
with 2-point belt No
with 3-point seat belt
2) and
ISOFIX fastening points
(between seat surface and
backrest)
Yes
on front passenger seat with
3-point seat belt
2) and ISOFIX
fastening points
Yes
3)
on outer rear seats with 3-point
seat belt
2) and ISOFIX fastening
points
Yes
1) Use is permitted on a rearward-facing vehicle seat (e.g. in a van or minibus) only if the vehicle seat is
also approved for use by adults. The seat may not be in the area of eect of an airbag.
2) The safety belt must be approved to ECE R 16 or a comparable standard (see test label on belt with
an "E" or "e" in a circle).
3) If there is a front airbag: Slide the vehicle seat a long way back and refer to any instructions in vehicle
owner's manual.
160831_KIDFIX_OEM_XP_OEM_EN.indd 5 30.09.2016 08:33:44

- 6 -
5. SAFETY NOTES
Please take the time to read these instructions carefully and keep them
to hand in the intended storage compartment 13 on the child safety seat at
all times! The instructions must be with the child safety seat if the latter is
passed on to a third party.
DANGER! For the protection of your child:
• In the event of an accident with a collision speed of more than 10 km/h,
thechild safety seat may be damaged without the damage becoming
immediately visible. In this case the child safety seat must be replaced.
Please dispose of it properly.
• As a rule, have your child safety seat checked if it was damaged (e.g if it falls
on the ground).
• Regularly check all important parts for damage. Ensure that all mechanical
parts, in particular, are fully functional.
• Never lubricate or oil parts of the child seat.
• Never leave your child unattended in the child seat in the vehicle.
• Only allow your child to enter and exit the vehicle on the pavement side.
• Protect the child safety seat from intensive direct sunlight when it is not in
use. The child safety seat can get very hot in direct sunshine. Child skin is
sensitive and could thereby be harmed.
• The more snugly the belt fits over your child's body, the better they will be
protected. Therefore avoid putting thick clothes on your child under the belt.
• Take regular breaks on long journeys in order to give your child the opportu-
nity to play around.
160831_KIDFIX_OEM_XP_OEM_EN.indd 6 30.09.2016 08:33:44

- 7 -
DANGER! For the protection of all vehicle occupants:
In the case of an emergency stop or an accident, unsecured persons or objects
may cause injury to other vehicle occupants. Please always check that…
• the backrests of the vehicle seats are locked, e.g. that a foldable rear seat
bench latch is engaged.
• all heavy or sharp-edged objects in the vehicle (e.g. on the parcel shelf) are
secured.
• all persons in the vehicle have their seat belts fastened.
• the child safety seat is always secured when it is in the vehicle, even if no
child is being transported.
WARNING! For your protection when handling the child seat:
• Never use the child safety seat free-standing, not even for test sitting.
• When swivelling up the backrest 12 , nothing must come between the back-
rest 12 and the seat cushion 09 . You or your child could pinch your fingers,
injuring them.
• To avoid damage, ensure that the child safety seat is not jammed in between
hard objects (car door, seat rails, etc.).
• Keep the child safety seat in a safe place when it is not in use. Do not place
any heavy objects on the seat and do not store it directly next to sources of
heat or in direct sunlight.
CAUTION! To protect your vehicle:
• Certain car seat covers made from more sensitive materials (e.g. velour,
leather, etc.) may sustain signs of wear and tear when using child safety
seats. For optimum protection of your car seat covers, we recommend using
the BRITAX RÖMER car seat protector from our range of accessories.
160831_KIDFIX_OEM_XP_OEM_EN.indd 7 30.09.2016 08:33:44

10 22
22
- 8 -
6. ADJUSTING THE HEADREST
A correctly set headrest 22 ensures that the diagonal seat belt section 16 is
optimally positioned, and gives your child optimum protection. The headrest 22
must be adjusted so that there is a space two fingers wide between the
headrest 22 and your child's shoulders.

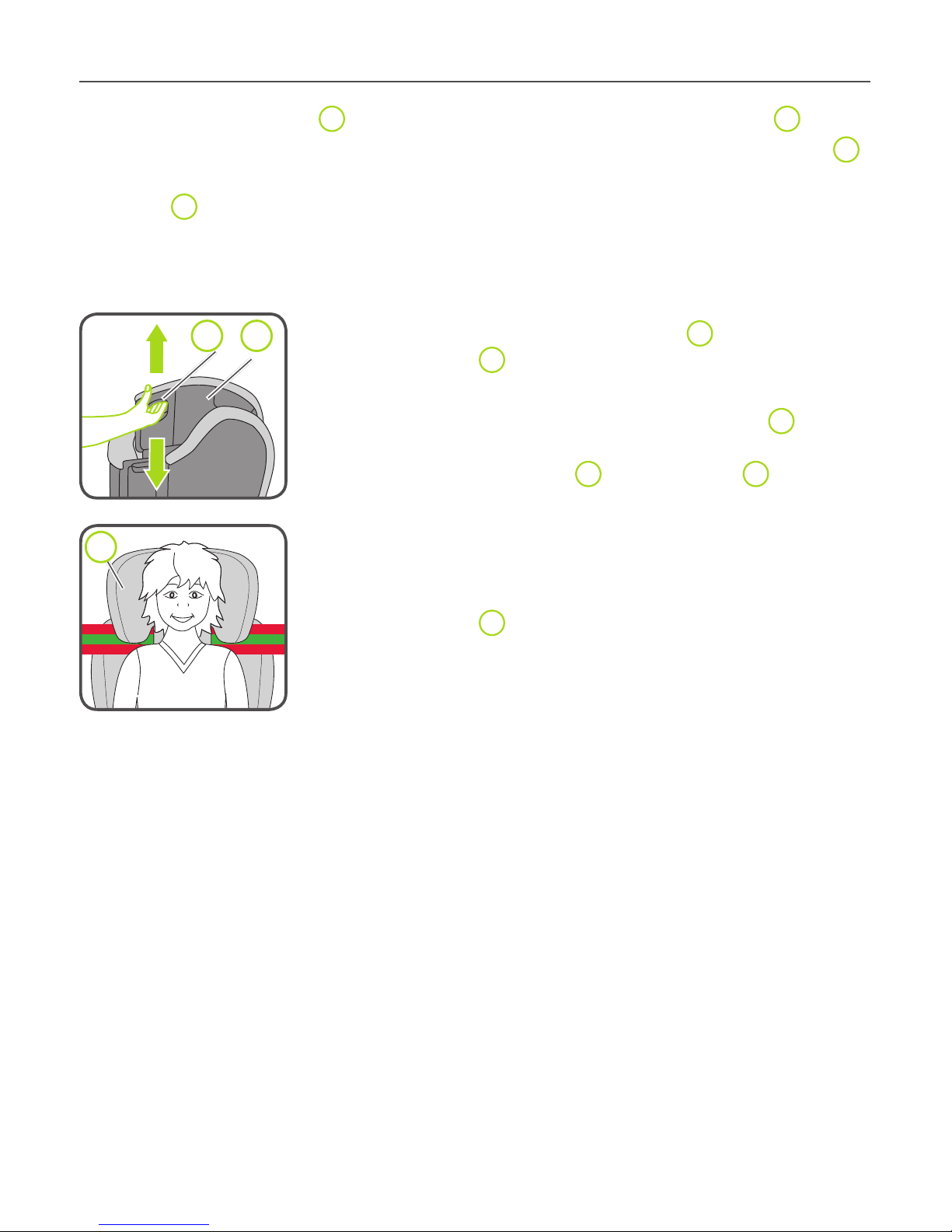

To adjust the height of the headrest to fit your child:
1. Reach into the adjustment handle 10 on the back of
the headrest 22 and pull it towards you. This unlocks
the headrest.
2. You can now move the unlocked headrest 22
tothedesired height. As soon as you release
theadjustment handle 10 , the headrest 22 will lock
into place.
3. Place the child safety seat on the vehicle seat.
4. Have your child sit down in the child safety seat
andcheck the height. Repeat the procedure until
theheadrest 22 has the correct height.
160831_KIDFIX_OEM_XP_OEM_EN.indd 8 30.09.2016 08:33:44

05
07
06
08
- 9 -
7. INSTALLATION WITH BACKREST
7.1 FASTENING WITH ISOFIT LOCKING ARMS AND BACKREST
The child seat is installed permanently in the vehicle with the ISOFIT locking
arms.
Your child is then buckled into the child seat with the vehicle's 3-point seat belt.
01 02

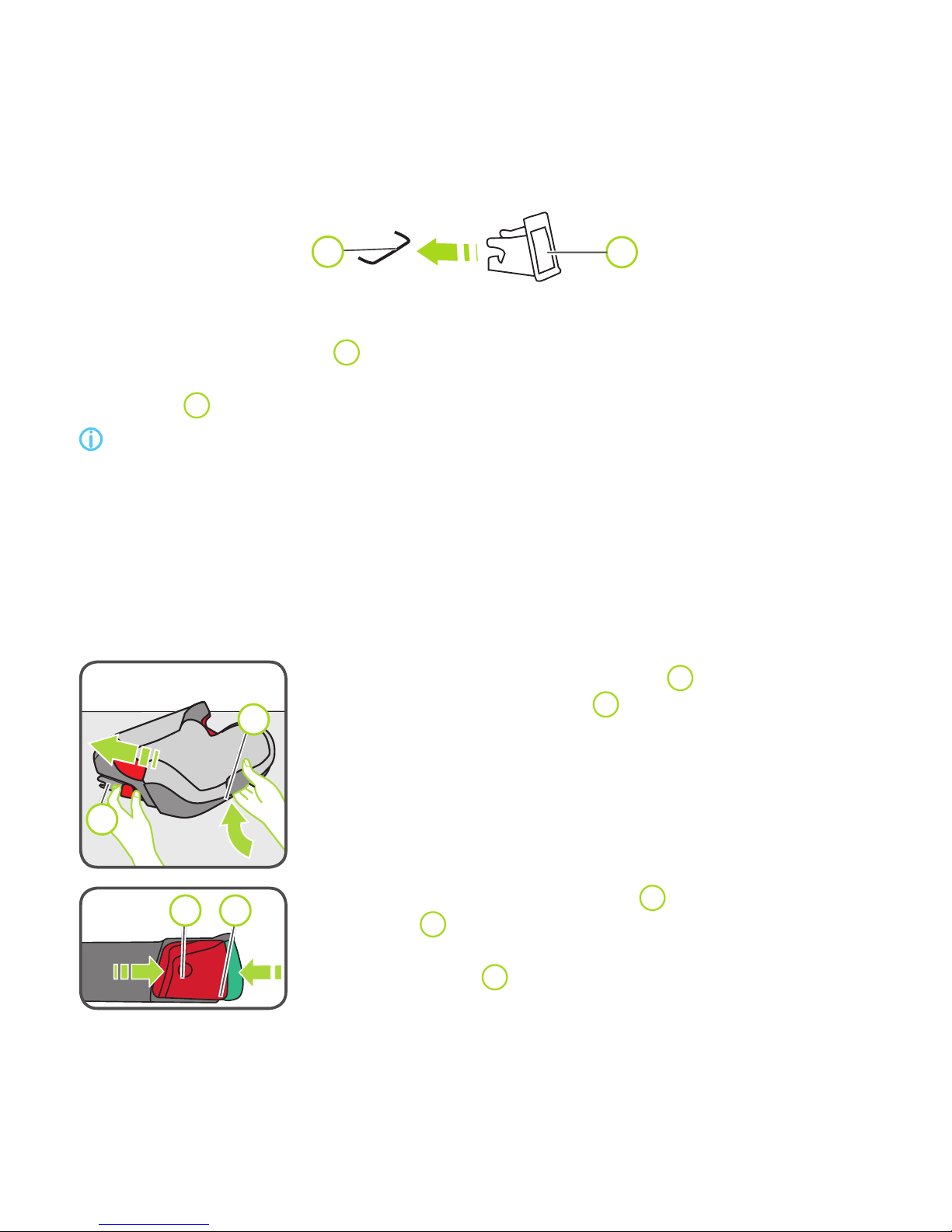

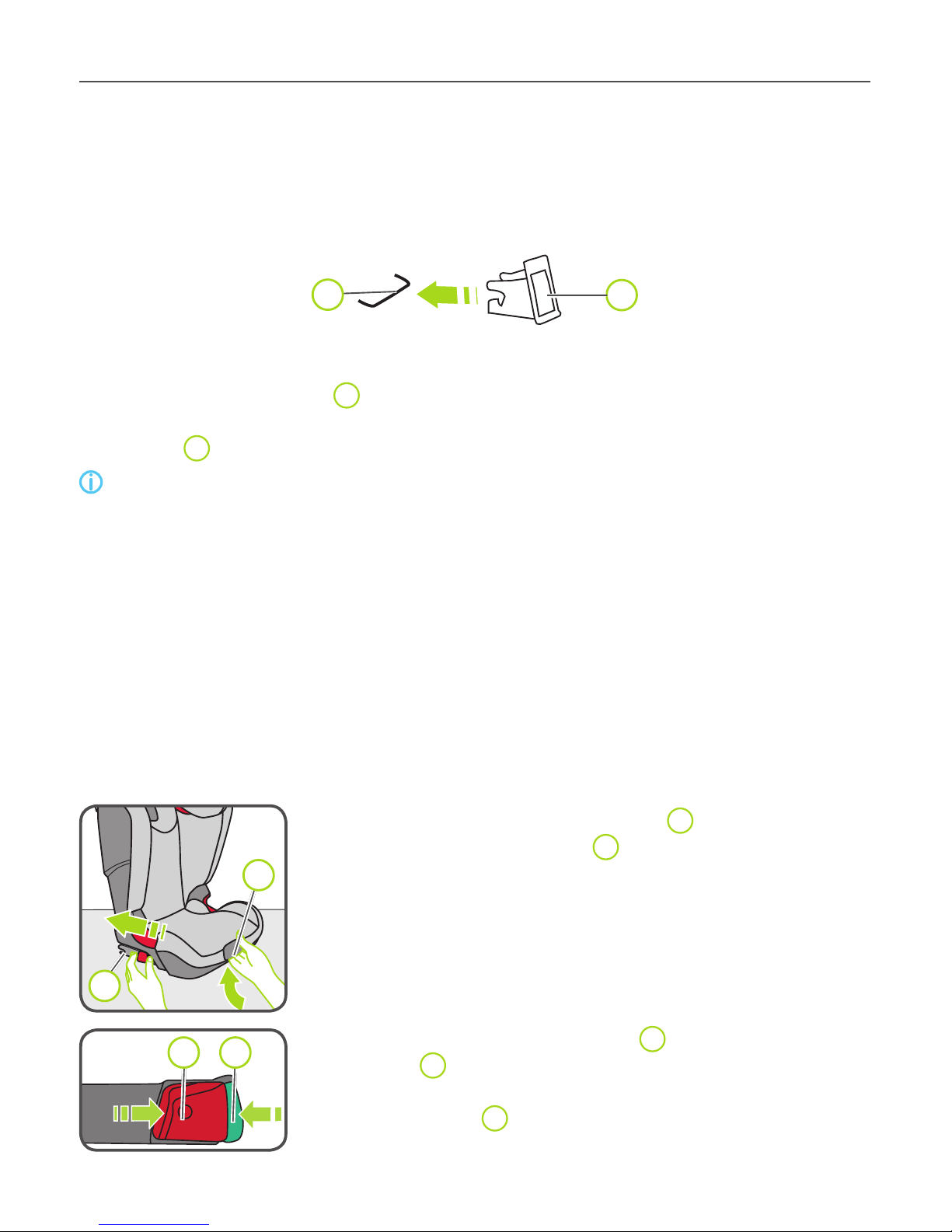

1. If your vehicle is not fitted with ISOFIX insertion aids by standard, clamp
thetwo insertion aids 02 , with are included in the scope of delivery of
theseat*, with the section pointing upwards to the two ISOFIX fastening
points 01 of your vehicle.
TIP! The ISOFIX fastening points are located between the surface and
thebackrest of the vehicle seat.
* The insertion aids facilitate the installation of the child safety seat with the use of the ISOFIX
fastening points and prevent damage to the car seat covers. As long as they are not used, remove
them and keep them in a safe place. For vehicles with foldable a backrest, the insertion aids need
to be removed before folding the backrest. Any problems occurring usually come from soiling or
external objects on the insertion aids and on the hook. Remove soiling or external objects to rectify
such problems.
2. Moving the headrest of the vehicle seat into the top position.
3. Carry out the steps in Section 6 "ADJUSTING THE HEADREST".
4. Hold the ISOFIT settings button 08 down and push
the ISOFIT locking arms 05 out in full.
5. Push the green safety button 07 and the red release
button 06 on both sides of the seat towards each
other. This ensures that both hooks on the ISOFIT
locking arms 05 are open and ready to use.
160831_KIDFIX_OEM_XP_OEM_EN.indd 9 30.09.2016 08:33:44

02 02
08
07
- 10 -

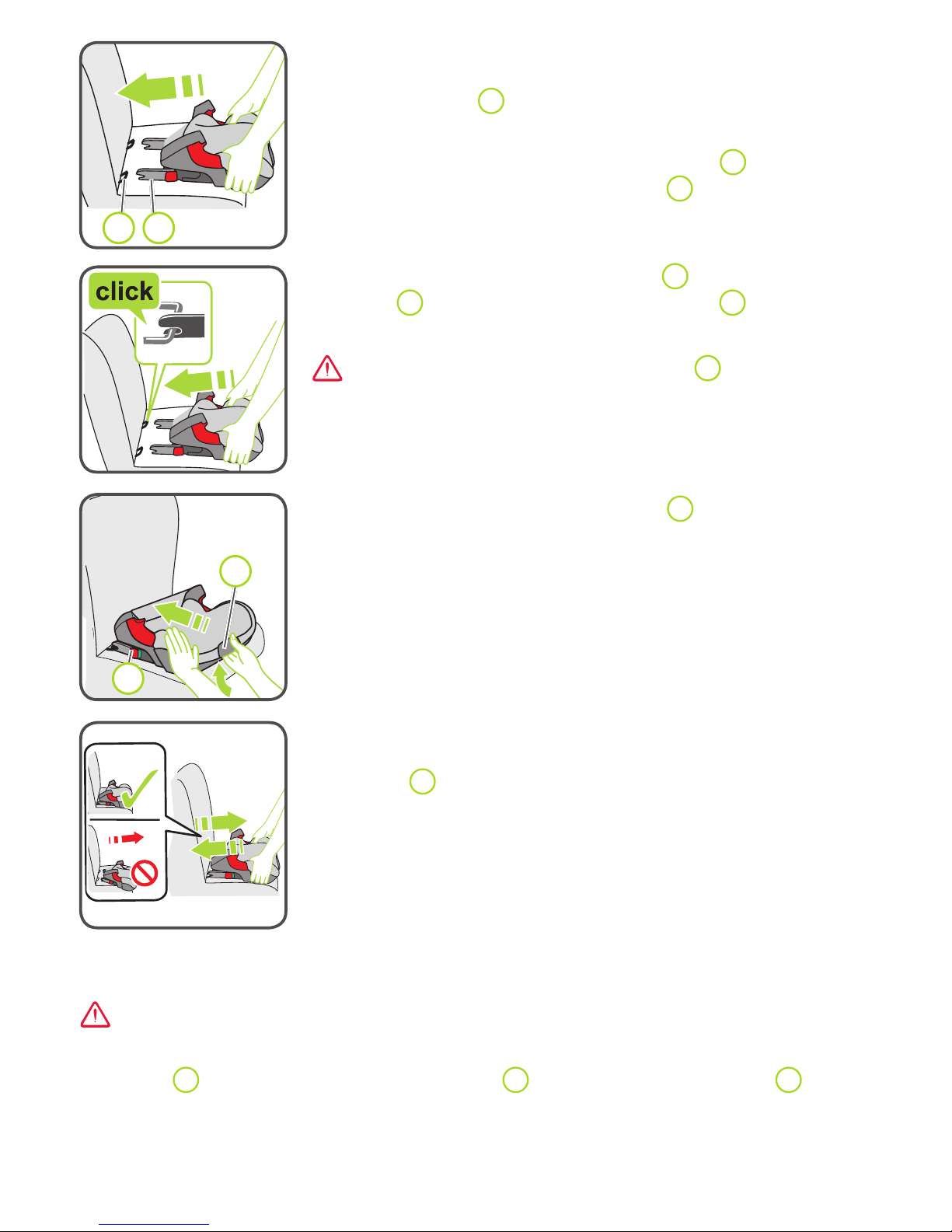

6. Place the child safety seat in driving direction on
avehicle seat approved for use. Ensure that the
backrest 10 is flush with the backrest of the vehicle
seat.
7. Position the two ISOFIT locking arms 05 directly in
front of the two insertion aids 02 .
8. Push both ISOFIT locking arms 05 into the insertion
aids 02 until the ISOFIT locking arms 05 engage on
both sides with a clicking sound.
DANGER! The green safety button 07 must be
visible on both sides so that the child safety seat
iscorrectly fastened.
9. Hold the ISOFIT settings button 08 down and push
the child safety seat as far back as possible.
10. Shake the child safety seat to ensure that it is
securely fastened and check the fastening buttons
again 07 to ensure that both are fully green.
11. Carry out the steps in Section 7.2 "SECURING
CHILD IN CHILD SEAT WITH BACKREST".
For the safety of your child, before every journey in the car check that…
►the child safety seat is slotted in on both sides with the ISOFIT locking arms 05
in the ISOFIT fastening points 01 and both safety buttons 07 are fully green,
160831_KIDFIX_OEM_XP_OEM_EN.indd 10 30.09.2016 08:33:45

- 11 -
►the lap belt 15 runs in the bright red belt guides on both sides of the seat
cushion 04 ,
►the diagonal seat belt section 16 on the side of the vehicle seat belt buckle 18
also runs through the light red belt guide 04 of the seat cushion,
►the diagonal seat belt section 16 runs through the dark red belt holder 03 of
the headrest,
►the diagonal seat belt section 16 runs diagonally backward,
►the straps are tight and not twisted,
►the seat belt buckle 18 must not be positioned on the bright red belt guide 04
in the seat cushion.
DANGER! If your child tries to open the ISOFIT safety buttons 07 or the
vehicle belt buckle 18 , stop as soon as possible. Check whether the child safety
seat is correctly fastened and ensure that your child is correctly secured. Explain
to your child the dangers associated with his actions.
UNFASTENING YOUR CHILD AND REMOVAL:
To unfasten your child or to remove the child safety seat, observe the steps in
Section 10 "REMOVAL".
7.2 SECURING CHILD IN CHILD SEAT WITH BACKREST
1.
KIDFIX SICT OEM & KIDFIX XP SICT OEM:
Unscrew the XP-SICT A anti-clockwise
(on the side closer to the vehicle door) until it
has a distance of 5mm to the vehicle door or
as been unscrewed to the maximum.
2.
KIDFIX XP OEM & KIDFIX XP SICT OEM:
Let your child sit in the child seat and place the
XP-PAD B over the chest area of your child.
If you find that the retraction force of the 3-point
seat belt is not enough to ensure that the seat
belt is tight (against the child), the child seat
can be used without the XP-PAD B ;
see Section 3 "APPROVAL" [PAGE 4].
B
A
160831_KIDFIX_OEM_XP_OEM_EN.indd 11 30.09.2016 08:33:45

- 12 -
04
15
16 22
03
18
16
15 04
18
3.
All versions:
Pull out the vehicle belt and guide it in front of your
child to the vehicle seat buckle 18 .
DANGER! Ensure the vehicle belt is not twisted, as
otherwise the full protective eect of the retaining
system is not ensured.
4. Engage the buckle tongue in the vehicle seat
buckle 18 with a CLICK.
5. Place the diagonal seat belt section 16 and lap
belt section 15 on the side of the vehicle seat belt
buckle 18 into the bright red belt guide 04 of the
seat cushion.
DANGER! The vehicle seat belt buckle 18 must not
be positioned between the bright red belt guide 04
and the armrest.
6. Also place the lap belt section 15 on the other side
of the seat cushion in the bright red belt guide 04 .
DANGER! The lap belt section 15 must lie as low
as possible over your child's hips on both sides.

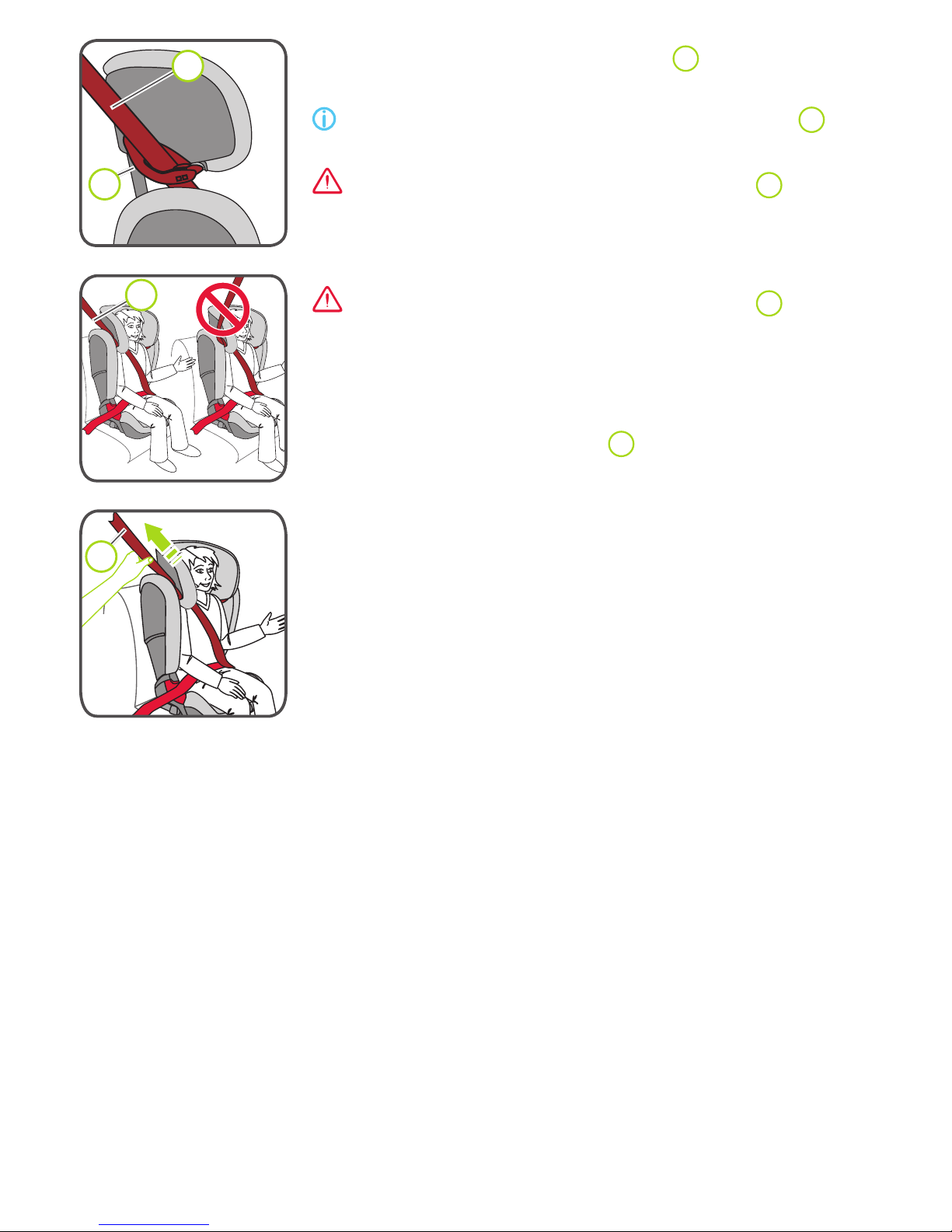

7. Guide the diagonal seat belt section 16 into the
dark red belt holder 03 of the headrest 22 until it
lies completely inside the belt holder 03 and is not
twisted.
TIP! If the backrest 12 conceals the belt holder 03 ,
you can adjust the headrest 22 upwards. The
diagonal seat belt section 16 can now be easily
inserted. Now move the headrest 22 back to the
correct height. Make sure that the button on the
belt holder 03 is fully fastened.
160831_KIDFIX_OEM_XP_OEM_EN.indd 12 30.09.2016 08:33:46

- 13 -
16
03
16
16

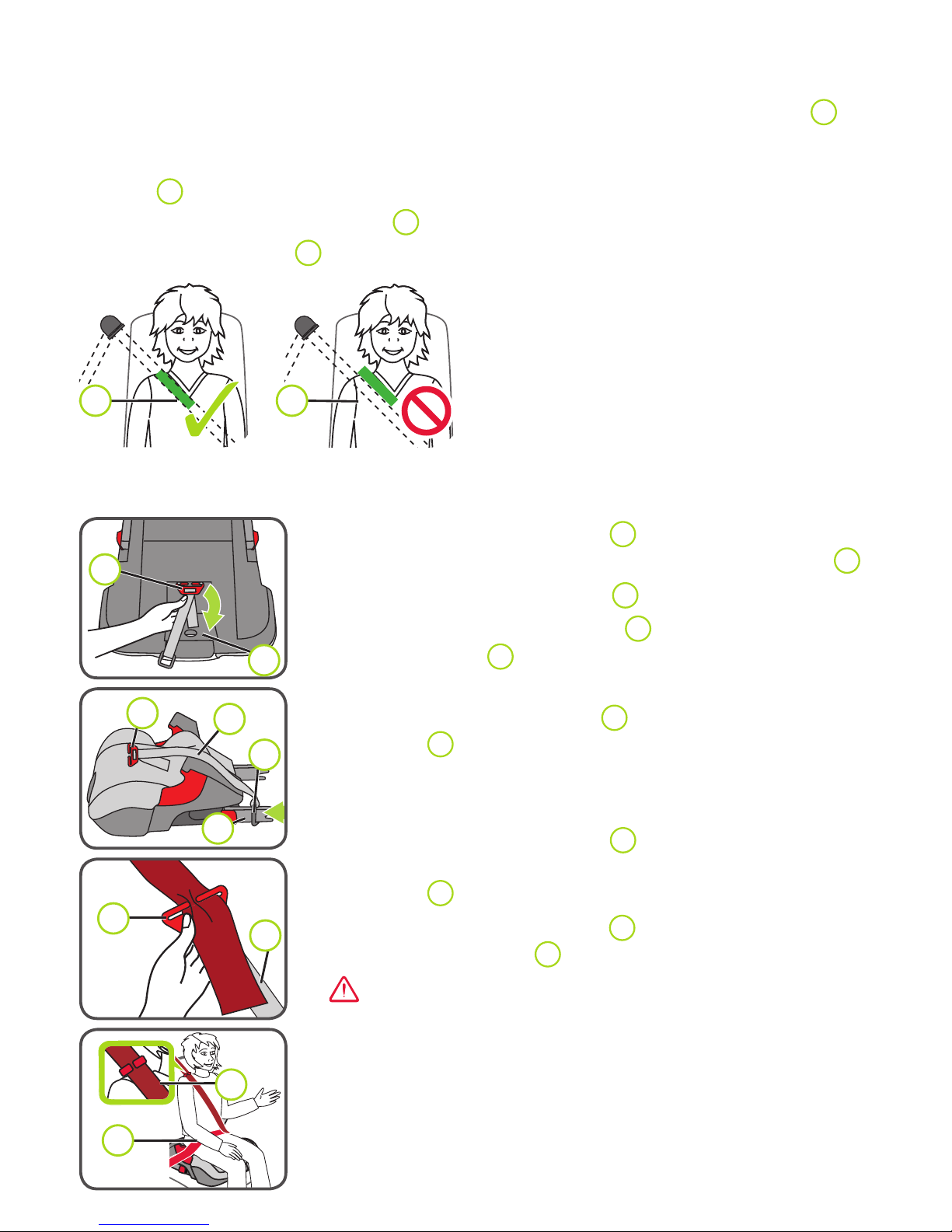

8. Make sure that the diagonal belt 16 runs over your
child's shoulder, and not in front of his or her neck.
TIP! You can adjust the height of the headrest 22
again in the vehicle.
DANGER! The diagonal seat belt section 16 must
run diagonally backwards. You can adjust the course
of the belt with your vehicle's adjustable belt
deflector.
DANGER! The diagonal seat belt section 16 must
never lead forward to the vehicle's belt deflector. In
this case, only use the vehicle child seat on the rear
seat.
9. Tighten the vehicle seat belt by pulling on the
diagonal seat belt section 16 .
10. Observe the steps listed on page 10 "To ensure the
safety of your child before every journey, check
that ...".
160831_KIDFIX_OEM_XP_OEM_EN.indd 13 30.09.2016 08:33:47

12
09
- 14 -
8. USE AS A BOOSTER SEAT
8.1 REMOVING THE BACKREST
The child seat can also be used for age group 3 (22 kg to 36 kg) as a booster
seat without the backrest.
The following steps describe the removal and assembly of the backrest. You will
need a TX20 Torx screwdriver for this.
BRITAX RÖMER recommends, if possible, that you use the backrest as this oers
your child optimum protection in the case of a side impact.
DANGER! Only use the product as a booster seat for age group 3 (22 to 36 kg).
For all other age groups, the product must be used with backrest.
1. Place the seat on a level surface.
2. Lift the cover of the backrest 12 and turn it back.
3. Lift the cover of the seat cushion 09 and turn it back.
4. Release the 4 Torx screws on the backrest 12 .
5. Pull the backrest 12 away from the seat cushion 09
at an angle.
6. In order to keep the screws safe, screw the 4 screws
back into the holes provided in the backrest 12 .
7. Pull the cover of the seat cushion 09 back and hook
the transparent plastic piece on the notch provided.
160831_KIDFIX_OEM_XP_OEM_EN.indd 14 30.09.2016 08:33:47

m
n
qm
o
p
qm
q
11
- 15 -
8.2 USING THE FLEXIBLE BELT GUIDE
For design reasons in some vehicle models, the diagonal seat belt section 11
does not run ideally over your child's shoulder.
Always check when using as a booster seat whether the diagonal seat belt
section 11 is in the intended area.
If the diagonal seat belt section 11 does not run within the intended (green) area,
the flexible belt guide mmust be used in addition.
11 11
Axing the flexible belt guide.
1. Open the belt guide flap non the bottom of the
booster seat and remove the flexible belt guide m.
2. Close the belt guide flap n.
3. Guide the metal fastening oover the ISOFIX
locking arm plocated on the side of the belt
buckle.
4. Place the fastening clip qof the flexible belt
guide mon the surface of the booster seat.
5. Observe the further steps of the installation type
(p. 16 .).
6. Mount the fastening clip qon the diagonal seat
belt section. Ensure that the belt of the flexible belt
guide mis not twisted.
7. Adjust the fastening clip qso that the diagonal
seat belt section 11 is within the green area.
DANGER! The diagonal seat belt section must
always be in the intended area.
160831_KIDFIX_OEM_XP_OEM_EN.indd 15 30.09.2016 08:33:48

08
05
06 07
- 16 -
8.3 FASTENING WITH ISOFIT LOCKING ARMS AS BOOSTER SEAT
(WITHOUT) BACKREST
The child seat is installed permanently in the vehicle with the ISOFIT locking
arms.
Your child is then buckled into the child seat with the vehicle's 3-point seat belt.
01 02
1. If your vehicle is not fitted with ISOFIX insertion aids by standard, clamp
thetwo insertion aids 02 , with are included in the scope of delivery of
theseat*, with the section pointing upwards to the two ISOFIX fastening
points 01 of your vehicle.
TIP! The ISOFIX fastening points are located between the surface and
thebackrest of the vehicle seat.
* The insertion aids facilitate the installation of the child safety seat with the use of the ISOFIX
fastening points and prevent damage to the car seat covers. As long as they are not used, remove
them and keep them in a safe place. For vehicles with foldable a backrest, the insertion aids need
to be removed before folding the backrest. Any problems occurring usually come from soiling or
external objects on the insertion aids and on the hook. Remove soiling or external objects to rectify
such problems.
2. Hold the ISOFIT settings button 08 down and push
the ISOFIT locking arms 05 out in full.
3. Push the green safety button 07 and the red release
button 06 on both sides of the seat towards each
other. This ensures that both hooks on the ISOFIT
locking arms 05 are open and ready to use.
160831_KIDFIX_OEM_XP_OEM_EN.indd 16 30.09.2016 08:33:48

02 05
08
07
- 17 -
4. Place the child safety seat in driving direction on
avehicle seat approved for use. Ensure that
thebackrest 10 is flush with the backrest of
thevehicle seat.
5. Position the two ISOFIT locking arms 05 directly
infront of the two insertion aids 02 .
6. Push both ISOFIT locking arms 05 into the insertion
aids 02 until the ISOFIT locking arms 05 engage on
both sides with a clicking sound.
DANGER! The green safety button 07 must be
visible on both sides so that the child safety seat
iscorrectly fastened.
7. Hold the ISOFIT settings button 08 down and push
the child safety seat as far back as possible.
8. Shake the child safety seat to ensure that it is se-
curely fastened and check the fastening buttons
again 07 to ensure that both are fully green.
9. Carry out the steps in Section 8.4 "SECURING
CHILD IN CHILD SEAT WITHOUT BACKREST".
For the safety of your child, before every journey in the car check that…
►the child safety seat is slotted in on both sides with the ISOFIT locking
arms 05 in the ISOFIT fastening points 01 and both safety buttons 07
arefully green,
160831_KIDFIX_OEM_XP_OEM_EN.indd 17 30.09.2016 08:33:49

18
16
15 04
18
- 18 -
►the lap belt 15 runs in the bright red belt guides on both sides of the seat
cushion 04 ,
►the diagonal seat belt section 16 on the side of the vehicle seat belt
buckle 18 also runs through the light red belt guide 04 of the seat cushion,
►the diagonal seat belt section 16 runs through the dark red belt holder 03
ofthe headrest,
►the diagonal seat belt section 16 runs diagonally backward,
►the straps are tight and not twisted,
►the seat belt buckle 18 must not be positioned on the bright red belt
guide 04 in the seat cushion.
DANGER! If your child tries to open the ISOFIT safety buttons 07 or
thevehicle belt buckle 18 , stop as soon as possible. Check whether
thechild safety seat is correctly fastened and ensure that your child is
correctly secured. Explain to your child the dangers associated with his
actions.
UNFASTENING YOUR CHILD AND REMOVAL:
To unfasten your child or to remove the child safety seat, observe the steps in
Section 10 "REMOVAL".
1. Have your child sit down in the child seat.
2. Pull out the vehicle belt and guide it in front of your
child to the vehicle seat buckle 18 .
DANGER! Ensure the vehicle belt is not twisted, as
otherwise the full protective eect of the retaining
system is not ensured.
3. Engage the buckle tongue in the vehicle seat
buckle 18 with a CLICK!
4. Place the diagonal seat belt section 16 and lap belt
section 15 on the side of the vehicle seat belt buckle
18 into the light red belt guide 04 of the seat cushion.
DANGER! The vehicle seat belt buckle 18 must not
be positioned between the bright red belt guide 04
and the armrest.
5. Observe the further steps in Section "8.2 USING
THE FLEXIBLE BELT GUIDE".
8.4 SECURING CHILD IN CHILD SEAT WITHOUT BACKREST
160831_KIDFIX_OEM_XP_OEM_EN.indd 18 30.09.2016 08:33:49

Removing the seat cover
1. Moving the headrest of the vehicle seat into the top
position.
2. Unhook the cover hook 19 on the rear of
thebackrest.
3. Remove the top part of the cover and fold it
forwards to the seat surface.
4. Unhook the cover hook 19 on the front of
thebackrest.
5. Pull the cover o of the seat surface.
Removing the headrest cover
6. Unhook the cover loop 20 on the rear of thebackrest.
7. Unhook the cover hook 19 on the front of thebackrest.
8. Pull o the cover of the headrest 22 .
►The cover can now be washed. Please observe
theinstructions on the washing label of the cover:
Re-fitting the cover
Proceed in reverse order to put on the cover.
9. CARE AND MAINTENANCE
Please ensure that you only use the original BRITAX RÖMER replacement seat
covers, as the seat cover is an integral part of the child safety seat and fulfils
important functions to ensure the smooth operation of the system. Replacement
seat covers are available from your dealer.
• The cover can be removed and washed with a mild detergent in the delicates
programme of the washing machine (30 °C). Please observe the instructions
on the washing label of the cover.
• The plastic parts can be cleaned using soapy water. Do not use any caustic
cleaning agents (such as solvents).
DANGER! The child seat must not be used without the seat cover.
19
19
20
22
19
- 19 -
160831_KIDFIX_OEM_XP_OEM_EN.indd 19 30.09.2016 08:33:50
