Broadata Communications LB-H2-2K4K/SCL User manual

LB-H2-2K4K/SCL
LINK BRIDGETM
HDMI2.0SCALER
BETWEEN 1080PAND 4KRESOLUTION
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2017 Broadata Communications, Inc.

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 3
SURGEPROTECTIONDEVICERECOMMENDED
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of
surge protection systems is highly recommended in order to protect and
extend the life of your equipment.

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION .............................................5
2.0 OPERATION CONTROL AND FUNCTIONS..................6
2.1 FRONT PANEL ................................................................6
2.2 REAR PANEL ...................................................................7
3.0 MAINTENANCE AND TROUBLESHOOTING................8
3.1 MAINTENANCE ...............................................................8
3.2 TROUBLESHOOTING ....................................................8
4.0 SPECIFICATIONS............................................................9
5.0 SERVICE PROCEDURE ...............................................10
5.1 REPLACEMENT POLICY .............................................10
5.2 RETURN AND REPAIR SERVICE .................................10
6.0 LIMITED WARRANTY ....................................................11
7.0 APPENDIX: INPUT/OUTPUT RESOLUTION ..............12

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
Features
•AnHDMI 2.0scaler with1080p up-scaleto 4K, or4K down-scale
to1080p
•Framerate conversionis notsupported
•SupportsHDMIvideo resolutionsup to3840x2160@60Hzand
4096x2160@60Hzwith 4:4:4 YUV
•Supportsaudio extraction

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Front Panel
1. OUTPUT: Select output resolution between PASS, 4K,
1080p.
a. PASS: bypass input with any formats to output
b.4K: onlyworks with1080p input.It willup-scale 1080pto
4K.
c.1080p: only workswith 4K input. It will down-scale 4Kto
1080p.
d.Frame rate conversion isnot supported
2. EDID: SelectAUTO,4K, 1080p
a. AUTO: It will automatically copy the EDID data from
display devices.
b. 4K: Force the EDID to 4K.
c. 1080p: Force the EDID to 1080p.
PASS 4K 1080p
AUTO 4K 1080p
OUTPUT
EDID
OUTPUT EDID
12

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 7
2.2 Rear Panel
1. HDMIInput: Supports HDCP2.2/HDMI 2.0, 4K60 4:4:4.
2. HDMIOutput
3. 3.5 mmAudio Extraction Output
4. ToslinkAudio Extraction Output.
5. RS-232- forfirmware upgrade only
6. POWER: 5V DC
7. Powerswitch
HDMI HDMI STEREO TOSLINK RS-232
INPUT OUTPUT RX GND TX DC5V
1
2
3
4
5
6
7

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
8
3.0 MAINTENANCE AND TROUBLESHOOTING
3.1 Maintenance
Thereis no operator maintenance otherthen keepingthe units
clean.
3.2 Troubleshooting
If the LB-H2-2K4K/SCL units do not operate properly after
installation,checkfor possiblecablebreaks, looseconnections,
and incorrect cable connections. If a problem exists on the
fiber link, please check your fiber connectors for improperly
cleaned fiber cables and connectors. If problems persist that
maybe fiberrelated, contact BCIat 1-800-214-0222for further
assistance.

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 9
4.0 SPECIFICATIONS
Input One(1) HDMIport
Output One(1) HDMIport
One(1)AnalogAudio port(3.5mm
jack)
One(1) Toslinkport
Control Buttons for selecting output
resolutionand EDID modes
Service RS-232,forfirmware upgrade
Physical
Dimensions(WxDxH) 5.63” x 3.27” x 1.03”
OperatingTemperature 0 C~40C
StorageTemperature -20 C to 60 C
PowerSupply [email protected]

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
10
5.0 SERVICE PROCEDURE
5.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,based onavailability,within 24to 48hours anywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
5.2 Return/Repair Service
The Link Bridge LB-H2-2K4K/SCL System contains no user
serviceablecomponents. If you have a problem withyour unit,
pleasecontact theCustomer ServiceDepartment. To facilitate
our return/repair processing please contact Broadata
Communications,Inc. toobtaina Return MaterialAuthorization
(RMA). Pleaseinclude the followinginformation:
• Productmodel number
• SerialNumber
• Completedescription ofproblem
• Hardwareinstallation description
BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance,CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 11
6.0 LIMITED WARRANTY
BroadataCommunications, Inc.(BCI) warrants,for aperiod ofone year
from date of shipment, each product sold shall be free from defects in
material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailureresulting frommisuse,abuse,neglect, alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeen causedby the Buyeror repairmade by a thirdparty. Limited
warrantiesgranted onproducts are tothe initialcustomer end-userand
arenottransferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCI SHALLNOTBELIABLETOANYONE FOR
CONSEQUENTIALORINCIDENTALDAMAGESARISING FROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OF ANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKE ANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THANAS STATED ABOVE.

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
12

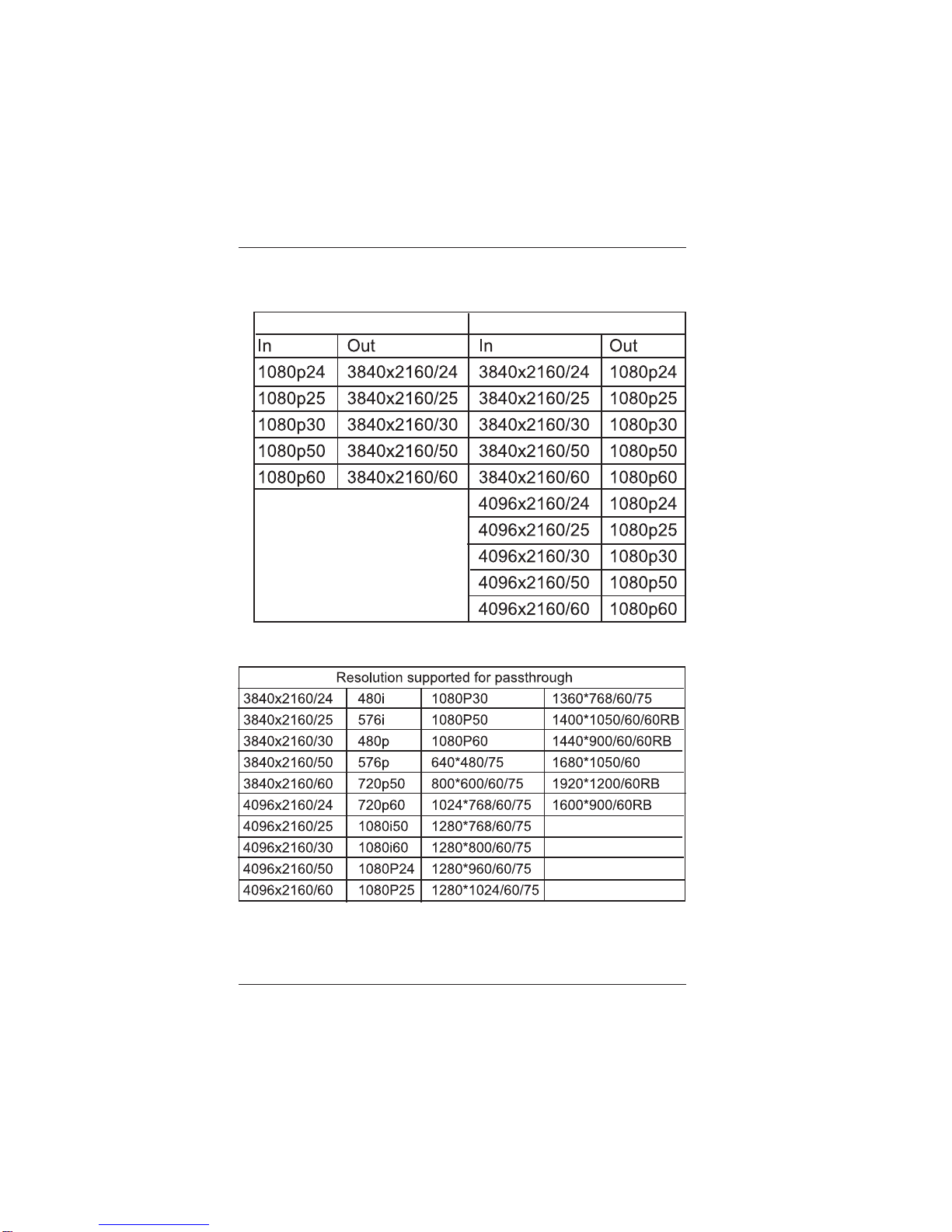

7.0 APPENDIX: INPUT/OUTPUT RESOLUTION
Scale Up Scale Down

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 13

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [phone]
14

LB-H2-2K4K/SCL User Manual
Link BridgeTM HDMI 2.0 Scaler
Broadata Technical Support, [email protected] 15

BroadataCommunications, Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website:www.broadatacom.com
60000-LB-H2-2K4K/SCL
