1.0 PRODUCT DESCRIPTION
TheLB-HDMI/DE-CH AudioDe-embedderhasbeenspecificallydesigned
formountingin theLB-CHchassis (Figure1),it allowstheuser toextract
audio signals from an HDMI source. When connecting an HDMI signal
to a TV or display the best audio is not always available, or in the case
of a PC monitor, there is no audio at all available. Thus, with the
LB-HDMI/DE unit the usercan take the originalHDMI audio signaland
convertit todigitaloptical oranalog Stereo(L/R)audio.This meansthat
there is an audio output available to external speakers or to audio
processinghardware, or to extendthe audio signalpathway.
Features
•Compliantwith HDMI,HDCP 1.2and DVI 1.0
•Supports HDMI audio sampling rates up to 192 kHz
•Supports Optical S/PDIF sampling rates up to 48 kHz
•Supportshigh-bit-rate(HBR) audio
•NoHDMI outputconnection is requiredto receiveaudio atthe
analogand opticaloutputs
•SupportsEDID managementfor audioformats, canswitch
amongbuilt-in EDID(LPCM2CH/Bitstream) andexternal EDID
(TV)
•Supports3D signal
Package Contents
1 LB-HDMI/DEAudio De-embedder
1 PowerAdaptor,12VDC
1 UserManual

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [phone]
6
Figure 1-1
Four LB-HDMI/DE-CH units mounted in the LB-CH rack mount chassis.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [email protected] 7
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Front Panel
2.1a Front Panel, Revision A
1. L/R Out:Connect to audioequipment suchas an amplifier
or active speakers with a stereo 3.5mm cable for audio
output.Supports unbalancedanalog stereo outputonly.
2. Link LED: TheLink LEDwill illuminate ingreen whenboth
the source and monitor is connected and has established
a link. This LED will also blink once while the power is
turnedon.
3. HDMI In: Connect to a source device such as a
DVD/Blu-ray player with anHDMI cable.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [phone]
8

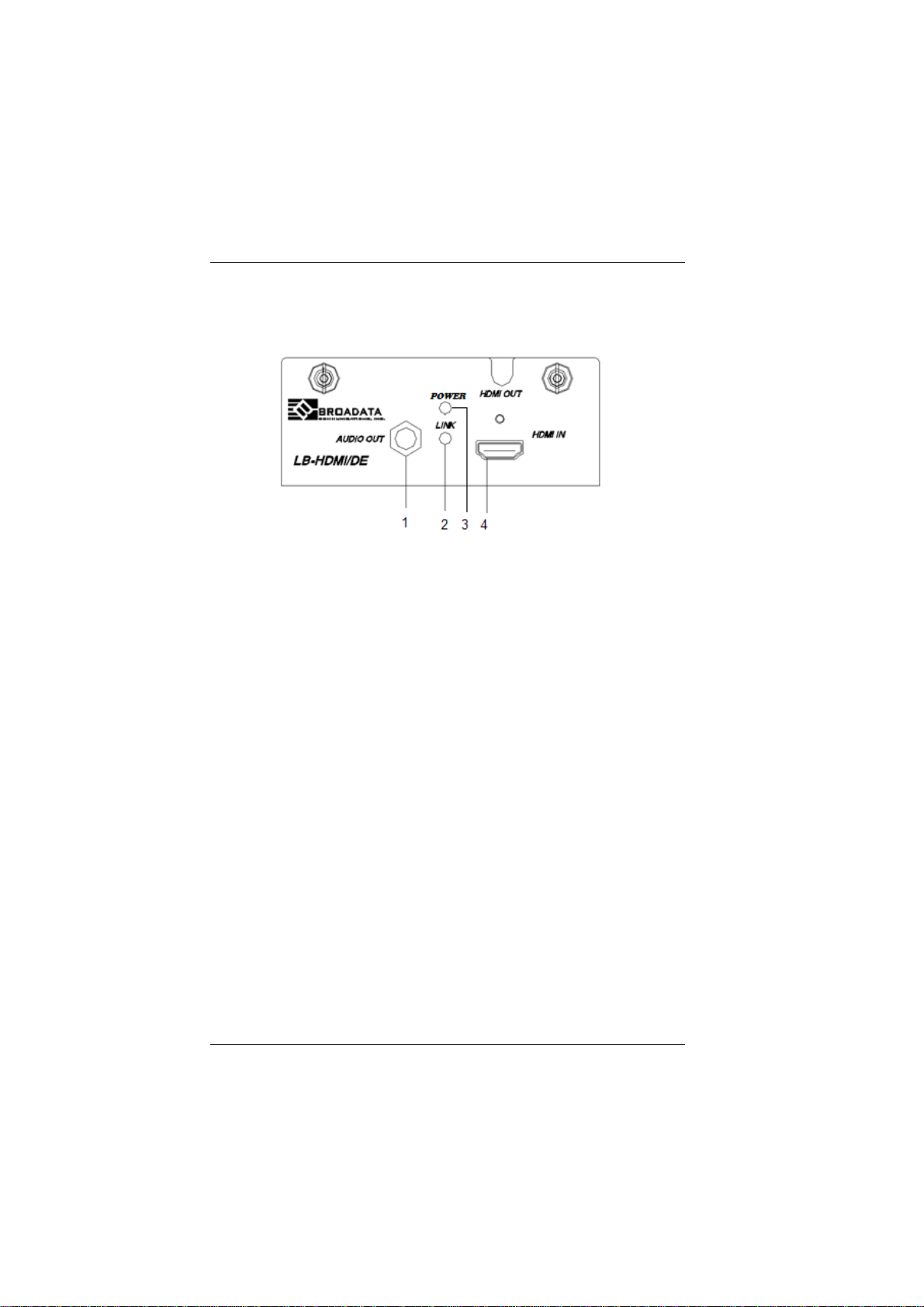

2.1b Front Panel, Revision B
1. L/R Out: Connectto audio equipment suchas an amplifier
oractivespeakerswithastereo3.5mmcableforaudiooutput.
Supportsunbalanced analog stereooutput only.
2. LINK LED: The LinkLED willilluminate ingreen whenboth
thesource andmonitor is connectedand hasestablished a
link.This LED willalso blink oncewhile the poweris turned
on.
3. POWER LED: The Power LED will illuminate green when
poweris applied
4. HDMIIn:Connect toasourcedevice suchasaDVD/Blu-ray
player with an HDMI cable.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [email protected] 9
2.2 Circuit Board
1. Power: Switches the unit ON or puts the device into standby
mode.
2. TV/Bitstream/2CH LPCM: This switch allows users to select
thesource’s audio EDID.
TV Mode: Switch to TV mode for the HDMI source to output
audioper theEDIDof connectedTV orAVreceiver,supportsup
to LPCM 7.1 channels.
BitstreamMode:Switch toBitstream modeforthe HDMIsource
to output Bitstream audio per the built-in EDID, supports up to
compressedaudio 5.1 channels.
2CH LPCM Mode: Switch to 2CH LPCM mode for the HDMI
sourceto output LPCM2 channels audioper the built-in EDID.
3. Optical Out: Connectto audio equipmentsuch asan amplifier
or Hi-Fi system with an optical cable for digital audio output.
Supportsbit-stream up to audio5.1CH and LPCM2CH.
4. HDMI Out:Connect tothe displaywith anHDMI cable forvideo
andaudiosignal output.No HDMIoutputconnection isrequired
to send audio through the analog and optical outputs.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [phone]
10
3.0 STAND-ALONE BOX ENCLOSURE
Forthe LB-HDMI/DE, besidesthe chassismount version, itdoes come
ina whiteplastic stand-alonebox enclosure. The connectors, switches
and functions are all the same but it does come with its own 5VDC
powersupply. Allother functionalityis asdescribed inSections 1.0 and
2.0of thismanualare indentical. Figure2 belowshowsthe Stand-alone
boxenclosure.
Figure 2-1
LB-HDMI/DE optional stand-alone box enclosure.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [email protected] 11
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereis nooperator maintenance otherthen keepingthe units
clean.
4.2 Troubleshooting
IftheLB-HDMI/DEunitsdonotoperateproperlyafterinstallation,
check for possible cable breaks, loose connections, and
incorrect cable connections. If a problem exists on the fiber
link,please checkyour fiberconnectors forimproperly cleaned
fiber cables and connectors. If problems persist that may be
fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
haspower.

LB-HDMI/DEUser’sManual
Link BridgeTM HDMIAudio De-embedder System
Broadata Technical Support, [phone]
12
5.0 SPECIFICATIONS
InputPort 1 x HDMI
HDMIAudio SamplingRate Up to 192 kHz
OpticalAudio Sampling Rate Up to 48 kHz
Output Ports 1×HDMI,1×Optical,1×L/R
HDMIAudio Format LPCM 2/5.1/7.1CH, Dolby 5.1,
DTS 5.1, DD+, D-
TrueHD &DTS-HD
OpticalAudio Format LPCM 2CH, Dolby 5.1 & DTS
5.1
L/R Audio Format Analog Stereo 2CH
Dimensions 90.7 mm (W)×85.8 mm (D)
×34 mm (H)
OperatingTemperature 0 C~40 C/32 F~104 F
Storage Temperature “20 C~140F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Chassismaterial Metal
BoxColor Black
OperatingTemperature 0o~ 50o
RelativeHumidity 0 ~95% RH(non-condensing)
PowerSupply 110– 240vAC50/60 Hz, 12v@
1.5ADC
PowerSupply V /A DC (US/EU standards,
CE/FCC/ULcertified) or5VDC
LinearPowerAdapter (US/EU
Standards,CE/FCC/ULcertified)
