1.0 PRODUCT DESCRIPTION
• Extend HDMI Signals up to 100 meters Over One CAT 5e/6
Cable
•SupportsFullHDTVVideoResolutionsup to 4K2K@30Hz
•FullyUncompressed Video&AudioProvidesZeroLossofQuality
•SupportsTrueDDC/EDID/HDCPTransmission
•Video/Audio+IR+Data+Ethernet, Over 1 CAT 5e/6 Cable
•Supports 48V PoH from transmitter (PSE) to Receiver (PD)
•HDMI 1.4 and HDCP 2.2 compliant
•Supports both RS232 and IR Control Data
•Supports USB 2.0 Keyboard and Mouse

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLS AND FUNCTIONS
2.1 Transmitter Front Panel
1. DC 48V & POWER LED: Plug the 48V DC power supply into
the unit and connect the adaptor to an AC outlet. Please do
followthe label onadaptertoconnectthe blackcabletoground
pin of connector. This LED will illuminate when the unit is
connected to a power supply.
2. IR IN 2:IR IN 2 is considered as IR extender which to connect
to the supplied IR Extender cables for IR signal reception.
Ensure that remote beingused is within the direct line-of-sight
of the IR Extender.
3. IR OUT 1: IR OUT 1 is considered as IR BLASTER which
connects to the supplied IR Blaster cable for IR signal
transmission. Place the IR Blaster in direct line-of-sight of the
equipment to be controlled.
4. USB: For receiving data from receiver and firmware update
use.
5. RS-232 IN: Connect to a PC or Laptop via RS-232 terminal
toD-Sub 9-pincablefor thetransmission ofRS-232 commands.
6. UPDATE: For firmware update use. Under normal usage, do
not move the switch to the left
123456
DC 48V POWER IR IN2 IR OUT1 USB UPDATE RS-232 IN
TX RX
+
-


LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [email protected] 7
2.2 Transmitter Left and Right Panels
1. CAT5e/6/7 OUT: Connects to the Receiver unit with a single
CAT5e/6/7 cable for transmission of all data signals includes
power.
2. LAN: Connects to an internet or network system.
3. HDMI IN: Connects to HDMIsourceequipmentsuch as aDVD
or Blu-ray player.
2.3 Receiver Front Panel
1. POWER LED: This power LED will illuminate when receiving
the power from transmitter.
2. IR IN 1: IR IN1consideredasIRextenderwhichtoconnectto
thesuppliedIR Extender cablesforIRsignal reception.Ensure
that remote being used is within the direct line-of-sight of the
IR Extender.
3. IROUT2: IROut 2consideredasIRBLASTERwhichconnects
to the supplied IR Blaster cable for IR signal transmission.
Place the IR Blaster in direct line-of-sight of the equipment to
be controlled.
CAT5e/6/7 OUT HDMI INLAN
123
Left Right
12 3 456
POWER IR IN1 IR OUT2 USB UPDATE
RS-232 OUT
TX RX

USB

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
8
4. USB: Connecting with USB interface keyboard or mouse.
5. RS-232 OUT: Connect to the unit that is to be controlled (via
RS-232terminalconnectswithD-Sub9-pincable)byRS-232
commands.
6. UPDATE: When update the firmware,theswitchshallarrange
to left side (just follow arrow direction on case) and arrange
backwhen completing.
2.4 Receiver Left and Right Panels
1. CAT5e/6/7 IN: Connects to the Transmitter unit with a single
CAT5e/6/7 cable for transmission of all data signals and
power.
2. LAN: Connects to an internet or network system.
3. HDMI OUT: Connects to HDMI source equipment such as a
display.
CAT5e/6/7 IN HDMI OUTLAN
123
Left Right

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [email protected] 9

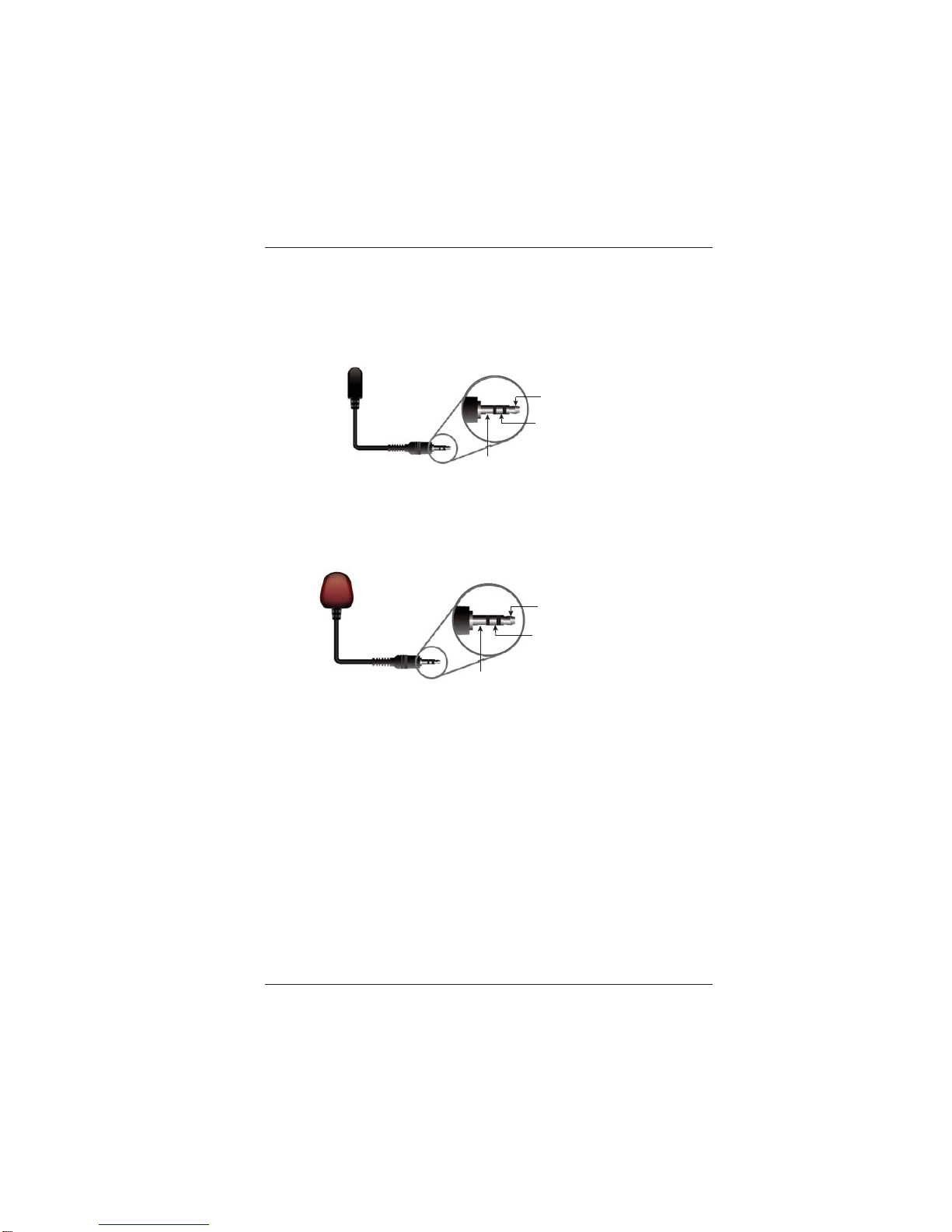

3.0 SERIAL CONTROL
3.2 IR Blaster Cable PinAssignment
3.3 IR Receiver Cable PinAssignment
IR Blaster Power 5V
IR Blaster Signal
NC
IR Receiver
IR Signal
Power 5V
Grounding

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
10
4.0 MAINTENANCE AND TROUBLESHOOTING
4.1 Maintenance
Thereisnooperatormaintenanceother then keeping the units
clean. However, observethefollowinglightindicatorstomake
sure that the unit is working properly:
4.2 Troubleshooting
IftheLBC-HDBT-T/R-48-KM unitsdonot operate properlyafter
installation,checkfor possiblecablebreaks, looseconnections,
and incorrect cable connections. If problems persist that may
be fiber related, contact BCI at 1-800-214-0222 for further
assistance.
For electrical problems, perform the following troubleshooting
procedures:
1. If the POWER indicator is OFF, check for the following:
a. The line cord is plugged into the unit and your outlet
haspower.
2. If the POWER indicator is ON, but the Link indicator is
OFF, check for the following:
a. Makesuretheappropriatecablesarebeingused.
b. Cableandcableconnectorsarenotbroken.
c. For each unit, the transmit (TX) cable is connected to
theotherunit’sreceiver (RX).
3. If the POWER indicator and Link indicator are ON, but
the channels are not operating, then:
a. Checktoseethatthe attacheduserequipmentisturned
on.
b. Bothendsofthelinkareconnectedto thecorresponding
equipmentandtothe samecorresponding channelport.

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [email protected] 11
c. Cable connections at both channels are securely
fastened to each connector. Turn the power off, then
back on to reset the link.

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
12
5.0 SPECIFICATIONS
VIDEO/AUDIO
HDMI Version 1.4 with 3D, 4K×2K support
VideoResolution Up to 4K2K @ 30Hz
Protocol DDC/EDID Capable, HDCP 2:2
VideoBandwidth 300MHz / 10.2Gbps
AudioFormats Supports up to 7.1CH & Dolby
TrueHD, DTS-HD MasterAudio
AudioSamplingRate 32KHzto192KHz
HDMI/AudioConnector HDMIFemaleplug
DATA
SerialControl RS232
Data Rate Up to 57.6Kbaud
Connector Terminal Block
IRData Rate 30 - 50KHz
In/OutConnectors 3.5mm Stereo
ETHERNET
EthernetSpeed 100 Mbps
LANConnector RJ45
USB
Function For USB 2.0 Keyboard/Mouse
Connector USBTypeA
ChannelCount Tx(1), Rx(2)
HDBTTRANSMISSION
Cable Type CAT 5e/6 or higher
Number of Cables 1
Connector/Distance RJ-45/Up to 100m

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [email protected] 13
PHYSICAL
Dimensions 6.42”(W) x 3.07”(D) x 0.63”(H)
PowerConsumption +48 VDC @ 0.9 Amps (Max.)
OperatingTemperature 0 to +40oC
Humidity 20 to 90% RH,Non-Condensing

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
14
6.0 SERVICE PROCEDURE
6.1 Replacement Policy
Standard products found defective on arrival (DOA) will be
replaced,basedonavailability, within 24 to 48 hoursanywhere
in the U.S. Please call Customer Service at 800-214-0222 for
information.
6.2 Return/Repair Service
The LBC-HDBT-T/R-48-KM System contains no user
serviceablecomponents.Ifyouhaveaproblemwith your unit,
pleasecontactthe Customer Service Department. Tofacilitate
our return/repair processing please contact Broadata
Communications,Inc.toobtainaReturnMaterialAuthorization
(RMA). Please include the following information:
• Productmodelnumber
• SerialNumber
• Complete description of problem
• Hardwareinstallationdescription
BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [email protected] 15
7.0 LIMITED WARRANTY
Broadata Communications, Inc. (BCI) warrants, for a period of one
yearfromdateof shipment, eachproductsoldshall be freefromdefects
in material and workmanship. BCI will correct, either by repair, or at
BCI’s election, by replacement, any said products that in our sole
discretion prove to be defective and are returned to the manufacturing
location within 30 days after such defect is ascertained. All warranties
are limited to defects arising under normal use and do not include
malfunctionsorfailureresultingfrommisuse,abuse,neglect,alterations,
electrical power problems, usage not in accordance with product
instructions, improper installation, or damage determined by BCI to
havebeencausedbytheBuyer or repairmadebyathirdparty. Limited
warrantiesgrantedonproductsareto the initial customer end-user and
arenot transferable. OURLIABILITYUNDERTHISWARRANTYSHALL
IN ANY CASE BE LIMITED TO THE INVOICE VALUE OF THE
PRODUCTSOLDANDBCISHALLNOTBELIABLETOANYONEFOR
CONSEQUENTIALOR INCIDENTALDAMAGESARISINGFROMTHE
USE OF ITS PRODUCTS OR THE SALE THEREOF. We make NO
WARRANTY AS TO THE MERCHANTABILITY OFANY GOODS, OR
THAT THEY ARE FIT FOR ANY PARTICULAR PURPOSE OR END
APPLICATION NOR DO WE MAKEANY WARRANTY, EXPRESSED
OR IMPLIED OTHER THAN AS STATED ABOVE.

LBC-HDBT-T/R-48-KMUser Manual
Link BridgeTM HDBaseT HDMI Transmission w/48V PoH over 100m & USB Keyboard/Mouse
Broadata Technical Support, [phone]
16

BroadataCommunications,Inc.
2545 West 237th Street, Suite K
Torrance, CA 90505
1-800-214-0222
[phone]
[phone] (Facsimile)
e-mail:[email protected]
Website: www.broadatacom.com
60000-LBCHDBTT/R48KM
