OVERVIEW
This document describes how to bring up and configure the Broadcom BCM53242M reference board.
Hereafter, the reference board is referred to as the BCM53242M reference board.
Figure 1 shows a high-level block diagram of the BCM53242M management reference board.
The Broadcom Software Development Kit (SDK) includes a Command Line Interface (CLI) for users to manage
the BCM53242M reference board and monitor its performance. To access the SDK, connect a management
console to the console port of the reference board. The management console can be a VT-100 terminal or a
PC running terminal emulation software.
Figure 1: BCM53242M Block Diagram
Figure 2 shows the front view of the board.
Figure 2: BCM53242M Front View
Note: Each port contains two LEDs. The upper LED includes three different indicators (ACT, Speed,
and Duplex). The user selects the desired indicator via the LED mode button. The LEDs adjacent to
the RJ45 connector shows the current indicator selected for the upper LED. The lower LED is the
Link indicator.
RJ45 4x2 RJ45 4x2 RJ45 4x2
Port LEDs
SW2
LD21
LD11
SFP Cage SFP Cage
RJ
45
RJ
45
Console
XFMR XFMR
Magnetics Magnetics Magnetics Magnetics Magnetics Magnetics
REFSS1
53242
Power
Supply
Module
U17
5482
U24
Flash
U21
5836
CPU
U7
U22
SDRAM
U11
SDRAM EEPROM
Dual GPHY
J1
J4
J10
JP1
SW1
RJ
45
U2
5221
2624681012141618202224
251357911131517192123
10/100 Gigabit
LED Mode
Duplex
Power Speed
ACT
25
1 3 5 7 9 111315 17192123
26
2 4 6 8 10 12 14 16 18 20 22 2 4
CONSOLE
Note: Each port contains 2 LEDs. The lower one is Link indicator. The upper one has 3 different indicator (ACT, Speed, Duplex), user can switch them by pushing “ LED
Mode
” button. And the LED near RJ45 will show which indicator is represented.

Broadcom Confidential
BCM53242M Quick Start Guide
04/02/07
Broadcom Corporation
Page 2 Connectors Document 53242M-QSG100-R
CONNECTORS
SETTING UP ABROADCOM SDK CONSOLE CONNECTION
TERMINAL-TO-SWITCH CONNECTION
Connect a terminal or a PC with terminal emulation software to the console port using an RS-232 straight
cable.
Figure 3: Terminal-to-Switch Connection
CONFIGURING THE HYPERTERMINAL UTILITY
HyperTerminal is a Windows®utility program for serial communications.
To configure HyperTerminal, follow these steps:
1. Start the HyperTerminal utility.
2. Select the COM port to communicate with the BCM53242M reference board.
Table 1: BCM53242M Connectors
Number Settings
J1 EJTAG connector for BCM5836 CPU
J4 SPI 6-pin connector
JP1 5V DC power connector
J10 Short pin 1 & 2: Big Endian
Short pin 3 & 2: Little Endian (default)
Note: The text on the PCB is not correct.
SW1 System reset button
SW2 Switches the function for the upper LED of each port.
RS-232 Cable
9-pin Female
Connector
9-pin Male
Connector 9-pin Female to
9-pin Male Cable
Broadcom Switch
Note: The console port on the demo system is a DB-9 connector.

Broadcom Confidential
Quick Start Guide BCM53242M
04/02/07
Broadcom Corporation
Document 53242M-QSG100-R Setting up a Broadcom SDK Console Connection Page 3
3. Set the serial port properties:
- Bits per second: 9600
- Data bits: 8
- Parity: none
- Stop bits: 1
- Flow control: none
The COM port Properties window should look like the following.
4. Click OK.
5. From the File menu, select Properties.
6. In the Properties window, select the Settings tab.
7. Configure the settings as shown in the following figure.

Broadcom Confidential
BCM53242M Quick Start Guide
04/02/07
Broadcom Corporation
Page 4 Setting up a Broadcom SDK Console Connection Document 53242M-QSG100-R
8. Click the ASCII Setup button to display the ASCII Setup window and configure the settings as shown in the
following figure.
9. Click OK.
10. Power up the BCM53242M reference board.

Broadcom Confidential
Quick Start Guide BCM53242M
04/02/07
Broadcom Corporation
Document 53242M-QSG100-R Setting up a Broadcom SDK Console Connection Page 5
If communication is successful, the SDK CLI prompt appears on the screen as shown below.
USING THE CLI
To display a list of all CLI commands, type help.
The initial network settings can be viewed by typing the commands shown in the following window.
You can use CLI commands to customize these settings. Use the save all command to save any changes
made during a session.
To set a specific static IP address, use the following sequence of commands:
1. BCM.0> shell
2. ecos> ifconfig eth1 10.144.2.4 netmask 255.255.255.0 gw 10.144.2.1
3. ecos> save all

Broadcom Confidential
BCM53242M Quick Start Guide
04/02/07
Broadcom Corporation
Page 6 Setting up a Broadcom SDK Console Connection Document 53242M-QSG100-R
Alternatively, to set the IP address via DHCP protocol, use the commands shown in the following example.

Broadcom Confidential
Quick Start Guide BCM53242M
04/02/07
Broadcom Corporation
Document 53242M-QSG100-R Schematics Page 7
SCHEMATICS
BCM53242M schematics are shown in the following pages.

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Size
Scale
DWG NO Rev
Sheet
of
Phone: [phone] Fax: [phone]
P3
Broadcom Corporation
824-115079-0110
Wednesday, March 07, 2007
110
A3
16215 Alton Parkway
P.O. Box 57013
Irvine, CA. 92619-7013
Block Diagram
Size
Scale
DWG NO Rev
Sheet
of
Phone: [phone] Fax: [phone]
P3
Broadcom Corporation
824-115079-0110
Wednesday, March 07, 2007
110
A3
16215 Alton Parkway
P.O. Box 57013
Irvine, CA. 92619-7013
Block Diagram
Size
Scale
DWG NO Rev
Sheet
of
Phone: [phone] Fax: [phone]
P3
Broadcom Corporation
824-115079-0110
Wednesday, March 07, 2007
110
A3
16215 Alton Parkway
P.O. Box 57013
Irvine, CA. 92619-7013
Block Diagram
RJ45 2X4
Magnetic
RJ45 2X4
Magnetic
RJ45 2X4
Magnetic
BCM53242
BCM5482S
SFP
RJ45
SFP
RJ45
RGMII
RGMII
BCM5836
RvMII
SPI EEPROM
MagneticMagnetic
Block Diagram of the following models
MDC/MDIO
25MHz
Xtal
25MHz
Xtal
48MHz
Xtal
RS232
DB-9
BCM953242R24M
Page 1: Block Diagram
Page 2: Power_Reset_Clock
Page 3: 53242_part1_RJ45_RGMII
Page 4: 53242_part2_Power_StrapPin
Page 5: RJ45_P1_P24
Page 6: BCM5842S_P25_P26
Page 7: BCM5836_SDRAM
Page 8: BCM5836_Flash_5221
Page 9: WebSmart_TF331
Page10: LED
MII
Copper/Fiber Auto-Detect
DC-to-DC
12V
1.2V
2.5V
3.3V
1.8V
1.8V Center Tap
Reversion History:
P1: Initial Release
P2: Change MDIO with 4.7K pull-up termination
P3: Change RvMII TXC/RXC connection
Flash
4Mbit x16 (8MB)
SDRAM
8Mbit x16(16MB)
SDRAM
8Mbit x16(16MB)
BCM5221
PHY AD=06h
RJ45+X'mr
optional for Management
[For WSS, SDRAM range 2x4Mx16~2x8Mx16]

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VCC_A
RESET_L
VCC_B
+2.5V +1.2V_D
12VCC
12VCC
+3.3V
+3.3V
+1.2V_A
12VCC 12VCC
12VCC
+1.8V
+3.3V
12VCC
12VCC
+3.3V
+3.3V
RESET_L 4,6,8,9,10
RESET_SOFT8,9
RESET_JTAG8
CLK25_5221 8
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
Power, Reset, Clock
Broadcom Corporation
210Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
Power, Reset, Clock
Broadcom Corporation
210Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
Power, Reset, Clock
Broadcom Corporation
210Wednesday, March 07, 2007
SO8SMA
TO252
SOT23
SOT23
SMASOT23
compatible: EM6325
EM6325CXSP5B-2.6
Threshold Voltage=2.63V
140ms Power On Reset
For EM6325
Up to 2.5A
Up to 4A
Up to 2.5A
FAN connector
FAN: ADDA
AD412HB-G70
C
3
E
21
B
SOD123 SOD123
104011-00
Up to 2.5A
SOT23
SOT23
SOT23
SMA
Molex 5566 series
R189
4.7K (DNI)
R189
4.7K (DNI)
TP13
BLACK
TP13
BLACK
R269
0 (DNI)
R269
0 (DNI)
R187
220
R187
220
D5
BZX84C18LT1
D5
BZX84C18LT1
+
C40
1000uF
6.3V
+
C40
1000uF
6.3V
D8
BZX84C18LT1
D8
BZX84C18LT1
R8
4.7K
R8
4.7K
C89
1000pF
C89
1000pF
C11 0.1uFC11 0.1uF
R180 2KR180 2K
+
C63
1000uF
16V
+
C63
1000uF
16V
TP5
RED
TP5
RED
+
C77
1000uF
6.3V
+
C77
1000uF
6.3V
C71
1uF
C71
1uF
R121
0
R121
0
D3
MBRA340
D3
MBRA340 C92
0.1uF
C92
0.1uF
C42
0.1uF
C42
0.1uF
7
2
18
Q2A
IRF7313
Q2A
IRF7313
INH
IGND
G
OUT O
PWR
PU25
25.000MHz
U25
25.000MHz
+
C27
1000uF
6.3V
+
C27
1000uF
6.3V
FB6
220OHM
FB6
220OHM
C62
0.1uF
C62
0.1uF
R123
30.1K
R123
30.1K
5
4
36
Q5B
IRF7313
Q5B
IRF7313
FB5
600@100MHz (DNI)
FB5
600@100MHz (DNI)
R128
2K
R128
2K
C86
0.1uF
C86
0.1uF
FB2
600@100MHz (DNI)
FB2
600@100MHz (DNI)
13
4 2
SW1
PB-SPST-MOM
SW1
PB-SPST-MOM
C48
0.22uF
C48
0.22uF
R25
220
R25
220
+
C14
1000uF
6.3V
+
C14
1000uF
6.3V
C81
0.1uF
C81
0.1uF
C43
0.1uF
C43
0.1uF
C70
1uF
C70
1uF
C72
10uF
C72
10uF
R37
0 (DNI)
R37
0 (DNI)
TP6
RED
TP6
RED
C13
2200pF
C13
2200pF
R124 2KR124 2K
C78
0.1uF
C78
0.1uF
C38
0.1uF
C38
0.1uF
C15
0.1uF
C15
0.1uF
1
2
J5
S-M-.100-1X2 (DNI)
J5
S-M-.100-1X2 (DNI)
C2
1uF
C2
1uF
+
C75
100uF
16V
+
C75
100uF
16V
+
C8
1000uF
6.3V
+
C8
1000uF
6.3V
R18
100
R18
100
C64
0.1uF
C64
0.1uF
G
DS
U15
NTD40N03RT4/PHD55N03
U15
NTD40N03RT4/PHD55N03
C85
0.1uF
C85
0.1uF
+
C65
1000uF
6.3V
+
C65
1000uF
6.3V
C45
1uF
C45
1uF
R122
4.7
R122
4.7
+
C4
100uF
16V
+
C4
100uF
16V
R165
0
R165
0
C84
2200pF
C84
2200pF
FB3
600@100MHz (DNI)
FB3
600@100MHz (DNI)
GH2
16
GL2
15
IS+2
12
GND
3
IS-2
11
VFB2
10
COMP2
9COMP1 8
VFB1 7
IS-1 6
ROSC
13
12V 14
IS+1 5
GL1 2
GH1 1
BST 4
U16
NCP5422A
U16
NCP5422A
TP14
BLACK
TP14
BLACK
C88
0.1uF (DNI)
C88
0.1uF (DNI)
C53
10uF
C53
10uF
C1
1uF
C1
1uF
C56
0.1uF
C56
0.1uF
TP4
RED
TP4
RED
C16
0.1uF
C16
0.1uF
7
2
18
Q6A
IRF7313
Q6A
IRF7313
R181 2KR181 2K
C19
1000pF
C19
1000pF
FB7
A600@100MHz
FB7
A600@100MHz
C61
2.2uF
C61
2.2uF
C44
1uF
C44
1uF
D9 BAT54S D9 BAT54S
7
2
18
Q5A
IRF7313
Q5A
IRF7313
C10
0.1uF
C10
0.1uF
D29
MBR0520LT1
D29
MBR0520LT1
1
2
J3
S-M-.100-1X2 (DNI)
J3
S-M-.100-1X2 (DNI)
C66
0.1uF
C66
0.1uF
C242
0.01uF
C242
0.01uF
C52
10uF
C52
10uF
C73
10uF
C73
10uF
+
C51
1000uF
6.3V
+
C51
1000uF
6.3V
TP9
BLACK
TP9
BLACK
C20
0.1uF (DNI)
C20
0.1uF (DNI)
R22
10
R22
10
C55
1uF
C55
1uF
C46
0.1uF
C46
0.1uF
C17
1uF
C17
1uF
C6
10uF
C6
10uF
VCC
1
Rosc
2
NC
3
COMP
4GH 5
GL 6
VFB 7
GND 8
U3
NCP1575
U3
NCP1575
+
C74
100uF
16V
+
C74
100uF
16V
R182
10K
R182
10K
+
C33
100uF
16V
+
C33
100uF
16V
R195
22
R195
22
C67
0.1uF
C67
0.1uF
D28
MBR0520LT1
D28
MBR0520LT1
+
C3
100uF
16V
+
C3
100uF
16V
5
4
36
Q6B
IRF7313
Q6B
IRF7313
VCC
1
Rosc
2
NC
3
COMP
4GH 5
GL 6
VFB 7
GND 8
U28
NCP1575
U28
NCP1575
C24
10uF
C24
10uF
Q1
MMBT3904L
Q1
MMBT3904L
RESET 1
GND
2
MR
4
RESET 3
VCC
5
U53
MAX825-2.63V
SOT23-5
U53
MAX825-2.63V
SOT23-5
TP10
BLACK
TP10
BLACK
R161
0
R161
0
R34 2.4KR34 2.4K
C18
0.1uF
C18
0.1uF
5
4
36
Q2B
IRF7313
Q2B
IRF7313
C91
1uF
C91
1uF
TP7
RED
TP7
RED
+
C32
100uF
16V
+
C32
100uF
16V
+
C83
1000uF
16V
+
C83
1000uF
16V
C50
0.1uF
C50
0.1uF
R125
10K
R125
10K
TP11
BLACK
TP11
BLACK
D10
MBRA340
D10
MBRA340
C39
0.1uF
C39
0.1uF
L8
4.7uH
L8
4.7uH
TP8
RED
TP8
RED
R263 8.2KR263 8.2K
G
DS
U13
NTD40N03RT4/PHD55N03
U13
NTD40N03RT4/PHD55N03
C23
10uF
C23
10uF
C58
0.1uF
C58
0.1uF
R249
10
R249
10
R120
0
R120
0
R33
1K
R33
1K
C5
10uF
C5
10uF
NC
112V1
2GND4 10
GND3 9
GND1
4NC2 8
12V4 7
GND2
5
12V2
3
12V3 6
JP1
ATX-2X5_POWER
JP1
ATX-2X5_POWER
L9
4.7uH
L9
4.7uH
D12
BZX84C18LT1
D12
BZX84C18LT1
C12
0.1uF (DNI)
C12
0.1uF (DNI)
TP12
BLACK
TP12
BLACK
R126 15KR126 15K
D6
MBRA340
D6
MBRA340
C59
1uF
C59
1uF
+
C76
1000uF
16V
+
C76
1000uF
16V
D1 BAT54S D1 BAT54S
R255
220
R255
220
L6
4.7uH
L6
4.7uH
+
C87
1000uF
6.3V
+
C87
1000uF
6.3V
R260
10K
R260
10K
Q4
MMBT3904L
Q4
MMBT3904L
Q3
MMBT3904L
Q3
MMBT3904L
L1
4.7uH
L1
4.7uH
R188
2K
R188
2K
C9
0.1uF
C9
0.1uF
FB4
600@100MHz (DNI)
FB4
600@100MHz (DNI)

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TDN_23
TDP_23
TDN_18
RDN_23
RDP_23
RDN_18
TDP_18
TDN_16
RDP_18
RDN_16
TDP_16
TDP_17
RDP_16
TDN_17
RDN_17
RDP_15
RDP_17
TDN_15
RDN_15
TDP_14
TDP_15
RDP_14
RDN_14
TDN_14
RDP_13
TDP_12
RDN_13
TDP_13
TDN_13
RDN_12
RDP_12
TDN_19
TDN_12
TDN_20
RDP_19
TDP_19
RDN_19
TDP_20
TDN_21
RDP_20
RDN_20
TDN_22
TDP_21
RDN_21
RDP_21
RDN_22
RDP_22
TDP_22
RDP_8 RDN_8 TDP_8 TDN_8 RDP_9 TDN_9 RDN_9 TDP_9 RDP_10 TDN_10 RDN_10 TDP_10 RDP_11 RDN_11 TDP_11 TDN_11 RDP_0 TDN_0 RDN_0 TDP_0 TDP_1 TDN_1 RDN_1 RDP_3 RDP_1 TDN_2 RDN_3 RDP_2 RDN_2 TDP_2 TDN_3 TDP_3 RDN_4 RDP_5 RDN_5 TDN_4 TDP_4 RDP_4 TDN_5 TDP_5 TDN_6 RDP_7 RDN_6 TDP_6 RDP_6 RDN_7 TDN_7 TDP_7
+2.5V
+2.5V
GMII1_TX_EN6
GMII1_RXD36 GMII1_RXD26
GMII0_RXD16
GMII0_TX_EN6
GMII1_GTX_CLK6
GMII1_RXD06
GMII0_RXD26
GMII0_GTX_CLK6
GMII1_RXD16
GMII0_RXD36
GMII0_RXD06
GMII0_RX_DV6 GMII0_RX_CLK6
GMII1_RX_DV6 GMII1_RX_CLK6
MDC 6,8
MDIO 6,8
GMII0_TXD16
GMII0_TXD36
GMII0_TXD06
GMII0_TXD26
GMII1_TXD06 GMII1_TXD16
GMII1_TXD36 GMII1_TXD26
M_RXDV 8,9
M_RXD3 8,9
M_RXD2 8,9
M_RXD0 8,9
M_RXD1 8,9
M_TXEN 8,9
M_TXD3 8,9
M_TXD2 8,9
M_TXD1 8,9
M_TXD0 8,9
RDP_12 5
RDP_13 5
RDP_14 5
RDP_15 5
RDP_16 5
RDP_17 5
RDP_18 5
RDP_19 5
RDP_20 5
RDP_21 5
RDP_22 5
RDP_23 5
RDN_12 5
RDN_13 5
RDN_14 5
RDN_15 5
RDN_16 5
RDN_17 5
RDN_18 5
RDN_19 5
RDN_20 5
RDN_21 5
RDN_22 5
RDN_23 5
TDP_12 5
TDP_13 5
TDP_14 5
TDP_15 5
TDP_16 5
TDP_17 5
TDP_18 5
TDP_19 5
TDP_20 5
TDP_21 5
TDP_22 5
TDP_23 5
TDN_12 5
TDN_13 5
TDN_14 5
TDN_15 5
TDN_16 5
TDN_17 5
TDN_18 5
TDN_19 5
TDN_20 5
TDN_21 5
TDN_22 5
TDN_23 5
RDP_0
5
RDP_1
5
RDP_2
5
RDP_3
5
RDP_4
5
RDP_5
5
RDP_6
5
RDP_7
5
RDP_8
5
RDP_9
5
RDP_10
5
RDP_11
5
RDN_1
5
RDN_2
5
RDN_0
5
RDN_3
5
RDN_4
5
RDN_5
5
RDN_6
5
RDN_7
5
RDN_8
5
RDN_9
5
RDN_10
5
RDN_11
5
TDP_0
5
TDP_1
5
TDP_2
5
TDP_3
5
TDP_4
5
TDP_5
5
TDP_6
5
TDP_7
5
TDP_8
5
TDP_9
5
TDP_10
5
TDP_11
5
TDN_1
5
TDN_2
5
TDN_0
5
TDN_3
5
TDN_4
5
TDN_5
5
TDN_6
5
TDN_7
5
TDN_8
5
TDN_9
5
TDN_105 TDN_115
M_TXCLK 8,9
M_RXCLK 8,9
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 Integrated PHY, RGMII
Broadcom Corporation
310Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 Integrated PHY, RGMII
Broadcom Corporation
310Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 Integrated PHY, RGMII
Broadcom Corporation
310Wednesday, March 07, 2007
Note:
Recommend change R234 pull-up
Note:
53242 TXCLK --> 5836 RXCLK
53242 RXCLK --> 5836 TXCLK
R237 22R237 22
R246 0R246 0
R198 1K (DNI)R198 1K (DNI)
R226 0R226 0
R225 0R225 0
R199 1KR199 1K
R220 22R220 22
R227 0R227 0
R173 22R173 22
R223 0R223 0
R239 0R239 0
R243 0R243 0
R224 0R224 0
R197 1KR197 1K
R177 0R177 0
R221 22R221 22
R218 4.7KR218 4.7K
R228 0R228 0
R244 0R244 0
R240 0R240 0
RDP_15 W19
RDN_15 W18
TDP_15 Y19
TDN_15 Y20
RDP_14 U16
RDN_14 U17
TDP_14 V18
TDN_14 V17
RDP_13 W17
RDN_13 W16
TDP_13 Y17
TDN_13 Y18
RDP_12 U14
RDN_12 U15
TDP_12 V16
TDN_12 V15
RDP_11
Y16 RDN_11 Y15 TDP_11
W14 TDN_11 W15
RDP_10
U12 RDN_10 U13 TDP_10
V14 TDN_10 V13
RDP_9
Y14 RDN_9 Y13 TDP_9
W12 TDN_9 W13
RDP_8
U10 RDN_8 U11 TDP_8
V12 TDN_8 V11
GMII0_TXD7
C19 GMII0_TXD6
B19 GMII0_TXD5
A19 GMII0_TXD4
C18 GMII0_TXD3
B18 GMII0_TXD2
A18 GMII0_TXD1
C17 GMII0_TXD0
B17
GMII0_RXD7
E19 GMII0_RXD6
E20 GMII0_RXD5
F18 GMII0_RXD4
F19 GMII0_RXD3
G18 GMII0_RXD2
F17 GMII0_RXD1
G17 GMII0_RXD0
H17
GMII0_GTXCLK
C20 GMII0_TX_EN
A20
GMII0_RX_CLK
D20 GMII0_RX_DV
E18
GMII0_TX_ER
B20
GMII0_SD
D16
GMII0_RX_ER
E17 GMII0_COL
J17 GMII0_CRS
K17
TBI0_RBC1
D18 TBI0_RBC0
D19
GMII1_TXD7
C12 GMII1_TXD6
B12 GMII1_TXD5
A12 GMII1_TXD4
C11 GMII1_TXD3
B11 GMII1_TXD2
A11 GMII1_TXD1
C10 GMII1_TXD0
B10
GMII1_RXD7
A14 GMII1_RXD6
B14 GMII1_RXD5
C14 GMII1_RXD4
A15 GMII1_RXD3
B15 GMII1_RXD2
C15 GMII1_RXD1
A16 GMII1_RXD0
B16
GMII1_GTXCLK
A13 GMII1_TX_EN
D11
GMII1_RX_CLK
B13 GMII1_RX_DV
D15
GMII1_TX_ER
D12
GMII1_SD
D10
GMII1_RX_ER
D14 GMII1_COL
C16 GMII1_CRS
A17
RDP_0
Y1 RDN_0 Y2 TDP_0
W3 TDN_0 W2
RDP_1
U5 RDN_1 U4 TDP_1
V3 TDN_1 V4
RDP_2
Y3 RDN_2 Y4 TDP_2
W5 TDN_2 W4
RDP_3
U7 RDN_3 U6 TDP_3
V5 TDN_3 V6
RDP_4
Y5 RDN_4 Y6 TDP_4
W7 TDN_4 W6
RDP_5
U9 RDN_5 U8 TDP_5
V7 TDN_5 V8
RDP_6
Y7 RDN_6 Y8 TDP_6
W9 TDN_6 W8
RDP_7
V10 RDN_7
V9 TDP_7 Y9 TDN_7
Y10
RXD3 A5 RXD2 C6 RXD1 B6 RXD0 A6
RXDV A7
RXCLK B7
RXER C7
TXER D7
TXCLK A8
TXEN B8
TXD3 B9 TXD2 A9 TXD1 D8 TXD0 C8
COL C9
CRS D9
MDC B5
MDIO C5
TDN_16 U20
TDN_17 M17
RDN_18 N19
RDN_19 N18
TDN_20 N20
TDN_21 J18
TDN_22 L20
TDN_23 F20
TDP_16 T20
TDP_17 L17
RDP_18 P19
RDP_19 M18
TDP_20 M20
TDP_21 H18
TDP_22 K20
TDP_23 G20
RDN_16 R19
RDN_17 R18
TDN_18 R20
TDN_19 L18
RDN_20 L19
RDN_21 G19
RDN_22 J19
RDN_23 J20
RDP_16 T19
RDP_17 P18
TDP_18 P20
TDP_19 K18
RDP_20 M19
RDP_21 H19
RDP_22 K19
RDP_23 H20
MII0_TXC D17 MII1_TXC A10
TBI1_RBC0
D13 TBI1_RBC1
C13
REFSS1A

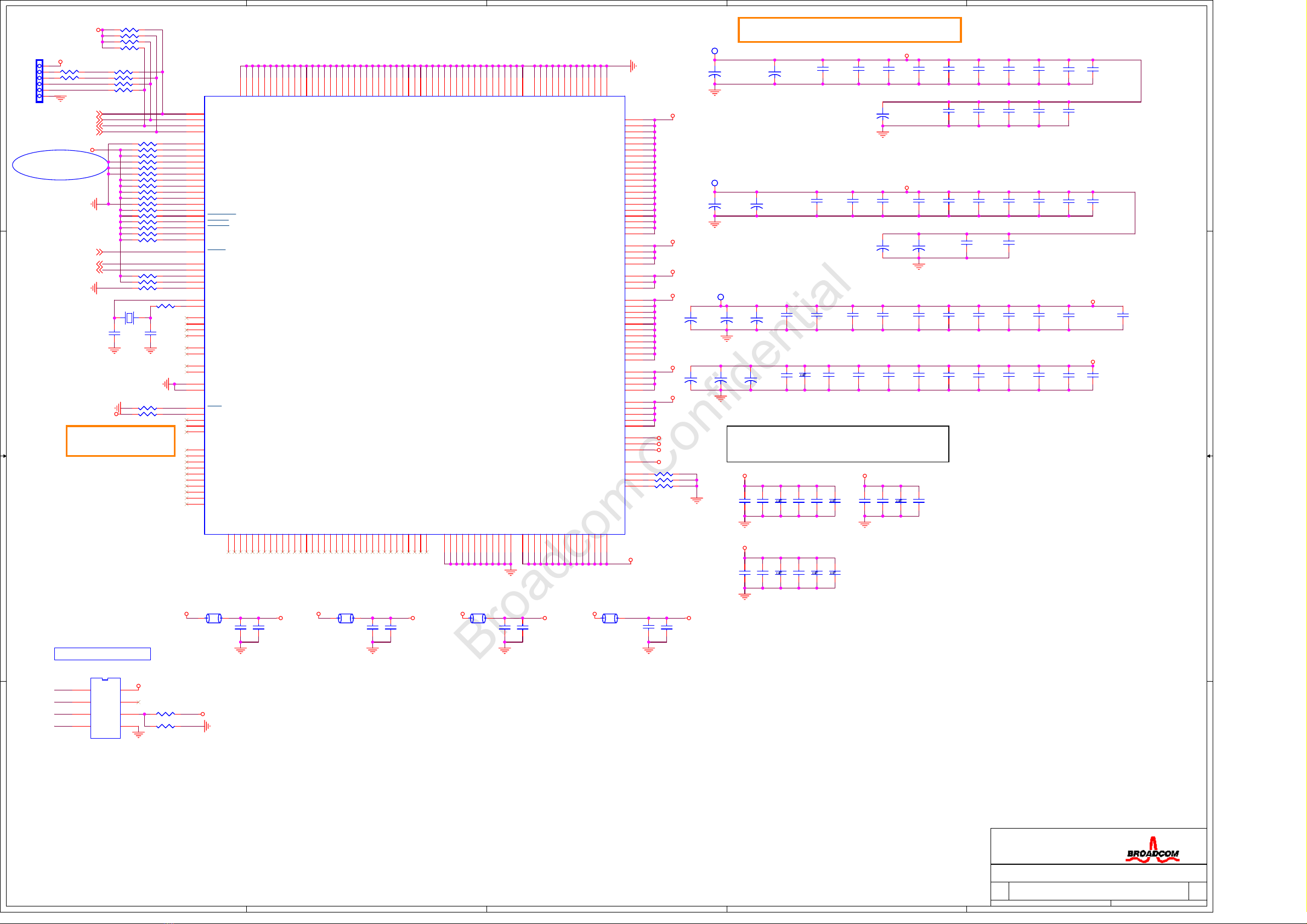

BCM53242
REFSS1A
BCM53242
R236 22R236 22
R234 4.7KR234 4.7K
R238 22R238 22
R245 0R245 0
R178 0R178 0
R235 0R235 0
R219 22R219 22

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SS
MISO
MOSI
SCK
+1.2V_D
+2.5V
+2.5V
+2.5V
+1.2V_A
+1.2V_D
+1.2V_A
+2.5V BIASVDD0 +2.5V BIASVDD1 +2.5V BIASVDD2 +2.5V
BIASVDD0
BIASVDD1
BIASVDD2
XTALVDD
+2.5V
+1.2V_D
+2.5V
+1.2V_A
+2.5V
+2.5V
+2.5V
+2.5V
+2.5V
+2.5V
XTALVDD
+3.3V
+3.3V
+3.3V
MISO8,9 MOSI8,9
SCK8,9 SS8,9
LED_DATA10 LED_CLK10
RESET_L2,6,8,9,10
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 VDD
Broadcom Corporation
410Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 VDD
Broadcom Corporation
410Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 VDD
Broadcom Corporation
410Wednesday, March 07, 2007
VDDO VDDO1
AVDDL
VDDC
VDDO2 VDDO3 VDDP
VDDO VDDO1 VDDO2 VDDO3 VDDP
GIGA[0:1]_IFSEL_[0:1]=00, RGMII
GIGA[0:1]_IFSEL_[0:1]=11, MII
LEDMODE[0:2]=010, R213,R254 populate
C427,C446 is used toadjust to
the frequency of the osclillator
R256,R222,R200 tie to Ground
to Disable Flow Control
Noise decoupling...for high-speed signals and
where a number of vias group to connect
signals form top to bottom
Muruta:BLM11A601S
200mA, 600ohm @100Mhz
Ver 1.3 add:
replace C80 with 1000uF to prevent Core Power surge
Ver 1.3 add:
BCM5324 Pin F1 pull down
+
C82
1000uF
6.3V
+
C82
1000uF
6.3V
+
C90
10uF
16V
+
C90
10uF
16V
FB8
A600@100MHz
FB8
A600@100MHz
C302
0.1uF
C302
0.1uF
R570 1KR570 1K
+
C29
22uF
16V
+
C29
22uF
16V
C284
1000pF
C284
1000pF
C372
2.2uF
C372
2.2uF
C427
22pF
C427
22pF
C104
0.1uF
C104
0.1uF
C324
0.1uF
C324
0.1uF
R252 4.7K (DNI)R252 4.7K (DNI)
R216 4.7K (DNI)R216 4.7K (DNI)
C254
0.1uF
C254
0.1uF
C312
0.1uF
C312
0.1uF
C322
1000pF
C322
1000pF
C330
0.1uF
C330
0.1uF
C248
0.1uF
C248
0.1uF
C250
1000pF
C250
1000pF
C261
0.1uF
C261
0.1uF
C252
0.1uF
C252
0.1uF
+
C374
10uF
16V
+
C374
10uF
16V
C300
0.1uF
C300
0.1uF C276 0.1uF
C276
0.1uF
C270
0.1uF
C270
0.1uF
R233 4.7KR233 4.7K
C251
0.1uF
C251
0.1uF
C273
0.1uF
C273
0.1uF
C281
0.1uF
C281
0.1uF C309 1000pF
C309
1000pF
R274 0 (DNI)R274 0 (DNI)
R214 4.7K (DNI)R214 4.7K (DNI)
R247 4.7K (DNI)R247 4.7K (DNI)
R232 4.7K (DNI)R232 4.7K (DNI)
R257 4.7K (DNI)R257 4.7K (DNI)
C323
0.1uF
C323
0.1uF
CS
1
SK
2
DI
3
DO
4GND 5
ORG 6
DC 7
VCC 8
U7AT93C46-SI10-2.7(DNI) U7AT93C46-SI10-2.7(DNI)
C286
0.1uF
C286
0.1uF
+
C280
10uF
16V
+
C280
10uF
16V
R193 4.7K (DNI)R193 4.7K (DNI)
AVDDL
K16 AVDDL
L16 AVDDL
M16 AVDDL
N16
AVSS
P5
AVDDL
P16
AVSS
R5 AVSS R6 AVSS R7 AVSS R8 AVSS R9 AVSS
R10 AVSS R11 AVSS R12 AVSS R13 AVSS R14 AVSS R15
AVDDL
T5 AVDDL T6 AVDDL T7 AVDDL T8 AVDDL T9 AVDDL
T10 AVDDL T11 AVDDL T12 AVDDL T13 AVDDL T14
VDDO3 P6
VDDO3 N6
VDDO2 M6
VDDO2 L6
VDDO2 K6
VDDO2 J6
VDDO2 H6
VDDO2 G10
VDDO2 G9
VDDO2 G8
VDDO2 G7
VDDO2 G6
AVSS K15 AVSS L15 AVSS M15 AVSS N15 AVSS P7 AVSS P8 AVSS P9 AVSS P10 AVSS P11 AVSS P12 AVSS P13 AVSS P14 AVSS P15
VDDC E14
VDDC E15
VDDC E16
VDDC F6
VDDC F7
VDDC F8
VDDC F9
VDDC F10
VDDC F11
VDDC F12
VDDC F13
VDDC F14
VDDC F15
VDDC F16
VDDC G5
VDDC G16
VDDC H16
VDDC J5
VDDC L5
VDDC N5
VDDP E8
VDDP E11
VDDP H5
VDDP J16
VDDP N17
VDDO1 G11
VDDO1 G12
VDDO1 G13
VDDO0 G14
VDDO0 G15
VDDO0 H15
VDDO0 J15
GND H7 GND H8 GND H9 GND H10 GND H11 GND H12 GND H13 GND H14 GND J7 GND J8 GND J9 GND J10 GND J11 GND J12 GND J13 GND J14 GND K7 GND K8 GND K9 GND K10 GND K11 GND K12 GND K13 GND K14 GND L7 GND L8 GND L9 GND L10 GND L11 GND L12 GND L13 GND L14 GND M7 GND M8 GND M9 GND M10 GND M11 GND M12 GND M13 GND M14 GND N7 GND N8 GND N9 GND N10 GND N11 GND N12 GND N13 GND N14
SCK
D5 SS
D4 MISO
B3 MOSI
A3
DNC
E12 DNC
E5
HW_FWDG_EN
A2
ENFDXFLOW
E9 ENHDXFLOW
E10
RESET
C4
MDIX_DIS
E13
DNC
U18
DNC
A1
PHY_POLL_DIS
B1
CPU_EPROM_SEL
F4
MII_SPD
A4
MII_DUPLX
B4
RvMII_EN
C1
DNC
T15
DNC
R16
MII_LNK
D6
LEDMODE_1
C3 LEDMODE_2
E4
LEDCLK
E2 LEDDATA
F3 LEDMODE_0
B2
EEPROM_TYPE_0
D3 EEPROM_TYPE_1
C2
DNC
E1
DNC
F2 DNC
G3
DNC
H4
TRST
F1 TDI
G1 TMS
G2 TCK
H3 TDO
H2
XTALI
V19 XTALO
V20
RDAC1 W20
RDAC2 R17
BIASVDD0 W11
BIASVDD1 T18
BIASVDD2 P17
XTALVDD U19
DNC
Y12
DNC
T16
VDDO2 T17
DNC
J4
DNC
H1
DNC
J3 DNC J2 DNC J1
DNC
K5 DNC K4 DNC K3 DNC K2 DNC K1
DNC
L1 DNC L2 DNC L3
DNC
M1 DNC M2
DNC
L4
DNC
N1 DNC N2
DNC
M3
DNC
P1 DNC P2
DNC
N3
DNC
M4 DNC M5
DNC
R1
DNC
R2 DNC
T1
DNC
P3
DNC
N4
GIGA0_IFSEL_0
F5 GIGA0_IFSEL_1
D2 GIGA1_IFSEL_0
D1 GIGA1_IFSEL_1
G4
DNC
E6
DNC
Y11
EN_GRX_FLOW
E3
DNC
E7
VREGSENSE1_2
W1 VREGSENSE2_5
R3
VREGAVDDIO2_5
U2
VREGCTL1_2
V2 VREGCTL2_5
P4
VREGAVDDIO1_2
T4
VREGAVDD1_2
U3 VREGAVDD2_5
V1
REGAGND1_2
T3 REGAGND2_5
T2 VDDO3 R4
VDDO3 U1
RDAC0 W10
REFSS1B
BCM53242
REFSS1B
BCM53242
C529
2.2uF
C529
2.2uF
R215 4.7K (DNI)R215 4.7K (DNI)
C278
0.1uF
C278
0.1uF
C268
1000pF
C268
1000pF
ZU7
DIP-8-SOCKET
ZU7
DIP-8-SOCKET
C446
22pF
C446
22pF
R251 4.7K (DNI)R251 4.7K (DNI)
C253
0.1uF
C253
0.1uF
C325
0.1uF
C325
0.1uF
R265 4.7K (DNI)R265 4.7K (DNI)
C269
0.1uF
C269
0.1uF
C290
0.1uF
C290
0.1uF
C272
0.1uF
C272
0.1uF
C262
0.1uF
C262
0.1uF
R241 0 (DNI)R241 0 (DNI)
+
C102
10uF
16V
+
C102
10uF
16V
TP17
RED
TP17
RED
C259
0.1uF
C259
0.1uF
C245
0.1uF
C245
0.1uF
C301
1000pF
C301
1000pF
C333
0.1uF
C333
0.1uF
C244
0.1uF
C244
0.1uF
R248 4.7K (DNI)R248 4.7K (DNI)
C264
0.1uF
C264
0.1uF
R273 0 (DNI)R273 0 (DNI)
+
C106
22uF
16V
+
C106
22uF
16V
C258
0.1uF
C258
0.1uF
C79
2.2uF
C79
2.2uF
R572 1KR572 1K
C305
0.1uF
C305
0.1uF
C246
0.1uF
C246
0.1uF C288 0.1uF
C288
0.1uF
+
C69
47uF
16V
+
C69
47uF
16V
R266 4.7K (DNI)R266 4.7K (DNI)
R194 4.7K (DNI)R194 4.7K (DNI)
C328
0.1uF
C328
0.1uF
FB11
A600@100MHz
FB11
A600@100MHz
R256 4.7KR256 4.7K
C356
0.1uF
C356
0.1uF
C303
0.1uF
C303
0.1uF
TP16
RED
TP16
RED
R259 4.7KR259 4.7K
C277
0.1uF
C277
0.1uF
C343
0.1uF
C343
0.1uF
Y1
25.000625MHz
Y1
25.000625MHz
C342
2.2uF
C342
2.2uF
C326
0.1uF
C326
0.1uF
R575 0R575 0
R261 4.7K (DNI)R261 4.7K (DNI)
+
C307
10uF
16V
+
C307
10uF
16V
1
2
3
4
5
6
J4
S-M-.100-1X6
J4
S-M-.100-1X6
R254 4.7KR254 4.7K
C263
0.1uF
C263
0.1uF
C327
0.1uF
C327
0.1uF
R76 22R76 22
R229 100 R229 100
R222 4.7KR222 4.7K
C287
0.1uF
C287
0.1uF
R272 0 (DNI)R272 0 (DNI)
TP15
RED
TP15
RED
+
C100
1000uF
6.3V
+
C100
1000uF
6.3V
C255
0.1uF
C255
0.1uF
C383
0.1uF
C383
0.1uF
R571 1KR571 1K
C249
0.1uF
C249
0.1uF C334 0.1uF
C334
0.1uF
R253 4.7K (DNI)R253 4.7K (DNI)
R196 4.7K (DNI)R196 4.7K (DNI)
C311
2.2uF
C311
2.2uF
C313
1000pF
C313
1000pF
C260
0.1uF
C260
0.1uF
C329
0.1uF
C329
0.1uF
R200 4.7KR200 4.7K
C289
0.1uF
C289
0.1uF
C321
0.1uF
C321
0.1uF
R192 4.7K (DNI) R192 4.7K (DNI)
C247
0.1uF
C247
0.1uF
C271
0.1uF
C271
0.1uF
C256
1000pF
C256
1000pF
C338
0.1uF
C338
0.1uF
FB9
A600@100MHz
FB9
A600@100MHz
C265
0.1uF
C265
0.1uF
C266
0.1uF
C266
0.1uF
R217 4.7K (DNI)R217 4.7K (DNI)
C274
0.1uF
C274
0.1uF
R553 4.7K (DNI)R553 4.7K (DNI)
R250 4.7KR250 4.7K
R213 4.7KR213 4.7K
C337
0.1uF
C337
0.1uF
C344
0.1uF
C344
0.1uF
R95 22R95 22
C282
0.1uF
C282
0.1uF
C275
0.1uF
C275
0.1uF
+
C80
1000uF
6.3V
+
C80
1000uF
6.3V
FB10
A600@100MHz
FB10
A600@100MHz
C304
0.1uF
C304
0.1uF
+
C93
22uF
16V
+
C93
22uF
16V
+
C54
22uF
16V
+
C54
22uF
16V

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VCCTB VCCTC
RDN_20
RDP_21
RDN_21
VCCTC
TDN_22
TDP_22
RDP_22
VCCTC
RDN_23
TDN_10
TDN_8
TDN_9
RDN_14
RDN_10
TDP_12
TDN_14
RDP_12
RDP_13
RDN_11
TDP_11
TDN_15
RDP_14
RDN_9
TDP_8
RDP_10
RDP_11
TDP_14
TDN_12
TDP_10
RDP_15
TDN_13
RDN_8
RDP_8
RDP_9
RDN_15
TDP_15
RDN_12
TDN_11
TDP_13
RDN_13
TDP_9
TDN_20
RDP_17
RDN_19
TDP_23
RDN_21
RDN_17
TDP_18
TDP_19
TDN_22
RDP_21
RDP_23
TDP_16
RDP_18
TDP_17
TDN_19
TDN_17
RDP_20
TDN_21
RDN_18
TDN_16
TDN_18
RDN_23
RDP_16
TDN_23
RDP_22
TDP_20
RDN_16
RDN_22
TDP_21
RDP_19
RDN_20
TDP_22
TDN_23
TDP_23
RDP_23
TDN_17
TDP_17
TDN_19
TDP_19
RDN_19
TDP_16
RDN_16
RDN_22
TDN_21
TDP_21
TDN_20
TDP_20
RDP_20
RDP_19
TDP_18
TDN_18
RDP_18
RDN_18
RDP_17
RDN_17
TDN_16
RDP_16
RDP_9
TDN_9
TDP_9
TDP_10
TDN_10
RDN_10
RDN_9
TDN_11
TDP_11
RDN_11
RDP_11
TDP_8
RDN_8
TDN_8
RDP_8
TDN_12
TDN_13
VCCTB
RDP_12
RDP_13
TDP_13
RDN_13
VCCTB
VCCTBRDN_15
TDN_15
TDP_15
RDP_15
VCCTC
VCCTB
VCCTC
VCCTB
VCCTC
VCCTC
VCCTB
VCCTC
VCCTB
VCCTC
VCCTB
RDP_1
TDN_1
TDP_1
VCCTA
VCCTA
TDP_2
TDN_2
RDP_2
RDN_2
RDN_1
TDN_3
TDP_3
RDN_3
RDP_3
TDP_0
VCCTA
RDN_0
TDN_0
RDP_0
VCCTA
TDN_4
RDN_4
TDN_5
VCCTA
VCCTA
TDP_4
RDP_4
RDP_5
TDP_5
RDN_5
VCCTA
TDN_6
TDP_6
RDP_6
RDN_6
VCCTARDN_7
TDN_7
TDP_7
RDP_7
VCCTA
TDP_12
RDN_12
RDN_14
TDN_14
RDP_14
TDP_14
RDP_10
RDN_2
TDP_3
TDN_7
RDP_1
TDP_4
RDP_7
RDN_7
TDP_6
RDP_4
TDN_6
RDN_5
RDN_6
RDP_6
TDN_5
TDP_7
RDP_5
RDP_2
RDN_0
RDP_0
TDP_0
RDP_3
RDN_3
TDP_2
TDN_1
RDN_1
TDP_1
TDN_4
RDN_4
TDN_3
TDP_5
TDN_0
TDN_2
+1.8V
+1.8V +1.8V
TDN_8 3
TDN_9 3
TDN_10 3
TDN_11 3
TDN_12 3
TDN_13 3
TDN_14 3
TDN_15 3
TDN_16 3
TDN_17 3
TDN_18 3
TDN_19 3
TDN_20 3
TDN_21 3
TDN_22 3
TDN_23 3
TDP_8 3
TDP_9 3
TDP_10 3
TDP_11 3
TDP_12 3
TDP_13 3
TDP_14 3
TDP_15 3
TDP_16 3
TDP_17 3
TDP_18 3
TDP_19 3
TDP_20 3
TDP_21 3
TDP_22 3
TDP_23 3
RDP_8 3
RDP_9 3
RDP_10 3
RDP_11 3
RDP_12 3
RDP_13 3
RDP_14 3
RDP_15 3
RDP_16 3
RDP_17 3
RDP_18 3
RDP_19 3
RDP_20 3
RDP_21 3
RDP_22 3
RDP_23 3
RDN_8 3
RDN_9 3
RDN_10 3
RDN_11 3
RDN_12 3
RDN_13 3
RDN_14 3
RDN_15 3
RDN_16 3
RDN_17 3
RDN_18 3
RDN_19 3
RDN_20 3
RDN_21 3
RDN_22 3
RDN_23 3
TDP_0 3
TDP_1 3
TDP_2 3
TDP_3 3
TDP_4 3
TDP_5 3
TDP_6 3
TDP_7 3
RDP_0 3
RDP_1 3
RDP_2 3
RDP_3 3
RDP_4 3
RDP_5 3
RDP_6 3
RDP_7 3
RDN_0 3
RDN_1 3
RDN_2 3
RDN_3 3
RDN_4 3
RDN_5 3
RDN_6 3
RDN_7 3
TDN_0 3
TDN_1 3
TDN_2 3
TDN_3 3
TDN_4 3
TDN_5 3
TDN_6 3
TDN_7 3
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RJ45
Broadcom Corporation
510Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RJ45
Broadcom Corporation
510Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RJ45
Broadcom Corporation
510Wednesday, March 07, 2007
20
23
22
21
18
17 19
12
13
108
15911
14
16
3
2
5 7
064
1
R600 75R600 75
C398 0.1uFC398 0.1uF
R304 49.9R304 49.9
R368 49.9R368 49.9
R373 49.9R373 49.9
C122
10uF
C122
10uF
C364 0.1uFC364 0.1uF
R649 75R649 75
C524
1000pF
C524
1000pF
R262 49.9R262 49.9
R423 49.9R423 49.9
R656 75R656 75
C351 0.1uFC351 0.1uF
C452
0.1uF
C452
0.1uF
C475
0.1uF
C475
0.1uF
R338 49.9R338 49.9
R651 75R651 75
C516
1000pF
C516
1000pF
C396 0.1uFC396 0.1uF
C422 0.1uFC422 0.1uF
R398 49.9R398 49.9
R605 75R605 75
R429 49.9R429 49.9
R288 49.9R288 49.9
R369 49.9R369 49.9
C486
0.1uF
C486
0.1uF
R363 49.9R363 49.9
R329 49.9R329 49.9
R660 75R660 75
R326 49.9R326 49.9
R639 75R639 75
C418 0.1uFC418 0.1uF
R303 49.9R303 49.9
C482
0.1uF
C482
0.1uF
R636 75R636 75
R430 49.9R430 49.9
C306 0.1uFC306 0.1uF
R596 75R596 75
C111
10uF
C111
10uF
R422 49.9R422 49.9
R648 75R648 75
C355 0.1uFC355 0.1uF
C435 0.1uFC435 0.1uF C292 0.1uFC292 0.1uF
R332 49.9R332 49.9
R592 75R592 75
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U41
H1259NL
U41
H1259NL
R313 49.9R313 49.9
R337 49.9R337 49.9
C517
1000pF
C517
1000pF
R401 49.9R401 49.9 R289 49.9R289 49.9
C470
10uF
C470
10uF
C397 0.1uFC397 0.1uF
R608 75R608 75
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U37
H1259NL
U37
H1259NL
R427 49.9R427 49.9
C485
0.1uF
C485
0.1uF
R268 49.9R268 49.9
C379 0.1uFC379 0.1uF
R418 49.9R418 49.9
R590 75R590 75
R601 75R601 75
C521
1000pF
C521
1000pF
R298 49.9R298 49.9
C481
0.1uF
C481
0.1uF
R635 75R635 75
C421 0.1uFC421 0.1uF
R287 49.9R287 49.9
R626 75R626 75
R360 49.9R360 49.9
R606 75R606 75
C402 0.1uFC402 0.1uF
R393 49.9R393 49.9
R632 75R632 75
C451
0.1uF
C451
0.1uF
C257 0.1uFC257 0.1uF
R320 49.9R320 49.9
R588 75R588 75
C474
0.1uF
C474
0.1uF
R327 49.9R327 49.9
R628 75R628 75
C513
1000pF
C513
1000pF
R655 75R655 75
R431 49.9R431 49.9
R665 75R665 75
R405 49.9R405 49.9
RES C5
RES C4
RES C8
RES C7
TX+
C3 TX-
C6 RX+
C1 RX-
C2
RES D5
RES D4
RES D8
RES D7
RES E5
RES E4
RES E8
RES E7
TX+
E3 TX-
E6 RX+
E1 RX-
E2
TX+
D3 TX-
D6 RX+
D1 RX-
D2
RES H8
RES H7
RES H5
RES H4
RX-
H2 RX+
H1
TX+
H3 TX-
H6
RES A8
RES A7
RES A5
RES A4
RX-
A2 RX+
A1 TX-
A6 TX+
A3
RES G4
RES G5
RES G7
RES G8
TX+
G3 TX-
G6 RX+
G1 RX-
G2
RES B8
RES B7
RES B5
RES B4
RX-
B2 RX+
B1 TX-
B6 TX+
B3
RES F4
RES F5
RES F7
RES F8
TX+
F3 TX-
F6 RX+
F1 RX-
F2
RES SH1 RES SH2 RES SH3
RES
SH5 RES SH6 RES SH7
RES SH4
RES
SH8 RES SH9
H
G
F
E
D
C
B
A
ACEG
BDFH
TP3
RJ45_4X2
H
G
F
E
D
C
B
A
ACEG
BDFH
TP3
RJ45_4X2
R397 49.9R397 49.9
R425 49.9R425 49.9
C357 0.1uFC357 0.1uF
C423 0.1uFC423 0.1uF
C382 0.1uFC382 0.1uF
R389 49.9R389 49.9
R644 75R644 75
R593 75R593 75
R264 49.9R264 49.9
R658 75R658 75
R311 49.9R311 49.9
C480
0.1uF
C480
0.1uF
R395 49.9R395 49.9
C484
0.1uF
C484
0.1uF
R663 75R663 75
R668 75R668 75
C335 0.1uFC335 0.1uF
R392 49.9R392 49.9
R641 75R641 75
C399 0.1uFC399 0.1uF
C473
0.1uF
C473
0.1uF
R343 49.9R343 49.9
R627 75R627 75
R647 75R647 75
R597 75R597 75
R371 49.9R371 49.9
R624 75R624 75
C431 0.1uFC431 0.1uF
R594 75R594 75
C436 0.1uFC436 0.1uF
R404 49.9R404 49.9
R428 49.9R428 49.9
R258 49.9R258 49.9
R652 75R652 75
R293 49.9R293 49.9
R388 49.9R388 49.9
R321 49.9R321 49.9
R432 49.9R432 49.9
R599 75R599 75
C291 0.1uFC291 0.1uF
R271 49.9R271 49.9
R602 75R602 75
R365 49.9R365 49.9
C479
0.1uF
C479
0.1uF
R367 49.9R367 49.9
C368 0.1uFC368 0.1uF
C346 0.1uFC346 0.1uF
C450
0.1uF
C450
0.1uF
R666 75R666 75
R292 49.9R292 49.9
R391 49.9R391 49.9
R664 75R664 75
R318 49.9R318 49.9
R622 75R622 75
C391 0.1uFC391 0.1uF
R633 75R633 75
R643 75R643 75
C471
0.1uF
C471
0.1uF
R625 75R625 75
R433 49.9R433 49.9
R424 49.9R424 49.9
RES C5
RES C4
RES C8
RES C7
TX+
C3 TX-
C6 RX+
C1 RX-
C2
RES D5
RES D4
RES D8
RES D7
RES E5
RES E4
RES E8
RES E7
TX+
E3 TX-
E6 RX+
E1 RX-
E2
TX+
D3 TX-
D6 RX+
D1 RX-
D2
RES H8
RES H7
RES H5
RES H4
RX-
H2 RX+
H1
TX+
H3 TX-
H6
RES A8
RES A7
RES A5
RES A4
RX-
A2 RX+
A1 TX-
A6 TX+
A3
RES G4
RES G5
RES G7
RES G8
TX+
G3 TX-
G6 RX+
G1 RX-
G2
RES B8
RES B7
RES B5
RES B4
RX-
B2 RX+
B1 TX-
B6 TX+
B3
RES F4
RES F5
RES F7
RES F8
TX+
F3 TX-
F6 RX+
F1 RX-
F2
RES SH1 RES SH2 RES SH3
RES
SH5 RES SH6 RES SH7
RES SH4
RES
SH8 RES SH9
H
G
F
E
D
C
B
A
ACEG
BDFH
TP2
RJ45_4X2
H
G
F
E
D
C
B
A
ACEG
BDFH
TP2
RJ45_4X2
R630 75R630 75
R357 49.9R357 49.9
C331 0.1uFC331 0.1uF
R669 75R669 75
C285 0.1uFC285 0.1uF
R362 49.9R362 49.9
C430 0.1uFC430 0.1uF
R650 75R650 75
R276 49.9R276 49.9
C439 0.1uFC439 0.1uF
C401 0.1uFC401 0.1uF
R267 49.9R267 49.9
R390 49.9R390 49.9
C478
0.1uF
C478
0.1uF
C447
0.1uF
C447
0.1uF
R654 75R654 75
R609 75R609 75
C518
1000pF
C518
1000pF
R604 75R604 75
R364 49.9R364 49.9
R295 49.9R295 49.9
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U40
H1259NL
U40
H1259NL
R361 49.9R361 49.9
RES C5
RES C4
RES C8
RES C7
TX+
C3 TX-
C6 RX+
C1 RX-
C2
RES D5
RES D4
RES D8
RES D7
RES E5
RES E4
RES E8
RES E7
TX+
E3 TX-
E6 RX+
E1 RX-
E2
TX+
D3 TX-
D6 RX+
D1 RX-
D2
RES H8
RES H7
RES H5
RES H4
RX-
H2 RX+
H1
TX+
H3 TX-
H6
RES A8
RES A7
RES A5
RES A4
RX-
A2 RX+
A1 TX-
A6 TX+
A3
RES G4
RES G5
RES G7
RES G8
TX+
G3 TX-
G6 RX+
G1 RX-
G2
RES B8
RES B7
RES B5
RES B4
RX-
B2 RX+
B1 TX-
B6 TX+
B3
RES F4
RES F5
RES F7
RES F8
TX+
F3 TX-
F6 RX+
F1 RX-
F2
RES SH1 RES SH2 RES SH3
RES
SH5 RES SH6 RES SH7
RES SH4
RES
SH8 RES SH9
H
G
F
E
D
C
B
A
ACEG
BDFH
TP1
RJ45_4X2
H
G
F
E
D
C
B
A
ACEG
BDFH
TP1
RJ45_4X2
R661 75R661 75
C434 0.1uFC434 0.1uF
C522
1000pF
C522
1000pF
C425 0.1uFC425 0.1uF
C472
0.1uF
C472
0.1uF
R317 49.9R317 49.9
R366 49.9R366 49.9
R359 49.9R359 49.9
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U36
H1259NL
U36
H1259NL
R638 75R638 75
R589 75R589 75
R586 75R586 75
R370 49.9R370 49.9
R595 75R595 75
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U38
H1259NL
U38
H1259NL
C373 0.1uFC373 0.1uF R645 75R645 75
R356 49.9R356 49.9
C358 0.1uFC358 0.1uF
R353 49.9R353 49.9
C438 0.1uFC438 0.1uF
R312 49.9R312 49.9
R400 49.9R400 49.9
R396 49.9R396 49.9
C514
1000pF
C514
1000pF
C449
0.1uF
C449
0.1uF
C477
0.1uF
C477
0.1uF
R607 75R607 75
R591 75R591 75
R634 75R634 75
R420 49.9R420 49.9
R348 49.9R348 49.9
C419 0.1uFC419 0.1uF
C424 0.1uFC424 0.1uF
R299 49.9R299 49.9
C336 0.1uFC336 0.1uF
C454
0.1uF
C454
0.1uF
R328 49.9R328 49.9
R637 75R637 75
C310 0.1uFC310 0.1uF
R653 75R653 75
C523
1000pF
C523
1000pF
C267 0.1uFC267 0.1uF
R587 75R587 75
R603 75R603 75
R631 75R631 75
R290 49.9R290 49.9
FB15
220OHM
3A
FB15
220OHM
3A
R354 49.9R354 49.9
C519
1000pF
C519
1000pF
R394 49.9R394 49.9
R335 49.9R335 49.9
C365 0.1uFC365 0.1uF
C448
0.1uF
C448
0.1uF
R642 75R642 75
R270 49.9R270 49.9
R419 49.9R419 49.9
R300 49.9R300 49.9
R305 49.9R305 49.9
C515
1000pF
C515
1000pF
C400 0.1uFC400 0.1uF
C453
0.1uF
C453
0.1uF
R310 49.9R310 49.9
R426 49.9R426 49.9
R659 75R659 75
C476
0.1uF
C476
0.1uF
C420 0.1uFC420 0.1uF R399 49.9R399 49.9
FB17
220OHM
3A
FB17
220OHM
3A
R294 49.9R294 49.9
C279 0.1uFC279 0.1uF
R623 75R623 75
R344 49.9R344 49.9
R657 75R657 75
CT4
3TD4-
2
TD4+
1
RD4-
5
RD3-
6
RD4+
4
RD3+
7CT3
8TD3-
9
TD3+
10
TD2+
11
TD2-
12 CT2
13 RD2+
14
RD2-
15
RD1-
16
RD1+
17 CT1
18 TD1-
19
TD1+
20 TX1+ 21
TX1- 22
CMGND1 23
RX1+ 24
RX1- 25
RX2- 26
RX2+ 27
CMGND2 28
TX2- 29
TX2+ 30
TX3+ 31
TX3- 32
CMGND3 33
RX3+ 34
RX3- 35
RX4- 36
RX4+ 37
CMGND4 38
TX4- 39
TX4+ 40
U39
H1259NL
U39
H1259NL
R640 75R640 75
C347 0.1uFC347 0.1uF
C395 0.1uFC395 0.1uF
R667 75R667 75
R378 49.9R378 49.9
R629 75R629 75
R646 75R646 75
R372 49.9R372 49.9
C437 0.1uFC437 0.1uF
R275 49.9R275 49.9
C520
1000pF
C520
1000pF
C483
0.1uF
C483
0.1uF
R662 75R662 75
R421 49.9R421 49.9
R306 49.9R306 49.9
R598 75R598 75
FB13
220OHM
3A
FB13
220OHM
3A
R341 49.9R341 49.9

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
A_XTALO
A_SGIN-
A_SGOUT-
A_SGOUT+
A_MII0_RX_DV
A_SGIN+
A_MII0_RXD3
A_MII0_RXD0
A_MII0_RXD2
A_MII0_RXC
A_MII0_RXD1
A_XTALI
A_SD
B_SGIN-
B_SGIN+
B_SGOUT-
B_SGOUT+
B_SD
A_SGIN+
A_SGIN-
A_SGOUT+
A_SGOUT-
B_SGIN+
B_SGIN-
B_SGOUT+
B_SGOUT-
B_SD
A_SD
GMII0_TXD1
GMII0_TXD3
GMII0_TXD2
GMII0_TXD0
GMII0_TX_EN
B_MII1_RXD0
B_MII1_RXD1
B_MII1_RXD2
B_MII1_RXD3
B_MII1_RX_DV
B_MII1_RXC
GMII1_TXD1
GMII1_TXD3
GMII1_TXD2
GMII1_TXD0
GMII1_TX_EN
+2.5v
+3.3V
+3.3V
+3.3V
+3.3V
+1.2V_D
+3.3V
+3.3V
+3.3V
+3.3V
+2.5v
+2.5v
+2.5v
+2.5v
+2.5v
GMII0_GTX_CLK3
GMII0_RX_DV3
GMII0_RXD33
GMII0_RX_CLK3
GMII0_RXD03 GMII0_RXD13 GMII0_RXD23
MDC3,8 MDIO3,8
RESET_L2,4,8,9,10
GMII0_TXD33
GMII0_TXD13 GMII0_TXD23
GMII0_TXD03
GMII0_TX_EN3
GMII1_TXD33
GMII1_TXD13
GMII1_RXD13
GMII1_RXD33
GMII1_RXD03
GMII1_RX_DV3
GMII1_TX_EN3
GMII1_TXD23
GMII1_GTX_CLK3
GMII1_RX_CLK3
GMII1_TXD03
GMII1_RXD23
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RGMII/MII port1
Broadcom Corporation
610Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RGMII/MII port1
Broadcom Corporation
610Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
5324 RGMII/MII port1
Broadcom Corporation
610Wednesday, March 07, 2007
Near BCM5482SS
Near SFP
Near BCM5482S
Near SFP
PHY address[4:0]=11001(25)
E11 C3 J3 J10
F3
C6
L2
E6
H1F5 C1 J6 J7
C125
0.01uF
C125
0.01uF
G1 G1
G2 G2
G3 G3
G4 G4
G5 G5
G6 G6
G7 G7
G8 G8
G9 G9
G10 G10
G11 G11
G12 G12
G13 G13
G14 G14
G15 G15
G16 G16
G17 G17
J13
SPF-CAGE
J13
SPF-CAGE
R611
4.7K
R611
4.7K
C308
0.1uF
C308
0.1uF
R374 4.7K (DNI)R374 4.7K (DNI)
G1 G1
G2 G2
G3 G3
G4 G4
G5 G5
G6 G6
G7 G7
G8 G8
G9 G9
G10 G10
G11 G11
G12 G12
G13 G13
G14 G14
G15 G15
G16 G16
G17 G17
J14
SPF-CAGE
J14
SPF-CAGE
FB27
600OHM
FB27
600OHM
TD3+
2
TD2+
5
TD1+
8
TD0+
11
TD3-
3
TD2-
6
TD1-
9
TD0-
12
TCT3
1
TCT2
4
TCT1
7
TCT0
10 MCT0 15
MX0+ 14
MX0- 13
MCT1 18
MX1+ 17
MX1- 16
MCT2 21
MX2+ 20
MX2- 19
MCT3 24
MX3+ 23
MX3- 22
U42
H5007
U42
H5007
+
C501
10uF
16V
+
C501
10uF
16V
C493
0.1uF
C493
0.1uF
R562
0
R562
0
+
C487
10uF
16V
+
C487
10uF
16V
C124
0.01uF
C124
0.01uF
C497
0.1uF
C497
0.1uF
R467
49.9
R467
49.9
R461
49.9
R461
49.9
C440
0.1uF
C440
0.1uF
R281
0
R281
0
R445 4.7KR445 4.7K
FB21
600
FB21
600
R291 39R291 39
C466
0.1uF
C466
0.1uF
R612
4.7K
R612
4.7K
Y2
25.000MHz
Y2
25.000MHz
FB18
220OHM
MPZ2012S221A
FB18
220OHM
MPZ2012S221A
R613
4.7K
R613
4.7K
R154 0R154 0
R156 0R156 0
TD3+
2
TD2+
5
TD1+
8
TD0+
11
TD3-
3
TD2-
6
TD1-
9
TD0-
12
TCT3
1
TCT2
4
TCT1
7
TCT0
10 MCT0 15
MX0+ 14
MX0- 13
MCT1 18
MX1+ 17
MX1- 16
MCT2 21
MX2+ 20
MX2- 19
MCT3 24
MX3+ 23
MX3- 22
U43
H5007
U43
H5007
R576
4.7K
R576
4.7K
C499
0.1uF
C499
0.1uF
R560
0
R560
0
C459
1000pF
C459
1000pF
R581
4.7K
R581
4.7K
R610
4.7K
R610
4.7K
C494
0.1uF
C494
0.1uF
C464
0.1uF
C464
0.1uF
R322 4.7KR322 4.7K
R316 39R316 39
R472
49.9
R472
49.9
R475
49.9
R475
49.9
FB24
600
FB24
600
R347 4.7K (DNI)R347 4.7K (DNI)
C96
22pF
C96
22pF
R410 4.7KR410 4.7K
R242 39R242 39
R621
75
R621
75
C443
0.1uF
C443
0.1uF
FB25
220OHM
MPZ2012S221A
FB25
220OHM
MPZ2012S221A
FB20
600
FB20
600
FB22
600OHM
FB22
600OHM
C297
0.1uF
C297
0.1uF
+
C107
47uF
16V
+
C107
47uF
16V
C462
0.1uF
C462
0.1uF
R583
4.7K
R583
4.7K
+
C469
10uF
16V
+
C469
10uF
16V
R280 39R280 39
C465
0.1uF
C465
0.1uF
FB19
600
BK1005HW601
FB19
600
BK1005HW601
R319 39R319 39
C490
0.1uF
C490
0.1uF
R309 39R309 39
R582
4.7K
R582
4.7K
R409 4.7K (DNI)R409 4.7K (DNI)
R307 39R307 39
MOD_DEF0
6MOD_DEF1 5
MOD_DEF2
4
RATE_SEL 7
RD_P
13 RD_N 12
RX_LOS
8
TD_P 18
TD_N 19
TX_DIS 3
TX_FAULT
2
VCC_R
15 VCC_T
16 VEE_R 10
VEE_R 11
VEE_R 14
VEE_R 9
VEE_T 17
VEE_T 1
VEE_T 20
J11
R-RCPT-SFP-2X10
J11
R-RCPT-SFP-2X10
R564
100 (DNI)
R564
100 (DNI)
C94
2.2uF
C94
2.2uF
R468
49.9
R468
49.9
R460
49.9
R460
49.9
R474
49.9
R474
49.9
C461
0.1uF
C461
0.1uF
R436 4.7K (DNI)R436 4.7K (DNI)
R617
75
R617
75
C126
0.01uF
C126
0.01uF
C363
10uF
C363
10uF
C491
0.1uF
C491
0.1uF
R558
100 (DNI)
R558
100 (DNI)
C127
0.01uF
C127
0.01uF
C495
0.1uF
C495
0.1uF
C119
0.1uF
C119
0.1uF
R473
49.9
R473
49.9
R346 4.7K (DNI)R346 4.7K (DNI)
R415 4.7K (DNI)R415 4.7K (DNI)
R351 4.7K (DNI)R351 4.7K (DNI)
R284 39R284 39
C488
0.1uF
C488
0.1uF
R620
75
R620
75
C296
0.1uF
C296
0.1uF
C345
0.01uF
C345
0.01uF
C115
2.2uF
C115
2.2uF
R331 39R331 39
R323 39R323 39
R578
4.7K
R578
4.7K
C506
1000pF
C506
1000pF
R464 1.24KR464 1.24K
C314
0.01uF
C314
0.01uF
R585
4.7K
R585
4.7K
R417 4.7K (DNI)R417 4.7K (DNI)
R380 4.7KR380 4.7K
C95
0.1uF
C95
0.1uF
R615
75
R615
75
R466
49.9
R466
49.9
R476
49.9
R476
49.9
R577
4.7K
R577
4.7K
C97
22pF
C97
22pF
R385 4.7KR385 4.7K
C468
0.1uF
C468
0.1uF
R566
0
R566
0
R462
49.9
R462
49.9
R584
4.7K
R584
4.7K
C528 10pF (DNI)C528 10pF (DNI)
C457
0.1uF
C457
0.1uF
R619
75
R619
75
R616
75
R616
75
C456
0.1uF
C456
0.1uF
R479
100 (DNI)
R479
100 (DNI)
C445
0.1uF
C445
0.1uF
R302 4.7K (DNI)R302 4.7K (DNI)
C527 10pF (DNI)C527 10pF (DNI)
R618
75
R618
75
C492
0.1uF
C492
0.1uF
C460
10uF
C460
10uF
C118
0.1uF
C118
0.1uF
C496
0.1uF
C496
0.1uF
C117
0.1uF
C117
0.1uF
R463
49.9
R463
49.9
C505
1000pF
C505
1000pF
+
C502
10uF
16V
+
C502
10uF
16V
TD+
1TD-
2RD+
3
RD-
6
NC4
4NC5
5
NC7
7NC8
8
SH10 10
SH9 9
J8
RJ45-CAT5-RA
J8
RJ45-CAT5-RA
R282
330 (DNI)
R282
330 (DNI)
R439 4.7KR439 4.7K
C500
0.1uF
C500
0.1uF
R580
4.7K
R580
4.7K
R470
49.9
R470
49.9
C353
0.01uF
C353
0.01uF
C467
0.1uF
C467
0.1uF
C113
0.1uF
C113
0.1uF
C110 10pF (DNI)C110 10pF (DNI)
CLK125
E3
GTXCLK1
C1
TXD1[0]
C5 TXD1[1]
C4 TXD1[2]
C3 TXD1[3]
C2
TXD2[0]
D10 TXD2[1]
D9 TXD2[2]
C9 TXD2[3]
C10
TX_EN1
D5 TX_EN2
D8
RXC1
D1
RXD1[0]
E4 RXD1[1]
E5 RXD1[2]
D4 RXD1[3]
D3
RXD2[0]
C7 RXD2[1]
C8 RXD2[2]
D7 RXD2[3]
E7
TRD1[3]- L6
TRD1[3]+ K6
TRD1[2]- L5
TRD1[2]+ K5
TRD1[1]- L4
TRD1[1]+ K4
TRD1[0]- L3
TRD1[0]+ K3
RDAC L1
SGIN_P1+ A1
SGIN_P1- B1
LED_P1[1]/ANEN H7
LED_P2[2]/INTR/F1000/SD H10
LED_P2[1]/SPD0 H9
LED_P1[2]/INTR/FDX/SD H8 RESET
G10
DRVSEL0
H5 DRVSEL1
H4
PLLGND
G2
SGCLK_P1- B4
GND1
F4 GND2
G4 GND3
H3 GND4 D6
OVDD1 E11 OVDD2 G3
SPLLVDD E6
PVDD F3
DVDD1 G1
AVDD1 J3 AVDD2 J10
AVDDL1 J6 AVDDL2 J7
BIASVDD L2
GND5
J4
XTALVDD C6
XTALI
A6 XTALO
B6
RX_DV1
D2
RX_DV2
E8
MDC_P1
F11 MDIO_P1
E10
PHYAD0
J9 PHYAD1
H11 PHYAD2
J11 PHYAD3
K11 PHYAD4
L11
TEST1 F9
TRST H6
TDI G8
TCK F7
TMS G7
TDO G9
PLLVDD H1
SGCLK_P1+ A4
GTXCLK2
C11
RXC2
D11
MDIO_P2
F10 MDC_P2
G11
INTFSEL0
G5 INTFSEL1
G6
TEST0 F8
REG_SUP1
E1 REG_SUP2
F1
REG_OUT1
E2 REG_OUT2
F2
SGOUT_P1+ A5
SGOUT_P1- B5
SGIN_P2+ A7
SGIN_P2- B7
SGOUT_P2+ A11
SGOUT_P2- B11
SGCLK_P2+ A10
SGCLK_P2- B10
GND6
J5 GND7 J8 GND9
E9
NC1
F6
NC12
J1 NC13 J2 NC14
K1 NC15 K2
TRD2[3]- L7
TRD2[3]+ K7
TRD2[2]- L8
TRD2[2]+ K8
TRD2[1]- L9
TRD2[1]+ K9
TRD2[0]- L10
TRD2[0]+ K10
S_SIN_P1+ A3
S_SIN_P1- B3
S_SGOUT_P1+ A2
S_SGOUT_P1- B2
S_SGIN_P2+ A9
S_SGIN_P2- B9
S_SGOUT_P2+ A8
S_SGOUT_P2- B8
vref1 F5
TVCO
H2
U17
BCM5482S BGA
U17
BCM5482S BGA
R330 39R330 39
R471
49.9
R471
49.9
C332
0.01uF
C332
0.01uF
C489
0.1uF
C489
0.1uF
R557
0
R557
0
R674 49.9 (DNI)R674 49.9 (DNI)
C455
0.1uF
C455
0.1uF
R579
4.7K
R579
4.7K
FB23
600
FB23
600
+
C105
47uF
16V
+
C105
47uF
16V
R614
75
R614
75
R314 39R314 39
R465
49.9
R465
49.9
MOD_DEF0
6MOD_DEF1 5
MOD_DEF2
4
RATE_SEL 7
RD_P
13 RD_N 12
RX_LOS
8
TD_P 18
TD_N 19
TX_DIS 3
TX_FAULT
2
VCC_R
15 VCC_T
16 VEE_R 10
VEE_R 11
VEE_R 14
VEE_R 9
VEE_T 17
VEE_T 1
VEE_T 20
J12
R-RCPT-SFP-2X10
J12
R-RCPT-SFP-2X10
R345 4.7K (DNI)R345 4.7K (DNI)
R477
49.9
R477
49.9
R478
100 (DNI)
R478
100 (DNI)
C463
0.1uF
C463
0.1uF
TD+
1TD-
2RD+
3
RD-
6
NC4
4NC5
5
NC7
7NC8
8
SH10 10
SH9 9
J7
RJ45-CAT5-RA
J7
RJ45-CAT5-RA
C295
1000pF
C295
1000pF
R675 49.9 (DNI)R675 49.9 (DNI)

Broadcom Confidential
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SD_DATA31
SD_DATA30
SD_DATA29
SD_DATA28
SD_DATA27
SD_DATA26
SD_DATA25
SD_DATA24
SD_DATA23
SD_DATA22
SD_DATA21
SD_DATA20
SD_DATA19
SD_DATA18
SD_DATA16
SD_DATA15
SD_DATA14
SD_DATA13
SD_DATA12
SD_DATA11
SD_DATA10
SD_DATA9
SD_DATA8
SD_DATA7
SD_DATA6
SD_DATA5
SD_DATA4
SD_DATA3
SD_DATA2
SD_DATA1
SD_DATA0
SD_DQM3
SD_DQM2
SD_DQM1
SD_DQM0
SD_ADS12
SD_ADS11
SD_ADS10
SD_ADS9
SD_ADS8
SD_ADS7
SD_ADS6
SD_ADS5
SD_ADS4
SD_ADS3
SD_ADS2
SD_ADS1
SD_ADS0
SD_BA1
SD_BA0
SD_WE
SD_CAS
SD_CKE
SDRAM_ADDR10
SDRAM_DATA9
SDRAM_DATA10
SDRAM_DATA8
SDRAM_DATA11
SDRAM_DQS0
SDRAM_DQS1
SDRAM_CAS_L
SDRAM_DQS2
SDRAM_DQS3
SDRAM_DATA31
SDRAM_DATA28
SDRAM_DATA29
SDRAM_DATA30
SD_RAS
SDRAM_DATA26
SDRAM_DATA27
SDRAM_DATA25
SDRAM_DATA24
SDRAM_ADDR12
SDRAM_ADDR7
SDRAM_ADDR8
SDRAM_DATA22
SDRAM_DATA20
SDRAM_DATA23
SDRAM_DATA21
SD_DATA17
SDRAM_DATA16
SDRAM_DATA18
SDRAM_DATA19
SDRAM_DATA17
SDRAM_DATA15
SDRAM_DATA14
SDRAM_DATA13
SDRAM_DATA12
SDRAM_DATA7
SDRAM_DATA6
SDRAM_DATA4
SDRAM_DATA5
SDRAM_DATA2
SDRAM_DATA1
SDRAM_DATA3
SDRAM_DQM3
SDRAM_DATA0
SDRAM_ADDR11
SDRAM_DQM0
SDRAM_DQM1
SDRAM_DQM2
SDRAM_ADDR9
SDRAM_ADDR3
SDRAM_ADDR4
SDRAM_ADDR5
SDRAM_ADDR6
SDRAM_ADDR0
SDRAM_BA1
SDRAM_ADDR1
SDRAM_ADDR2
SDRAM_CKE
SDRAM_RAS_L
SDRAM_WE_L
SDRAM_BA0
SDRAM_CLK
SDRAM_CLK*
SD_CLK
SD_DATA15
SD_DATA14
SD_DATA13
SD_DATA12
SD_DATA11
SD_DATA10
SD_DATA9
SD_DATA8
SD_DATA7
SD_DATA6
SD_DATA5
SD_DATA4
SD_DATA3
SD_DATA2
SD_DATA1
SD_DATA0
SD_DATA31
SD_DATA30
SD_DATA29
SD_DATA28
SD_DATA27
SD_DATA26
SD_DATA25
SD_DATA24
SD_DATA23
SD_DATA22
SD_DATA21
SD_DATA20
SD_DATA19
SD_DATA18
SD_DATA17
SD_DATA16
SD_ADS0
SD_ADS11
SD_ADS10
SD_ADS9
SD_ADS12
SD_ADS8
SD_ADS7
SD_ADS6
SD_ADS5
SD_ADS4
SD_ADS3
SD_ADS2
SD_ADS1
SD_BA1
SD_BA0
SD_CLK
SD_DQM1
SD_DQM0
SD_RAS
SD_CAS
SD_WE
SD_CKE
SD_ADS0
SD_ADS12
SD_ADS11
SD_ADS10
SD_ADS9
SD_ADS8
SD_ADS7
SD_ADS6
SD_ADS5
SD_ADS4
SD_ADS3
SD_ADS2
SD_ADS1
SD_BA0
SD_RAS
SD_WE
SD_CAS
SD_CKE
SD_DQM3
SD_DQM2
SD_CLK
SD_BA1
+3.3V
+3.3V
+1.2V_D
+2.5V
+3.3V
+1.2V_D
+1.2V_D
+2.5V
+2.5V
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V
TXD 9
RXD 9
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
BCM5836, SDRAM
Broadcom Corporation
710Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
BCM5836, SDRAM
Broadcom Corporation
710Wednesday, March 07, 2007
Title
Size Document Number Rev
Date: Sheet of
824-115079-0110 P3
BCM5836, SDRAM
Broadcom Corporation
710Wednesday, March 07, 2007
0 -> Little endian: Linux
1 -> Big endian: Vxworks
DEPOP
MT48LC8M16A2TG-75
MT48LC8M16A2TG-75
5%
Enable UART0
C225
0.1uF
C225
0.1uF
C219
0.1uF
C219
0.1uF
1
2
3
4 5
6
7
8
RN3
33
RN3
33
C28
22pF
C28
22pF
R550
1K
R550
1K
1
2
3
4 5
6
7
8
RN11
33
RN11
33 C30 0.01uF
C30
0.01uF
R547
1K
R547
1K
+
C7
22uF
16V
+
C7
22uF
16V
R541 10KR541 10K
C221
0.1uF
C221
0.1uF
C178
0.1uF
C178
0.1uF
+
C25
10uF
16V
+
C25
10uF
16V
L3
2.2uH
L3
2.2uH
R51 22R51 22
C192
0.1uF
C192
0.1uF
R56 0 (DNI)R56 0 (DNI)
C218
0.1uF
C218
0.1uF
R542 33R542 33
C169
0.1uF
C169
0.1uF
R548
1K
R548
1K
C211
0.1uF
C211
0.1uF
FB28
600OHM
FB28
600OHM
C233
0.1uF
C233
0.1uF
C216
1000pF
C216
1000pF
C236
0.1uF
C236
0.1uF
C26
10pF
C26
10pF
C213
0.1uF
C213
0.1uF
C205
0.1uF
C205
0.1uF
+
C22
47uF
16V
+
C22
47uF
16V
1
2
3
4 5
6
7
8
RN7
33
RN7
33
U6
48.000Mhz
U6
48.000Mhz
C210
0.1uF
C210
0.1uF
C170
0.1uF
C170
0.1uF
C234
0.1uF
C234
0.1uF
C174
0.1uF
C174
0.1uF
1
2
3
4 5
6
7
8
RN10
33
RN10
33
C228
0.1uF
C228
0.1uF
R202
1K (DNI)
R202
1K (DNI)
1
2
3
4 5
6
7
8
RN5
33
RN5
33
C188
1000pF
C188
1000pF
C183
2.2uF
C183
2.2uF
R546
33
R546
33
C190
0.1uF
C190
0.1uF
C224
0.1uF
C224
0.1uF
C220
0.1uF
C220
0.1uF
R97
470
R97
470
C207
0.1uF
C207
0.1uF
1
2
3
4 5
6
7
8
RN8
33
RN8
33
C191
0.1uF
C191
0.1uF
+
C231
10uF
16V
+
C231
10uF
16V
R183 10KR183 10K
C189
0.1uF
C189
0.1uF
C179
0.1uF
C179
0.1uF
C175
0.1uF
C175
0.1uF
C120
0.1uF
C120
0.1uF
+
C212
10uF
16V
+
C212
10uF
16V
R54 22 (DNI)R54 22 (DNI)
R88 4.7KR88 4.7K
1
2
3
4 5
6
7
8
RN4
33
RN4
33
R94
1M
R94
1M
C186
0.1uF
C186
0.1uF
R70 4.7KR70 4.7K
C237
0.1uF
C237
0.1uF
C230
0.1uF
C230
0.1uF
+
C227
10uF
16V
+
C227
10uF
16V
R86 4.7KR86 4.7K
GND_1
A1 GND_2
B1 GND_3
C1 GND_4
C2 GND_5
D2 GND_6
D3 GND_7
D4 GND_8
E4 GND_9
E5 GND_10
E9 GND_11
E12 GND_12
E15 GND_13
E18 GND_14
H18 GND_15
J5 GND_16
L5 GND_17
L18 GND_18
N5 GND_19
T5 GND_20
V5 GND_21
V6 GND_22
V11 GND_23
V12 GND_24
V17
RSVD_1
D13 RSVD_2
D14 RSVD_3
Y2 RSVD_4
Y3
PLL_TEST_OUT
A22
PLLDVSS C21
PLLAVSS E21
PLLDVDD B21
PLLAVDD E19
XTALVDD D20
VDDCORE1 D5
VDDCORE2 E7
VDDCORE3 E13
VDDCORE4 F5
VDDCORE5 G18
VDDCORE6 H5
VDDCORE7 K18
VDDCORE8 R5
VDDCORE9 T18
VDDCORE10 V8
VDDCORE11 V14
VDDCORE12 V18
VDDP1 C4
VDDP2 E11
VDDP3 E16
VDDP4 F18
VDDP5 M5
VDDP6 N18
VDDP7 V7
VDDP8 V13
VDDMEM1 J18
VDDMEM2 M18
VDDMEM3 P18
VDDMEM4 R18
VDDMEM5 U18
NC Y1
VESD1 G4
VESD2 M4
VESD3 V4
VESD4 U21
VDDBUS1 G5
VDDBUS3 P5
VDDBUS4 U5
VDDBUS2 K5
VDDIO1
C5 VDDIO2
D6 VDDIO3
E6 VDDIO4
E8 VDDIO5
E10 VDDIO6
E14 VDDIO7
E17 VDDIO8
V9 VDDIO9
V10 VDDIO10
V15 VDDIO11
V16 RSVD5
W5 RSVD6
Y4
VREF
V21
U21D
BCM5836
U21D
BCM5836
C217
0.1uF
C217
0.1uF
R84 4.7KR84 4.7K
C172
0.1uF
C172
0.1uF
R65 4.7KR65 4.7K
1
2
3
4 5
6
7
8
RN14
33
RN14
33
R549
33
R549
33
+
C49
47uF
16V
+
C49
47uF
16V
R67 4.7KR67 4.7K
C196
0.1uF
C196
0.1uF
C222
0.1uF
C222
0.1uF
C185
0.1uF
C185
0.1uF
R89
0
R89
0
R73 0R73 0
1
2
3
4 5
6
7
8
RN12
33
RN12
33
+
C34
47uF
16V
+
C34
47uF
16V
C238
0.1uF
C238
0.1uF
C187
0.1uF
C187
0.1uF
C200
0.1uF
C200
0.1uF
C202
0.1uF
C202
0.1uF
R545 33R545 33
WE
16
DQ0 2
RAS
18
DQ1 4
CS
19
A0
23
DQMH
39
DQ2 5
DQML
15
DQ3 7
A1
24
DQ4 8
DQ5 10
A2
25
DQ6 11
DQ7 13
A3
26
DQ8 42
DQ9 44
A4
29
DQ10 45
DQ11 47
A5
30
DQ12 48
DQ13 50
A6
31
DQ14 51
DQ15 53
A7
32 A8
33 A9
34 A10
22
BA1
21
CAS
17
CKE
37 CLK
38
A11
35
BA0
20
VSS 28 VSS 41 VSS 54
VSSQ 6 VSSQ 12 VSSQ 46 VSSQ 52
VDD
1
VDDQ
3VDDQ 9VDDQ
43 VDDQ 49
VDD
27 VDD 14
A12/NC
36
8M x 16
SDRAM
U11
MT48LC8M16A2TG-75
TSOP54
NC = 40
8M x 16
SDRAM
U11
MT48LC8M16A2TG-75
TSOP54
NC = 40
1
2
3
J10
S-M-.100-1X3
J10
S-M-.100-1X3
C197
0.1uF
C197
0.1uF
C226
0.1uF
C226
0.1uF
C184
0.1uF
C184
0.1uF
1
2
3
4 5
6
7
8
RN6
33
RN6
33
C235
0.1uF
C235
0.1uF
1
2
3
4 5
6
7
8
RN9
33
RN9
33
C177
0.1uF
C177
0.1uF C215 0.1uF
C215
0.1uF
C167
0.1uF
C167
0.1uF
+
C198
10uF
16V
+
C198
10uF
16V
R544 33R544 33
C195
0.1uF
C195
0.1uF
C214
0.1uF
C214
0.1uF
C208
0.1uF
C208
0.1uF
R551
1K
R551
1K
1
2
3
4 5
6
7
8
RN2
33
RN2
33
C60
0.1uF
C60
0.1uF
SDRAM_DATA31
F22 SDRAM_DATA30
G21 SDRAM_DATA29
G20 SDRAM_DATA28
H19 SDRAM_DATA27
G22 SDRAM_DATA26
H21 SDRAM_DATA25
H20 SDRAM_DATA24
H22 SDRAM_DATA23
J20 SDRAM_DATA22
J22 SDRAM_DATA21
K22 SDRAM_DATA20
K21 SDRAM_DATA19
K20 SDRAM_DATA18
K19 SDRAM_DATA17
L22 SDRAM_DATA16
L21 SDRAM_DATA15
M22 SDRAM_DATA14
M21 SDRAM_DATA13
M20 SDRAM_DATA12
N22 SDRAM_DATA11
N21 SDRAM_DATA10
P22 SDRAM_DATA09
N20 SDRAM_DATA08
P21 SDRAM_DATA07
R21 SDRAM_DATA06
T22 SDRAM_DATA05
P20 SDRAM_DATA04
T21 SDRAM_DATA03
R20 SDRAM_DATA02
U22 SDRAM_DATA01
T20 SDRAM_DATA0
V22 SDRAM_DQM3
J21 SDRAM_DQM2
L20 SDRAM_DQM1
R22 SDRAM_DQM0
U20
SDRAM_ADDR13
W21 SDRAM_ADDR12
V20 SDRAM_ADDR11
Y22 SDRAM_ADDR10
Y21 SDRAM_ADDR9
AA22 SDRAM_ADDR8
W20 SDRAM_ADDR7
AA21 SDRAM_ADDR6
V19 SDRAM_ADDR5
T19 SDRAM_ADDR4
Y20 SDRAM_ADDR3
AB22 SDRAM_ADDR2
W19
SDRAM_BA1
AB20 SDRAM_BA0
AA19 SDRAM_WE
U19 SDRAM_RAS
W18 SDRAM_CAS
AA20
SDRAM_CKE
W22 SDRAM_CLK
R19
USB1_N B02
USB1_P A02
USB_CTRL1 A03
USB2_N C03
USB2_P B03
USB_CTL2 B04
CODEC_OFHK C06
CODEC_RGDT D07
CODEC_FSYNC A06
CODEC_SDI B05
CODEC_SDO D08
CODEC_SCLK A04
CODEC_MCLK A05
CODEC_RST C07
XTAL_IN E20
XTAL_OUT D21
TEST_SE D19
SDRAM_ADDR0
Y19 SDRAM_ADDR1
AB21
SDRAM_CLKB
P19
SDRAM_DQS0 N19
SDRAM_DQS1 M19
SDRAM_DQS2 L19
SDRAM_DQS3 J19
UART_TX0 A21
UART_RX0 D17
UART_TX1 D18
UART_RX1 C18
UART_RTS C17
UART_CTS A20
UART_DSR B20
UART_DTR B19
UART_RI D15
UART_DCD D16
UART_CLK A19
S_FLASH_CLK W13
S_FLASH_Q W12
U21B
BCM5836
U21B
BCM5836
C176
0.1uF
C176
0.1uF
+
C171
10uF
16V
+
C171
10uF
16V
R52
1K (DNI)
R52
1K (DNI)
R87 4.7KR87 4.7K
WE
16
DQ0 2
RAS
18
DQ1 4
CS
19
A0
23
DQMH
39
DQ2 5
DQML
15
DQ3 7
A1
24
DQ4 8
DQ5 10
A2
25
DQ6 11
DQ7 13
A3
26
DQ8 42
DQ9 44
A4
29
DQ10 45
DQ11 47
A5
30
DQ12 48
DQ13 50
A6
31
DQ14 51
DQ15 53
A7
32 A8
33 A9
34 A10
22
BA1
21
CAS
17
CKE
37 CLK
38
A11
35
BA0
20
VSS 28 VSS 41 VSS 54
VSSQ 6 VSSQ 12 VSSQ 46 VSSQ 52
VDD
1
VDDQ
3VDDQ 9VDDQ
43 VDDQ 49
VDD
27 VDD 14
A12/NC
36
8M x 16
SDRAM
U22
MT48LC8M16A2TG-75
TSOP54
NC = 40
8M x 16
SDRAM
U22
MT48LC8M16A2TG-75
TSOP54
NC = 40
C168
0.1uF
C168
0.1uF
R543 33R543 33
1
2
3
4 5
6
7
8
RN1
33
RN1
33
C194
0.1uF
C194
0.1uF
1
2
3
4 5
6
7
8
RN13
33
RN13
33
