Broadcom HEDS-9922PRGEVB User manual

User Guide
Broadcom HEDS-9922-UG101
April 30, 2021
Description
The Broadcom®AEAT-9922 is an angular magnetic rotary
sensor that provides accurate angular measurement over a
full 360 degrees of rotation.
A sophisticated system uses integrated Hall sensor
elements with complex analog and digital signal processing
within a single device.Asimple two-pole magnet generates
thenecessarymagneticfieldbyrotatingitinaperpendicular
direction. Wide magnetic field sensor configurations allow
On Axis (end of shaft) or Off Axis (side of shaft) modes in
application. The AEAT-9922 is a versatile solution capable
of supporting a broad range of applications with its robust
architecture to measure and deliver both absolute and
incremental signals.
The absolute angle measurement provides an instant
indication of the magnet’s angular position with a selectable
and one-time programmable resolution from 10 to 18 bits.
Whenselected,itspositioningdatais thenrepresented inits
digital form to be assessed through a standard SSI (parity)
and SPI (with CRC and Parity option) communication
protocol. Where desired, users may also choose to receive
its absolute angle position in PWM-encoded output signals
(with CRC). The incremental positions are indicated onABI
and UVW signals with wide user configurable resolution
from 1 CPR and up to 10,000 CPR of ABI signals and pole
pairs from 1- to 32-pole pairs (2 to 64 poles) for UVW
commutation signals.
For ease of setup, Broadcom has made available
development tools to perform the calibration process
without other measurement equipment. These
programming kits and evaluation boards are available
through the normal Broadcom sales channels.
HEDS-9922PRGEVB
HEDS-9922EVB
Magnetic Encoder IC Programming Kit
Evaluation Board

HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Broadcom HEDS-9922-UG101
2
HEDS-9922PRGEVB Programming Kit Contents
The programming kits include following items:
HEDS-9922EVB Board Contents
The board kits include following items:
AEAT-9922 mounted on board
STM32-Nucleo 64 Programming Board x1
AEAT-9922 Interface Board x1
HEDS-9922EVB x2
NdFeB 35SH 6mm(d) × 2.5mm(h) Dipole Magnet x2
12-pin Ribbon Cable (2 ft) x1
Micro USB Cable x1
USB Drive x1

HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Broadcom HEDS-9922-UG101
3
HEDS-9922PRGEVB Programming Kit Pinout
The table shows the pin assignment for each I/O port.
Pin Description Function
1 A Incremental Signal A
2 B Incremental Signal B
3 VSS Supply Ground
4 VDD Supply Input
5 I Incremental Signal Index
6 MSEL Mode Selection
7 M2 I/O pad. See Table 1
8 M3 I/O pad. See Table 1
9 M0 I/O pad. See Table 1
10 M1 I/O pad. See Table 1
11 VDDA Supply Input
12 VSSA Supply Ground

HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Broadcom HEDS-9922-UG101
4

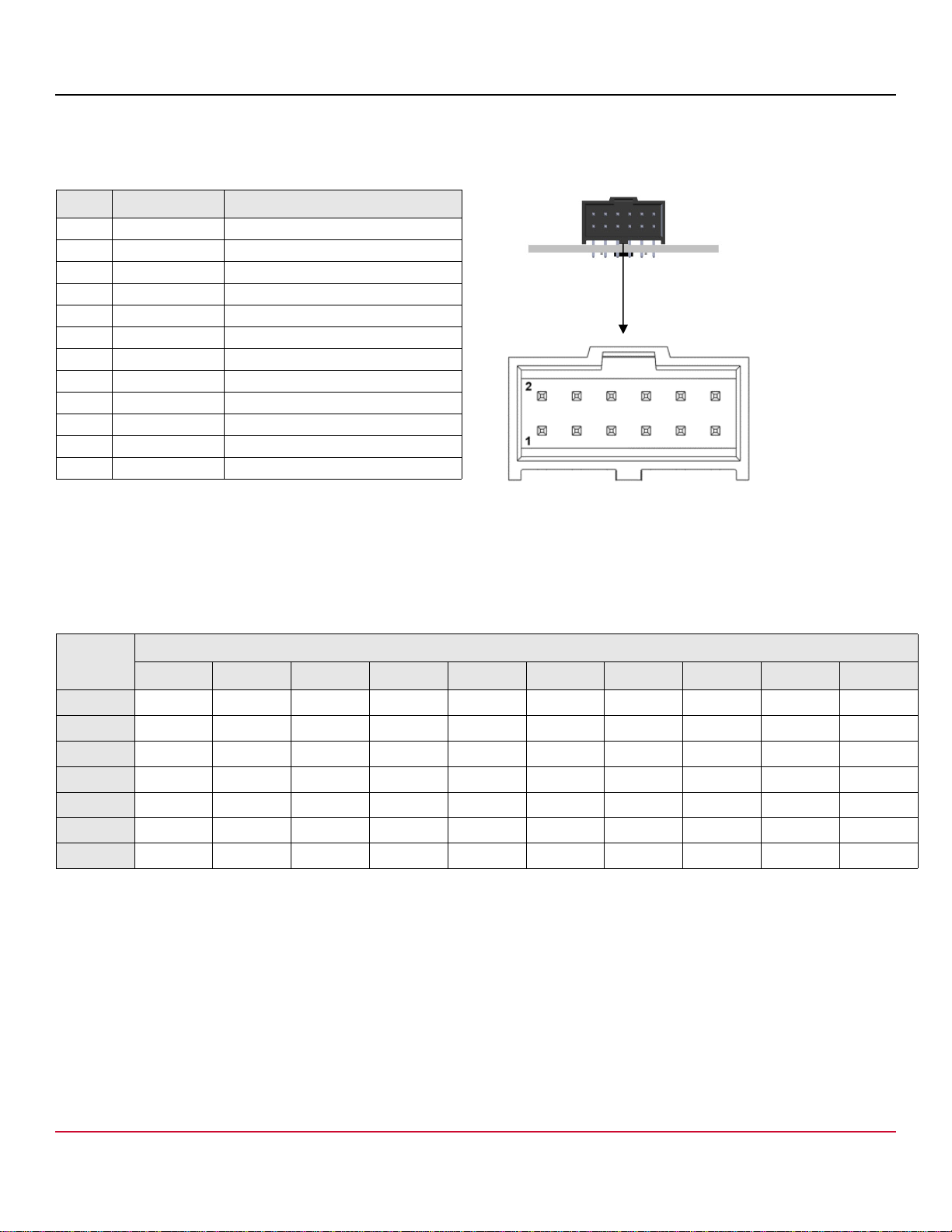

HEDS-9922EVB Eval Board Pinout
The table shows the pin assignment for each I/O port.
Pin Description Function
1 A Incremental Signal A
2 B Incremental Signal B
3 VSS Supply Ground
4 VDD Supply Input
5 I Incremental Signal Index
6 MSEL Mode Selection
7 M2 I/O pad. See Table 1
8 M3 I/O pad. See Table 1
9 M0 I/O pad. See Table 1
10 M1 I/O pad. See Table 1
11 VDDA Supply Input
12 VSSA Supply Ground
Table 1: Configurable Interface I/O and Selection Table (MATS Table)
Pin
Mode
SPI-3 SSI-3(A) SSI-3(B) SSI-2(A) SSI-2(B) SPI-4(A) SPI-4(B) UVW PWM Remarks
MSELa000001111I/OPin
PSEL[1]bxxxxx0011Memory
PSEL[0]bx01010101Memory
M0a01111NCSNCSERRERRI/OPin
M1aDIN NSL NSL 0 0 MOSI MOSI U N/A I/O Pin
M2aSCK SCL SCL SCL SCL SCK SCK V N/A I/O Pin
M3aDO DO DO DO DO MISO MISO W PWM I/O Pin
a. MSEL, M0, M1, M2, M3 are configured through the IO pads.
b. PSEL[1] and PSEL[0] are configure through memory.

Broadcom HEDS-9922-UG101
5
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board

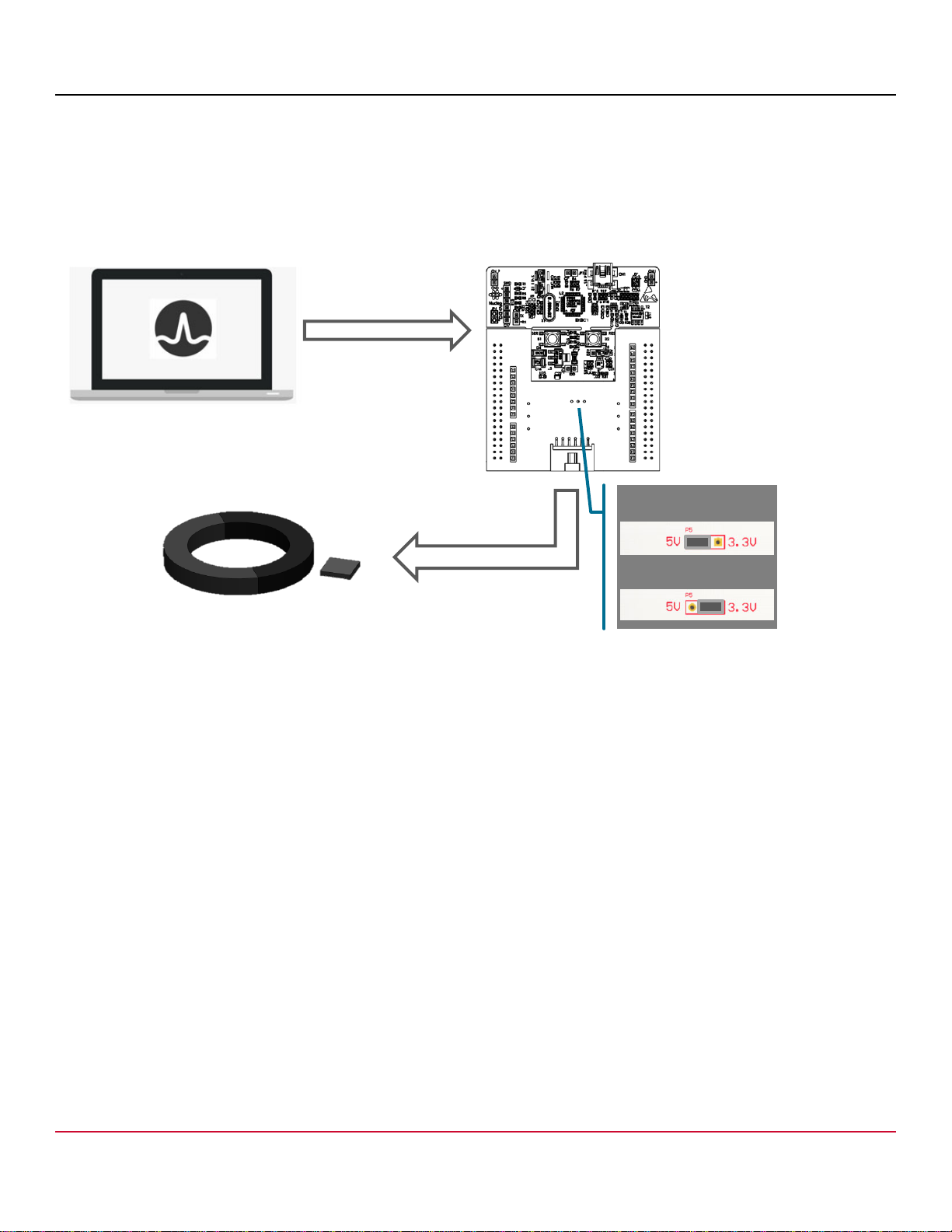

Hardware Setup
1. Connect the STM32-Nucleo to PC using a USB port.
2. Connect the 12-pin ribbon cable; one end to the interface board, the other to the encoder.
3. Select the operating voltage of sensor by connecting the jumper to either 3.3V or 5V.
Program Installation
The installation software for the programming kit is available in the USB drive provided. To install the application software,
double-click the software HEDS-9922 PRGEVB Programming Evaluation Kit.msi and follow the onscreen instructions to
finish the installation.
After the installation is complete, the program is available in the selected working directory
For latest software update, visit this link: https://broadcom.box.com/v/HEDS-9922-Programming-Software.
NOTE: The software is for PCs running on the Windows operating system. The minimum requirement is a Window 10
64-bit operating system.
Micro
USB

Broadcom HEDS-9922-UG101
6
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
User Interface of Calibration Software
Main Tab
The following table provides a functional description of each button.
Name Description
Software connection Enable the software connection to the board
Output interface Toggle between Fix mode and Chart mode
Record Record position streaming in Fix mode
User configuration tab Configure
Import encoder configuration Recall the encoder configuration from the saved file
Export encoder configuration Save the existing encoder configuration to a file
Software Info Software revision
ZERO RESET Calibrate: Reset single-turn position
Clear: Erase reset data
AUTO CALIBRATION Calibrate: Initiate the calibration sequence
Clear: Erase the calibration data
Direction Select the counting direction with respect to magnet turning
Absolute resolution Select the absolute resolution

Broadcom HEDS-9922-UG101
7
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board

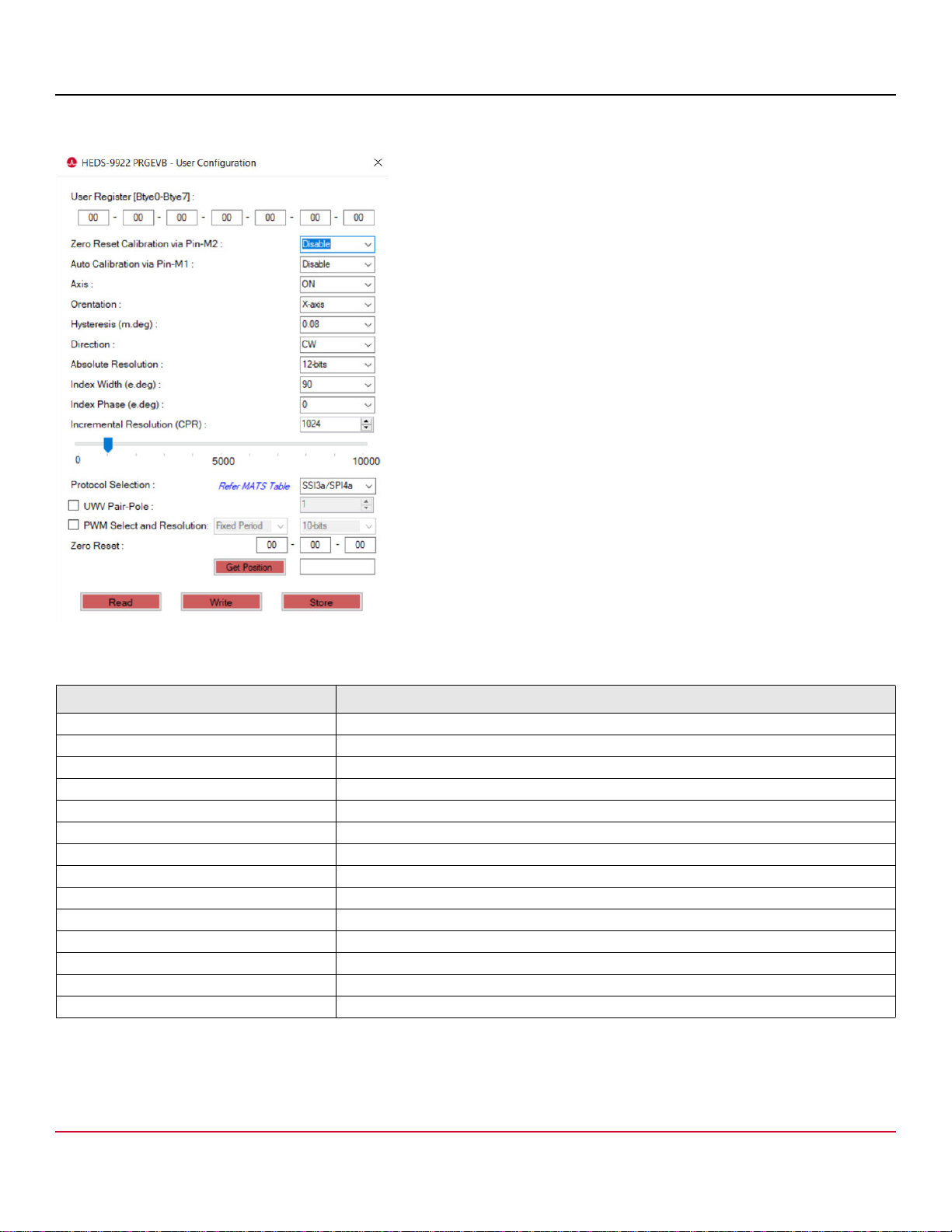

User Configuration Tab
The following table provides a functional description of each button.
NOTE: Click Read to read the encoder configuration from memory, and click Write to write the configuration into memory
after the selection. Click Store to store the configuration in memory to be available on the next power-up. Click Get
Position to get the current absolute position
Name Description
User Register [Byte0-Byte7] User programmable memory
Zero Reset Calibration via Pin-M2 Enable calibration through hardware pin M2
Auto Calibration via Pin-M1 Enable calibration through hardware pin M1
Axis Select On-Axis or Off-Axis
Hysteresis (m.deg) Select the Incremental hysteresis
Direction Select the counting direction with respect to magnet turning
Absolute Resolution Select the absolute resolution
Index Width (e.deg) Select the Index width
Index Phase (e.deg) Select the Index location
Incremental Resolution (CPR) Select the incremental resolution
Protocol Selection Select the protocol per Table 1
UVW Pair-Pole Select the UVW pole-pair resolution
PWM Select Resolution Select the PWM type and resolution
Zero Reset Input single-turn offset value

Broadcom HEDS-9922-UG101
8
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Output Interface Tab
The Output Interface consists of two types:
360 mechanical degree chart.
X-Y mechanical degree chart. [X-axis: Position] [Y-axis: nsamples/time based]
Record Tab
Positional recording is only available under the X-Y mechanical degree chart.
The record procedure follows:
1. Click Output Interface until it displays the X-Y mechanical degree chart.
2. Click the Record tab.
3. Enter the file name, select the file location, and click Save.
4. The position is continuously saved to the file until the Record Tab [Stop Recording] is clicked again.
360 mechanical degree chart X-Y mechanical degree chart

Broadcom HEDS-9922-UG101
9
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Import Encoder Configuration Tab
The Import Encoder Configuration tab consists of four groups of registers. Each group can be selected individually or in
different combinations.
The import encoder configuration procedure follows:
1. Click the Import Encoder Configuration tab.
The preceding figure is displayed.
2. Click Browse to select the targeted file.
3. Select the check box of the targeted register group.
4. Click Write and Store.
The completion status appears below the Write and Store button.
Export Encoder Configuration Tab
The export encoder configuration procedure follows:
1. Click Export Encoder Configuration.
2. Enter the file name, select the file location, and click Save.

Broadcom HEDS-9922-UG101
10
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
Calibration Process
When the encoder is assembled (SMT) to PCB, mount to the motor system with the magnet setup per the data sheet.
Encoder configuration can be loaded before or after calibration.
Perform auto-calibration followed by zero reset.
Auto-Calibration
1. Rotate the magnet at a constant-speed (any direction).
a. Constant speed range is between 50 RPM to 2000 RPM.
2. When the speed stabilizes, initiate the calibration sequence by using the following items:
a. Software
i. SPI commands using the PC software interface.
ii. Calibration status is displayed when complete.
b. Hardware
i. Send High pulse > 50 ms to I/O pin M1.
ii. Calibration status is displayed on the ABI pin.
3. Calibration data is automatically saved in memory at the end of the sequence.
Zero Reset Calibration
1. Stop the magnet at the reset position.
2. Initiate the reset calibration sequence by using the following items:
a. Software
i. SPI commands using the PC software interface.
ii. Calibration status is displayed when complete.
b. Hardware
i. Send High pulse > 50 ms to I/O pin M2.
ii. Calibration status is displayed on the ABI pin.
3. Calibration data is automatically saved in memory at the end of the sequence.
NOTE: For a detailed description of each of the parameters, refer to the data sheet and application note.

Broadcom HEDS-9922-UG101
11
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board

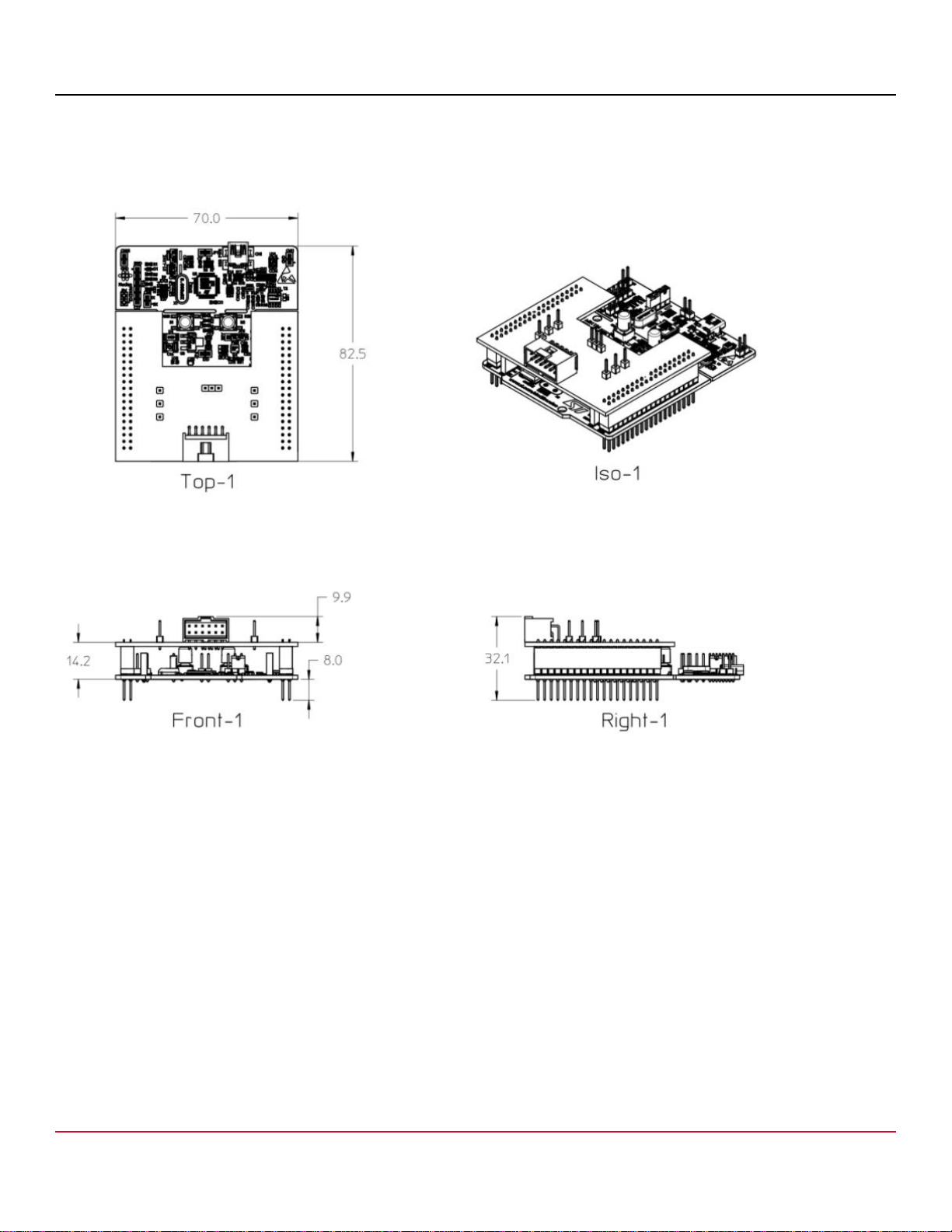

Mechanical Dimensions
HEDS-9922PRGEVB

Broadcom HEDS-9922-UG101
12
HEDS-9922PRGEVB
HEDS-9922EVB User Guide Magnetic Encoder IC Programming Kit Evaluation Board
HEDS-9922EVB
Ordering Information
Ordering Part Number Product Description
HEDS-9922PRGEVB AEAT-9922 Programming Kit, Evaluation Board, and Magnet
HEDS-9922EVB AEAT-9922 Evaluation Board
