Broan E60000 SERIES User manual

INSTALLATION INSTRUCTIONS
SAN “Clie
HBO073
E60000 SERIES
Z\INTENDED FOR DOMESTIC COOKING ONLY A
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 13 & 14.
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877-896-1119
REGISTER YOUR PRODUCT ON LINE AT: www.broan.com/register
SV08340 rev. E

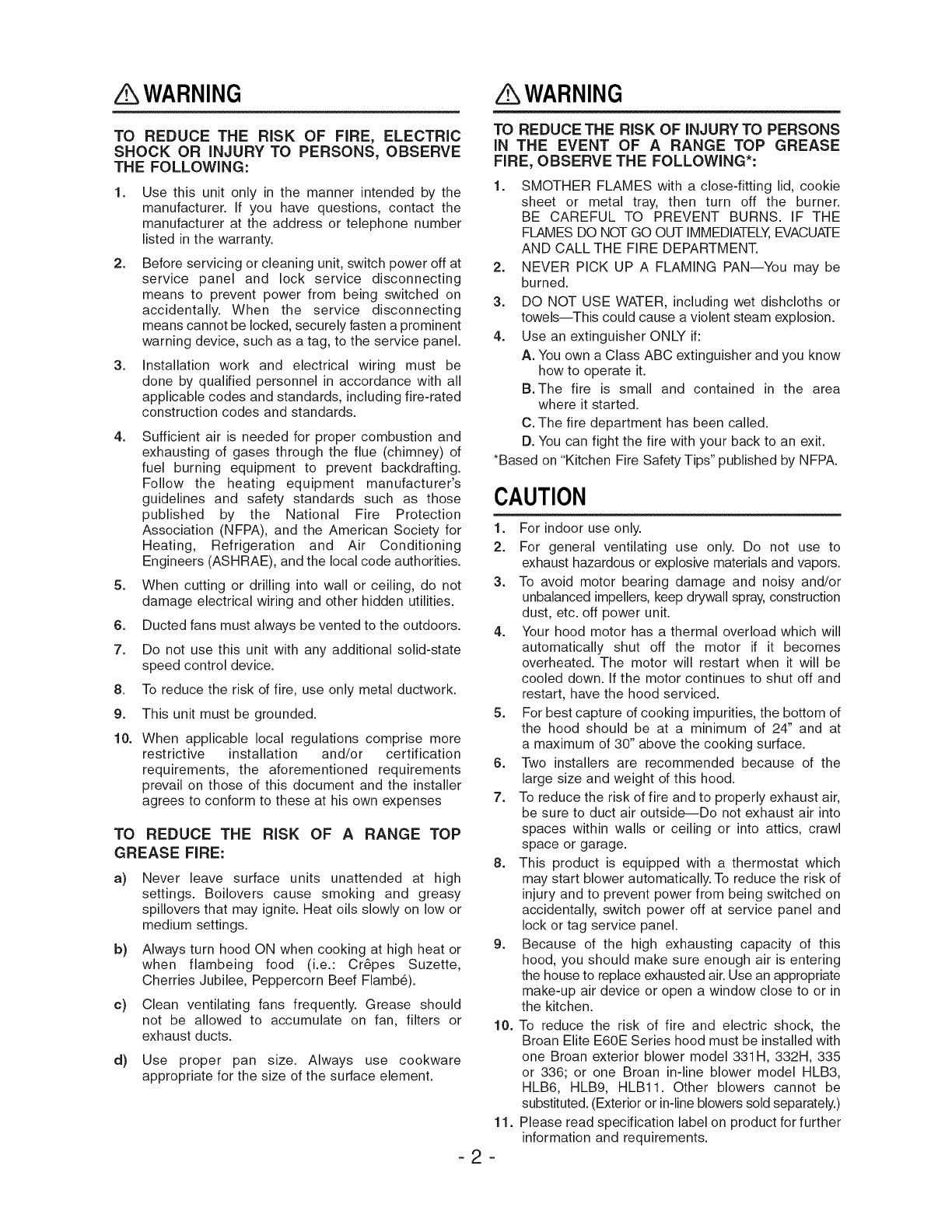

Z\ WARNING Z\ WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.
Before servicing or cleaning unit, switch power off at
service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
Installation work and electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer's
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Do not use this unit with any additional solid-state
speed control device.
To reduce the risk of fire, use only metal ductwork.
This unit must be grounded.
. When applicable local regulations comprise more
restrictive installation and/or certification
requirements, the aforementioned requirements
prevail on those of this document and the installer
agrees to conform to these at his own expenses
TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a)
b)
c)
d)
Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on low or
medium settings.
Always turn hood ON when cooking at high heat or
when flambeing food (i.e.: Crépes Suzette,
Cherries Jubilee, Peppercorn Beef Flambé).
Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan, filters or
exhaust ducts.
Use proper pan size. Always use cookware
appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. IF THE
FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE
AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN—You may be
burned.
DO NOT USE WATER, including wet dishcloths or
towels—This could cause a violent steam explosion.
Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know
how to operate it.
B. The fire is small and contained in the area
where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
“Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1.
2.
3.
10.
11.
For indoor use only.
For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it will be
cooled down. If the motor continues to shut off and
restart, have the hood serviced.
For best capture of cooking impurities, the bottom of
the hood should be at a minimum of 24” and at
a maximum of 30” above the cooking surface.
Two installers are recommended because of the
large size and weight of this hood.
To reduce the risk of fire and to properly exhaust air,
be sure to duct air outside—Do not exhaust air into
spaces within walls or ceiling or into attics, crawl
space or garage.
This product is equipped with a thermostat which
may start blower automatically. To reduce the risk of
injury and to prevent power from being switched on
accidentally, switch power off at service panel and
lock or tag service panel.
Because of the high exhausting capacity of this
hood, you should make sure enough air is entering
the house to replace exhausted air. Use an appropriate
make-up air device or open a window close to or in
the kitchen.
To reduce the risk of fire and electric shock, the
Broan Elite E60E Series hood must be installed with
one Broan exterior blower model 331H, 332H, 335
or 336; or one Broan in-line blower model HLB3,
HLB6, HLB9, HLB11. Other blowers cannot be
substituted. (Exterior or in-line blowers sold separately.)
Please read specification label on product for further
information and requirements.

- E60000 SERIES RANGE HOOD SYSTEM -
INTERNAL BLOWERS
MobeL 647 MoDEL 634 or 644 MopeL 643 Move 441
(7” Round WaLL Cap) (Roor Cap) (8” Rounp WatL Cap)
MopeL 437
(10” Round WaLL Cap)
(HiGH Capacity Roor Cap)
MobeL 418 MopeL 415 : 8” Rounp
MopeL 421 (10” Round (7” Rounp ADJUSTABLE
ADJUSTABLE ELBow) ADJUSTABLE ELBow }) ‘ Etpow
(10” Rounb VERTICAL
ed
IN-LINE DAMPER)
MobeL
407
8”
Round
(7”
ROUND
:
STANDARD
—?2
FT.
SECTIONS)
:
Duct
MobEL
410
(10” ROUND DUCT
—2
FT.
SECTIONS)
Veena
Veeco
:
TRANSITION TRANSITION
(3%4"
x
10”
To
7’)
(314
x
10”
To
8”)
; : : ; i
MobEL
639
(3%4” x 10” :
WALL Cap) }
uv
‘
om
MopbeL 427 MobEL 423 MobeL 424 MobeL 454 MopeL 453
(4%” x 18%” (4%” x 18%” (4%” x 18%” (4%” x 18%” (4%” x 18%” STANDARD
To 10” Rounp, — To 10” Rounp - To 10” ROUND - To 10” ROUND - To 10” ROUND - Duct ‘
6” HIGH - LATERAL) VERTICAL) Horiz. FRONT/REAR) — Horiz. /RIGHT) Horiz. /LEFT) (3%4” x 10”) :
OPTIONAL re Pe 7
OPTIONAL DECORATIVE NON-DUCTED RECIRCULATION KIT ~i-~
ANKE60 SERIES :
FLUE AEE SERIES
”
ADAPTER 412” x 1814”!
(SUPPLIED WITH |
DOUBLE BLOWER HOOD)!
?
,
‘
é
,
= e
. +
‘
ADAPTER/DAMPER 314” x 10
_,. (SUPPLIED WITH
= SINGLE BLOWER HOOD)
£60000 SERIES HOOD
RMP SERIES SINGLE BLower (600 cro}
BACKSPLASH
(STAINLESS STEEL WALL
COVERING WITH WARMING
SHELVES. OPTIONAL)
Duat BLower (1200 crm}
36”, 42” AND 48” ONLY
HLOOS9

- E60000 SERIES RANGE HOOD SYSTEM -
IN-LINE AND EXTERIOR BLOWERS
MoveEL 437 Move 441
(HiGH capacity Roor Cap)
Mopet HLB9 (800 crm) = (10” Round Watt Cap)
or HLB11 (1100 crm)
IN-LINE BLOWER
(INCLUDES TWO 8” x 12” To
teen, 10” ROUND TRANSITIONS)
Mobe- 335 (1200 crm)
oR 336 (1500 crm)
EXTERIOR BLOWER
MobeL 331H (600 crm)
oR 332H (900 crm)
ExTeRIoR BLOWER
Mobe_ 441
MopeL
643
a
(10”
Rounp
.
(8"
ROUND
+
WALL
Cap)
a
Watt
Cap)
|]
Lay
omen
Z
|
oe
©
|
} | |
:
|
}
"
‘,
‘
MopveL
HLB6
(600
ie,
we
ee
SO
IN-LINE
BLOWER
*,
(INCLUDES Two 4%” x 18%” To
10” ROUND TRANSITIONS)
et” Movet 418
eae (10” Rounb
eee ADJUSTABLE ELBow)
coneeen terre MobeL 421
ener (10” ROUND VERT.
- IN-LINE DAMPER)
RECOMMENDED FOR
USE WITH EXTERIOR
BLOWERS
Mopet HLB3 (280 crm)
IN-LINE BLOWER
(INCLUDES ONE 8” To 10”
ROUND TRANSITION)
a
r
5
a
8
a
8
a
8
8
MobeL 410
(10” Rounp Duct
~ 2FT. SECTIONS)
E60000 SERIES HOOD
=>
332KR IN-LINE AND
EXTERIOR BLOWER ROUGH-IN KIT
(SUPPLIED WITH HOOD)
RMP Series BACKSPLASH
(STAINLESS STEEL WALL COVERING
WITH WARMING SHELVES.
OPTIONAL}
HLO100

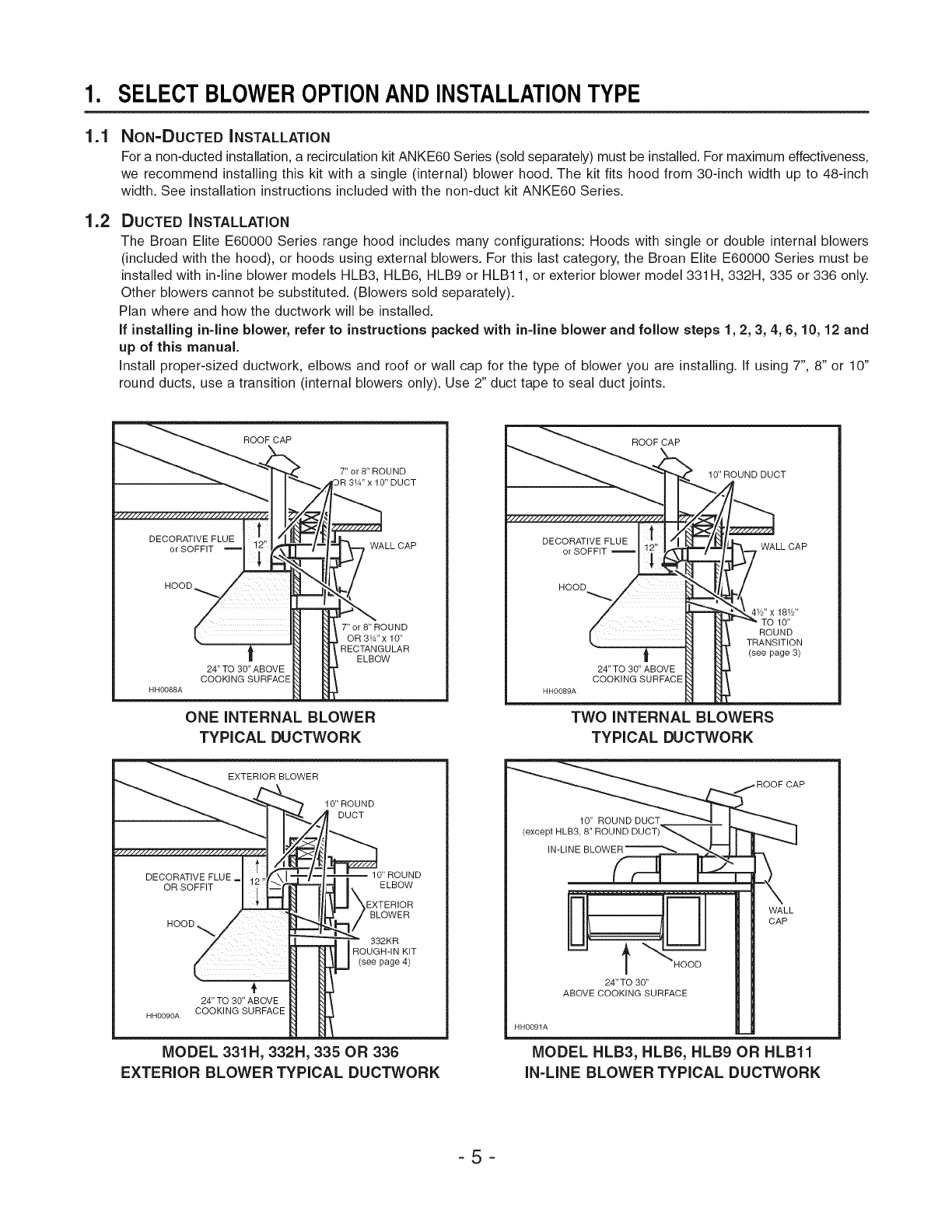

1. SELECT BLOWER OPTION AND INSTALLATION TYPE
1.1 Non-DucTED INSTALLATION
For a non-ducted installation, a recirculation kit ANKE60 Series (sold separately) must be installed. For maximum effectiveness,
we recommend installing this kit with a single (internal) blower hood. The kit fits hood from 30-inch width up to 48-inch
width. See installation instructions included with the non-duct kit ANKE60 Series.
1.2 DucTED INSTALLATION
The Broan Elite E60000 Series range hood includes many configurations: Hoods with single or double internal blowers
(included with the hooa), or hoods using external blowers. For this last category, the Broan Elite E60000 Series must be
installed with in-line blower models HLB3, HLB6, HLB9 or HLB11, or exterior blower model 331H, 332H, 335 or 336 only.
Other blowers cannot be substituted. (Blowers sold separately).
Plan where and how the ductwork will be installed.
If installing in-line blower, refer to instructions packed with in-line blower and follow steps 1, 2, 3, 4,6, 10, 12 and
up of this manual.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. If using 7”, 8” or 10”
round ducts, use a transition (internal blowers only). Use 2” duct tape to seal duct joints.
ROOF CAP
7° or 8” ROUND
344” x 10” DUCT
|
42”
DECORATIVE FLUE
or SOFFIT WALL CAP
7° or 8” ROUND
OR 344” x 10”
RECTANGULAR
ELBOW
24” TO 30” ABOVE
COOKING SURFACE
HHOO88A
ONE INTERNAL BLOWER
TYPICAL DUCTWORK
EXTERIOR BLOWER
10” ROUND
DUCT
\ 10” ROUND
DECORATIVE FLUE 42
ELBOW
OR SOFFIT \
EXTERIOR
BLOWER
332KR
ROUGH-IN KIT
(see page 4)
~
24” TO 30” ABOVE
HHoogoa «= COOKING SURFACE
MODEL 331H, 332H, 335 OR 336
EXTERIOR BLOWER TYPICAL DUCTWORK
ROOF CAP
10” ROUND DUCT
a
_
Boy
t AK (SI a
DECORATIVE FLUE » 1 7A !
or SOFFIT sess ‘| Qu | WALL CAP
HOOD mM™ | 1
SSI
Le Masset"
TO 10”
ROUND
TRANSITION
(see page 3)
24” TO 30” ABOVE
COOKING SURFACE
HHOOB8SA
TWO INTERNAL BLOWERS
TYPICAL DUCTWORK
wo ROOF CAP
10” ROUND DUCT,
(except HLB3, 8” ROUND DUCT) a
IN-LINE BLOWER “""""Ss Ss
Ct be
|
24’ TO 30”
ABOVE COOKING SURFACE
WALL
CAP
HOOD
HHOOSTA
MODEL HLB3, HLB6, HLB9 OR HLB11
IN-LINE BLOWER TYPICAL DUCTWORK

2. MEASURE INSTALLATION
Dimensions for the most common installation are illustrated at right.
Ceiling
a . Cabinet, soffit,
The minimum hood distance above cooktop must not be less | yocorative flue or —
than 24’. A maximum of 30” above cooktop is highly | non-duct kit flue
recommended for best capture of cooking impurities.
Distances over 30” are at the installer and users discretion. iN
mounting strip
I Top of wood
| fae
Minimum distance between
the hood and cooktop:
24”
Recommended maximum
distance between the hood
and cooktop: 30”
| __
Standard 36”
high cooktop
MINIMUM AND MAXIMUM DISTANCE
OVER COOKTOP
HHO093A
3. PREPARE THE INSTALLATION
Z\ WARNING
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Remove the installation kit from inside the hood.
Make sure that the following items are included:
- Wood strip (attached to back of hood)
- Installation manual
- Accessories including:
« Baffle filters: 30” and 36” hoods come with 3 baffle filters; 42” and 48” hoods come with 4 baffle filters
« Baffle filters handles (taped inside the hood)
* 3%” x 10” adapter/damper (included with internal single blower hood)
*« 4%” x 18%” adapter (included with internal double blower hood)
« |n-line and exterior blower rough-in plate model 332KR (mounted inside all external blower hoods)
« Bag of parts including:
4 flat head screws no. 10-2”, 8 screws no. 8 x 3/4”, 2 wire connectors, 3 wall anchors,
3 washers 13/64” ID x 3/4” OD, 1 wire clamp, 8 mechanical screws no. 8-32 x 1/4”, 4 no. 8 x 3/8” screws
Parts sold separately:
- In-line blower assembly HLB3, HLB6, HLB9 or HLB11 (all include transition)
- Exterior blower assembly 331H, 332H, 335 or 336
- Shielded GU10 50W halogen bulbs (2 required for 30” and 36” hood widths, 3 required for 42” and 48” hood widths)
- RMP Series Backsplash (optional)
- ANKE60 Series Recirculation kit, mandatory for non-ducted installation (models with built-in blower(s) only)
- AEE Series Decorative flue, to be installed over the hood (optional)
- Transitions, duct, elbows, dampers, wall and roof caps.
Refer to pages 3 and 4 for a complete list of venting options and model numbers.
-6-

3. PREPARE THE INSTALLATION (CONT'D)
DUCTED INSTALLATIONS ONLY
Cut-out the openings for duct (A) and power cable (B), in cabinet or wall, according to the direction of discharge chosen.
See figures below.
NOTE: For all internal blower hoods, the cut-out opening for house wiring can be made in cabinet bottom OR wall, no matter
the discharge chosen (vertical or horizontal).
INTERNAL SINGLE BLOWER HOOD INTERNAL DOUBLE BLOWER HOOD
VERTICAL DISCHARGE CABINET BOTTOM VIEW CABINET BOTTOM VIEW
£2. Ss
HOOD | Dimension C ¢
WIDTHS
30” 13” A 99"
36 16” , A { \
42" 19” 334" B 5%" Ate
43”
99”
t
LO”
TS : 7
7/3" 5% 5% 4/2” 10 10 | oe
INTERNAL SINGLE BLOWER HOOD INTERNAL DOUBLE BLOWER HOOD
HORIZONTAL DISCHARGE
LK
9 @ \ r | 9
Hoop DIMENSION GC
WIDTHS 4 4
30” 13” F t
36”
16”
c
59”
é
42”
19”
—
fy
” 1 | B ~ " t : 2"
48 22 9%" Ree 856" a Pt
|
sy | a a
a a | tinea | ntfsnannnaannnnit |
ou" 51" | 70"; 10° |
HDO266A
HOOD WITH IN-LINE OR EXTERIOR BLOWER HOOD WITH IN-LINE OR EXTERIOR BLOWER
CABINET BOTTOM VIEW
<= =.
| HL = “ =
Ee
2,
re
| 10%”
@
10%”
3”
536"
B
ath
oF
»
Ar
“on
CABINET
CENTER
LINE—
934
oN
4h”
a
@ 102” 934"
HDO0286A
4. INSTALL BACKSPLASH (OPTIONAL)
(Optional) RMP Series
Backsplash must be installed before the hood shell because the hood shell covers the backsplash top mounting screws. In order
to be able to install the backsplash, make sure you have at least 18” clearance between bottom of hood and range control panel
or cooktop. (See instructions packed with backsplash.)
-7-

5. CHOOSE THE OPENING(S) (INTERNAL BLOWER(S) HOOD ONLY)
Remove the knockout(s) for the chosen opening(s) (horizontal at the back of the hood or vertical on top). See illustrations below.
VERTICAL DISCHARGE
HORIZONTAL DISCHARGE
NOTE: For ducted installation only.
HR0021
Punch out the appropriate electrical knockout
hole on top (A) or back (B) of the hood.
Install the wire clamp (included in parts bag).
NOTE: For a non-ducted installation, punch
out the back electrical knock-out (B).
HD0250
6. REMOVE FILTERS AND THE GREASE DRIP RAIL
A. Remove tape on filters.
Remove filters from hood and set aside.
NOTE: | It is recommended to start with the
center one.
B. Remove tape on grease drip rail (1).
Lift out grease drip rail and set aside.
HD0243
7. REMOVE THE ADAPTER (INTERNAL BLOWER HOODS ONLY)
Remove the adapter (1), or adapter/damper, taped inside the hood.

8. HORIZONTAL DISCHARGE INSTALLATION (INTERNAL BLOWER(S) HOOD ONLY)
All internal blower hoods are factory shipped with the blowers mounted for a vertical discharge configuration. For a horizontal
discharge configuration, disassemble the blower(s) from the inner top of the hood and mount it (them) to the inner back panel
of the hood. The procedure below applies for one or two blowers.
Lert Sipe Mountine
Screw Locarion
Using a 5/16” socket, remove all
blower mounting screws from the
inner top of the hood. Keep the
screws for further use.
MouNTING Screw
Location
Slide the blower to disengage its flange from the
retaining bracket.
HD0270.
RIGHT. SIDE
| lOUNTING SCREW
Rotate the blower and engage its ai
flange in the back wall retaining
bracket.
Using a 5/16” socket and the
screws previously removed, secure
the blower to the hood.
OMARION
HD0288

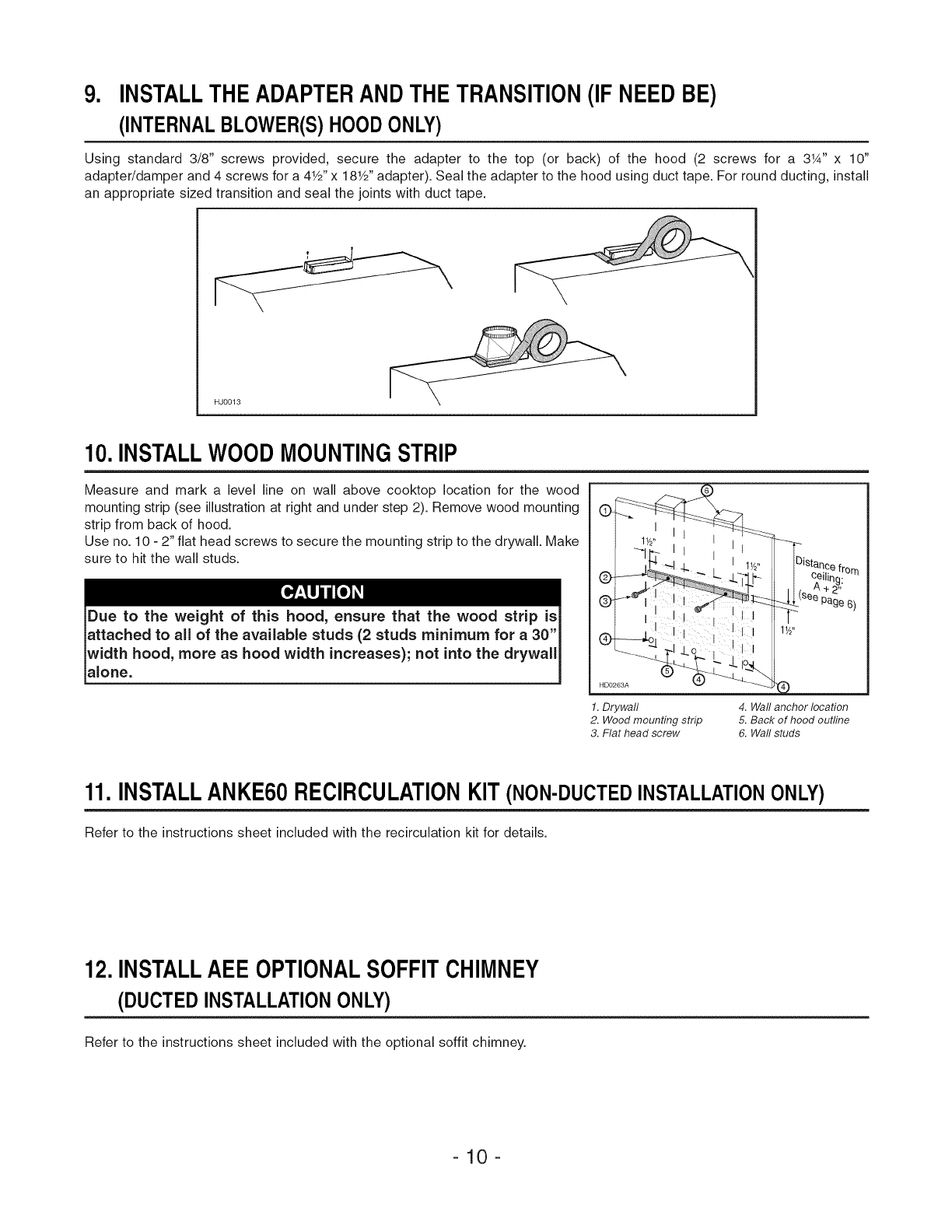

9. INSTALL THE ADAPTER AND THE TRANSITION (IF NEED BE)
(INTERNAL BLOWER(S) HOOD ONLY)
Using standard 3/8” screws provided, secure the adapter to the top (or back) of the hood (2 screws for a 314” x 10”
adapter/damper and 4 screws for a 4%” x 18%” adapter). Seal the adapter to the hood using duct tape. For round ducting, install
an appropriate sized transition and seal the joints with duct tape.
HJ0013
10. INSTALL WOOD MOUNTING STRIP
Measure and mark a level line on wall above cooktop location for the wood
mounting strip (see illustration at right and under step 2). Remove wood mounting
strip from back of hood.
Use no. 10 - 2” flat head screws to secure the mounting strip to the drywall. Make
sure to hit the wall studs.
Due to the weight of this hood, ensure that the wood strip is
attached to all of the available studs (2 studs minimum for a 30”
width hood, more as hood width increases); not into the drywall
alone.
HDO263A
1. Drywall 4, Wall anchor location
2. Wood mounting strip 5. Back of hood outline
3. Flat head screw 6. Wall studs
11. INSTALL ANKE60 RECIRCULATION KIT (NON-DUCTED INSTALLATION ONLY)
Refer to the instructions sheet included with the recirculation kit for details.
12. INSTALL AEE OPTIONAL SOFFIT CHIMNEY
(DUCTED INSTALLATION ONLY)
Refer to the instructions sheet included with the optional soffit chimney.
-10-

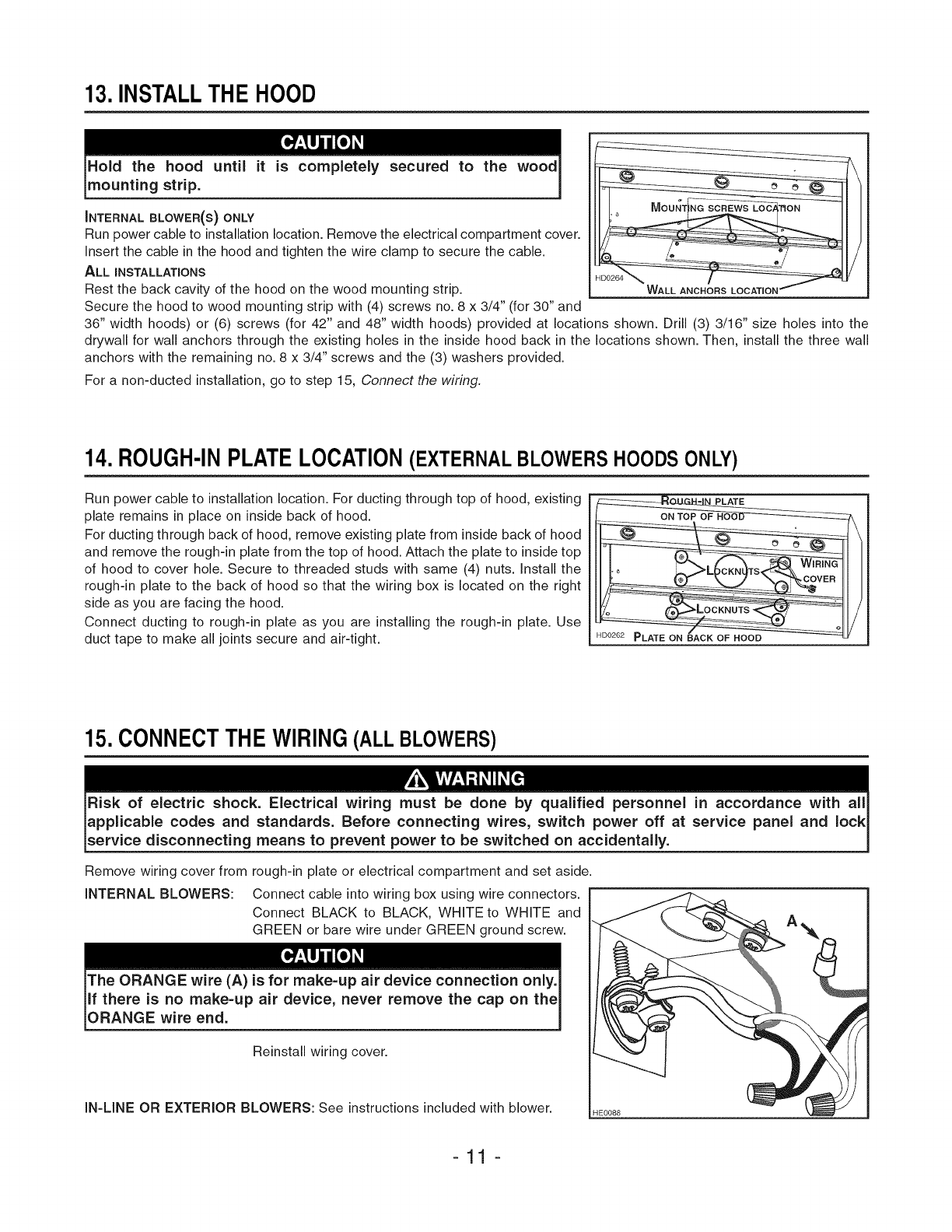

13. INSTALL THE HOOD
Hold the hood until it is completely secured to the wood
mounting strip.
Mount|NG SCREWS LOCATION
INTERNAL BLOWER(S) ONLY :°
Run power cable to installation location. Remove the electrical compartment cover. ||| >=
Insert the cable in the hood and tighten the wire clamp to secure the cable. 6 ‘e ee
LI = Seen pg ee
ALL INSTALLATIONS upeees Se
Rest the back cavity of the hood on the wood mounting strip. WALL ANCHORS LOCATION
Secure the hood to wood mounting strip with (4) screws no. 8 x 3/4” (for 30” and
36” width hoods) or (6) screws (for 42” and 48” width hoods) provided at locations shown. Drill (3) 3/16” size holes into the
drywall for wall anchors through the existing holes in the inside hood back in the locations shown. Then, install the three wall
anchors with the remaining no. 8 x 3/4” screws and the (3) washers provided.
For a non-ducted installation, go to step 15, Connect the wiring.
14. ROUGH-IN PLATE LOCATION (EXTERNAL BLOWERS HOODS ONLY)
Run power cable to installation location. For ducting through top of hood, existing
plate remains in place on inside back of hood.
For ducting through back of hood, remove existing plate from inside back of hood
and remove the rough-in plate from the top of hood. Attach the plate to inside top
of hood to cover hole. Secure to threaded studs with same (4) nuts. Install the
rough-in plate to the back of hood so that the wiring box is located on the right
side as you are facing the hood.
Connect ducting to rough-in plate as you are installing the rough-in plate. Use
duct tape to make all joints secure and air-tight. Ho0262 PLATE ON BACK OF HOOD
15. CONNECT THE WIRING (ALL BLOWERS)
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all
applicable codes and standards. Before connecting wires, switch power off at service panel and lock
service disconnecting means to prevent power to be switched on accidentally.
Remove wiring cover from rough-in plate or electrical compartment and set aside.
INTERNAL BLOWERS: Connect cable into wiring box using wire connectors.
Connect BLACK to BLACK, WHITE to WHITE and
GREEN or bare wire under GREEN ground screw.
The ORANGE wire (A) is for make-up air device connection only.
If there is no make-up air device, never remove the cap on the
ORANGE wire end.
Reinstall wiring cover.
IN-LINE OR EXTERIOR BLOWERS: See instructions included with blower. HEooes
-1i-

16. INSTALL THE BLOWER (EXTERIOR OR IN-LINE BLOWER)
Refer to instructions included with blower.
Plug the 3-prong plug cord from rough-in plate to the 3-prong male
connector inside the hood (A) and the 2-prong male connector cord from rough-in
plate to the 2-prong plug inside the hood (B).
o not plug the 2 cords together. |
17. REINSTALL GREASE DRIP RAIL AND BAFFLE FILTERS
Reinstall grease drip rail. The illustration at right shows how to reinsert the grease
drip rail into the range hood.
HD0244
Remove protective plastic film covering fillers before installing them.
NOTE:Assemble the metal handles
to the filters, using provided
no. 8-32 x 1/4” screws, before
installing them in the hood.
It is recommended to install side
filters first and finish with center one(s).
1. Insert one end of the filter into the
upper channel of the hood.
2. Raise the other end toward the
inside of hood and insert in the a yo
grease drip rail of the hood. HDo24s
18. INSTALL LIGHT BULBS
This hood requires 50 W, 120 V with GU10 base, shielded halogen bulbs (not included). (2 required for 30” and 36” hood widths
or 3 for 42” and 48” hood widths.)
Do not touch lamps during or soon after operation. Burns may occur. SN
In order to prevent the risk of personal injury, only install shielded
halogen lamps. Also, never install a cool beam, a dichroic lamp, a
lamp not suitable for use in recessed luminaires or identified for use
in enclosed fixtures.
HOOO9O
1. Install bulbs by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.
To remove bulbs, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.
NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb.
-412-

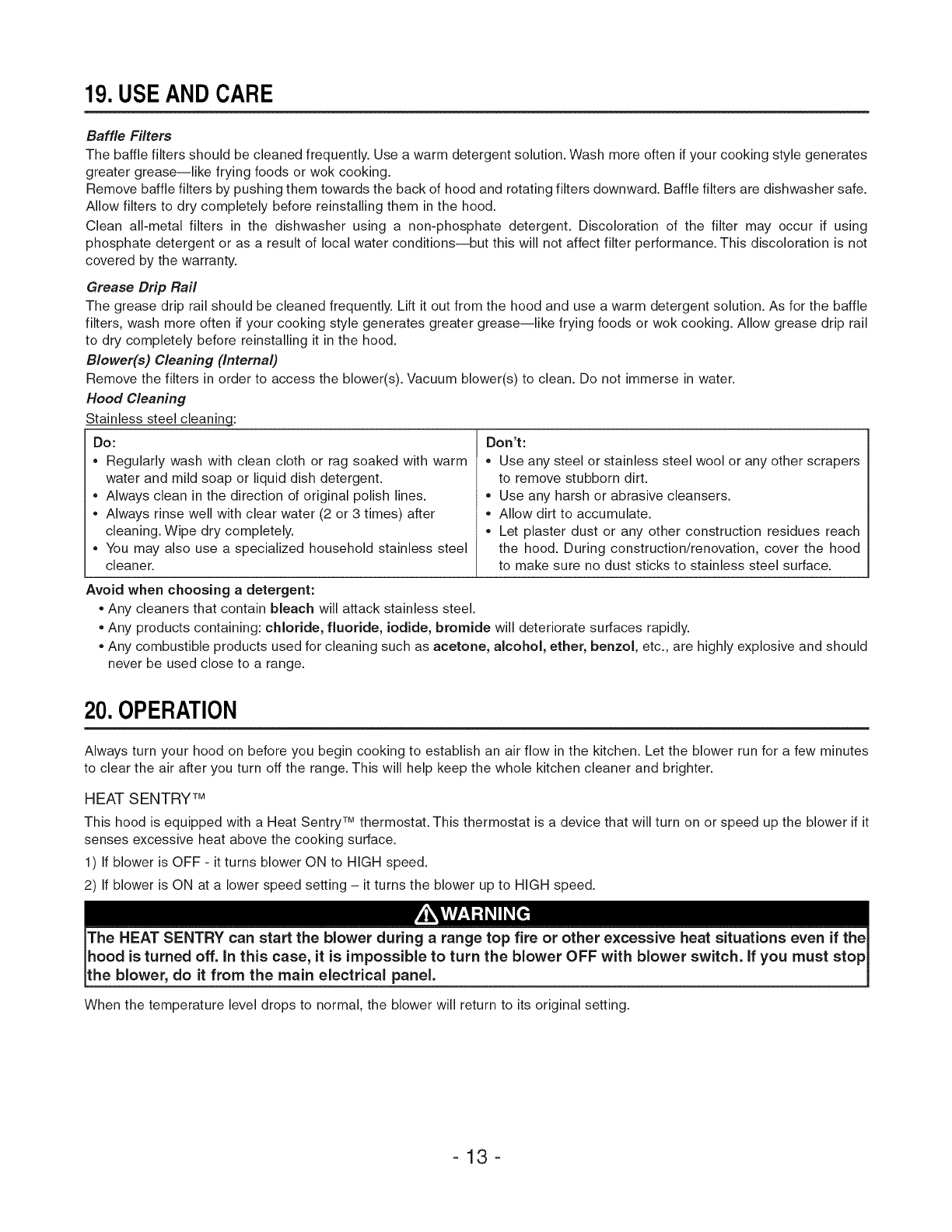

19. USE AND CARE
Baffle Filters
The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates
greater grease—like frying foods or wok cooking.
Remove baffle filters by pushing them towards the back of hood and rotating filters downward. Baffle filters are dishwasher safe.
Allow filters to dry completely before reinstalling them in the hood.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using
phosphate detergent or as a result of local water conditions—but this will not affect filter performance. This discoloration is not
covered by the warranty.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Lift it out from the hood and use a warm detergent solution. As for the baffle
filters, wash more often if your cooking style generates greater grease—like frying foods or wok cooking. Allow grease drip rail
to dry completely before reinstalling it in the hood.
Blower(s) Cleaning (Internal)
Remove the filters in order to access the blower(s). Vacuum blower(s) to clean. Do not immerse in water.
Hood Cleaning
Stainless steel cleaning:
Do: Don’t:
« Regularly wash with clean cloth or rag soaked with warm | « Use any steel or stainless steel wool or any other scrapers
water and mild soap or liquid dish detergent.
« Always clean in the direction of original polish lines.
« Always rinse well with clear water (2 or 3 times) after
cleaning. Wipe dry completely.
* You may also use a specialized household stainless steel
cleaner.
to remove stubborn dirt.
* Use any harsh or abrasive cleansers.
* Allow dirt to accumulate.
* Let plaster dust or any other construction residues reach
the hood. During construction/renovation, cover the hood
to make sure no dust sticks to stainless steel surface.
Avoid when choosing a detergent:
« Any cleaners that contain bleach will attack stainless steel.
« Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
« Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should
never be used close to a range.
20. OPERATION
Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes
to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.
HEAT SENTRY™
This hood is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will turn on or speed up the blower if it
senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting — it turns the blower up to HIGH speed.
Z\WARNING
The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the
hood is turned off. In this case, it is impossible to turn the blower OFF with blower switch. If you must stop
the blower, do it from the main electrical panel.
When the temperature level drops to normal, the blower will return to its original setting.
-13-

20. OPERATION (CONT'D)
HC0034
A) Halogen light knob
B) Blower speed contro! knob
HC0035
1) Halogen light knob
2) Blower operation indicator
3) ON/OFF blower switch
4) Blower speed control knob
COOKTOP LIGHTING (HALOGEN)
A rotary 3-position knob (1) controls the halogen lights (OFF - low intensity - high intensity).
BLOWER
The blower is operated using two controls.
Use the on/off rocker switch (3) to start and stop the blower. When turned on, the blower indicator (2) turns on and the blower
operates at the previous setting of the speed control (4).
Turn the speed control knob counterclockwise to increase blower speed — clockwise to decrease speed.
21. WARRANTY
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BROAN ELITE PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Broan Elite products that such products
will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE
NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is
found to be defective uncer normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty
does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse,
negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary
to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or
provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE
FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT
USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to
another. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at one of the addresses or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time
of requesting warranty service, you must present evidence of the original purchase date.
In USA - Broan-NuTone LLC; 926 W. State Street, Hartford, Wisconsin 53027 www.broan.com 800-558-1711
In Canada - Broan-NuTone Canada Inc.; 1140 Tristar Drive, Mississauga, ON L5T 1H9 www.broan.ca 877-896-1119
-14-

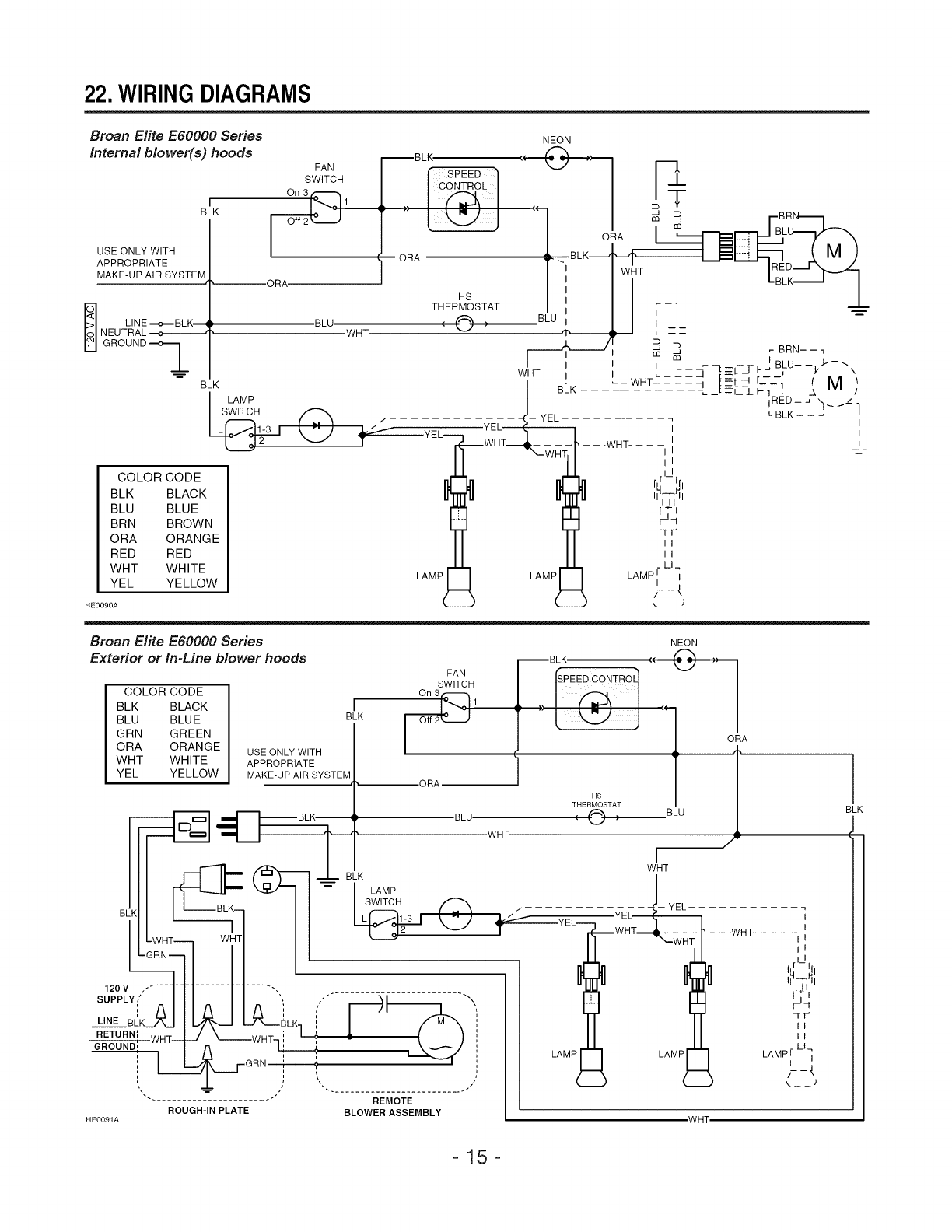

22. WIRING DIAGRAMS
Broan Elite E60000 Series
internal blower(s) hoods
FAN
SWITCH
BLK
On3 1
BLK ke !
Off 2
USE ONLY WITH
SPEED
“Loh
LN J
APPROPRIATE
MAKE-UP AIR SYSTEM
4 ORA:
VAC
LINE —-o—BLK BLU:
o| NEUTRAL .
~ |
COLOR CODE
BLK BLACK
BLU BLUE
BRN BROWN
ORA ORANGE
RED RED
WHT WHITE
YEL YELLOW
HEOO90A
Broan Elite E60000 Series
Exterior or In-Line blower hoods
COLOR CODE
BLK BLACK
BLU BLUE
GRN GREEN
ORA ORANGE
WHT WHITE
YEL YELLOW
USE ONLY WITH
APPROPRIATE
WHT:
MAKE-UP AIR SYSTEM
ORA
Lamm
HS
THERMOSTAT
FAN
SWITCH
BLK
SPEED.CONTRO
On3
,
BLK On tf
rae
ORA
THERMOSTAT
BLU
wo
z
x
o
a
i WHT:
ry
N77
BLK
BLK
—
LAMP
SWITCH
ROUGH-IN PLATE
HEOOS1A
REMOTE
BLOWER ASSEMBLY
WHT
WHT:

23. SERVICE PARTS
Broan Elite E60000 Series 1
Internal blower hoods
8
HLO106
Broan Elite E60000 Series
Exterior or In-Line blower hoods
137
HLO105 8
Key Part
NO.
DESCRIPTION
Qn. (Hoop wiptH)
30° 36° 43" 48”
—_
SV13296
SV17797
ADAPTER/DAMPER 314” x 10”
(1-BLower Hoop)
ADAPTER 414” x 181%” (2-BLOwER HOOD)
q | q q
SV06750 BRoaN ELITE Loco
SV16569 Lamp SHELL, SOCKET & TRIM Ass’yY
SV03435 Heat SENTRY'™ THERMOSTAT
SV08333 LIGHT SWITCH
SV03501 SPEED CONTROL
SV08355 BLOWER AND LIGHT KNOBS (2 KNOBS)
SV08343 REPLACEMENT CHARCOAL FILTERS (PAIR)
O}
CO}
NE
>} Ca
Bay
G2}
DO
SV08344 CHARCOAL FILTER SUPPORTS (PAIR) wtf
mf
mn}
mead
a}
a)
OP
af
a
wt}
met}
ma} mad
a}
al
GO}
af
a
wtf met
ma} mad
a}
mal
Gop
af
a
— Q SV08097
INTERNAL Motor
(1 OR 2, DEPENDING ON HOOD MODEL)
tf
maf
maf
a}
a}
a}
a)
po}
a}
1
SV17640
SV17641
SV17642
SV17643
GREASE RAIL 30”
GREASE RAIL 36”
GREASE RAIL 42”
GREASE RAIL 48”
—_
SV08337 FILTER SPRING (SET OF 6) mth
od
wtf
mk
ot
SV17606
SV17609
BAFFLE FILTER 8.84” x 15.25”
BarrLe Fitter 11.84” x 15.25”
SV08339 BLoweR Rocker SWITCH
SV08093 Pitot Lamp Ass’y
SV07680 BAFFLE FILTER HANDLE WITH SCREWS
SV08340 INSTALLATION GUIDE —iof—abeal
—
pof—al:
—i
cof
—b—}
ao:
—iopfalealpropofeapoi
-
—}
ps}
pa}
ps
SV08352
Parts Baa: 2 WIRE CONNECTORS,
1 WIRE CLAMP, 3 WALL ANCHORS
3 WasHers 13/64” ID x 3/4” OD,
4 ScREWS No. 8 x 3/8”,
8 ScREWS No. 8 x 3/4”,
8 MECHANICAL SCREWS NO. 8-32 x 1/4”,
4 FLAT HEAD SCREWS No. 10-2”
Ty. (Hoop WIDTH
DESCRIPTION Gry. ( ) Part No.
NO.
RiM
HERMOSTAT
CH
OWER AND
17640
SV17641| Grease RAIL 36”
SV17642| Grease RalL 42”
SV17643] GREASE Ral 48”
ILTER SET OF
13 ILTER 8.84” x
SV17609| BarrLe Fitter 11.84” x 15.25”
OWER CH
OT
1
WITH
NSTALLATION
Parts Bac: 2 WIRE CONNECTORS,
1 WiRE CLAMP, 3 WALL ANCHORS
3 WaSHERS 13/64” ID x 3/4”,
4 ScREWS NO. 8 x 3/8”,
8 ScREWS NO. 8 x 3/4”,
8 MECHANICAL SCREWS NO. 8-32 x 1/4”,
4 FLAT HEAD SCREWS No. 10-2”
* |SV08352
*NOT SHOWN.
*NoT SHOWN.
REPLACEMENT Parts AND REPAIRS
In order to ensure your unit remains in good working condition, you must use
Broan-NuTone genuine replacement parts only. Broan-NuTone genuine
replacement parts are specially designed for each unit and are manufactured
to comply with all the applicable certification standards and maintain a high
standard of safety. Any third party replacement part used may cause serious
damage and drastically reduce the performance level of your unit, which will
result in premature failing. Broan-NuTone recommends to contact a certified
service depot for all replacement parts and repairs.
-16-

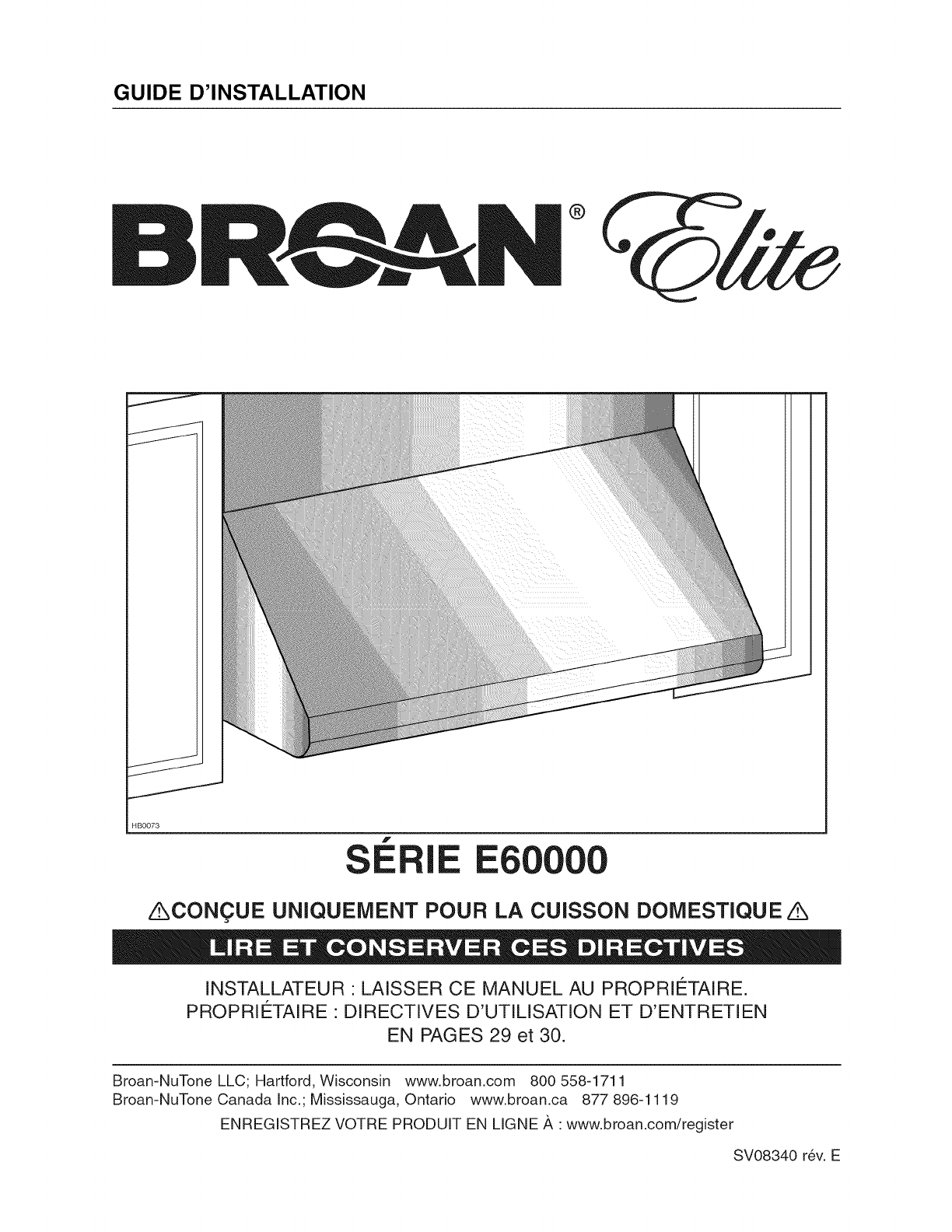

GUIDE D’INSTALLATION
SAN “Clie
HBO073
SERIE E60000
Z\CONCUE UNIQUEMENT POUR LA CUISSON DOMESTIQUE A
LIRE ET CONSERVER CES DIRECTIVES
INSTALLATEUR : LAISSER CE MANUEL AU PROPRIETAIRE.
PROPRIETAIRE : DIRECTIVES D’UTILISATION ET D’ENTRETIEN
EN PAGES 29 et 30.
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800 558-1711
Broan-NuTone Canada Inc.; Mississauga, Ontario www.broan.ca 877 896-1119
ENREGISTREZ VOTRE PRODUIT EN LIGNE A : www.broan.com/register
SV08340 rév. E

Z\ AVERTISSEMENT Z\ AVERTISSEMENT
AFIN DE REDUIRE LES RISQUES D’INCENDIE,
D’ELECTROCUTION OU DE BLESSURES CORPORELLES,
SUIVEZ LES DIRECTIVES SUIVANTES :
1. N’utilisez cet appareil que de la fagon prévue par
le manufacturier. Si vous avez des questions,
contactez le manufacturier a ladresse ou au
numéro de téléphone indiqués dans la garantie.
Avant de réparer ou de nettoyer l'appareil, coupez
Palimentation électrique en verrouillant le panneau
de distribution afin d’éviter sa remise en marche
accidentelle. Si le panneau de distribution ne peut
étre verrouillé, y fixer un avertissement en évidence,
telle qu’une étiquette de couleur vive.
Les travaux d’installation et de raccordement
électrique doivent étre effectués par du personnel
qualifié, conformément aux codes et aux standards
de construction, incluant ceux concernant la protection
contre les incendies.
Une quantité d’air adéquate est requise afin
d’assurer une bonne combustion et Pévacuation des
gaz par la cheminée dans le cas des équipements
alimentés au gaz afin de prévenir les retours de
cheminée. Conformez-vous aux instructions et aux
standards de sécurité des manufacturiers
d’équipement de chauffage, tels qu’ils sont publiés
par la National Fire Protection Association (NFPA)
et American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE) ainsi que les
responsables des codes locaux.
Lorsque vous coupez ou perforez un mur ou un
plafond, prenez garde de ne pas endommager
les fils é6lectriques ou autre installation qui
pourraient y étre dissimulés.
Les ventilateurs avec conduits doivent toujours
évacuer lair a lextérieur.
Ne pas utiliser cet appareil avec une commande
de vitesse a semiconducteur additionnelle.
Afin de réduire les risques dincendie, n’utilisez
que des conduits en métal.
Cet appareil doit étre mis a la terre.
. Lorsqu’une réglementation est en vigueur localement
et qu’elle comporte des exigences d’installation
et/ou de certification plus restrictives, lesdites
exigences prévalent sur celles de ce document et
linstallateur entend s’y conformer a ses frais.
AFIN DE REDUIRE LES RISQUES DE FEU
DE CUISINIERE :
a)
b)
c)
d)
Ne laissez jamais les appareils de cuisson sans
surveillance lorsqu’ils sont réglés a feu vif. Les
débordements engendrent de la fumée et des
déversements graisseux pouvant s’enflammer.
Chauffez l’huile lentement, a feu doux ou moyen.
Mettez toujours la hotte en marche lorsque vous
cuisinez a feu vif ou que vous cuisinez des
mets flambés (crépes Suzette, cerises jubilé, steaks
au poivre flambés).
Nettoyez réguliérement la (les) roue(s) du ventilateur.
Ne laissez pas la graisse s’accumuler sur le
ventilateur, les filtres ou les conduits d’évacuation.
Utilisez le bon format de casserole. Servez-vous
toujours de casseroles et d’ustensiles appropriés a
la dimension de la surface chauffante.
AFIN D’EVITER TOUT RISQUE DE BLESSURES
DANS LE CAS D’UN FEU DE CUISINIERE, SUIVEZ
CES DIRECTIVES’ :
1. Etouffez les flammes avec un couvercle hermétique,
une téle a biscuits ou un plateau métallique et
ensuite, éteindre le brdleur. PRENEZ SOIN
D’EVITER LES BRULURES. SI LES FLAMMES
NE S’ETEIGNENT PAS IMMEDIATEMENT,
EVACUEZ LES LIEUX ET APPELEZ LES POMPIERS.
NE PRENEZ JAMAIS UNE CASSEROLE EN
FLAMMES DANS VOS MAINS. Vous pourriez
vous brdler.
N’UTILISEZ PAS D’EAU, incluant linge a vaisselle
ou serviette mouillés; ceci pourrait occasionner
une violente explosion de vapeur. ;
N’utilisez un extincteur QUE DANS LE CAS OU:
A. Vous savez quill s’agit d’un extincteur de classe ABC
et que vous en connaissez le fonctionnement.
B. Lincendie est petit et limité a Pendroit oft il a débuté.
C. Les pompiers ont été avisés.
D. Vous pouvez combattre lincendie en ayant
accés a une sortie de secours.
*Tirées du Kitchen Fire Safety Tips publié par la NFPA.
ATTENTION
1.
2.
10.
11.
-18-
Pour une utilisation a lintérieur seulement.
Pour usage domestique seulement. Ne Putilisez pas pour
évacuer des vapeurs ou des matiéres dangereuses
ou explosives.
Afin d’éviter tout dommage au moteur et de débalancer
ou de rendre bruyante la roue du moteur, gardez
votre appareil a l’abri des poussiéres de gypse et de
construction/rénovation, etc.
Le moteur de votre hotte posséde une protection
thermique qui arrétera automatiquement le fonctionnement
du moteur s'il devient surchauffé. Le moteur redémarrera
automatiquement une fois refroidi. Si le moteur
continue a arréter et 4 redémarrer, faites-le vérifier.
Pour une meilleure 6vacuation des odeurs de cuisson,
le bas de votre hotte devrait 6tre situé a un minimum
de 24 po et a un maximum de 30 po au-dessus de
la table de cuisson.
Deux installateurs sont recommandeés lors de [installation
vu la grande dimension et le poids de cette hotte.
Afin de réduire les risques d’incendie, assurez-vous
d’évacuer lair a l’extérieur. Ne pas évacuer lair dans
des espaces restreints comme Pintérieur des murs ou
plafond ou dans le grenier, faux plafond ou garage.
Cet appareil est équipé d’un thermostat pouvant
faire démarrer le ventilateur automatiquement. Afin
de réduire les risques de blessures, couper le
courant a partir du panneau électrique et verrouiller
ou apposer un avertissement sur le panneau afin de
prévenir que la hotte soit mise en marche accidentellement.
A cause de la grande capacité d’évacuation de cette
hotte, utiliser un dispositif d’apport dair approprié
ou ouvrir une fenétre dans ou prés de la cuisine afin
de remplacer l’air évacué.
Afin de réduire les risques d’incendie et
d’électrocution, la hotte Broan Elite de série E60E
doit étre installée uniquement avec un ventilateur
extérieur Broan suivant : 331H, 332H, 335 ou 336
ou un ventilateur en ligne Broan suivant: HLB3,
HLB6, HLB9 ou HLB11 (vendus séparément).
Aucun autre ventilateur ne doit étre utilisé.
Veuillez consulter Pautocollant apposé a lintérieur de
la hotte pour plus d'information ou autres exigences.

- SYSTEME DE HOTTE DE CUISINIERE SERIE E60000 -
VENTILATEURS INTERIEURS
MoDELE 437 Mopéte 441 MobELE 647 MoDELE 634 ou 644 MobELE 643
(CAPUCHON DE TOIT A HAUT RENDEMENT) (CAPUCHON MURAL 10 PO ROND) (CAPUCHON MURAL 7 PO ROND) (CAPUCHON DE TOIT) (CAPUCHON MURAL 8 PO)
MoDELE 418 MopbELe 415 CoubdE
MopELe
421
(COUDE
AJUSTABLE
(COUDE
AJUSTABLE
:
AJUSTABLE
DE
(VOLET INTERIEUR DE Ed DE 10 PO ROND) DE 7 PO ROND) 8 PO ROND
10
PO
ROND
VERTICAL)
=e
i : s
MopELe 407 Conpurt
(CONDUIT 7 PO FOND STANDARD
MobELe
410
SeoTions
2
#1)
8
PO
FOND
(ConDUIT 10 PO ROND Mopéte 412 : Movéte 413
— SECTIONS 2 Pl) TRANSITION TRANSITION
(3% Po x 10 POA 7 PO) : (3% Po x 10 PO
eee A 8 Po)
mT ! (CAPUCHON } i
sg
TTT
fom
:
MURAL
:
|
:
Gas [| > 3% POX 10 Po) +” i
Vea :
MobELE 427 MoDELE 423 MobELe 424 MobeELe 454 MobELE 453 : t :
(4¥2 POX 18% PO (4% POX 18%PO (44% POX 18% PO (4% POX 18% PO (4% Po x 18% PO :
A 10 PO ROND, A 10 PO ROND A 10 Po ROND A 10 Po ROND A 10 Po ROND : CONDUIT :
6
PO
HAUT
~
LATERALE
- -
:
. .
: ‘
) VERTICALE) HORIZ. AVANT/ARRIERE) HORIZ./DROITE) HORIZ./GAUCHE) (V4 FOX 1080);
: CHEMINEE DECORATIVE KIT DE RECIRCULATION 0
: OPTIONNELLE OPTIONNEL Yv
SERIE
AEE
SERIE
ANKE60
ADAPTATEUR ! :
Ave
Po
x
18%
PO}
é
ee
,
Te
‘
:
ADAPTATEUR/VOLET
(INCLUS AVEC LA HOTTE} ’ ce m, " 3% pox 10 po
A VENTILATEUR DOUBLE) !
i
f
wo
ee
5
.,
(INCLUS
AVEC
LA
HOTTE
3
Soe
we
%
A
VENTILATEUR
SIMPLE)
VENTILATEUR DOUBLE (1200 pcm)
HOTTES DE 36 Po, 42 PO ET 48 Po
SEULEMENT
DOSSERET VENTILATEUR SIMPLE (600 pcm)
SERIE RMP
(RECOUVREMENT DE MUR
EN ACIER INOXYDABLE AVEC
SUPPORT ASSIETTES.
OPTIONNEL)
HLOOS9

- SYSTEME DE HOTTE DE CUISINIERE SERIE E60000 -
VENTILATEURS EN LIGNE ET EXTERIEURS
MobELE
437
V
MopeLe
441
(CAPUCHON
DE
TOIT
A
HAUT
RENDEMENT)
ENTILATEUR
EN
LIGNE
ODELE
MODELE
HLB9
(800
pcm)
(CAPUCHON
MURAL
ou
HLB11
(1100
Pcm)
DE
10
PO
ROND)
VENTILATEUR EXTERIEUR
VENTILATEUR EXTERIEUR MODELE 335 (1200 Pcm)
MODELE 331H (600 Pom} = OU 336 (1500 PCM)
ou 332H (900 PcM
(INCLUANT DEUX TRANSITIONS
MobéLe 643 wu” MopELe 441 %
(CAPUCHON (CAPUCHON MURAL‘
MURAL DE
8 PO ROND)
‘
1
‘
*
:
( } ‘
'
‘
x
1
+
‘
‘
a
‘ '
1
DE 10 PO ROND)
LE
VENTILATEUR EN LIGNE
MODELE HLB6 (600 pcm)
(INCLUANT DEUX TRANSITIONS RONDES
OWN ee
DE 4% POX 18% POATOPO) we POAT
Me ep RESKEZ eee MopéLe 421
(/ Cou MUSTALLE py (VOLET INTERIEUR DE10 PO
ROND VERT.) RECOMMANDE
weet DE 10 Po)
POUR UTILISATION AVEC
VENTILATEURS EXTERIEURS VENTILATEUR EN LIGNE
MODELE HLB3 (280 pcm)
(INCLUANT UNE TRANSITION fem
RONDE DE 8 PO A 10 PO)
MobpELeE 410
(ConbDuiT DE 10 PO ROND
STANDARD, SECTIONS DE 2 PI)
———— HOTTE SERIE E60000
CS PLAQUE VENTILATEUR 332KR POUR
VENTILATEURS EXTERIEURS OU EN LIGNE
(FOURNIE AVEC LA HOTTE)
DOSSERET
SERIE RMP
(RECOUVREMENT DE MUR
EN ACIER INOXYDABLE AVEC
SUPPORT ASSIETTES.
OPTIONNEL)
HLO100
