Broan PM400SS User manual

INSTALLATION,
USE & CARE INSTRUCTIONS
HB0369
WWW.BROAN-NUTONE.COM WWW.BROAN-NUTONE.CA
Serial number: 1105024A
Powerpack Inserts
Model numbers: PM400SS,
BBN2243SS, BBN2303SS
PM400SS
BBN2243SS
BBN2303SS

INSTALLATION, USE & CARE INSTRUCTIONS TABLE OF CONTENTS
2
Safety .....................................................3-4
Installation.................................................5-15
Recommended Tools and Accessories......................................5
Contents...........................................................5
Install Ductwork (Ducted Installations Only) ..................................5
Optional Liners (PM400SS Unit Only)......................................6
Remove the Adapter/Damper............................................6
Remove the Cabinet Brackets ...........................................6
Prepare the Cabinet ................................................7-9
Prepare the Unit .................................................10-11
Install the Unit...................................................12-14
Connect Ductwork...................................................14

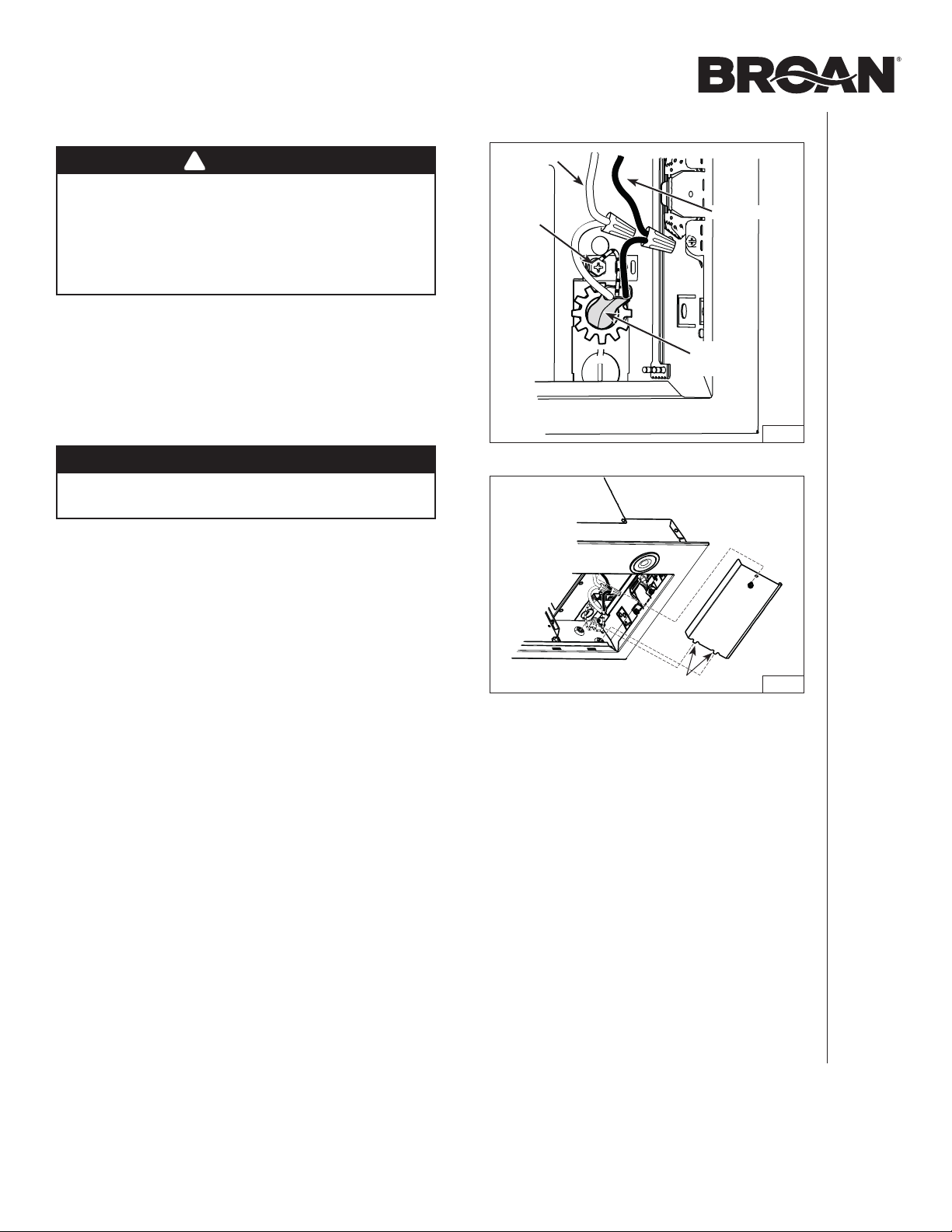

Wiring............................................................15
Install the Filter(s) ...................................................15
Operation ...................................................16
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Grease Filter(s)
Non-Ducted Recirculation Filter(s)
Stainless Steel Cleaning

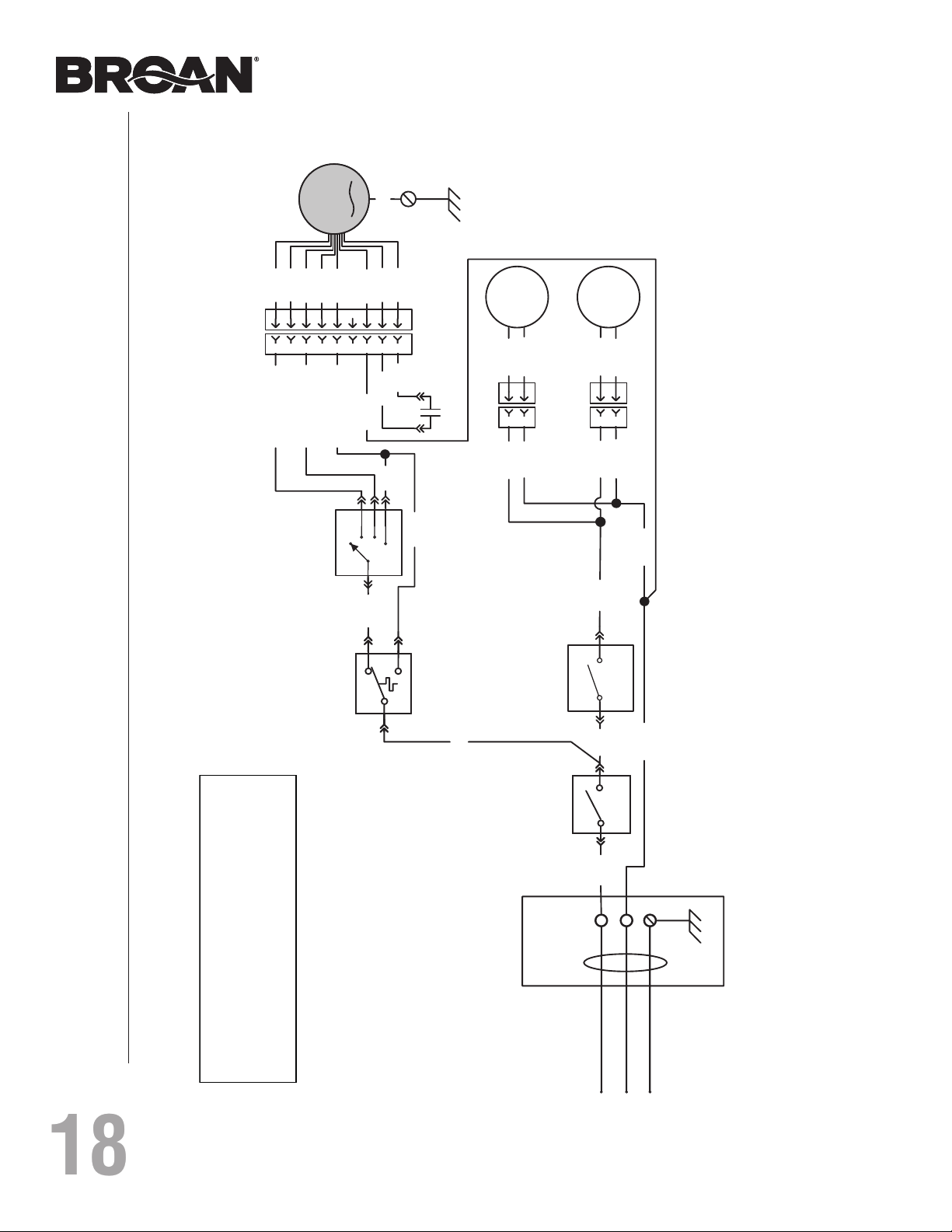

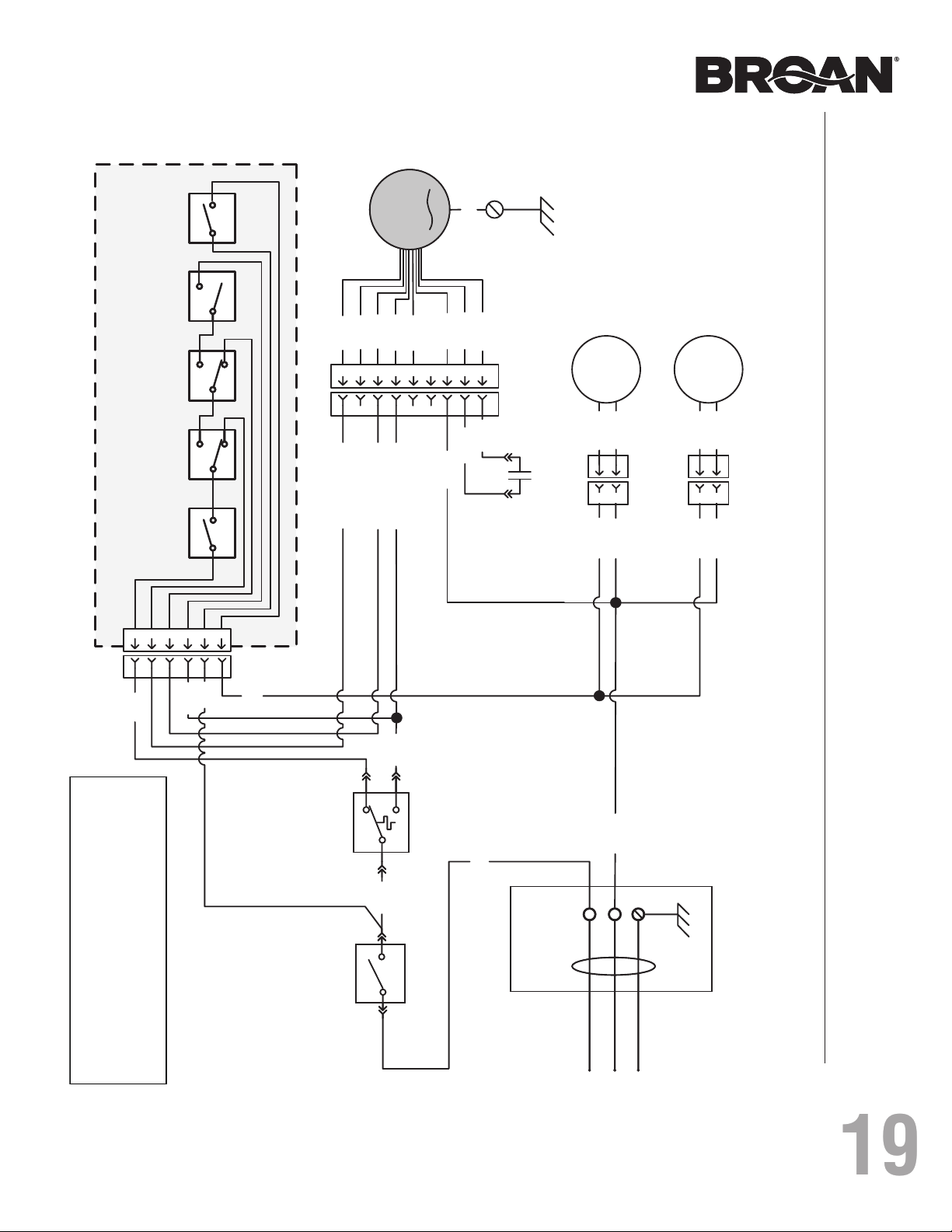

Wiring Diagrams ...........................................18-19
Service Parts ..............................................20-21
Warranty ....................................................22

INSTALLATION, USE & CARE INSTRUCTIONS
SAFETY
3
!
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in the warranty.
• Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
• Installation work and electrical wiring must be done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction codes and standards.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guideline
and safety standards such as those published by the National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the
local code authorities.
• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented to the outdoors.
• Do not use this unit with any separate solid-state speed control device.
• To reduce the risk of fire, use only metal ductwork.
• This unit must be grounded.
• When installing, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
• When applicable local regulations comprise more restrictive installation and/or certification
requirements, the aforementioned requirements prevail on those of this document and the installer
agrees to conform to these at his own expense.
To register your product, please visit our website:
In the United States - broan-nutone.com
In Canada - broan-nutone.ca
For Technical Support, call:
In the United States - 800-637-1453
In Canada - 800-567-3855
Installer: Leave this manual with the homeowner.
READ AND SAVE THESE INSTRUCTIONS
Intended for domestic cooking only
!
!

INSTALLATION, USE & CARE INSTRUCTIONS SAFETY
4
!
CAUTION
!
• For indoor residential use only.
• To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air
into spaces within walls or ceilings or into attics, crawl spaces, or garages.
• Take care when using cleaning agents or detergents.
• Avoid using food products that produce flames under the Range Hood.
• For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
• To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.
• Your hood motor has a thermal overload which will automatically shut off the motor if it becomes
overheated. The motor will restart when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
• The bottom of the hood MUST NOT BE LESS than 24” and recommended at a maximum of 30” above
the cooktop for best capture of cooking impurities.
• Use only with range hood cord connection kits that have been investigated and found acceptable for
use with this model range hood.
• Please read specification label on product for further information and requirements.
!
WARNING
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
5
For ADA compliance installation guidelines, please type the model number into our website.
RECOMMENDED TOOLS AND ACCESSORIES
• Measuring tape
• Phillips screwdriver no. 2
• Nut driver or socket 3/8”
• Flat blade screwdriver (to open knockout holes)
• Saw (to cut holes in cabinet)
• Sheet metal shears
• Pliers
• Metal foil duct tape
• Scissors (to cut metal foil duct tape)
• Pencil
• Wire stripper
• Strain relief, 7/8” diameter (to secure house wiring
cable to the hood)

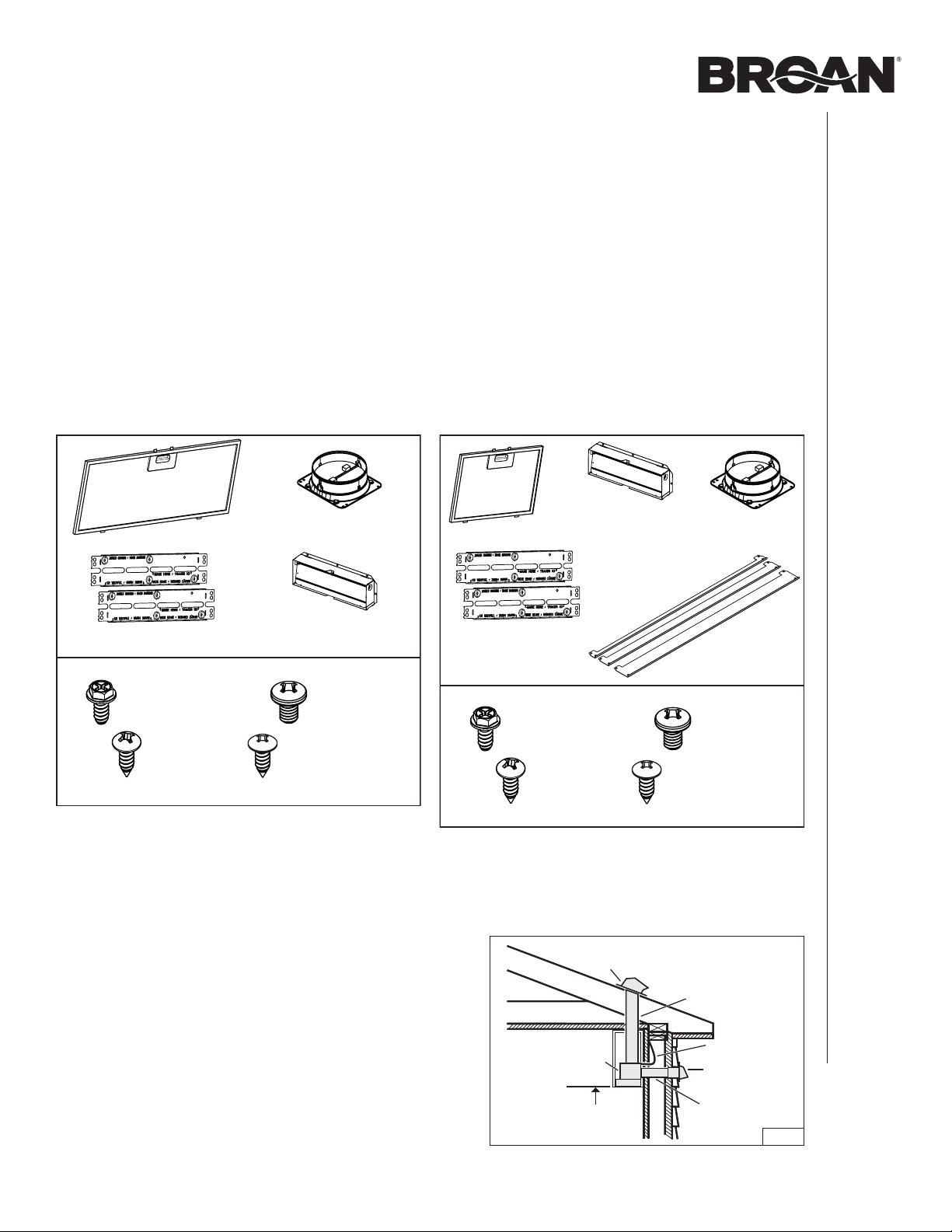

CONTENTS
Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the
manufacturer.
Make sure that the following items are included:
PM400SS
(1) GREASE FILTER
(1) 6” ROUND
DAMPER ASSEMBLY
(1) PARTS BAG* CONTAINING:
(4) NO. 8-18 X1/4”
METAL SCREWS
(8) NO. 8-15 X5/8”
RD. HD.
WOOD SCREWS
(4) NO. 6-18 X3/4”
TRUSS HEAD
WOOD SCREWS
CABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)
* FIND PARTSBAGBEHIND THE WIRING COMPARTMENT COVER.
(1) 3¼” X10”
DAMPER ASSEMBLY
(ATTACHED TO ONE SIDE THE UNIT)
(4) NO. 8-32 X1/4”
METAL SCREWS
HR0284A
(1) 3¼” X10”
DAMPER ASSEMBLY
(ATTACHED TO ONE SIDE THE UNIT)
(1) 6” ROUND
DAMPER ASSEMBLY
(1) PARTS BAG* CONTAINING:
* FIND PARTSBAGBEHIND THE WIRING COMPARTMENT COVER.
(2) GREASE FILTERS
(1) SET OF 3 FILLERS
CABINET BRACKETS
(ATTACHED TO THE BACK OF THE UNIT)
(4) NO. 8-18 X1/4”
METAL SCREWS
(8) NO. 8-15 X5/8”
RD. HD.
WOOD SCREWS
(4) NO. 6-18 X3/4”
TRUSS HEAD
WOOD SCREWS
(4) NO. 8-32 X1/4”
METAL SCREWS
HR0285A
BBN2243SS, BBN2303SS
INSTALL THE DUCTWORK
(DUCTED INSTALLATION ONLY)
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Decide where the ductwork will run between the powerpack
insert and the outside. (FIG. 1)
2. A straight, short duct run will allow the powerpack insert
to perform most efficiently.
3. Long duct runs, elbows, and transitions will reduce the
performance of the powerpack insert. Use as few of
them as possible. Larger ducting may be required for best
performance with longer duct runs.
4. Install wall cap or roof cap (sold separately). Connect metal
ductwork to cap and work back towards the powerpack
insert location. Use 2” metal foil duct tape to seal the joints
between ductwork sections.
24" MIN - 30" MAX
ABOVE COOKING SURFACE
POWERPACK
INSERT WALL CAP
ROOF CAP
6" ROUND DUCT
OR 3¼" X10" DUCT
HOUSE WIRING
HH0317A
3¼" X10" DUCT
FIG. 1

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
6
OPTIONAL LINERS
(PM400SS UNIT ONLY)
For installations where the PM400SS unit is less than 30”
above cooktop, this powerpack insert should be mounted into
a metal liner to protect cabinetry combustible material from
heat, in order to meet building code requirements. This will
allow easier cleaning and provide protection to the cabinetry.
Refer to table at right to find the liner model corresponding to
the cabinet style and width.
Visit www.broan-nutone.com or www.broan-nutone.ca to view
specific model information.
Liner modeL Cabinet nominaL width
LB30SS 30"
LB36SS 36"
REMOVE THE CABINET BRACKETS
Detach the cabinet brackets (grey part in FIG. 3) from the back
of the powerpack insert by removing its 4 retaining screws.
Discard the screws.
Fold up and down the bracket until it is split in two separate
parts (FIG. 4). Keep the brackets for possible further use.
NOTE: Both cabinet brackets have one wide edge and one
narrrow edge (FIG. 5), to cover all installation
configurations depending on cabinet widths.
HD1369
FIG. 3
SCREWS
HO0413
FIG. 4
HO0408
Wide edge
Narrow edge
FIG. 5
NOTE:Since this manual covers different unit models, some
details in the following illustrations may slightly differ
from your unit.
REMOVE THE ADAPTER/DAMPER
Detach and set aside the 3¼” x 10” adapter/damper (grey part
in FIG. 2) from the side of the powerpack insert by removing
its 2 retaining screws. Discard the screws.
HD1372
FIG. 2
SCREWS

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
7

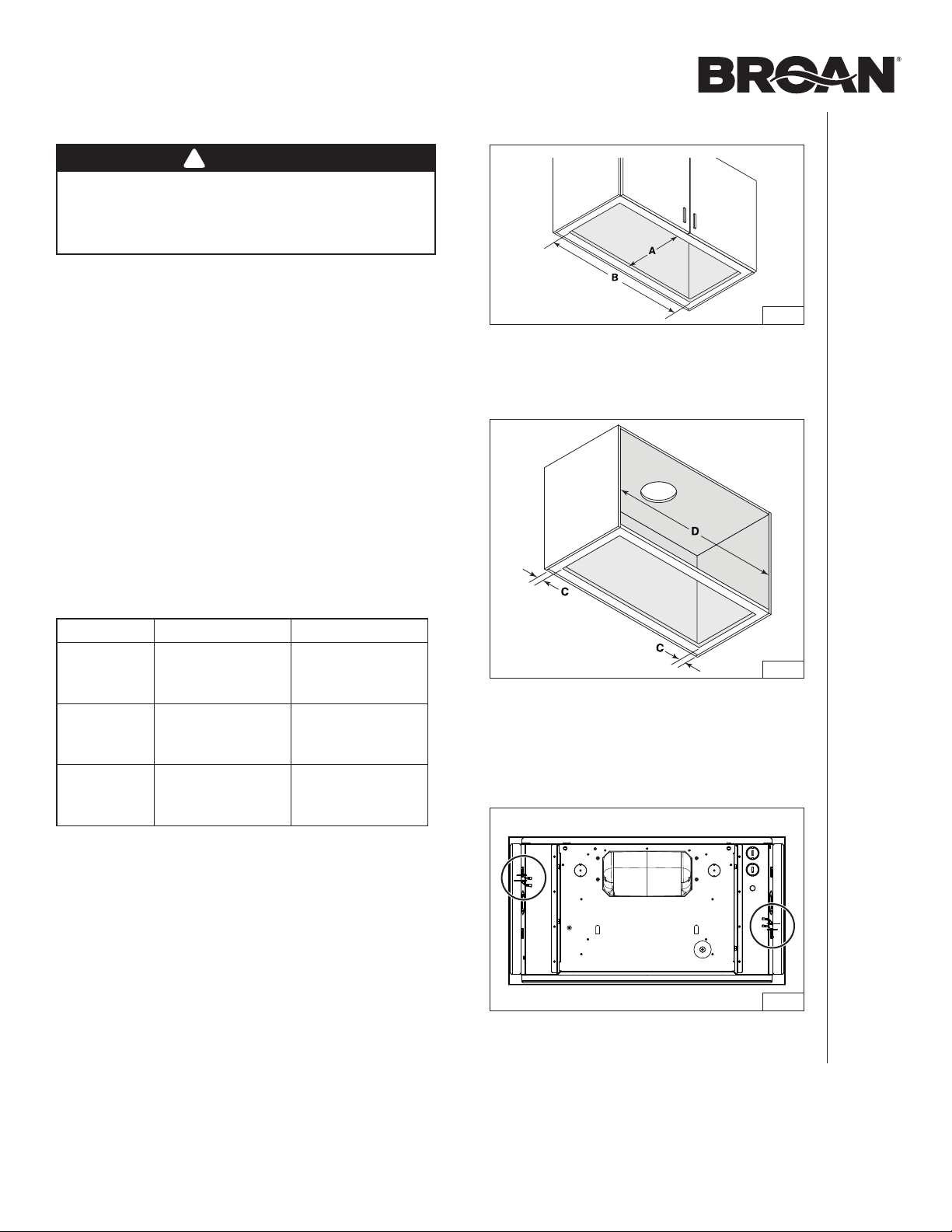

A = 10¼” (all units)
B = 19
9/16” (PM400SS)
B = 22¹/16” (BBN2243SS)
B = 28¹/16” (BBN2303SS)
PREPARE THE CABINET
WARNING
The cabinet must be secured to wall studs or other
wooden framework behind the drywall to support
the weight of this unit. Failure to do so may cause
personal injury or damage to countertop or cooktop.
NOTES: A. The unit has to be installed inside the cabinet. If
installing with one of the optional liners (PM400SS
unit only), use it as a template to cut the hole in
the bottom of the cabinet.
B. The unit should be mounted centered laterally
over the cooktop burners.
C. For back to front position, the unit must be
mounted according to local building codes.
1. Cut a hole in the bottom of the cabinet, using the
dimensions shown (FIG. 6), or use the optional liner as a
template (PM400SS unit only).
2. PM400SS unit only: Where needed, install the metal liner.
3. Measure the remaining material of the cabinet bottom sides
(C), (FIG. 7) if it is 1/4” or more, there is no need to use
the cabinet brackets. Go to step 8 on page 9.
4. When there is less than 1/4” remaining material (C),
carefully remove those strips. Measure the cabinet inner
width (D) (FIG. 7). Refer to the table below to see which
cabinet bracket edge configuration must be used.

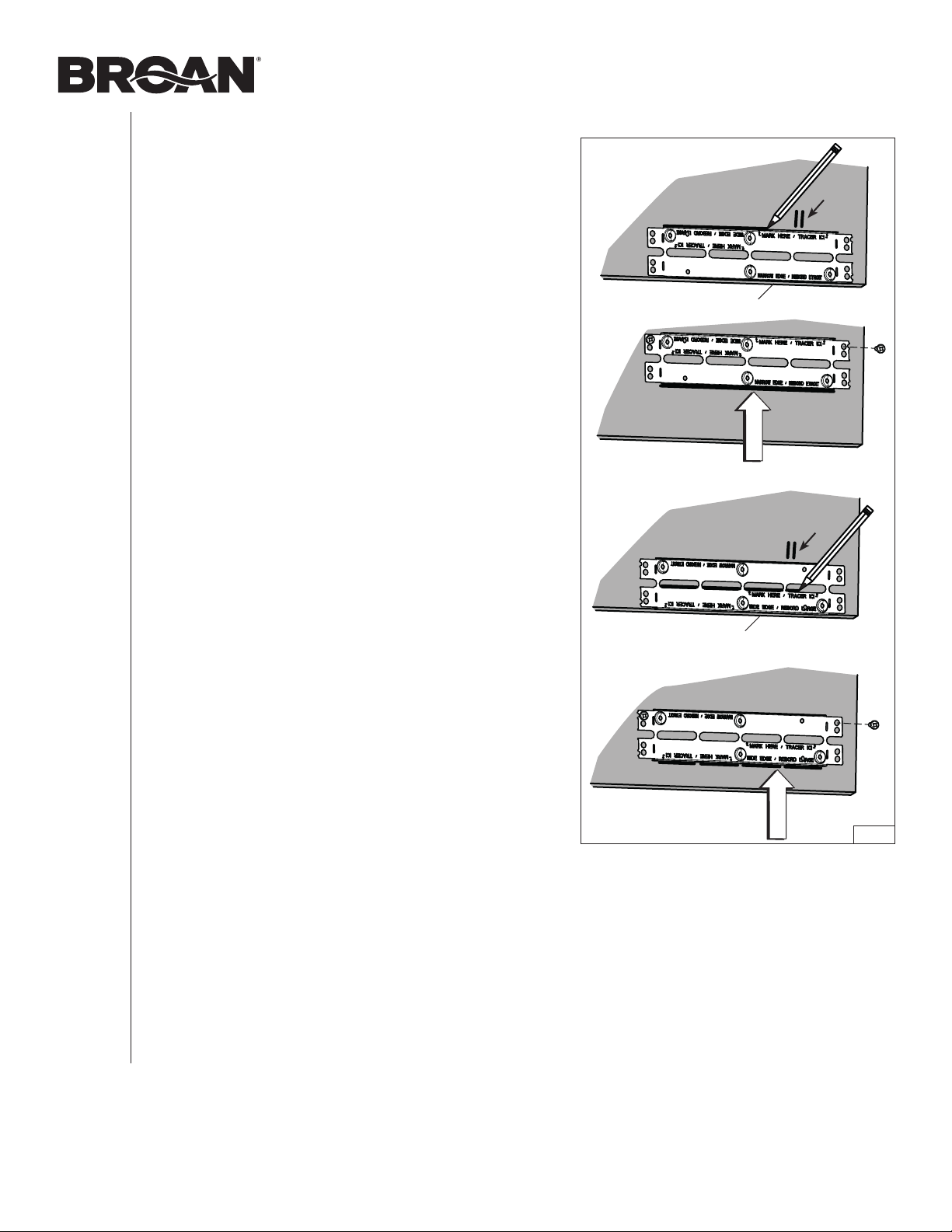

5. Locate the Ease of Install Hooks (circled in FIG. 8) on the
unit. Temporary insert the unit in the cabinet, while holding
the unit, mark the position of the Ease of Install Hooks
(shown as Ein FIG. 9 on next page) on both cabinet side
walls. Remove the unit.
Unit narrow edge wide edge
PM400SS
D
From 19-9/16”
to < 20”
D
From 20”
to 20-1/2”
BBN2243SS
D
From 22-1/16”
to < 22-1/2”
D
From 22-1/2”
to 23”
BBN2303SS
D
From 28-1/16”
to < 28-1/2”
D
From 28-1/2”
to 29”
!
HD1381
CUT A HOLE IN THE BOTTOM OF THE CABINET
FIG. 6
HD1382
FIG. 7
HD1387
FIG. 8
FRONT
UNIT TOP VIEW

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
8
PREPARE THE CABINET
6. Install the cabinet brackets as follow (FIG. 9):
Align the bracket flush with the bottom of the right
cabinet side panel, with the hooks marked position (E)
between the bottom embossed holes. For the narrow
edge configuration, trace a line on the top of the
bracket. For wide edge configuration, trace a line at the
bottom of the central slots.
Lift the bracket flush with the marked lined. Assemble
the bracket to the cabinet side panel using 2 no. 8 x 5/8”
wood screws (included in parts bag) through the upper
holes.
NOTE: Do not use the embossed holes to atttach the
bracket to the cabinet.
 Repeat steps to for the left cabinet side panel.




HO0414
FIG. 9
FLUSH
Narrow edge
configuration
Wide edge
configuration
FLUSH
E
E

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
9
PREPARE THE CABINET (cont’d)
7. Measure the distance between both bottom bracket
edges (F) (FIG. 10). The table below shows the approriate
distance needed.
Unit narrow edge wide edge
PM400SS
F
From 19-3/8”
to < 19-9/16”
F
From 19-9/16”
to 19-13/16”
BBN2243SS
F
From 21-7/8”
to < 22-1/16”
F
From 22-1/16”
to 22-516”
BBN2303SS
F
From 27-7/8”
to < 28-1/16”
F
From 28-1/16”
to 28-5/16”
If the measured distance needs to be shortened, screw two
no. 8-32 x 1/4” machine screws, in each bottom embossed
cabinet brackets hole; this will slightly bend the bottom part
of the brackets (FIG. 11). Screw both brackets until the
appropriate distance is obtained.
5¼"5¼"
3½"
3/4"
HH0318A
FIG. 13
CABINET BACK WALL
CABINET BOTTOM
BBn2243SS and BBn2303SS unitS only:
8. There are 3 different sizes of filler included with these units,
designed to fit up to 13-in. depth cabinets. For up to 15-in.
depth cabinets, another set of 4 fillers is available (for
BBN2243SS unit, order: HADTBN24, for BBN2303SS:
order HADTBN30). Choose the filler that fits to cover the
back bottom edge of the cabinet. Use 4 no. 6 x 3/4”truss
head wood screws (included) to mount it (FIG. 12).
Horizontal exHauSt inStallation only (all unitS)
This powerpack insert is factory shipped to exhaust vertically;
however, it is possible to make it exhaust horizontally (3¼” x 10”
ducting only).
9. Cut the hole for the horizontal exhaust through the back
wall of the cabinet using the dimensions shown. (FIG. 13).
HD1373
FIG. 12
CAUTION
Never use an electric screwdriver or drill to screw the
filler to the bottom edge of cabinet; use a standard
screwdriver.
F
HD1376
FIG. 10
F
HD1377
FIG. 11
Screws in bottom
embossed holes

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
10
PREPARE THE UNIT
all inStallationS
1. If present, remove all protective polyfilm from the unit and/
or parts.
2. Remove the grease filter(s) by pushing down on latch tab
and tilting the filter(s) downward (FIG. 14). Set aside the
filter(s).
3. Disassemble the electrical compartment cover (grey part
in FIG. 15) from inside the unit by removing its retaining
screw. Remove the parts bag behind the cover. Set aside
the parts bag and the cover along with its screw.
HD1356
FIG. 14
HD1357
SCREW
FIG. 15
HD1359
FIG. 17
SCREWS
TAB
HD1358
FIG. 16
4. Punch out one of the two knock-out holes. Install an
appropriate 7/8” diameter strain relief (not included, grey
part in FIG. 16).
NOTE: The HCK44 cord connection kit (optional) can
be used instead of the house power cable. Refer to the
instruction packed with the HCK44 cord connection kit.
Horizontal exHauSt inStallation only
5. Unplug the blower cable from its connector on faceplate.
Disassemble the faceplate from the unit by removing its
4 retaining screws (two per side) and disengaging its
retaining tab (one per side) from the unit shell (FIG. 17).
Set aside the faceplate along with its screws.
6. Remove the 4 screws (two per side) retaining the blower
support plate to the top of the unit (FIG. 18). Carefully lift
out and set aside the blower with its support plate. The
blower will be reinstalled later in the unit.
HD1360
FIG. 18
SCREWS
SCREWS

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
11
HD1350
FIG. 19
NUTS

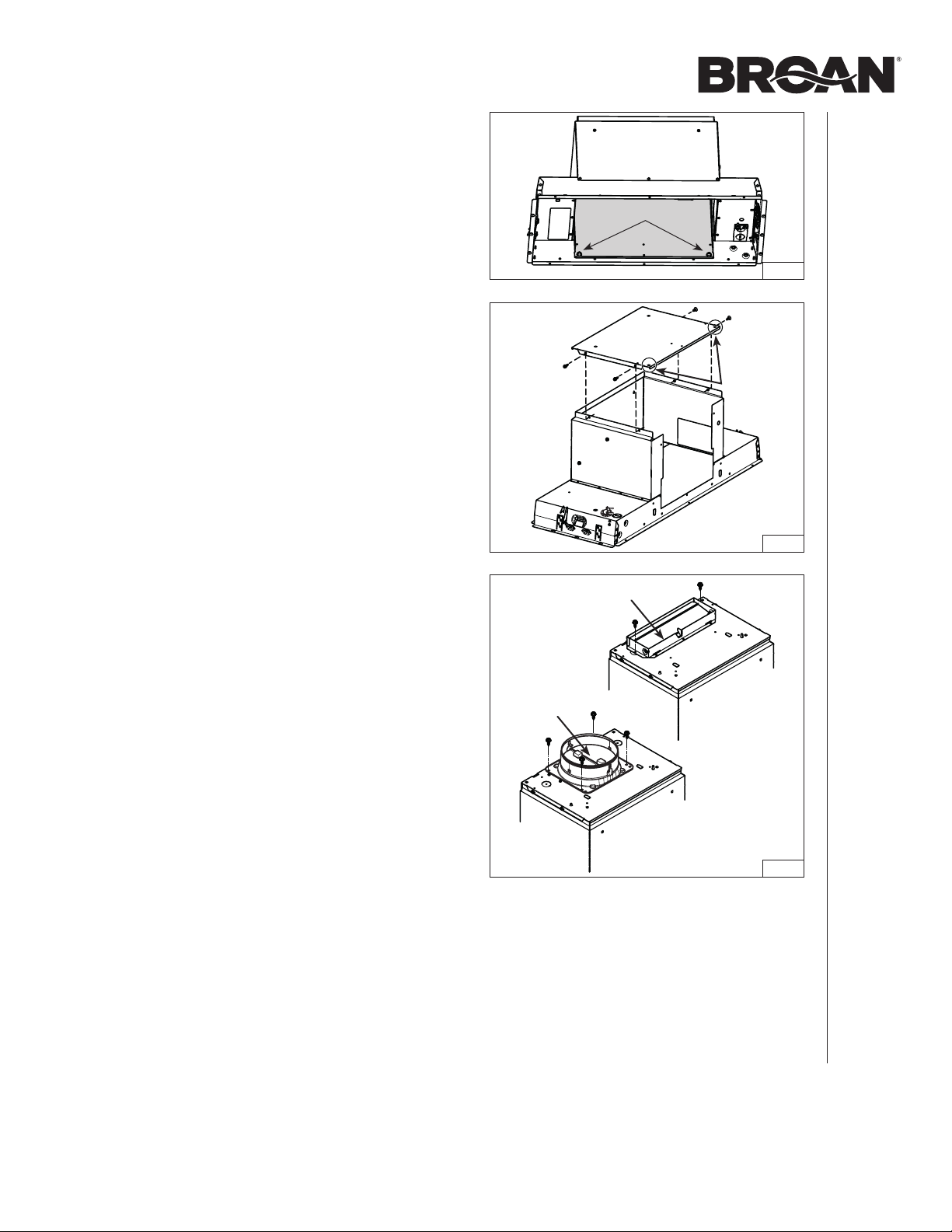

PREPARE THE UNIT (cont’d)
Horizontal exHauSt inStallation only (cont’d)
7. From inside the unit, detach the back plate (grey part in
FIG. 19) by removing its both retaining nuts using
3/8” diameter socket. Set aside the nuts and plate.
8. Install the back plate on top of the unit, where the blower
support plate was. Orient the holes nearby the corners
towards the back of the unit. Assemble to the top of the
unit using 4 screws previously removed in step 6 (FIG. 20).
Vertical exHauSt inStallation only
9. For rectangular ducting, use 2 included no. 8-18 x 1/4”
metal screws to attach the included 3¼” x 10” adapter
damper on top of the unit, over the blower exhaust opening
(FIG. 21).
NOTE: The damper hinge must be towards the front of
the unit.
For round ducting, use 4 included no. 8-18 x 1/4” metal
screws to attach the included 6-in. round adapter damper on
top of the unit, over the blower exhaust opening (FIG. 21).
NOTE: The damper hinge must be parrallel to the sides of
the unit.
HJ0255
FIG. 21
HD1352
FIG. 20
HOLES
HINGE
HINGE

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
12
INSTALL THE UNIT
1. Run house power cable between service panel and unit
location. Stub out a 2-foot length of power cable inside
the cabinet. Insert the power cable in the unit through the
7/8” diameter strain relief previously installed.
NOTE: Not necessary if the optional HCK44 cord
connection kit is used.
2. Insert the unit in the cabinet, until you feel a ‘click’ from
both sides of the unit, confirming that the Ease of Install
Hooks rest on the top of the cabinet bottom sides , or
cabinet brackets or (FIG. 22). Move the unit from
left to right, from rear to front and up to ensure the Ease
of Install Hooks are retaining the unit inside the cabinet.
NOTE: The unit will be protruding below the cabinetry until
tightened.



HD1374
FIG. 22
HD1375
FIG. 23
NOTE: If, for any reason, the unit has to be removed
from the cabinet, it is possible to disengage the
Ease of Install Hooks. To do so, while holding and
pushing on one side of the unit, lift simultaneously
Ease of Install Hooks levers (1and 2, grey parts
in FIG. 23) in the other side of the unit until the
hooks are retracted.
12

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
13
INSTALL THE UNIT (cont’d)
3. Lift the unit until contact is made between the unit
flange and cabinet. Secure the unit to the cabinet using
4 no. 8 x 5/8” wood screws included in parts bag (2 screws
per side). Use upper or lower holes (1, 2, 3 or 4) (FIG. 24).
WARNING
The Ease of Install Hooks TEMPORARY hold the unit
in place. The unit MUST BE secured to the cabinet
using the included 4 screws.
!
Horizontal exHauSt inStallation only
4. From inside the unit, slide the 3¼" x 10" adapter/damper
in the horizontal duct, then attach it to the unit using
aluminum duct tape all around the joint (FIG. 25). Ensure
the damper opens as shown in damper side view.
5. Insert the blower with its support plate inside the unit,
where the back plate was initially (A). Attach to the unit
using 2 nuts previously removed in step 7 on page 11 (B)
(FIG. 26).
HJ0258
FIG. 25
DAMPER
SIDE VIEW
DUCT
HO0415
FIG. 26
A
B
WARNING
Never use this unit as a shelf.
!
HD1384
1
2
3
4
1
2
3
4
FIG. 24

INSTALLATION, USE & CARE INSTRUCTIONS INSTALLATION
14

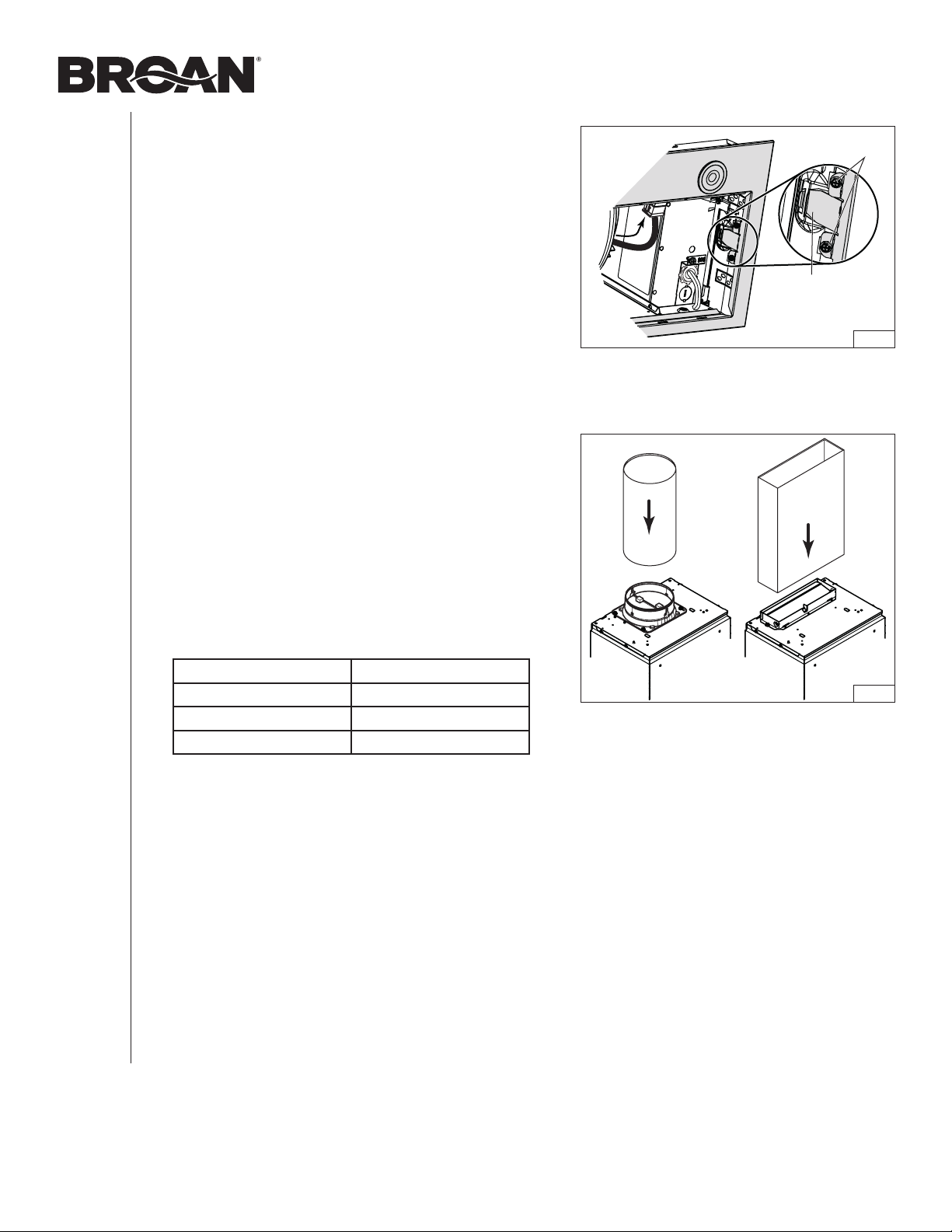

INSTALL THE UNIT (cont’d)
Horizontal exHauSt inStallation only (cont’d)
6. Reinstall the faceplate on the unit by clipping its
retainig tabs (one per side) to the unit shell. Secure
the faceplate to the unit using its 4 retaining screws
(two per side). Plug the blower cable to its connector on
faceplate (FIG. 27).
HD1378
FIG. 27
SCREWS
TAB
HJ0256
FIG. 28
CONNECT DUCTWORK
Vertical exHauSt inStallation only
Ducted Installation
Use 6-in. round or 3¼” x 10” metal duct to connect the
adapter damper on the top of the unit to the ductwork
above (FIG. 28). Seal the joint using aluminum duct tape.
Non-Ducted Installation
A non-duct kit is required for this type of installation
(purchase separately). To install, follow the instructions
packed with the kit. Refer to table below to find the
appropriate non-duct kit according to the unit.
Unit model Non-Duct kit model
PM400SS HARKPM21
BBN2243SS HARKBN24
BBN2303SS HARKBN30

INSTALLATION, USE & CARE INSTRUCTIONS
INSTALLATION
15
WIRING
WARNING
Risk of electric shock. Electrical wiring must be
done by qualified personnel in accordance with all
applicable codes and standards. Before connecting
wires, switch power off at service panel and lock
service disconnecting means to prevent power from
being switched on accidentally.
1. Using appropriate wire nuts (not included), connect house
power cable to unit wiring: BLACK to BLACK, WHITE to
WHITE and GREEN or bare wire to GREEN ground screw
(FIG. 29).
2. Reinstall the electrical cover in the unit; ensuring the bottom
tabs are inserted in their embossed location. Secure in
place using its retaining screw (FIG. 30).
CAUTION
Take care not to pinch wires while reinstalling wiring
cover.
INSTALL THE FILTER(S)
Ducted Installation
Reinstall the grease filter(s).
Non-Ducted Installation
PM400SS unit only: Attach the non-ducted filter (included
with the HARKPM21 non-duct kit) to the back of the
grease filter using clips (provided with non-ducted filter).
To order a new non-ducted filter, use service part number
S99010464.
BBN2243SS and BBN2303SS units only: Attach
the non-ducted filters (included with the HARKBN24
or HARKBN30 non-duct kit) to the back of the grease
filters using clips (provided with non-ducted filter). To
order new non-ducted filters, use service part number
S99010464-124 for BBN2243SS and S99010464-130
for BBN2303SS model.
!
HE0432
WHITE WIRE
BLACK WIRE
HOUSE
POWER
CABLE
FIG. 29
GREEN
GROUND
SCREW
HD1379
FIG. 30
TABS

INSTALLATION, USE & CARE INSTRUCTIONS OPERATION
16
OPERATION
PM400SS
Blower Switch:
A rotary 4-position knob controls the blower speed
(Off - low speed - medium speed - high speed).
Light Switch:
A rotary 2-position knob turns the LED lights ON and OFF.
BBN2243SS, BBN2303SS
HC0106
Blower Switch
Knob
Light Switch
Knob
HC0107
HQ0034
ON/OFF Blower Push Button: When blower is OFF, push
this button to turn ON the blower at the last selected speed.
Push this button again to turn OFF the blower.
NOTE: If there is no speed selected (all blower speed push
buttons up), the blower will not turn ON. In that case,
press on the desired speed level push button to activate
the blower.
HQ0035
Blower Speed Level Push Buttons:
When blower is ON, change the blower speed by pressing
the push button corresponding to the desired speed: one line
for LOW, two lines for MEDIUM and three lines for HIGH
speed.
HQ0036
ON/OFF Light Push Button: When lights are OFF, push
once on this button to turn ON the lights. Push this button
again to turn OFF the lights.
ALL UNITS
HEAT SENTRY™
Your unit is equipped with a HEAT SENTRY™ thermostat.
This thermostat is a device that will turn on or speed up the blower
if it senses excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower
up to HIGH speed.
When the temperature level drops to normal, the blower will return
to its original setting.
WARNING
The HEAT SENTRY thermostat can start the blower
even if the hood is turned OFF. When this occurs, it
is impossible to turn the blower OFF with its switch.
If you must stop the blower, set the main power
switch (located behind the filters, on inner side of
the unit faceplate) in OFF position (if it is possible to
do so safely). See inset in FIG. 31.
!
HD1361
FIG. 31

INSTALLATION, USE & CARE INSTRUCTIONS
MAINTENANCE & CLEANING
17
MAINTENANCE
ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY
BEFORE CARRYING OUT ANY OPERATIONS ON THE
APPLIANCE.
Grease Filter(s)
The grease filter(s) should be cleaned frequently. Use a
warm dishwashing detergent solution. Grease filter(s) is (are)
dishwasher safe.
Clean the filter(s) in the dishwasher using a non-phosphate
detergent. Discoloration of the filter(s) may occur if using
phosphate detergents, or as a result of local water conditions
- but this will not affect filter performance. This discoloration
is not covered by the warranty. To minimize or prevent
discoloration, hand wash filter(s) using a mild detergent.
Non-Ducted Recirculation Filter(s)
The Non-Ducted Recirculation filter(s) should be changed
every 3 to 6 months. Replace more often if your cooking style
generates extra grease, such as frying and wok cooking.
STAINLESS STEEL CLEANING
Do:
• Regularly wash with clean cloth or rag soaked
with warm water and mild soap or liquid dish
detergent.
• Always clean in the direction of original polish
lines.
• Always rinse well with clear water (2 or 3 times)
after cleaning. Wipe dry completely.
• You may also use a specialized household
stainless steel cleaner.
Don’t:
• Use any steel or stainless steel wool or any
other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction
residues reach the unit. During construction/
renovation, cover the unit to make sure no dust
sticks to the stainless steel surface.
Avoid when choosing a detergent:
• Any cleaners that contain bleach will attack
stainless steel.
• Any products containing: chloride, fluoride,
iodide, bromide will deteriorate surfaces
rapidly.
• Any combustible products used for cleaning
such as acetone, alcohol, ether, benzol,
etc., are highly explosive and should never be
used close to a range.

INSTALLATION AND USE & CARE INSTRUCTIONS WIRING DIAGRAMS
18
18
PM400SS
MOTOR ROTARY
SWITCH
LLL
BLU
OF F
LOW
ME D
HI
1PPL
RED WHT BRN GRY ORA BLK
M
M
GRN/Y
17µF
GRY
2 3 4
6 8 9
2 1 2 1
0
L
REF: 99046215_REV-A
1
3
1
3 2
1
3 2
1
3 2
HEAT SENTRY
THERMOSTAT 5
7
2
1
OF F0
COLOR CODE
BLK BLU BRN GRN/Y GRY
BLACK BLUE BROWN GREEN/YELLOW GREY
ORA PPL RED WHT
ORANGE PURPLE RED WHITE
MAIN DISCONNECT
SWITCH
LIGHT ROTARY
SWITCH
LED
LIGHT
LED
LIGHT
ELECTRICAL BOX
L
INE / 120 VAC
N
EUTRAL
G
ROUND WHT
BLK BLK
WHT
WHT
BLK
BRN
BLU
WHT
BLU
WHT
WHT
BLK
WHT
BLK
BRN
BLK (SPEED 3)
RED (SPEED 2) BLU (SPEED 1)
BLK
BLK
HE0434A
BLU

INSTALLATION AND USE & CARE INSTRUCTIONS
WIRING DIAGRAMS
19
19
BBN2243SS, BBN2303SS
BLU PPL RED ORA BLK
HEAT SENTRY
THERMOSTAT
M
M
GRN/Y
2 6
8
9
5
1
3 2
1
3 2
Motor Speeds
Motor
On/Off
Lights
On/Off
123
5 PUSH-BUTTONCONTROL
2
1
1
1
3
ORA
2
7 4
WHT
REF: 99271714_REV-A
1 2 3 4 6 5
COLOR CODE
BLK BLU BRN GRN/Y GRY
BLACK BLUE BROWN GREEN/YELLOW GREY
ORA PPL RED WHT
ORANGE PURPLE RED WHITE
BLK
MAIN DISCONNECT
SWITCH
ELECTRICAL BOX
L
INE / 120 VAC
NEUTRAL
GROUND
BLK
WHT BLU
WHT BLK
WHT BLU
WHT BLK LED
LIGHT
LED
LIGHT
17µF
GRY
WHT
BRN
GRY WHT BRN
ORA (SPEED 3)
RED (SPEED 2) BLU (SPEED 1)
BLU
BLK
ORA
BLK
HE0435A

INSTALLATION, USE & CARE INSTRUCTIONS SERVICE PARTS
20
HL0483
B
C
D
E
F
M
H
I
J
K
L
G
N
PM400SS
Key no. Part numBer deScriPtion Qty.
1 SV08487 6-in. roUnd adapter / damper 1
2 SR740014 3¼” x10”adapter / damper 1
3 S99271702 CapaCitor 17 µf1
4 S97021510 bLower ass’y400 Cfm 1
5 S98012198-804 faCepLate (inCLUding items 6, 7, 11 and 12) 1
6s99030382-202 rotary Light switCh 1
7 S1105216 bLower and Light ControL knobs (2 knobs)1
8 S99271693 Led modULe assembLy (pair)1
9 S99010464 CharCoaL fiLter with CLips (not shown) (non-dUCted instaLLation
onLy, inCLUded in non-dUCt kit no. HARKPM21) 1
10 S99010400 miCromesh grease fiLter 1
11 S99030382-104 rotary bLower switCh 1
12 S99030381 heat sentry thermostat 1
13 S1104978
parts bag inCLUding : 4 no. 8-18 x1/4”metaL sCrews,
4 no. 8-32 x1/4”metaL sCrews,
8 no. 8 x5/8”roUnd head wood sCrews,
4 no. 6-18 x3/4”trUss head wood sCrews.
1
