broda 100-PM' 100-PL User manual

Operating Manual
Aspire Pediatric Glider Models:
100-PS
100-PM
100-PL
Distributor/Rep: This manual must
be given to the caregiver responsible
for this chair and its occupant.
Caregiver: Before using this chair,
read this manual thoroughly and save
for future reference.

ii
Contents
FOREWORD.................................................................................................................................................................1
GENERAL INFORMATION........................................................................................................................................2
1SAFETY REQUIREMENTS ................................................................................................................................3
1.1 Training........................................................................................................................................................3
1.2 Application...................................................................................................................................................3
1.3 Shipping and Storage ...................................................................................................................................3
1.4 Pre-Service Check........................................................................................................................................3
1.5 Hazards ........................................................................................................................................................4
1.5.1 Location of Chair - “Danger of Tipping or Falling Objects”...................................................................4
1.5.2 Transport Wheels - “Danger of Tipping” ................................................................................................4
1.5.3 Re-Positioning of Optional Height Adjustable Armrests- “Danger of Clamping” ..................................4
1.5.4 Unintended Movement - “Danger of Falling or Collision”......................................................................4
1.6 Improper Use................................................................................................................................................4
1.7 Cleaning.......................................................................................................................................................4
1.8 Maintenance.................................................................................................................................................6
1.9 Child Specific Instructions...........................................................................................................................7
2OPERATION AND MOVEMENT.......................................................................................................................8
2.1 Gliding Motion.............................................................................................................................................8
2.2 Caregiver Lock.............................................................................................................................................8
2.3 Height Adjustable Armrests - Optional........................................................................................................9
2.4 Transport Wheels.........................................................................................................................................9
2.5 Accessories (Options) ..................................................................................................................................9
3INSPECTION AND FUNCTIONAL TESTING ................................................................................................10
3.1 Inspection...................................................................................................................................................10
3.2 Functional Testing......................................................................................................................................10
4TECHNICAL INFORMATION..........................................................................................................................11
4.1 Specifications.............................................................................................................................................11

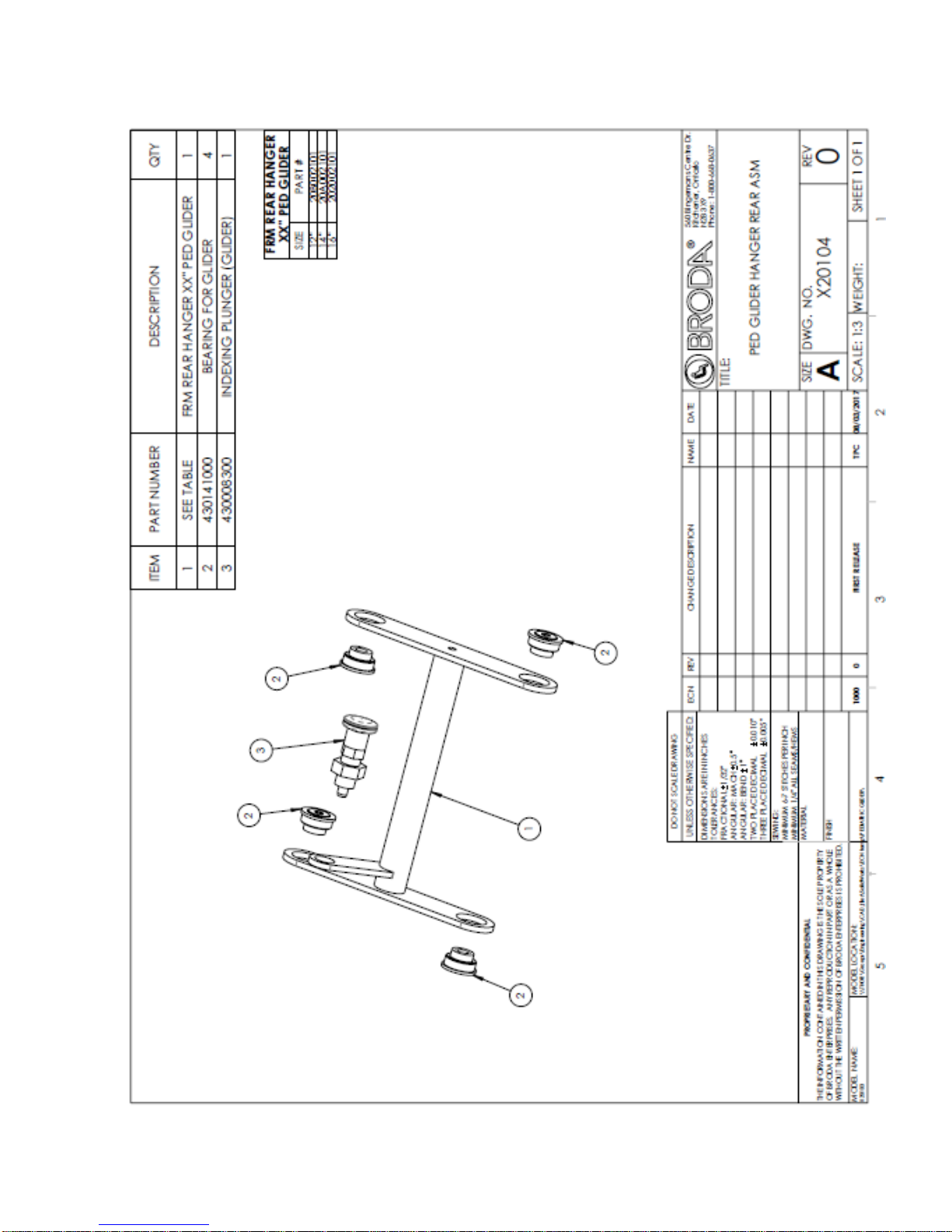

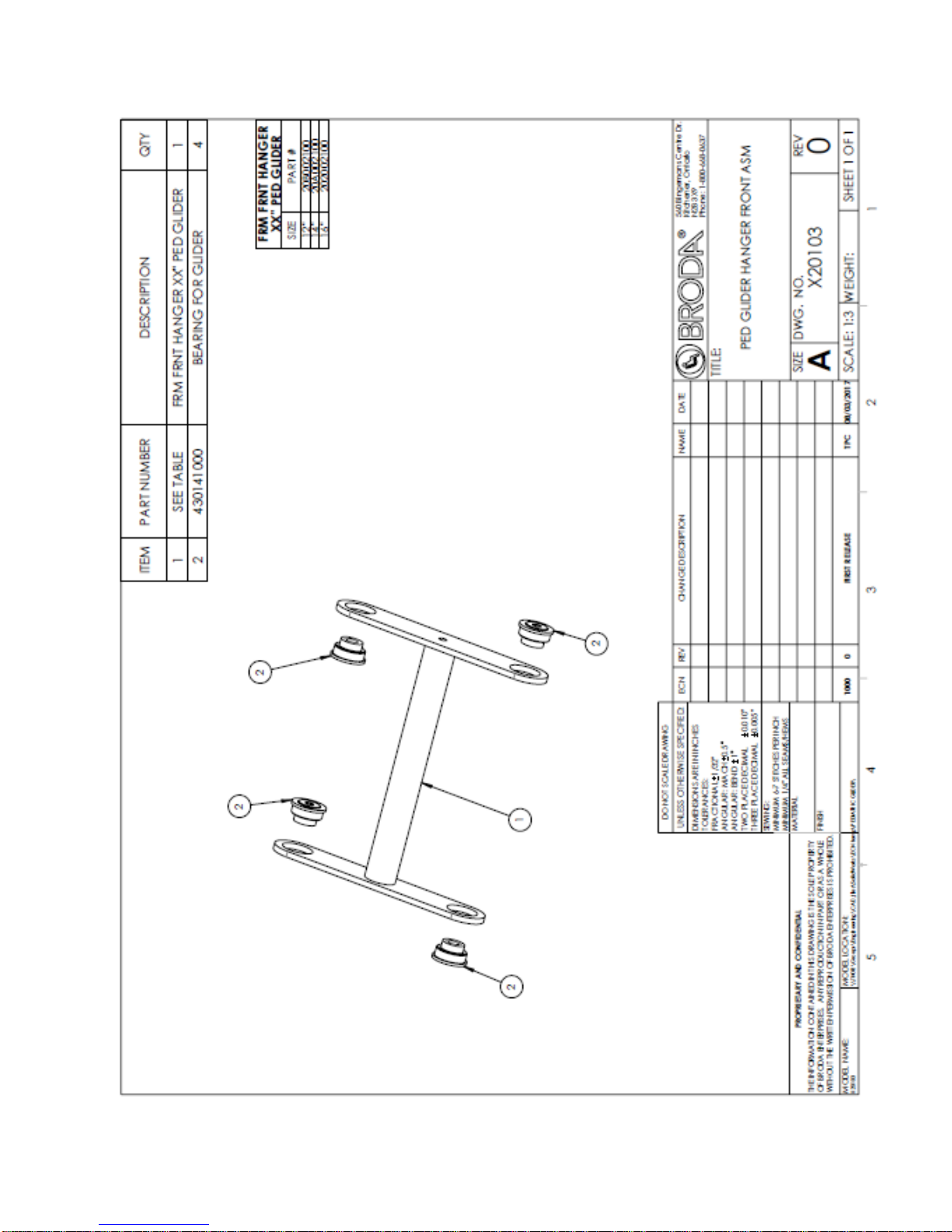

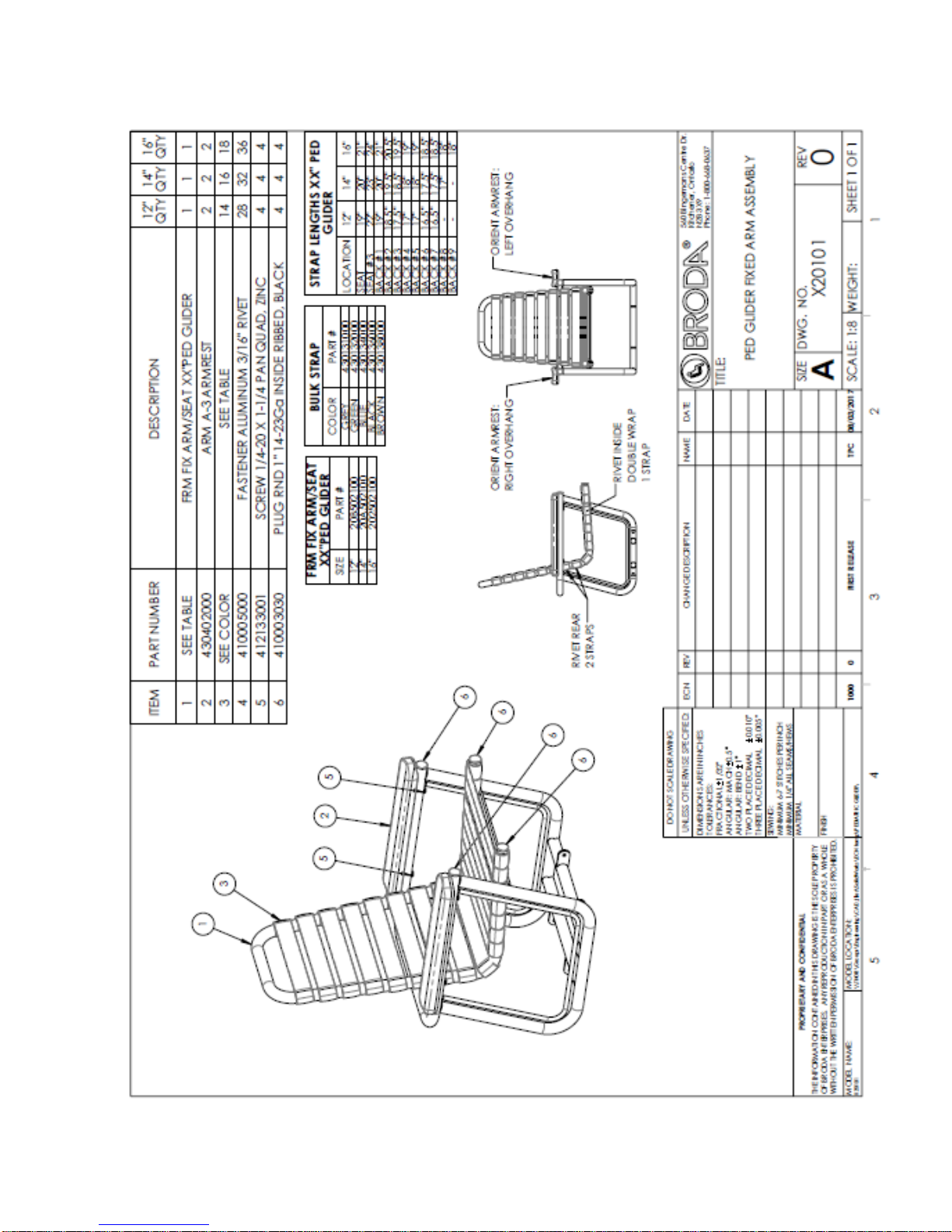

4.2 BRODA Seating Aspire Pediatric Glider Parts Schematic Drawings........................................................12

1
FOREWORD
Congratulations on your purchase of a BRODA chair and thank you for your confidence in our
company and products.
This manual will assist you in making the best use of the capabilities of your BRODA chair and
will ensure that you quickly become familiar with its operation.
After reading this manual, if you have any questions about the safe and effective operation of
your BRODA chair or accessories contact your local BRODA representative or our Head Office
Customer Service personnel for further assistance.

2
GENERAL INFORMATION
This document provides guidance on the safe and effective operation of the BRODA chair.
Information in this manual must be followed at all times.
Anyone involved with the operation or maintenance of the BRODA chair, must read this
operating manual before using the chair.
Anyone who is unfamiliar with, unwilling, or unable to adhere to the safety and operating
instructions, is not permitted to operate or move the chair.
A copy of this instruction manual must always be available.
BRODA accepts no liability for damages, injury or accidents caused by operating errors,
improper maintenance, or disregard of the instructions in this manual.
BRODA reserves the right to make changes to the specifications, dimensions, functions, or
components of its products without notice. Product representations in this manual may vary from
delivered products.
Each BRODA chair has a unique identifying serial number that must be maintained on the chair
as well as with any equipment record

3
1SAFETY REQUIREMENTS
1.1 Training
Before and after the chair is put into service, this manual must be read thoroughly by all individuals
responsible for the child’s care. (referred to in this manual as caregiver). This includes but not limited to:
therapy staff, teaching staff and other education professionals, physician and/or other healthcare
professional, parent and/or guardian and all other individuals who are involved in the care and safety of the
child.
The operations of the chair must be performed by the child’s caregiver who is responsible for seating for the child.
All The operations and adjustments performed should be done in a manner to ensure the overall safety, comfort and
well-being of the child, individual responsible for their care and third party. All operations and adjustments required
for the child should be determined by all caregivers responsible for seating.
1.2 Application
The Aspire Pediatric Glider is intended for use by children who are under professional care, or a parent and/or
guardian. The suitability of the Aspire Pediatric Glider must be determined by a qualified individual who is familiar
with the seating needs of the child. Any other use of the chair is excluded from possible liability claims.
The chairs are not explosion resistant and must not be used where there are flammable gases or liquids present (e.g.,
anesthetics, volatile solvents and cleaners, etc.)
The Aspire Pediatric Glider is designed for use with specific BRODA parts and accessories. The use of non-
BRODA parts or accessories with a BRODA chair will void the warranty and is excluded from possible liability
claims.
The Aspire Pediatric Glider may only be used as described in this manual and with proper regard for recognized
education, healthcare and workplace safety and accident prevention practices.
1.3 Shipping and Storage
The Aspire Pediatric Glider should be shipped and stored in an upright position and not stacked higher than 3 boxes.
No other materials should be shipped or stored on top of a BRODA box. BRODA boxes should not be placed on
pallets.
The Aspire Pediatric Glider should be shipped and stored at temperatures between -20ºC and 40ºC. It should not be
used until it is between 0ºC and 30ºC.
The Aspire Pediatric Glider should be kept in a clean, dry environment. Do not leave the chair outdoors as it may
cause the paint to peel.
Upon receipt, the shipping carton must be immediately examined for damage. Any damage should be noted on the
delivery receipt and a request for inspection by the transportation company should be made. Next, the shipping
carton should be opened and the chair must be examined for concealed shipping damage. If the chair appears to be
damaged, do not use the chair. File a concealed damage report with the transportation company.
1.4 Pre-Service Check
The Aspire Pediatric Glider is delivered fully assembled. If the chair does not appear to be ready to use upon receipt,
immediately contact your supplier and do not put the chair into service until any concerns have been resolved.

4
Visually inspect the chair for damage, missing parts, and loose fasteners prior to testing the chair’s functions.
Functional testing must be successfully completed after visual inspection and before use. These obligations apply to
the chair’s first use and to all subsequent uses (Section 3: Inspection and Functional Testing).
1.5 Hazards
.
1.5.1 Location of Chair - “Danger of Tipping or Falling Objects”
BRODA recommends that when a child has been moved to their destination, the chair is placed where the child
cannot reach handrails or other objects, fixed or movable. This is to prevent the child from pulling the chair over or
pulling themselves off the seating surface and to prevent the child from pulling movable objects onto the chair and
themselves.
BRODA recommends that the chair be used in a supervised area to prevent untrained individuals from unauthorized
operation, movement, or unsafe actions in order to prevent risk of tipping or damage to the chair.
BRODA recommends that a chair only be located on a level surface to minimize the risk of tipping over.
1.5.2 Transport Wheels - “Danger of Tipping”
The transport wheels found on the rear of the Aspire Pediatric Glider are for ease of transporting an unoccupied
chair. Do not transport the Aspire Pediatric Glider while it is occupied. Doing so could cause the chair to tip, causing
serious injury to individuals.
1.5.3 Re-Positioning of Optional Height Adjustable Armrests- “Danger of Clamping”
The Aspire Pediatric Glider offers optional height adjustable armrests. Before movement of the armrest height,
ensure the child’s and caregivers’ body are clear of all pinch points.
1.5.4 Unintended Movement - “Danger of Falling or Collision”
BRODA recommends the Aspire Pediatric Glider for indoor use within an education institute, healthcare facility or
home, and where there is not enough slope to cause the chair to move unaided. Chairs used where the surface is
uneven or sloped are at risk of unintended movement and could become a serious danger to child, caregiver(s), or
third party. We recommend that the Aspire Pediatric Glider is located away from stairwells, elevators, and exterior
doorways.
1.6 Improper Use
As outlined, the improper use of the chair is dangerous to the child, caregivers, or third parties, and can consist of,
but is not limited to the following:
1) Unauthorized operation of the chair’s functions.
2) Unauthorized movement of the chair.
3) Inappropriate use of the chair by a child who has not been assessed by a qualified professional
responsible for their seating.
4) Attempting to operate multiple chair functions simultaneously by one or more caregivers.
5) Attempting to move the chair while occupied by a child.
6) Leaving a child unattended
7) Leaving a child in a chair on a sloping surface.
8) Leaving a chair unattended on a sloping surface.
9) Using non-BRODA accessories on the chair.
10) Using the chair at temperatures below 0ºC.
11) Using the chair as a shower or bathing chair.
12) Using the chair for any use other than its intended purpose.
1.7 Cleaning
The Aspire Pediatric Glider should be wiped clean with soap and water. Diluted household strength ammonia or
chlorine based cleaner, as well as a hospital grade cleaner may be used if necessary.

5
Refer to the following guide for cleaning certain staining agents (Applies to the Permablok3® vinyl, as per the vinyl
manufacturer’s recommendations) The frame and components of the chair can be cleaned using the same procedure
as the vinyl.
The steps below are also located in the Cleaning Guide found on the back of the BRODA chair.
Staining Agent Cleaning Procedure
Eye Shadow / Mascara Step 1
Grease / Suntan Lotion / Chocolate Step 1
Blood / Bodily Fluids Step 2
Red Lipstick Step 2
Oil Base Paint / Tar / Asphalt Step 3
Other Tough Stains Step 4 or 5*
Step 1: Remove excess spill with a damp cloth. Clean with a 1:1 mix of Ivory® liquid and water. Rinse with clean
water and dry.
Step 2: Use a straight application of concentrated cleaners such as Formula 409® or Fantastik® Spray Cleaner.
Then wipe with a clean cloth. If using a hospital grade cleaner, follow the diluting instructions on the label.
Step 3: Use a 1:1 mix of ammonia and water or a 1:4 mix of bleach and water. Rinse with clean water and dry.
Step 4: Use a straight application of naphtha (lighter fluid). Rinse thoroughly with clean water and pat surface dry.
Step 5: Use a 1:1 mix of isopropyl alcohol and water. If the stain persists, use straight alcohol. Rinse thoroughly
with clean water and pat dry. If the stain remains, use a 1:1 mix of acetone and water. Rinse with clean water and pat
surface dry.
*Note: for cleaning that requires steps 4 or 5 –Use a soft cotton cloth saturated with the cleaning material and rub
the stain in circles 10 times. Pat dry with another soft cotton cloth, and check results.
Thoroughly clean all removable parts and padding, as well as the frame and components.
BRODA chairs should not be cleaned with petroleum based cleaners. Any petroleum based products that come in
contact with any vinyl surface should be removed as quickly as possible. Petroleum based products make vinyl
brittle and will damage the seating surface and cushions. Metal parts and cushions should be wiped completely dry
after cleaning. Do not launder vinyl padding.
Do not allow the chair to air dry. Leaving the chair to air dry and not ensuring the entire chair is completely dry may
cause the frame and components to rust. Solvents such as those found in spray lubricants should not be used on
BRODA chairs as they can damage moving parts.
Frequency and method of cleaning the chairs should be determined by facility infection control protocols. If visibly
soiled, thoroughly clean the chair immediately as per the cleaning instructions in this manual.
The cleaning instructions in this manual are guidelines only. Results may vary under actual conditions. The
information does not relieve the user of proper and safe use of the product and all cleaning agents and consideration
for the overall cleaning maintenance of the chair. Cleaning and care instructions must be followed in conjunction
with facility infection control protocols.
BRODA will not accept warranty or liability claims on chairs that have not been cleaned according to the
instructions or cared for in proper regard for the child, caregiver and third party safety and hygiene.. The use of
certain agents may be harmful to the surface appearance and lifespan of the vinyl. BRODA assumes no
responsibility resulting from the use of such cleaning agents to the vinyl.
Touch up paint is available for the powder coated frame. Please call BRODA’s Customer Service Department if
touch up paint is required. Do not leave BRODA chairs outdoors as the frame is not UV protected. Leaving the
chairs outdoors could cause the paint to peel.

6
Formula 409® is a trademark of the Clorox Company.
Fantastik™® is a trademark of DowBrands, Inc.
Trademark of the Dow Chemical Company
Ivory® is a trademark of Proctor and Gamble
1.8 Maintenance
The maintenance on the Aspire Pediatric Glider will vary with the amount of use and the condition of the children
using the chair.
In regular use, after the initial inspection and functional testing, the chair should be inspected and tested bimonthly.
We recommend visually inspecting for signs of wear, damage, loose or missing fasteners, and other safety concerns.
Periodic testing of chair functions is also necessary. If a breakage, defect, or operational problem is detected, the
chair must be successfully repaired, inspected and tested for function before it is returned to service.
The chair should be inspected and tested as often as each use if the chair is used by:
1) Aggressive or agitated children.
2) A facility with irregular or sloped surfaces.
3) Any unauthorized person.
Do not use lubricants that contain solvents. If necessary, white food grade grease or lubricant can be used on any
sliding components.

7
1.9 Child Specific Instructions
The primary caregiver responsible for the specific child’s seating shall add additional instructions necessary for the
safe and effective use of the chair based on their professional experience and knowledge of the child’s specific
conditions and requirements.
BRODA representatives are not professional caregivers and will not know the specific requirements of the
individual using the chair. BRODA relies on the knowledge, experience, and judgment of the child’s professional
caregiver to ensure the specific child’s safety and comfort needs are satisfied while using the chair.
These instructions form an essential part of the safety requirements for using the chair and must be made available to
all caregivers. Space is provided below to include these instructions.

8
2OPERATION AND MOVEMENT
Safety measures as described in Section 1 must be observed when operating the chair’s functions or moving the
chair. Only authorized caregivers should attempt to operate or move a chair. The caregiver must use proper body
mechanics when operating the chair.
2.1 Gliding Motion
The Aspire Pediatric Glider has a gliding motion that
aids in providing a calming effect as well as stimulation
and enjoyment The gliding can be activated or locked
with the caregiver lock
2.2 Caregiver Lock
The caregiver lock prevents any unwanted gliding. The
lock is located at the rear of the chair under the fabric
apron.
WARNING: Only apply the caregiver lock when the
chair is unoccupied.
To Lock and Unlock the caregiver lock:
-Lift up or reach under the flap to access the caregiver
lock.
-Pull the handle.
-Turn approximately a quarter turn and insert the tab
into the slot for locking, or release the tab for
unlocking.
-Secure the flap back in place.
WARNING: Do not place fingers near tab as this
could cause pinching.
2
1

9
2.3 Height Adjustable Armrests - Optional
The Aspire Pediatric Glider offers standard fixed height
armrests. Optional height adjustable armrests can easily
be adjusted in order to accommodate various individuals.
The armrest height should be adjusted to provide correct
arm support for the child as determined by the caregiver.
To Adjust the Armrest Height:
-Squeeze the pins together which are located under the
armrest flap.
WARNING: DO NOT place fingers at the top of the
pins as this could cause pinching. Place fingers in the
concave shape of the pins.
-Raise or lower the arm to the desired height.
WARNING: DO NOT place fingers anywhere
underneath the arm while adjusting, as this could
cause pinching. Upon releasing the pins the armrest
height will lock into place.
Secure the outside flap on the side panel. Change the
height on the other arm as desired.
2.4 Transport Wheels
The Aspire Pediatric Glider has two rear transport
wheels for ease of transporting the chair while
unoccupied.
To Transport the Chair:
-Apply the caregiver lock.
-Standing directly behind the chair, tilt the chair back
onto the transport wheels and transport to the desired
location.
-Once the chair is in the desired location and in the
upright position, the caregiver lock may be released if
desired.
WARNING: Do not transport the chair while it is
occupied.
2.5 Accessories (Options)
It is recommended that only BRODA accessories are used on the Aspire Pediatric Glider. The correct installation of
the BRODA accessory is very important. We recommend that the chair is ordered with the required accessories
already installed. Only authorized caregivers who thoroughly understand the accessory installation procedures
should attempt to install their BRODA accessories without assistance from their local BRODA representative.
BRODA does not recommend use of other manufacturer’s accessories on our chairs.
1
!
2

10
3INSPECTION AND FUNCTIONAL TESTING
Safety measures as described in Section 1 must be observed when inspecting or testing a chair. Only authorized
caregivers or maintenance staff should attempt to inspect or test a chair.
3.1 Inspection
Visual inspection is recommended for signs of wear, damage, loose or missing fittings, and other safety concerns. If
a breakage, defect, or operational problem is detected, the chair must be repaired, inspected and tested for function
before it is returned to service.
We recommend that the chair be inspected as often as each use if there is any reason to be concerned about the
possibility of increased wear or loose or missing fittings. At a minimum, in regular use the chair should be
inspected on a bimonthly basis. The visual inspection procedure should include at least the observation of all the
fittings (fasteners):
The visual inspection procedure should include at least the observation of the following parts:
1) The vinyl straps used in the seat and back
2) The cushions
3) The caregiver lock and pin that engages the locking plate
4) The armrest height adjustment pins (applies on certain models)
The visual inspection procedure should include the observation of any installed accessories. The visual inspection
should be performed by the facility, or if in a private residence, by the individual responsible for the chair.
3.2 Functional Testing
It is recommend that the chair be tested for operation of the chair’s functions while it is unoccupied.The
testing may be as often as each use if there is any reason to be concerned about the possibility of increased wear or
damage to the chair’s components. At a minimum, in regular use the chair should be tested for functions as
described in Section 3.
If the caregiver or maintenance department performing the functional testing believes that any function is not
operating correctly, the chair should be taken out of service until a satisfactory functional test can be completed.

11
4TECHNICAL INFORMATION
4.1 Specifications
Specifications for Aspire Pediatric Glider Models 100-PS, 100-PM. 100-PL
1. Gliding:
Smooth, gliding action with a locking feature.
2. Caregiver Lock
Caregiver lock can be activated to prevent unwanted gliding.
3. Frame:
16 gauge powder coated tubular steel
4. Seat/Back Surface:
BRODA Comfort Tension Seating® Strapping is 1.5” wide, by .130” thick; contains
fungicide, has shape memory retention, is fire retardant
5. Arms:
Fixed armrest height
6. Padding:
Standard removable padding –Seat Pad, Back Pad, Side Panels
The 34 ounce healthcare vinyl fabric covering is manufactured to meet the following
requirements: DIN 75 200/DIN 53 438; MVSS 302, M2;CAL 117, and Wyzenbeck
Heavy Duty Abrasion Test; has an antimicrobial, antibacterial, anti-stain and anti-static
finish; Cold crack of -20ºC. Polyurethane foam meets CAL 117-2013.
Removable seat and back pads are covered with an 8 ounce soft vinyl which meets
CAN2-162 flammability standard for hospital textiles. Polyurethane foam meets CAL
117-2013.
7. Transport Wheels
Rear wheels for transporting of chair (while unoccupied)
8. Seat Depth:
10” 100-PS, 12” 100-PM. 14” 100-PL
9. Seat Height:
10” 100-PS, 12” 100-PM. 14” 100-PL
10. Seat Width:
12” 100-PS, 14” 100-PM. 16” 100-PL
11. Weight Capacity:
200 lbs
All dimensions are ± 0.5”.

12
4.2 BRODA Seating Aspire Pediatric Glider Parts Schematic Drawings

13

14

15

16

17
