Brodie AddPak User manual

IOM AddPak R02 Page 1/24
Brodie AddPak
Additive Injection Block
Installation & Operation Manual

Page 2/24 IOM AddPak R01
Table of Contents
1 Read Me First 3
2 Essential Instructions 4
3 Warranty Claim Procedures 8
3.1 - Limited Warranty 8
3.1 - Limited Warranty Continued 9
3.2 - Limitation of Remedy and Liability 9
4 Receipt of Shipment 10
5 Return of Equipment 10
6 Storage 11
7 Standard Features 12
8 Functional Operation 14
9 Mounting 14
10 Specifications 15
11 Solenoid Input 17
12 Sensor Output 17
13 Wiring 18
14 Process Fluid Connections 19
15 Thermal Relief 19
15.1 AddPak Unit Assembly 20

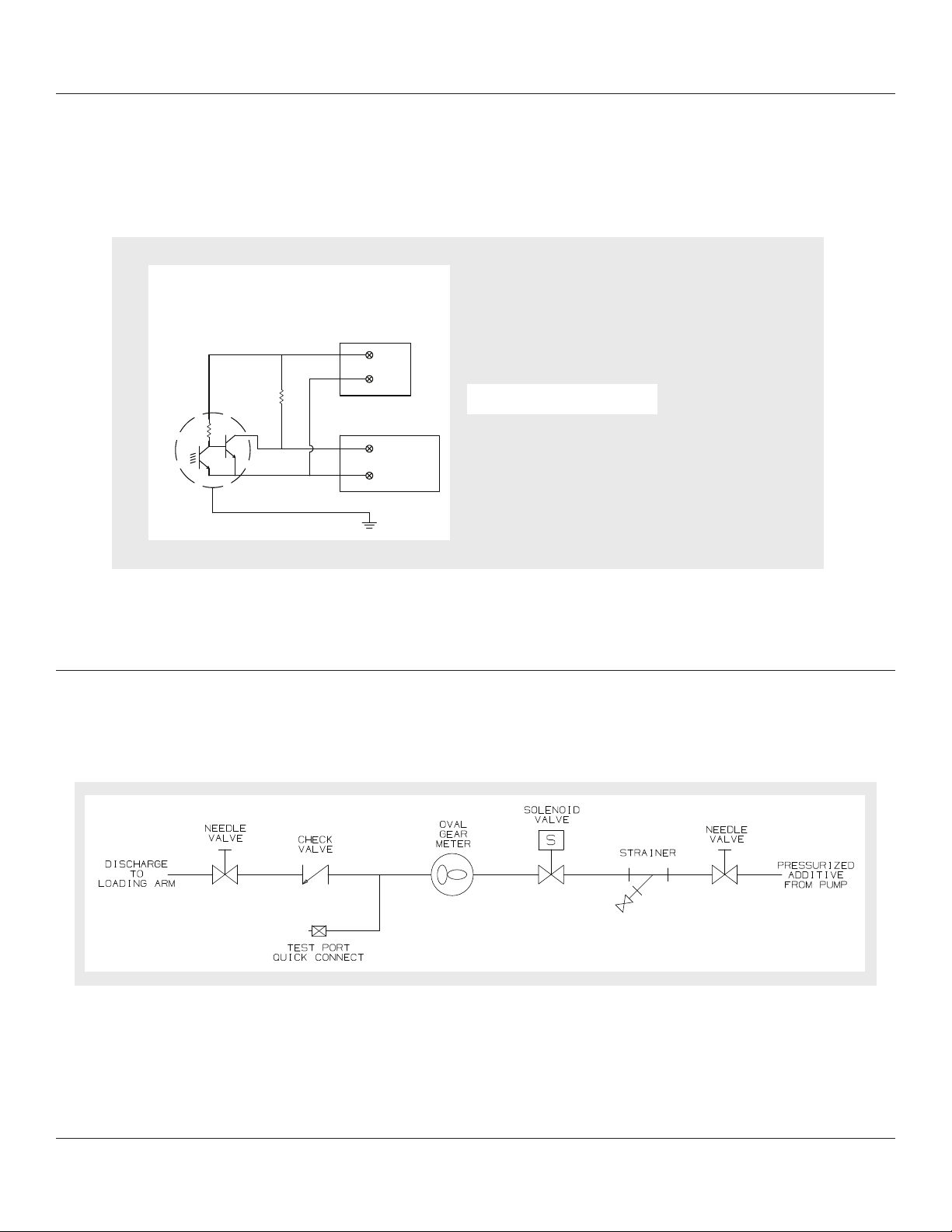

15.2 AddPak Wiring Diagram 21
15.3 Process and Instrumentation Diagram (P&ID) 21
15.4 AddPak Illustration 22
Appendix A 24
Appendix B 25

IOM AddPak R02 Page 3/24
1 Read Me First
Notice
Brodie International, a Brodie Meter Co., LLC
Company (“Brodie”) shall not be liable for
technical or editorial errors in this manual or
omissions from this manual.
Brodie makes no warranties, expressed or implied,
including the implied warranties of merchantability
and fitness for a particular purpose with respect
to this manual and, in no event, shall Brodie be
liable for any special or consequential damages
including, but not limited to, loss of production,
loss of profits, etc.
Product names used herein are for manufacturer
or supplier identification only and may be trade-
marks/registered trademarks of these companies.
The contents of this publication are presented for
informational purposes only, and while every effort
has been made to ensure their accuracy, they are
not to be construed as warranties or guarantees,
expressed or implied, regarding the products or
services described herein or their use or applicabil-
ity. We reserve the right to modify or improve the
designs or specifications of such products at any
time.
Brodie does not assume responsibility for the
selection, use or maintenance of any product.
Responsibility for proper selection, use and
maintenance of any Brodie product remains solely
with the purchaser and end-user.
No part of this work may be reproduced or copied
in any form or by any means - graphic, electronic
or mechanical - without first receiving the written
permission of Brodie International.

Page 4/24 IOM AddPak R01
2 Essential Instructions
General
Brodie International designs, manufactures and
tests its products to meet many international
standards. As the instruments are sophisticated
technical products they must be installed, used
and maintained properly to ensure they continue
to operate within their normal specifications. The
following instructions must be adhered to and
incorporated into onsite safety programs where
possible.
Read all instructions prior to installing, operat-
ing, and servicing the product. If this instruction
manual is not the correct manual, telephone +1
912 489 0200 and the requested manual will be
provided.
Save this instruction manual for future
reference. If you do not understand any of the
instructions, contact your Brodie representative
for clarification.
Follow all warnings, cautions, and instructions
marked on and supplied with the product.
Inform and educate your personnel in the proper
installation, operation, and maintenance of the
product. Install your equipment as specified in
the installation instructions of the appropriate
instruction manual and per applicable local and
national codes. Connect all products to the proper
electrical and pressure sources.
To ensure proper performance, use qualified
personnel to install, operate, update, program, and
maintain the product. When replacement parts
are required, ensure that qualified personnel use
replacement parts specified by the manufacturer.
Unauthorized parts and procedures can affect the
product’s performance and place the safe oper-
ation of your process at risk. Look-alike substi-
tutions may result in fire, electrical hazards, or
improper operation.
Ensure that all equipment doors are closed and
protective covers are in place, except when main-
tenance is being performed by qualified personnel,
to prevent electrical shock and personal injury.
It is the customer’s responsibility to provide fire
prevention measures and equipment per local
regulations.
The injection block has been designed without
allowance for corrosion. The customer should
implement a periodic inspection and maintenance
program to ensure that no part of the block’s pres-
sure retaining components has been subjected to
corrosion.
Use of this equipment for any purpose other
than its intended purpose may result in property
damage and/or serious personal injury or death.

IOM AddPak R02 Page 5/24
Essential Instructions for Electrical Equipment, Including the
European Union (Directive 2004/108/EC and 2004/22/EC)
This unit contains Electrostatic sensitive circuit
boards. Electrostatic safety precautions should be
taken to prevent damage.
When connecting wiring it is good practice to use
shielded cable. The shield should be connected to
earth at the read out or control systems end of the
cable; the other end of the shield should not be
connected.
This wiring practice is mandatory in order to
comply with the requirements for electromagnetic
compatibility as per the EMC directive 2004/108/
EC and MID 2004/22/EC of the council of the Euro-
pean Union.
It is the end user’s responsibility to ensure that all
protective covers are in place to prevent electrical
shock and/or personnel injury.
Essential Instructions for Pressure Containing Equipment,
Including the European Union (Directive 97/23/EC)
Although it is not expected for the device to be
used in a service where it would come in to contact
with unstable fluids, it is the end user’s responsi-
bility to assess any risks and take any precautions
necessary.
It is the end user’s responsibility to ensure that
piping and other attachments connected to the
Brodie instrument do not place adverse stresses
upon it, the design of the instrument has not been
assessed for the effects of traffic, wind or earth-
quake loadings.
It is the end user’s responsibility to ensure that the
instrument is mounted when required on suitable
supporting foundations.
It is the end user’s responsibility to install the
device in a well-designed system to avoid potential
hazards such as water hammer, vacuum collapse
or uncontrolled chemical reactions.
It is the end user’s responsibility to provide fire
protection measures and equipment in accordance
with the local regulations.
When the ambient temperature is below the
minimum operating temperature specified on the
device it is the end user’s responsibility to ensure
that the device is warmed to an appropriated tem-
perature before being pressurized.
Do not exceed the operating pressure and tem-
perature limits of the instrument as stamped on
the nameplates.
It is the customer’s responsibility to install this
equipment in a system that provides adequate
over-pressure protection and that limit pressure
surges to 10% of the maximum allowable working
pressure of the instrument.
It is the end user’s responsibility to provide fire
protection measures and equipment in accordance
with the local regulations.

Page 6/24 IOM AddPak R01
3 Warranty Claim Procedures
3.1 - Limited Warranty
Subject to the limitations contained in Section 2
herein and except as otherwise expressly provided
herein, Brodie Meter Co., LLC (“Brodie”) warrants
the Goods-manufactured by Brodie will be free
from defects in materials or workmanship under
normal use and care until the expiration of the
applicable warranty period.
Goods are warranted for twelve (12) months from
the date of installation and 18 months from date
of shipment, whichever occurs first. Consumables
and Services are warranted for a period of 90 days
from the date of shipment or completion of the
Services.
Products purchased by Brodie from a third party
for resale to Buyer (“Resale Products”) shall carry
only the warranty extended by the original manu-
facturer.
Buyer agrees that Brodie has no liability for Resale
Products beyond making a reasonable commercial
effort to arrange for procurement and shipping of
the Resale Products.
If Buyer discovers any warranty defects and noti-
fies Brodie thereof in writing during the applicable
warranty period, Brodie shall, at its option, repair
or replace, that portion of the Goods found by Bro-
die to be defective or refund the purchase price of
the defective portion of the Goods/Services.
All replacements or repairs necessitated by in-
adequate maintenance, normal wear and usage,
unsuitable power sources, unsuitable environmen-
tal conditions, accident, misuse, improper instal-
lation, modification, repair, storage or handling,
or any other cause not the fault of Brodie, are not
covered by this limited warranty, and shall be at
Buyer’s expense.
Brodie shall not be obligated to pay any costs or
charges incurred by Buyer or any other party ex-
cept as may be agreed upon in writing in advance
by an authorized Brodie representative.
All costs of dismantling, reinstallation and freight
and the time and expenses of Brodie’s personnel
for site travel and diagnosis under this warranty
clause shall be borne by Buyer unless accepted in
writing by Brodie.
Brodie is not responsible for damages that in-
cur during shipment to Buyer for shipments that
are F.O.B. Brodie Factory, FCA Brodie Factory, or
EXWORKS Brodie Factory. Shipping charges for
goods returned to Brodie under warranty will be at
Buyer’s expense.
Products found not to be warranted can be re-
paired and returned at Buyer’s expense and return
charges born by Brodie will be added to the cost of
repair or returned to Buyer “as received” at Buy-
er’s expense. Insurance for returned products will
be at Buyer’s expense.
For all returned products please package to pre-
vent damage, or future damage during shipment.
Make sure the products are cleaned, free from
grease oil, chemicals and other materials that may
hamper defect detection and impede repair.
All returned items must be accompanied with a
MSDS for the products that have been in contact
with the equipment, including cleaning agents.

IOM AddPak R02 Page 7/24
3.1 - Limited Warranty Continued
A decontamination statement, RMA, and Customer
Problem Report must also accompany equipment
returned. Product received in an unsuitable con-
dition will be returned at Buyer’s expense without
being examined.
Goods repaired, and parts replaced during the
warranty period shall be in warranty for the
remainder of the original warranty period or
ninety (90) days, whichever is longer.
This limited warranty is the only warranty made
by Brodie and can be amended only in a writing
signed by an authorized representative of Brodie.
Except as otherwise expressly provided in the
Agreement, there are no representations or war-
ranties of any kind, expressed or implied, as to
merchantability, fitness for a particular purpose, or
any other matter with respect to any of the goods
or services.
It is understood that corrosion or erosion of ma-
terials is not covered by our guarantee unless the
Buyer has notified the Seller the product will be
used in an environment conducive to corrosion
and/or erosion and the product has been coated
with Brodie’s recommended method of protection
against corrosion / erosion.
3.2 - Limitation of Remedy and Liability
Brodie International, a Brodie Meter Co., LLC Com-
pany (“Brodie”) shall not be liable for damages
caused by delay in performance.
The sole and exclusive remedy for breach of war-
ranty hereunder shall be limited to repair, correc-
tion, replacement or refund of purchase price un-
der the limited warranty clause in Section 1 herein.
In no event, regardless of the form of the claim or
cause of action (whether based in contract, in-
fringement, negligence, strict liability, other tort or
otherwise), shall “Brodie’s” liability to buyer and/or
its customers exceed the price to buyer of the spe-
cific goods manufactured or services provided by
Brodie giving rise to the claim or cause of action.
Buyer agrees that in no event shall Brodie’s liabili-
ty to buyer and/or its customers extend to include
incidental, consequential or punitive damages.
The term “consequential damages” shall include,
but not be limited to, loss of anticipated profits,
loss of use, loss of revenue and cost of capital.
Brodie International
P.O. Box 450 (30459-0450)
19267 Highway 301 North
Statesboro, GA 30461, USA
www.brodieintl.com
Phone: [phone]

Page 8/24 IOM AddPak R01
4 Receipt of Shipment
When you receive your equipment inspect the
outside of the packing case for damage which may
have incurred during shipping. Damage incurred
during shipment is the responsibility of the car-
rier and is not part of the factory warranty. If the
packing case is damaged, notify the local carrier
immediately.
If the package is in good condition remove the en-
velope containing the packing list and carefully re-
move the equipment and all components included
in the shipment from the packing case. Inspect for
damaged or missing parts, referring to the packing
list, and prior to discarding the packing material.
If Items are missing from your shipment, contact
your sales representative. Your sales order number
will be required.
5 Return of Equipment
If the equipment must be returned to the factory
for repair or replacement, a Returned Materials
Authorization (RMA) must be included with the
components.
RMA forms may be obtained from your sales repre-
sentative or from the Product Service Department.
In addition to the RMA, a Material Safety Data
Sheet and a Decontamination Statement must be
included with Items being returned to the factory.
A Decontamination Statement is included in the
back of this manual.
If the equipment is removed from service it must
be thoroughly drained and neutralized before it is
packed for shipment. Care must be taken to en-
sure that product removed from the equipment is
disposed of in accordance with all applicable local,
state and federal regulations.
The connections should be sealed to keep residual
fluid from leaking out of the meter during trans-
port. The type of flange seal required will vary
with the form of transportation used. Contact the
carrier for specific instructions.
The equipment should be securely mounted on a
wooden skid for shipment. The original container
or a solid wooden box should be used to protect
the exterior of the components.
When packing the components for return to the
factory, place the RMA and a copy of the packing
list that was delivered with the equipment inside
an envelope. Place the envelope inside the ship-
ping container with the Item being returned and
reference the RMA number on the outside of the
shipping container.
Equipment returned to the factory without the
proper documentation will be returned to sender
at their expense.
Ship the container to:
Brodie Meter Co., LLC
Product Service Department
19267 Highway 301 North
Statesboro, GA 30461, USA
Phone: [phone]
Fax: [phone]
[e-mail]

IOM AddPak R02 Page 9/24
6 Storage
Brodie International instruments are precision de-
vices and should be handled and stored with care.
They should not be subjected to rough or improper
handling or stored in an environment where mois-
ture, extreme temperatures, or foreign material
can damage the meter.
The inlet and outlet connection covers should
remain on the instrument until the unit is ready for
installation.
If extended storage is required it is recommended
that the instrument be placed in an environmental-
ly controlled warehouse. If this is not possible the
instrument should be stored in a waterproof lined
wooden box. Desiccant packs should be taped to
the inside of the instrument end connections be-
fore they are sealed to reduce the effect of humidi-
ty on the equipment and accessories. Caution must
be used to ensure desiccant packs are removed
prior to installation.
Depending on the storage time it may also be pref-
erable to use a compatible corrosion inhibitor.
If the injection block is removed from service for
an extended period of time it should be flushed
with a light oil before being placed into storage.

Page 10/24 IOM AddPak R01
7 Standard Features
Brodie AddPak Injection Block
General
Brodie’s AddPak Chemical Injector offers a wide
variety of service options. A complete stainless
steel construction and extensive elastomer se-
lection prove to be suitable for use in numerous
chemical and industrial applications. The Injector
is machined out of a solid piece of stainless steel
bar stock which minimizes external leak points.
The injector also incorporates an inlet machined
basket strainer and an outlet check valve.
Installation
The Injector’s slim footprint allows for easy
installation with minimal space requirements.
As a slave injector, the versatile AddPak Chemical
Injector easily incorporates into numerous applica-
tions from PLC to TAS Systems.
Oval Gear Meter
The Injector’s oval gear meter allows a broad
range of chemical use in additive and marker
applications. The Brodie oval gear design produces
a highly accurate measurement in single c/c units.

IOM AddPak R02 Page 11/24
Mechanical
• Available in 1-6 Pack Configuration
• 304 Stainless Steel Machined Block
• Inlet & Outlet Isolation Valves
• Inlet & Outlet Connections 3/8” FNPT
• Calibration Port Valved with Dust Cap
• Strainer (100 Mesh)
• Check Valve
• Elastomers Wetted are all Teflon or Teflon
Encapsulated Material
• Optional Elastomer Material: Kalrez or
Chemrez Seals per Request
• Standard: Ryton Oval Gears
Stainless Steel Gears Available per Request
• Flow Range: 0.1 - 3 GPM
• Accuracy: 0.5%
• Repeatability: 0.25%
• Oval Gear Meter K Factor: 5400 PPG
• Process Connections 3/8” FNPT
• Max Viscosity 300 Centistokes
• Max Working Pressure 400 PSI
Electrical
• ASCO Explosion Proof Solenoid
• 120VAC 60HZ Standard, Other Voltage/(options?)
Available per Request
• Oval Gear Meter Sensor 5 - 27 VDC, Supply Open
Collector High Speed Pulses
• 4 wire sensor type
• Common Pulse Signal and Earth Ground
Connections
• Suitable for Hazardous Area
• FM Approvals for use in Class I, DIV I Areas
• ATEX/CE Approval Optional
Optional Accesories
• Calibration Kit, including quick-coupler (female),
cylinder, back pressure check valve, and spout.
• 6 (maximum) slave injection blocks can be mount-
ed, pumped, and wired for A/C + D/C on mounting
back board

Page 12/24 IOM AddPak R01
8 Functional Operation
The Brodie Addpak injector block consists
of a 304 stainless steel block machined and
assembled with a positive displacement oval gear
meter, Asco solenoid, isolation and control needle
valves on the inlet and outlet, a strainer, and check
valve. Additionally, a quick coupler is included for
calibration. Compact design and low cost provide
the ideal solution for chemical additive injection
regarding petroleum terminals and pipelines.
Compared to other types of injectors, Brodie’s
AddPak Injector
Block minimizes leak points; All components are
built and assembled into the block.
The AddPak injector block is a slave injector,
typically controlled from a PLC, Terminal Automa-
tion System or Electronic Preset. If the application
requires a smart controller, please consult the
factory. The AddPak as standard does not include
the necesary electronics to pace the injector,
accumulate totals, or provide alarms.
Controller
The controller as referenced above will send an
AC voltage to the solenoid. This will energize the
coil and allow flow through the block. As flow
passes thru the block, the oval meter will send
pulses proportional to flow volume back to the
controller. When the preset volume is met, the
controller will terminate the AC power to the sole-
noid, the valve will close, and flow will cease. This
cycle is repeated every time the controller sends
AC voltage to the solenoid. Standard AC voltage
is 115 VAC with options for 230 VAC or 24VDC
solenoids available. The User should select a
controller with alarms for conditions with excess
additive or no additive flow. The controller should
discontinue loading until the problem is resolved
and the alarm has been reset. The user can consult
Brodie for assistance in selecting the appropriate
controller.
9 Mounting
The AddPak Injection block can be mounted in any
orientation provided the oval gears remain in a
horizontal position. The inlet and outlet connec-
tions can be vertical, horizontal, or inclined. To
ensure the gears are in a horizontal position, the
sesnor and solenoid should be facing the installer,
rather than facing up or down.

IOM AddPak R02 Page 13/24
10 Specifications
Meter Pickup Sensor
4 Wire
Red Wire Sensor Power
Black Wire Power & Signal Common
White Wire Pulse Signal
Green Wire Earth Ground
Certifications: FM, ATEX
Fluid
Inlet 3/8” Female NPT
Outlet 3/8” Female NPT
Coil Data
Power Requirements: 17.1 Watts @ 120 VAC, 8.6
Watts @ 240 VAC
Certifications: NEMA Type 3, 35, 4, 4X, 6,
6P, 7, & 9
Explosion Proof
Solenoid
Fluid Orifice Size 5/32”
Max Working Pressure 400 PSI
Max Operating Pressure 150 PSI (differential)
Certifications: FM, ATEX
Manifold Block
Fluid Port Sizes: 3/8” FNPT
Body Material Stainless Steel
Elastomer Material Teflon, Viton, Chemraz
Max Working Pressure 400PSI
Environmental
Ambient Operating Range: -40 to 140 ºF
Sensor: Electrical
Sensor Power 5vdc to 27vdc, 20mA max-
imun
Open Collector Output 5vdc to 27 vdc 100 mA maxi-
mum (unsourced
4 Wire Connection Function:
Red Wire Sensor Power
Black Wire Sensor Power Common &
Emitter (signal common)
White Wire Sensor Signal, Open
Collector (un-sourced)
Green Wire Earth Ground
Fluid Metering Gears:
Nominal Pulse Resolution 5400 PPG in Mineral Spirits
Material (Gears) Standard: Ryton
Stainless Steel Available
Black Wire Power & Signal Common
White Wire Pulse Signal
Green Wire Earth Ground
Certifications: FM, ATEX
Sensor: Mechanical
Sensor Thread 1/2” FNPT
Material Aluminum
Solenoid Connetions
Mechanical 1/2” FNPT
Two Red Wires Actuator Coil
Green Wire w/ Yellow Stripe Earth Ground

Page 14/24 IOM AddPak R01
10.1 - Parts List
Item Description Model Qty
1 Additive Injection Block AB1001 1
2 Needle Valve Assembly
AB1002 2
3Retainer Cap 15/16 - 28 UN
Threads
AB1003 2
4 O-Ring Encapsulated Teflon
AB1004 2
5 Strainer Basket AB1006 1
6Solenoid 240/60, 220/50
Voltage
AB1027 1
Housing - Needle Valve AB1016 1
Poppet - Needle Valve AB1017
7 Gear Post* AB10** 2
9 Gear Set* AB10** 1
10 O-Ring – Teflon – Sensor AB1010 1
11 Mounting Plate – Sensor AB1011 1
12 Screws – Socket Head Cap
10 – 32 x 3/8” Long 316 SS 151098-419 6
13 Sensor AB1012 1
14 Screws- Socket Head Cap
6-32 x 7/16” 151086 4
15 Quick Connect – Stem Protector
– Swagelok P/N: SS-QC6-D-6PM 1501146 1
16
Quick Connect Stem Protec-
tor Swagelok P/N: SS-QC6-
SP
1501145 1
17 Poppet – Check Valve AB 1014 1
1
Spring – Check Valve –
Century Spring Corp. P/N:
72017S
1501147 1
**Standard: Ryton Oval Gears, Consult Factory for Stainless Steel
Options
Elastomers
Needle Valve FKM Viton
Calibration Port FKM Viton
Solenoid Chemraz
All Other Elastomers Teflon or Encapsulated
Teflon

IOM AddPak R02 Page 15/24
11 Solenoid Input
The Add Pak Injection Block has a single control
input. The single input is connected to the coil of
the solenoid valve. The solenoid valve is normally
closed and when powered the coil is energized and
the valve opens and remains opened until power is
removed. The standard voltage for solenoid coil is
115VAC. Optionally the solenoid coils with 230VAC
or 24VDC can be supplied.
12 Sensor Output
The AddPak Injection Block is equipped with
a Hall-Effect pickoff. It is mounted in close
proximity to the oval gears. Each oval gear has
two rare earth magnets embedded and sealed
on the face of the gear. As flow passes through
the block, the oval gears rotate in direct pro-
portion to the volume, and the sensor changes
state as each magnet passes the sensor. When
the gear and magnet are directly in line, the
pickoff changes from off, to on, momentarily,
then back off. This operation occurs as each
magnet passes the sensor. The K Factor for the
meter is approximately 5400 pulses per gallon.
This K factor is the starting point in the field.
Field calibration is necesary to calculate the true
K factor under specific process conditions which
depend on required flow rate and chemical in use.
K factor data is transmitted into the control device.
Brodie offers a calibration kit with dry break quick
connections and a graduated cylinder. The custom-
er is responsible for performing calibration.

Page 16/24 IOM AddPak R01
13 Wiring
Solenoid
The solenid wiring from the controller to the coil
should be a minimum of #18AWG. The AC and DC
wiring should run in separate conduit. It is high-
ly recommended that the user contract a local
certified electrician to run and terminate the wir-
ing in accordance with all govermental codes for
the area. The solenoid coil produces and inductive
load to the controlling device. Please consult with
the manufacture of the controller regarding this.
Meter Sensor
The sensor wiring can be either a three or four
conductor, #18-22 AWG shielded instrument cable.
Use the Belden number 6502FE or similar. Shield
should terminate at the controller to a DC com-
mon or a specifically assigned termination. Do not
terminate shields wires to an AC earth ground. Do
not terminate shield at sensor. Isolate the shield at
Meter Sensor and tape off.
Meter Sensor: Pulse Signal Output
The AddPak Injection Block meter sensor
output is an un-sourced, open collector, transistor
output. The white sensor wire is connected to the
transistor collector. The emitter of the transistor
is connected to the black wire, or DC COMMON
connection; The term “un-sourced” means that
no voltage is applied to the output from with-
in the sensor. It must be pulled to a “high” or
“on” or “true” state by voltage supplied from an
external source. The sensor electronics then drives
the collector “low” or “off” or “false” with each
pulse transmitted. The output is NOT driven high
internally with the sensor. The industry common
scheme allows the sensor to drive external equip-
ment supplied by its own internal transmitter pow-
er. There must be a common connection between
the DC negative of the sensor supply and the DC
COMMON of the signal pulse counter. Refer to the
wiring diagram at the end of this manual for spe-
cific connection details.

IOM AddPak R02 Page 17/24
15 Thermal Relief
Brodie offers both an injection point kit with a
blocking solenoid and thermal relief kit for appli-
cation where no contamination is required. This
is normally used for dyes and markers. Since the
injector block has a blocking solenoid and the
injection point kit has a blocking solenoid it is
necessary to relieve any thermal pressure build up
between them. The thermal relief kit is installed on
the inlet and outlet of the injector block. The injec-
tion point kit is installed in the field by the user or
their contractor.
14 Process Fluid Connections
General
The process fluid inlet and outlet connections are
3/8” FNPT. The inlet and outlet are marked in the
front of the AddPak. The inlet pressure must be
higher than the outlet to ensure proper injection.
Fluid Inlet and Outlet Piping
The piping from the additive pump to the AddPak
must be sized to ensure adequate flow to meet the
demand for injection. Remember to consider how
many injectors will be operating and the total flow
required to meet that demand. Distance from the
additive pump and the injectors is another thing
to consider when determining the pipe size. The
minimum tubing size to reach the maximum flow
of 3 GPM is typical 1/2”. Larger tubing or pipe may
be required based on the viscosity of the additive.
The outlet tubing from the AddPak to the point of
injection is 1/2”. We recommend using stainless
steel tubing. A check valve and isolation valve is
recommended at the point of injection into the
process line. This will prevent product flow from
contaminating the additive when the injector is in
the idle state. The check valve should be a postive
shutoff spring close check. The check valve should
be selected to open with positive pressure of 1 to
10 PSI. If you have multiple injectors piped to one
injection point then a check valve and isolation
valve should be installed for each injector.

Page 18/24 IOM AddPak R01
15.1 AddPak Unit Assembly

IOM AddPak R02 Page 19/24
15.2 AddPak Wiring Diagram
9-.8)7&<.3,(439&.3857457.*9&7>85*(.+.(&9.438)&9&.3+472&9.43&3)
9*(-3.(&12&9*7.&19-&9&7*9-*841*5745*79>4+'74).*2*9*7(425&3>11(
94'*-*1)&3)97*&9*)'>.987*(.5.*3943&(43+.)*39.&1'&8.8&3)34994'*
8-4<347).8(148*)94&3>:3&:9-47.?*)47,&3.?&9.43475*7843
54<*78:551>
5:18*(4:39*7
;)(


)((42243
7*)
'10
<-9
,3)
;)(
8.,3&1.35:9
(85*/+(25)19+4958)/8);/:
7"TMRX 349*8
9MJUT\JWXZUUQ^UNHYZWJIFGT[JRF^GJFXJUFWFYJXZUUQ^
TWUFWYTKYMJHTSYWTQQJWFIINYN[JUZQXJHTZSYJWJQJHYWTSNHX
<.7.3,).&,7&2
15.3 Process and Instrumentation Diagram (P&ID)

Page 20/24 IOM AddPak R01
15.4 AddPak Illustration
