Bromic Heating DD1250SG-NR User manual

Confidence and control.
REVISION 2 | 13/06/2023
INSTRUCTION MANUAL
DELI DISPLAYS
DD1250SG-NR, DD1250CG-NR, DD1875SG-NR,
DD1875CG-NR, DD2500SG-NR, DD2500CG-NR.

CONTENTS
Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration.
1. PREFIX
4
2. IMPORTANT NOTES & WARNINGS
5
3. PACKAGING AND HANDLING
6
4. PRODUCT OVERVIEW
6
5. INSTALLATION
8
6. OPERATION
10
7. PRODUCT LOADING AND STORAGE
11
8. TROUBLESHOOTING
13
9. MULTIPLEXING PROCEDURE
14
10. ACCESSORIES LIST
11. ENVIRONMENTAL AND DISPOSAL NOTES
10. WARRANTY
16
17
18

1300 276 642bromicrefrigeration.com.au
4
1. PREFIX
This manual contains important information about the installation, operation, and maintenance
of Bromic Deli Display units. Please pay close attention to the important safety information
shown throughout this instruction manual. Any safety information will be accompanied by the
following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can result
in death, severe injury, or property damage.
• Improper installation, operation, or maintenance may also
result in warranty being voided.
• This appliance is intended for 230-240 Volt power supply.
• Installation MUST be carried out by a licensed and
authorised technician in accordance with local electrical
codes.
• Installation and maintenance MUST be carried out as per
instruction, by a qualified technician in accordance with
local regulation
!
!
!

1300 276 642 bromicrefrigeration.com.au
5
• Read all instructions before installing or using this appliance
• Retain this manual for future reference
• Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
• Improper installation, adjustment or alteration and failure to follow the warnings and instructions in
this manual could result in severe personal injury, death or property damage
• The manufacturer is not responsible for any damage that could happen from improper use. The
manufacturer emphasises that this appliance should be used in a responsible manner and that all
procedures, warnings, and safety instructions contained in this booklet be followed strictly.
• Check the appliance for damage. Do not operate a damaged unit.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue
use immediately and contact the supplier or qualified person to repair.
• This appliance is not intended for use by people (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible of their safety.
• Keep packaging material out reach of children
• Children should be carefully supervised to ensure that they do not play with the appliance
• Do not attempt to alter the appliance in any manner.
• Please pay attention to the maximum load limit when filling the shelves.
• All work on electrical equipment must be carried out by a qualified and licensed technician only.
• Do not perform maintenance until the appliance has been turned o and power disconnected.
• Never detach any cover except where specifically instructed in this manual. Doing so might expose
live electrical parts.
• Do not operate the appliance with panels, covers or guards removed.
• Keep the air intake and outlets free of obstructions.
• Do not use the appliance outdoors.
• If the supply cord becomes damaged, it must be replaced by an authorised service agent or similarly
qualified person in order to avoid a hazard.
• If the appliance has not been used, or will not be used for a long period of time, disconnect
power supply.
• The appliance must be installed in accordance to AS1677.2:1998 to ensure there are no sources of
ignition any area where refrigerant could gather in the event of a leak.
• Electrical equipment should not be placed under the unit or where refrigerant could gather in the
event of a leak.
• Installation/servicing of the appliance must be performed by a licensed technician with Gas Work
Authorization if the appliance gas system is being opened or charged.
• The refrigerant used in all appliances covered by this manual are flammable.
2. IMPORTANT NOTES AND WARNINGS

1300 276 642bromicrefrigeration.com.au
6
3. PACKAGING AND HANDLING

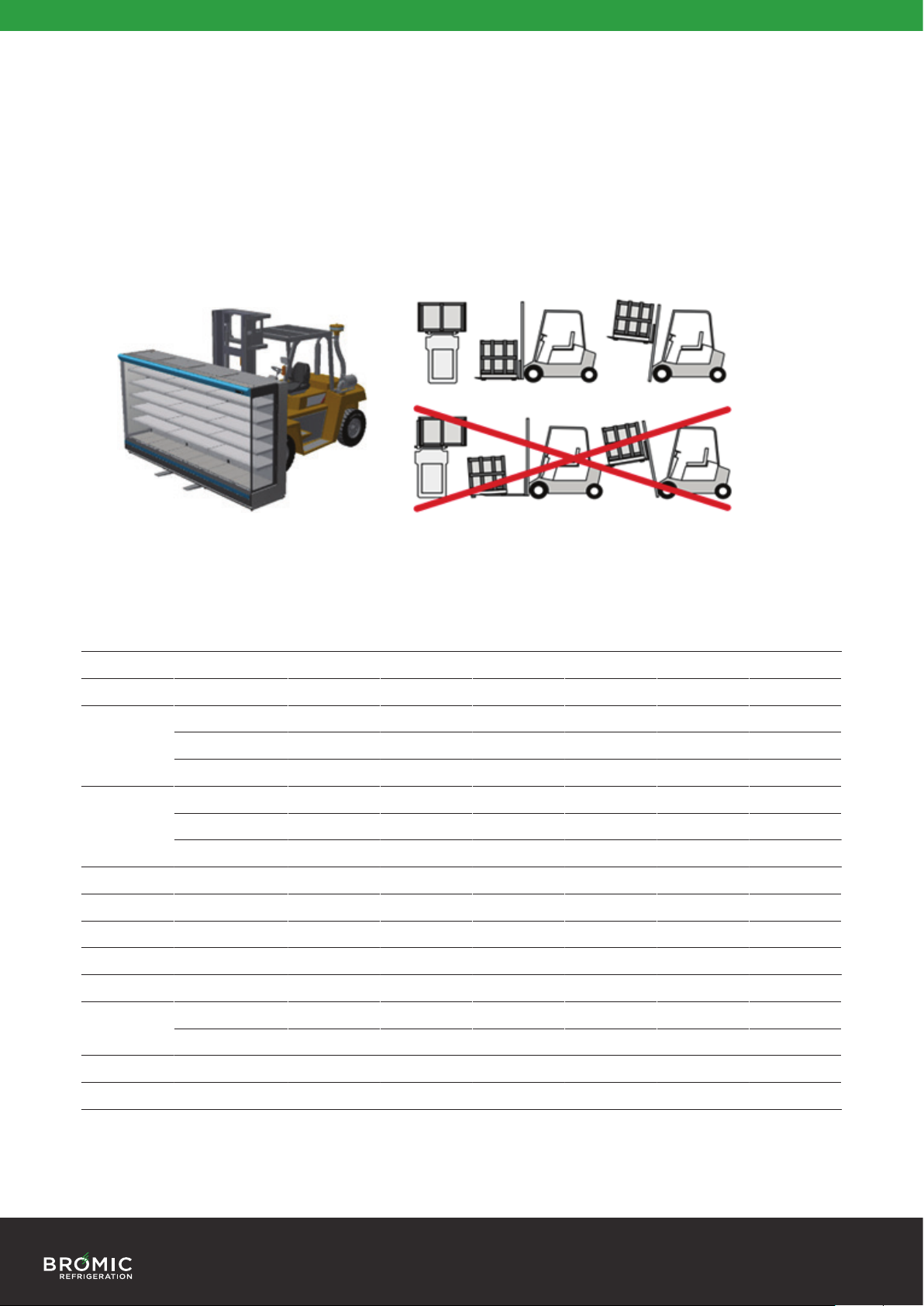

• This Deli display contains fragile glass. The unit must always be handled with care.
• Adjust the width of forklift tines such that they line up with the structural supports
on the Deli unit before lifting.
• The Deli unit must always be handled on flat and level ground.
• Take care not to damage the castors, while inserting forklift tines into the pallet.
4. PRODUCT OVERVIEW
DD1250SG-NR DD1250CG-NR DD1875SG-NR DD1875CG-NR DD2500SG-NR DD2500CG-NR
Part Number 3335631 3335636 3335632 3335637 3335633 3335638
External
Dimension
Height, mm 1290 1297 1290 1297 1290 1297
Width, mm 1330 1330 1955 1955 2580 2580
Depth, mm 1075 1086 1075 1086 1075 1086
Packaged
Dimension
Height, mm 1335 1335 1335 1335 1335 1335
Width, mm 1350 1350 2000 2000 2650 2650
Depth, mm 1180 1180 1180 1180 1180 1180
Capacity Litres 225 225 338 338 450 450
Weight Kg 230 230 336 336 450 450
Net Volume Litres 351 351 527 527 703 703
Air Circulation Type Fan Forced Fan Forced Fan Forced Fan Forced Fan Forced Fan Forced
Climate Class Rating 3M1 3M1 3M1 3M1 3M1 3M1
Temperature
Range 1°C to 5°C 1°C to 5°C 1°C to 5°C 1°C to 5°C 1°C to 5°C 1°C to 5°C
Type Digital Digital Digital Digital Digital
Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel

1300 276 642 bromicrefrigeration.com.au
7
DD1250SG-NR DD1250CG-NR DD1875SG-NR DD1875CG-NR DD2500SG-NR DD2500CG-NR
Electrical
Voltage, V 230 230 230 230 230 230
Frequency, Hz 50 50 50 50 50 50
Current, A 1.72 1.72 2.19 2.19 3.22 3.22
Power, W 396 396 504 504 741 741
Fuse, A 16 16 16 16 16 16
Power
Consumption kWh/24h 6.1 6.1 8.5 8.5 11.6 11.6
Internal Light Type T8 LED Tube T8 LED Tube T8 LED Tube T8 LED Tube T8 LED Tube T8 LED Tube
Colour Default 4000K 4000K 4000K 4000K 4000K 4000K
Door
Solid/Glass Glass Glass Glass Glass Glass Glass
Type Rear Display Sliding Sliding Sliding Sliding Sliding Sliding
Type Rear Storage Hinged Hinged Hinged Hinged Hinged Hinged
Number of
Doors
Front Display 1 1 2 2 2 2
Rear Display 2 2 3 3 4 4
Rear Storage 1 1 2 2 3 3
*Door swing dimensions are given as the size of the entire cabinet when the specified doors are opened
such that the cabinet produces the largest possible footprint.
Door Swing Height mm 1770 1770 1770 1770 1770 1770
Dimensions Width mm 1330 1330 1955 1955 2580 2580
Front Display Depth mm 1386 1386 1386 1386 1386 1386
Door Swing Height mm 1290 1290 1290 1290 1290 1290
Dimensions* Width mm 1330 1330 1955 1955 2580 2580
Rear Storage Depth mm 1698 1698 1698 1698 1698 1698
Refrigeration
Refrigerant R290 R290 R290 R290 R290 R290
Charge, g 140 140 150 150 150 150
Plug Rating 10A 10A 10A 10A 10A 10A
Location Rear Rear Rear Rear Rear Rear
Cord Length, m 222222
Wheels
Type Castors Castors Castors Castors Castors Castors
Quantity 4 4 4 4 6 6

1300 276 642bromicrefrigeration.com.au
8
5. INSTALLATION
Locating the Cabinet
Ensure the following instructions are observed as this is vital for proper and trouble-free operation.
• Do not install the cabinet outdoors.
• Locate the appliance in a dry and well ventilated place.
• The unit must be positioned on a level surface.

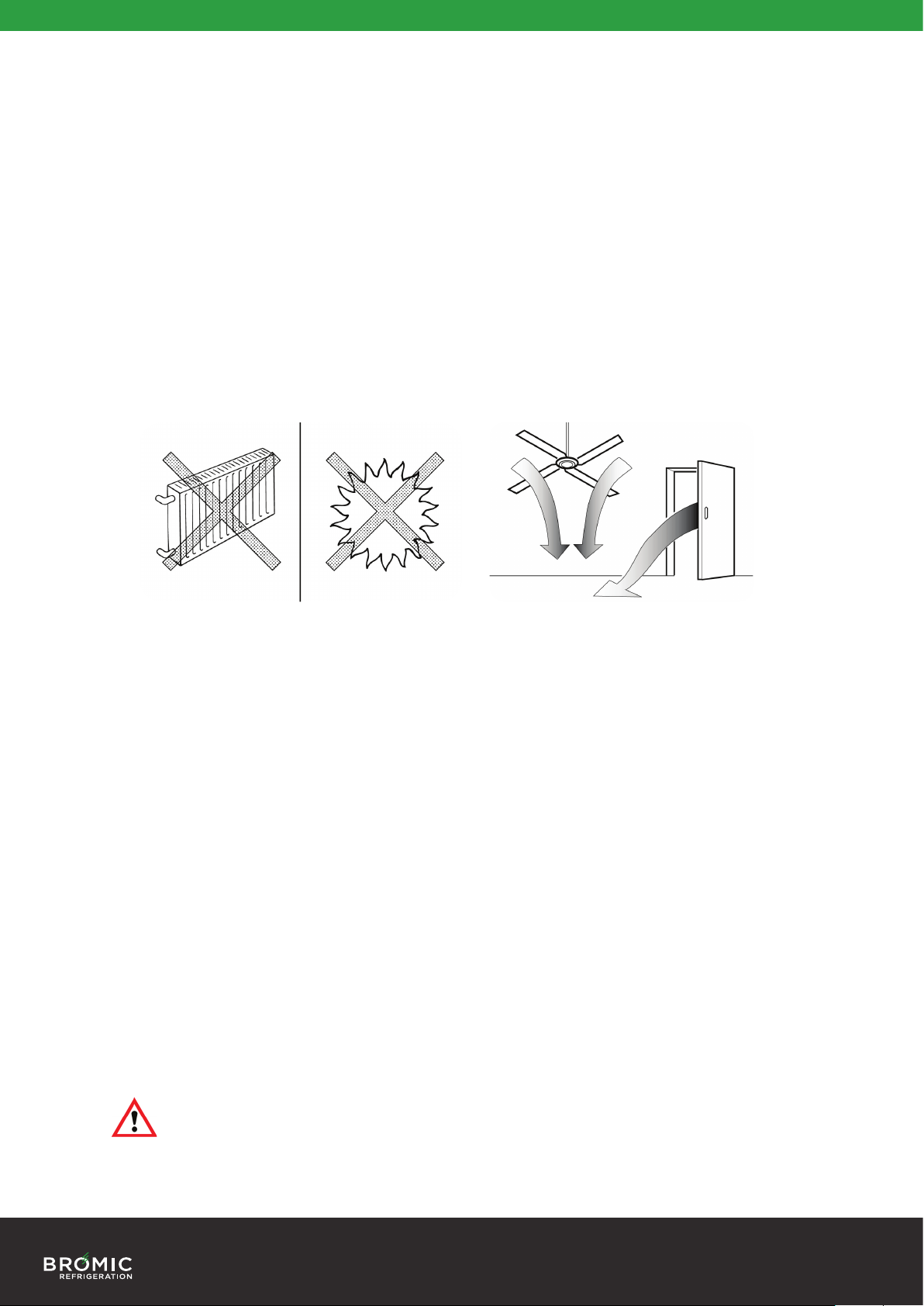

• Do not install in the vicinity of heating radiators or other heat sources.
• Do not install the appliance where it is exposed to direct sunlight.
• Do not install the appliance where it is exposed to warm draughts or open doors.
• Keep the air intake and outlets free of obstructions.
• Adequate allowance should be made for door openings.
Ventilation
• Allow 150mm clearance between walls and the appliance.
• Ensure that the condenser fan is free to take in ambient air from the room.
• Adherence to minimum clearances is necessary
NOTE: The maximum ambient temperature for the refrigerator is 30°C. Conditions
outside this temperature will result in cabinet temperatures outside the required 2
to 8°C range. Bromic recommends that the refrigerator is installed at an ambient
temperature of 20 to 25°C.

1300 276 642 bromicrefrigeration.com.au
9
Power Supply
• The appliance must not be plugged into a multiple outlet power board.
• The appliance is supplied with a flexible power cord fitted with a 3-pin plug.
• The socket used must be properly earthed and fuse/RCD protected.
• See the rating label inside the cabinet for supply voltage, frequency and current draw.
• Power cable is rated 70°C. It is recommended that the cable should not come into contact
with parts over 50°C.
• Do not turn o power before consulting the person responsible.
• Mark the power source clearly, so the refrigerator is not unplugged or turned o
accidentally.
Before Operating
• If the appliance has been sharply tilted or transported in the horizontal position, it must
be left to stand in the upright position and not plugged in for at least 4 hours.
• Remove all the packaging material before using the appliance.
• Start the appliance only if it has been installed as described.

1300 276 642bromicrefrigeration.com.au
10
6. OPERATION
Start-up
• Connect the appliance to the mains power supply.
• The switches (image below) control cabinet cooling, defrost, and lights respectively.
Flip all switches on for cabinet operation.
• The compressor and condenser fan should operate should operate within 3 minutes after
the Refrigeration switch is turned on.
• The electronic controller will display the current cabinet temperature after the
Refrigeration switch is turned on.
• The LED indicates that refrigeration circuit is operating.
• During the start-up delay (3 minutes), the LED is flashing
• The LED indicates that the refrigeration circuit is defrosting
Setting the temperature
i. Press the button for more than 3 seconds.
ii. The value of the set point will be displayed and the ‘°C’ or ‘°F’ LED starts blinking.
iii. Press or arrow key within 10 seconds to adjust the set point.
iv. Press the key again or wait 10 seconds.

1300 276 642 bromicrefrigeration.com.au
11
7. PRODUCT LOADING AND STORAGE
Start-up
• Clean the interior surface with a soft cloth and warm water before loading.
• Ensure there is free circulation of air between the products.
• Do not block the evaporator fan.
• Do not overstock the refrigerator.
• Keep refrigerator door openings to a minimum.
• Some products are sensitive to ultraviolet (UV) light, please see storage guidelines from
the manufacturer before removing from packaging.
• Do not block the rear or front grill when loading the Deli. This can reduce cooling
performance.
• Do not overload the cabinet. Loading limit height is 150mm from the base of the cabinet.
Bromic cannot guarantee that goods loaded above the 150mm limit will remain within the
food-safe temperature range.
NOTE: Bromic cannot be responsible for loss of stock or damage to stock.
IMPORTANT: Run the refrigerator for at least 2 hours before loading.
8. MAINTENANCE
Cleaning the Cabinet
• Remove the products and transfer to a suitable location prior to cleaning the inside
of the cabinet.
• Do not use any aggressive or abrasive cleaning agents.
• Never use a water hose or a high-pressure jet to clean.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside and outside of the appliance with a clean damp cloth or with a
neutral cleanser.
• Dry all surfaces with a dry cloth.
WARNING: Disconnect the appliance from the power supply before performing any
maintenance. Never unplug the appliance by pulling on the cord. Always grasp the
plug firmly and pull straight out of the outlet.
WARNING: Exposure to significant water ingress will void warranty and cause
potential safety issues. If the unit should be exposed to water, please contact the
manufacturer immediately.
IMPORTANT: Warranty may be void if there is no evidence of preventative
maintenance is performed on the appliance.
WARNING: : Do not store explosive substances such as aerosol cans with a
flammable propellant inside the appliance.
Condenser Coil/Filter
IMPORTANT: The filter and the condenser coil must be cleaned once a month. The
filter can be removed for cleaning with water, make sure it is dried before reattaching.
The condenser coil must be cleaned with vacuum/brush monthly to maintain the
performance and minimise power consumption. A poorly maintained condenser coil
can lead to failure of the unit and higher cabinet temperatures.

1300 276 642bromicrefrigeration.com.au
12
General cleaning
• The Deli display must be wiped down regularly.
• Preventing the build-up of oil and sediments will increase the longevity of the unit.
Condenser cleaning
• The Deli’s front panel must be removed to properly clean the condenser (see image below).
• A clogged condensor can result reduced cooling performance.
• The condenser must be cleaned every 6 weeks.
• Recommended cleaning methods include:
• Vacuum cleaner
• Cleaning brush
• Compressed air
Drain hose cleaning
• The drainage hose must be kept clean and clear.
• The drainage hose can be cleaned via the quick-access panel (see image below)
• A blocked condensate hose can result in reduced cooling performance.

1300 276 642 bromicrefrigeration.com.au
13
8. TROUBLESHOOTING
IMPORTANT: Repairs on the unit must be carried out by an authorised and licensed
person only. Contact the manufacturer or an approved service agent for any repairs
needed.
Symptom Possible Cause(s) Solution
Deli does not turn
on
A. No power supply A. i. Check that switch is on
ii. Try plugging cabinet into
dierent power sockets
iii. Check power plug and cord for
damage
Deli temperature
too high
A. Incorrect controller set point
B. Ambient temperature too high
C. Inadequate ventilation
D. Dirty condenser unit
E. Ice build-up on evaporator coil
A. Change controller set point
B. Ensure unit is in an air-
conditioned environment of 25C
C. Keep ventilation slots clear
D. Clean the condenser coil and
drain pipe
E. Ensure drain pipe is not
clogged with oil or waste
Cabinet
Temperature
Too Low
A. Incorrect controller set point
B. Ambient temperature too low
C. Faulty evaporator probe
A. Change controller set point
B. Ensure unit is in a temperature-
controlled environment of 25C
C. Contact Bromic service
Deli temperature
greatly fluctuating
A. Cabinet is in direct sunlight or
outdoors
A. Reposition cabinet such that
it is not in direct sunlight or
outdoors
Deli leaving water
puddles on the
ground
A. Cabinet glass is condensing and
dripping
B. Cabinet drip tray is overflowing
A. Ensure the cabinet is in an air-
conditioned environment of 25C
and 60% RH
B. Contact Bromic service for
diagnosis
Odour inside deli A. Rotting odour inside cabinet
B. Oil or smokey odour
A. Clean the cabinet
B. Turn o the cabinet and
contact Bromic service
immediately

1300 276 642bromicrefrigeration.com.au
14

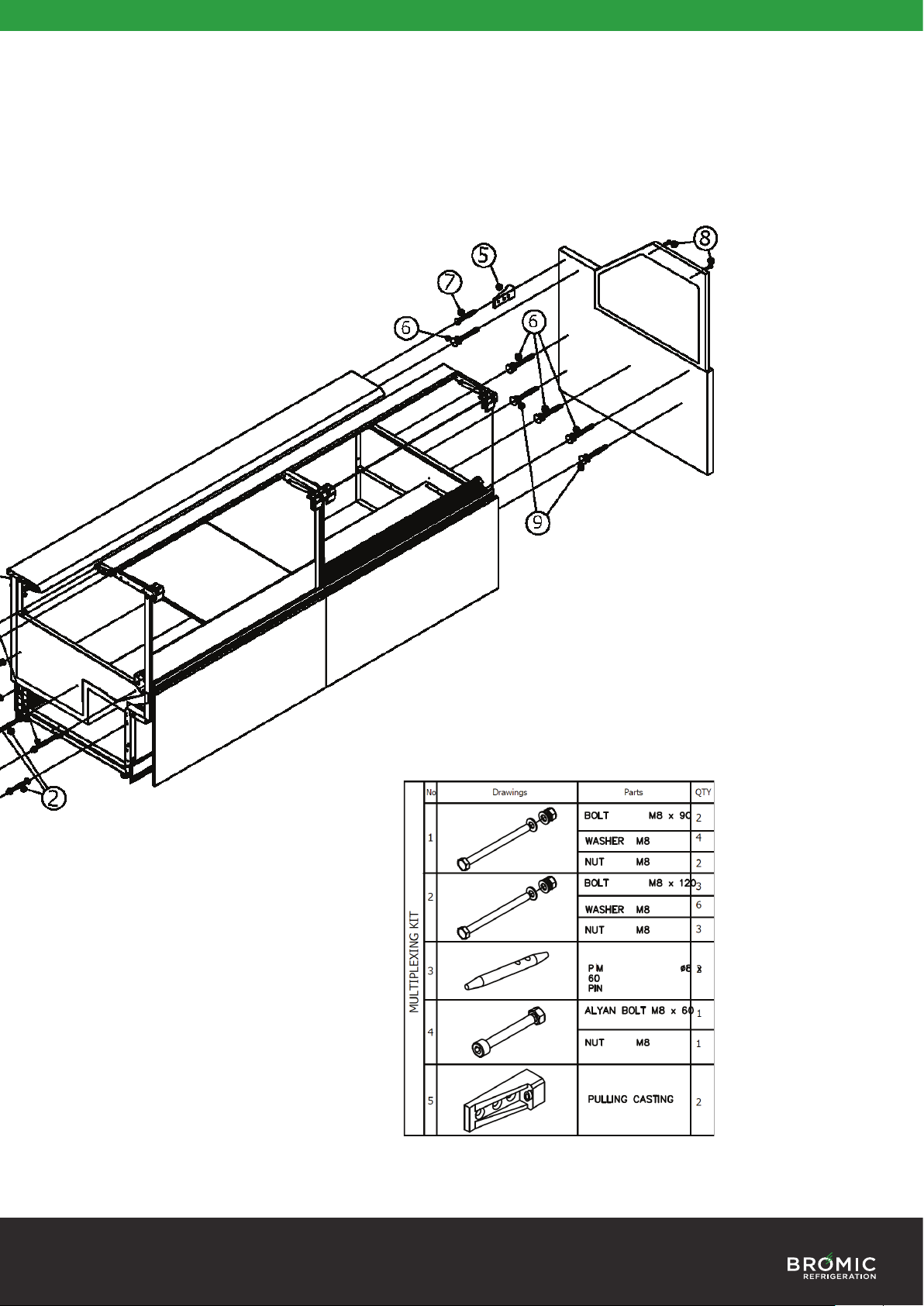

9. MULTIPLEXING PROCEDURE
The multiplexing procedure can be used to connect multiple Bromic Deli units together.
• A Bromic multiplexing kit must be used for this procedure.
• The multiplexing procedure must be performed a licensed technician.

1300 276 642 bromicrefrigeration.com.au
15

1300 276 642bromicrefrigeration.com.au
16
10. ACCESSORIES LIST
Bromic oers the following additional accessories for the Deli Display Fridges.
Accessories can be ordered through your local Bromic sales representative.
• Knife Holder
• Bag Holder
• Paper Holder
• Scale Deck
• Cutting Board
Installation
1. 2x bolts slide along the rail on the rear of the Deli Display. Insert them on
either end of the rail.
The accessories is then fit onto the two bolts via two pre-drilled holes.
2. 2x wing nuts are used to hold the accessory in place.
3. The accessory can be slid back and forth along the rail.

1300 276 642 bromicrefrigeration.com.au
17
11. ENVIRONMENTAL AND DISPOSAL NOTES
These refrigerated cabinets are designed to high standards of environmental protection
and recycling convenience. Cyclopentane, an environmentally friendly foaming agent,
has been used. Cyclopentane is distinguished by zero ozone depletion potential (ODP)
and zero global warming potential (GWP). The refrigerant used and contained within a
hermetically tight circuit is environmentally friendly and does not contain chlorine and
zero ODP.
The device must be disposed of in accordance with applicable regulations. The WEEE
regulations must be observed.
In the interest of preventing environmental nuisance and promoting re-use of the high
quality materials employed, used commercial refrigeration equipment must be collected
for expert disposal and recycling. Therefore, observe the following disposal regulations:
• The cabinet must not be discarded with regular waste.
• The refrigeration circuit must not be damaged.
• Before disposal, make it unserviceable by disconnecting the power plug and cutting
o the power cable.
• Consult your local authorities or authorised dealers for details of collection and
disposal facilities.
• Children are often unable to recognise the dangers associated with commercial
refrigeration equipment. Proper supervision must be maintained and children must be
prevented from playing with discarded refrigerated cabinets.
• The refrigerant used in all appliances covered by this manual are flammable.

1300 276 642bromicrefrigeration.com.au
18
12. WARRANTY
All Bromic products are manufactured
to the highest quality standard and are
supported by our Extra Care Service Warranty,
including guarantees against any material or
workmanship defects; guarantees that cannot
be excluded under Australian Consumer Law.
Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions
that apply to the purchase of your Bromic product by referring to the Warranty Policy included with
your purchased product.
Alternatively, you can also download the Warranty Policy at
www.bromicgroup.com/warranty-information

HOW TO PLACE A SERVICE REQUEST
• Please call 1300 276 642 to place a warranty service request and let the operator know whether
you need Priority A or B service. More information can be found below.
• Ensure you have the serial number of your product ready before contacting us.
• The serial number of your product can be found on a compliance plate located on the inside right
and at the rear of your cabinet.
Compliance Plate Example 1
SERVICE REQUEST PRIORITY
A
B
PRIORITY ASERVICE
PRIORITY BSERVICE
SERVICE CALL PLACED BEFORE MIDDAY
SERVICE CALL PLACED AFTER MIDDAY
When the unit is NOT performing its primary function such as
cooling or heating, or presents an OH&S or food safety risk
When the unit is performing its primary function, and presents
no OH&S or food safety risk. i.e. lights, gaskets. locks, door
adjustment
Priority A - Technician to attend site within 4 hours
Priority B - Technician to attend site within 8 business hours
Priority A - Technician attends site before midday on the
following business day
Priority B - Technician attends site before 4pm on the
following business day

BROMIC REFRIGERATION
10 Phiney Place, Ingleburn (Sydney)
NSW 2565 Australia
T. 1300 276 642
For further product information
bromicrefrigeration.com.au
