INSTRUCTION MANUAL
HOT & AMBIENT FOOD DISPLAYS
3736300, 3736301, 3736302, 3736303, 3736312
3736304, 3736305, 3736306, 3736307

CONTENTS
Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration.
1. PREFIX
4
2. IMPORTANT NOTES & WARNINGS
5
3. PRODUCT OVERVIEW
6
4. INSTALLATION
8
5. OPERATION
9
6. PRODUCT LOADING AND STORAGE
10
7. TROUBLESHOOTING
12
8. OPTIONAL ACCESSORIES
13
9. ENVIRONMENTAL & DISPOSAL NOTES
14
10. WARRANTY
15

1300 276 642bromicrefrigeration.com.au
4
1. PREFIX
This manual contains important information about the installation, operation, and maintenance
of Bromic Food Display units. Please pay close attention to the important safety information
shown throughout this instruction manual. Any safety information will be accompanied by the
following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can result
in death, severe injury, or property damage.
• Improper installation, operation, or maintenance may also
result in warranty being voided.
• This appliance is intended for 230-240 Volt power supply.
• Installation MUST be carried out by a licensed and
authorised technician in accordance with local electrical
codes.
!
!
!

1300 276 642 bromicrefrigeration.com.au
5
• Read all instructions before installing or using this appliance
• Retain this manual for future reference
• Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
• Improper installation, adjustment or alteration and failure to follow the warnings and instructions in
this manual could result in severe personal injury, death or property damage
• The manufacturer is not responsible for any damage that could happen from improper use. The
manufacturer emphasises that this appliance should be used in a responsible manner and that all
procedures, warnings, and safety instructions contained in this booklet be followed strictly.
• Check the appliance for damage. Do not operate a damaged unit.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue
use immediately and contact the supplier or qualified person to repair.
• This appliance is not intended for use by people (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible of their safety.
• Keep packaging material out reach of children
• Children should be carefully supervised to ensure that they do not play with the appliance
• Do not attempt to alter the appliance in any manner.
• Please pay attention to the maximum load limit when filling the shelves.
• All work on electrical equipment must be carried out by a qualified and licensed technician only.
• Do not perform maintenance until the appliance has been turned o and power disconnected.
• Never detach any cover except where specifically instructed in this manual. Doing so might expose
live electrical parts.
• Do not operate the appliance with panels, covers or guards removed.
• Keep the air intake and outlets free of obstructions.
• Do not use the appliance outdoors.
• If the supply cord becomes damaged, it must be replaced by an authorised service agent or similarly
qualified person in order to avoid a hazard.
• If the appliance has not been used, or will not be used for a long period of time, disconnect
power supply.
• Ensure the appliance has adequate ventilation.
2. IMPORTANT NOTES AND WARNINGS

1300 276 642bromicrefrigeration.com.au
6
3. PRODUCT OVERVIEW
FD4T0660H FD4T0900H FD4T1200H FD4T1500H FD4T1800H
Part Number 3736312 3736304 3736305 3736306 3736307
External Dimension
Height, mm 1360 1360 1360 1360 1360
Width, mm 660 900 1200 1500 1800
Depth, mm 740 740 740 740 740
Capacity Litres 300 350 470 580 700
Weight kg 155 186 204 223 242
Net Volume Litres 300 417 542 686 830
Air Circulation Type Forced Forced Forced Forced Forced
Temperature
Range 50°C to 70°C 50°C to 70°C 50°C to 70°C 50°C to 70°C 50°C to 70°C
Type Digital Digital Digital Digital Digital
Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Electrical
Voltage, V 240 240 240 240 240
Frequency, Hz 50 50 50 50 50
Current, A 4.7 7.5 9.9 10 15
Power, W 1138 1800 2382 2411 3600
Internal Light Type LED LED LED LED LED
Colour
Temperature
Warm White,
3000K
Warm White,
3000K
Warm White,
3000K
Warm White,
3000K
Warm White,
3000K
Door
Solid/Glass Glass Glass Glass Glass Glass
Type Hinged Sliding Sliding Sliding Sliding
Self-Closing No No No No No
Door Lock No No No No No
Shelves Qty 3+base 3+base 3+base 3+base 3+base
Weight Limit,
kg 20 20 21 23 28
Adjustable Height&angle Height&angle Height&angle Height&angle Height&angle
Plug Rating 10A 10A 10A 10A 10A
HOT DISPLAYS

1300 276 642 bromicrefrigeration.com.au
7
FD4T0900A FD4T1200A FD4T1500A FD4T1800A
Part Number 3736300 3736301 3736302 3736303
External Dimension
Height, mm 1360 1360 1360 1360
Width, mm 660 900 1200 1500
Depth, mm 740 740 740 740
Capacity Litres 417 542 686 830
Weight kg 142 174 206 238
Exterior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Interior Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Electrical
Voltage, V 240 240 240 240
Frequency, Hz 50 50 50 50
Current, A 0.2 0.26 0.35 0.49
Power, W 47 58 86 119
Door
Solid/Glass Glass Glass Glass Glass
Type Sliding Sliding Sliding Sliding
Self-Closing No No No No
Internal Light Type LED LED LED LED
Colour
Temperature
Warm White,
3000K
Warm White,
3000K
Warm White,
3000K
Warm White,
3000K
Shelves Qty 3+base 3+base 3+base 3+base
Weight Limit,
kg 20 21 23 28
Adjustable Height&angle Height&angle Height&angle Height&angle
Plug Rating 10A 15A 15A 15A
AMBIENT DISPLAYS

1300 276 642bromicrefrigeration.com.au
8
4. INSTALLATION
Locating the Cabinet
Ensure the following instructions are observed as this is vital for proper and trouble-free operation.
• Do not install the cabinet outdoors.
• Locate the appliance in a dry and well ventilated place.
• The unit must be positioned on a level surface.
• Do not install in the vicinity of heating radiators or other heat sources.
• Do not install the appliance where it is exposed to direct sunlight.
• Keep the air intake and outlets free of obstructions (for Warm showcase only).
Before Operating
• Remove all the packaging material before using the appliance.
• Start the appliance only if it has been installed as described.
Power Supply
• The appliance must not be plugged into a multiple outlet power board.
• The appliance is supplied with a flexible power cord fitted with a 3-pin plug.
• The socket used must be properly earthed and fuse/RCD protected.
• See the rating label inside the cabinet for supply voltage, frequency and current draw.
• Power cable is rated 70°C. It is recommended that the cable should not come into contact
with parts over 50°C.
• Do not turn o power before consulting the person responsible.
• Mark the power source clearly, so the cabinet is not unplugged or turned o accidentally.

1300 276 642 bromicrefrigeration.com.au
9
5. OPERATION
Start-up
• Connect the appliance to the mains power supply and turn on the main switch (blue) by
flipping it upward.
• Switch on the Heating (for Warm showcase) and Lighting switches, and check that the fan
(for Warm showcase) and lighting are working correctly.
• The electronic controller will display the current cabinet temperature after the Heating
switch is turned on (for Warm showcase).
• Make sure the unit is clear of obstructions on all sides, and the electrical cable is not
touching the external surface of the appliance, as the surface can be hot during operation.
Setting the temperature (For Warm showcase)
i. Press the button for more than 3 seconds.
ii. The value of the set point will be displayed and the ‘°C’ or ‘°F’ LED starts blinking.
iii. Press or arrow key within 10 seconds to adjust the set point.
iv. Press the key again or wait 10 seconds.
Handling (For Warm showcase)
WARNING: Appropriate PPE (Personal Protective Equipment) must be worn when
using the warm showcase cabinet. High surface temperature inside the cabinet may
cause severe injury.
WARNING: Untrained personnel are not allowed to operate the cabinet due to
safety risk related to high surface temperature.

1300 276 642bromicrefrigeration.com.au
10
6. PRODUCT LOADING AND STORAGE
Start-up
• Clean the interior surface with a soft cloth and warm water before loading.
• There are 2 water trays located at the base of the Warm showcase, fill the tray with water
to help preventing food getting dried during heating.
• Ensure there is free circulation of air between the products.
• Do not block the airways.
• Do not overstock the unit.
• Keep the door openings to a minimum.
• Some products are sensitive to ultraviolet (UV) light, please see storage guidelines from
the manufacturer before removing from packaging.
• Maximum recommended shelf load (for each shelf) is specified in section 3 (page 5) of
this manual. Do not overstock.
IMPORTANT: Run the appliance for at least 1 hours before loading.
7. MAINTENANCE
Cleaning the Cabinet
• Remove the products and transfer to a suitable location prior to cleaning the inside
of the cabinet.
• Do not use any aggressive or abrasive cleaning agents.
• Never use a water hose or a high-pressure jet to clean.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside and outside of the appliance with a clean damp cloth or with a
neutral cleanser.
• Dry all surfaces with a dry cloth.
WARNING: Disconnect the appliance from the power supply before performing any
maintenance. Never unplug the appliance by pulling on the cord. Always grasp the
plug firmly and pull straight out of the outlet.
WARNING: Exposure to significant water ingress will void warranty and cause
potential safety issues. If the unit should be exposed to water, please contact the
manufacturer immediately.
IMPORTANT: Warranty may be void if there is no evidence of preventative
maintenance is performed on the appliance.
WARNING: WARNING: Never store explosive substances such as aerosol cans with
a flammable propellant inside the appliance.

1300 276 642 bromicrefrigeration.com.au
11

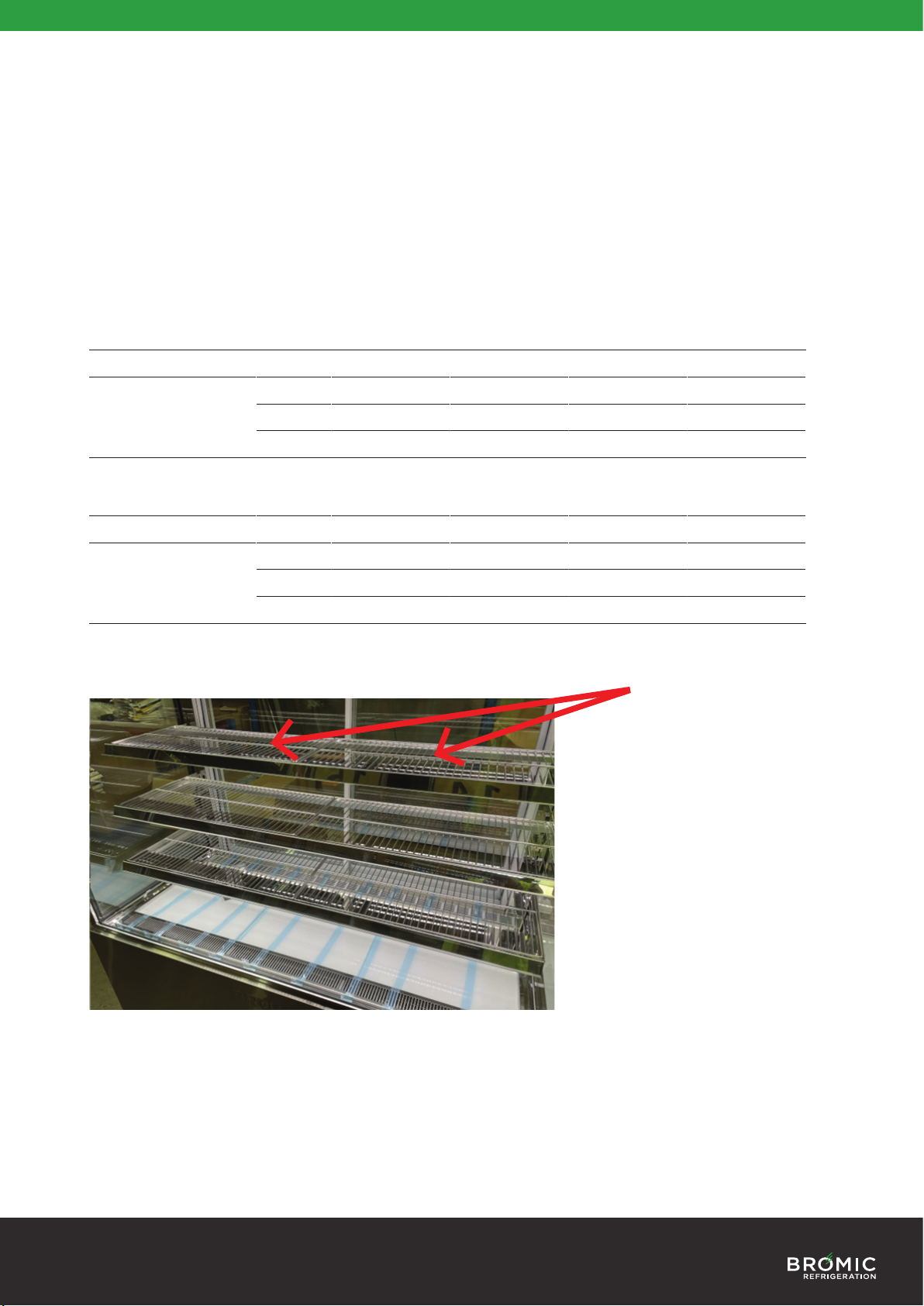

Lighting
• The Food Display Cabinet is fitted with three LED lights.
Step by step guide for changing LED light fixture in the Food Display unit
Here are the steps you need to take to start saving with the installation of LED light fixture.
• Turn o the power: Before starting the process, make sure to turn o the power supply
to the display unit. This will prevent any electrical accidents from occurring.
• Locate the LED light: The LED light will typically be located on the underside of the
display shelf.
• Remove the old LED light: unplug the old LED from both ends. LED light is held in place
by a clip as shown above. Remove the LED light from the clip.
• Check the specifications: Make sure to check the specifications of the LED light you are
removing to ensure you replace it with the correct type of LED light.
• Install the new LED light: Once you have the correct replacement LED light, insert it
into the clip or socket. Make sure it is securely in place. Plug the LED on both ends.
• Test the new LED light: Once the new LED light is installed, turn on the power supply
to the display unit and test the new LED light to ensure it is functioning properly.

1300 276 642bromicrefrigeration.com.au
12
8. TROUBLESHOOTING
IMPORTANT: Repairs on the unit must be carried out by an authorised and licensed
person only. Contact the manufacturer or an approved service agent for any repairs
needed.
Symptom Possible Cause(s)
Unit does not turn
on
A. No power supply A. Ensure cabinet’s switch is on
B. Try plugging cabinet into
dierent power sockets
C. Check power plug and cord for
damage
Cabinet
Temperature
Too Low
A. Incorrect controller set point
B. Faulty heating element
C. Other
A. Adjust set point temperature
B. Contact Bromic Service for
replacement
C. Contact Bromic Service for
diagnosis
Cabinet
Temperature
Too High
A. Incorrect controller set point A. Adjust set point temperature
Odour inside
cabinet
A. Rotting odour inside cabinet
B. Oil or smoky odour
A. Clean the cabinet
B. Turn o the cabinet and
contact Bromic service
immediately

1300 276 642 bromicrefrigeration.com.au
13
9. OPTIONAL ACCESSORIES
Food display cabinet is supplied with pre-installed shelving.
Below can be used as optional alternative accessories.
FD4T0900H FD4T1200H FD4T1500H FD4T1800H
Shelf Metal Wire Bottom Set of 2 Yes Ye s Yes Ye s
Shelf Metal Wire Middle Set of 2 Yes Yes Yes Yes
Shelf Metal Wire Top Set of 2 Yes Ye s Yes Ye s
FD4T0900A FD4T1200A FD4T1500A FD4T1800A
Shelf Metal Wire Bottom Set of 2 Yes Ye s Yes Ye s
Shelf Metal Wire Middle Set of 2 Yes Yes Yes Yes
Shelf Metal Wire Top Set of 2 Yes Ye s Yes Ye s
Wired Shelves
• Wire shelves – unit is supplied with 3 glass shelves as default configuration, which can be
replaced with wire shelves. Each shelf is a dierent length and requires two (2) wire shelf
inserts. See below image.
HOT SHOWCASE
AMBIENT SHOWCASE
Wire Shelves Inserted,
supplied as a set of two
(2) per shelf.

1300 276 642bromicrefrigeration.com.au
14
10. ENVIRONMENTAL AND DISPOSAL NOTES
These refrigerated cabinets are designed to high standards of environmental protection
and recycling convenience. Cyclopentane, an environmentally friendly foaming agent,
has been used. Cyclopentane is distinguished by zero ozone depletion potential (ODP)
and zero global warming potential (GWP). The refrigerant used and contained within a
hermetically tight circuit is environmentally friendly and does not contain chlorine and
zero ODP.
The device must be disposed of in accordance with applicable regulations. The WEEE
regulations must be observed.
In the interest of preventing environmental nuisance and promoting re-use of the high
quality materials employed, used commercial refrigeration equipment must be collected
for expert disposal and recycling. Therefore, observe the following disposal regulations:
• The cabinet must not be discarded with regular waste.
• The refrigeration circuit must not be damaged.
• Before disposal, make it unserviceable by disconnecting the power plug and cutting
o the power cable.
• Consult your local authorities or authorised dealers for details of collection and
disposal facilities.
• Children are often unable to recognise the dangers associated with commercial
refrigeration equipment. Proper supervision must be maintained and children must be
prevented from playing with discarded refrigerated cabinets.

1300 276 642 bromicrefrigeration.com.au
15
11. WARRANTY
All Bromic products are manufactured
to the highest quality standard and are
supported by our Extra Care Service Warranty,
including guarantees against any material or
workmanship defects; guarantees that cannot
be excluded under Australian Consumer Law.
Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions
that apply to the purchase of your Bromic product by referring to the Warranty Policy included with
your purchased product.
Alternatively, you can also download the Warranty Policy at
https://bromicrefrigeration.com.au/extra-care-warranty

1300 276 642bromicrefrigeration.com.au
16
HOW TO PLACE A SERVICE REQUEST
• Please call 1300 276 642 to place a warranty service request and let the operator know whether
you need Priority A or B service. More information can be found below.
• Ensure you have the serial number of your product ready before contacting us.
• The serial number of your product can be found on a compliance plate located on the inside right
and at the rear of your cabinet.
Compliance Plate Example 1
SERVICE REQUEST PRIORITY
A
B
PRIORITY ASERVICE
PRIORITY BSERVICE
SERVICE CALL PLACED BEFORE MIDDAY
SERVICE CALL PLACED AFTER MIDDAY
When the unit is NOT performing its primary function such as
cooling or heating, or presents an OH&S or food safety risk
When the unit is performing its primary function, and presents
no OH&S or food safety risk. i.e. lights, gaskets. locks, door
adjustment
Priority A - Technician to attend site within 4 hours
Priority B - Technician to attend site within 8 business hours
Priority A - Technician attends site before midday on the
following business day
Priority B - Technician attends site before 4pm on the
following business day

1300 276 642 bromicrefrigeration.com.au
17

BROMIC REFRIGERATION
10 Phiney Place, Ingleburn (Sydney)
NSW 2565 Australia
T. 1300 276 642
For further product information
bromicrefrigeration.com.au
