INSTRUCTION MANUAL
SINGLE DOOR UNDER BENCH
FRIDGES & FREEZERS
3736254, 3736255, 3736256

CONTENTS
Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration.
1. PREFIX
4
2. IMPORTANT NOTES & WARNINGS
5
3. PRODUCT OVERVIEW
6
4. INSTALLATION
7
5. OPERATION
9
6. PRODUCT LOADING AND STORAGE
10
7. MAINTENANCE
10
8. TROUBLESHOOTING
11
9. ENVIRONMENTAL & DISPOSAL NOTES
12
10. WARRANTY
13

1300 276 642bromicrefrigeration.com.au
4
1. PREFIX
This manual contains important information about the installation, operation, and
maintenance of Bromic under bench cabinets. Please pay close attention to the important
safety information shown throughout this instruction manual. Any safety information will be
accompanied by the following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can result
in death, severe injury, or property damage.
• Improper installation, operation, or maintenance may also
result in warranty being voided.
• This appliance is intended for 230-240 Volt power supply.
• Installation and maintenance MUST be carried out as per
instruction, by a qualified technician in accordance with
local regulation
!
!
!

1300 276 642 bromicrefrigeration.com.au
5
• Read all instructions before installing or using this appliance
• Retain this manual for future reference
• Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
• Improper installation, adjustment or alteration and failure to follow the warnings and instructions in
this manual could result in severe personal injury, death or property damage
• The manufacturer is not responsible for any damage that could happen from improper use. The
manufacturer emphasises that this appliance should be used in a responsible manner and that all
procedures, warnings, and safety instructions contained in this booklet be followed strictly.
• Check the appliance for damage. Do not operate a damaged unit.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue
use immediately and contact the supplier or qualified person to repair.
• This appliance is not intended for use by people (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible of their safety.
• Keep packaging material out reach of children
• Children should be carefully supervised to ensure that they do not play with the appliance
• Do not attempt to alter the appliance in any manner.
• Please pay attention to the maximum load limit when filling the shelves.
• All work on electrical equipment must be carried out by a qualified and licensed technician only.
• Do not perform maintenance until the appliance has been turned o and power disconnected.
• Never detach any cover except where specifically instructed in this manual. Doing so might expose
live electrical parts.
• Do not operate the appliance with panels, covers or guards removed.
• Keep the air intake and outlets free of obstructions.
• Do not use the appliance outdoors.
• If the supply cord becomes damaged, it must be replaced by an authorised service agent or similarly
qualified person in order to avoid a hazard.
• If the appliance has not been used, or will not be used for a long period of time, disconnect
power supply.
• The appliance must be installed in accordance to AS1677.2:1998 to ensure there are no sources of
ignition any area where refrigerant could gather in the event of a leak.
• Electrical equipment should not be placed under the unit or where refrigerant could gather in the
event of a leak.
• Installation/servicing of the appliance must be performed by a licensed technician with Gas Work
Authorization if the appliance gas system is being opened or charged.
• The refrigerant used in all appliances covered by this manual are flammable.
2. IMPORTANT NOTES AND WARNINGS

1300 276 642bromicrefrigeration.com.au
6
3. PRODUCT OVERVIEW
UBC0140SD-NR UBC0140GD-NR UBF0140SD-NR
Part Number 3736254 3736255 3736256
External Dimension
Height, mm 885 885 885
Width, mm 650 650 650
Depth, mm 650 650 650
Capacity Litres 145 145 145
Air Circulation Type Fan Forced Fan Forced Fan Forced
Climate Class Rating 333
Maximum Ambient
Temperature Degrees Celsius 32°C 32°C 32°C
Temperature
Range 1°C to 5°C 1°C to 5°C 1°C to 5°C
Type Digital Digital Analogue
Door Material Solid Glass Solid
Type Hinged Hinged Hinged
Lock Yes Yes Yes
Electrical
Voltage, V 240 240 240
Frequency, Hz 50 50 50
Current, A 1.2 1.2 1.2
Power, W 280 280 280
Power Consumption kWh/24h 1.26 1.1 1.65
Refrigeration Refrigerant R600a R600a R600a
Charge, g 32 32 38
Internal Light Type LED LED LED
Qty 222
Plug Rating 10A 10A 10A
Wheels
Type Castors Castors Castors
Quantity 4 4 4

1300 276 642 bromicrefrigeration.com.au
7
4. INSTALLATION
Locating the Cabinet
Ensure the following instructions are observed as this is vital for proper and trouble-free operation.
• Do not install the cabinet outdoors.
• Locate the appliance in a dry and well ventilated place.
• The unit must be positioned on a level surface.

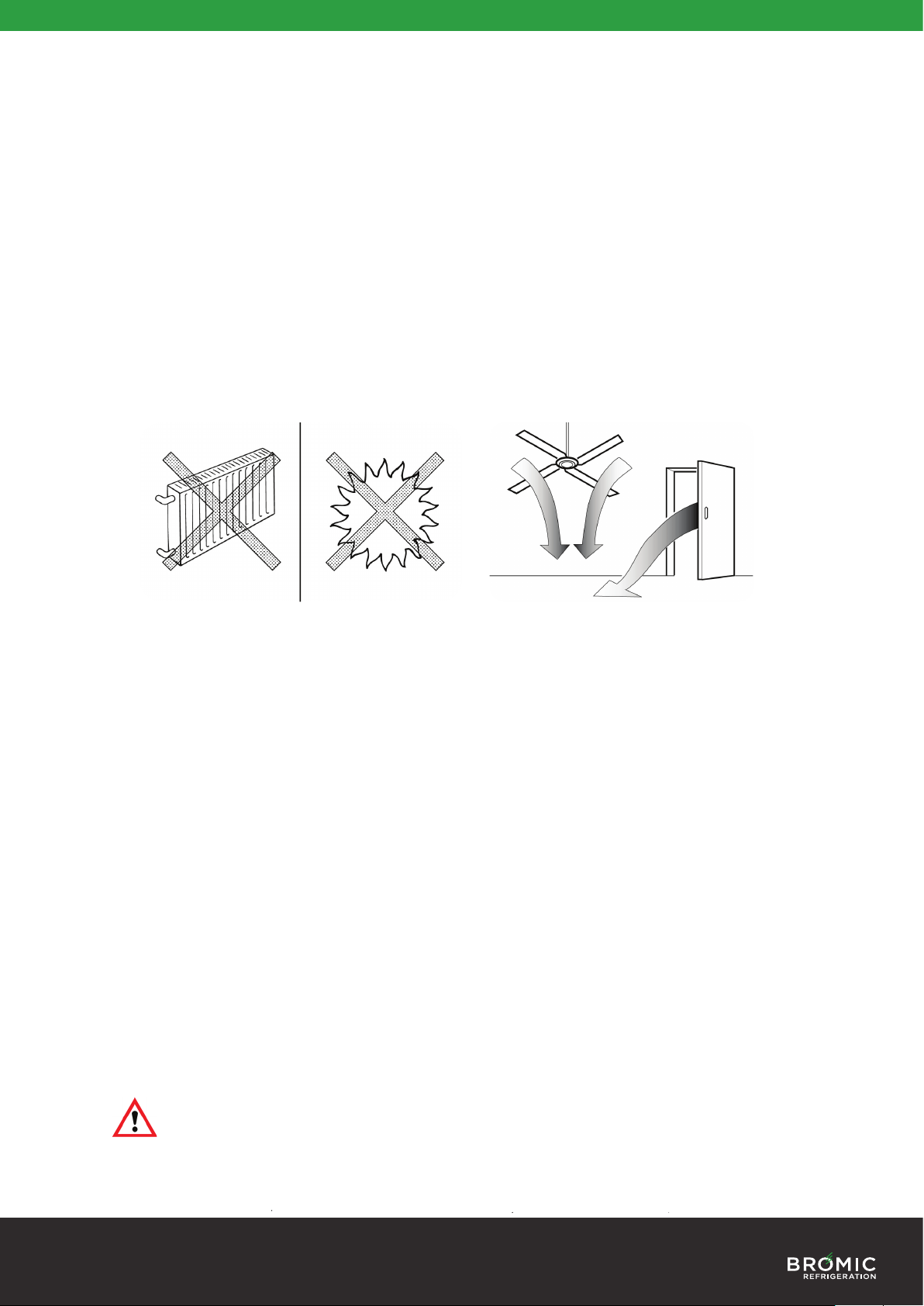

• Do not install in the vicinity of heating radiators or other heat sources.
• Do not install the appliance where it is exposed to direct sunlight.
• Do not install the appliance where it is exposed to warm draughts or open doors.
• Keep the air intake and outlets free of obstructions.
• Adequate allowance should be made for door openings.
Ventilation
• Allow 150mm clearance between walls and the appliance.
• Ensure that the condenser fan is free to take in ambient air from the room.
• Adherence to minimum clearances is necessary
NOTE: The maximum ambient temperature for the refrigerator is 30°C. Conditions
outside this temperature will result in cabinet temperatures outside the required 2
to 8°C range. Bromic recommends that the refrigerator is installed at an ambient
temperature of 20 to 25°C.

1300 276 642bromicrefrigeration.com.au
8
Power Supply
• The appliance must not be plugged into a multiple outlet power board.
• The appliance is supplied with a flexible power cord fitted with a 3-pin plug.
• The socket used must be properly earthed and fuse/RCD protected.
• See the rating label inside the cabinet for supply voltage, frequency and current draw.
• Power cable is rated 70°C. It is recommended that the cable should not come into contact
with parts over 50°C.
• Do not turn o power before consulting the person responsible.
• Mark the power source clearly, so the refrigerator is not unplugged or turned o
accidentally.
Before Operating
• If the appliance has been sharply tilted or transported in the horizontal position, it must
be left to stand in the upright position and not plugged in for at least 4 hours.
• Remove all the packaging material before using the appliance.
• Start the appliance only if it has been installed as described.

1300 276 642 bromicrefrigeration.com.au
9
5. OPERATION
Start-up
• Connect the appliance to the mains power supply and turn the Power switch On.
• Allow the unit to operate for 1 hour to cool the compartment before placing items in the
cabinet.
• Check that the electronic controller, lighting, and fans are operating correctly.
• The compressor and condenser fan should operate should operate within 3 minutes after
the Refrigeration switch is turned on.
• The electronic controller will display the current cabinet temperature after the
Refrigeration switch is turned on.
• The LED indicates that refrigeration circuit is operating.
• During the start-up delay (3 minutes), the LED is flashing
• The LED indicates that the refrigeration circuit is defrosting
NOTE: The Cooling Light is illuminated when the appliance is chilling the interior
of the cabinet.
Manual Defrost
This cabinet features automatic defrost. However, should the appliance require an additional
defrost, press SET and hold the DEFROST button for 6 seconds.
Automatic defrost cycles occur every 8 hours and last 20 minutes (factory default). To stop
the Defrost, press SET and hold the DEFROST button for 6 seconds.
Setting the temperature
i. Press the .
ii. The value of the set point will be displayed and the display with flash.
iii. Press or arrow key within 6 seconds to adjust the set point.
iv. Press the key again or wait 6 seconds.

1300 276 642bromicrefrigeration.com.au
10
6. PRODUCT LOADING AND STORAGE
Start-up
• Clean the interior surface with a soft cloth and warm water before loading.
• Ensure there is free circulation of air between the products.
• Do not block the evaporator fan.
• Do not overstock the refrigerator.
• Keep refrigerator door openings to a minimum.
• Some products are sensitive to ultraviolet (UV) light, please see storage guidelines from
the manufacturer before removing from packaging.
• Do not block the internal air vents or fans when loading the cabinet. This can reduce
cooling performance.
NOTE: Bromic cannot be responsible for loss of stock or damage to stock.
IMPORTANT: Run the refrigerator for at least 2 hours before loading.
7. MAINTENANCE
Cleaning the Cabinet
• Remove the products and transfer to a suitable location prior to cleaning the inside
of the cabinet.
• Do not use any aggressive or abrasive cleaning agents.
• Never use a water hose or a high-pressure jet to clean.
• Do not use sharp or pointed objects for cleaning.
• Clean the inside and outside of the appliance with a clean damp cloth or with a
neutral cleanser.
• Dry all surfaces with a dry cloth.
• The cabinet must be wiped down regularly.
• Never use polishing powder, soap powder, benzine, oil, or hot water as these will damage the
painting and plastic components.
• Preventing the build-up of oil and sediments will increase the longevity of the unit.
• After cleaning, ensure the power plug is firmly inserted into the wall.
• Check the power cord for cracks and damage. If damaged, contact Bromic Service.
WARNING: Disconnect the appliance from the power supply before performing any
maintenance. Never unplug the appliance by pulling on the cord. Always grasp the
plug firmly and pull straight out of the outlet.
WARNING: Exposure to significant water ingress will void warranty and cause
potential safety issues. If the unit should be exposed to water, please contact the
manufacturer immediately.
IMPORTANT: Warranty may be void if there is no evidence of preventative
maintenance is performed on the appliance.
WARNING: : Do not store explosive substances such as aerosol cans with a
flammable propellant inside the appliance.
Condenser Coil/Filter
IMPORTANT: The filter and the condenser coil must be cleaned once a month. The
filter can be removed for cleaning with water, make sure it is dried before reattaching.
The condenser coil must be cleaned with vacuum/brush monthly to maintain the
performance and minimise power consumption. A poorly maintained condenser coil
can lead to failure of the unit and higher cabinet temperatures.

1300 276 642 bromicrefrigeration.com.au
11
8. TROUBLESHOOTING
IMPORTANT: Repairs on the unit must be carried out by an authorised and licensed
person only. Contact the manufacturer or an approved service agent for any repairs
needed.
Symptom Possible Cause(s) Possible Solution(s)
Fridge does not
turn on
A. No power supply A. i. Check that switch is on
ii. Try plugging cabinet into
dierent power sockets
iii. Check power plug and cord for
damage
Fridge
temperature
too high
A. Incorrect controller set point
B. Ambient temperature too high
C. Inadequate ventilation
D. Dirty condenser unit
E. Ice build-up on evaporator coil
A. Change controller set point
B. Ensure unit is in an air-
conditioned environment of 25C
C. Keep ventilation slots clear
Fridge
temperature
too low
A. Incorrect controller set point
B. Ambient temperature too low
C. Faulty evaporator probe
A. Change controller set point
B. Ensure unit is in a temperature-
controlled environment of 25C
C. Contact Bromic service
Fridge
temperature
greatly fluctuating
A. Cabinet is in direct sunlight
or outdoors
A. Reposition cabinet such that
it is not in direct sunlight or
outdoors
Fridge leaving
water puddles on
the ground
A. Cabinet glass is condensing and
dripping
B. Cabinet drip tray is overflowing
A. Ensure the cabinet is in an air-
conditioned environment of 25C
and 60% RH
B. Contact Bromic service for
diagnosis
No display on
controller
A. No power supply A. Check power supply
B. Contact Bromic customer
service
Odour inside
Fridge
A. Rotting odour inside cabinet
B. Oil or smokey odour
A. Clean the cabinet
B. Turn o the cabinet and
contact Bromic service
immediately

1300 276 642bromicrefrigeration.com.au
12
10. ENVIRONMENTAL AND DISPOSAL NOTES
These refrigerated cabinets are designed to high standards of environmental protection
and recycling convenience. Cyclopentane, an environmentally friendly foaming agent,
has been used. Cyclopentane is distinguished by zero ozone depletion potential (ODP)
and zero global warming potential (GWP). The refrigerant used and contained within a
hermetically tight circuit is environmentally friendly and does not contain chlorine and
zero ODP.
The device must be disposed of in accordance with applicable regulations. The WEEE
regulations must be observed.
In the interest of preventing environmental nuisance and promoting re-use of the high
quality materials employed, used commercial refrigeration equipment must be collected
for expert disposal and recycling. Therefore, observe the following disposal regulations:
• The cabinet must not be discarded with regular waste.
• The refrigeration circuit must not be damaged.
• Before disposal, make it unserviceable by disconnecting the power plug and cutting
o the power cable.
• Consult your local authorities or authorised dealers for details of collection and
disposal facilities.
• Children are often unable to recognise the dangers associated with commercial
refrigeration equipment. Proper supervision must be maintained and children must be
prevented from playing with discarded refrigerated cabinets.
• The refrigerant used in all appliances covered by this manual are flammable. The
refrigeration circuit must not be damaged.

1300 276 642 bromicrefrigeration.com.au
13
11. WARRANTY
All Bromic products are manufactured
to the highest quality standard and are
supported by our Extra Care Service Warranty,
including guarantees against any material or
workmanship defects; guarantees that cannot
be excluded under Australian Consumer Law.
Warranty Terms vary across the range. Please ensure you are familiar with the Terms and Conditions
that apply to the purchase of your Bromic product by referring to the Warranty Policy included with
your purchased product.
Alternatively, you can also download the Warranty Policy at
https://bromicrefrigeration.com.au/extra-care-warranty

1300 276 642bromicrefrigeration.com.au
14
HOW TO PLACE A SERVICE REQUEST
• Please call 1300 276 642 to place a warranty service request and let the operator know whether
you need Priority A or B service. More information can be found below.
• Ensure you have the serial number of your product ready before contacting us.
• The serial number of your product can be found on a compliance plate located on the inside right
and at the rear of your cabinet.
Compliance Plate Example 1
SERVICE REQUEST PRIORITY
A
B
PRIORITY ASERVICE
PRIORITY BSERVICE
SERVICE CALL PLACED BEFORE MIDDAY
SERVICE CALL PLACED AFTER MIDDAY
When the unit is NOT performing its primary function such as
cooling or heating, or presents an OH&S or food safety risk
When the unit is performing its primary function, and presents
no OH&S or food safety risk. i.e. lights, gaskets. locks, door
adjustment
Priority A - Technician to attend site within 4 hours
Priority B - Technician to attend site within 8 business hours
Priority A - Technician attends site before midday on the
following business day
Priority B - Technician attends site before 4pm on the
following business day

1300 276 642 bromicrefrigeration.com.au
15

BROMIC REFRIGERATION
10 Phiney Place, Ingleburn (Sydney)
NSW 2565 Australia
T. 1300 276 642
For further product information
bromicrefrigeration.com.au
