brondell P700BB User manual
CONTENTS
Air Purifier and Accessories
Product Features
QuickStart Guide
Precautions
Operating Instructions
Air Purifying Functions
Technical Specifications
Cleaning and Maintenance
Troubleshooting
Warranty
02
03
04
05
06
07
08
08
09
10
P.1
AIR PURIFIER AND ACCESSORIES
Power Cable with Plug
Air Purifier Unit
User Manual
P.2
Pre-Filter High Efficiency
Antiviral Air Filter
Nanocrystalline
Filter
Pro Sanitizing Air Purifier
with AG+ Technology by Aurabeat
User Manual
Please read this instruction manual carefully
Please remove all the packaging material from the filters
PRODUCT FEATURES
Air Quality Indicator
Touch Button
Controller
Carry Handle
Sensor Door Latch
Power Cord Port
Motor Mount
Magnet
Front Panel
P.3
Pre-Filter High Efficiency
Antiviral Air Filter
Nanocrystalline
Filter

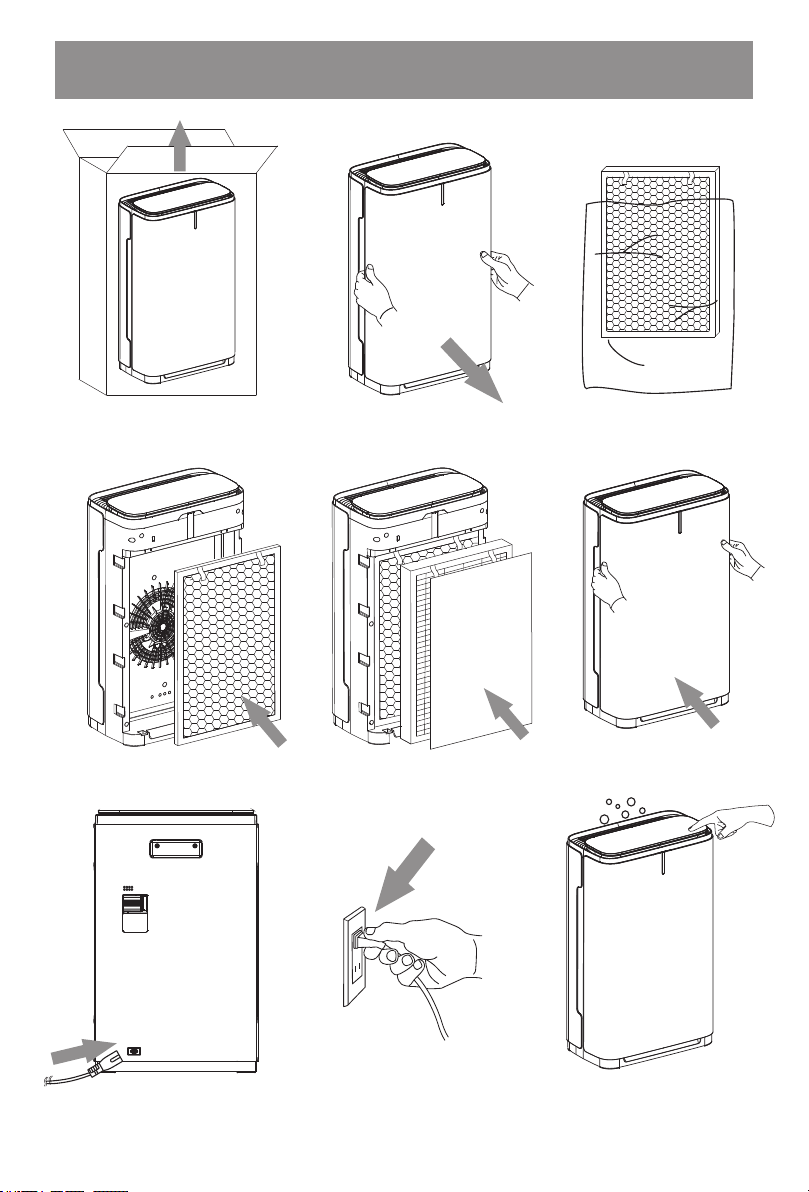

QUICKSTART GUIDE
7. Plug the power cable
to the air purifier.
8. Insert the power cable
into an electrical outlet.
9. Press on/offbutton to
switch on the air purifier.
1. Carefully unpack your air
purifier.
2. Remove the front panel. 3. Remove filters from
protective plastic wrap.
6. Insert the front panel.
P.4
5. Insert the High Efficiency
Antiviral Air Filter with Pre-Filter.
4. Insert the Nanocrystalline
Filter.
PRECAUTIONS
To avoid electric shock or damage,
keep foreign objects away from the
air inlet and outlet to avoid contact
with the inner parts of the appliance.
Disassembly is prohibited.
To avoid danger, do not disassemble
and modify the product.
To avoid electric shock, do not touch
the electrical plug with a wet hand.
To prevent short circuit and electric
shock, do not immerse in water or
other liquids.
Do not use on improper AC.
Damage or danger can result from
using it on improper power sources.
Check the power cable and plug regularly.
Dust can accumulate over time on the surface
of the plug, which can cause poor insulation due
to humidity. Unplug it regularly and clean the plug
with a dry cloth. Unplug it from the electrical outlet
when not used for a long time.
Always unplug the air purifier before
cleaning the unit to protect against
injuries and danger.
Do not use the appliance in wet or highly humid
surroundings such as the bathroom to prevent
leakage current, electric shock and fire hazards.
Do not use the appliance when you have
used spray-type insecticides.
After using insecticides, ventilate the room
sufficiently before using the air purifier.
Otherwise, chemicals will accumulate
inside the machine and affect your health.
Do not use in places with oily residues,
smoke, or fumes, such as the kitchen
to prevent damage to the product.
The appliance shall not be used as
an exhaust fan.
When used in the same space with
combustion devices, make sure the
room is well-ventilated to prevent
carbon monoxide poisoning as
the appliance does not remove
carbon monoxide.
The electrical plug must be plugged in all the way.
Otherwise, fire hazards can result from overheating
due to exposed plug prongs. Do not use a damaged
plug or a loose electrical outlet.
Do not use alcohol or organic solvents to clean
any part of the appliance to prevent damage to
the product, electric shock, fire hazards, etc.
Unplug the appliance by pulling the
plug but not the cable to prevent
damage to the cable, short circuit,
electric shock, fire hazards, etc.
Do not use the appliance near fire or
combustible materials.
Close doors and windows for efficient
and rapid air cleaning.
Note: If the electrical cable is damaged, to prevent hazards, it must be replaced by
authorized manufacturer personnel.
Unplug immediately if any of the following conditions occur:
• the switch does not work
• short circuit
• the electrical cable or plug becomes overheated
• a burnt smell, unusual sound or vibration is produced
• any unusual occurance or failure
NOTE
WARNING
P.5
OPERATING INSTRUCTIONS
SPEED
SPEED
TIMER
PM2.5
TIMER SLEEP CHILD
LOCK
UV PLASMA
Switch on
Touch the power button to switch on the appliance.
After switching on, the light indicator is always on. When a corresponding function is used, the light indicator under
the icon is always turned on. The area displaying “
— — —
” 10s after switching on will show the PM2.5 value.
The appliance operates under the auto mode by default.
The airflow is adjusted according to PM2.5. Auto mode is set as follows:
PM2.5 Value Air Quality Level Air Quality Light Color Airflow Level
10-79 Good Green 1
80-199 Fair Blue 2
Bad Red200-500 3
Set the timer
1. Touch the “Timer Button” repeatedly to choose the number of hours you want the appliance to operate
(1-12 hours) and the switch-offtime. When the timer is on, the light indicator is on.
Use UV
1. Touch the "UV" button to turn on/off the UV light.
Switch on plasma
1. Touch the "Plasma" button turn on/offthe plasma function.
Use sleep mode
1. Touch the "Sleep" button to enter sleep mode. The air quality indicator will be dimmed. All the light
indicators will be offexcept the sleep indicator.
2. The appliance operates under speed 1 in sleep mode. Disable sleep mode and return to previous
setting by touching any button.
Set the child lock
1. Touch the "Child Lock" button to activate the lock function and all the other buttons will not be
responsive. Press and hold for 3 seconds to close.
2. When the child lock is not on, press and hold this button for 3 seconds to view the accumulated
usage time of the filter, displayed in the PM2.5 area. The filter indicator is on and the four-digit
number is displayed.
Changing fan speed
Touch the “Fan Speed" button repeatedly to disable auto mode and manually change the speed among
three settings (speeds 1-3). You can reselect auto mode by touching the button after speed 3.
P.6
P. 7
Tips on replacing the filter
To review the usage status of the filters at any time,
press and hold the Child Lock button when the child
lock is turned on. The accumulated number of hours
the filters have been in use will display for 10 seconds.
When filter usage reaches 2000, the replacement filter
icon will illuminate.
Check the High Efficiency Antiviral Air Filter. If it is
white or light grey, you can reuse it for another 2000
hours. If it is dark grey or black, you need to replace it.
Follow the guidelines for filter cleaning or filter
replacement.
To reset the timer, press and hold the Timer button for
3 seconds.
Filter installation order
1. Nanocrystalline Filter
2. High Efficiency
Antiviral Air Filter
with Pre-Filter
1
2
Steps to replace the filter
After replacing the filter, turn off the filter indicator.
1. Open the front panel and
remove the existing filters
2. Insert the Nanocrystalline
Filter
3. Insert the High
Efficiency Antiviral
Air Filter with Pre-Filter
4. Insert the front
panel and the filter
is successfully
replaced
1. Pre-Filter: captures hair, fiber, large particles, dander, etc., can be vacuumed and reused.
2. High Efficiency Antiviral Air Filter: This filter is an H12 HEPA Grade filter, good at capturing small particles.
It has low penetration, large capacity for holding dust, high clean air delivery rate can effectively filter
smoke and dust, especially for PM2.5, efficiently filtering particles as small as 0.01μm. The filter is coated
with a proprietary patent-pending formula that can effectively kill human coronavirus, general virus,
bacteria and mold.
3. Nanocrystalline Filter: Sepiolite, diatomaceous earth, and other natural rare non-metallic minerals are
used to make nanocrystalline materials which clear harmful gases, formaldehyde, benzene, VOC and
other smelly pollutants. The nanocrystalline materials have many pores, good at absorbing nanoparticles,
such as formaldehyde, ammonia, and benzene (between 0.4-0.62 nanometers). As these compounds
are nano-sized polar molecules, they can be quickly absorbed.
4. UV light: UV lamp helps to destroy virus and bacteria inside the machine.
5. Plasma purification: The positive and negative ions generated by the plasma generator neutralize in the
air and produce huge energy, which results in the change of the microorganism structure around or the
conversion of energy, thereby destroying the microorganisms. As the number of negative ions is greater
than that of positive ions, excess negative ions are still floating in the air, which can remove smoke, dust,
smell, and improve air quality and health.
AIR PURIFYING FUNCTIONS
TECHNICAL SPECIFICATIONS
CLEANING AND MAINTENANCE
Unit: Please regularly wipe the surface of
the machine with a soft cloth moistened
with clean water and detergent and clean
the air inlet and outlet with a brush.
Sensor Cleaning: Regularly clean the lens of the sensor
and the surface of the sensor with a moist cotton swab,
and then use a dry cotton swab to remove any moisture
left on the sensor.
Filter Replacement: A built-in program notifies when the filter needs replacement. When usage reaches
2000 hours, the filter replacement indicator icon will illuminate.
In extremely poor air quality, it may be time to change the filters, but often cleaning the air filters and
machine will suffice. Each layer of the filter can be used for about 6-8 months. Clean the filters regularly
to ensure best performance.
Pre-Filter: clean with vacuum cleaner
Nanocrystalline Filter: expose to sunlight for 1-3 hours every 2 months
P.8
Product Name
Model
Voltage
Frequency
Power
CADR
Filtration grade
Room Coverage
Casing Material
Airflow
Dimension
Weight
Sensor Type
Max. Noise
Type
Brondell Pro Sanitizing Air Purifier with AG+ Technology by Aurabeat
P700BB, P7004C, APP60
110-120V
50Hz/60Hz
95W
221
H12 HEPA Grade
538 Sq Ft
High Quality ABS
247.2 ft3/min (CFM)
24.7 in x 15.4 in x 8.3 in
19.2 lbs.
PM2.5 Sensor
≤62dB
Specifications
TROUBLESHOOTING
When the following problems occur, try possible solutions listed below before returning it for repair:
For product support and assistance, please check our help center and support pages online
P.9
Problem Solution
1. Check if the electrical cable is plugged into a socket.
2. Check if the electrical cable is plugged into the appliance.
3. Check if the front panel is inserted properly.
1. The appliance may be affected by moisture, oil residues,
smoke, fumes, spray, etc. Place the appliance in another
environment to test again.
2. Take offthe lid on the sensor and clean the lens with a
soft cloth.
1. Check if the filter is expired or has adsorbed pollutants with
bad smell.
2. The Nanocrystalline filter can be reused after exposure
to sunlight. If the problem persists,change the filter.
Use a vacuum cleaner to clean the pre-filter. If the problem
persists, change the filter.
The appliance may be placed in the wrong place that prevents
pollutants from being absorbed. Place it in another spot or
change to manual mode and increase the fan speed to
maximum.
The appliance does not work
when switched on.
The touchscreen controller
does not work.
Particulates in the air cannot
be removed.
The appliance is extra loud
when running.
The air purifier does not
respond to air pollutants in
the room.
When in auto mode, the air
quality indicator / PM2.5 value
is always red or high.
Unpleasant smell cannot be
removed.
WARRANTY
P.10
Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell
warrants that the Brondell Pro Sanitizing Air Purifier with AG+ Technology by Aurabeat shall be free from
defects in material and workmanship under normal use and service.
Residential & Commercial Warranty for Brondell Silver Ion Plasma Sanitizing Air Purifier with AG+
Technology by Aurabeat – 3-year limited warranty.
Includes Base Model numbers: P700BB, P7004C, and APP60
100% Coverage of defects or malfunctions of all electronic parts and labor for the entire product
excluding consumable filters for the first three years from original date of purchase.
Exclusions and Limitations
1. BRONDELL warrants its products to be free from manufacturing defects under normal use and
service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL’s obligations under this warranty are limited to repairs or replacement, at BRONDELL’s
option, of products or parts found to be defective, provided that such products were properly installed
and used in accordance with instructions. BRONDELL reserves the right to make such inspections as
may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or
parts in connection with warranty repairs for the first full year from date of purchase on all products
except those that may be subject to heavy commercial use limitations.
3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or reinstallation of
products. This warranty does NOT apply to:
• Damage or loss which occurs during shipment.
• Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL,
including but not limited to fire, earthquake, floods, etc.
• Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh
or excessively hazardous environment.
• Damage or loss resulting from removal, improper repair, modification of the product, or improper
maintenance including damage caused by improper cleaning and exchanging of filters
• Damage or loss resulting from acts which are not the fault of BRONDELL or which the Product is not
specified to tolerate.
• Normal wear and tear usage on the appliance or damages and wear to the filter during use or
maintenance.
4. This warranty gives you specific legal rights. You may have other rights which vary from state to state.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY
AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE
OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES OR
EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO
INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER
EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE
EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW
LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.
How to Obtain Service
To obtain repair service under this warranty, you must contact an authorized Brondell Service Center to
obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of
the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit
pre-paid to the closest Brondell authorized service center along with the RMA number and proof of
purchase. To obtain an RMA number, contact the Brondell Service Center at 1-888-542-3355 or by email
Other manuals for P700BB
1
This manual suits for next models
2
Table of contents
Other brondell Air Cleaner manuals
