BRULA C plus User manual

Assembly and
operating instructions
www.brula.de

2
General
Introduction
You have opted for a BRULA basic stove firebox.
We would like to congratulate you on your choice and thank you for showing
confidence in our product. With this product you are getting premium quality basic
stove technology for a healthy radiant heat and stylish heating.
We hope you enjoy using our "fiery" products.
These assembly and operating instructions serve to familiarise you with the
assembly and correct handling of this fireplace in order to ensure smooth operation.
Please take the time to read these assembly and operating instructions carefully.
Our warranty and guarantee only apply if all points for the correct assembly and
operation of the fireplace are observed as described below. Keep the assembly and
installation instructions in a safe place so you can refer to how to operate the
fireplace correctly time and time again (e.g., at the start of a new heating period).
The basic stove principle
The basic stove (also known as a storage stove) is synonymous with long-lasting
and healthy heating. And these are precisely the advantages offered by this stove
system. Compared to a hot air system which uses the principle of convection and
essentially only heats up the air, a basic stove emits warmth into the room slowly
and evenly in the form of healthy radiant heat, something which is valued in
particular by allergy sufferers. And this is how it works: Once the fire has been lit in
the combustion chamber, the heating gases are drawn through a draught system
made of firebricks which absorb and store the heat. The draught system is designed
so that the heating gases must firstly pass through the entire stove before escaping
through the chimney. This means that the generated heat is emitted by the stove
over a long period of time. The radiant heat created in this way does not heat up the
air but rather the objects which it encounters, just like a ray of sun.
BRULA GmbH
Weidacher Str. 17
87471 Durach/Allgäu, Germany
Tel. [phone]
Fax [phone]
[e-mail]
www.brula.de

3
Operating instructions
General requirements
Please note that national and local provisions must be satisfied when installing the
BRULA basic stove firebox.
Please consult your competent district master chimney sweep about this prior to
installation.
He will advise you on the suitable chimney as well as all other requirements which
are of relevance for the setup and commissioning of your basic stove. A sufficient
combustion air supply must be ensured in particular, especially with a well sealed
building shell, flat ventilation systems etc. in order to guarantee smooth operation.
Your chimney sweep will be able to help here too. He will also check that the
fireplace has been connected properly.
The basic stove firebox described here is tested in accordance with EN 13229:2005-
10 taking into account the agreement as per Art. 15a B-VG (since 01.01.2015 in
Austria only nominal load operation is permitted!).
It may be attached to a chimney with multiple connections provided that the
chimney's technical conditions allow this.
If the basic stove is attached to a chimney with multiple connections, the heating
door used must be self-closing. This ensures that the door closes automatically after
adding more fuel and thus the supply pressure of the chimney is not affected.
Installation site / fire protection regulations
When setting up the small basic stove, the valid fire protection regulations of the
German Fire Code Ordinance (FeuVo) must be observed. The specified minimum
distances to combustible objects and walls must be maintained and the flooring must
also be protected.
Note on setting up the fireplace only on surfaces with a sufficient load bearing
capacity. If the load bearing capacity is not sufficient, suitable measures must be
taken (e.g., plate for load distribution) to remedy this.
Attention:
Thermal insulation / insulation design must be realised as per the specialist
regulations of the stove and air heating construction trade (TROL) and the country-
specific provisions.

4
Operating instructions
Connection to the chimney
All connections from the stove to the chimney must be tight and firm. Always use a
wall lining to connect the connecting piece to the chimney.
Technical data
relating to 5.5 m reheating surfaces and 3.7 kg wood
Type C
Fireplace type
Short-term combustion appliance
External dimensions H/W/D
875x625x500
Amount of wood
3.7 kg /h
Nominal heat output
4.5 KW
Firing capacity
11.6 KW
Mass flow of flue gas
13.3 g/s
Flue gas temperature
Firebox burnout
410°C
Ceramic draught
172°C
Minimum delivery pressure
12 Pa
Dust relating to 13% O2
30 mg/m3
CO relating to 13% O2
921 mg/Nm3
Efficiency
84.5 %
Weight
approx. 290 kg
Reheating surface details
Draught deflections 90°
10 x
Constant draught cross-section
17.5 x 17.5 cm
Distance from combustible components

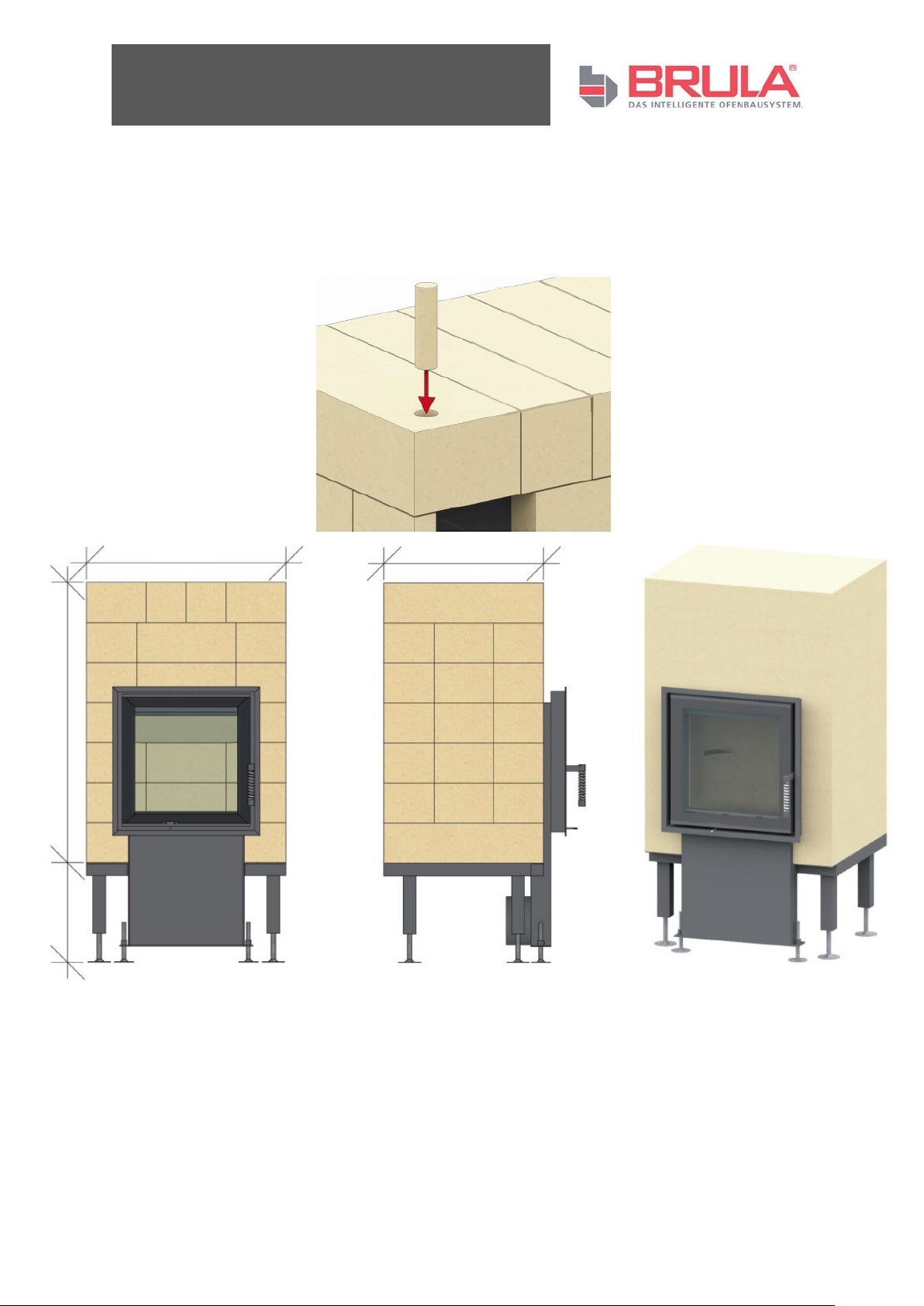

Installation conditions/sketches

5
Operating instructions
Operation of the basic stove
The fireplace should only be operated by adults, supervise children! Only use
suitable lighting and burning materials as described in these operating instructions.
Check whether there is a good combustion air supply to ensure perfect operation of
the fireplace.
Initial commissioning
Loosen the setscrews in the holders on the inside pane.
These were tightened to secure the glass pane during transportation.
It must be possible to guide the pane up out of the holder without any great
resistance. This measure is important to avoid possible stress cracks in the pane
due to thermal loading.
All the documents, accessories, tools and other objects provided must be removed
from the firebox. Inform yourself fully as regards fuels (refer to page 9). To avoid
cracks and damage when using for the first time, all cladding elements and
components must be dry. The first burnup should be at a reduced heat, i.e., not with
the full amount of fuel as the stove must firstly get used to the development of heat.
Any smells which occur (e.g., from the firebox door) dissipate after a short time.
Heating up
Approx. 4-5 kg of small dry pieces of beech wood (2 to 6 cm in diameter with a max.
length of 35 cm) and a handful of chippings are ideal for heating up. Since the
combustion air flows via the pane ventilation into the combustion chamber, it should
be ensured that the wood is stacked loosely in the combustion chamber. The
chippings are placed from above in the middle of the pile.
This allows the combustion air to flow freely through the firewood.
The air controller is opened fully for heating up and each time more fuel is added.
To do this, turn the controller anti-clockwise. Stick lighters, long matches or other
suitable lighters are ideal for lighting the fire in the combustion chamber. The
chippings in the middle of the wood pile aid ignition.
Alternatively, firelighters made of wood wool soaked in wax or similar can be used.
If the relationship between the basic stove and chimney is OK, the door can be
closed straight away.
Note: The residual moisture from the firewood will initially settle on the glass pane.
Heating up takes longer than 2 minutes and requires a little patience. To optimise the
draught in the chimney, the firebox/draughts and chimney must firstly reach their
operating temperature. As combustion progresses, the moisture which initially
collected on the glass pane evaporates.

6
Operating instructions
Operation
Once the operating temperature has been reached, the first burnup should be
completed without reducing the combustion air. Once almost all the wood has been
burnt and there is a firebed with subtle flames, it is time to add more fuel. Larger
sized pieces of firewood can now be chosen. The amount of wood added depends
on the heating requirements.
The air controller should remain fully open until the wood which has been added is
properly ignited. To prevent the basic stove from overheating, a surface temperature
of max. 85°C should be aimed for.
The combustion air can now be reduced for further operation and the speed of
combustion thus slowed down. In principle, however, the thermal output is controlled
by the amount of fuel added and the operating time. The combustion air may only be
reduced to the extent that clean combustion is ensured. If dark threads of smoke
form on the tips of the flames, the combustion air was reduced too much.
According to 15a B-VG since 01.01.2015 only nominal load operation has been
permitted in Austria!
Maintaining the glowing embers
After the flames have gone out, an energy-loaded firebed remains in the combustion
chamber. It can now be decided whether the fire should be revived with thin firewood
and an open combustion air supply.
At the end of the heating phase, the combustion air is reduced again to keep the
embers glowing for longer. The air controller is only closed completely if the stove is
heated up and the firebed has gone out.
Ash
Wood logs and wood briquettes produce only a small amount of combustion residue.
It will therefore be necessary to remove this ash from time to time. This should be
done when the bed of ashes is more than 5 cm high. It is staggering how long
embers can remain hot in seemingly cold ash. That is why ash should never be
thrown directly from the stove in the waste bin. It is recommended to store ash
temporarily in a metal bucket with lid. Ash is also suitable for composting.

7
Operating instructions
Tips
During extreme weather conditions (low pressure, fog, etc.) it is advised to keep the
combustion chamber door ajar (with locking) during heating up until the firebox /
draughts and the chimney have reached the operating temperature. The combustion
chamber door must be closed for subsequent operation. The firebox must be
monitored when the combustion chamber door is not closed in order to intervene if
necessary.
General information
•The maximum amount of fuel which can be placed in the stove for type C is 3.7 kg
•Fireboxes and ceramic reheating surfaces must have a cavity wall construction
and be gastight as per the specialist regulations (TROL).
•Do not store combustible items on the stove.
•Metal items can become hot.
•Your basic stove is not a waste incineration plant and should never be used for
burning waste!
•Just like all technical appliances, your basic stove should also be checked by a
specialist at regular intervals to ensure it is functioning properly.
•In the case of deviations from the specified performance, the fireplace must be
calculated individually!
The fireplace must never be modified!

8
Operating instructions
Safety instructions
Operate the basic stove as per these operating instructions and note the following
information on the proper handling of the firebox to ensure efficient and
environmentally friendly heating.
Caution! The stove and stove door with view pane become hot during combustion
and there is a risk of burns. Use a glove to open the stove door.
Do not place combustible objects on or in the direct vicinity of the stove. Maintain a
distance of at least 80 cm between combustible objects and the stove door.
If fireplaces are installed in living areas and the combustion air is taken from the
room where the fireplace is installed, the operator must ensure that the fireplace is
supplied with sufficient combustion air.
What to do in the event of a chimney fire
- Close the combustion air inlet and keep it closed
- Call the fire brigade and the chimney sweep!
- Enable access to the cleaning openings (e.g., cellar and attic)!
- Remove all combustible materials from the chimney!
- Before using the fireplace again, notify your chimney sweep and have the
chimney checked for damage.
- Equally, the chimney sweep should determine the cause of the chimney fire and
remedy this.

9
Operating instructions
Fuels
Wood has a significantly lower fuel value and causes sooting of the firebox pane and
the accumulation of soot in the chimney.
Beech, ash and birch are best suited as fuels. These wood types have a high fuel
value and burn cleanly if stored properly in a dry place.
Tip: Freshly cut wood should be stored for around 18 months outside in a dry place,
protected from the rain, before being used as fuel.
Use a standard fireplace lighter to light the fire.
The following must not be used for lighting and must not be burnt:
•Liquid fuels
•Moist or treated wood
•Wood chips or bark waste
•Chip boards or comparable coated and uncoated materials
•Plastics and foams
•All materials which are foreign to wood
•Paper, cardboard
•All types of waste
Your fireplace is not a "mini waste incineration plant"!
Please protect the environment and only use approved and suitable fuels!
Cleaning the firebox
When operated properly, wood in the basic stove burns leaving approx. 1-2%
residue.
When removing ashes from the firebox, it must be ensured that there are no residual
embers. Any soiling of the firebox pane can be easily removed with a special
cleaner. Only ever clean the firebox when it is cold.

10
Operating instructions
Before assembly!
Check the scope of delivery to ensure that nothing is missing!
Included in the scope of delivery:
1 x stove door &
platform
4x recessed corner
4x recessed centre
4x corner stone with
hole
16x corner stone
10x intermediate stone
no.1
17x intermediate stone
no.2
1x combustion kit
1x top plate stone
8x insert wedge
2x horizontal clip 1
2x horizontal clip 2
2 m sealing tape
1 x clip set
1x dipping mortar
1x protective glove

11
Operating instructions
3.3. Removal of the fire door
Use a screwdriver or similar tool to
remove the securing clip from the
contact side (hinge side) of the
door.
Swing the door open. Then, tighten
the Allen screw on the lower hinge
with a 2.5 mm Allen key.
The door stop screw below the
frame is then unscrewed with a
spanner.
Grasp the door from below. With a
slight lifting motion, lift the door
slightly so that the lower pin of the
hinge is exposed.
In this position, pull the door down
and a little forward.
Now let the door drop a bit so that
the door can be slid and removed
from the upper track.

12
Operating instructions

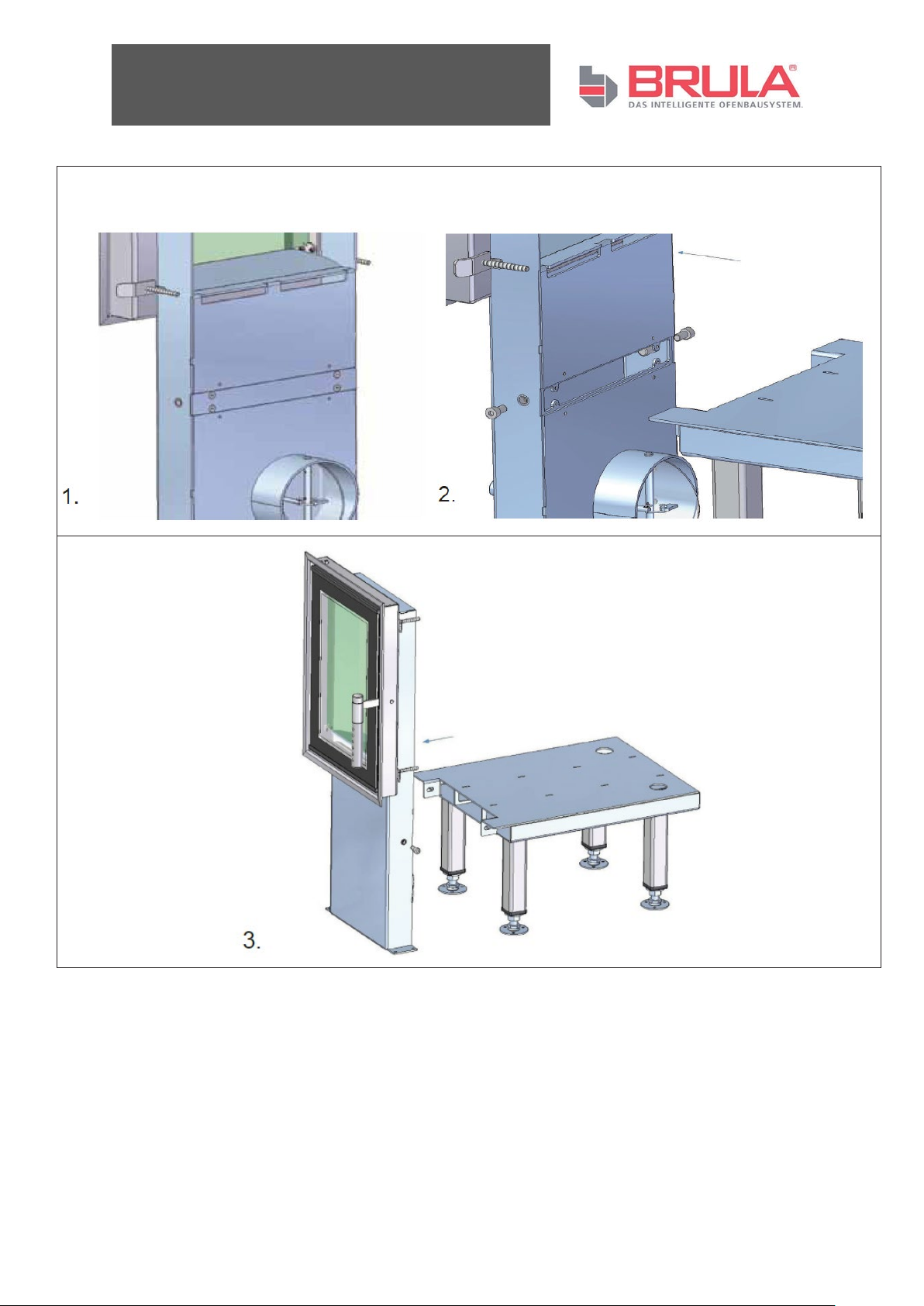

Assembly instructions: stove door & platform
Remove the
panel!
V

13
Installation instructions

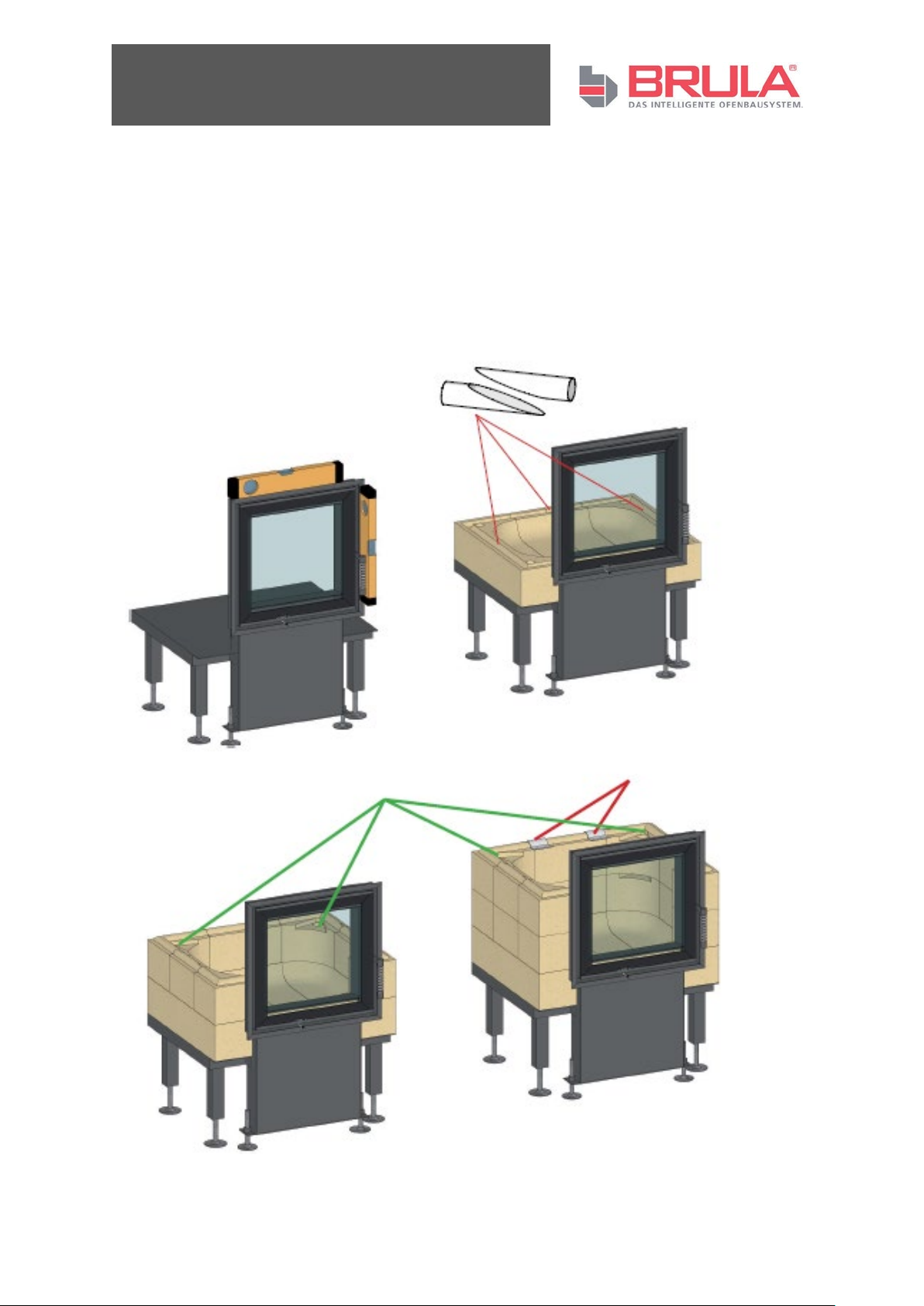

Firebox Type C
All firebox stones are processed with fireproof adhesive or BRULA dipping mortar!
1. The platform is screwed together with the stove door.
2. Self-adhesive sealing tape must be applied to the stove doors prior to
installation.
3. The firebox must be hollowed out specifically when attaching the stove doors.
Corner stone with hole Horizontal clip no.1
Only materials and spare parts that have been approved by the manufacturer
may be used!

14
Installation instructions
Firebox Type C
All firebox stones are processed with fireproof adhesive or BRULA dipping mortar!
1. The combustion kit can be attached individually.
The combustion kit can
be attached to the left or
right.
Horizontal clip no.2
Only materials and spare parts that have been approved by the manufacturer
may be used!

15
Installation instructions
Firebox Type C
All firebox stones are processed with fireproof adhesive or BRULA dipping mortar!
1. The combustion kit can be attached individually.
Stick in the round
bar to seal the
opening above the
burnout!
62.5 cm
50.0 cm
87.5 cm
28 – 33 cm
Only materials and spare parts that have been approved by the manufacturer
may be used!

16
Error detection
What if ...
... the stove doesn't draw properly?
•
Is the chimney or stove pipe
not tight?
•Has the chimney been
measured correctly?
Are the cleaning flaps not
closed or not tight?
•Is the ambient temperature
too high?
•Is the door of another
fireplace which is connected
to this chimney open?
... the room doesn't get warm enough?
•
Are the heating
requirements too high - the
appliance too small?
•The stove does not draw
properly.
•Is the firewood too moist?
•Has too little wood been
placed on the fire?
... the room gets too warm?
•
Is the supply pressure too
high?
•Has too much wood been
placed on the fire?
... smoke escapes when adding fuel?
•
The firebox door was
opened too quickly.
•The supply pressure is too
low.
•The firewood has not burnt
down enough.
Observe the operating instructions!

17
Installation instructions
Exclusion of warranty
The guarantee does not apply during the guarantee period in the following
cases:
- Wear and tear as a result of operation
- Incorrect transport and/or incorrect storage
- Incorrect handling and/or use
- Lack of maintenance
- Incorrect installation or connection of the device
- Failure to comply with assembly and operating instructions
- Technical changes to the device by third parties
- Fragile parts such as glass
This product has been manufactured in compliance with current standards of quality
control. The materials used have been carefully selected and - like the production
process - are subject to on-going quality control. Specialist knowledge is required
when assembling and installing the product. Therefore, the product must only be
installed and started up by specialist technical staff in compliance with current
statutory provisions.

Rating plate
BRULA GmbH
Weidacherstraße 17
87471 Durach, Germany
BRULA firebox Type C plus Year of manufacture 2017
EN 13229:2005-10 / 15a B-VG/A1/A2 test centre code: 1721
Test report number: DBI F 11/12/0181
Short-term combustion appliance, multiple connection is permitted
- CO concentration at 13% O2 content 0.074 percent by volume
- Exhaust gas temperature based on reheating surface 172°C
- Firing capacity 11.6 KW
- Efficiency 84.5%
- Distance from combustible components
to rear wall 400 mm
to side walls 400 mm
to front 1000 mm
Only use recommended fuels!
Observe the operating instructions

Product datasheet on energy consumption
BRULA firebox
Type C plus
The following products correspond to the requirements of the EU Ordinance No. 1185/2015
for implementation of the Directive 2009/125/EC and
No. 1186/2015 to supplement the
Directive 2010/30/EU.
Technical data
Symbol
Unit
Type C plus
Energy efficiency class
A+
Energy efficiency index
EEI
113.0
Nominal heat output
Pnom
kW
11.5
Direct heat output
kW
11.5
Indirect heat output
kW
Thermal efficiency at nominal heat output
η
th, nom
%
84.6
Auxiliary current consumption at nominal heat output
el
max
kW
0.0
Auxiliary current consumption at minimum heat output
el
min
kW
0.0
Auxiliary current consumption in standby mode
el
SB
kW
0.0
Type of heat output/room temperature control
no room temperature control / single level
Preferred fuel
Wood log moisture content 25%
Room heating annual rate of use (preferred fuel)
η
S
%
84.6
