Brunner I048145 User manual

Support frame for sus-
pended fireplaces
Assembly instructions

2 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
CONTENTS
1 Delivery contents...........................................................4
2 Designation of components......................................... 6
3 Necessary tools:............................................................6
4 Sequence of assembly..................................................7

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 3

4 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
1 DELIVERY CONTENTS
Support frame assembly (art. no.: I048145)
Item Quan-
tity
Designation Part no.
1 1 Right girder assembly I048135
2 1 Left girder assembly I048138
3 2 Support frame connecting
rod assembly
I048141
3.1 1 Support frame distance
tube
I048137
3.2 1 M12 draw rod I048139
3.3 2 M12 washer 934
3.4 2 M12 hex locking nut 800419
4 4 M10x30 hex bolt 800420
5 4 M12x80 hex bolt 800421
6 2 M12 hex nut 800422
7 6 Washer 934
8 6 M12 hex locking nut 800419
9 2 Support frame connecting
rod assembly
I048165
9.1 1 M12 draw rod I048139
9.2 2 Support frame distance
tube
I048166
9.3 2 Washer 934

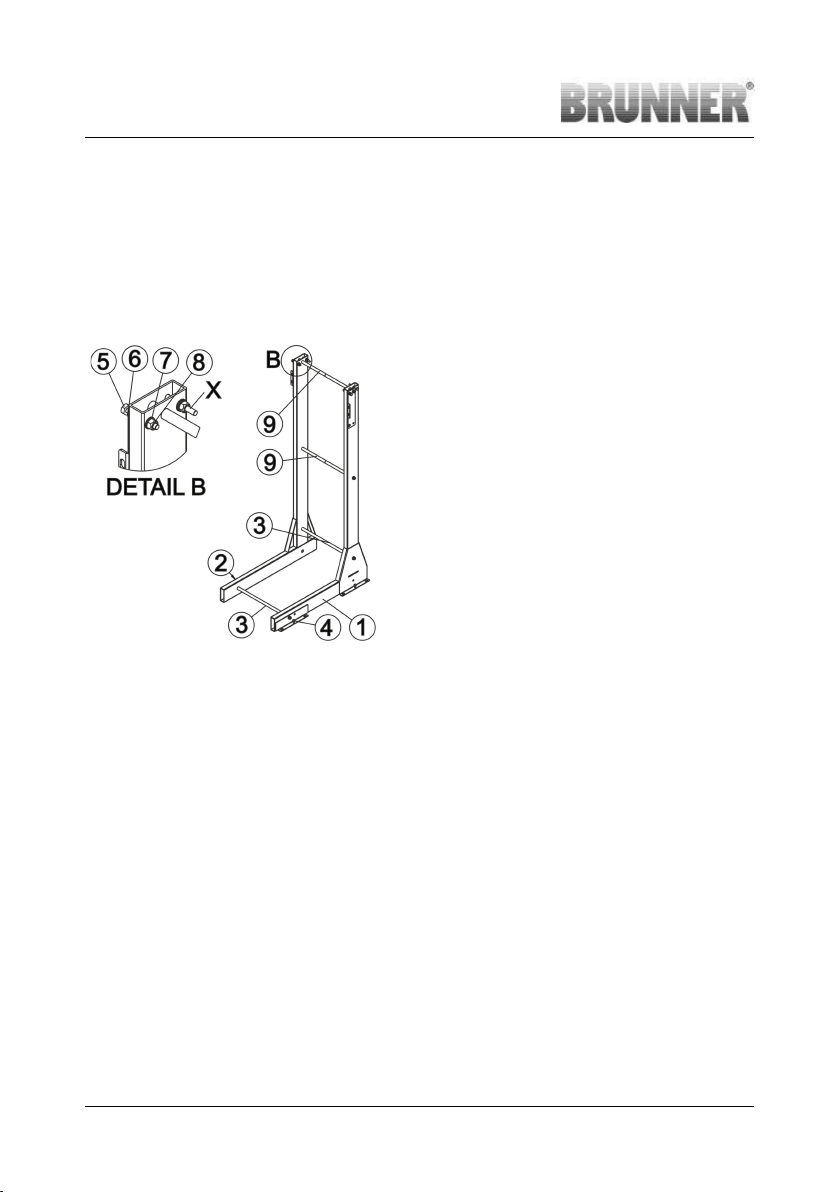

Illustr. 1: Delivery contents overview
(I048145)
X = Assembled only for transporta-
tion purposes
9.4 2 M12 hex locking nut 800419
Parts of suspended fireplace assembly (art. no.: I048167)

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 5
Item Quan-
tity
Designation Part no.
1 1 Back plate assembly I048144
1.1 1 Back plate assembly I048157
1.2 4 M10x50 hex bolt 800399
1.3 8 M12 hex locking nut 800419
1.4 8 Washer 934
1.5 8 M12x80 hex bolt 800421
1.6 2 M10 threaded rod I048164
1.7 4 M10 hex nut 800454
1.8 1 Securing brace assembly I048171
1.9 1 M12x16 hex bolt 00933
2.2 1 Firetable support beam
assembly
I048155
3 8 Firetable hanging con-
soles
I048156
4 2 M12x80 hex bolt 800421
5 2 M12 hex nut 800422
6 2 Supporting bracket I048168

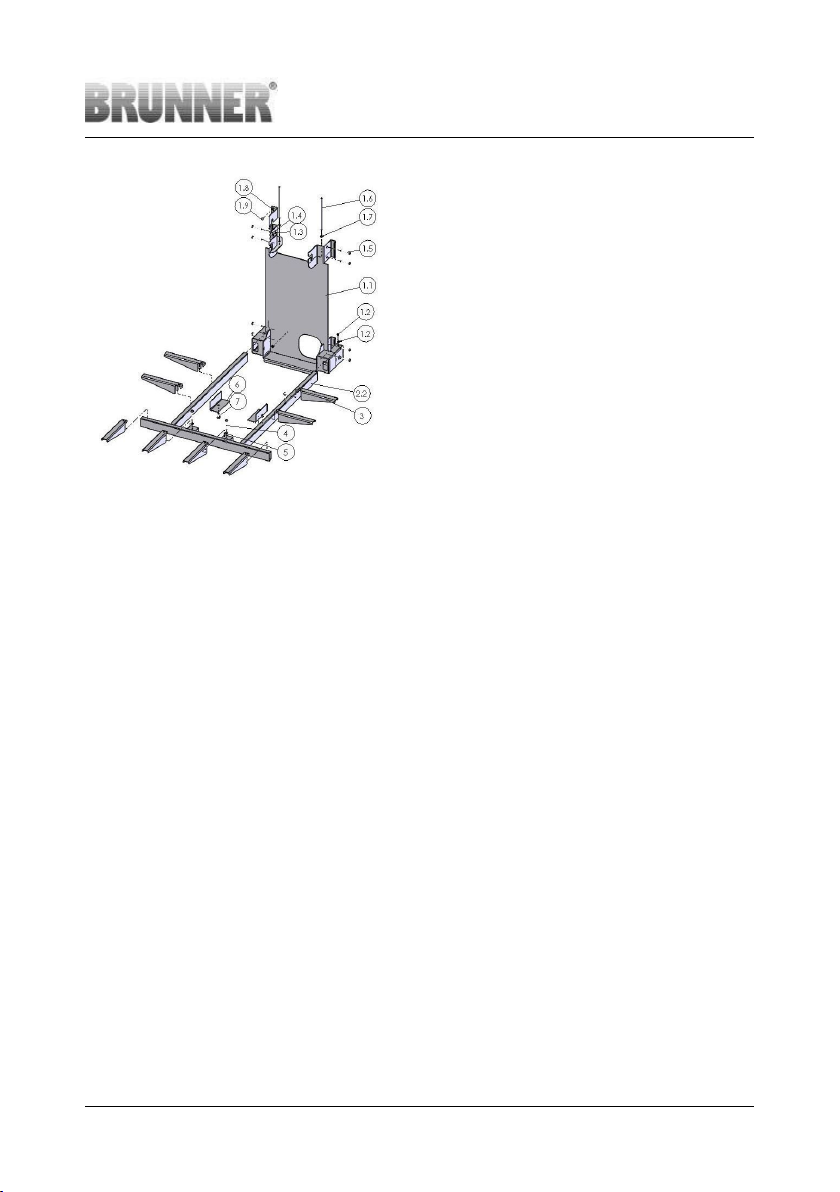

Illustr. 2: Delivery contents overview
(I048167)
7 2 M12x30 hex bolt

6 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
2 DESIGNATION OF COMPONENTS
Illustr. 3: Presentation of assembled fire-
place
A = Top door frame/support
B = Bottom door frame
C = Firetable
D = Finished floor
E = Concrete floor
F = Back plate
G = Firetable support beam
H = Hanging console
I = Support frame
3 NECESSARY TOOLS:
- 1 wrench for hex bolts size no. 8
- 2 wrenches for hex bolts size no. 17
- 2 wrenches for hex bolts size no. 19
- 1 wrench for hex bolts size no. 22
- Hammer
- Punch
- Spirit level

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 7
- 12 mm drill for steel (and a smaller drill for initial drilling)
- Power grinder
- Grinding and cutting disc for grinder
- Drilling machine
- Measuring rule
- Screw clamp
- Welding machine
- 4 anchor bolts M12 for support frame mounting to the floor
- Optional: anchors for support frame mounting to the back wall and a lifting
assembly for fireplace insert
4 SEQUENCE OF ASSEMBLY
1. Initial assembly of support frame I048140
Attach both connecting rods I048141 (horizontal
tubes) to the supports on the left and right side,
push the threaded rods through the tubes and af-
fix with M12 nuts and washers. Mount only the
two connecting rod assemblies first.

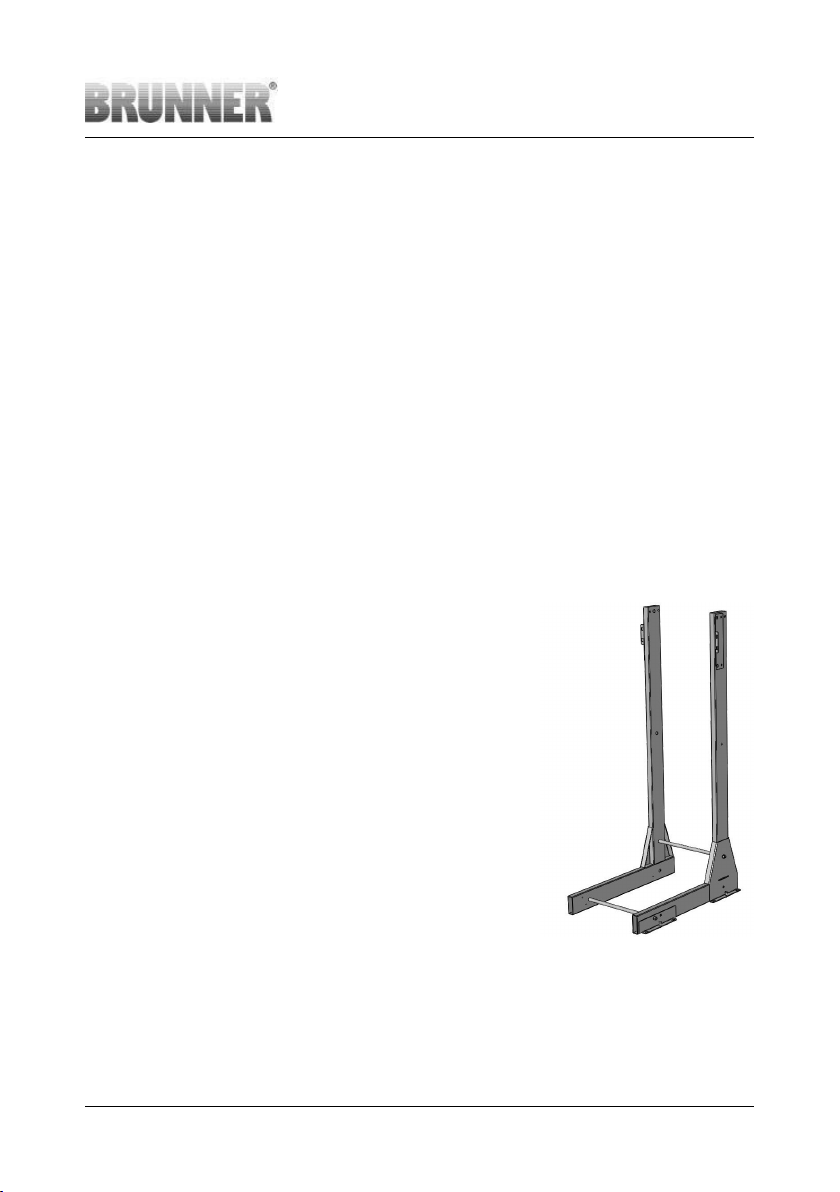

Illustr. 4: Support frame
with two connecting rods

8 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
2. Insert the back plate

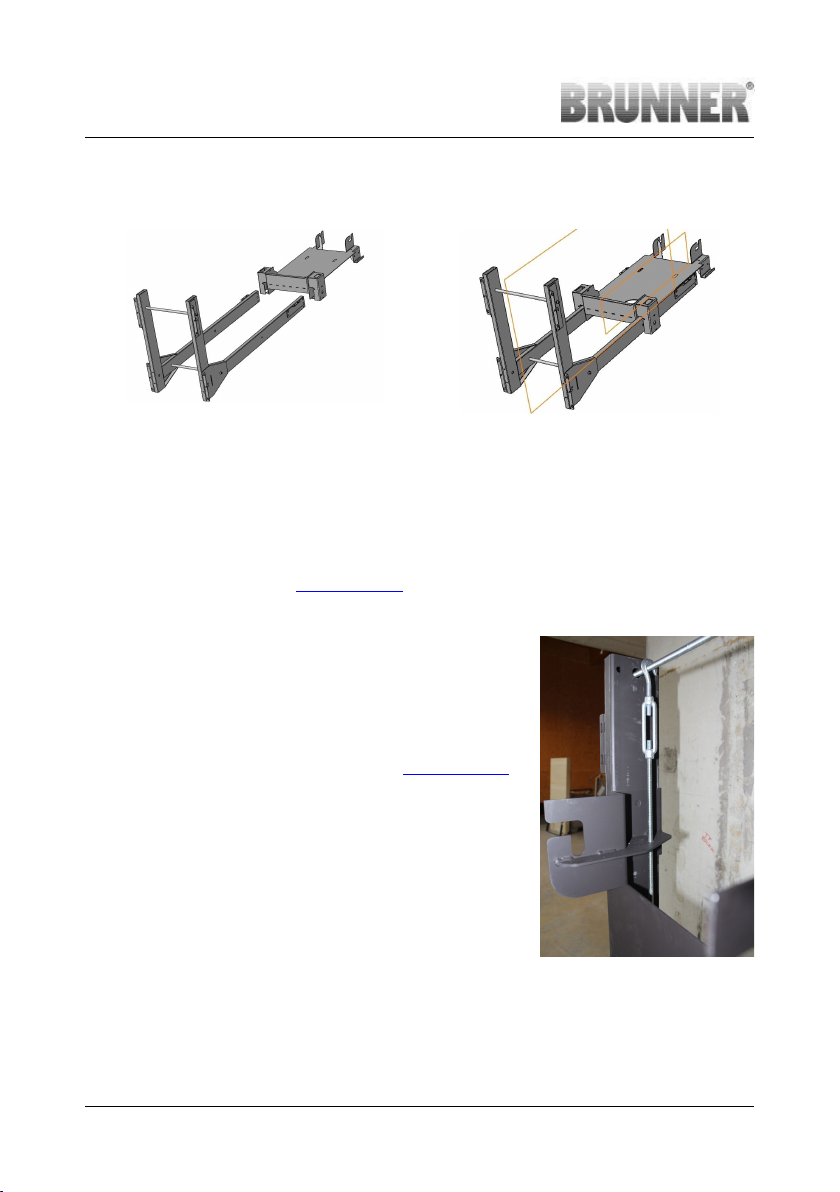

Illustr. 5: Back plate in position Illustr. 6: Move the back plate in
place
Remove the transport securing screws on the ends of the longer beams.
Insert the back plate onto both square profiles of the left and right girder.
Remove the 8 screws (see Illustr. 1 - 1.5) – if present.
3. Adjust the height of back plate
To adjust the height of back plate, mount the
hooks and the turnbuckles of the 'top door
frame' (delivery contents of every Panorama fire-
place) onto the M10 threaded rods (see Illustr. 2 -
1.6). Put the M12 threaded rod (from part no. 9 of
the support frame assembly) into the upper holes
of the girder and through the hooks. The height
of the back plate can be adjusted by turning the
turnbuckles.
Illustr. 7: Height adjust-
ment

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 9
The necessary height from concrete floor to sup-
porting level (see H-Auflager below) depends
from the floor structure and the desired mount-
ing height of the door frame above the finished
floor. The picture shows the way of establishing
the height and the use of spirit level necessary
for horizontal mounting.
Illustr. 8: Establishing the
height of support
Establishing height for back plate support adjustment:
The distance of the door frame to the finished floor depends from the height
adjustment of the back plate.

10 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH

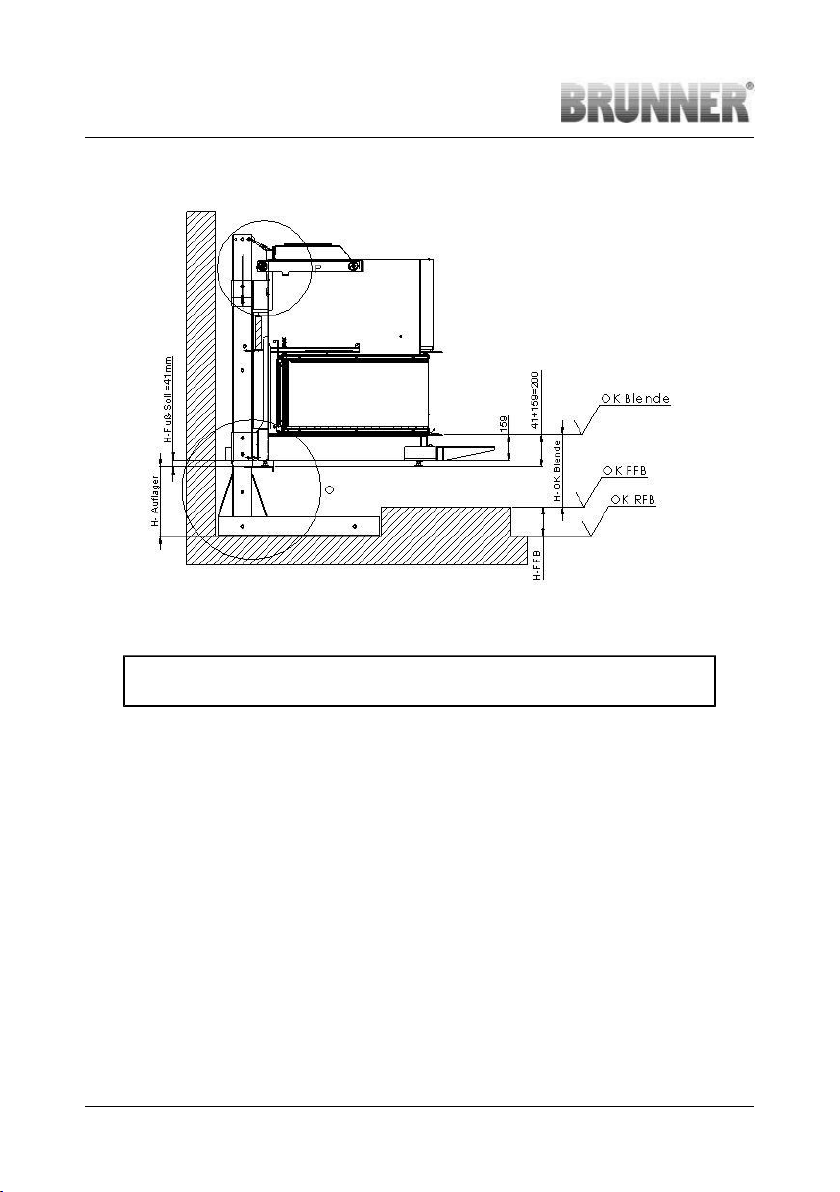

Illustr. 9: Support frame with back plate and suspended fireplace
H-Auflager = H-FFB + H-OK Blende -200mm
FFB = Finished
floor
H-FFB = Finished floor mounting height
RFB = Concrete
floor
H-Fuß
Soll
= Distance of feet to bottom of
fireplace
OK = Top level H-Au-
flager
= Distance of concrete floor to
supporting level
H-Oberkante Blende = Distance between FFB and door frame

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 11
4. Attach the back plate
After height adjustment, the back plate is at-
tached to both girders. Use the 8 bolts M12x80
(see Illustr. 2 - 1.5), but the necessary holes in
the girders must be drilled first. Drill from inside –
you can use the already provided 12mm holes in
the back plate for positioning. Put the bolts from
outside and secure with nut and washer.

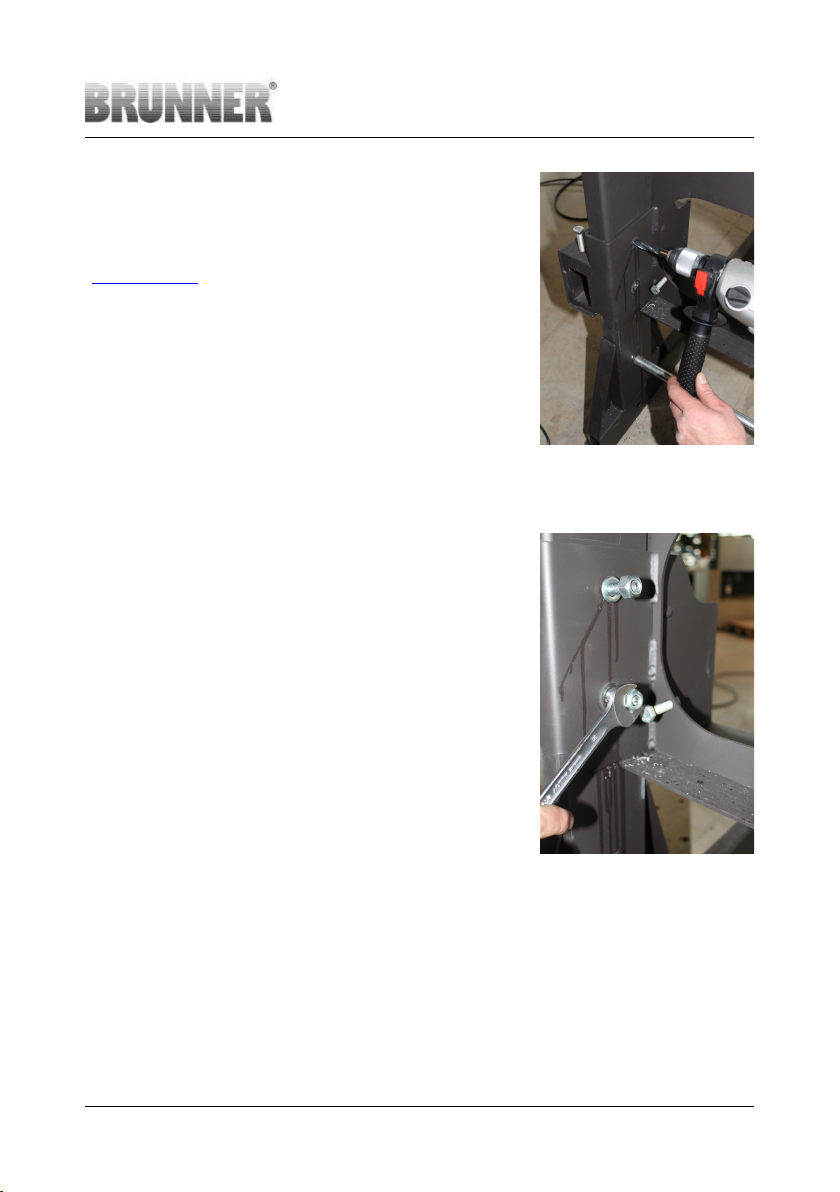

Illustr. 10: Drilling of holes
from inside
Illustr. 11: 2 bolts M12x80
per mounting face
5. Complete the connecting rod assembly
The parts used for height adjustment – turnbuckles and hooks – (see point
3.) must be removed along with the M10 threaded rods. The turnbuckles
and hooks are needed later for mounting the top door frame.

12 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
The both tubular pieces of the connecting rod assembly (see Illustr. 1 - 9)
are inserted from inside into the girders left and right. Then put the M12
threaded rods through the tubes and complete the assembly with screws.
6. Position and mount the support frame in place
Put the support frame in desired position and adjust to level on the concrete
floor (see Illustr. 1 - adjusting screws 4) and attach it to the floor (e.g. M12
anchor bolts). Provide for attachment onto the building wall, if possible.
7. Suspend the fireplace
Preparation:
- Remove the steel ropes protection cover (from
the back of fireplace, where the counterweights
are moving) – it is not needed anymore.
- Lift the sliding door up
- Turn the adjustable feet on the rear to retract
them completely
Suspending:
- Bring the fireplace from the front to the support
frame, lift it up and fit the transversal strut into
the suspension brackets of the back plate
- Position the fireplace in the center of the sup-
port frame.
Illustr. 12: Suspending the
fireplace using a lifting de-
vice

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 13

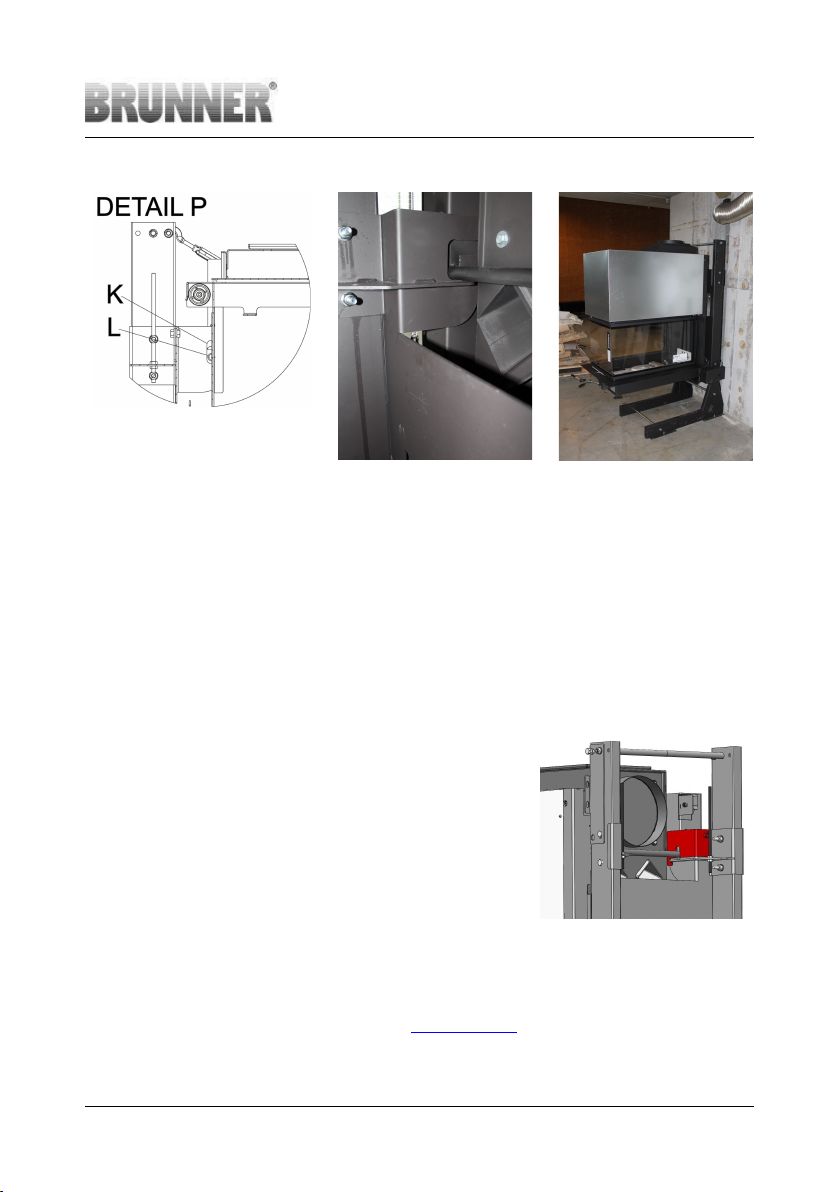

Illustr. 13: Detail P on pic-
ture: 'Support frame with
back plate and suspended
fireplace'
K = Suspension bracket of
the back plate
L = Transversal strut of
the fireplace
Illustr. 14: Suspension
point on the back plate
Illustr. 15: Fireplace on
support frame
8. Mount the securing brace
Caution – Safety notice!
The fireplace must be lifted up during the
height adjustment of the adjustable feet. This
will cause the transversal strut to move up in
the suspension bracket. To avoid the trans-
versal strut falling out from the back plate,
the securing brace must be used!
The brace is mounted onto the stiffening profile
and attached with a M10x16 screw ( see Illustr. 2
- pos. 1.9).
Illustr. 16: Mounting posi-
tion of the securing brace

14 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
9. Adjust the fireplace to level
The fireplace actually rests on the transversal
strut only. Using the adjusting screws at the back
plate, adjust the fireplace vertically. Finally, turn
the adjustable feet at the rear to expose 41 mm
of them. Check the height and level – adjust if
necessary.
Caution: Adjust the feet only when the se-
curing brace (see point 8) is mounted! When
the securing brace is not mounted, there is
a risk that the transversal strut will detach
from the back plate guides and the fireplace
falls down! Turn the adjustable feet to expose
them for max. 55mm (dimension 'H-Fuß' <
55mm).
Illustr. 17: Position of the
adjustment screw (De-
tail O on picture: 'Support
frame with back plate and
suspended fireplace'
10. Mount the top door frame
Designation of components
Illustr. 18: Mounting of top door
frame/support
Illustr. 19: Detail K

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 15
10 = Bottom door frame 32 = M10 threaded rod
11 = Side/back of door frame 33 = Turnbuckle
18 = Girder 34 = Hook
19 = Connecting rod 42 = Suspension point, consists of
M12x80 bolt, M12 nut acc. to DIN934
and M12 locking nut
20 = Top door frame/support 44 = Point of fixing to building
wall
Illustr. 20: Mounting point for
top door frame/support (see
Illustr. 18)
31 = Screw (as mounting aid)
41 = Screw (top door frame mounting
point on girder)
Working steps:
- Prepare suspension points (42)
Insert a DIN 934 nut (without lock) into the hexa-
gon slots on the top of both girders, then tighten
the bolt from the inside. Set the DIN980 nut in a
distance of 12mm to the DIN 934 nut. Illustr. 21: Preparation of
suspension on girder
- Affix the girder to the building wall behind the fireplace
If possible, use steel anchors to attach the girders on both sides to the
building wall. Use the protruding flaps 44 ()see Illustr. 19 for this.

16 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
- Put the door frame in place and provide for
necessary support
Preparation: The mounting aid screws 31 (see
Illustr. 20) must be removed from the fireplace in-
sert.
Top door frame (see Illustr. 18 - 20) must rest on-
to the sides/back of door frame (11). The frontal
bend of the top door frame should be positioned
behind the covering panel (see Illustr. 23). Jack
up the top door frame in front (see Illustr. 24) and
attach to the insert with screws - use screws 31
on both sides.
Illustr. 22: Door frame in
place and attached with
screw 31 as mounting aid
Illustr. 23: Detail M
Illustr. 24: Jacking up the top
door frame
- Provide suspension
Threaded rods (see Illustr. 19 - 32) must be shortened to desired length;
combine the turnbuckles with hooks (33+34) and attach at suspension
points (42).

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 17

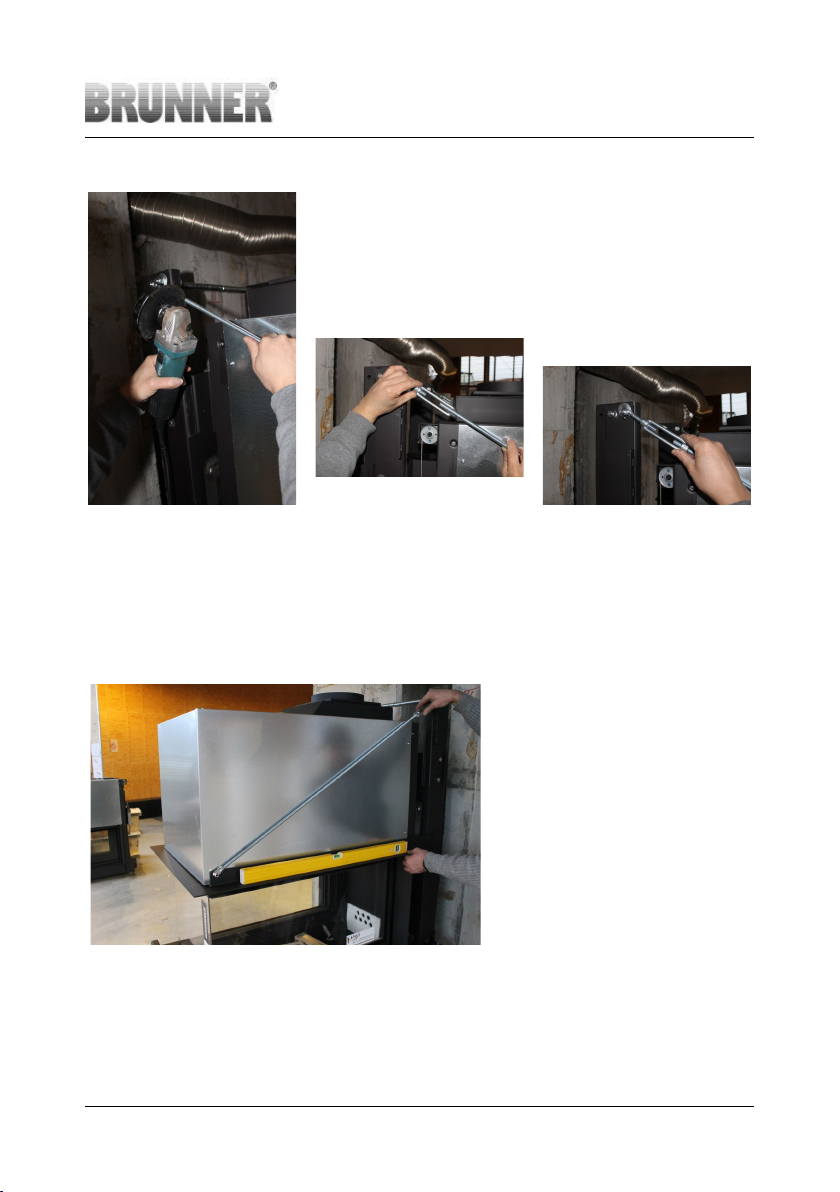

Illustr. 25: Shorten-
ing of threaded rod
Illustr. 26: Assem-
ble the turnbuckles
with threaded rods
Illustr. 27: Suspend-
ing the turnbuckle
- Leveling the top door frame
Illustr. 28: Turn the turnbuckles on both sides until
the door frame is leveled in every direction

18 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
- Affix the top door frame
Note:
Before affixing the top door frame check the height from finished floor to
firetable top in various places and readjust if necessary. After fixing the
door frame the height adjustment is not possible anymore!
Drilling holes through girders left and right in the center of holes (see
Illustr. 20point 41) in top door frame. Drill horizontally (work precisely) and
attach on both sides with M12x80 bolts and nuts. Put a B13 washer be-
tween the top door frame and the girder in order to compensate the differ-
ence in width of the fireplace insert and the girders.
Illustr. 29: Drilling through gird-
ers
Illustr. 30: Tightening the
M12x80 screw
Finally, remove the mounting aid screws (see
Illustr. 20 - 31) on both sides. This will cease the
connection between the fireplace and the top
door frame – thermal expansion of the fireplace
insert do not have any effect on the door frame
and the fireplace cladding. Illustr. 31: The connection
between top door frame
and fireplace is lost af-
ter the screws 31 are re-
moved

© 2015 Brunner GmbHAssembly instructions Support frame for suspended fireplaces (1.0) 19

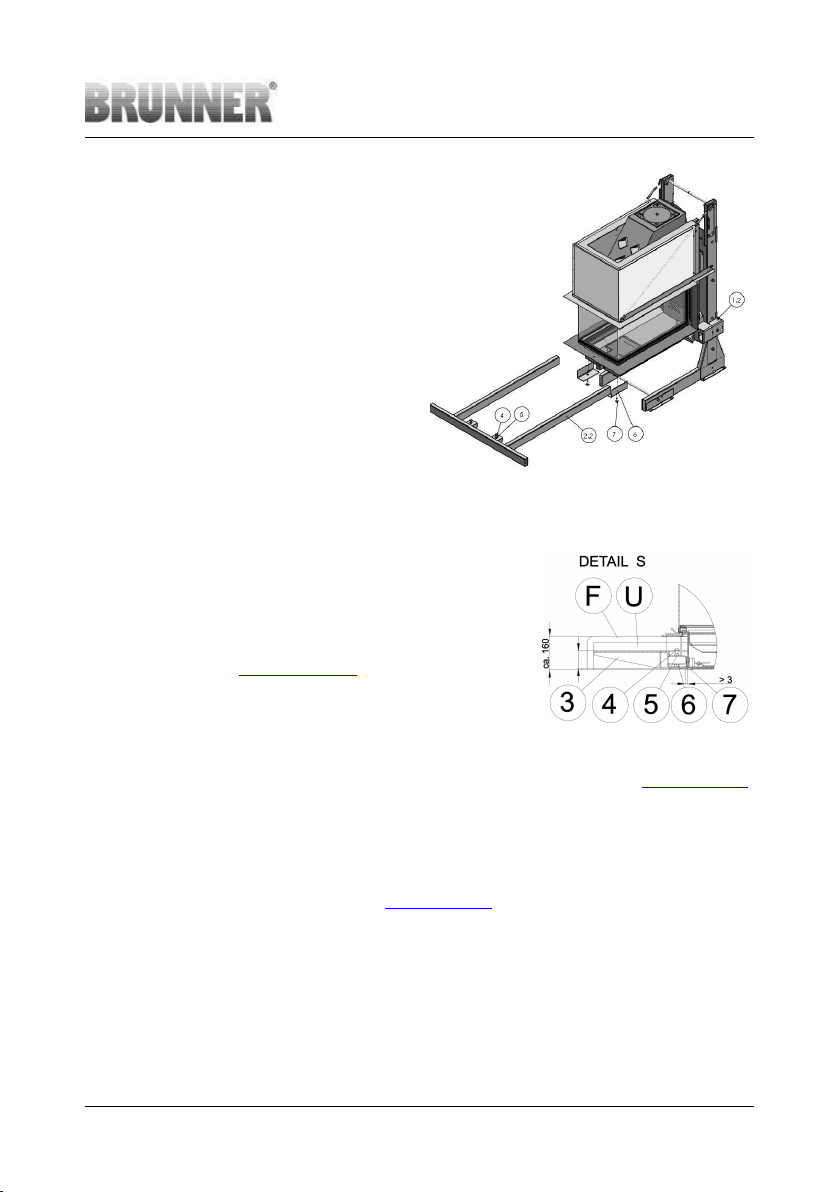

11. Mounting and leveling of
firetable supports
1.2 = Support adjusting screw
2.2 = Firetable support beam
4 = M12x80 bolt
5 = M12 nut
6 = Supporting bracket
7 = M14x30 screw
Illustr. 32: Mounting parts of firetable
support
Working steps:
Remove the adjustable feet from the fireplace
front on the left and right. This is where the sup-
porting brackets (see Illustr. 33 - 6) are mounted
with screws (7).
Push the firetable support beams into the mount-
ing slots of the support frame. The rectangular
beam in front should be positioned close to the
fireplace, but remember to leave at least a 3mm
gap between them. If the gap is too wide, cut
the supporting beams on both sides to the same
length. Use the adjusting screws (see Illustr. 2 -
1.2) to set in level.
After the horizontal position is set, tighten the
bolts 4 (see picture: Detail S and picture: 'Mount-
ing parts of firetable support') up to the support-
ing bracket 6 and secure with nuts 5.
Illustr. 33: Detail of
firetable (see Illustr. 36)

20 Assembly instructions Support frame for suspended fireplaces (1.0)© 2015 Brunner GmbH
3 = Hanging console
4 = M12x80 bolt
5 = M12 nut
6 = Supporting bracket
7 = M14x30 screw
F = Firetable
U = Substructure
The firetable support should be welded (contin-
uously, if possible) to the girders on both sides.
Prepare surface before welding (remove paint). Illustr. 34: Welding posi-
tions
12. Mounting and leveling of firetable con-
soles to the firetable support beam
The consoles (see Illustr. 2 - 3) should be cut
to desired length, depending on the width of
firetable.
Arrange the consoles in even steps on the
firetable support beam and set in level. Welding
of consoles – the welding spots should be free
from paint too.
Illustr. 35: Leveling of con-
soles and affixing for weld-
ing
13. Construction of firetable
The necessary substructure for the firetable is
set onto the consoles. The height is only approx.
70mm – depending on the height setting choice.
Illustr. 36: Firetable sec-
tion
