Brunner Iron dog 06 User manual

User manual
IRON DOG 06
©2019

2 User manual (1.9) © 2019 Brunner GmbH
Iron Dogs
are cast Iron stoves made in Germany, manufactured by a family business
in the 3th generation, specialized in making fireplaces. In this series all their
knowledge and craftsmanship come together in an exceptional stove of an
exceptional quality. Therefore also the exceptional name »IRON DOG« for
exceptional people or as a gift to friends.
Winter can come; we’re looking forward to it.
Welcome to the IRON DOG family.
Eggenfelden, August 2007
Ulrich Brunner
The name >>EISERNER HUND<< - >>IRON DOG<< - is a registered and
protected mark. Individual models are registered as design patents.

© 2019 Brunner GmbH User manual (1.9) 3
CONTENTS
1 My Iron Dog....................................................................4
2 Technical data................................................................5
3 Safety guidelines......................................................... 13
4 Basic principles........................................................... 14
5 Firewood and heating power......................................17
6 Seasoning of firewood................................................19
7 Amount of fuel............................................................. 20
8 Operation...................................................................... 20
9 Heating with the Iron Dog...........................................25
10 Ashes............................................................................ 26
11 Cleaning and maintenance......................................... 26
12 Hint................................................................................ 29
13 Error search................................................................. 30
14 Attention....................................................................... 31

4 User manual (1.9) © 2019 Brunner GmbH
IRON DOG
Please read the entire User Guide before lighting the fire for the first time.
In particular, please note the safety precautions in this manual. The User
Guide, as well as national or EU standards and local regulations must be
observed. Your specialized enterprise and IRON DOG partner can give you
the most current information and details.
Please keep the User Guide for future reference!
1 MY IRON DOG
An EISERNER HUND is a special cast iron stove. It’s a friend for life. Its life
expectancy is about generations and it will do good services to its owners –
therefore treat it well.
Nearly all components of the IRON DOG are made of solid cast iron. Ash
boxes, screws and bolts are made of stainless steel. A special, tempera-
ture-firm color coating protects the surface. All components of this cast iron
stove are manufactured and assembled in Germany with great care

© 2019 Brunner GmbH User manual (1.9) 5
2 TECHNICAL DATA

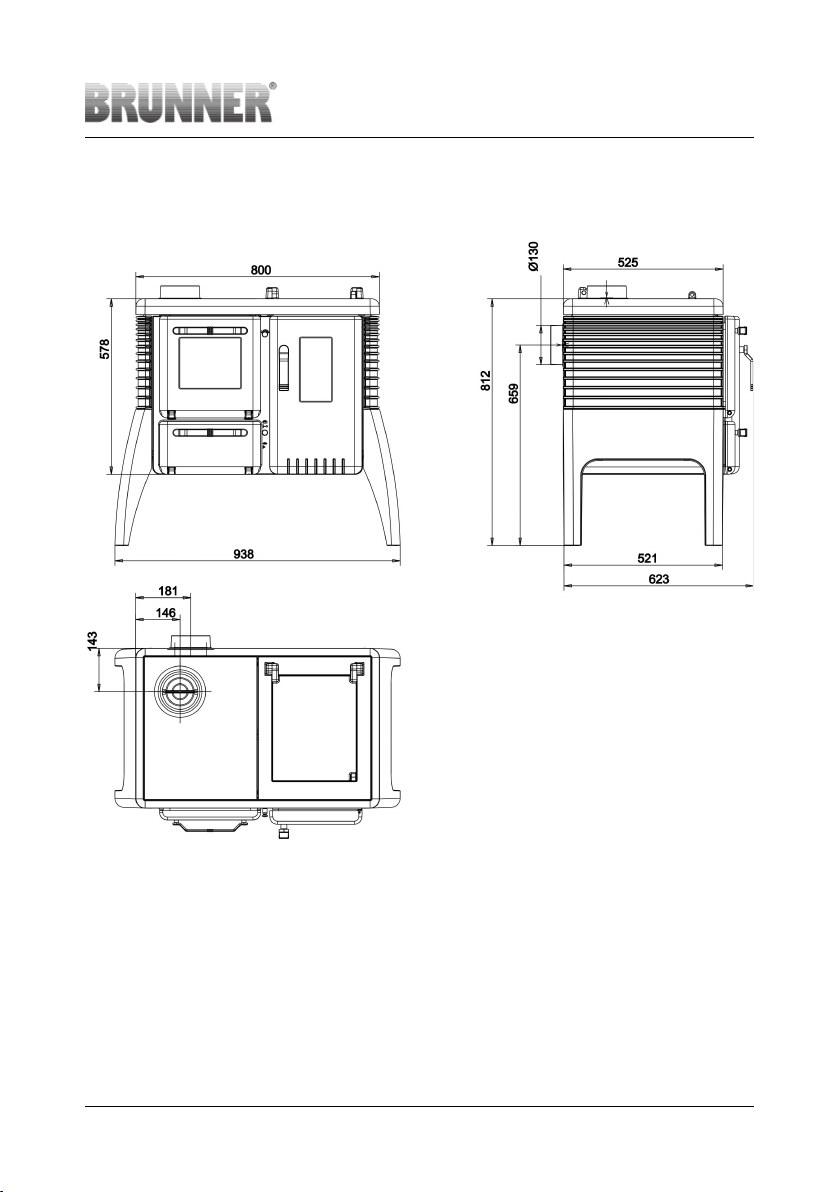

Illustr. 1: Dimensions

6 User manual (1.9) © 2019 Brunner GmbH
Illustr. 2: Components

© 2019 Brunner GmbH User manual (1.9) 7
Pos Denomination Art N°
1 CG Base K011094
2 CG Base plate K011092
3 Rear K011003
4 CG Front K011098
5 CG hot plate K011061-4
6 Side panel K011007
7 CG Oven K011015
8 CG Fire chamber lining K011132
9 CG Bottom grate K011036
10 Grill grate K011037
11 CG left side fire chamber K011111
12 CG Ash compartment bottom K011134
13 Ash pan K011048
14 CG Firing door complete K011056
15 CG Soot door front K011114
16 CG Oven door K011068
17 CG Soot door K011083
18 CG right side fire chamber K011112
19 CG Steal corpus K011021
20 CG exhaust gas stub K008096
21 Firing door air control K011084

8 User manual (1.9) © 2019 Brunner GmbH
Illustr. 3: Fire door components group
Pos Denomination Art N°
14.1 Fire door K011096
14.2 CG Heat shield ash compartment K011054
14.3 CG Heat shield window firedoor K011097
14.4 CG Outer window firing door K011133
14.5 Inner window firing door K011058
14.6 CG Doorhandle K007018
14.7 Cylindric screws M8 x 16
14.8 Set screw M8 x 30

© 2019 Brunner GmbH User manual (1.9) 9
Illustr. 4: Oven door components group
Pos Denomination Art N°
16.1 CG Oven door K011091
16.2 Inner pannel oven door K011069
16.3 Oven door handle K011018
16.4 Countersunk screws M5 x 10
16.5 Cylindric screws M5 x 16
16.6 Cylindric screws M5 x 6
16.7 CG Oven door glass plates K011095
16.8 Torsion bar cover K011145
16.9 CG Torsion bar K011090

10 User manual (1.9) © 2019 Brunner GmbH

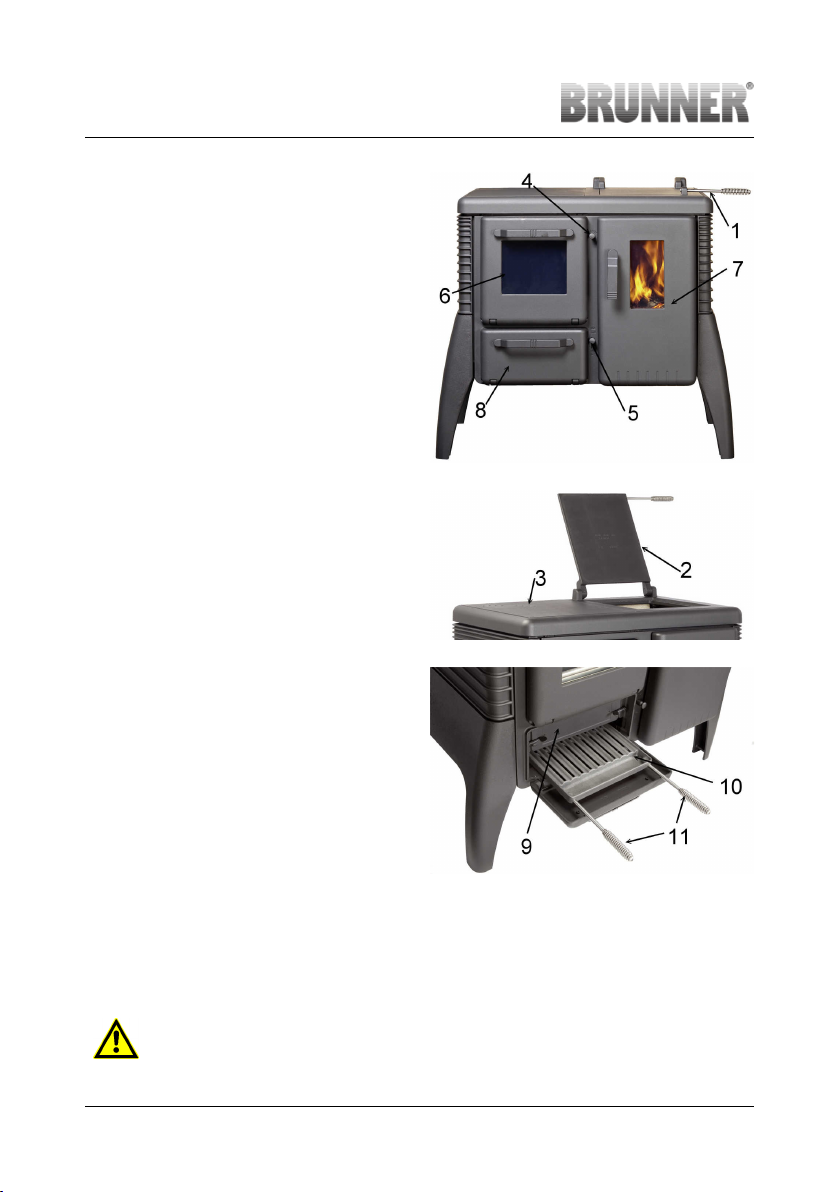

1 Stove top cover lever
2 Pivoting hot plate cover
3 Stove top
4 Start-up valve push rod
5 Air control push rod
6 Oven
7 Firing door
8 Stow compartment (Grill grate /
Control levers)
9 Soot door
10 Grill grate
11 Grill grate levers
Components that are needed for
grilling are only part of the models
with grill function!
Illustr. 5: Components Iron Dog 06
Two control levers are given with the Iron Dog 06. They are used for opera-
tion of the stove top covers as well as for the grill grate.
During combustion the pivoting stove top cover must always be
closed. Fire risk!

© 2019 Brunner GmbH User manual (1.9) 11
Illustr. 6: Minimal distances

12 User manual (1.9) © 2019 Brunner GmbH
values
Heat output kW 8
Flue gas mass flow g/s 11
Exhaust gas temperature (at exhaust gas stub)) °C 290
Necessary chimney draught Pa 13
Consumption / h kg 2,5
Heating capacity m360 - 110
Efficiency % 82
Combustion air consumption m3/h 18
appliance data
Measures (h x w x d) mm 810x94x625
Window (h x w) mm 207x102
Fire chamber opening (h x w) mm 238x267
Exhaust gas stub top / rear
Exhaust gas stub, diameter mm 130
Maximum filling quantity kg 2 - 3
Fire chamber depth cm 45
Reccommended log lenght cm 25 - 33
Total weight cast iron kg 310
required minimal distances
to side wall cm 25
to rear wall (with radiation sheet) cm ---
to rear wall (without radiation sheet) cm 20
approvals
EN 12815

© 2019 Brunner GmbH User manual (1.9) 13
3 SAFETY GUIDELINES
Radiation range
Do not bring inflammable materials within an 80 cm radiation
range of the IRON DOG! Fire risk! Don’t put inflammable objects
on the stove top, under the cast iron stove or in between the rear
of the stove and the wall behind.
First starting-up
Up to the first reaching of the maximum operating temperature
the protective paint hardens out. This can give some smelling nui-
sances. Provide therefore for sufficient ventilation of the installa-
tion area. Open doors and windows. Don’t stay unnecessarily in
the concerned area. Never use products as gasoline, white spirits
or the like to start a fire!
Burning risk
The external surfaces of the IRON DOG become hot, especially
the window of the fire door.
Don’t touch – Burning risk!
Particularly warn children for this. Keep children away from the
heated IRON DOG.
Use safety gloves during operation.

14 User manual (1.9) © 2019 Brunner GmbH
Ashes
Empty the ash pan only when the ashes are cold and keep them
during at least 24 h in a fire resistant container. Fire risk by re-
maining glow! In case of fire, call the fire-brigade!
Chimney fire
In case of a chimney fire, remove all inflammable objects from the
chimney. Beware of flying sparks. Call the fire-brigade!
Fire door
The fire door of the IRON DOG may only be opened for bringing
in wood or for cleaning. During use with open fire door, the stove
is too heavily charged, smoke or fire can come out and glowing
particles can be ejected. There is the danger of a flue gas poison-
ing. The fire chamber of the IRON DOG is also to be kept closed
when the stove is not heated.
4 BASIC PRINCIPLES
Cast iron stoves of the IRON DOG series function according to the prin-
cipal of ‘burning from above’ and are heated with the intermittent burning
method. The wood load degases with beautiful flames in approximately 60
- 70 minutes and produces a heating output between 5 - 9 kW/h depending
on the quantity of wood (1,5 kg - 2,5 kg).

© 2019 Brunner GmbH User manual (1.9) 15
Cast iron stoves of the IRON DOG series are tested according to EN
13240 / EN 12815 and can be used with a closed fire door. Connecting
more than one stove to a chimney is possible if the chimney is suited for
this (ask the chimney sweep).
Air supply to the setting up area
The IRON DOG can only function properly when the combustion air supply
at the setting up area is sufficient. Before heating up make sure there is a
sufficient supply of fresh air. In the building existing mechanisms for com-
bustion air supply should not be changed.
Fuel
Use only suitable burning wood in the indicated quantities and qualities.
Too small amounts of burning wood lead to insufficient combustion quality.
Too large amounts of burning wood lead to overheating and damage to the
equipment. Fire risk!
Heat output
The cast iron stoves of the IRON DOG series are designed to be used with
the intermittent wood burning method; the heat output is determined by the
quantity of wood used and by the distances in time between the firing oper-
ations. The right time to put on more wood has come when the wood has
nearly been burned down to glow.
Combustion air regulation
For a simple operation the air income is regulated with one single air con-
trol rod. Please heat with the given combustion air regulations. Insufficient
combustion air leads to an increased environmental impact, bad efficiency
and creosote in the stove and the chimney.

16 User manual (1.9) © 2019 Brunner GmbH
Heating operation
We recommend using safety gloves during operation, since the operating
elements become hot. Open the door slowly – this way no turbulences de-
velop, which let flue gases escape.
Flue exhaust/heating during transitional periods
The IRON DOG needs sufficient chimney draught for drawing in the com-
bustion air and exhausting the flue gases. It diminishes with rising outside
temperatures and this can lead to problems to start a fire. When outside
temperatures are over 15°C, please check the chimney draught. (for exam-
ple open the door and keep a burning fire lighter at the entry of the flame
channel – flame and flue gases must visibly take off). In case of too little
draught first light kindling and add burning wood when the draught has
been created.

© 2019 Brunner GmbH User manual (1.9) 17
5 FIREWOOD AND HEATING POWER
The combustion process in our devices has been optimized to enhance
their performance and reduce emissions. You can support our efforts to
protect our environment by respecting the following recommendations for
low-emission heating: Use only dry, natural wood with a residual humidity
factor below 20%, or wood briquettes according to DIN EN 17225-3, Class
A1, length >14 cm (5.51 in), diameter >8 cm (3.15 in).
Damp, freshly cut or improperly stored wood has a high water content,
therefore does not want to burn, makes a lot of smoke and gives not much
of heat. Use only firewood which has been stored for at least two years in
a dry place with sufficient air circulation. Because dry wood is much more
calorific, you can save on fuel costs.
For example: Dry wood has a calorific value of approx. 4 kWh/kg, freshly
cut wood only 2 kWh/kg. You will need twice the amount of wood to achieve
the same heating power.
Water content g/kg
wood
Calorific value
kWh/kg
Consumption
raised by %
very dry 100 4.5 0
stored for 2 years 200 4 15
stored for 1 year 350 3 71
freshly cut wood 500 2.1 153
Natural firewood (left) is the
best fuel for fireplaces, but you
can use also wood briquettes
according to DIN 17225-3,
Class A1, length >14 cm (5.51
in), diameter >8 cm (3.15 in)
(right).

18 User manual (1.9) © 2019 Brunner GmbH

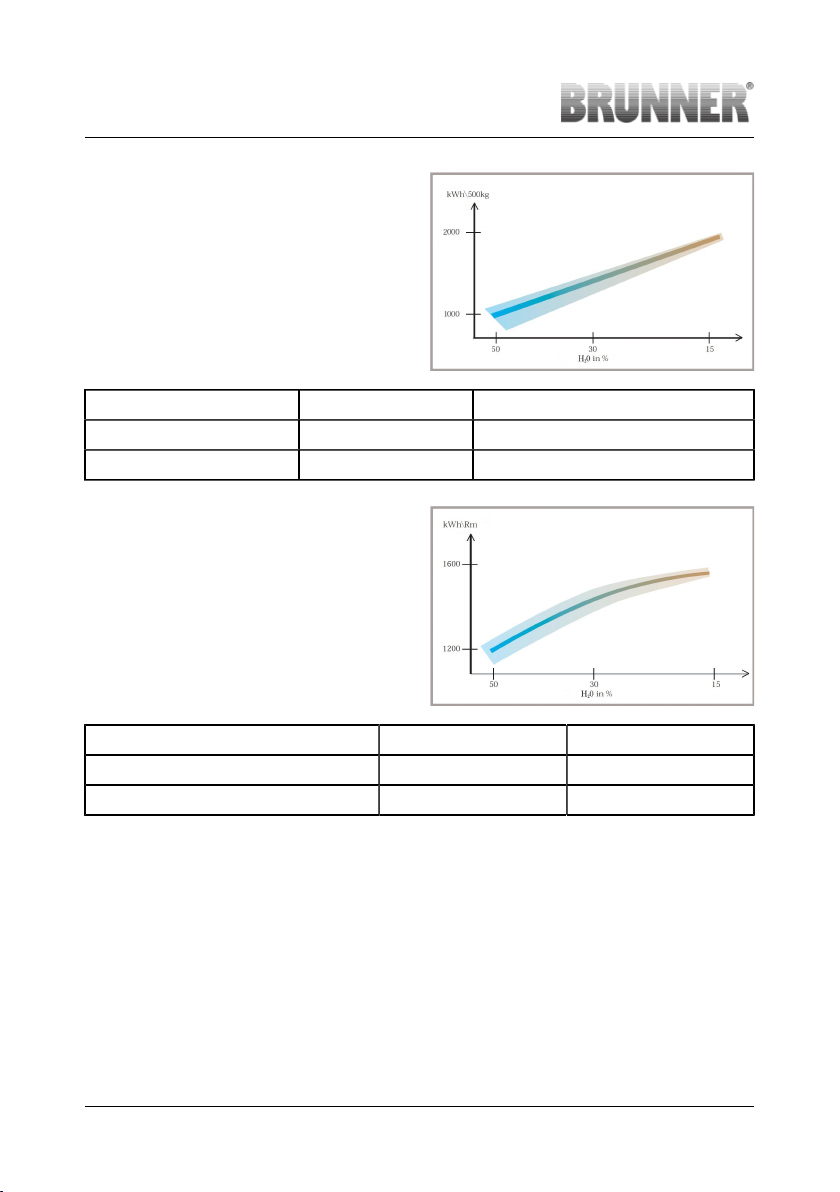

What amount of heat will I get when
buying wood per weight?
500 kg freshly cut wood Water content 50% 500 kg x 2.0 kWh/kg = 1000 kWh
500 kg dried wood Water content 30% 500 kg x 3.3 kWh/kg = 1650 kWh
500 kg dry wood Water content 15% 500 kg x 4.1 kWh/kg = 2050 kWh
What amount of heat will I get when
buying wood per volume (1 cubic
meter = 1 m3)?
1 m3 freshly cut wood Water content 50% 1286 kWh
1 m3 dried wood Water content 30% 1518 kWh
1 m3 dry wood Water content 15% 1550 kWh
Most suitable for use in open fireplaces are all types of hardwood, like
beech or birch. Softwood species (conifers) have a closed-cell structure
which is bursting during combustion, causing glowing embers to be thrown
out of the fireplace. Hardwood is burning more calm and evenly.
You can control the heat radiation intensity by volume of wood and the in-
tervals for stoking up.

© 2019 Brunner GmbH User manual (1.9) 19
Adjusting the heat by reducing the volume of combustion air is wrong! If
there is not enough combustion air available, the energy contained in fire-
wood cannot be completely released. At the same time, the emissions are
rising due to unburned particles.
Too much of firewood or inappropriate fuel types can cause overheating
and damage.
No kind of waste shall be burned in a fireplace!
Waste on fire = Toxins in your garden!
Never use combustible fluids, like petrol or alcohol to light a fire!
Mind the waste incineration ban!
Remember to use only the recommended fuels described in this
User Guide. Unsuitable, not recommended fuels are not allowed
to be burned in a fireplace.
6 SEASONING OF FIREWOOD
After cutting the trees, the wood should be seasoned in an open and dry
place and protected from rain and snow.
The best time to cut trees is from December till February.
Firewood should be stored under a roof or in a ventilated building (shed).
Do not store freshly cut wood in the cellar or in a closed area. It can’t dry
there.
Our best 3 tips
for heating with wood to become an experience.
1) dry wood

20 User manual (1.9) © 2019 Brunner GmbH
2) dry wood
3) dry wood
7 AMOUNT OF FUEL
EHeat output regulation by reducing the combustion air is wrong!
By lack of combustion air the calorific capacity of the fuel can’t be set free
completely. At the same time the emissions increase over the unburned
portions.
To large amounts of fuel or unsuitable fuel can lead to excessive heating
and thus to damage.
Filling weight Log lenght Log size
1,5 kg - 3,0 kg 25 cm - 33 cm 20 cm - 30 cm
8 OPERATION
Grill and barbecue functions which are described here are only available in
the models with grill function.
Consider also the denomination of the components related to this in the
chapter 'Technical Data’.
